2024 FORD F650/750 Owners Manual

Drivebelt Routing
Single Alternator
Drivebelt closest to the engine.A
Drivebelt furthest from theengine.B
Dual Alternator
Drivebelt closest to the engine.A
Drivebelt furthest from theengine.B
MOTORCRAFT PARTS - 6.7L DIESEL
Part NumberComponent
FL-2124-SEngine oil filter.1
FA-1909Foam pre-filter.
FA-2061Air filter.
FD-4637Fuel filter kit (2 included - engine and framerail mounted).
FT-221Transmission filter.
BH-31-XLTwo batteries (standard)(1500 CCA).
293
2024 F-650/750 (TBC) , enUSA, Edition date: 202210, First-PrintingCapacities and SpecificationsE388771 E388772

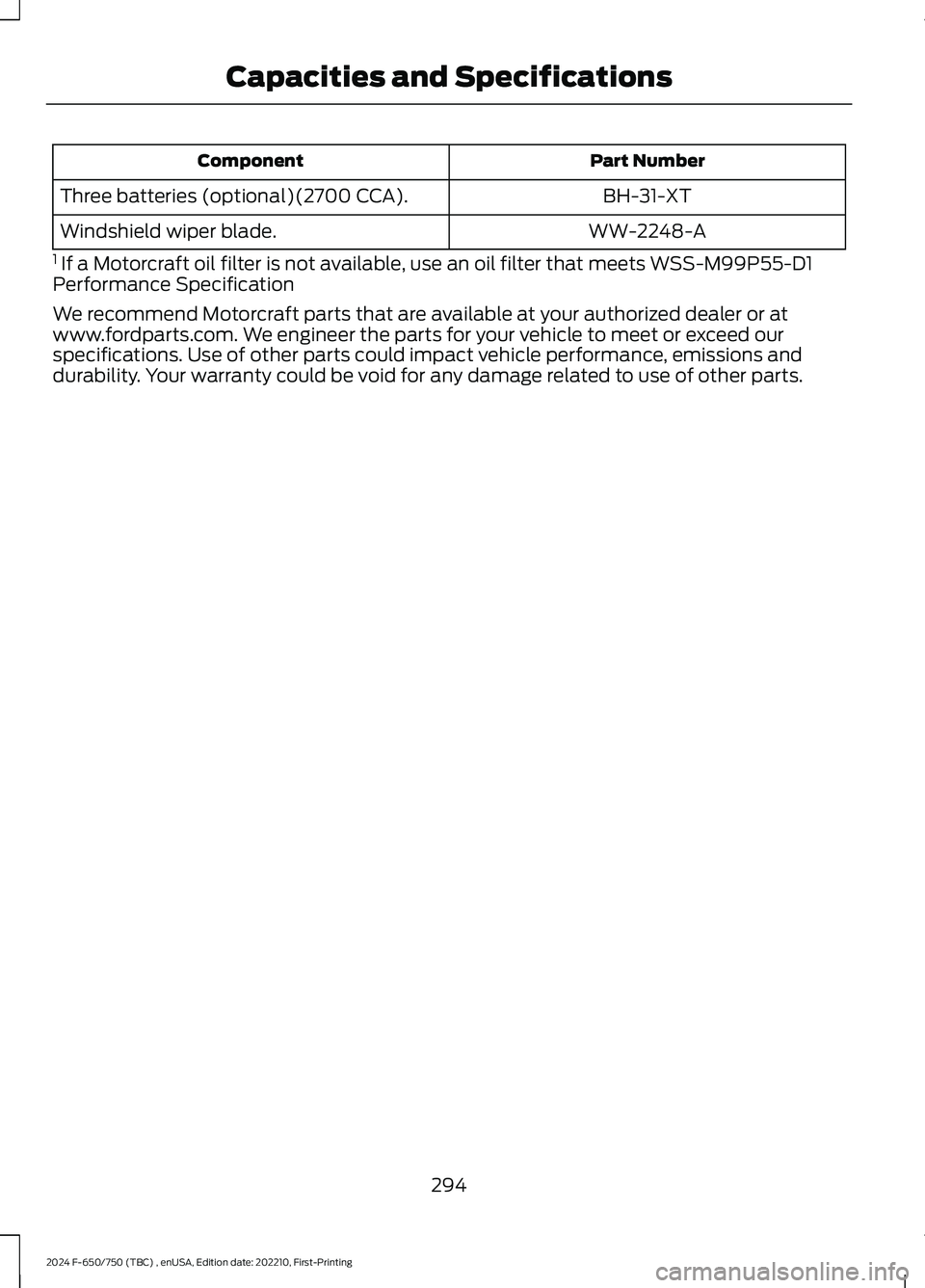

Part NumberComponent
BH-31-XTThree batteries (optional)(2700 CCA).
WW-2248-AWindshield wiper blade.
1 If a Motorcraft oil filter is not available, use an oil filter that meets WSS-M99P55-D1Performance Specification
We recommend Motorcraft parts that are available at your authorized dealer or atwww.fordparts.com. We engineer the parts for your vehicle to meet or exceed ourspecifications. Use of other parts could impact vehicle performance, emissions anddurability. Your warranty could be void for any damage related to use of other parts.
294
2024 F-650/750 (TBC) , enUSA, Edition date: 202210, First-PrintingCapacities and Specifications

MOTORCRAFT PARTS - 7.3L
Motorcraft Part NumberComponent
FA-2061Air filter element.
BH-31-XTOne battery (standard)(900 CCA).
BH-31-XTTwo batteries (optional)(except for LimitedSeries)(1800 CCA total).
BH-31-XTThree batteries (optional)(2700 CCA).
FL-820-SEngine oil filter.1
SP-589Spark plug.
FT-187Transmission fluid filter.
WW-2248-AWindshield wiper blade.
1 If a Motorcraft oil filter is not available, use an oil filter that aligns to SAE/USCAR – 36Performance Specifications. Filter Type D
We recommend Motorcraft parts that are available at your authorized dealer or atwww.fordparts.com. We engineer these parts for your vehicle and to meet or exceed ourspecifications. Use of other parts could impact vehicle performance, emissions anddurability. Your warranty could be void for any damage related to use of other parts.
295
2024 F-650/750 (TBC) , enUSA, Edition date: 202210, First-PrintingCapacities and Specifications

BULB SPECIFICATION CHART
Replacement bulbs are specified in thechart below. Headlamp bulbs must bemarked with an authorized “D.O.T.” for
North America and an “E” for Europe toensure lamp performance, light brightnessand pattern and safe visibility. The correctbulbs will not damage the lamp assemblyor void the lamp assembly warranty andwill provide quality bulb illumination time.
Trade nameNumber of BulbsFunction
H13/90082Headlamps
W5W2Side marker lamp - front
3157NA2Park/Turn lamp- front
31572Tail/stop/turn/side marker
31572Reverse
31571License plate lamp
9121High-mount brake lamp
12V6W2Map lamp
5783Dome/reading lamps
28252Interior visor lamp
28252Mirror turn signal
28252Mirror clearance lamp
1945Front clearance lamps andfront identification lamps
Note:To replace instrument panel lights,see an authorized dealer.
ENGINE OIL CAPACITY AND
SPECIFICATION - 6.7L DIESEL
Use oil that meets the definedspecification and viscosity grade.
If you do not use oil that meets the definedspecification and viscosity grade, it couldresult in:
•Component damage that your vehiclewarranty does not cover.
•Longer engine cranking periods.
•Increased emission levels.
•Reduced vehicle performance.
•Reduced fuel economy.
296
2024 F-650/750 (TBC) , enUSA, Edition date: 202210, First-PrintingCapacities and Specifications

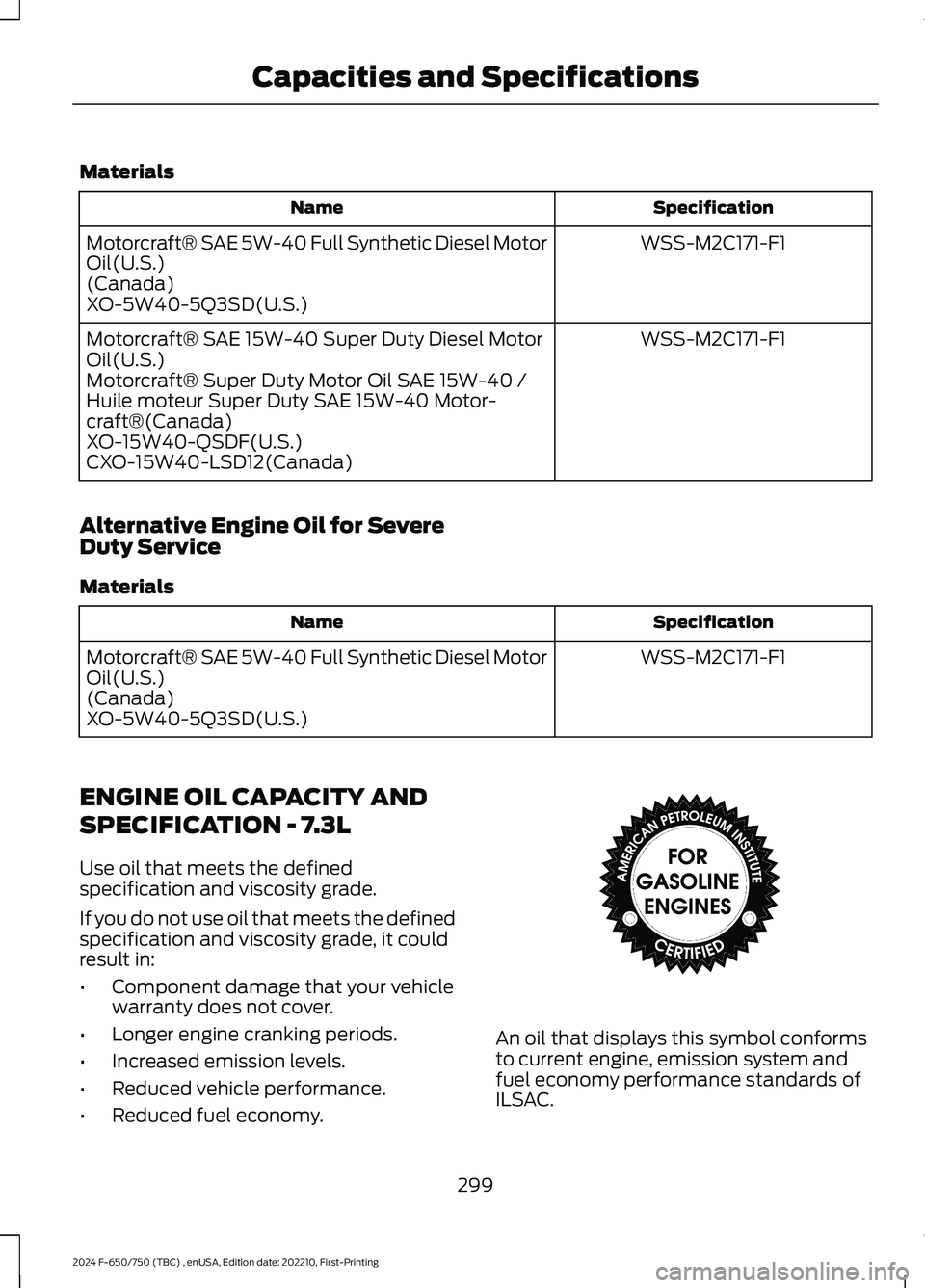

Engine Oil
We recommend Motorcraft motor oil foryour vehicle. If Motorcraft motor oil is notavailable, use motor oil of therecommended viscosity grade that meetsour specification WSS-M2C171-F1. You canfind the list of approved motor oils atwww.motorcraft.com.
Do not use engine oil additives as theycould lead to engine damage not coveredby your vehicle warranty.
The use of correct oil viscosities for dieselengines is important for satisfactoryoperation. Determine which oil viscositybest suits the temperature range youexpect to encounter for the next serviceinterval from the SAE Viscosity Gradeschart.
Note:An engine block heater isrecommended at temperatures below–10°F (–23°C).
297
2024 F-650/750 (TBC) , enUSA, Edition date: 202210, First-PrintingCapacities and SpecificationsE327351

Capacities
Including the Oil FilterVariant
17.0 qt (16.1 L)All.
Materials
SpecificationName
WSS-M2C171-F1Motorcraft® SAE 10W-30 Super Duty Diesel MotorOil(U.S.)Motorcraft® Super Duty Motor Oil SAE 10W-30 /Huile moteur Super Duty SAE 10W-30 Motor-craft®(Canada)XO-10W30-QSDF(U.S.)CXO-10W30-LSD12(Canada)
Alternative Engine Oil forExtremely Cold Climates
To improve engine cold start performance,we recommend that you use the followingalternative engine oil in extremely coldclimates, where the ambient temperaturereaches -22.0°F (-30°C) or below.
Materials
SpecificationName
WSS-M2C171-F1Engine Oil - SAE 0W-40
Alternative Engine Oil for BiodieselFuel Blends (B20 Max)
298
2024 F-650/750 (TBC) , enUSA, Edition date: 202210, First-PrintingCapacities and Specifications

Materials
SpecificationName
WSS-M2C171-F1Motorcraft® SAE 5W-40 Full Synthetic Diesel MotorOil(U.S.)(Canada)XO-5W40-5Q3SD(U.S.)
WSS-M2C171-F1Motorcraft® SAE 15W-40 Super Duty Diesel MotorOil(U.S.)Motorcraft® Super Duty Motor Oil SAE 15W-40 /Huile moteur Super Duty SAE 15W-40 Motor-craft®(Canada)XO-15W40-QSDF(U.S.)CXO-15W40-LSD12(Canada)
Alternative Engine Oil for SevereDuty Service
Materials
SpecificationName
WSS-M2C171-F1Motorcraft® SAE 5W-40 Full Synthetic Diesel MotorOil(U.S.)(Canada)XO-5W40-5Q3SD(U.S.)
ENGINE OIL CAPACITY AND
SPECIFICATION - 7.3L
Use oil that meets the definedspecification and viscosity grade.
If you do not use oil that meets the definedspecification and viscosity grade, it couldresult in:
•Component damage that your vehiclewarranty does not cover.
•Longer engine cranking periods.
•Increased emission levels.
•Reduced vehicle performance.
•Reduced fuel economy.
An oil that displays this symbol conformsto current engine, emission system andfuel economy performance standards ofILSAC.
299

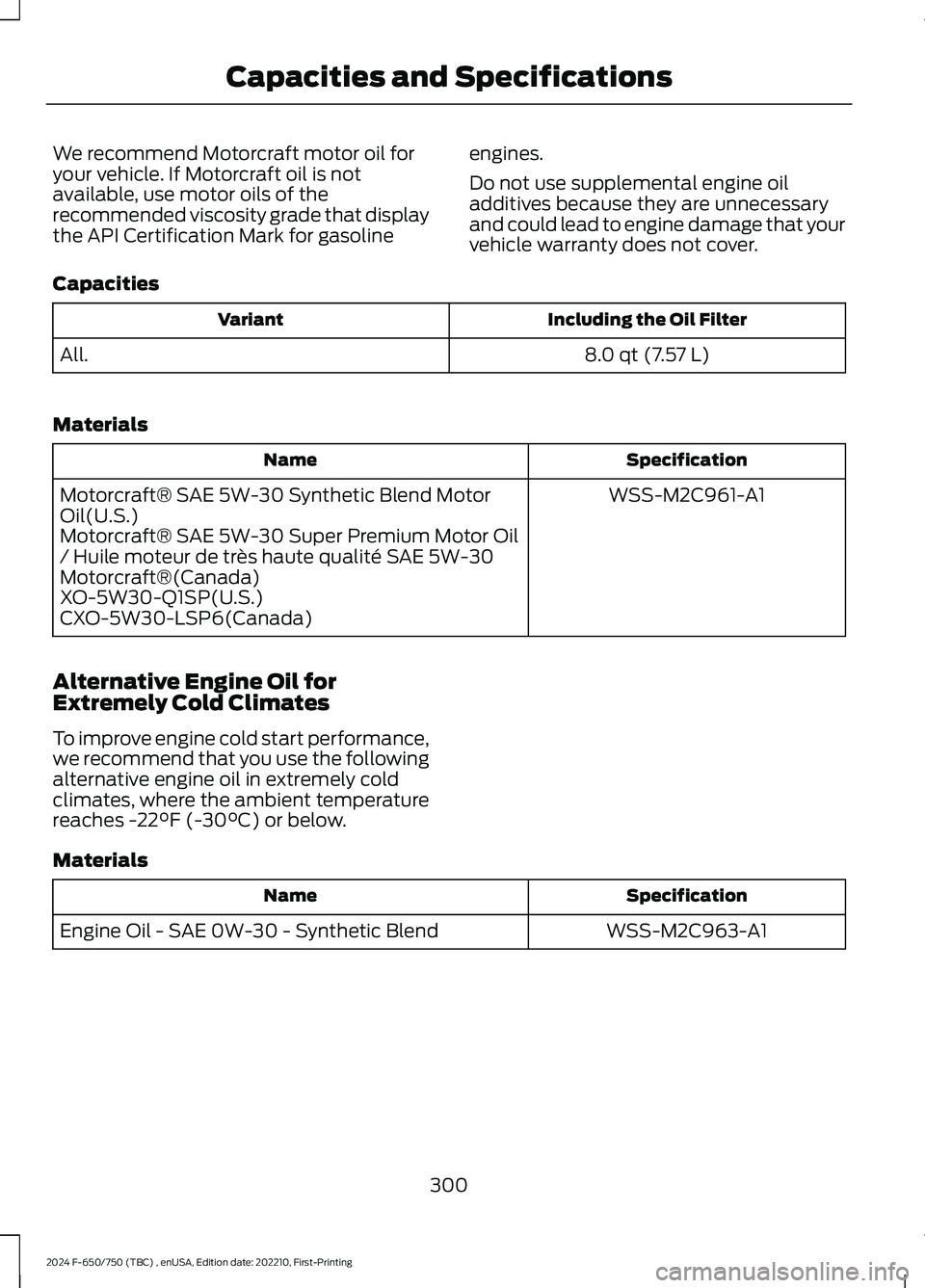

2024 F-650/750 (TBC) , enUSA, Edition date: 202210, First-PrintingCapacities and SpecificationsE142732

We recommend Motorcraft motor oil foryour vehicle. If Motorcraft oil is notavailable, use motor oils of therecommended viscosity grade that displaythe API Certification Mark for gasoline
engines.
Do not use supplemental engine oiladditives because they are unnecessaryand could lead to engine damage that yourvehicle warranty does not cover.
Capacities
Including the Oil FilterVariant
8.0 qt (7.57 L)All.
Materials
SpecificationName
WSS-M2C961-A1Motorcraft® SAE 5W-30 Synthetic Blend MotorOil(U.S.)Motorcraft® SAE 5W-30 Super Premium Motor Oil/ Huile moteur de très haute qualité SAE 5W-30Motorcraft®(Canada)XO-5W30-Q1SP(U.S.)CXO-5W30-LSP6(Canada)
Alternative Engine Oil forExtremely Cold Climates
To improve engine cold start performance,we recommend that you use the followingalternative engine oil in extremely coldclimates, where the ambient temperaturereaches -22°F (-30°C) or below.
Materials
SpecificationName
WSS-M2C963-A1Engine Oil - SAE 0W-30 - Synthetic Blend
300
2024 F-650/750 (TBC) , enUSA, Edition date: 202210, First-PrintingCapacities and Specifications
