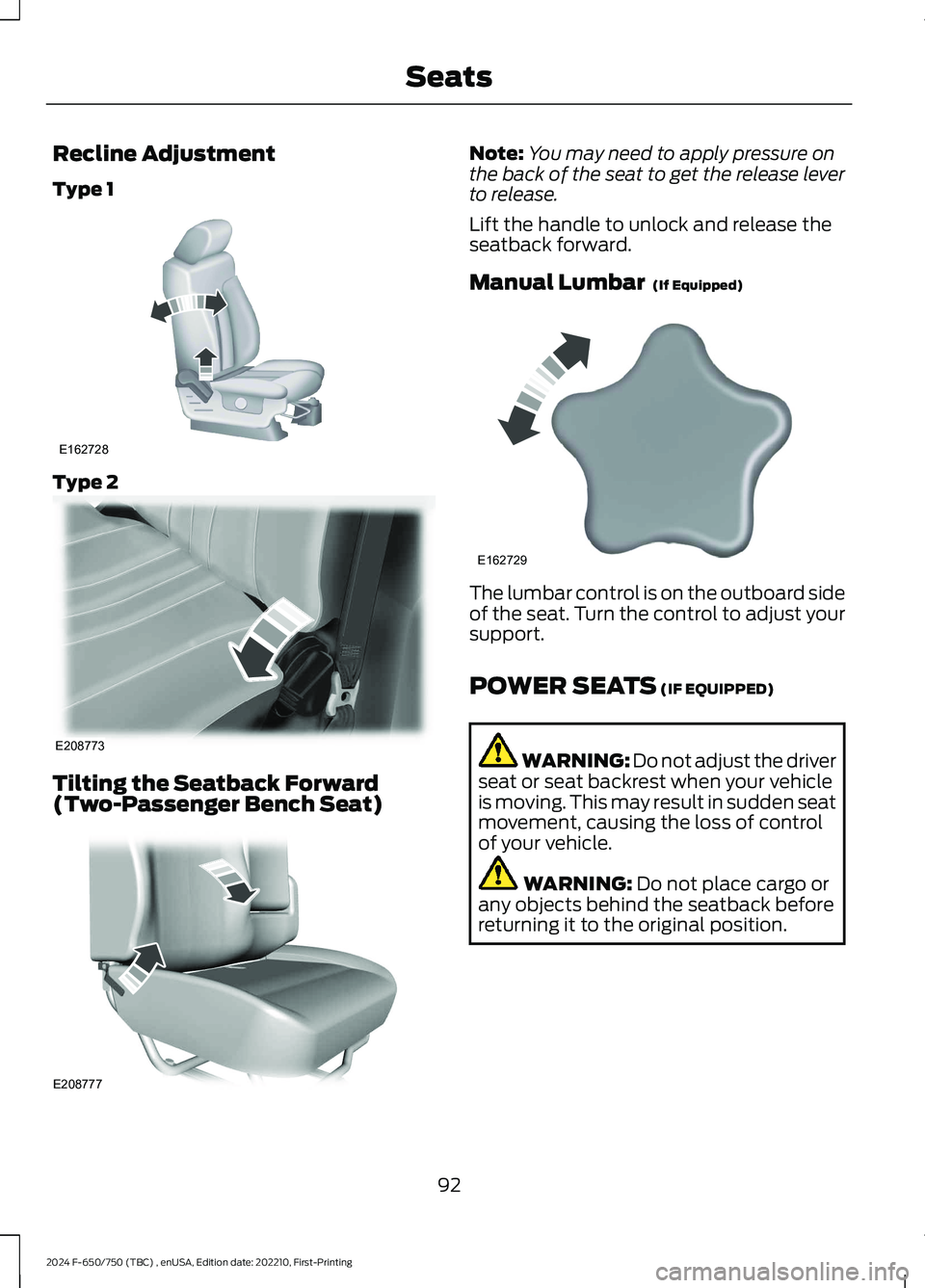

Recline Adjustment
Type 1
Type 2
Tilting the Seatback Forward(Two-Passenger Bench Seat)
Note:You may need to apply pressure onthe back of the seat to get the release leverto release.
Lift the handle to unlock and release theseatback forward.
Manual Lumbar (If Equipped)
The lumbar control is on the outboard sideof the seat. Turn the control to adjust yoursupport.
POWER SEATS (IF EQUIPPED)
WARNING: Do not adjust the driverseat or seat backrest when your vehicleis moving. This may result in sudden seatmovement, causing the loss of controlof your vehicle.
WARNING: Do not place cargo orany objects behind the seatback beforereturning it to the original position.
92
2024 F-650/750 (TBC) , enUSA, Edition date: 202210, First-PrintingSeatsE162728 E208773 E208777 E162729
