1612-2. Charging
2
Plug-in hybrid system

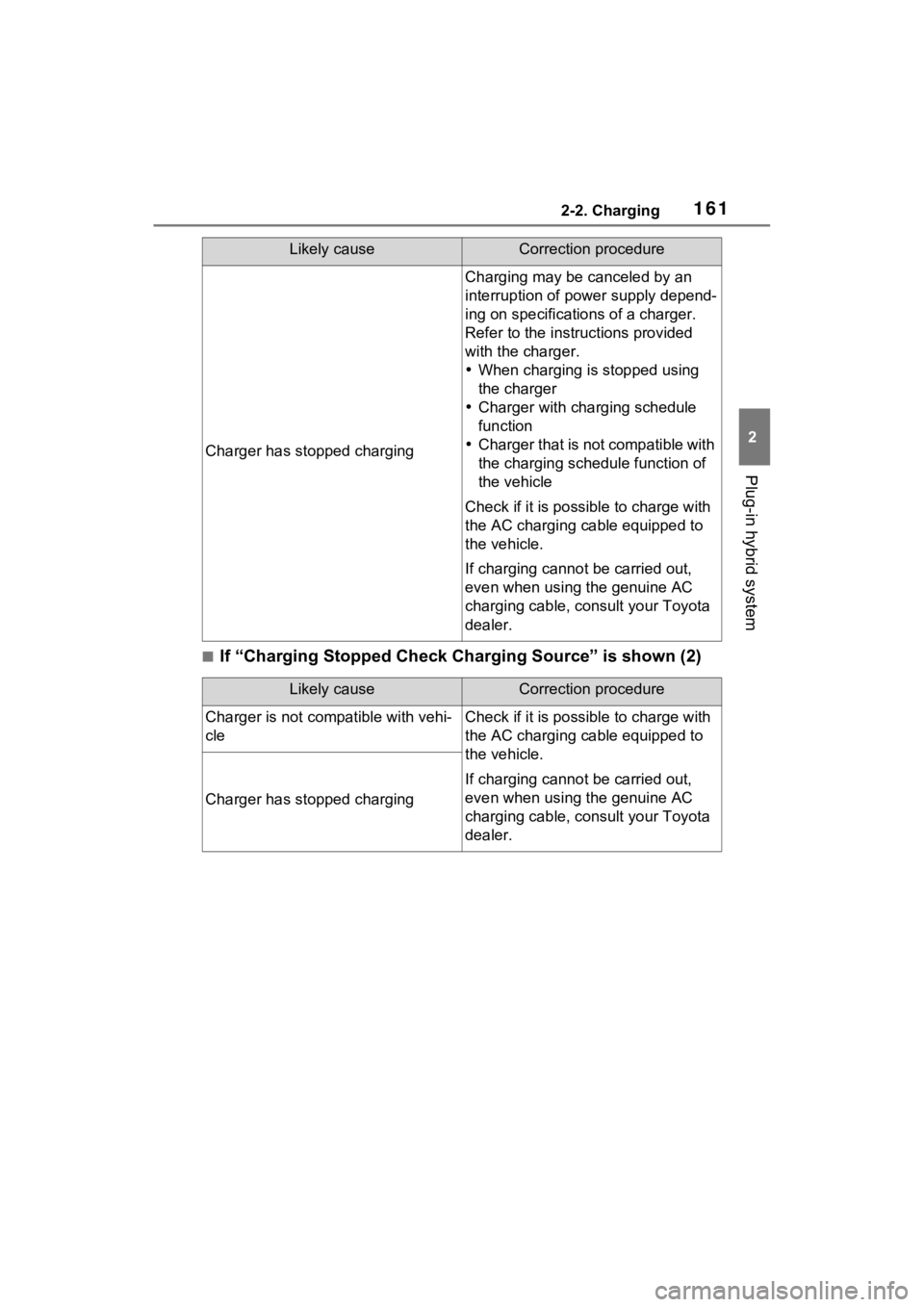

■If “Charging Stopped Check Charging Source” is shown (2)
Charger has stopped charging
Charging may be canceled by an
interruption of power supply depend-
ing on specifications of a charger.
Refer to the instructions provided
with the charger.
When charging is stopped using
the charger
 Charger with charging schedule
function
 Charger that is not compatible with
the charging schedule function of
the vehicle
Check if it is possible to charge with
the AC charging cable equipped to
the vehicle.
If charging cannot be carried out,
even when using the genuine AC
charging cable, consult your Toyota
dealer.
Likely causeCorrection procedure
Charger is not comp atible with vehi-
cleCheck if it is possible to charge with
the AC charging cable equipped to
the vehicle.
If charging cannot be carried out,
even when using the genuine AC
charging cable, consult your Toyota
dealer.
Charger has stopped charging
Likely causeCorrection procedure

1622-2. Charging

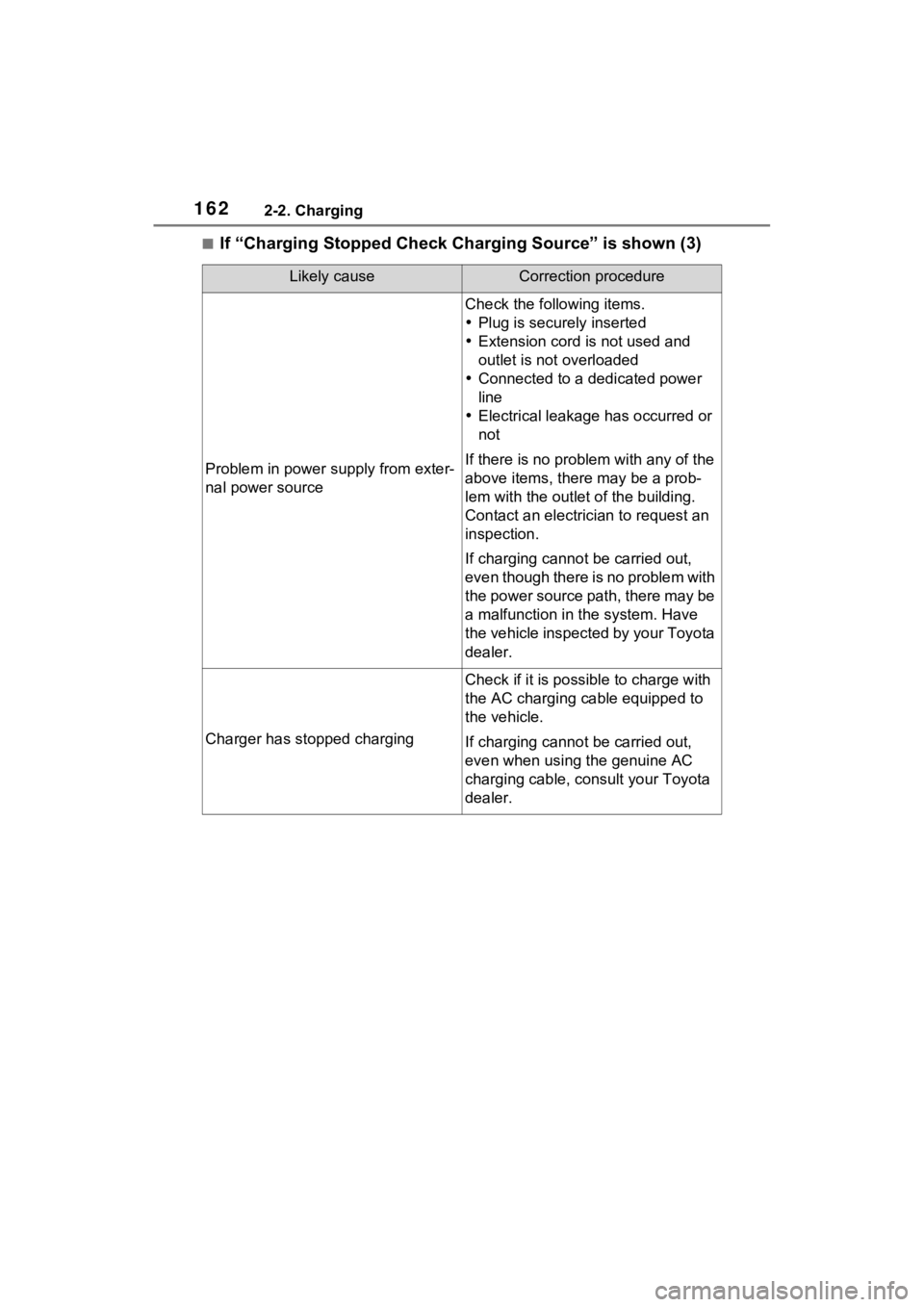

■If “Charging Stopped Check Charging Source” is shown (3)
Likely causeCorrection procedure
Problem in power supply from exter-
nal power source
Check the following items.
Plug is securely inserted
 Extension cord is not used and
outlet is not overloaded
 Connected to a dedicated power
line
 Electrical leakage has occurred or
not
If there is no problem with any of the
above items, the re may be a prob-
lem with the outlet of the building.
Contact an electrician to request an
inspection.
If charging cannot be carried out,
even though there is no problem with
the power source path, there may be
a malfunction in the system. Have
the vehicle inspected by your Toyota
dealer.
Charger has stopped charging
Check if it is possible to charge with
the AC charging cable equipped to
the vehicle.
If charging cannot be carried out,
even when using the genuine AC
charging cable, consult your Toyota
dealer.

1632-2. Charging
2
Plug-in hybrid system
■If “Charging Stopped High Energy Use See Owner’s Manual”
is shown
■If “Charging System Malfunction See Owner’s Manual” is
shown
■If “The Traction Battery Temp is low System put priority on
charging to preserve battery condition” is shown (Alaska and
Canada only)
Likely causeCorrection procedure
Power is being consumed by electri-
cal components of vehicle
Check the following items, and then
carry out charging again.
 If the headlights and audio are
turned on, t urn them off.
 Turn the power switch off.
If charging cannot be carried out,
even after performing the above, the
auxiliary battery may not be suffi-
ciently charged. Op erate the hybrid
system for approximately 15 minutes
or more to charge the auxiliary bat-
tery.
Likely causeCorrection procedure
Malfunction occurred in charging
systemHave the vehicle inspected by your
Toyota dealer.
Likely causeCorrection procedure
The Hybrid battery ( traction battery)
warming control was operated
(  P.113)
When the hybrid battery (traction
battery) warming control operates,
the charging schedule is not used
and charging is performed.
This is a control to protect the hybrid
battery (traction battery), and not a
malfunction.

1642-2. Charging

165
3
3
Vehicle status information and indicators
Vehicle status informa-tion and indicators
3-1. Instrument cluster
Warning lights and indica-tors ............................ 166
Gauges and meters (with 7- inch display) .............. 173
Gauges and meters (with 12.3-inch display) ...... 178
Multi-information display (with 7-inch display) .. 185
Multi-information display (with 12.3-inch display).................................. 196
Head-up display .......... 208
Energy monitor/consump- tion screen................. 212
