2023 TOYOTA RAIZE driver

2324-5. Using the driving support systems
RAIZE_OM_General_BZ358E
Driving assist systems
The following devices automatically operate according to the driving
conditions to improve driving safety and performance. However,
these systems are supplementary and you should be careful not to
over-rely on them while driving.
◆ABS (Anti-lock Brake System)
Helps to prevent wheel lock when the brakes are applied suddenly, or if
the brakes are applied while driving on a slippery road surface.
◆Brake assist
Generates an increased level of braking force when the system detects a
panic stop situation.
◆VSC (Vehicle Stability Control)
Helps the driver to control skidding when swerving suddenly or turning on
slippery road surfaces.
◆TRC (Traction Control)
Helps to maintain drive power and pr event the drive wheels from spinning
when starting the vehicle or accelerating on slippery roads.
◆Hill-start assist control
Prevents the vehicle from moving backwards when starting on an uphill.
◆EPS (Electric Power Steering)
Uses an electric motor to assist steering operation.
◆Emergency brake signal
Emergency flashers automatically fl ash when braking suddenly, alerting
the following vehicle and reducing the possibility of a collision.
RAIZE_OM_General_BZ358E.book 232 ページ ２０２２年５月１７日　火曜日　午後１時５９分

2354-5. Using the driving support systems
RAIZE_OM_General_BZ358E
Driving
4
⬛Activation conditions of the hill-start assist control
The system operates when all of the following conditions are met:
⚫Continuously variable transmission vehi cles: The shift lever is set to other
than P or N (when starting to move the vehicle forward or backward on an
uphill)
⚫Manual transmission vehicles: The shift lever is set to other than R when
starting to move the vehicle forward on an uphill or the shift lever is set to R
when starting to move the vehicle backward on an uphill
⚫Vehicle stopped state
⚫Not depressing the accelerator
⚫Parking brake is not applied
⬛Automatic deactivation of the hill-start assist control
The system is deactivated when one of the following occurs:
⚫Continuously variable transmission vehicl es: The shift lever is set to P or N
⚫Manual transmission vehicles: The shift lever is set to R when starting to
move the vehicle forward on an uphill or the shift lever is set to other than R
when starting to move the vehicle backward on an uphill
⚫The driver depresses the accelerator
⚫The driver applies the parking brake
⚫About 2 seconds have passed since releasing the brake pedal
⬛When the slip indicator turns on and the warning message ( ➞P. 389)
appears
It may indicate a malfunction in the systems. Contact your Toyota dealer.
⬛Activation conditions of the emergency brake signal
The system operates when all of the following conditions are met:
⚫The emergency flashers are not flashing
⚫The vehicle speed is 60 km/h (38 mph) or more
⚫The brake pedal is depressed and the vehicle is deemed to brake suddenly
based on the deceleration, or ABS is activated
⬛Automatic deactivation of the emergency brake signal
The system is deactivated when one of the following occurs:
⚫The emergency flashers were set to flashing
⚫The brake pedal was released
⚫It was determined that the vehicle did not brake suddenly based on the
deceleration
⚫ABS stopped working
RAIZE_OM_General_BZ358E.book 235 ページ ２０２２年５月１７日　火曜日　午後１時５９分

2364-5. Using the driving support systems
RAIZE_OM_General_BZ358E
WARNING
⬛The ABS does not operate effectively when
⚫Do not overly rely on the ABS.
The limits of tire gripping performance have been exceeded (such as exces-
sively worn tires on a snow covered road).
⚫The vehicle hydroplanes while driving at high speed on wet or slick roads.
⬛Stopping distance when the ABS is operating may exceed that of normal
conditions
The ABS is not designed to shorten th e vehicle’s stopping distance. Always
maintain a safe distance from the vehicle in front of you, especially in the fol-
lowing situations:
⚫When driving on dirt, grav el or snow-covered roads
⚫When driving with tire chains
⚫When driving over bumps in the road
⚫When driving over roads with potholes or roads with uneven surfaces
⬛TRC/VSC may not operate effectively when
⚫Do not overly rely on the TRC/VSC.
Directional control and power may not be achievable while driving on slip-
pery road surfaces, even if the TRC/VSC system is operating.
Drive the vehicle carefully in condit ions where stability and power may be
lost.
⚫The VSC and TRC may not function proper ly when tire chains are installed.
⬛Hill-start assist control does not operate effectively when
⚫Do not overly rely on hill-start assist control. Hill-start assist control may not
operate effectively on steep inclines an d dirt, gravel or snow-covered roads.
⚫Unlike the parking brake, hill-start assist control is not intended to hold the
vehicle stationary for an extended period of time. Do not attempt to use hill-
start assist control to hold the vehicle on an incline, as doing so may lead to
an accident.
⚫The hill-start assist control may no t become activated depending on the
number of occupants or luggage weight in the vehicle, or if the driver did not
step on the brake pedal strong enough when stopping.
⬛When the VSC is activated
The slip indicator light flashes. Always drive carefully. Reckless driving may
cause an accident. Exercise particular care when the indicator light flashes.
⬛When the ABS warning light or slip indicator is on
The emergency brake signal ( ➞P. 232) may not be activated.
RAIZE_OM_General_BZ358E.book 236 ページ ２０２２年５月１７日　火曜日　午後１時５９分

2605-1. Using the air conditioning system and defogger
RAIZE_OM_General_BZ358E
⬛When the outside air temperature drops to around 0°C (32℉)
Even if you press , the air conditioning system may not work.
⬛When the air outlets are set to (vehicles with heaters)
In order to deliver cool air to the driver and passe ngers’ faces and warm air to
their feet, depending on the set temperature, the air sent to the driver and
passengers’ feet will be warmer than the air sent to the upper body.
⬛When driving on dusty roads
Close all windows. If dust thrown up by the vehicle is still drawn into the vehicle
after closing the windows, it is recomme nded that the air intake mode be set
to outside air mode and the fan speed to any setting except off.
⬛Outside/recirculated air mode
Setting to the recirculated air mode temporarily is recommended in prevent-
ing dirty air from entering the vehicle interior and helping to cool the vehicle
when the outside air temperature is high.
⬛Ventilation and air conditioning odors
⚫To let fresh air in, set the air conditio ning system to the outside air introduc-
tion mode.
⚫During use, various odors from inside and outside the vehicle may enter into
and accumulate in the air conditioning system. This may then cause odors to
be emitted from the vents.
⚫When the automatic mode is used, the fan may stop for a while immediately
after the air conditioning system starts to reduce potential odors generated
during startup. In addition, it is re commended that the air conditioning sys-
tem be set to outside air introduction mode prior to turning the vehicle off.
⬛Air conditioning filter
➞P. 3 3 8
RAIZE_OM_General_BZ358E.book 260 ページ ２０２２年５月１７日　火曜日　午後１時５９分

2685-4. Storage features
RAIZE_OM_General_BZ358E

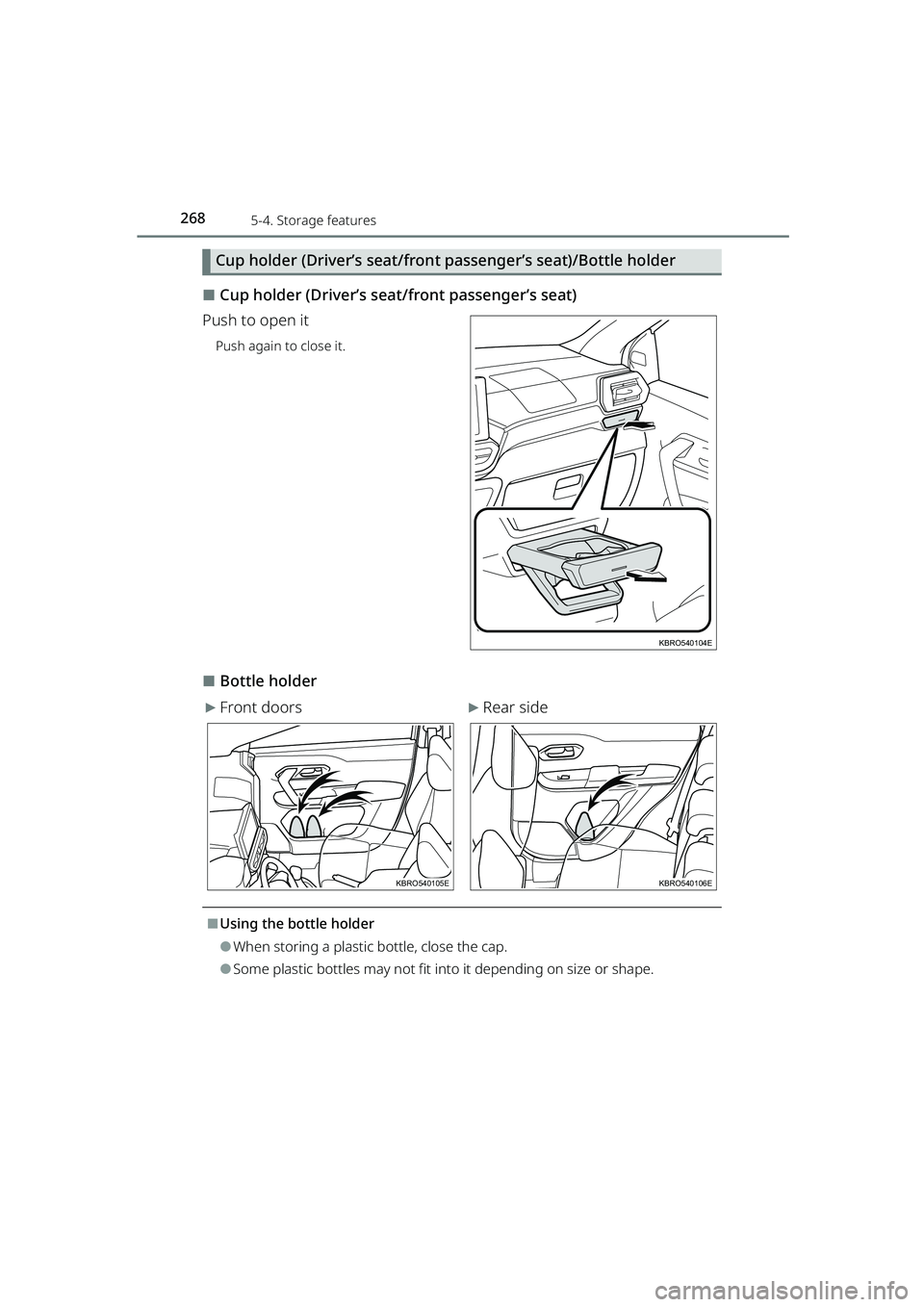

Cup holder (Driver’s seat/front passenger’s seat)/Bottle holder
⬛Cup holder (Driver’s seat/front passenger’s seat)
Push to open it
Push again to close it.
⬛Bottle holder
▶Front doors▶Rear side
⬛Using the bottle holder
⚫When storing a plastic bottle, close the cap.
⚫Some plastic bottles may not fit into it depending on size or shape.
KBRO540104E
KBRO540105EKBRO540106E
RAIZE_OM_General_BZ358E.book 268 ページ ２０２２年５月１７日　火曜日　午後１時５９分

2695-4. Storage features
RAIZE_OM_General_BZ358E
Interior features
5

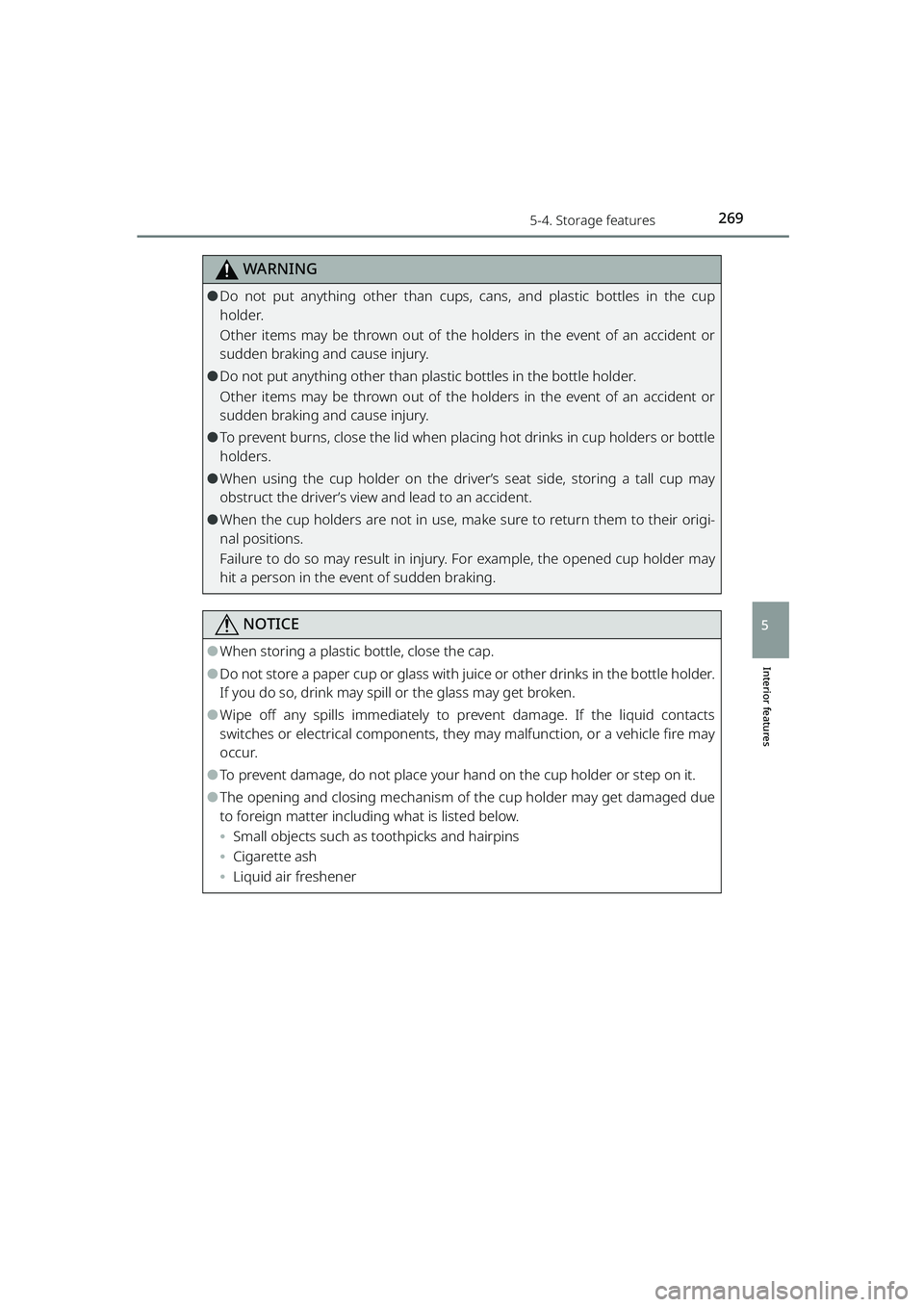

WARNING
⚫Do not put anything other than cups, cans, and plastic bottles in the cup
holder.
Other items may be thrown out of the holders in the event of an accident or
sudden braking and cause injury.
⚫Do not put anything other than plastic bottles in the bottle holder.
Other items may be thrown out of the holders in the event of an accident or
sudden braking and cause injury.
⚫To prevent burns, close the lid when placing hot drinks in cup holders or bottle
holders.
⚫When using the cup holder on the driver’s seat side, storing a tall cup may
obstruct the driver’s view and lead to an accident.
⚫When the cup holders are not in use, make sure to return them to their origi-
nal positions.
Failure to do so may result in injury. For example, the opened cup holder may
hit a person in the event of sudden braking.
NOTICE
⚫When storing a plastic bottle, close the cap.
⚫Do not store a paper cup or glass with ju ice or other drinks in the bottle holder.
If you do so, drink may spill or the glass may get broken.
⚫Wipe off any spills immediately to pr event damage. If the liquid contacts
switches or electrical components, they may malfunction, or a vehicle fire may
occur.
⚫To prevent damage, do not place your han d on the cup holder or step on it.
⚫The opening and closing mechanism of the cup holder may get damaged due
to foreign matter including what is listed below.
⦁Small objects such as toothpicks and hairpins
⦁ Cigarette ash
⦁ Liquid air freshener
RAIZE_OM_General_BZ358E.book 269 ページ ２０２２年５月１７日　火曜日　午後１時５９分

2745-4. Storage features
RAIZE_OM_General_BZ358E

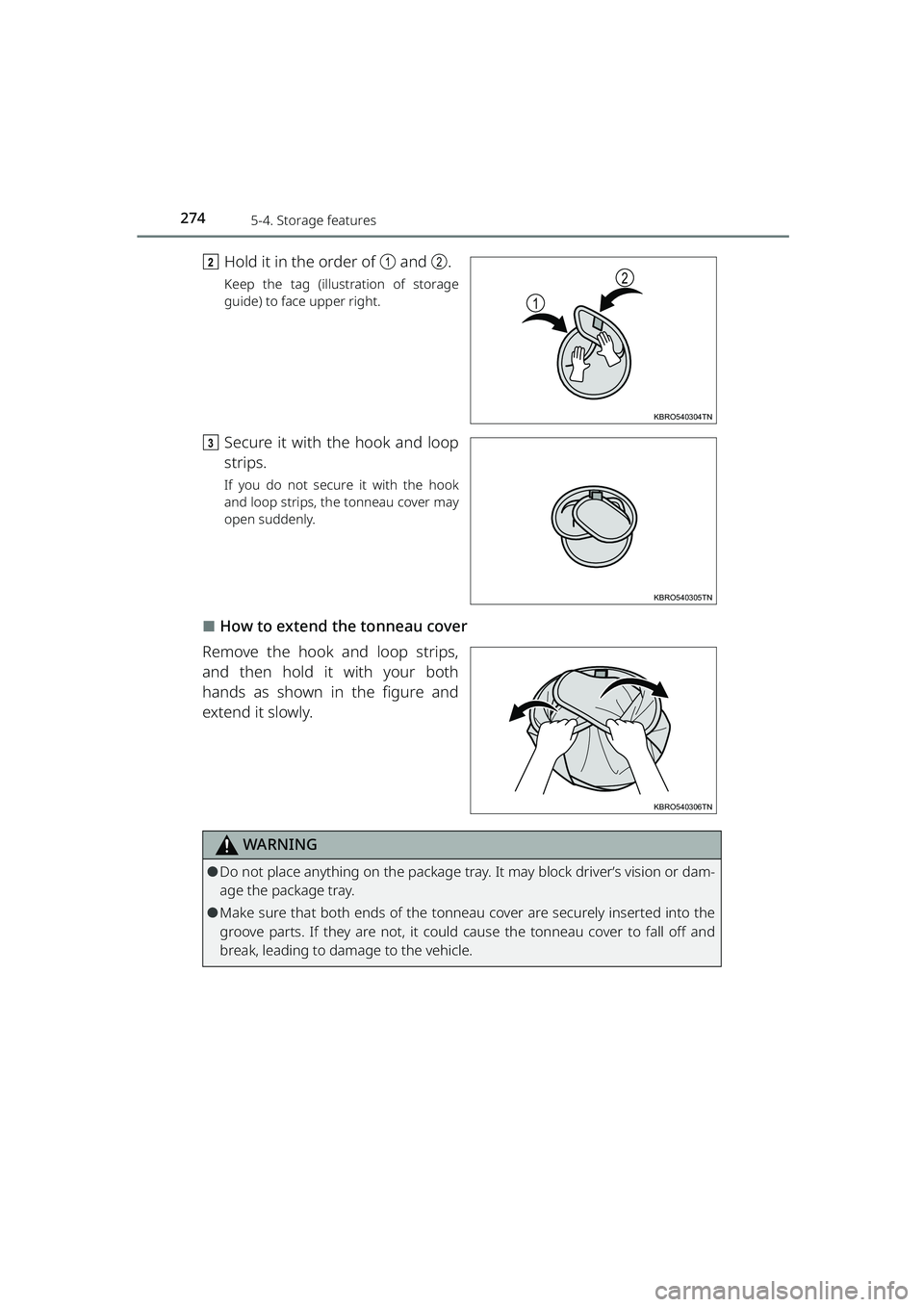

bHold it in the order of a and b.
Keep the tag (illustration of storage
guide) to face upper right.
c Secure it with the hook and loop
strips.
If you do not secure it with the hook
and loop strips, the tonneau cover may
open suddenly.
⬛How to extend the tonneau cover
Remove the hook and loop strips,
and then hold it with your both
hands as shown in the figure and
extend it slowly.
WARNING
⚫Do not place anything on the package tray. It may block driver’s vision or dam-
age the package tray.
⚫Make sure that both ends of the tonnea u cover are securely inserted into the
groove parts. If they are not, it could cause the tonneau cover to fall off and
break, leading to da mage to the vehicle.
1
2
KBRO540304TN
KBRO540305TN
KBRO540306TN
RAIZE_OM_General_BZ358E.book 274 ページ ２０２２年５月１７日　火曜日　午後１時５９分

2906-1. Maintenance and care
RAIZE_OM_General_BZ358E
Cleaning the synthetic leather areas
⚫Remove dust using a vacuum cleaner
⚫Wipe it off with a soft cloth dampened with neutral detergent diluted to
approximately 1%
⚫Wring out any excess water from the cloth and thoroughly wipe off
remaining traces of detergent and water
⬛Caring for leather areas
Toyota recommends cleaning the interior of the vehicle at least twice a year to
maintain the quality of the vehicle’s interior.
⬛Carpet cleaning
Toyota recommends that you keep the carpet dry at all times. To clean the car-
pet, a commercially available fo am-type cleaner can be used.
Use a sponge or brush to spread the foam over the carpet and work it in a cir-
cular motion. Do not apply water directly. Wipe off and dry.
⬛Seat belts
Clean with mild soap and lukewarm water using a cloth or sponge.
Also check the seat belts periodically for excessive wear, fraying or cuts.
WARNING
⬛Water in the vehicle
⚫Do not splash or spill liquid in the vehicle.
Doing so may cause electrical components, etc., to malfunction or catch fire.
⚫Do not get any of the SRS airbag compon ents or wiring in the vehicle interior
wet. ( ➞P. 3 7 )
An electrical malfunction may cause the SRS airbags to deploy or not func-
tion properly, resulting in death or serious injury.
⬛Cleaning the interior (especially instrument panel)
Do not use a polish wax or polish cleaner. The instrument panel may reflect off
the windshield, obstructing the driver’s view and leading to an accident, result-
ing in death or serious injury.
⬛Caution: Area around the seats
Be very careful when putting your hand under a seat, such as when cleaning
the interior of the vehicle or picking up anything that has fallen under the seat.
Your hand may strike the seat rail or the base of the seat and be injured.
RAIZE_OM_General_BZ358E.book 290 ページ ２０２２年５月１７日　火曜日　午後１時５９分
