Maintenance and care
6
6-3. Do-it-yourself maintenance
Do-it-yourself service precautions
If you perform maintenance by yourself, be sure to follow the correct
procedure as given in these sections.
ItemsParts and tools
Battery condition
(➞ P. 321)
⚫Warm water
⚫Baking soda
⚫Grease
⚫Conventional wrench (for terminal clamp bolts)
⚫Distilled water
Brake fluid level
(➞ P. 320)⚫FMVSS No.116 DOT 3 brake fluid
⚫Rag or paper towel
⚫Funnel (used only for adding brake fluid)
Engine coolant level
(➞ P. 319)
⚫“Toyota Super Long Life Coolan t” or a similar high quality
ethylene glycol-based non-silicate, non-amine, non-nitrite
and non-borate coolant with long-life hybrid organic acid
technology “Toyota Super Long Life Coolant” is premixed
with 50% coolant and 50% deionized water.
⚫Funnel (used only for adding coolant)
Engine oil level
( ➞ P. 316)⚫Engine oil
⚫Rag or paper towel
⚫Funnel (used only for adding engine oil)
Fuses ( ➞P. 348)⚫Fuse with same amperage rating as original
Light bulbs
(➞ P. 352)⚫Bulb with same number and wattage rating as original
⚫Flathead screwdriver
⚫Wrench
Radiator and con-
denser ( ➞P. 320)―
Tire inflation pres-
sure ( ➞P. 334)⚫Tire pressure gauge
⚫Compressed air source
Washer fluid
(➞ P. 324)⚫Water or washer fluid containing antifreeze (for winter
use)
⚫Funnel (used only for addi ng water or washer fluid)
RAIZE_OM_General_BZ358E.book 309 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3286-3. Do-it-yourself maintenance
RAIZE_OM_General_BZ358E✽
: If equipped

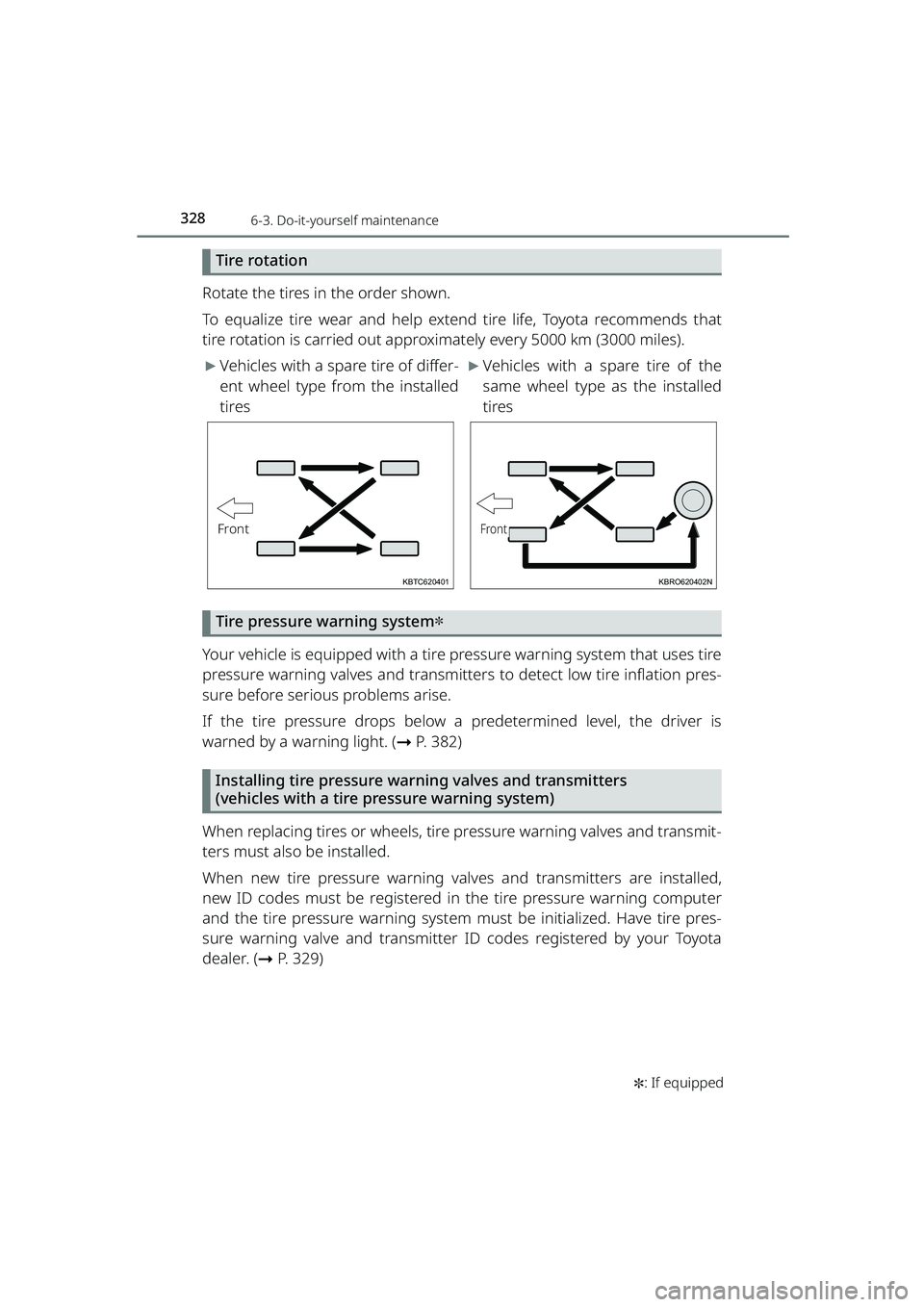

Tire rotation
Rotate the tires in the order shown.
To equalize tire wear and help exte nd tire life, Toyota recommends that
tire rotation is carried out appr oximately every 5000 km (3000 miles).
▶Vehicles with a spare tire of differ-
ent wheel type from the installed
tires▶Vehicles with a spare tire of the
same wheel type as the installed
tires
Tire pressure warning system✽
Your vehicle is equipped with a tire pressure warning system that uses tire
pressure warning valves and transmitters to detect low tire inflation pres-
sure before serious problems arise.
If the tire pressure drops below a predetermined level, the driver is
warned by a warning light. (➞P. 382)
Installing tire pressure warning valves and transmitters
(vehicles with a tire pressure warning system)
When replacing tires or wheels, tire pressure warning valves and transmit-
ters must also be installed.
When new tire pressure warning valv es and transmitters are installed,
new ID codes must be registered in the tire pressure warning computer
and the tire pressure warning system must be initialized. Have tire pres-
sure warning valve and transmitter ID codes registered by your Toyota
dealer. ( ➞P. 329)
KBTC620401
Front
KBRO620402N
Front
RAIZE_OM_General_BZ358E.book 328 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3406-3. Do-it-yourself maintenance
RAIZE_OM_General_BZ358E
Replacing the wiper rubbers
When replacing the wiper rubbers, handle each part of the wipers as
follows.
Windshield wipers
⬛Removing and attaching the windshield wiper blades
a Raise the wiper arm. Insert a flat-
head screwdriver to lift the cover
To prevent damage, wrap a cloth
around the tip of the flathead screw-
driver or the like to protect it.
bSlide the windshield wiper blade
and remove it from the wiper
arm
c To attach the wiper blade, reverse the removal procedure
KBTC621001
KBTC621002
RAIZE_OM_General_BZ358E.book 340 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3446-3. Do-it-yourself maintenance
RAIZE_OM_General_BZ358E
Replacing the key battery
When the battery is low, replace it with a new battery.What to prepare
⚫A thin-bladed flathead screwdriver (narrow enough to fit in the dent)
⚫Emergency key (vehicles with key-free system)
⚫Lithium battery CR2032
How to replace the battery
▶Vehicles without key-free system
a Remove the cover
To prevent damage, wrap a cloth
around the tip of the flathead screw-
driver or the like to protect it.
bRemove the rubber cover from
the back of the module
c Remove the depleted battery
Insert a new battery with the positive
side up.
KBTC620601
KBTA620602
KBTA620603
RAIZE_OM_General_BZ358E.book 344 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3456-3. Do-it-yourself maintenance
RAIZE_OM_General_BZ358E
Maintenance and care
6
dAttach the rubber cover to the
module
When inserting the rubber cover, insert
the protruded part first and then press
down the entire unit evenly. If the rub-
ber cover is not secured in place, it
could cause water or dust to enter
inside, leading to malfunction.
eAttach the cover
Check to see if the indicator blinks
when you press the switch.
▶Vehicles without key-free system
a Remove the emergency key ( ➞P. 118)
b Remove the cover
Place the Toyota logo side down when
removing it.
Insert the emergency key all the way to
the end.
To prevent damage, wrap a cloth
around the emergency key to protect
it.
cRemove the depleted battery
To prevent damage, wrap a cloth
around the tip of the flathead screw-
driver or the like to protect it.
When you remove the cover, you may
encounter a situation where the elec-
tronic key’s module (s ubstrate) is attached
to the top cover, hiding the battery sur-
face. In this case, flip over the electronic
key’s module (substrate) to make the bat-
tery visible as shown in the figure.
Insert a new battery with the positive
side up.
KBTA620604
KBTA620605
KBTA620606
KBTA620607
RAIZE_OM_General_BZ358E.book 345 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3486-3. Do-it-yourself maintenance
RAIZE_OM_General_BZ358E
Checking and replacing fuses
If a light or the electrical system does not operate, a fuse may have
blown. Check the fuse.
a Turn the engine switch to “OFF”
b Open the fuse box
▶Engine compartment
While pressing down the claw, lift
the cover
▶Instrument panel
For right-hand drive vehicles,
remove the glove box in the leg-
room of the passenger's seat
a Push the left side inward and
disengage the upper claw
b Push the right side inward
and disengage the upper claw
c Disengage the lower claws
For left-hand drive vehicles, dis-
engage the claws at 8 locations
and remove the lower cover in
the legroom of the driver's seat
KBRO620702N
1
3
2
KBRO620703N
KBRO620704E
RAIZE_OM_General_BZ358E.book 348 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3636-3. Do-it-yourself maintenance
RAIZE_OM_General_BZ358E✽
: If equipped
Maintenance and care
6
⬛Other light bulbs
If any other light bulbs go out, replace them at your Toyota dealer.
⚫Headlight high beam/low beam (vehicles with LED headlights)
⚫Daytime running lights✽
⚫Front position lights (vehicles with LED headlights)
⚫Front turn signal/emergency flashe rs (vehicles with LED headlights)
⚫Side turn signal lights/emergency flashers
⚫Stop lights/tail lights
⚫High mounted stoplight
⚫Rear fog light✽
⬛LED lights
Each unit of LED headlights,
✽ daytime running lights✽, and high mounted stop-
light are made of several LEDs. If any one of the LEDs do not light up, replace it
at your Toyota dealer.
⬛When replacing the front fog lights✽
Remove the retaining clips of the fender liner and replace the light bulb. After
replacement, be sure to hold the fender liner with the clips and secure it in
place.
⚫When you remove the clip, use a
tool such as a flathead screwdriver
to pull out the center of the clip ( a)
and take the clip off ( b).
To prevent damage, wrap a cloth
around the tip of the flathead screw-
driver or the like to protect it.
⚫When you attach the clip, insert the
clip ( a) and push down the center
part ( b).
12
KBGR620838
12
KBGR620839
RAIZE_OM_General_BZ358E.book 363 ページ ２０２２年５月１７日　火曜日　午後１時５９分

366
RAIZE_OM_General_BZ358E
7-1. Essential information
Emergency flashers
Use the emergency flashers to warn other drivers when the vehicle
has to be stopped in the road due to a breakdown or other reason.
Press the switch
All the turn signal lights will flash.
To turn them off, press the switch once
again.
NOTICE
⬛Emergency flashers
If the emergency flashers are used for a long time while the engine is not oper-
ating, the battery may discharge.
