2023 TOYOTA RAIZE driver

3747-2. Steps to take in an emergency
RAIZE_OM_General_BZ358E

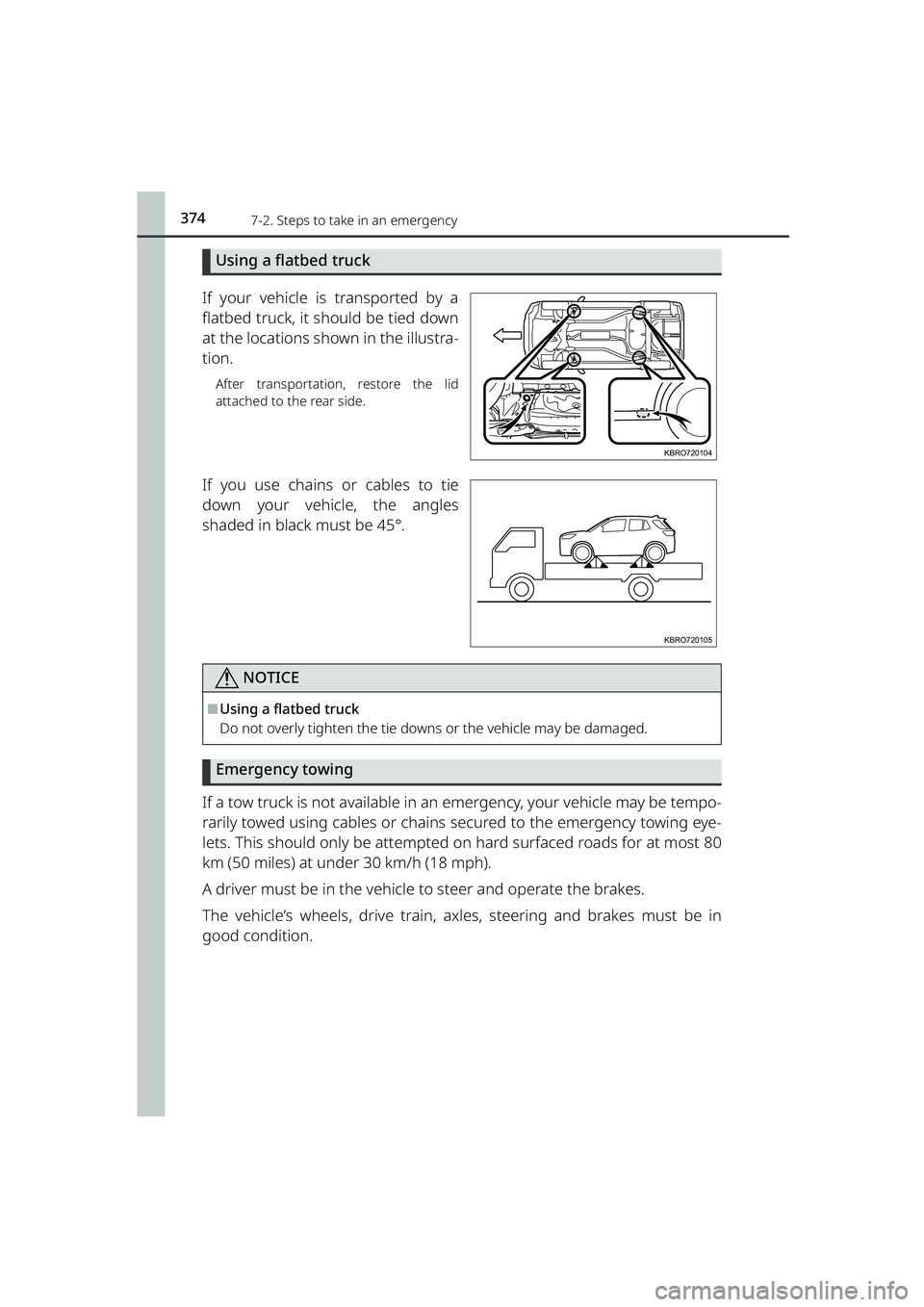

Using a flatbed truck
If your vehicle is transported by a
flatbed truck, it should be tied down
at the locations shown in the illustra-
tion.
After transportation, restore the lid
attached to the rear side.
If you use chains or cables to tie
down your vehicle, the angles
shaded in black must be 45°.
NOTICE
⬛Using a flatbed truck
Do not overly tighten the tie downs or the vehicle may be damaged.
Emergency towing
If a tow truck is not available in an emergency, your vehicle may be tempo-
rarily towed using cables or chains secured to the emergency towing eye-
lets. This should only be attempted on hard surfaced roads for at most 80
km (50 miles) at under 30 km/h (18 mph).
A driver must be in the vehicle to steer and operate the brakes.
The vehicle’s wheels, drive train, ax les, steering and brakes must be in
good condition.
KBRO720104
KBRO720105
RAIZE_OM_General_BZ358E.book 374 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3757-2. Steps to take in an emergency
RAIZE_OM_General_BZ358E
When trouble arises
7
Emergency towing procedure
To have your vehicle towed by another vehicle, the towing eyelet must be
installed to your vehicle. Install the towing eyelet using the following procedure.
aTake out the wheel nut wrench and towing eyelet (➞ P. 397)
b Remove the eyelet cover using a
flathead screwdriver.
To protect the bodywork, place a rag
between the screwdriver and the vehi-
cle body as shown in the illustration.
cInsert the towing eyelet into the
hole and tighten partially by
hand.
d Tighten down the towing eyelet
securely using a wheel nut
wrench or hard metal bar.
e Securely attach cables or ch ains to the towing eyelet.
Take care not to damage the vehicle body.
fEnter the vehicle being towed and start the engine.
If the engine does not start, turn the engine switch to “ON”.
gShift the shift lever to N and release the parking brake.
When the shift lever cannot be shif ted (continuously variable transmis-
sion): ➞P. 191
KBRO720106E
KBRO720108TN
KBRO720109TN
RAIZE_OM_General_BZ358E.book 375 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3817-2. Steps to take in an emergency
RAIZE_OM_General_BZ358E ✽
: If equipped
When trouble arises
7
(Flashing)
RCTA OFF indicator✽
Area surrounding radar sensor on rear bumper ( ➞P. 214) is cov-
ered with rain, snow, ice, dirt, etc.
➞ Remove the rain, snow, ice, dirt, etc. If flashing persists even
after some time has elapsed since removal, have the vehicle
inspected at your Toyota dealer.
(Flashing)
Brake Override System warning light✽
Malfunction in the Brake Override System
➞ Have the vehicle inspected at your Toyota dealer.
(Lit)
Brake Override System warning light✽
When the Brake Override System is activated
➞ Release your foot from the accelerator pedal
Open door warning light*3✽ (warning buzzer*4)
At least one of the doors or the hood is not completely closed
➞ Close all doors and/or the hood
Low fuel level warning light
Fuel level has become approx. 5.5 L (1.5 gal., 1.2 Imp.gal.) or
lower
➞ Refuel the vehicle
Driver’s/front passenger’s seat belt reminder warning light*6
(warning buzzer*5)
Driver’s/front passenger’s seat belt is not fastened
➞ Wear a seat belt
Rear seat belt reminder warning light*7, 8 (warning buzzer*9)
Rear seat belt is not fastened
➞ Wear a seat belt
Speed warning light (warning buzzer)✽
Indicates that your vehicle speed reaches or exceeds 120 km/h
(75 mph).
➞ Slow down to 120 km/h (75 mph) or less.
Warning
lightsWarning light name/Warning content/Action to take
RAIZE_OM_General_BZ358E.book 381 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3837-2. Steps to take in an emergency
RAIZE_OM_General_BZ358E
When trouble arises
7
*5Driver’s/front passenger’s seat belt reminder warning buzzer:
If the vehicle speed becomes approx. 20 km/h (12 mph) or faster when the
driver’s/front passenger’s seat belt is unfastened, the warning buzzer will
sound intermittently for 30 seconds. Th en, if the driver’s/front passenger’s
seat belt is still unfastened, the buzzer w ill sound in a different tone for 90 sec-
onds.
*6Passenger detection sensor for front pa ssenger’s seat belt reminder warning
light:
If luggage is placed on the front passenger’s seat, the front passenger detec-
tion sensor may cause the warning light to flash even if a passenger is not sit-
ting in the seat.
If a cushion is placed on the seat, the sensor may not detect a passenger, and
the warning light may not operate properly.
*7A warning is displayed to the upper pa rt of the inside rear view mirror.
*8Rear seat belt reminder warning light:
The rear seat belt reminder light come s on when the engine switch is turned
“ON” with the rear seat belt not fastened, or when the rear seat belt is unfas-
tened.
The light turns off when the rear seat belt is fastened or approx. 60 seconds
(approx. 30 seconds if the warning buzz er is sounding) after the vehicle is
driven at the vehicle speed of appr ox. 20 km/h (12 mph) or faster.
The light also turns on when a rear do or is opened and closed while the rear
seat belt is unfastened at approx. 5 km/h (3 mph) or slower.
*9Rear seat belt reminder warning buzzer:
When any of the rear seat passengers un fasten their seat belt when the vehi-
cle speed is approx. 20 km/h (12 mph) or faster, the buzzer will continue to
sound for approx. 30 seconds. Once the warning buzzer starts sounding, it
will continue to sound for approx. 30 seconds even the vehicle is traveling at
approx. 20 km/h (12 mph) or slower.
The buzzer will stop when the rear seat belt is fastened or a rear door is
opened and closed while the vehicle is traveling at approx. 5 km/h (3 mph) or
slower.
*10Parking brake non-release warning buzzer:
The warning buzzer sounds when the vehicle speed reaches approx. 5 km/h
(3 mph) or faster with the parking brake being applied.
RAIZE_OM_General_BZ358E.book 383 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3907-2. Steps to take in an emergency
RAIZE_OM_General_BZ358E
“BSM Radar Blocked
Temporarily Unavaila-
ble”(Flashing)
(Flashing)
Dirty BSM radar✽
➞Check if the bumper sensors are not cov-
ered with rain, snow, ice, or dirt and
remove those attached.
“Check Vehicle Com-
munication Visit Your
Dealer”Malfunction in the vehicle communication
system
➞Have the vehicle inspected at your Toy-
ota dealer.
“Brake Override Sys-
tem Malfunction Visit
Your Dealer”
―
Malfunction in the Brake Override System
➞Have the vehicle inspected at your Toy-
ota dealer.
“Brake & Accelerator
Pressed Simultane-
ously”
―
Brake Override System is activated
➞Release your foot from the accelerator
pedal.
“Open”―
At least one of the doors or the hood is not
completely closed
The open doors and/or hood will be dis-
played.
The open door warning buzzer sounds
when at least one of the doors or the hood
of the vehicle is not completely closed and
the vehicle’s speed exceeds approx. 5 km/h
(3 mph).
➞ Close all doors and/or the hood
“Refuel”
Fuel level has become approx. 5.5 L (1.5
gal., 1.2 Imp.gal.) or lower
➞Refuel the vehicle
“Fasten Seat Belt”
Driver’s or front passenger’s seat belt is not
fastened
The warning buzzer will sound.
It will be displayed when the vehicle speed
exceeds approx. 20 km/h (12 mph).
➞ Wear a seat belt
Warning messages
Indicators/
Warning lights
Warning content/Action to take
RAIZE_OM_General_BZ358E.book 390 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3917-2. Steps to take in an emergency
RAIZE_OM_General_BZ358E ✽
: If equipped
When trouble arises
7
“Fasten Seat Belt”
Rear seat belt is not fastened
The warning buzzer will sound.
It will be displayed when the vehicle speed
exceeds approx. 20 km/h (12 mph) and the
seat belt is unfastened.
➞ Wear a seat belt
“Release Parking
Brake”
The parking brake is not released
If the vehicle speed exceeds approx. 5 km/h
(3 mph) with the parking brake being
applied, the warning buzzer will sound.
➞ Release the parking brake
“Sonar Sensor in Oper-
ation Pay Attention”―
Front corner sensors or reverse sensors is
activated
✽
The activated sonar is displayed.
The warning buzzer may sound.
➞ Check the situation around you and drive
accordingly such as stepping on the
brake pedal
“VSC in Operation”
(Flashing)
VSC is activated
➞Drive with extreme caution
“Turn Lights OFF”
The driver’s door was opened while the
front position lights are turned on
The warning buzzer will sound.
➞ Turn off the front position lights
“Steering Angle Left”
―
The steering wheel is mo ved to left or right
while the vehicle is stopped
➞ Check the tire direction and move the
vehicle safety
“Steering Angle Right”
“Roads may be Icy”―
The outside temperature has become
approx. 3°C (37 ℉) or below
➞ Since the road could be frozen, check the
road condition and drive with extreme
caution
Warning messages
Indicators/
Warning lights
Warning content/Action to take
RAIZE_OM_General_BZ358E.book 391 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3937-2. Steps to take in an emergency
RAIZE_OM_General_BZ358E
When trouble arises
7
Situations requiring immediate action
Take action according to each troubleshooting method and check to see if
the key-free system’s wa rning message turns off.
Internal
warning buzzerExternal
warning buzzer
Warning messagesWarning content/Action to take
――“Key NOT Detected”
You tried to start the engine with-
out the electronic key on hand
➞ Keep the electronic key with
you*
1
5
times3
times“Key NOT Detected”
When the engine switch was “ACC”
or “ON”, any of the doors were
opened, and the electronic key was
taken outside the vehicle, and then
the door was closed
⦁The warning buzz er will sound.
➞ Keep the electronic key with you
and get in the vehicle
―1 time“Key Detected in Vehicle”
With the electronic key left inside
the vehicle, someone tried to lock
the doors using the lock/unlock
switch on the front door or back
door
➞ Take the electronic key from the
vehicle and lock it again
―1 time“Key Detected in Vehicle”
When the engine switch was “OFF”
and the electronic key was left
inside the vehicle, the door was
opened and closed while all the
doors were locked and any of the
inside lock buttons except the
driver’s door were set to the
unlocked side
➞ Keep the electronic key with you
and lock the doors
RAIZE_OM_General_BZ358E.book 393 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3947-2. Steps to take in an emergency
RAIZE_OM_General_BZ358E ✽
: If equipped
―1 time“Key Detected in Vehicle”
When the engine switch was “OFF”
and the electronic key was left
inside the vehicle, you opened the
driver’s door and then tried to close
and lock the door with the door
handle pulled while the inside lock
button was set to the locked side
➞ Take the electronic key from the
vehicle and lock it again
――
“Press Brake Pedal and
Touch Engine Switch with
Key”You tried to start the engine 2 times
without the electronic key on hand
➞ Keep the electronic key with
you*
1
――“Auto Power OFF to Con-
serve Battery”
The engine switch turned “OFF”
automatically
⦁It will be displayed after 1 hour or
more when the engine switch is
“ACC”. When it is “ON”, it will be
displayed after 20 minutes or
more.
➞ Set the engine speed to a slightly
higher level when you start the
engine next time, and keep the
same speed for approx. 5 min-
utes and charge the battery
3
times―“Key Battery Low Replace
Key Battery”
The engine switch was turned “OFF”
when the electronic key battery was
close to its end of life*
2
⦁The warning buzz er will sound.
➞ Replace it with a new battery
(➞ P. 344)
Internal
warning buzzerExternal
warning buzzer
Warning messagesWarning content/Action to take
RAIZE_OM_General_BZ358E.book 394 ページ ２０２２年５月１７日　火曜日　午後１時５９分
