3947-2. Steps to take in an emergency
RAIZE_OM_General_BZ358E ✽
: If equipped
―1 time“Key Detected in Vehicle”
When the engine switch was “OFF”
and the electronic key was left
inside the vehicle, you opened the
driver’s door and then tried to close
and lock the door with the door
handle pulled while the inside lock
button was set to the locked side
➞ Take the electronic key from the
vehicle and lock it again
――
“Press Brake Pedal and
Touch Engine Switch with
Key”You tried to start the engine 2 times
without the electronic key on hand
➞ Keep the electronic key with
you*
1
――“Auto Power OFF to Con-
serve Battery”
The engine switch turned “OFF”
automatically
⦁It will be displayed after 1 hour or
more when the engine switch is
“ACC”. When it is “ON”, it will be
displayed after 20 minutes or
more.
➞ Set the engine speed to a slightly
higher level when you start the
engine next time, and keep the
same speed for approx. 5 min-
utes and charge the battery
3
times―“Key Battery Low Replace
Key Battery”
The engine switch was turned “OFF”
when the electronic key battery was
close to its end of life*
2
⦁The warning buzz er will sound.
➞ Replace it with a new battery
(➞ P. 344)
Internal
warning buzzerExternal
warning buzzer
Warning messagesWarning content/Action to take
RAIZE_OM_General_BZ358E.book 394 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3957-2. Steps to take in an emergency
RAIZE_OM_General_BZ358E
When trouble arises
7
*1If the engine does not start even when the electronic key is placed inside the
vehicle, it is possible that the key is running out of battery. ( ➞P. 344)
*2If the low battery state continues, the message also appears even when the
engine switch is turned to “ACC” or “ON”.
⬛Warning messages
➞ P. 3 9 2
⬛Warning message display
➞P. 3 9 2
⬛Warning buzzers
Depending on the situation, you ma y have difficulty hearing the buzzer
because of the noise outside or audio sound.
――
“Press Engine SW While
Turning Steering Right
and Left”
Unable to unlock the steering
wheel by pressing the engine
switch
➞ Step on the brake pedal and
press the engine switch while
turning the steering wheel right
and left
――“Shift to P and Turn Power
OFF”
You tried to turn “OFF” the engine
switch while the shift lever is placed
in a position other than P
✽
➞Set the shift lever to P
―1 time“Turn Power OFF”
When the engine switch was “ACC”
or “ON”, someone tried to lock the
doors using the lock/unlock switch
on the front or back door
➞ Turn the engine switch to “OFF”
and lock the doors
Internal
warning buzzerExternal
warning buzzer
Warning messagesWarning content/Action to take
RAIZE_OM_General_BZ358E.book 395 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3967-2. Steps to take in an emergency
RAIZE_OM_General_BZ358E

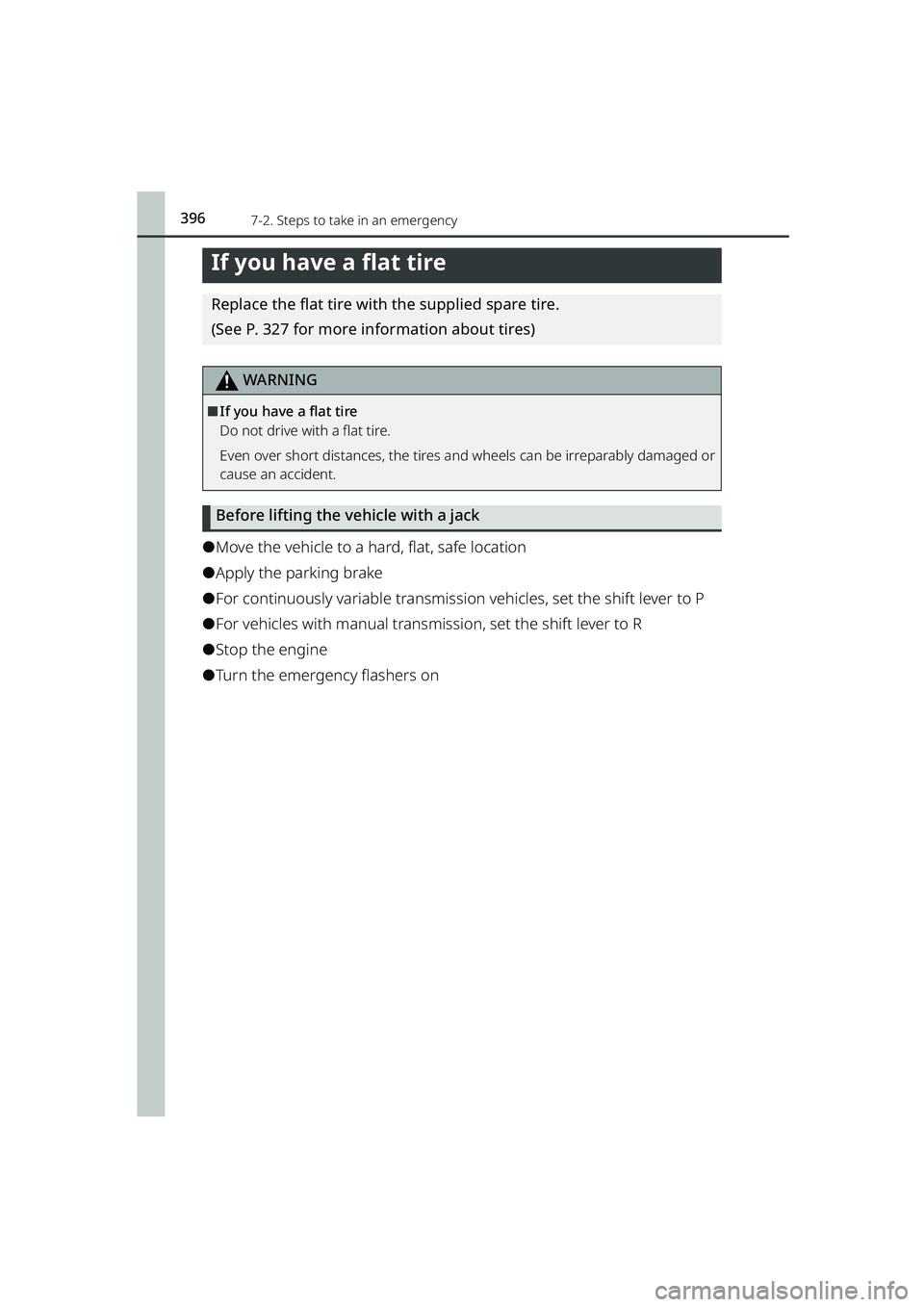

If you have a flat tire
Replace the flat tire with the supplied spare tire.
(See P. 327 for more information about tires)
WARNING
⬛If you have a flat tire
Do not drive with a flat tire.
Even over short distances, the tires an d wheels can be irreparably damaged or
cause an accident.
Before lifting the vehicle with a jack
⚫Move the vehicle to a hard, flat, safe location
⚫Apply the parking brake
⚫For continuously variable transmission vehicles, set the shift lever to P
⚫For vehicles with manual transmission, set the shift lever to R
⚫Stop the engine
⚫Turn the emergency flashers on
RAIZE_OM_General_BZ358E.book 396 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3987-2. Steps to take in an emergency
RAIZE_OM_General_BZ358E
WARNING
⚫Do not start the engine or drive the ve hicle while the vehicle is supported by
the jack
⚫Do not raise the vehicle while someone is inside
⚫When raising the vehicle, do not put an object on or under the jack
⚫Do not raise the vehicle to a height greater than that required to replace the
tire
⚫Use a jack stand if it is necessary to get under the vehicle
⚫When lowering the vehicle, make sure that there is no-one near the vehicle.
If there are people nearby, warn them vocally before lowering
Procedure to take out jacks and tools
aSlide the front left seat all the way
forward and partly remove its
cover
b Loosen and remove the jack
aTighten
b Loosen
c Take out the tool bag
KBRO620602E
1
2
KBRO620603N
RAIZE_OM_General_BZ358E.book 398 ページ ２０２２年５月１７日　火曜日　午後１時５９分

4057-2. Steps to take in an emergency
RAIZE_OM_General_BZ358E
When trouble arises
7
If the engine does not start
If the engine does not start even though correct starting procedures
are being followed ( ➞P. 184), consider each of the following points:
The engine does not start even though the starter motor operates
normally
One of the following may be the cause of the problem:
⚫There may not be sufficient fuel in the vehicle’s tank.
Refuel the vehicle.
⚫The engine may be flooded.
Try to restart the engine again fo llowing correct starting procedures
( ➞ P. 1 8 4 ) .
⚫There may be a malfunction in th e engine immobilizer system. (➞P. 72)
The starter motor runs slowly, the interior light and headlights are
dim, or the horn does not so und or sounds at a low volume
One of the following may be the cause of the problem:
⚫The battery may be discharged. ( ➞P. 408)
⚫The battery terminal connections may be loose.
If the starter does not operat e (vehicles with key-free system)
⚫There may be an issue in the electrical system, such as a disconnected
electrical component or blown fuse. Depending on the cause, you may
be able to start the engine using temporary measures. ( ➞P. 406)
⚫There may be a malfunction in the steering wheel lock system.
The starter motor does not run, the interior light and headlights do
not turn on, or the horn does not sound
One of the following may be the cause of the problem:
⚫There may be a disconnected battery terminal.
⚫The battery may be discharged. ( ➞P. 408)
Contact your Toyota dealer if the procedures are not clear, or if the engine does not
start even after the measures have been taken.
RAIZE_OM_General_BZ358E.book 405 ページ ２０２２年５月１７日　火曜日　午後１時５９分

4067-2. Steps to take in an emergency
RAIZE_OM_General_BZ358E
If the electronic key does not work properly
(vehicles with key-free system)
The key-free system and wireless remote control cannot be used
when communication between the electronic key and vehicle is
blocked (➞P. 125) or when the electronic key battery is dead. In such
cases, you can open the doors or start the engine by following the
steps below.
Locking and unloc king the doors
Using the emergency key ( ➞P. 118),
you can:
a Lock all doors
b Unlock all doors
If set, the alarm will sound. ( ➞P. 73)
Starting the engine
a Continuously variable transmission vehicles: Step on the brake pedal
with the shift lever placed in P
Manual transmission vehicles: Step on the clutch pedal with the shift
lever placed in N
b Touch the electronic key to the
engine switch, as shown in the
illustration
⦁The indicator of the engine switch
lights up in green.
⦁ The alarm will shut off. (➞ P. 73)
cPress the engine switch
If you are still unable to start the engine after following the above steps,
contact your Toyota dealer.
12
KBRO720801E
KBRO820801E
RAIZE_OM_General_BZ358E.book 406 ページ ２０２２年５月１７日　火曜日　午後１時５９分

4077-2. Steps to take in an emergency
RAIZE_OM_General_BZ358E
When trouble arises
7
⬛Stopping the engine
As you usually would when stopping the engine, set the shift lever to P for con-
tinuously variable transmission vehicles , and set it to N for manual transmis-
sion vehicles, then press the engine switch.
⬛Replacing the battery
The method to start the engine descri bed here is a temporary workaround. We
recommend that you replace dead batteries immediately. ( ➞P. 344)
⬛Changing the engine switch mode
In step c of “Starting the engine ”, if you press the engine switch by releasing
your foot from the clutch pedal for manual transmission vehicles and from the
brake pedal for continuously variable tr ansmission vehicles, the engine will not
start. Instead, the mode changes each time you press the switch. (➞P. 185)
⬛If the electronic key does not work properly
Check whether the electronic key is set to battery-saving mode. If the mode is
set, cancel it ( ➞P. 125)
RAIZE_OM_General_BZ358E.book 407 ページ ２０２２年５月１７日　火曜日　午後１時５９分

4087-2. Steps to take in an emergency
RAIZE_OM_General_BZ358E
If the vehicle battery is discharged
If the battery is discharged, you can start the engine by following the
steps below.
You can also call your Toyota deal er or a qualified repair shop.
If you have a booster cable and a second vehicle with a 12 V battery, you
can start your vehicle by following the steps below.
a Open the cover of the positive (+) battery terminal
Hold down the claw and open it.
bConnect the jumper cables accord ing to the following procedure:
a Connect a positive jumper cable clamp to the positive (+) battery ter-
minal on your vehicle.
b Connect the clamp on the other end of the positive cable to the pos-
itive (+) battery terminal on the second vehicle.
c Connect a negative cable clamp to the negative (-) battery terminal
on the second vehicle.
d Connect the clamp at the other end of the negative cable to a solid,
stationary, unpainted metallic point away from the battery and any
moving parts, as show n in the illustration.
▶WA-VE engine
4
1
32
KBRO720901N
RAIZE_OM_General_BZ358E.book 408 ページ ２０２２年５月１７日　火曜日　午後１時５９分
