Page 422 of 516
4208-1. List of specifications
RAIZE_OM_General_BZ358E

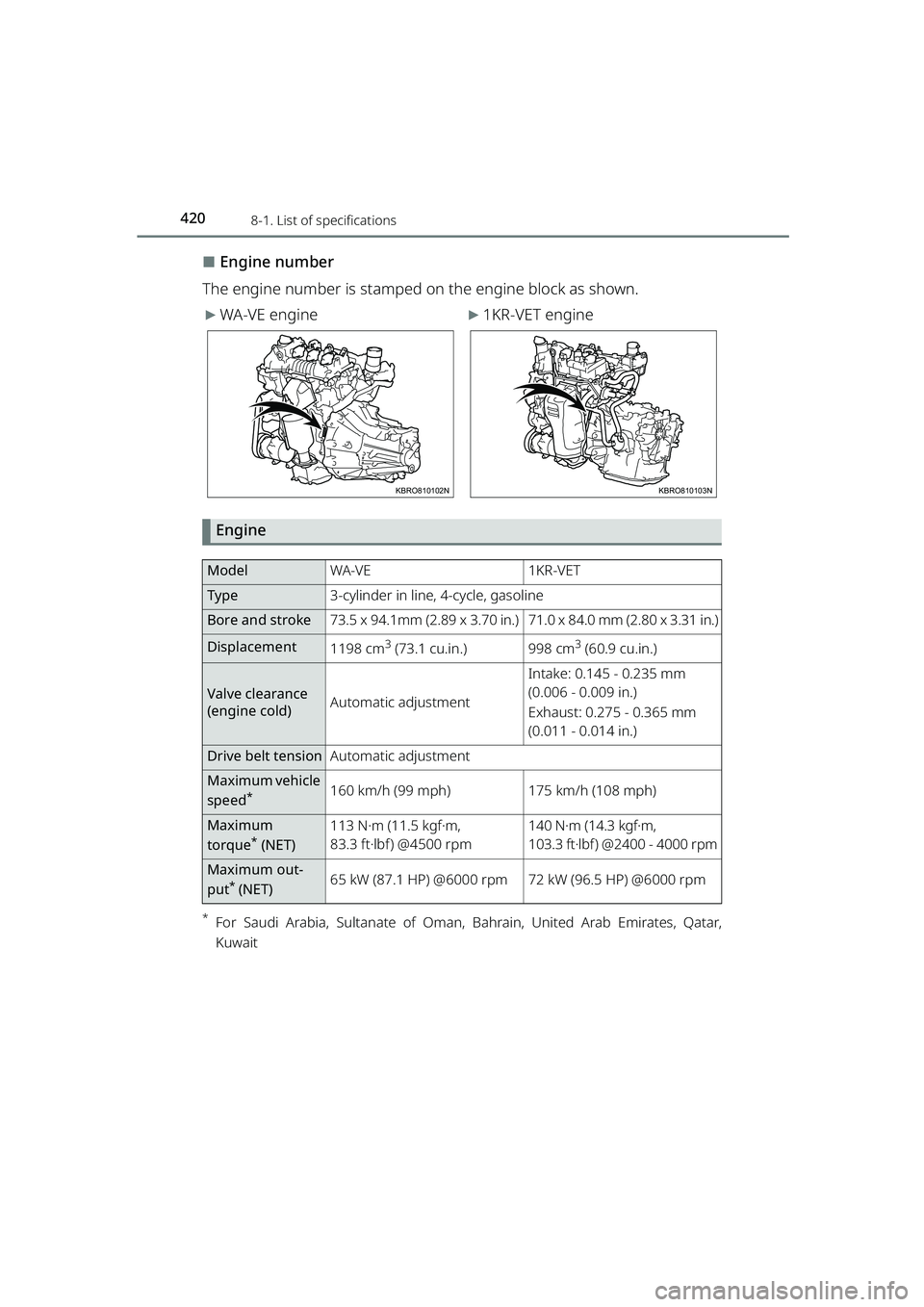

⬛Engine number
The engine number is stamped on the engine block as shown.
▶WA-VE engine▶1KR-VET engine
Engine
*For Saudi Arabia, Sultanate of Oman, Bahrain, United Arab Emirates, Qatar,
Kuwait
KBRO810102NKBRO810103N
ModelWA-VE1KR-VET
Type3-cylinder in line, 4-cycle, gasoline
Bore and stroke73.5 x 94.1mm (2.89 x 3.70 in.)71.0 x 84.0 mm (2.80 x 3.31 in.)
Displacement1198 cm3 (73.1 cu.in.)998 cm3 (60.9 cu.in.)
Valve clearance
(engine cold)Automatic adjustment
Intake: 0.145 - 0.235 mm
(0.006 - 0.009 in.)
Exhaust: 0.275 - 0.365 mm
(0.011 - 0.014 in.)
Drive belt tensionAutomatic adjustment
Maximum vehicle
speed*160 km/h (99 mph)175 km/h (108 mph)
Maximum
torque* (NET)
113 N·m (11.5 kgf·m,
83.3 ft·lbf) @4500 rpm140 N·m (14.3 kgf·m,
103.3 ft·lbf) @2400 - 4000 rpm
Maximum out-
put*(NET)65 kW (87.1 HP) @6000 rpm72 kW (96.5 HP) @6000 rpm
RAIZE_OM_General_BZ358E.book 420 ページ 2022年5月17日 火曜日 午後1時59分
Page 423 of 516

4218-1. List of specifications
RAIZE_OM_General_BZ358E
Vehicle information
8
Fuel
Lubrication system (WA-VE engine)
*The engine oil capacity is a reference quantity to be used when changing the
engine oil. Warm up and turn off the engine, wait more than 5 minutes, and
check the oil level on the dipstick.
⬛Engine oil selection
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Use Toyota
approved “Toyota Genuine Motor Oil” or equivalent to satisfy the following
grade and viscosity.
Oil grade:
0W-16:
API grade SN “Resource-Conserving”, SN PLUS “Resource-Conserving” or
SP “Resource-Conserving”; or ILSAC GF-6B multigrade engine oil
0W-20 and 5W-30:
API grade SL “Energy-Conserving”, SM “Energy-Conserving”, SN “Resource-
Conserving”, SN PLUS “Resource-C onserving” or SP “Resource-Conserv-
ing”; or ILSAC GF-6A multigrade engine oil
Fuel typeUnleaded gasoline only
Research Octane Number90 or higher
Fuel tank capacity (Reference)36 L (9.5 gal., 7.9 Imp.gal.)
Oil capacity
(Drain and refill - reference*)
With filter
Without filter3.4 L (3.6 qt., 3.0 Imp.qt.)
3.2 L (3.4 qt., 2.8 Imp.qt.)
RAIZE_OM_General_BZ358E.book 421 ページ 2022年5月17日 火曜日 午後1時59分
Page 424 of 516

4228-1. List of specifications
RAIZE_OM_General_BZ358E
Recommended viscosity (SAE):
SAE 0W-16 is filled into your Toyota
vehicle at manufacturing, and the
best choice for good fuel economy
and good starting in cold weather.
Oil viscosity (0W-16 is explained here as an example):
⚫The 0W in 0W-16 indicates the characteristic of the oil which allows cold
startability. Oils with a lower value before the W allow for easier starting
of the engine in cold weather.
⚫The 16 in 0W-16 indicates the viscosity characteristic of the oil when the
oil is at high temperature. An oil with a higher viscosity (one with a
higher value) may be better suited if the vehicle is operated at high
speeds, or under extr eme load conditions.
How to read oil container labels:
Either or both API registered marks are added to some oil containers to
help you select the oil you should use.
a API Service Symbol
Top portion: “API SERVICE SP” means
the oil quality designation by American
Petroleum Institute (API).
Center portion: “SAE 0W-16” means the
SAE viscosity grade.
Lower portion: “Resource-Conserving”
means that the oil has fuel-saving and
environmental protection capabilities.
bILSAC Certification Mark
The International Lubricant Specifica-
tion Advisory Committee (ILSAC) Certifi-
cation Mark is displayed on the front of
the container.
KBRO810105N
Temperature range anticipated before
next oil change.
12
KBRO810106N
RAIZE_OM_General_BZ358E.book 422 ページ 2022年5月17日 火曜日 午後1時59分
Page 425 of 516
4238-1. List of specifications
RAIZE_OM_General_BZ358E
Vehicle information
8
Lubrication system (1KR-VET engine)
*The engine oil capacity is a reference quantity to be used when changing the
engine oil. Warm up and turn off the engine, wait more than 5 minutes, and
check the oil level on the dipstick.
⬛Engine oil selection
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Use Toyota
approved “Toyota Genuine Motor Oil” or equivalent to satisfy the following
grade and viscosity.
Oil grade:
0W-20 and 5W-30:
API grade SL “Energy-Conserving”, SM “Energy-Conserving”, SN “Resource-
Conserving”, SN PLUS “Resource-C onserving” or SP “Resource-Conserv-
ing”; or ILSAC GF-6A multigrade engine oil
Oil capacity
(Drain and refill - reference*)
With filter
Without filter3.1 L (3.3 qt., 2.7 Imp.qt.)
2.9 L (3.1 qt., 2.6 Imp.qt.)
RAIZE_OM_General_BZ358E.book 423 ページ 2022年5月17日 火曜日 午後1時59分
Page 426 of 516

4248-1. List of specifications
RAIZE_OM_General_BZ358E
Recommended viscosity (SAE):
SAE 0W-20 is filled into your Toyota
vehicle at manufacturing, and the
best choice for good fuel economy
and good starting in cold weather.
Oil viscosity (0W-20 is explained here as an example):
⚫The 0W in 0W-20 indicates the characteristic of the oil which allows cold
startability. Oils with a lower value before the W allow for easier starting
of the engine in cold weather.
⚫The 20 in 0W-20 indicates the viscosity characteristic of the oil when the
oil is at high temperature. An oil with a higher viscosity (one with a
higher value) may be better suited if the vehicle is operated at high
speeds, or under extr eme load conditions.
How to read oil container labels:
Either or both API registered marks are added to some oil containers to
help you select the oil you should use.
a API Service Symbol
Top portion: “API SERVICE SP” means
the oil quality designation by American
Petroleum Institute (API).
Center portion: “SAE 0W-20” means the
SAE viscosity grade.
Lower portion: “Resource-Conserving”
means that the oil has fuel-saving and
environmental protection capabilities.
bILSAC Certification Mark
The International Lubricant Specifica-
tion Advisory Committee (ILSAC) Certifi-
cation Mark is displayed on the front of
the container.
KBRO810107N
Temperature range anticipated before
next oil change.
12
KBRO810108N
RAIZE_OM_General_BZ358E.book 424 ページ 2022年5月17日 火曜日 午後1時59分
Page 427 of 516

4258-1. List of specifications
RAIZE_OM_General_BZ358E
Vehicle information
8
Cooling system
*1Except for hot area
*2For hot area
*3For vehicles without heater
*4For vehicles with heater
Ignition system
NOTICE
⬛Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.
WA-VE engine1KR-VET engine
Capacity
(Reference)
▶Continuously variable trans-
mission
4.1 L (4.3 qt., 3.6 Imp.qt.)*
1, 3
4.6 L (4.9 qt., 4.0 Imp.qt.)*1, 4
4.2 L (4.4 qt., 3.7 Imp.qt.)*2, 3
4.7 L (5.0 qt., 4.1 Imp.qt.)*2, 4
▶Manual transmission
3.9 L (4.1 qt., 3.4 Imp.qt.)*
1, 3
4.5 L (4.8 qt., 4.0 Imp.qt.)*1, 4
4.0 L (4.2 qt., 3.5 Imp.qt.)*2, 3
4.6 L (4.9 qt., 4.0 Imp.qt.)*2, 4
▶Continuously variable trans-
mission
4.6 L (4.9 qt., 4.0 Imp.qt.)*
1, 3
4.8 L (5.1 qt., 4.2 Imp.qt.)*1, 4
4.7 L (5.0 qt., 4.1 Imp.qt.)*2, 3
5.0 L (5.3 qt., 4.4 Imp.qt.)*2, 4
▶Manual transmission
4.4 L (4.6 qt., 3.9 Imp.qt.)*
1, 3
4.7 L (5.0 qt., 4.1 Imp.qt.)*1, 4
4.6 L (4.9 qt., 4.0 Imp.qt.)*2, 3
4.8 L (5.1 qt., 4.2 Imp.qt.)*2, 4
Coolant type
Use either of the following:
⚫“Toyota Super Long Life Coolant”
⚫A similar high-quality ethylene glycol-based non-silicate, non-
amine, non-nitrite, and non-borate coolant with long-life hybrid
organic acid technology
Do not use plain water alone.
Spark plug
Make▶WA-VE engine
DENSO FC20HR-Q8
▶1KR-VET engine
NGK SILKAR7G8G
Gap0.8 mm (0.031 in.)
RAIZE_OM_General_BZ358E.book 425 ページ 2022年5月17日 火曜日 午後1時59分
Page 429 of 516
4278-1. List of specifications
RAIZE_OM_General_BZ358E✽
: If equipped
Vehicle information
8

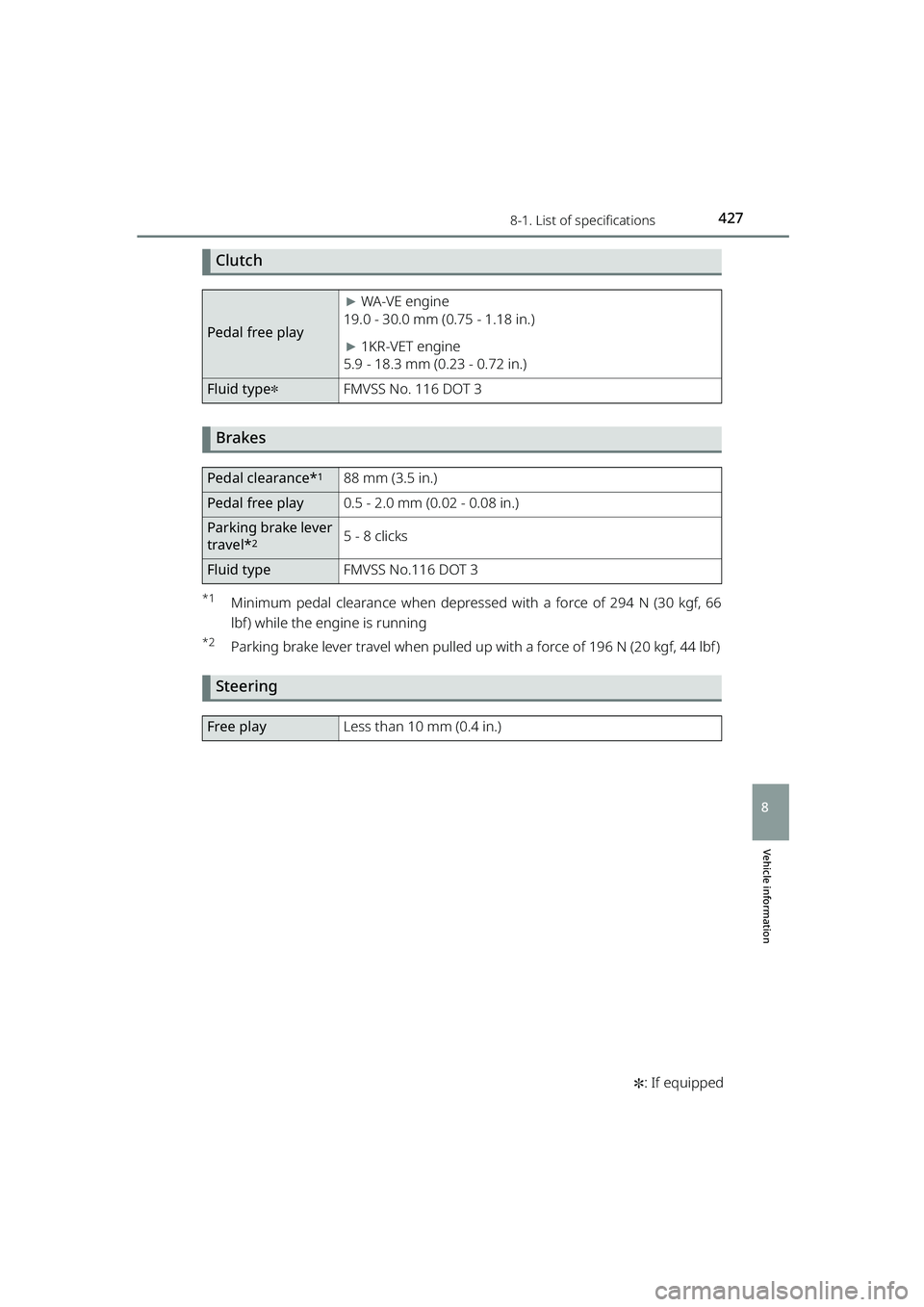

Clutch
Brakes
*1Minimum pedal clearance when depressed with a force of 294 N (30 kgf, 66
lbf) while the engine is running
*2Parking brake lever travel when pulled up wi th a force of 196 N (20 kgf, 44 lbf)
Steering
Pedal free play
▶WA-VE engine
19.0 - 30.0 mm (0.75 - 1.18 in.)
▶1KR-VET engine
5.9 - 18.3 mm (0.23 - 0.72 in.)
Fluid type✽FMVSS No. 116 DOT 3
Pedal clearance*188 mm (3.5 in.)
Pedal free play0.5 - 2.0 mm (0.02 - 0.08 in.)
Parking brake lever
travel*25 - 8 clicks
Fluid typeFMVSS No.116 DOT 3
Free playLess than 10 mm (0.4 in.)
RAIZE_OM_General_BZ358E.book 427 ページ 2022年5月17日 火曜日 午後1時59分
Page 431 of 516

4298-1. List of specifications
RAIZE_OM_General_BZ358E
Vehicle information
8

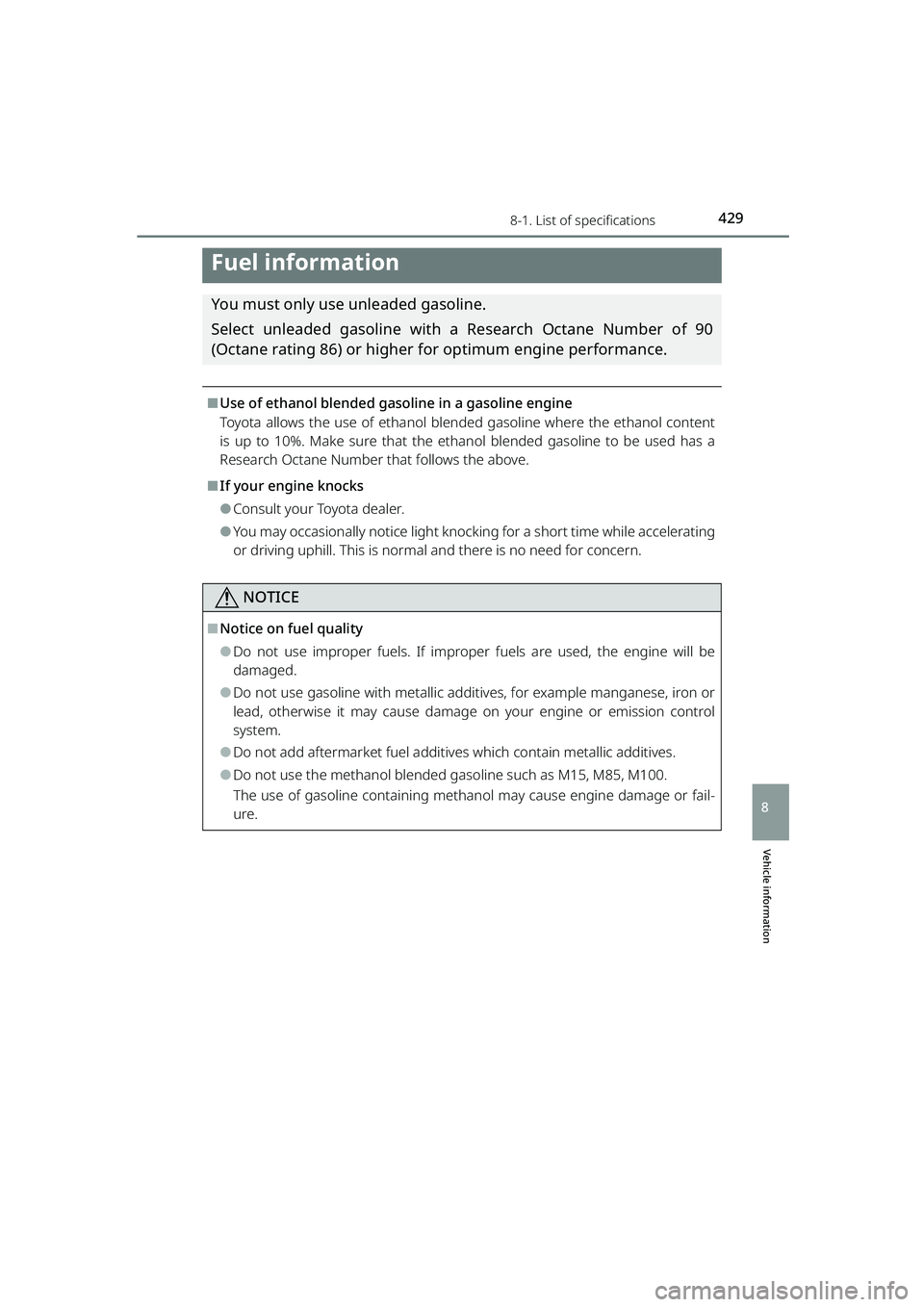

Fuel information
You must only use unleaded gasoline.
Select unleaded gasoline with a Research Octane Number of 90
(Octane rating 86) or higher for optimum engine performance.
⬛Use of ethanol blended gasoline in a gasoline engine
Toyota allows the use of ethanol blended gasoline where the ethanol content
is up to 10%. Make sure that the ethanol blended gasoline to be used has a
Research Octane Number that follows the above.
⬛If your engine knocks
⚫Consult your Toyota dealer.
⚫You may occasionally notice light knocking for a short time while accelerating
or driving uphill. This is normal and there is no need for concern.
NOTICE
⬛Notice on fuel quality
⚫Do not use improper fuels. If improp er fuels are used, the engine will be
damaged.
⚫Do not use gasoline with metallic additives, for example manganese, iron or
lead, otherwise it may cause damage on your engine or emission control
system.
⚫Do not add aftermarket fuel additive s which contain metallic additives.
⚫Do not use the methanol blended ga soline such as M15, M85, M100.
The use of gasoline containing methan ol may cause engine damage or fail-
ure.
RAIZE_OM_General_BZ358E.book 429 ページ 2022年5月17日 火曜日 午後1時59分
