3316-3. Do-it-yourself maintenance
RAIZE_OM_General_BZ358E
✽: If equipped
Maintenance and care
6
⬛Situations in which the tire pressure warning system may not operate properly✽
⚫In the following cases, the tire pressure warning system may not operate
properly.
⦁ If non-genuine Toyota wheels are used.
⦁A tire has been replaced with a tire that is not an OE (Original Equipment) tire.
⦁A tire has been replaced with a tire that is not of the specified size.
⦁ Tire chains, etc., are equipped.
⦁ An auxiliary-supported run-flat tire is equipped.
⦁ If a window tint that affects the radio wave signals is installed.
⦁ If there is a lot of snow or ice on th e vehicle, particularly around the wheels
or wheel housings.
⦁ If the tire inflation pressure is extr emely higher than the specified level.
⦁ If the spare tire is in a location subj ect to poor radio wave signal reception.
⦁ If a large metallic object which can in terfere with signal reception is put
near the spare tire.
⦁ If a wheel, not equipped with a tire pressure warning valve and transmit-
ter, is used.
⦁ If the ID code on the tire pressure warning valves and transmitters is not
registered in the tire pressure warning computer.
⚫Performance may be affected in the following situations.
⦁Near a TV tower, electric power plant, gas station, radio station, large display,
airport or other facility that generates strong radio waves or electrical noise
⦁ When carrying a portable radio, cellul ar phone, cordless phone or other
wireless communication device
⚫When the vehicle is parked, the time ta ken for the warning to start or go off
could be extended.
⚫When tire inflation pressure declin es rapidly for example when a tire has
burst, the warning may not function.
⬛The initialization operation (vehicles with the tire pressure warning system)
⚫Make sure to carry out init ialization after adjusting th e tire inflation pressure.
Also, make sure the tires are cold befo re carrying out initialization or tire
inflation pressure adjustment.
⚫If you have accidentally turned the engi ne switch to “OFF” during initializa-
tion, it is not necessary to press the reset switch again as initialization will
restart automatically when the engine switch has been turned to “ON” for
the next time.
⚫If you accidentally press the reset switch when initialization is not necessary,
adjust the tire inflation pressure to the specified level when the tires are
cold, and conduct initialization again.
RAIZE_OM_General_BZ358E.book 331 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3386-3. Do-it-yourself maintenance
RAIZE_OM_General_BZ358E
Replacing the air conditioning filter
The air conditioning filter must be changed regularly to maintain air
conditioning efficiency.
Replacement method
a Turn the engine switch to “OFF”
b Remove the glove box
aPush the right side inward
and disengage the upper claw
b Push the left side inward and
disengage the upper claw
c Disengage the lower claws
c Remove the filter cover
aUnlock the filter cover
b Slide the filter cover in the
direction of the arrow to
remove it
d Remove the filter and replace it
with a new one
“ ” Attach it so that the arrow
indicated with the icon faces upward.
1
3
2
KBRO620703E
21
KBRO620501E
KBRO620502E
RAIZE_OM_General_BZ358E.book 338 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3486-3. Do-it-yourself maintenance
RAIZE_OM_General_BZ358E
Checking and replacing fuses
If a light or the electrical system does not operate, a fuse may have
blown. Check the fuse.
a Turn the engine switch to “OFF”
b Open the fuse box
▶Engine compartment
While pressing down the claw, lift
the cover
▶Instrument panel
For right-hand drive vehicles,
remove the glove box in the leg-
room of the passenger's seat
a Push the left side inward and
disengage the upper claw
b Push the right side inward
and disengage the upper claw
c Disengage the lower claws
For left-hand drive vehicles, dis-
engage the claws at 8 locations
and remove the lower cover in
the legroom of the driver's seat
KBRO620702N
1
3
2
KBRO620703N
KBRO620704E
RAIZE_OM_General_BZ358E.book 348 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3496-3. Do-it-yourself maintenance
RAIZE_OM_General_BZ358E
Maintenance and care
6
If the fuse box has a cover,
remove the cover
c Remove the fuse removal tool
▶Engine compartment
Remove the fuse removal tool
from the inner side of the cover
▶Instrument panel
Remove the fuse removal tool
from the fuse box
d Remove the fuse by pinching it
with the fuse removal tool
KBRO620705E
KBRO620706E
KBTA620704
KBTA620706
RAIZE_OM_General_BZ358E.book 349 ページ ２０２２年５月１７日　火曜日　午後１時５９分

365
7
RAIZE_OM_General_BZ358E
When trouble arises
7-1. Essential information
Emergency flashers .................. 366
If your vehicle has to be stopped in an emergency ......................... 367
Fire extinguisher........................ 369
If the vehicle is submerged or water on the road is rising ... 371
7-2. Steps to take in an emergency
If your vehicle needs to be towed ........................................ 372
If you think something is wrong ........................................ 377
Fuel pump shut off system ..... 378
If a warning light turns on....... 379
When warning messages are displayed .................................. 387
If you have a flat tire ................. 396
If the engine does not start .... 405
If the electronic key does not work properly (vehicles with key-free
system) ...................................... 406
If the vehicle battery is discharged ............................... 408
If your vehicle overheats ......... 412
If the vehicle has become stuck .......................................... 415
RAIZE_OM_General_BZ358E.book 365 ページ ２０２２年５月１７日　火曜日　午後１時５９分

366
RAIZE_OM_General_BZ358E
7-1. Essential information
Emergency flashers
Use the emergency flashers to warn other drivers when the vehicle
has to be stopped in the road due to a breakdown or other reason.
Press the switch
All the turn signal lights will flash.
To turn them off, press the switch once
again.
NOTICE
⬛Emergency flashers
If the emergency flashers are used for a long time while the engine is not oper-
ating, the battery may discharge.
KBRO710201E
RAIZE_OM_General_BZ358E.book 366 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3677-1. Essential information
RAIZE_OM_General_BZ358E
When trouble arises
7
If your vehicle has to be stopped in an
emergency
Only in an emergency when it becomes impossible to stop the vehi-
cle in the normal way, stop the vehicle using the following procedure:
a Keep the brake pedal depressed firmly with your both feet
Do not pump the brake pedal repeatedly. Th is will increase the effort required, and
the braking distance will also become longer.
b Set the shift lever to N
▶If the shift lever is set to N
c After slowing down, stop the vehicle in a safe place by the roadside
d Stop the engine
▶If the shift lever cannot be set to N
c Keep the brake pedal depressed with your both feet to reduce vehicle
speed as much as possible
d Vehicles without key-free sys-
tem: Stop the engine by turning
the engine switch to “ACC”
Vehicles with key-free system:
Stop the engine by pressing and
holding the engine switch for 3
seconds or longer, or press the
engine switch quickly for 3 con-
secutive times or more
e Stop the vehicle in a safe place by the roadside
KBRO710401E
KBTA710402
Press and hold for 3 or more
seconds or press in succession 3
or more times
RAIZE_OM_General_BZ358E.book 367 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3687-1. Essential information
RAIZE_OM_General_BZ358E

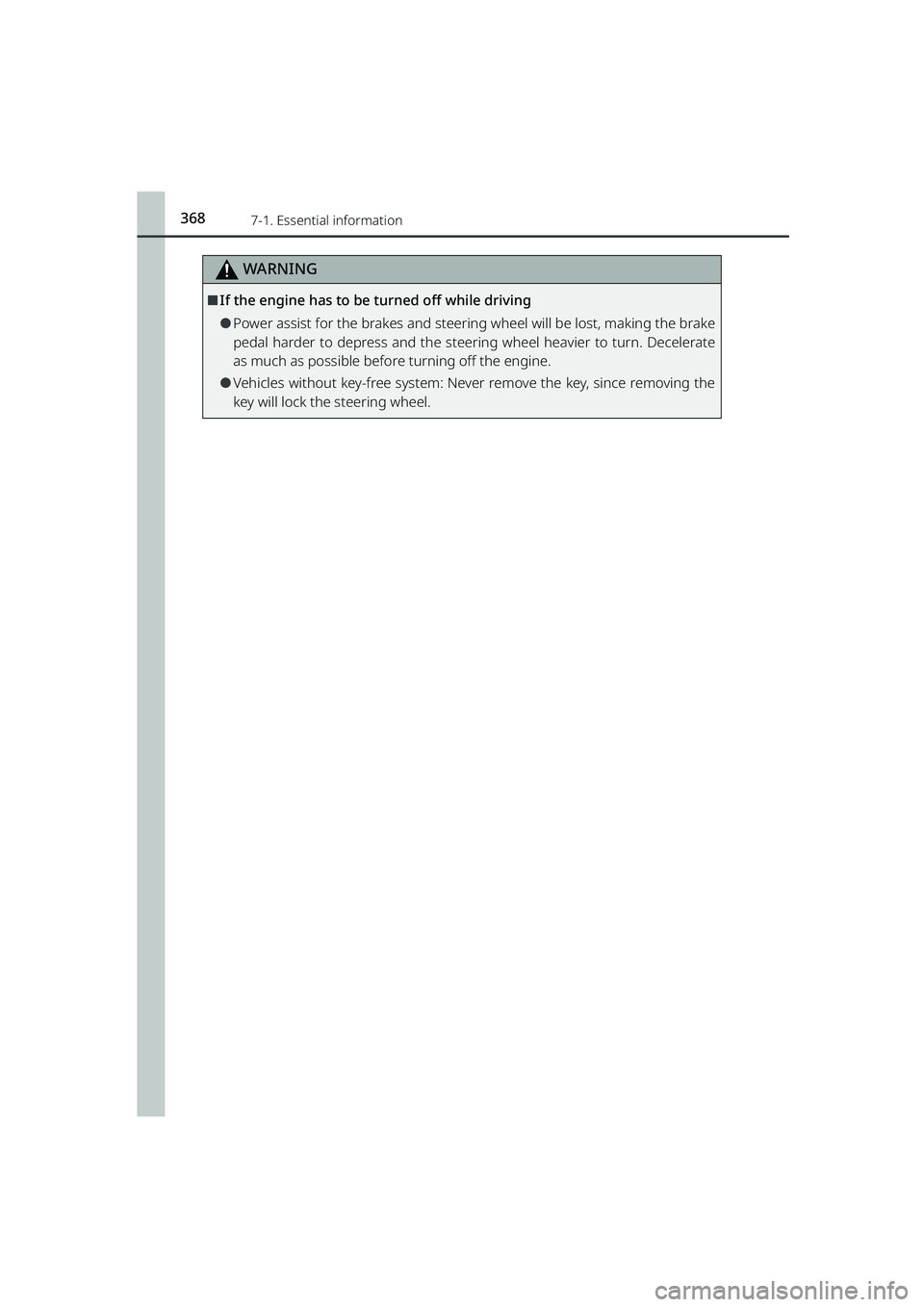

WARNING
⬛If the engine has to be turned off while driving
⚫Power assist for the brakes and steering wheel will be lost, making the brake
pedal harder to depress and the steeri ng wheel heavier to turn. Decelerate
as much as possible before turning off the engine.
⚫Vehicles without key-free system: Never remove the key, since removing the
key will lock the steering wheel.
