2023 MERCEDES-BENZ S CLASS Owners Manual

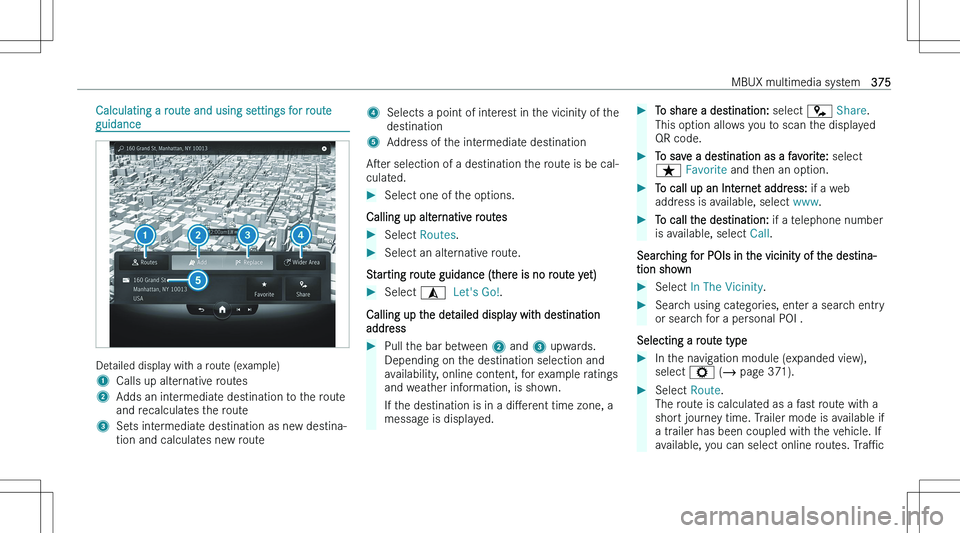

Calculating a route and using settings for route
guidance
Detailed display with a route (example)
1Calls up alternative routes2Adds an intermediate destination to the route and recalculates the route3Sets intermediate destination as new destina-tion and calculates new route4Selects a point of interest in the vicinity of the destination5Address of the intermediate destination
A"ser selection of a destination the route is be cal-
culated.
Select one of the options.
Calling up alternative routes
Select Routes .Select an alternative route.
Starting route guidance (there is no route yet)
Select  Let's Go! .
Calling up the detailed display with destination
address
Pull the bar between 2 and 3 upwards.
Depending on the destination selection and
availability, online content, for example ratings
and weather information, is shown.
If the destination is in a di"Merent time zone, a
message is displayed.To share a destination: select

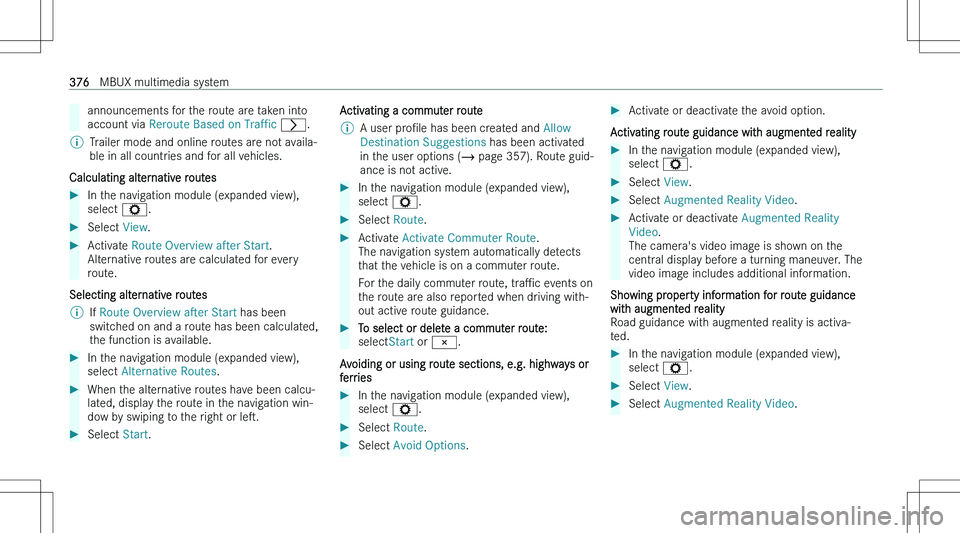

announcements for the route are taken into
account via Reroute Based on Traffic H .\bTrailer mode and online routes are not availa-
ble in all countries and for all vehicles.
Calculating alternative routes
In the navigation module (expanded view), select =.Select View.Activate Route Overview after Start .
Alternative routes are calculated for every
route.
Selecting alternative routes
\bIf Route Overview after Start has been
switched on and a route has been calculated,
the function is available.In the navigation module (expanded view), select Alternative Routes .When the alternative routes have been calcu-
lated, display the route in the navigation win-
dow by swiping to the right or le"s.Select Start.Activating a commuter route\bA user pro"Nle has been created and Allow
Destination Suggestions has been activated
in the user options (  page 357). Route guid-
ance is not active.In the navigation module (expanded view), select =.Select Route.Activate Activate Commuter Route .
The navigation system automatically detects
that the vehicle is on a commuter route.
For the daily commuter route, tra"Pc events on
the route are also reported when driving with-
out active route guidance.To select or delete a commuter route:
select Start or

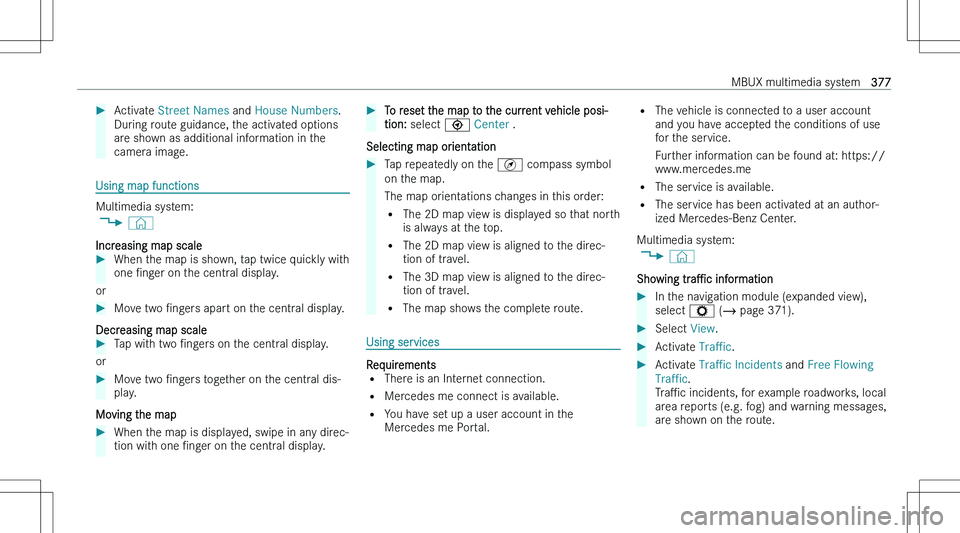

Activate Street Names and House Numbers .
During route guidance, the activated options
are shown as additional information in the
camera image.
Using map functions
Multimedia system:
4 ©
Increasing map scale
When the map is shown, tap twice quickly with
one "Nnger on the central display.
or
Move two "Nngers apart on the central display.
Decreasing map scale
Tap with two "Nngers on the central display.
or
Move two "Nngers together on the central dis-
play.
Moving the map
When the map is displayed, swipe in any direc-
tion with one "Nnger on the central display.To reset the map to the current vehicle posi-
tion: select = Center .
Selecting map orientation
Tap repeatedly on the

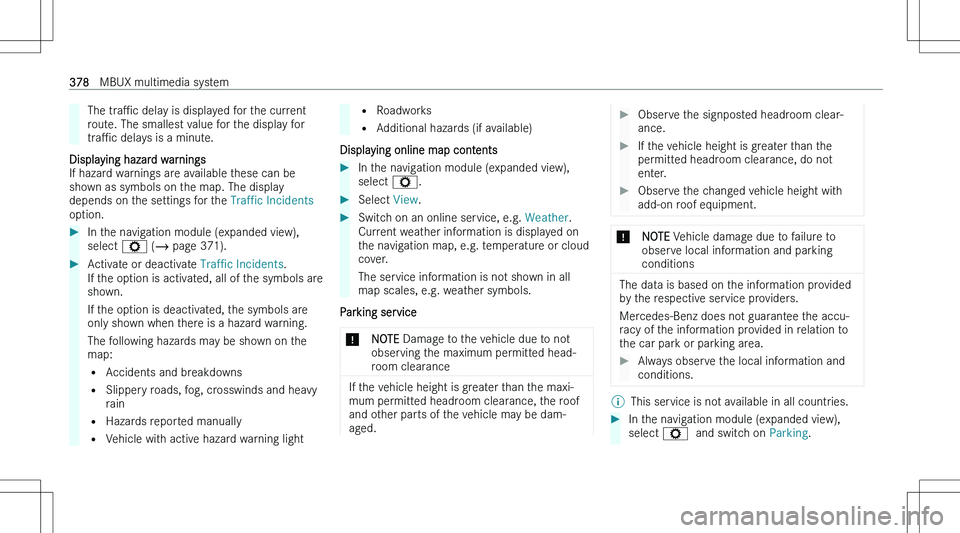

The tra"Pc delay is displayed for the current
route. The smallest value for the display for
tra"Pc delays is a minute.
Displaying hazard warnings
If hazard warnings are available these can be
shown as symbols on the map. The display
depends on the settings for the Traffic Incidents
option.
In the navigation module (expanded view), select = ( page 371).Activate or deactivate Traffic Incidents.
If the option is activated, all of the symbols are shown.
If the option is deactivated, the symbols are
only shown when there is a hazard warning.
The following hazards may be shown on the
map:
= Accidents and breakdowns
= Slippery roads, fog, crosswinds and heavy
rain
= Hazards reported manually
= Vehicle with active hazard warning light=
Roadworks
= Additional hazards (if available)
Displaying online map contents
In the navigation module (expanded view),
select =.Select View.Switch on an online service, e.g. Weather.
Current weather information is displayed on
the navigation map, e.g. temperature or cloud
cover.
The service information is not shown in all
map scales, e.g. weather symbols.
Parking service
*NOTE Damage to the vehicle due to not
observing the maximum permitted head-
room clearance
If the vehicle height is greater than the maxi- mum permitted headroom clearance, the roof
and other parts of the vehicle may be dam-
aged.
Observe the signposted headroom clear- ance.If the vehicle height is greater than the permitted headroom clearance, do not
enter.Observe the changed vehicle height with add-on roof equipment.*NOTE Vehicle damage due to failure to
observe local information and parking
conditions
The data is based on the information provided
by the respective service providers.
Mercedes-Benz does not guarantee the accu-
racy of the information provided in relation to
the car park or parking area.
Always observe the local information and
conditions.\bThis service is not available in all countries.In the navigation module (expanded view), select = and switch on Parking.378MBUX multimedia system

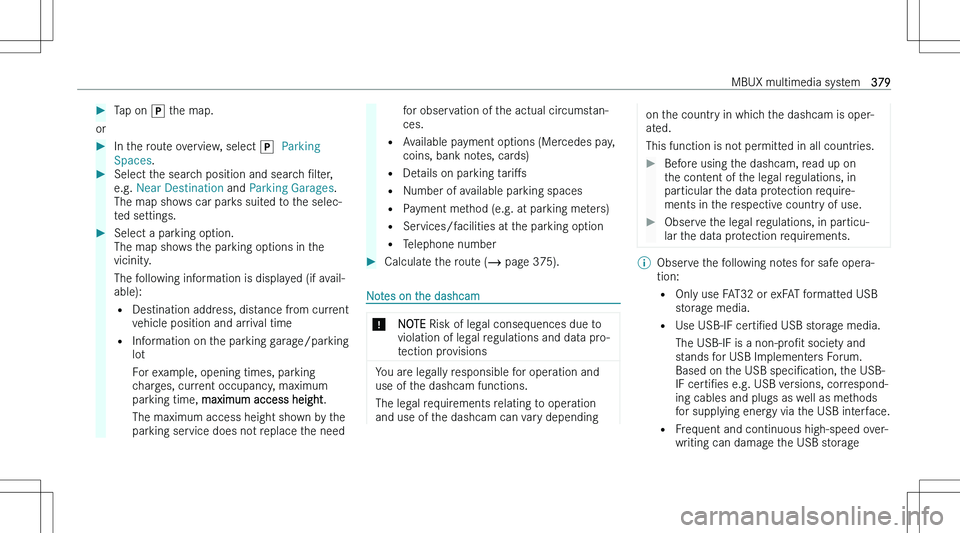

Tap on ] the map.
or
In the route overview, select ] Parking
Spaces .Select the search position and search "Nlter,
e.g. Near Destination and Parking Garages .
The map shows car parks suited to the selec-
ted settings.Select a parking option. The map shows the parking options in the
vicinity.
The following information is displayed (if avail- able):
= Destination address, distance from current
vehicle position and arrival time
= Information on the parking garage/parking
lot
For example, opening times, parking
charges, current occupancy, maximum
parking time, maximum access height .
The maximum access height shown by the parking service does not replace the needfor observation of the actual circumstan-
ces.
= Available payment options (Mercedes pay,
coins, bank notes, cards)
= Details on parking tari"Ms
= Number of available parking spaces
= Payment method (e.g. at parking meters)
= Services/facilities at the parking option
= Telephone numberCalculate the route (  page 375).
Notes on the dashcam
*NOTE Risk of legal consequences due to
violation of legal regulations and data pro-
tection provisions
You are legally responsible for operation and
use of the dashcam functions.
The legal requirements relating to operation
and use of the dashcam can vary depending
on the country in which the dashcam is oper-
ated.
This function is not permitted in all countries.Before using the dashcam, read up on
the content of the legal regulations, in
particular the data protection require-
ments in the respective country of use.Observe the legal regulations, in particu-
lar the data protection requirements.\bObserve the following notes for safe opera-
tion:
= Only use FAT32 or exFAT formatted USB
storage media.
= Use USB-IF certi"Ned USB storage media.
The USB-IF is a non-pro"Nt society and
stands for USB Implementers Forum.
Based on the USB speci"Ncation, the USB-
IF certi"Nes e.g. USB versions, correspond-
ing cables and plugs as well as methods for supplying energy via the USB interface.
= Frequent and continuous high-speed over-
writing can damage the USB storageMBUX multimedia system379

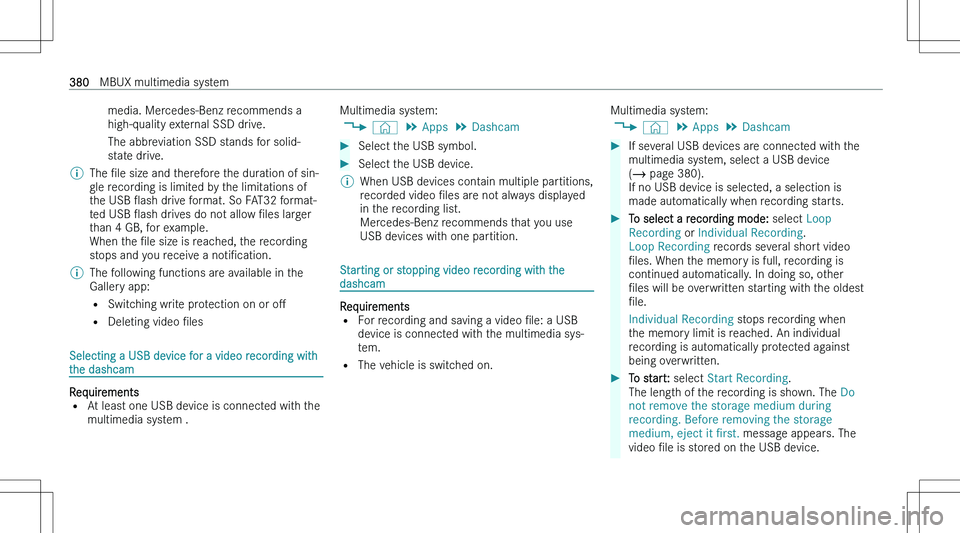

media. Mercedes-Benz recommends a
high-quality external SSD drive.
The abbreviation SSD stands for solid-
state drive.\bThe "Nle size and therefore the duration of sin-
gle recording is limited by the limitations of the USB "Oash drive format. So FAT32 format-
ted USB "Oash drives do not allow "Nles larger
than 4 GB, for example. When the "Nle size is reached, the recording
stops and you receive a noti"Ncation.\bThe following functions are available in the
Gallery app:
= Switching write protection on or o"M
= Deleting video "Nles
Selecting a USB device for a video recording with
the dashcam
Requirements
= At least one USB device is connected with the
multimedia system .
Multimedia system:
4 © 5
Apps 5
DashcamSelect the USB symbol.Select the USB device.\bWhen USB devices contain multiple partitions,
recorded video "Nles are not always displayed
in the recording list. Mercedes-Benz recommends that you use
USB devices with one partition.
Starting or stopping video recording with the dashcam
Requirements
= For recording and saving a video "Nle: a USB
device is connected with the multimedia sys- tem.
= The vehicle is switched on.
Multimedia system:
4 © 5
Apps 5
DashcamIf several USB devices are connected with the
multimedia system, select a USB device
(  page 380).
If no USB device is selected, a selection is made automatically when recording starts.To select a recording mode: select Loop
Recording or Individual Recording .
Loop Recording records several short video
"Nles. When the memory is full, recording is
continued automatically. In doing so, other
"Nles will be overwritten starting with the oldest
"Nle.
Individual Recording stops recording when
the memory limit is reached. An individual
recording is automatically protected against
being overwritten.To start: select Start Recording .
The length of the recording is shown. The Do
not remove the storage medium during
recording. Before removing the storage
medium, eject it first. message appears. The
video "Nle is stored on the USB device.380MBUX multimedia system

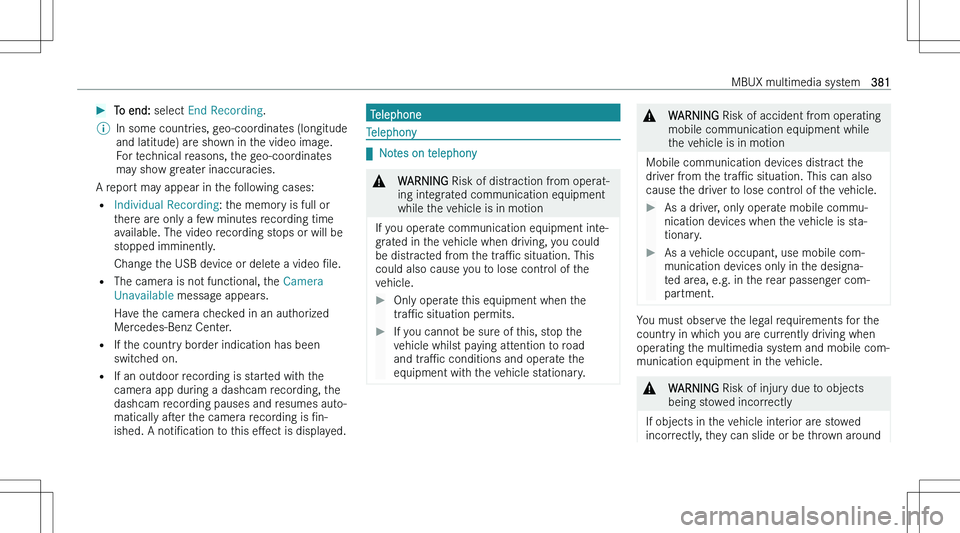

To end: select End Recording .\bIn some countries, geo-coordinates (longitude
and latitude) are shown in the video image.
For technical reasons, the geo-coordinates
may show greater inaccuracies.
A report may appear in the following cases:
= Individual Recording : the memory is full or
there are only a few minutes recording time
available. The video recording stops or will be
stopped imminently.
Change the USB device or delete a video "Nle.
= The camera is not functional, the Camera
Unavailable message appears.
Have the camera checked in an authorized
Mercedes-Benz Center.
= If the country border indication has been
switched on.
= If an outdoor recording is started with the
camera app during a dashcam recording, the
dashcam recording pauses and resumes auto-
matically a"ser the camera recording is "Nn-
ished. A noti"Ncation to this e"Mect is displayed.
Telephone
Telephony

qNotes on telephony
&WARNING Risk of distraction from operat-
ing integrated communication equipment
while the vehicle is in motion
If you operate communication equipment inte-
grated in the vehicle when driving, you could
be distracted from the tra"Pc situation. This
could also cause you to lose control of the
vehicle.
Only operate this equipment when the
tra"Pc situation permits.If you cannot be sure of this, stop the
vehicle whilst paying attention to road
and tra"Pc conditions and operate the
equipment with the vehicle stationary.&WARNING Risk of accident from operating
mobile communication equipment while
the vehicle is in motion
Mobile communication devices distract the
driver from the tra"Pc situation. This can also
cause the driver to lose control of the vehicle.
As a driver, only operate mobile commu-
nication devices when the vehicle is sta-
tionary.As a vehicle occupant, use mobile com-
munication devices only in the designa-
ted area, e.g. in the rear passenger com-
partment.You must observe the legal requirements for the
country in which you are currently driving when
operating the multimedia system and mobile com-
munication equipment in the vehicle.&WARNING Risk of injury due to objects
being stowed incorrectly

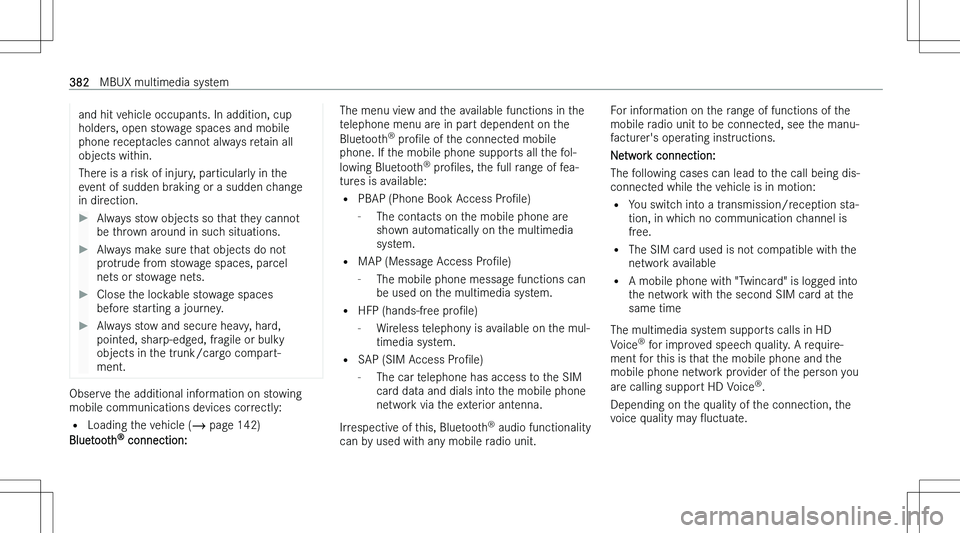

If objects in the vehicle interior are stowed
incorrectly, they can slide or be thrown around
MBUX multimedia system381

and hit vehicle occupants. In addition, cup
holders, open stowage spaces and mobile
phone receptacles cannot always retain all
objects within.
There is a risk of injury, particularly in the
event of sudden braking or a sudden change
in direction.Always stow objects so that they cannot
be thrown around in such situations.Always make sure that objects do not
protrude from stowage spaces, parcel
nets or stowage nets.Close the lockable stowage spaces before starting a journey.Always stow and secure heavy, hard,
pointed, sharp-edged, fragile or bulky
objects in the trunk/cargo compart-
ment.Observe the additional information on stowing
mobile communications devices correctly:
= Loading the vehicle (  page 142)
Bluetooth n
connection:
The menu view and the available functions in the
telephone menu are in part dependent on the
Bluetooth n
pro"Nle of the connected mobile
phone. If the mobile phone supports all the fol-
lowing Bluetooth n
pro"Nles, the full range of fea-
tures is available:
= PBAP (Phone Book Access Pro"Nle)
- The contacts on the mobile phone are
shown automatically on the multimedia system.
= MAP (Message Access Pro"Nle)
- The mobile phone message functions can
be used on the multimedia system.
= HFP (hands-free pro"Nle)
- Wireless telephony is available on the mul-
timedia system.
= SAP (SIM Access Pro"Nle)
- The car telephone has access to the SIM
card data and dials into the mobile phone
network via the exterior antenna.
Irrespective of this, Bluetooth n
audio functionality
can by used with any mobile radio unit.For information on the range of functions of the
mobile radio unit to be connected, see the manu-
facturer\bs operating instructions.
Network connection:
The following cases can lead to the call being dis-
connected while the vehicle is in motion:
= You switch into a transmission/reception sta-
tion, in which no communication channel is free.
= The SIM card used is not compatible with the
network available
= A mobile phone with "Twincard" is logged into
the network with the second SIM card at the
same time
The multimedia system supports calls in HD Voice n
for improved speech quality. A require-
ment for this is that the mobile phone and the mobile phone network provider of the person you
are calling support HD Voice n
.
Depending on the quality of the connection, the voice quality may "Ouctuate.382MBUX multimedia system
