2023 MERCEDES-BENZ S CLASS Owners Manual

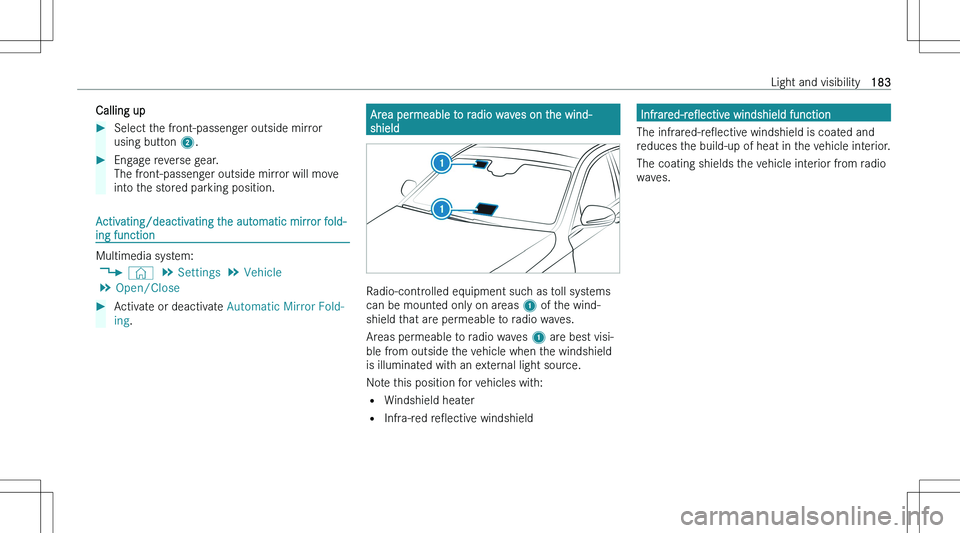

Calling upSelect the front-passenger outside mirrorusing button 2.Engage reverse gear.
The front-passenger outside mirror will move into the stored parking position.
Activating/deactivating the automatic mirror fold-
ing function
Multimedia system:
4 © 5
Settings 5
Vehicle
5 Open/Close
Activate or deactivate Automatic Mirror Fold-
ing .Area permeable to radio waves on the wind-
shield
Radio-controlled equipment such as toll systems
can be mounted only on areas 1 of the wind-
shield that are permeable to radio waves.
Areas permeable to radio waves 1 are best visi-
ble from outside the vehicle when the windshield
is illuminated with an external light source.
Note this position for vehicles with: = Windshield heater
= Infra-red re"Oective windshield
*nfrared-re"Oective windshield function
The infrared-re"Oective windshield is coated and
reduces the build-up of heat in the vehicle interior.
The coating shields the vehicle interior from radio
waves.Light and visibility183

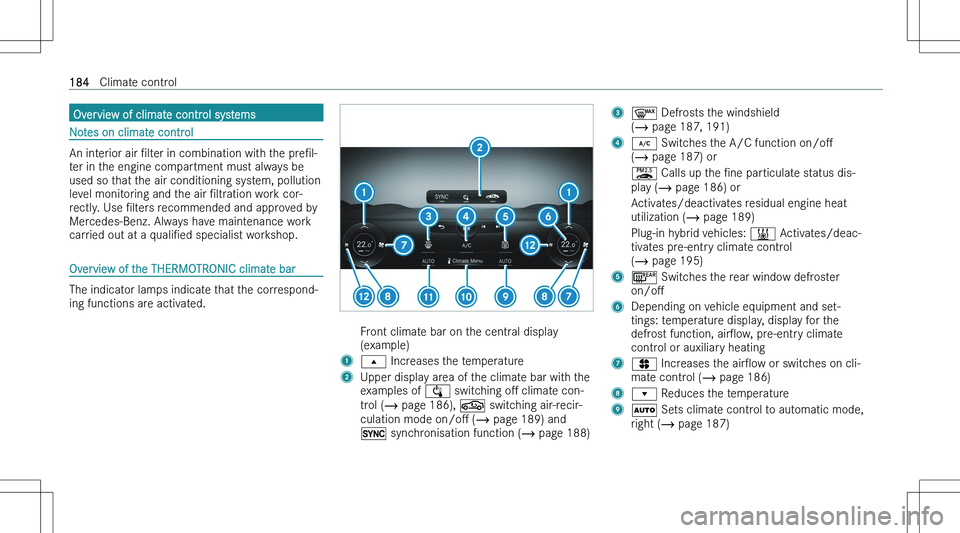

Overview of climate control systems
Notes on climate control
An interior air "Nlter in combination with the pre"Nl-
ter in the engine compartment must always be
used so that the air conditioning system, pollution level monitoring and the air "Nltration work cor-
rectly. Use "Nlters recommended and approved by
Mercedes-Benz. Always have maintenance work
carried out at a quali"Ned specialist workshop.
Overview of the THERMOTRONIC climate bar
The indicator lamps indicate that the correspond-
ing functions are activated.
Front climate bar on the central display
(example)1~ Increases the temperature2Upper display area of the climate bar with the
examples of O switching o"M climate con-
trol (  page 186), r switching air-recir-
culation mode on/o"M ( page 189) and
 synchronisation function (  page 188)3d Defrosts the windshield
(  page 187, 191)4Z Switches the A/C function on/o"M
(  page 187) orG Calls up the "Nne particulate status dis-
play (  page 186) orActivates/deactivates residual engine heat
utilization (  page 189)Plug-in hybrid vehicles: ; Activates/deac-
tivates pre-entry climate control (  page 195)5l Switches the rear window defroster
on/o"M6Depending on vehicle equipment and set-
tings: temperature display, display for the
defrost function, air"Oow, pre-entry climate
control or auxiliary heating7

A

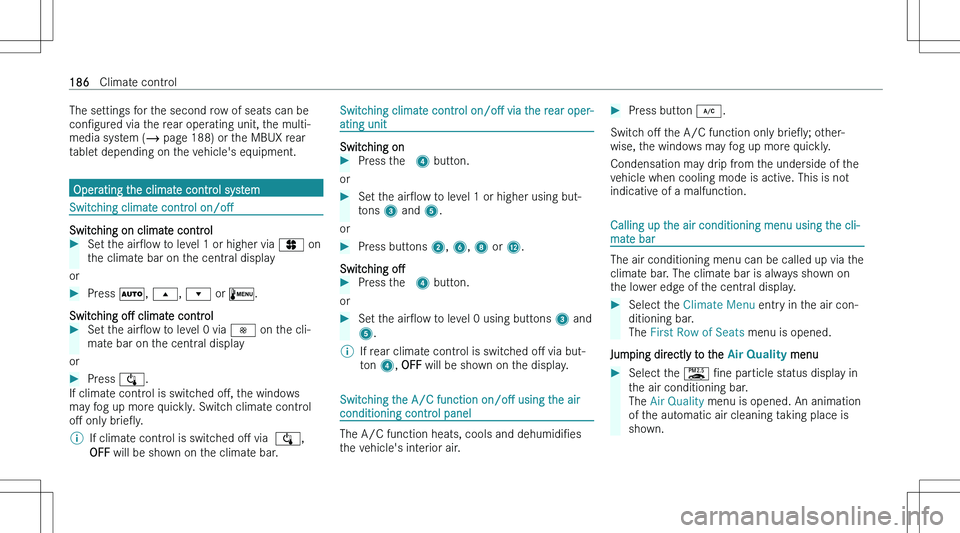

The settings for the second row of seats can be
con"Ngured via the rear operating unit, the multi-
media system (  page 188) or the MBUX rear
tablet depending on the vehicle\bs equipment.
Operating the climate control system
Switching climate control on/o"M
Switching on climate control
Set the air"Oow to level 1 or higher via

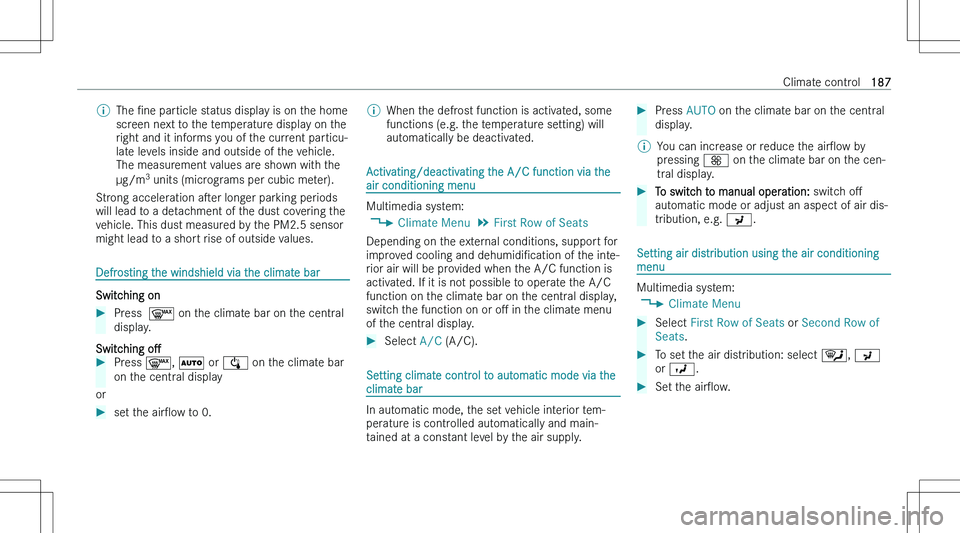

\bThe "Nne particle status display is on the home
screen next to the temperature display on the right and it informs you of the current particu-
late levels inside and outside of the vehicle.
The measurement values are shown with the
ug/m 3
units (micrograms per cubic meter).
Strong acceleration a"ser longer parking periods
will lead to a detachment of the dust covering the vehicle. This dust measured by the PM2.5 sensormight lead to a short rise of outside values.
Defrosting the windshield via the climate bar
Switching on
Press d on the climate bar on the central
display.
Switching o"M
Press d, X or O on the climate bar
on the central display
or
set the air"Oow to 0.\bWhen the defrost function is activated, some
functions (e.g. the temperature setting) will
automatically be deactivated.
Activating/deactivating the A/C function via the air conditioning menu
Multimedia system:
4 Climate Menu 5
First Row of Seats
Depending on the external conditions, support for
improved cooling and dehumidi"Ncation of the inte-
rior air will be provided when the A/C function is activated. If it is not possible to operate the A/C
function on the climate bar on the central display, switch the function on or o"M in the climate menu
of the central display.
Select A/C (A/C).
Setting climate control to automatic mode via the
climate bar
In automatic mode, the set vehicle interior tem- perature is controlled automatically and main-
tained at a constant level by the air supply.
Press AUTO on the climate bar on the central
display.\bYou can increase or reduce the air"Oow by
pressing

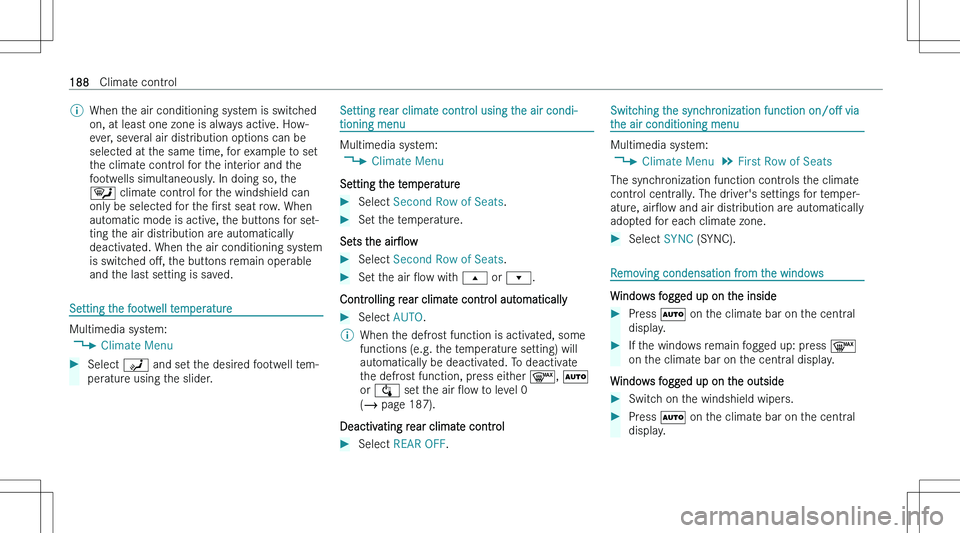

\bWhen the air conditioning system is switchedon, at least one zone is always active. How-
ever, several air distribution options can be selected at the same time, for example to set
the climate control for the interior and the
footwells simultaneously. In doing so, the
a climate control for the windshield can
only be selected for the "Nrst seat row. When
automatic mode is active, the buttons for set-
ting the air distribution are automatically
deactivated. When the air conditioning system is switched o"M, the buttons remain operable
and the last setting is saved.
Setting the footwell temperature
Multimedia system:
4 Climate Menu
Select C and set the desired footwell tem-
perature using the slider.Setting rear climate control using the air condi- tioning menu
Multimedia system:
4 Climate Menu
Setting the temperature
Select Second Row of Seats .Set the temperature.
Sets the air"Oow
Select Second Row of Seats .Set the air "Oow with ~ or } .
Controlling rear climate control automatically
Select AUTO.\bWhen the defrost function is activated, some
functions (e.g. the temperature setting) will
automatically be deactivated. To deactivate
the defrost function, press either d, X
or O set the air "Oow to level 0
(  page 187).
Deactivating rear climate control
Select REAR OFF .Switching the synchronization function on/o"M via
the air conditioning menu
Multimedia system:
4 Climate Menu 5
First Row of Seats
The synchronization function controls the climate control centrally. The driver\bs settings for temper-ature, air"Oow and air distribution are automatically
adopted for each climate zone.
Select SYNC (SYNC).
Removing condensation from the windows
Windows fogged up on the inside
Press X on the climate bar on the central
display.If the windows remain fogged up: press d
on the climate bar on the central display.
Windows fogged up on the outside
Switch on the windshield wipers.Press X on the climate bar on the central
display.188Climate control

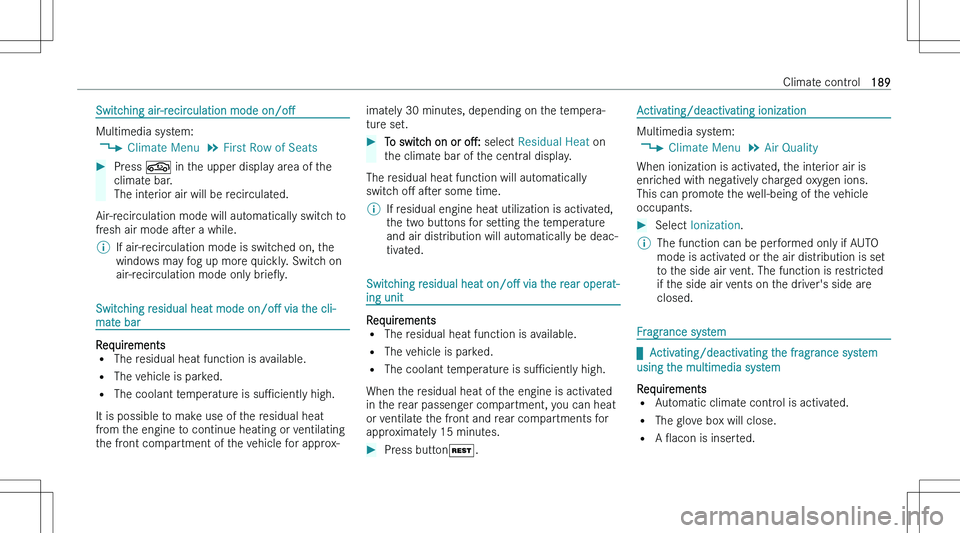

Switching air-recirculation mode on/o"M
Multimedia system:
4 Climate Menu 5
First Row of Seats
Press r in the upper display area of the
climate bar.
The interior air will be recirculated.
Air-recirculation mode will automatically switch to
fresh air mode a"ser a while.
\bIf air-recirculation mode is switched on, the
windows may fog up more quickly. Switch on
air-recirculation mode only brie"Oy.
Switching residual heat mode on/o"M via the cli-
mate bar
Requirements
= The residual heat function is available.
= The vehicle is parked.
= The coolant temperature is su"Pciently high.
It is possible to make use of the residual heat from the engine to continue heating or ventilating
the front compartment of the vehicle for approx-
imately 30 minutes, depending on the tempera-
ture set.To switch on or o"M: select Residual Heat on
the climate bar of the central display.
The residual heat function will automatically
switch o"M a"ser some time.
\bIf residual engine heat utilization is activated,
the two buttons for setting the temperature
and air distribution will automatically be deac-
tivated.
Switching residual heat on/o"M via the rear operat-
ing unit
Requirements
= The residual heat function is available.
= The vehicle is parked.
= The coolant temperature is su"Pciently high.
When the residual heat of the engine is activated in the rear passenger compartment, you can heat or ventilate the front and rear compartments for
approximately 15 minutes.
Press button K.Activating/deactivating ionization
Multimedia system:
4 Climate Menu 5
Air Quality
When ionization is activated, the interior air is
enriched with negatively charged oxygen ions.
This can promote the well-being of the vehicle
occupants.
Select Ionization .\bThe function can be performed only if AUTO
mode is activated or the air distribution is set
to the side air vent. The function is restricted
if the side air vents on the driver\bs side are
closed.
Fragrance system

q Activating/deactivating the fragrance system
using the multimedia system
Requirements
= Automatic climate control is activated.
= The glove box will close.
= A "Oacon is inserted.
Climate control189

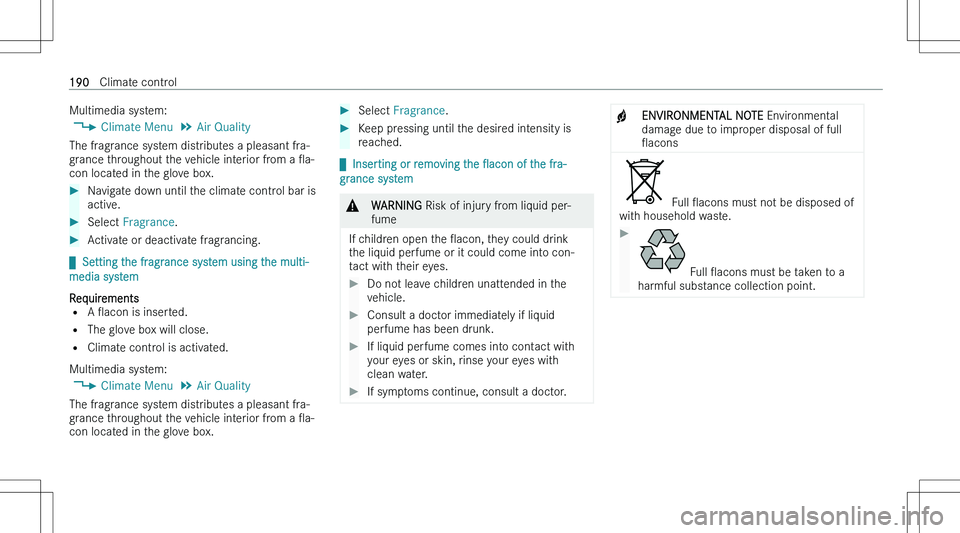

Multimedia system:4 Climate Menu 5
Air Quality
The fragrance system distributes a pleasant fra-
grance throughout the vehicle interior from a "Oa-
con located in the glove box.Navigate down until the climate control bar is
active.Select Fragrance .Activate or deactivate fragrancing.

qSetting the fragrance system using the multi-
media system
Requirements
= A "Oacon is inserted.
= The glove box will close.
= Climate control is activated.
Multimedia system: 4 Climate Menu 5
Air Quality
The fragrance system distributes a pleasant fra-
grance throughout the vehicle interior from a "Oa-
con located in the glove box.
Select Fragrance .Keep pressing until the desired intensity is
reached.

q Inserting or removing the "Oacon of the fra-
grance system
&WARNING Risk of injury from liquid per-
fume
If children open the "Oacon, they could drink
the liquid perfume or it could come into con-
tact with their eyes.
Do not leave children unattended in the
vehicle.Consult a doctor immediately if liquid
perfume has been drunk.If liquid perfume comes into contact with
your eyes or skin, rinse your eyes with
clean water.If symptoms continue, consult a doctor.+ENVIRONMENTAL NOTE Environmental
damage due to improper disposal of full
"Oacons
Full "Oacons must not be disposed of
with household waste.

Full "Oacons must be taken to a
harmful substance collection point.
190Climate control
