2023 MERCEDES-BENZ EQE Owners Manual

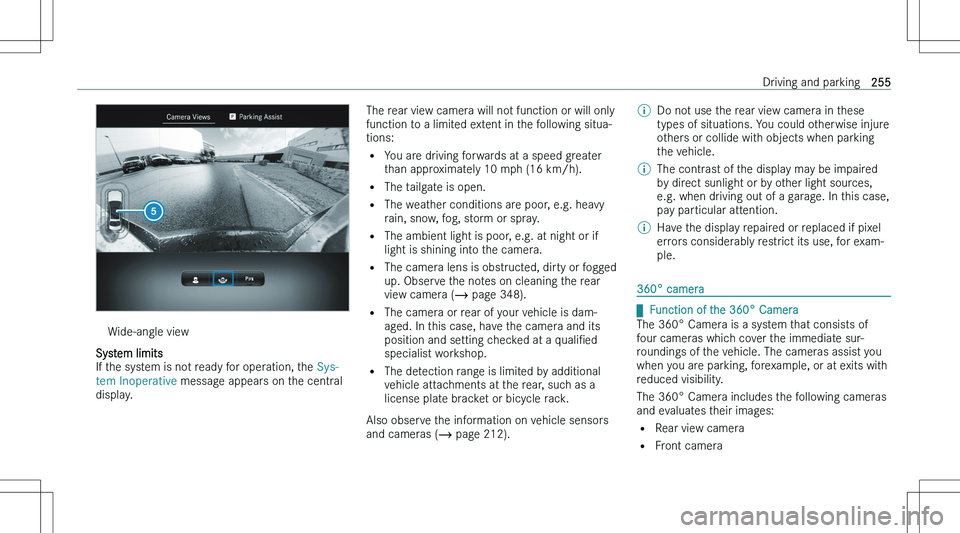

Wide-angle view
System limits
If the system is not ready for operation, the Sys-
tem Inoperative message appears on the central
display.
The rear view camera will not function or will only
function to a limited extent in the following situa-
tions:
= You are driving forwards at a speed greater
than approximately 10 mph (16 km/h).
= The tailgate is open.
= The weather conditions are poor, e.g. heavy
rain, snow, fog, storm or spray.
= The ambient light is poor, e.g. at night or if
light is shining into the camera.
= The camera lens is obstructed, dirty or fogged
up. Observe the notes on cleaning the rear view camera (  page 348).
= The camera or rear of your vehicle is dam-
aged. In this case, have the camera and its
position and setting checked at a qualiNed
specialist workshop.
= The detection range is limited by additional
vehicle attachments at the rear, such as a license plate bracket or bicycle rack.
Also observe the information on vehicle sensors
and cameras (  page 212).\bDo not use the rear view camera in these
types of situations. You could otherwise injure
others or collide with objects when parking
the vehicle.\bThe contrast of the display may be impaired
by direct sunlight or by other light sources, e.g. when driving out of a garage. In this case,
pay particular attention.\bHave the display repaired or replaced if pixel errors considerably restrict its use, for exam-
ple.
360° camera

q Function of the 360° Camera
The 360° Camera is a system that consists of
four cameras which cover the immediate sur-
roundings of the vehicle. The cameras assist you
when you are parking, forexample, or at exits with
reduced visibility.
The 360° Camera includes the following cameras
and evaluates their images:
= Rear view camera
= Front camera
Driving and parking255

=Two side cameras in the outside mirrors
The cameras are only an aid and may show a dis-
torted view of obstacles, show them incorrectly or
not show them at all. They are not a substitute for your attention to the surroundings. The responsi-
bility for safe maneuvering and parking remains
with you. Make sure that there are no persons,
animals, objects, etc. in the maneuvering area
while maneuvering and parking.Menu overview &DmHrD9LHZs1Menu Parking Assistance2Top view with image from the front camera3Top view with image from the rear view cam-
era43D view, les-hand side of the vehicle53D view, right-hand side of the vehicle63D auto view7To activate/deactivate Parking Assist
PARKTRONIC (  page 263)8To set the GPS activation point (  page 259)9To switch between standard and wide-angle
view\bIn all views, the Parking Assist PARKTRONICwarning display is shown (  page 260).256Driving and parking

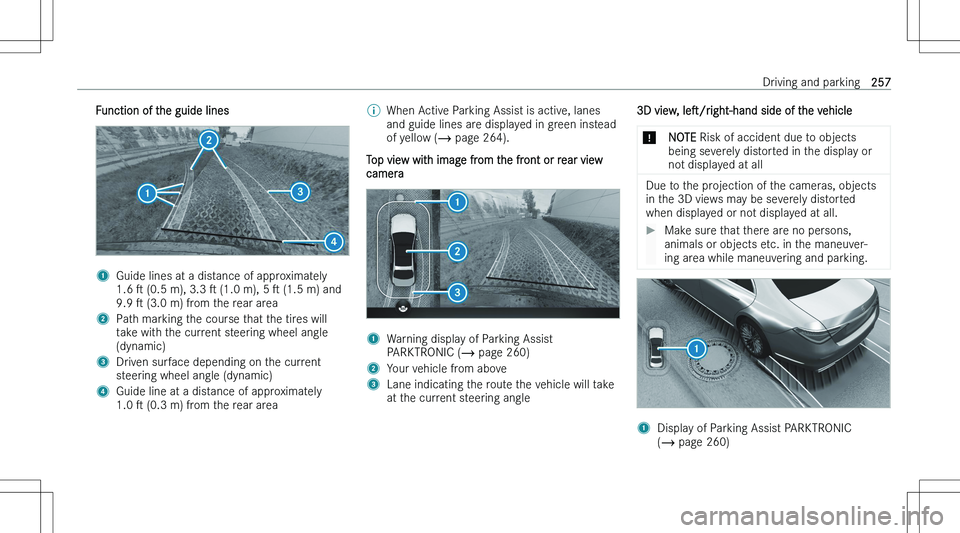

Function of the guide lines1Guide lines at a distance of approximately1.6 s (0.5 m), 3.3 s (1.0 m), 5 s (1.5 m) and
9.9 s (3.0 m) from the rear area2Path marking the course that the tires will
take with the current steering wheel angle
(dynamic)3Driven surface depending on the current
steering wheel angle (dynamic)4Guide line at a distance of approximately
1.0 s (0.3 m) from the rear area\bWhen Active Parking Assist is active, lanes
and guide lines are displayed in green instead
of yellow (  page 264).
Top view with image from the front or rear view
camera
1Warning display of Parking Assist
PARKTRONIC (  page 260)2Your vehicle from above3Lane indicating the route the vehicle will take
at the current steering angle3D view, les/right-hand side of the vehicle*NOTE Risk of accident due to objects
being severely distorted in the display or
not displayed at all
Due to the projection of the cameras, objects
in the 3D views may be severely distorted
when displayed or not displayed at all.
Make sure that there are no persons,
animals or objects etc. in the maneuver-
ing area while maneuvering and parking.1Display of Parking Assist PARKTRONIC
(  page 260)Driving and parking257

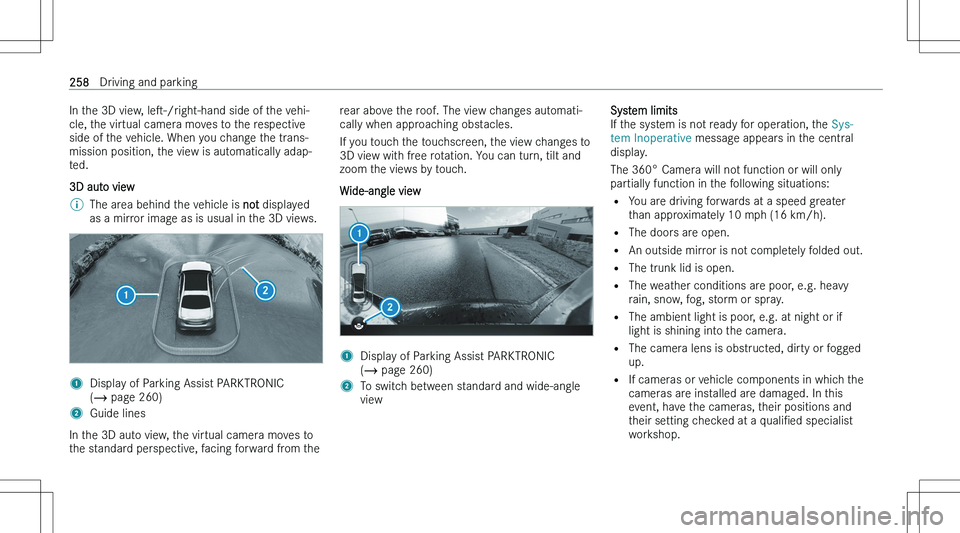

In the 3D view, les-/right-hand side of the vehi-
cle, the virtual camera moves to the respective
side of the vehicle. When you change the trans-
mission position, the view is automatically adap-
ted.
3D auto view\bThe area behind the vehicle is not displayed
as a mirror image as is usual in the 3D views.1Display of Parking Assist PARKTRONIC
(  page 260)2Guide lines
In the 3D auto view, the virtual camera moves to
the standard perspective, facing forward from the
rear above the roof. The view changes automati- cally when approaching obstacles.
If you touch the touchscreen, the view changes to
3D view with free rotation. You can turn, tilt and
zoom the views by touch.
Wide-angle view1Display of Parking Assist PARKTRONIC
(  page 260)2To switch between standard and wide-angle
viewSystem limits
If the system is not ready for operation, the Sys-
tem Inoperative message appears in the central
display.
The 360° Camera will not function or will only partially function in the following situations:
= You are driving forwards at a speed greater
than approximately 10 mph (16 km/h).
= The doors are open.
= An outside mirror is not completely folded out.
= The trunk lid is open.
= The weather conditions are poor, e.g. heavy
rain, snow, fog, storm or spray.
= The ambient light is poor, e.g. at night or if
light is shining into the camera.
= The camera lens is obstructed, dirty or fogged
up.
= If cameras or vehicle components in which the
cameras are installed are damaged. In this
event, have the cameras, their positions and their setting checked at a qualiNed specialist
workshop.258Driving and parking

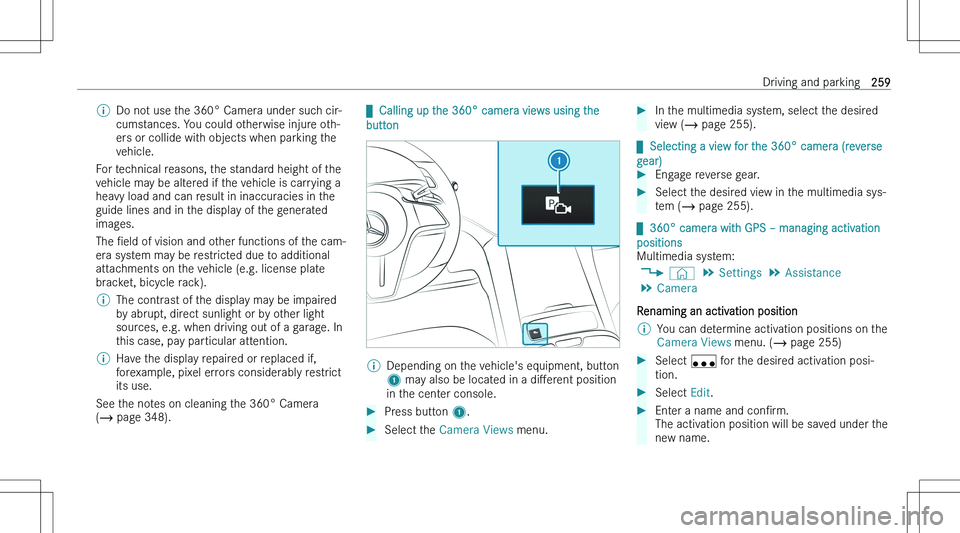

\bDo not use the 360° Camera under such cir-
cumstances. You could otherwise injure oth-
ers or collide with objects when parking the vehicle.
For technical reasons, the standard height of thevehicle may be altered if the vehicle is carrying a
heavy load and can result in inaccuracies in the
guide lines and in the display of the generated
images.
The Neld of vision and other functions of the cam-
era system may be restricted due to additional attachments on the vehicle (e.g. license plate
bracket, bicycle rack).
\bThe contrast of the display may be impaired
by abrupt, direct sunlight or by other light
sources, e.g. when driving out of a garage. In
this case, pay particular attention.\bHave the display repaired or replaced if, forexample, pixel errors considerably restrict
its use.
See the notes on cleaning the 360° Camera
(  page 348).

qCalling up the 360° camera views using the
button\bDepending on the vehicle\bs equipment, button
1 may also be located in a diMerent position
in the center console.Press button 1.Select the Camera Views menu.In the multimedia system, select the desired
view (  page 255).

qSelecting a view for the 360° camera (reverse
gear)
Engage reverse gear.Select the desired view in the multimedia sys- tem (  page 255).

q360° camera with GPS !

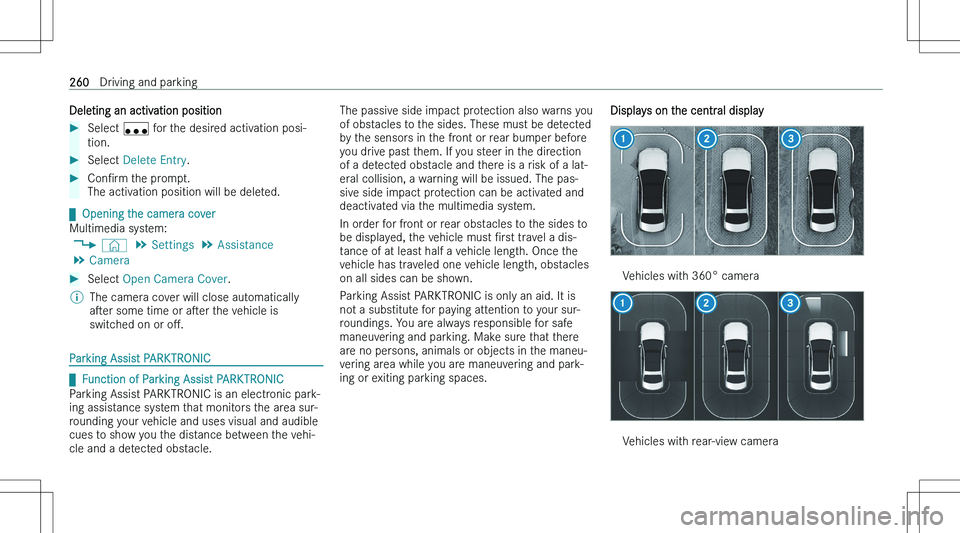

Deleting an activation positionSelect W for the desired activation posi-
tion.Select Delete Entry .ConNrm the prompt.
The activation position will be deleted.

q Opening the camera cover
Multimedia system: 4 © 5
Settings 5
Assistance
5 Camera
Select Open Camera Cover .\bThe camera cover will close automatically
aser some time or aser the vehicle is
switched on or oM.
Parking Assist PARKTRONIC

qFunction of Parking Assist PARKTRONIC
Parking Assist PARKTRONIC is an electronic park-
ing assistance system that monitors the area sur-
rounding your vehicle and uses visual and audible
cues to show you the distance between the vehi-
cle and a detected obstacle.
The passive side impact protection also warns you
of obstacles to the sides. These must be detected
by the sensors in the front or rear bumper before
you drive past them. If you steer in the direction of a detected obstacle and there is a risk of a lat-
eral collision, a warning will be issued. The pas-
sive side impact protection can be activated and
deactivated via the multimedia system.
In order for front or rear obstacles to the sides to be displayed, the vehicle must Nrst travel a dis-
tance of at least half a vehicle length. Once the vehicle has traveled one vehicle length, obstacles
on all sides can be shown.
Parking Assist PARKTRONIC is only an aid. It is
not a substitute for paying attention to your sur- roundings. You are always responsible for safe
maneuvering and parking. Make sure that there are no persons, animals or objects in the maneu- vering area while you are maneuvering and park-
ing or exiting parking spaces.Displays on the central displayVehicles with 360° cameraVehicles with rear-view camera260Driving and parking

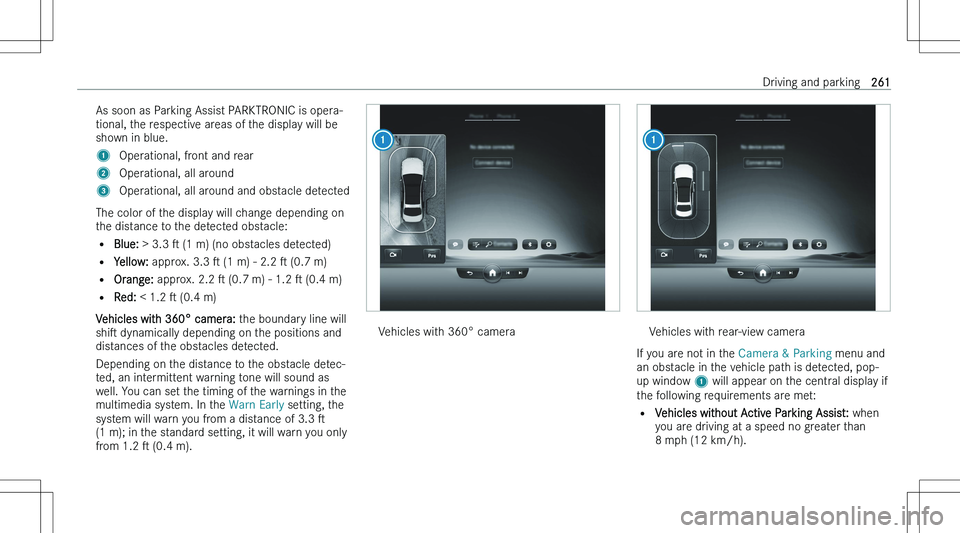

As soon as Parking Assist PARKTRONIC is opera-
tional, the respective areas of the display will be
shown in blue.1Operational, front and rear2Operational, all around3Operational, all around and obstacle detected
The color of the display will change depending on
the distance to the detected obstacle:
= Blue: > 3.3 s (1 m) (no obstacles detected)
= Yellow: approx. 3.3 s (1 m) - 2.2 s (0.7 m)
= Orange: approx. 2.2 s (0.7 m) - 1.2 s (0.4 m)
= Red: < 1.2 s (0.4 m)
Vehicles with 360° camera: the boundary line will
shis dynamically depending on the positions and
distances of the obstacles detected.
Depending on the distance to the obstacle detec-
ted, an intermittent warning tone will sound as
well. You can set the timing of the warnings in the
multimedia system. In the Warn Early setting, the
system will warn you from a distance of 3.3 s
(1 m); in the standard setting, it will warn you only from 1.2 s (0.4 m).
Vehicles with 360° cameraVehicles with rear-view camera
If you are not in the Camera & Parking menu and
an obstacle in the vehicle path is detected, pop- up window 1 will appear on the central display if
the following requirements are met:
= Vehicles without Active Parking Assist: when
you are driving at a speed no greater than 8 mph (12 km/h).
Driving and parking261

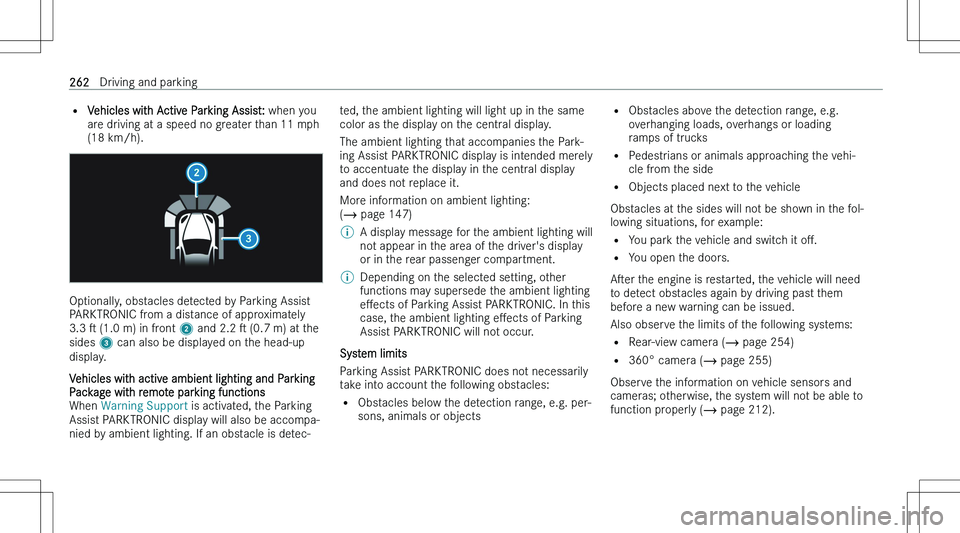

=Vehicles with Active Parking Assist: when you
are driving at a speed no greater than 11 mph (18 km/h).
Optionally, obstacles detected by Parking Assist
PARKTRONIC from a distance of approximately 3.3 s (1.0 m) in front 2 and 2.2 s (0.7 m) at the
sides 3 can also be displayed on the head-up
display.
Vehicles with active ambient lighting and Parking
Package with remote parking functions When Warning Support is activated, the Parking
Assist PARKTRONIC display will also be accompa-
nied by ambient lighting. If an obstacle is detec-
ted, the ambient lighting will light up in the same color as the display on the central display.
The ambient lighting that accompanies the Park-
ing Assist PARKTRONIC display is intended merely
to accentuate the display in the central display and does not replace it.
More information on ambient lighting:
(  page 147)\bA display message for the ambient lighting will
not appear in the area of the driver\bs displayor in the rear passenger compartment.\bDepending on the selected setting, other
functions may supersede the ambient lighting
eMects of Parking Assist PARKTRONIC. In this
case, the ambient lighting eMects of Parking
Assist PARKTRONIC will not occur.
System limits
Parking Assist PARKTRONIC does not necessarily
take into account the following obstacles:
= Obstacles below the detection range, e.g. per-
sons, animals or objects
= Obstacles above the detection range, e.g.
overhanging loads, overhangs or loading
ramps of trucks
= Pedestrians or animals approaching the vehi-
cle from the side
= Objects placed next to the vehicle
Obstacles at the sides will not be shown in the fol-
lowing situations, for example:
= You park the vehicle and switch it oM.
= You open the doors.
Aser the engine is restarted, the vehicle will need
to detect obstacles again by driving past them before a new warning can be issued.
Also observe the limits of the following systems:
= Rear-view camera (  page 254)
= 360° camera (  page 255)
Observe the information on vehicle sensors and cameras; otherwise, the system will not be able to
function properly (  page 212).262Driving and parking
