WELCOME TO THE KIA FAMILY!
Your new Kia vehicle has been designed, engineered and manufactured to provide you with years of comfortable and dependable driving. Kia is committed to quality, innovation, safety and — above all — your satisfaction.
USING THIS FEATURES & FUNCTIONS GUIDE
The information contained in this guide is a brief overview of the operation and features of your new Kia vehicle.
This Features & Functions Guide and the specific operational and safety information it provides are not a substitute for your Owner’s Manual. In the interest of your safety and that of the vehicle’s occupants, and to help you avoid risks that may result in death or serious injury, Kia reminds you to carefully read the Owner’s Manual in order to fully familiarize yourself with the important information and safety warnings it contains.
While Kia endeavors to ensure that the information contained in this guide is accurate at the time of printing, Kia may change vehicle specifications without notice in advance of or after the fact and assumes no liability in connection with such changes.
VIDEOS AND QR CODES
Kia provides a number of video resources to assist you with becoming familiar with the features and functions found in your Kia vehicle. You can access these resources by snapping the QR Codes with your mobile device using the built-in QR Code Reader or a downloaded QR Code Reader App.
After opening the QR Code Reader App on your mobile device, the app will utilize your device’s camera. Center the code in the camera viewing area — with some apps, as soon as the app recognizes the code, it will launch the corresponding video.
With other apps, you will have to snap or “take a picture” of the code. The app will then launch the corresponding video.
For operation specifics, refer to the instructions that come with your QR Code Reader App. You can also view the videos by visiting the following website: www.youtube.com/KiaFeatureVideos

If you’re having trouble scanning codes, check the following:
•
The code should be centered and focused in your mobile device’s camera screen
•
Consider moving your device closer to or far ther away from the code
•
The code should be well lit, without significant shadow
•Avoid scanning from a significant angle
•
Confirm that the device’s app suppor ts 2D QR Code scanning
•
Tr y another QR Code Reader App; not all apps are created equal

After scanning, you may experience a “connection error ” message or a “connecting” message with no subsequent response. These messages t ypically indicate that your device is having trouble connecting to the Internet
QUICK TIPS
Refer to the inside front cover for more information on QR codes.www.youtube.com/KiaFeatureVideos
Getting Started with Your New Kia Video
QR CODES

As you get to know your new Kia, you can explore this booklet to better
understand how to operate its many features and systems. You can find the
complete Table of Contents on the next two pages, but first, be sure to review
the following to better understand some of your Kia’s most used features:
1 Smart Key / Remote Start* 60
2 Front Seat Headrest Adjustment / Power Adjustable Driver’s Seat* 54, 56
3 Seat Warmers* 53
4 Folding Rear Seats 57
5 Windshield Wipers & Washers 38
6 Navigation-based Smart Cruise Control (NSCC)* 26
7 Normal Maintenance Schedule Back Cover
8 User Settings* – Instrument Cluster 10
9 Vehicle Settings* - Infotainment System 11
10 Bluetooth® Wireless Technology 40-41
11 Kia Connect Activation* / Kia Connect Assistance* 44
12 Standard Audio System - Value* 43
13 Kia Connect with Navigation* 46
14 Android Auto™ / Apple CarPlay® Setup 42
ALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS *IF EQUIPPED
GETTING STARTED
1
Driving while distracted can result in a loss of vehicle control that may lead to an accident, severe personal injur y or death The driver ’s primar y responsibilit y is in the safe and legal operation of a vehicle Handheld devices, other equipment or vehicle systems which take the driver ’s eyes, at tention and focus away from the safe operation of a vehicle or that are not permissible by law, should never be used during operation of the vehicle
www kia com
Consumer Affairs – Roadside Assistance†1 0: 1-800-333-4KIA (800-333-4542)
Refer to the inside front cover for more information on QR codes www youtube com/KiaFeatureVideos
Getting Started With Your New Kia Video
Your New Kia Important Care Tips Video
Vehicle Cameras Important Tips Video
Always check the Owner ’s Manual for complete operating information and safet y warnings
QR CODES

2*IF EQUIPPEDNIRO HYBRID / PLUG-IN HYBRID FEATURES & FUNCTIONS GUIDE
TABLE OF CONTENTS
VIDEOS & QR CODES Inside Front Cover
INSTRUMENT CLUSTERInstrument Cluster Overview 03Indicators & Warning Lights 04Tire Pressure Monitoring System (TPMS) 05Hybrid / Plug-In Hybrid Indicators at Star tup 06EV But ton / Plug-In Hybrid Modes 06Drive Mode Integrated Control System* 07Green Zone Drive Mode* 07Fuel Economy / Tips for Economical Driving 08
VEHICLE SETTINGSTrip Modes / Trip Computer 09Instrument Cluster LCD Modes 09User Set tings - Instrument Cluster 10Vehicle Set tings* - Infotainment System 11Service Interval Mode 12
HYBRID / PLUG-IN HYBRID SYSTEMPlug-In Hybrid Display* - Infotainment System 13Instrument Cluster - Energy Flow 14Emergency Star ting* (Hybrid only) 15Charging the Plug-In Hybrid Vehicle 16Charging Connector Auto/Lock Mode 18Scheduled Charging* (Plug-In Hybrid only) 18Regenerative Braking with Paddle Switches* 19
ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS)Forward Collision-Avoidance Assist (FCA) 20Lane Keeping Assist (LK A)* 21Blind-Spot Collision Warning (BCW)* 22Blind-spot Collision-Avoidance Assist (BCA) 23Driver At tention Warning (DAW)* 24Leading Vehicle Depar ture Aler t (LVDA)* 25Cruise Control 25Navigation-based Smar t Cruise Control (NSCC)* 26Intelligent Speed Limit Assist (ISL A)* 28Lane Following Assist (LFA)* 29
ADAS CONTINUEDHighway Driving Assist (HDA)* 29Rear View Monitor (RVM) 30Safe Exit Warning (SEW) 30Forward/Reverse Parking Distance Warning (PDW)* 31Rear Cross-traffic Collision Avoidance Assist (RCCA) 32
DRIVER’S PANELInstrument Cluster Control 33Electronic Stability Control (ESC) 33Hill-Star t Assist Control (HAC) 33Reverse Parking Aid Function* 34Engine Star t/Stop But ton 34Power Windows, Window Lock & Central Door Lock 35Manual Folding Mirrors* 35Automatic Door Lock/Unlock 35Power/Heated Outside Mirrors 35Power Folding Outside Mirrors* 35
STEERING WHEEL CONTROLSHeadlights & High Beams 36High Beam Assist (HBA) 36Turn Signals & Fog Lights* 37Heated Steering Wheel But ton* 38Windshield/Rear Wipers & Washers 38Tilt/Telescoping Steering Wheel 39
INFOTAINMENT SYSTEMBluetooth® Wireless Technology 40 Audio Controls 41Android Auto™ / Apple CarPlay® S et up* 42Standard Audio System - Value* 43Kia Connect Activation* / Kia Connect Assistance* 44Kia Access App Download 45Kia Access App Features Guide 45Kia Connect with Navigation* 46
CENTER PANELDigital Clock (Infotainment System) 47Multimedia USB Por t, Charger Por ts / AC Inver ter* 47Wireless Smar tphone Charging System* 48Automatic Climate Control 49Automatic Gear Shift with Spor tmatic® Shifting* 50Dual Clutch Transmission 50Rotary Dial Shifter* (Plug-In Hybrids only) 51Paddle Shifters* 51Auto Hold / Electronic Parking Brake (EPB) 52Seat Warmers* / Ventilated Seats* 53
SEATINGDriver Position Memory System* 54Front Seat Headrest Adjustment 54Rear Occupant Aler t (ROA) with Door Monitoring 55Power Adjustable Driver ’s Seat* 566-Way Manual Adjustable Driver ’s Seat* 56Folding Rear Seats 57
OTHER KEY FEATURESRemote Keyless Entry (Folding Key)* 57Digital Key 2 Touch* 58Smar t Key / Remote Star t* 60Map/Room Lamps / Sunroof Operation* 61Hood Release Lever and Latch / Sunvisor 62Fuel Cap / Malfunction Indicator 62Fuel Filler Lid 62Power Liftgate* 63Liftgate Release But ton* 64Hybrid Bat tery Cooling Duct (Hybrids only) 64Child-Protector Rear Door Locks (Manual) 65Tire Mobility Kit 65
SAFETY FEATURESOccupant Detection System (ODS) /Passenger Airbag Off Indicator 66Seat Belts 66
LEGAL DISCLAIMERS Inside Back Cover
MAINTENANCE CHART Back Cover

3 *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS
A Tachometer/Power gauge
B Speedometer
C Hybrid battery SOC gauge
D Odometer
E Distance to empty
F Transmission shift indicator
G Outside temperature gauge
H Warning and indicator lights
I Plug-in hybrid mode indicator
J Fuel gauge
Arrow direction indicates the side of the vehicle the fuel door is located
Instrument Cluster Overview
Your vehicle’s instrument cluster & indicator light locations may differ from those in the illustrations For more information on the instrument cluster, the LCD Warning Messages and the function of all indicator and warning lights, please refer to section 5 of the Owner ’s Manual
This illustration is for demonstration purposes only Some indicators and warning lights may not appear in illustration On the vehicle, they may appear in the LCD Refer to the inside front cover for more information on QR codes www youtube com/KiaFeatureVideos
Plug-In Hybrid Instrument Cluster Overview Video
QR CODE
(Type A)
INSTRUMENT CLUSTERINSTRUMENTCLUSTER
E
F
LH
324 miD
2
4 00mi x
１ 000 rp m75°F
60 3.0EPB
MPH
E
I
A
C
HH
J
D
B
G
F

4*IF EQUIPPEDNIRO HYBRID / PLUG-IN HYBRID FEATURES & FUNCTIONS GUIDE
Indicators & Warning Lights
High Beam Indicator
Light ON Indicator
Front Fog Light Indicator*
Master Warning Indicator
For ward Safet y Warning Indicator*
Lane Safet y Indicator
Electronic Brake Force (EBD) System Warning Indicator(Two separate indicators on Instrument Cluster lit at same time)
Immobilizer Indicator*
READY Indicator
EVEV Mode Indicator
ECO Indicator
SPORT Mode Indicator
Hybrid System Warning Indicator

Engine Coolant Temperature Warning
Engine Oil Pressure Warning Indicator
Charging System Warning Indicator
Seat Belt Warning Indicator
Malfunction Indicator
Low Tire Pressure Light / Tire Pressure Monitoring System (TPMS) Malfunction IndicatorElectronic Stabilit y Control (ESC) Indicator / ESC Malfunction Indicator

Electronic Stabilit y Control (ESC) OFF Indicator
Parking Brake & Brake Fluid Warning Indicator
Motor Driven Power Steering(MDPS) Warning Indicator
Airbag Warning Indicator
Parking Brake Indicator
Anti-lock Braking System (ABS) Warning Indicator
Low Fuel Level Warning Indicator
Cruise Indicator*
Trunk Open Warning Indicator
Door Ajar Warning Indicator
(red color)
(yellow color)
Regenerative Brake Warning Indicator (Two separate indicators on Instrument Cluster lit at same time)
❄Icy Road Warning Indicator
LED Headlamp Warning Indicator*
Charging Cable Connection Indicator (Plug-In Hybrid)*
Exhaust System (GPF) Warning Indicator (Gasoline Engine)
Green Zone Drive Mode Indicator
Your vehicle’s instrument cluster & indicator light locations may differ from those in the illustrations For more information on the instrument cluster, the LCD Warning Messages and the function of all indicator and warning lights, please refer to section 5 of the Owner ’s Manual
This illustration is for demonstration purposes only Some indicators and warning lights may not appear in illustration On the vehicle, they may appear in the LCD
EF
75°F
１ 2 .１0 １0 20 30
324mi2400mi
AUTO
HOLD
MPH
EPB
HEV
ABS EPB
CHARGE

POWER
L
H
(LCD Type B Cluster)
INSTRUMENT CLUSTER
INSTRUMENTCLUSTER

5†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS
•Even with TPMS, tire pressure should be checked manually at least once a month Only adjust tire pressure on “cold tires” that have been sit ting for sit ting for 3 hours or more, and tires that are not hot in temperature from direct sunlight or heat
•For proper maintenance and optimal fuel economy, maintain recommended tire inflation pressures and stay within the load limits and weight distribution recommended for your vehicle
•A significant drop in temperature can cause tire inflation pressures to drop, which may activate the TMPS light Manually confirm tire pressures after significant changes in temperature or altitude
QUICK TIPS
24
36 36
36

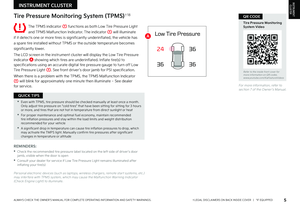

The TPMS indicator functions as both Low Tire Pressure Light
and TPMS Malfunction Indicator The indicator will illuminate
if it detects one or more tires is significantly underinflated, the vehicle has
a spare tire installed without TPMS or the outside temperature becomes
significantly lower
The LCD screen in the instrument cluster will display the Low Tire Pressure indicator A showing which tires are underinflated Inflate tire(s) to specifications using an accurate digital tire pressure gauge to turn off Low Tire Pressure Light See front driver ’s door jamb for PSI specification
When there is a problem with the TPMS, the TPMS Malfunction Indicator will blink for approximately one minute then illuminate – See dealer for service
REMINDERS:
•
Check the recommended tire pressure label located on the left side of driver's door jamb, visible when the door is open
•
Consult your dealer for ser vice if Low Tire Pressure Light remains illuminated after inflating your tire(s)
Personal electronic devices (such as laptops, wireless chargers, remote star t systems, etc ) may inter fere with TPMS system, which may cause the Malfunction Warning Indicator (Check Engine Light) to illuminate
For more information, refer to section 7 of the Owner ’s Manual
Refer to the inside front cover for more information on QR codes www youtube com/KiaFeatureVideos
Tire Pressure Monitoring System Video
QR CODETire Pressure Monitoring System (TPMS)†1 8
INSTRUMENT CLUSTERINSTRUMENTCLUSTER
A

6*IF EQUIPPEDNIRO HYBRID / PLUG-IN HYBRID FEATURES & FUNCTIONS GUIDE
Hybrid / Plug-In Hybrid Indicators at Startup
A
Hybrid System Gauge – Indicates how economically the vehicle is being driven
•CHARGE (Blue zone): High-efficiency range
•ECO (Green zone): Normal-efficiency range
•POWER (Grey zone): Low-efficiency range
B EV/HEV Mode – Displays the EV/HEV/AUTO/EV+* mode
C
Ready – Illuminates when the hybrid system is operational Even if the engine is off, the vehicle can be driven
D State of Charge (SOC) – Displays the hybrid battery charge status
To change the Plug-In Hybrid Mode, press the EV button E; switch between Automatic (AUTO), Electric (EV) mode and Hybrid (HEV) mode each time the button is pressed The indicator will display on the Instrument Cluster LCD F
•Automatic Mode - AUTO will be displayed on the instrument cluster and the vehicle will operate in Hybrid or Electric vehicle mode as needed
•Electric Mode - EV will display on the instrument cluster and the vehicle operates on the EV battery until the power is low, then it switches to HYBRID mode
•EV+ Mode - Press and hold the EV button to change to EV+ mode, where the vehicle runs on the EV battery except when the accelerator pedal is pressed all the way down Then the gasoline engine turns on to provide extra power
•Hybrid Mode - HEV will display on the instrument cluster and the high-voltage hybrid battery and the gasoline engine are both used to drive the vehicle
REMINDER: Avoid star ting or driving the vehicle when the fuel tank is empt y As the engine will be incapable of charging the high-voltage hybrid bat ter y, the bat ter y will lose its charge and may be damaged
(Center console next to shift dial)
For more information on the Hybrid system over view, please refer to section 1 of the Owner ’s Manual
For more information on Plug-in Hybrid modes, please refer to section 1 of the Owner ’s Manual
Refer to the inside front cover for more information on QR codes www youtube com/KiaFeatureVideos
Plug-In Hybrid Instrument Cluster Overview Video
Plug-In Hybrid Modes - Automatic, EV and HEV Video
EV Button / Plug-In Hybrid Modes (Plug-In Hybrid only)
INSTRUMENT CLUSTER
INSTRUMENTCLUSTERQR CODES
E F
75°F
１ 2 .１0 １0 20 30
324mi2400mi
AUTO
HOLD
MPH
EPB
HEV
READY
ABS EPB
CHARGEPOWER
L
H
ECO
E F
75°F
１ 2 .１0 １0 20 30
324mi2400mi
AUTO
HOLD
MPH
EPB
HEV
READY
ABS EPB
CHARGEPOWER
L
H
ECO
B
A
CD
ENGINESTARTSTOP
AUTO
HOLD
EV
R N
P
D
E
F
75°F
１ 2 .１0 １0 20 30
324mi2400mi
AUTO
HOLD
MPH
EPB
HEV
READY
ABS EPB
CHARGEPOWER
L
H
ECO
E
F
