Rear Power Distribution Center

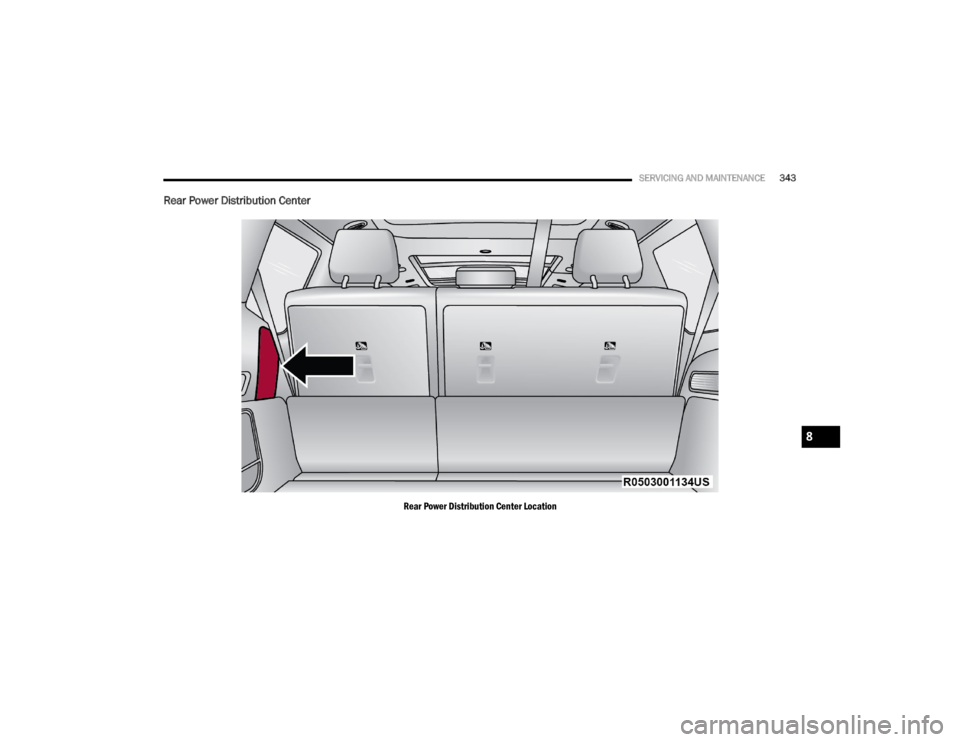

Rear Power Distribution Center Location
8

23_WS_OM_EN_USC_t.book Page 343

344SERVICING AND MAINTENANCE
The Rear Power Distribution Center is located behind a trim cover of the rear driver’s side quarter panel. This center contains cartridge fuses, micro fuses, relays, and circuit breakers.
The following chart corresponds to the fuses inside.
CavityCartridge Fuse Micro Fuse Description
* If Equipped
F05 150 Amp Gray –Underhood Power Distribution Center Battery Feed
F06 ––Spare
F07 ––Spare
F08 ––Spare
F09 ––Spare
F10 ––Spare
F11 ––Spare
F12 ––Spare
F13 30 Amp Pink –Air Compressor (Tire Inflator)
F14 25 Amp Clear –MTR Sunshade Sunroof
F15A ––Spare
F15B –10 Amp RedHands Free Liftgate / Rear Window Switches / MOD HVAC Cntrl Rr
F16 ––Spare
F17 ––Spare
F18 25 Amp Clear –Power Liftgate Module
F19A –10 Amp RedL2+ Driver Alert Lighting Module
F19B –10 Amp RedAnimation Lighting RR-LT
F20A –15 Amp BlueCentral ASAS Decision Module (CADM) - LO
F20B ––Spare
F21A ––Spare

23_WS_OM_EN_USC_t.book Page 344

SERVICING AND MAINTENANCE345
F21B –10 Amp RedSunroof - Dual Pane 2nd & 3rd Row Seat SW-Illumination
F22 ––Spare
F23 –10 Amp RedRear Seat Entertainment (Driver / Passenger)
F24 ––Spare
F25 30 Amp Pink –Mod Door MUX Passenger
F26 ––Spare
F27 ––Spare
F28 30 Amp Pink –MOD Memory / Power Seat (Passenger Frt)
F29A –10 Amp RedAnimation Lighting RR-RT
F29B –10 Amp RedAnimation Lighting RR-LT
F30 30 Amp Pink –MOD Memory / Power Seat (Driver Frt)
F31 ––Spare
F32 ––Spare
F33 ––Spare
F34 30 Amp Pink –MOD Door MUX Driver
F35 25 Amp Clear –Integrated Trailer Tow Module #2
F36A –10 Amp RedIntelligent Event Base Lighting Module
F36B ––Spare
F37 25 Amp Clear –Integrated Trailer Tow Module #1
F38 ––Spare
F39 ––Spare
F40 –30 Amp Green Mod Audio Amplifier #1A
CavityCartridge Fuse Micro Fuse Description
* If Equipped
8

23_WS_OM_EN_USC_t.book Page 345

346SERVICING AND MAINTENANCE
F41 ––Spare
F42A –10 Amp RedRSE Video USB Console Frt/Port Media Hub FPDM
F42B ––Spare
F43 ––Spare
F44A –20 Amp Yellow 12 Volt Power Outlet Cargo Area (Ign)
F44B –20 Amp Yellow 12 Volt Power Outlet Cargo Area (Battery)
F45 –20 Amp Yellow MOD CRSM (Heated Seat RR RT)
F46 30 Amp Pink –Folding Seat Module 3rd Row Feed #1 *
F47 ––Spare
F48 ––Spare
F49 ––Spare
F50 –15 Amp BlueSeat Massage Driver Mod (SSMD) / Seat Massage Passenger Mod
(SSMP) *
F51 ––Spare
F52 –20 Amp Yellow MOD CRSM (Heat Seat RR LT) *
F53 30 Amp Pink –Electronic Limited Slip Differential (ELSD) Rear #1 *
F54 ––Spare
F55 30 Amp Pink –Folding Seat Modules 3rd Row Feed #2 *
F56 ––Spare
F57 –10 Amp RedMod HVAC RR / Mod Occupant Classic / CVPAM / Mod Parktronics /
ITCM
F58 –15 Amp Blue3rd Row Additional USB charge (Only LT - RT) / Port Pwr USB Console
UBS (CH Only)
Cavity
Cartridge Fuse Micro Fuse Description
* If Equipped

23_WS_OM_EN_USC_t.book Page 346

SERVICING AND MAINTENANCE347
F59 ––Spare
F60 25 Amp Clear –RR_HVAC Blower
F61 ––Spare
F62 –20 Amp Yellow Module Seat Heater Frt (Driver) *
F63 30 Amp Pink –Assy Trailer Tow Receptacle B+
F64 ––Spare
F65 ––Spare
F66 20 Amp Blue –MOD Door MUX Passenger Rear - Smart Motor
F67 –30 Amp Green MOD Audio Amplifier #1B
F68 ––Spare
F69 –20 Amp Yellow L2+ Central ASAS Decision Module (CADM) MID *
F70 –10 Amp RedVideo Routing Module (VRM)
F71 ––Spare
F72 ––Spare
F73 ––Spare
F74 ––Spare
F75 ––Spare
F76 ––Spare
F77 ––Spare
F78 ––Spare
F79 ––Spare
F80 ––Spare
Cavity Cartridge Fuse Micro Fuse Description
* If Equipped
8

23_WS_OM_EN_USC_t.book Page 347

348SERVICING AND MAINTENANCE
F81 –20 Amp Yellow Module Seat Heater Frt (PASS) *
F82 –10 Amp RedAnimation Lighting RR / Air Compressor (Tire Inflator) / Animation
Lighting Liftgate Taillamp
F83 ––Spare
F84 ––Spare
F85 ––Spare
F86 –15 Amp BlueLumbar Support Driver & Passenger SW *
F87 ––Spare
F88 20 Amp Blue –MOD Door MUX Driver Rear - Smart Motor
CB1 –20 Amp BluePower Outlet RR
CavityCartridge Fuse Micro Fuse Description
* If Equipped

23_WS_OM_EN_USC_t.book Page 348

SERVICING AND MAINTENANCE349
BULB REPLACEMENT
Replacement Bulbs, Names, And Part
Numbers
Your vehicle is equipped with LED lamps. In the event of a
light malfunction, please see an authorized dealer for LED
replacement.
TIRES
TIRE SAFETY INFORMATION
Tire safety information will cover aspects of the following
information: Tire Markings, Tire Identification Numbers,
Tire Terminology and Definitions, Tire Pressures, and Tire
Loading.
Tire Markings

Tire Markings

NOTE:
P (Passenger) — Metric tire sizing is based on US design
standards. P-Metric tires have the letter “P” molded
into the sidewall preceding the size designation.
Example: P215/65R15 95H.
 European — Metric tire sizing is based on European
design standards. Tires designed to this standard have
the tire size molded into the sidewall beginning with the
section width. The letter "P" is absent from this tire size
designation.
Example: 215/65R15 96H.
 LT (Light Truck) — Metric tire sizing is based on US
design standards. The size designation for LT-Metric
tires is the same as for P-Metric tires except for the
letters “LT” that are molded into the sidewall preceding
the size designation.
Example: LT235/85R16.
 Temporary spare tires are designed for temporary
emergency use only. Temporary high pressure compact
spare tires have the letter “T” or “S” molded into the
sidewall preceding the size designation.
Example: T145/80D18 103M.
 High flotation tire sizing is based on US design stan -
dards and it begins with the tire diameter molded into
the sidewall.
Example: 31x10.5 R15 LT.
1 — US DOT Safety Standards Code
(TIN)
2 — Size Designation
3 — Service Description
4 — Maximum Load
5 — Maximum Pressure
6 — Treadwear, Traction and
Temperature Grades
8

23_WS_OM_EN_USC_t.book Page 349

350SERVICING AND MAINTENANCE
TIRE SIZING CHART
EXAMPLE:
Example Size Designation: P215/65R15XL 95H, 215/65R15 96H, LT235/85R16C, T145/80D18 103M, 31x10.5 R15 LT
P = Passenger car tire size based on US design standards, or
"....blank...." = Passenger car tire based on European design standards, or
LT = Light truck tire based on US design standards, or
T or S = Temporary spare tire or
31 = Overall diameter in inches (in)
215, 235, 145 = Section width in millimeters (mm)
65, 85, 80 = Aspect ratio in percent (%)
 Ratio of section height to section width of tire, or
10.5 = Section width in inches (in)
R = Construction code
 "R" means radial construction, or
 "D" means diagonal or bias construction
15, 16, 18 = Rim diameter in inches (in)

23_WS_OM_EN_USC_t.book Page 350
