Vehicle Information2-8
BULB WATTAGE
Light bulb Bulb type Wattage
Front T
ype A
Headlamp (High/Low) HB3
65
Parking lamp W5W5
Type B Headlamp
HB365
Daytime running lamp (DRL)/parking lamp LED
LED
Cornering lamp H755
Type C Headlamp (High/low) LED
LED
Daytime running lamp (DRL)/parking lamp LED
LED
Cornering lamp H755
Turn signal lamp 2357NA 28/8
Side marker W5W5
Side repeater lamp WY5W5
Side repeater lamp (Outside mirror) LEDLED
Rear Type A
Stop/tail lamp P21/5W 21/5
Turn signal lamp 27W 7
Side marker --
Type B Stop/tail lamp
LEDLED
Tail lamp LEDLED
Side marker LEDLED
Turn signal lamp PY21W 21
License plate lamp W5W5
Back up lamp W16W16
High mounted stop lamp W16W16
Interior Map lamp
Type A
W10W10
Type B FESTOON 8
Room lamp FESTOON 8
Vanity mirror lamp FESTOON 5
Luggage compartment lamp FESTOON 8

04
4-15
Immobilizer Indicator Light
(with Smart Key)
(if equipped)
This indicator light illuminates for up to
30 seconds:
When the vehicle detects the smart key
in the v
ehicle with the Engine Start/Stop
button in the ACC or ON position.
- Once the smart key is detected, you can start the engine.

- The indicator light goes off after
starting the engine.
This indicator light blinks for a few seconds:
When the smart key is not in the vehicle.
- If the smart key is not detected, you cannot start the engine.
This indicator light illuminates for 2
seconds and goes off:
If the smart key is in the vehicle and the
E
ngine Start/Stop button is ON, but the
vehicle cannot detect the smart key.
In this case, have the vehicle inspected
by an authorized HYUNDAI dealer.
This indicator light blinks:
When there is a malfunction with the
immobiliz
er system.
In this case, have the vehicle inspected
by an authorized HYUNDAI dealer.
Turn Signal Indicator Light
This indicator light blinks:
When you operate the turn signal
indica
tor stalk.
If any of the following occur, there may be
a malfunction with the turn signal system.

- The turn signal indicator light
illuminates but does not blink

- The turn signal indicator light blinks
rapidly

- The turn signal indicator light does not
illuminate at all
If any of these conditions occur, have
your vehicle inspected by an authorized
HYUNDAI dealer.
Headlamp Warning Light
(if equipped)
This warning light illuminates:
If one of the exterior bulbs (headlamp,
s
top lamp, high mounted stop lamp) is
not operating properly. One of the bulbs
may need to be replaced. If the vehicle
is equipped with LED headlamps, have
the vehicle inspected by an authorized
HYUNDAI dealer.
Information
When replacing the bulb, use the same
wattage bulb.
For more details, refer to "Light bulbs" in
chapter 8.

Instrument Cluster4-20
Lights Mode
OIK047145L
This indicator displays which exterior
light is selected using the lighting
control.
Wiper
OQX049035N
This indicator displays which wiper speed
is selected using the wiper control.
Low Fuel
This warning message is displayed if the
fuel tank is almost out of fuel.
When this message is displayed, the low
fuel level warning light in the cluster will
come on.
It is recommended to look for the nearest
fueling station and refuel as soon as
possible.
Add fuel as soon as possible.
Engine Overheated
This warning message is displayed
when the engine coolant temperature
is above 248°F (120°C). This means that
the engine is overheated and may be
damaged.
If your vehicle has overheated, refer to
“If the Engine Overheats” in chapter 7.
Check Headlight (if equipped)
This warning message is displayed if the
headlamps are not operating properly.
A headlamps bulb may need to be
replaced.
Information
Make sure to replace the burned out bulb
with a new one of the same wattage rating.

05
5-41

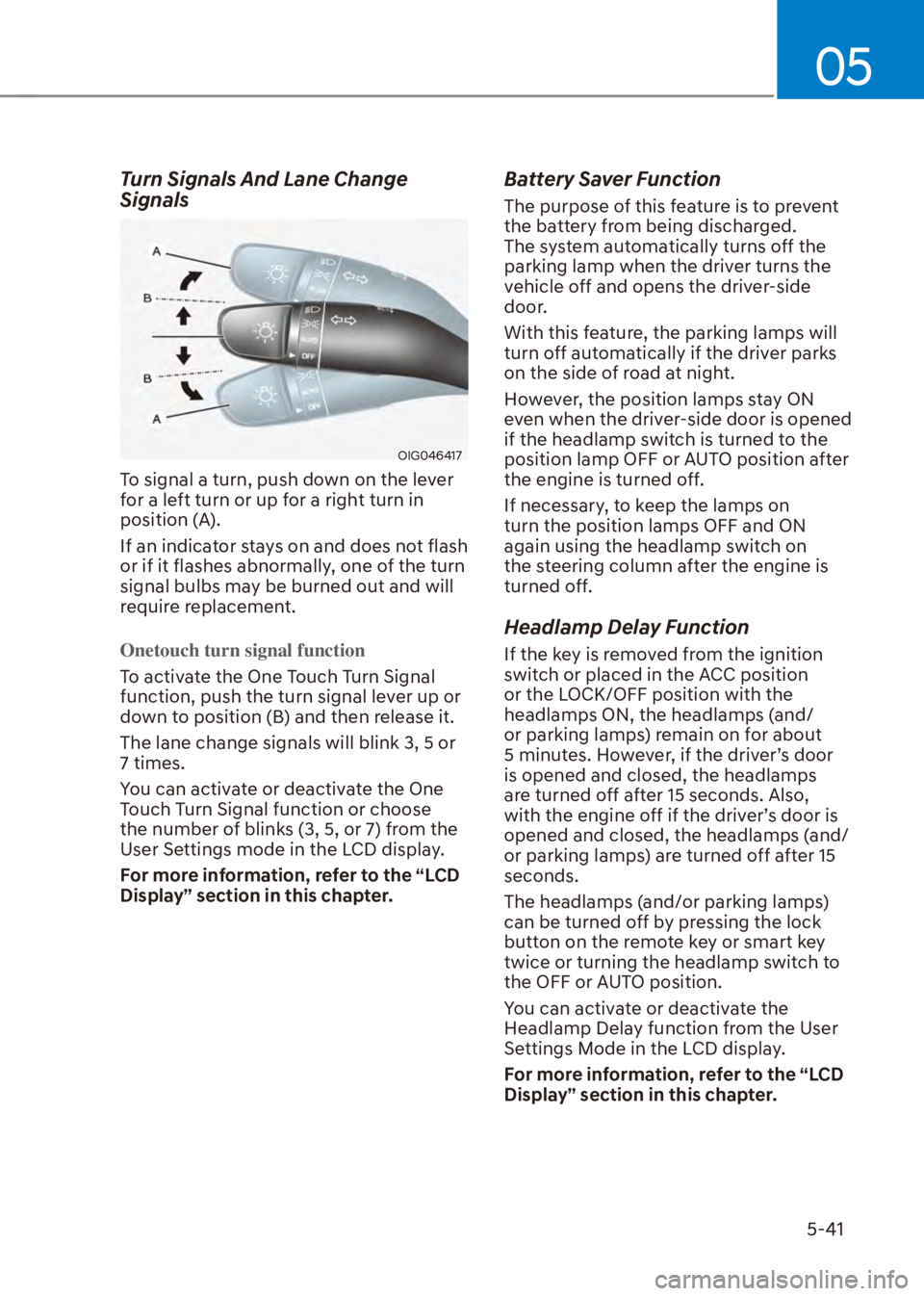

Turn Signals And Lane Change
Signals
OIG046417
To signal a turn, push down on the lever
for a left turn or up for a right turn in
position (A).
If an indicator stays on and does not flash
or if it flashes abnormally, one of the turn
signal bulbs may be burned out and will
require replacement.
Onetouch turn signal function
To activate the One Touch Turn Signal
function, push the turn signal le
ver up or
down to position (B) and then release it.
The lane change signals will blink 3, 5 or
7 times.
You can activate or deactivate the One
Touch Turn Signal function or choose
the number of blinks (3, 5, or 7) from the
User Settings mode in the LCD display.
For more information, refer to the “LCD
Display” section in this chapter.
Battery Saver Function
The purpose of this feature is to prevent
the battery from being discharged.
The system automatically turns off the
parking lamp when the driver turns the
vehicle off and opens the driver-side
door.
With this feature, the parking lamps will
turn off automatically if the driver parks
on the side of road at night.
However, the position lamps stay ON
even when the driver-side door is opened
if the headlamp switch is turned to the
position lamp OFF or AUTO position after
the engine is turned off.
If necessary, to keep the lamps on
turn the position lamps OFF and ON
again using the headlamp switch on
the steering column after the engine is
turned off.
Headlamp Delay Function
If the key is removed from the ignition
switch or placed in the ACC position
or the LOCK/OFF position with the
headlamps ON, the headlamps (and/
or parking lamps) remain on for about
5 minutes. However, if the driver’s door
is opened and closed, the headlamps
are turned off after 15 seconds. Also,
with the engine off if the driver’s door is
opened and closed, the headlamps (and/
or parking lamps) are turned off after 15
seconds.
The headlamps (and/or parking lamps)
can be turned off by pressing the lock
button on the remote key or smart key
twice or turning the headlamp switch to
the OFF or AUTO position.
You can activate or deactivate the
Headlamp Delay function from the User
Settings Mode in the LCD display.
For more information, refer to the “LCD
Display” section in this chapter.

8
Tires and Wheels ........................................................................\
......................8-27Tire Care ........................................................................\
..............................................8-27
Recommended Cold Tire Inflation Pressures ........................................................... 8-27
Check Tire Inflation Pressure ........................................................................\
.............8-28
Tire Rotation ........................................................................\
.......................................8-29
Wheel Alignment and Tire Balance ........................................................................\
...8-29
Tire Replacement ........................................................................\
.............................. 8-30
Wheel Replacement ........................................................................\
........................... 8-31
Tire Traction ........................................................................\
........................................ 8-31
Tire Maintenance..................................................................\
...................................... 8-31
Tire Sidewall Labeling ........................................................................\
........................ 8-31
Tire Terminology and Definitions ........................................................................\
......8-35
All Season Tires ........................................................................\
................................... 8-37
Summer Tires ........................................................................\
..................................... 8-37
Snow Tires......................................................................\
............................................. 8-37
Radial-Ply Tires ........................................................................\
.................................. 8-38
Low Aspect Ratio Tires ........................................................................\
...................... 8-38
Fuses ...................................................................\
............................................. 8-39Instrument Panel Fuse Replacement ....................................................................... 8-40
Engine Compartment Panel Fuse Replacement ...................................................... 8-41
Fuse/Relay Panel Description........................................................................\
........... 8-43
Light Bulbs ........................................................................\
............................... 8-50
Headlamp, Parking Lamp, Daytime Running Light, Turn Signal Lamp, Cornering
Lamp and Side Marker ........................................................................\
...................... 8-50
Side Repeater Lamp Replacement ........................................................................\
.. 8-54
Rear Combination Light Bulb Replacement .............................................................8-55
High Mounted Stop Lamp Replacement .................................................................. 8-57
License Plate Light Bulb Replacement ..................................................................... 8-57
Interior Light Bulb Replacement ........................................................................\
...... 8-58
Appearance Care ........................................................................\
.................... 8-59Exterior Care ........................................................................\
...................................... 8-59
Interior Care ........................................................................\
....................................... 8-63
Emission Control System ........................................................................\
........ 8-65
Crankcase Emission Control System ....................................................................... 8-66
Evaporative Emission Control System Including Onboard Refueling Vapor Recovery
(ORVR) ...................................................................\
..................................................... 8-66
Exhaust Emission Control System ........................................................................\
.... 8-66
California Perchlorate Notice ........................................................................\
.8-68
Consumer Information ........................................................................\
...........8-69
Reporting Safety Defects ........................................................................\
....... 8-70

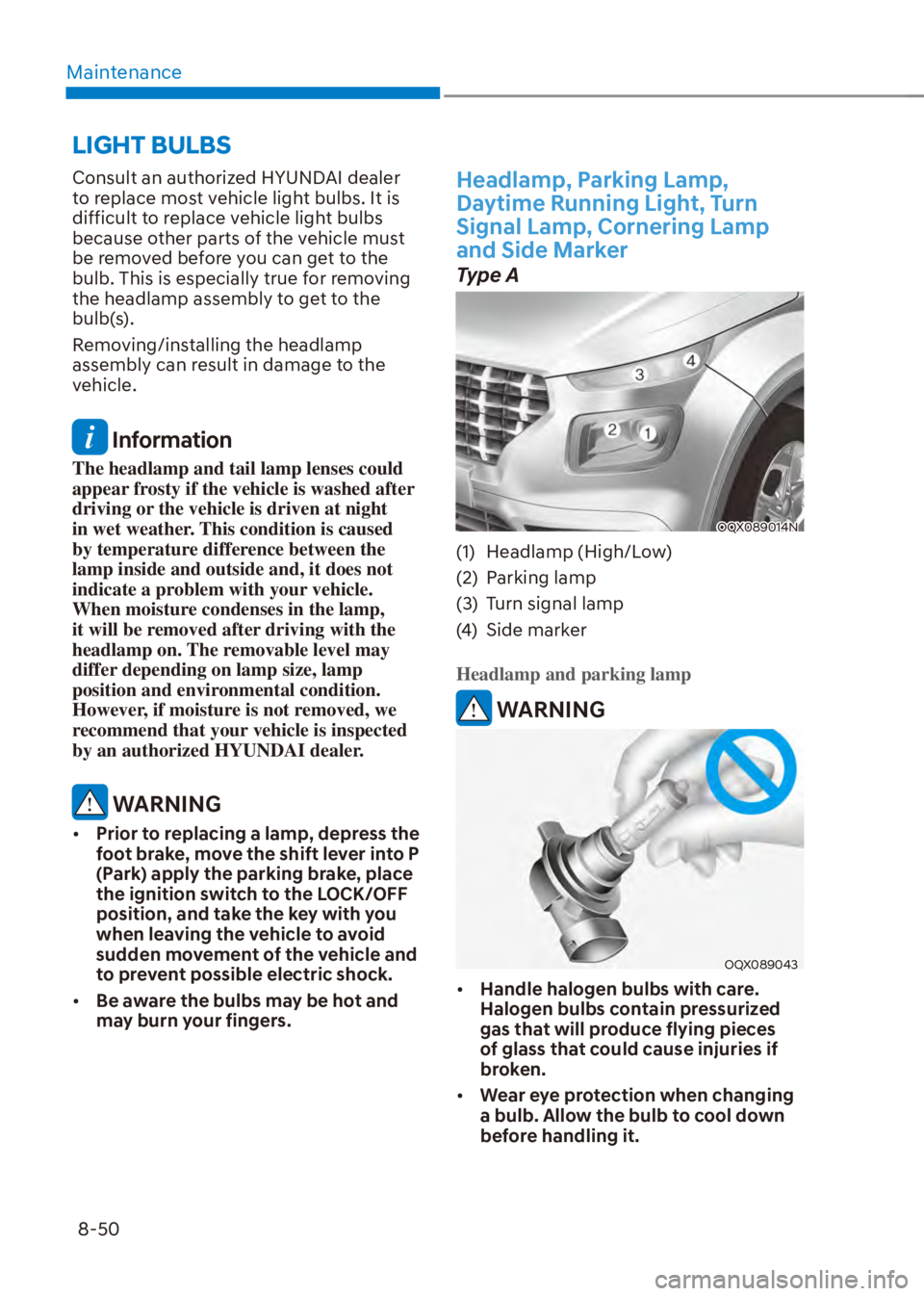

Maintenance8-50
Consult an authorized HYUNDAI dealer
to replace most vehicle light bulbs. It is
difficult to replace vehicle light bulbs
because other parts of the vehicle must
be removed before you can get to the
bulb. This is especially true for removing
the headlamp assembly to get to the
bulb(s).
Removing/installing the headlamp
assembly can result in damage to the
vehicle.
Information
The headlamp and tail lamp lenses could
appear frosty if the vehicle is washed after
driving or the vehicle is driven at night
in wet weather. This condition is caused
by temperature difference between the
lamp inside and outside and, it does not
indicate a problem with your vehicle.
When moisture condenses in the lamp,
it will be removed after driving with the
headlamp on. The removable level may
differ depending on lamp size, lamp
position and environmental condition.
However, if moisture is not removed, we
recommend that your vehicle is inspected
by an authorized HYUNDAI dealer.
WARNING

[ Prior to replacing a lamp, depress the
foot brake, move the shift lever into P
(Park) apply the parking brake, place
the ignition switch to the LOCK/OFF
position, and take the key with you
when leaving the vehicle to avoid
sudden movement of the vehicle and
to prevent possible electric shock.

[ Be aware the bulbs may be hot and
may burn your fingers.
Headlamp, Parking Lamp,
Daytime Running Light, Turn
Signal Lamp, Cornering Lamp
and Side Marker
Type A
OQX089014N
(1) Headlamp (High/Low)
(2) Parking lamp
(3) Turn signal lamp
(4) Side marker
Headlamp and parking lamp
WARNING
OQX089043

[Handle halogen bulbs with care.
Halogen bulbs contain pressurized
gas that will produce flying pieces
of glass that could cause injuries if
broken.

[ Wear eye protection when changing
a bulb. Allow the bulb to cool down
before handling it.
LIGHT BULBS

08
8-51

[Always handle them carefully, and
avoid scratches and abrasions. If
the bulbs are lit, avoid contact with
liquids.

[ Never touch the glass with bare
hands. Residual oil may cause the
bulb to overheat and burst when lit.

[ A bulb should be operated only when
installed in a headlamp.

[ If a bulb becomes damaged or
cracked, replace it immediately and
carefully dispose of it.
Headlamp and parking lamp
„Headlamp (high/low beam)
OQX089015L
„Parking lamp
OQX089016N
1. Open the hood.
2. Disconnect the negative battery cable.
3. Remove the headlamp bulb cover by turning it counterclockwise.
4. Disconnect the headlamp bulb socket-connector. 5. Remove the bulb from the headlamp
assembly.
6. Install a new headlamp bulb and snap the headlamp bulb retaining wire into
position by aligning the wire with the
groove on the bulb.
7. Connect the headlamp bulb socket- connector.
8. Install the headlamp bulb cover by turning it clockwise.
Information
The headlamp aiming should be adjusted
after an accident or after the headlamp
assembly is reinstalled at an authorized
HYUNDAI dealer.
OQX089017L
Turn signal lamp/side marker
1. Open the hood.
2.

Disconnect the negative battery
cable.
3. Remove the socket (1) from the assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on the
assembly.
4. Remove the bulb from the socket by pressing it in and rotating it
counterclockwise until the tabs on the
bulb align with the slots in the socket.
Pull the bulb out of the socket.
