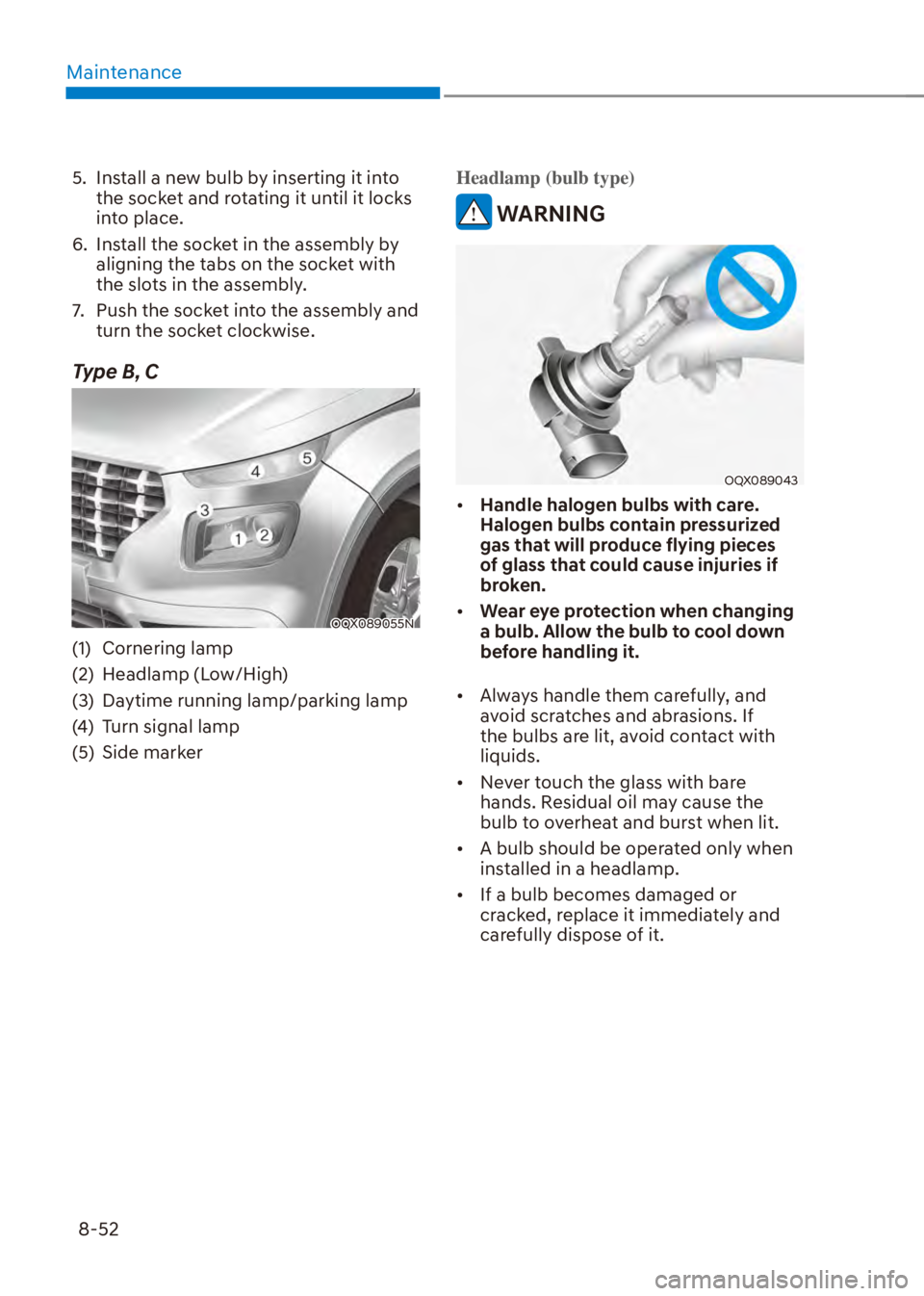

Maintenance8-52
5. Install a new bulb by inserting it into the socket and rotating it until it locks
into place.
6. Install the socket in the assembly by aligning the tabs on the socket with
the slots in the assembly.
7. Push the socket into the assembly and turn the socket clockwise.
Type B, C
OQX089055N
(1) Cornering lamp
(2) Headlamp (Low/High)
(3) Daytime running lamp/parking lamp
(4) Turn signal lamp
(5) Side marker Headlamp (bulb type)
WARNING
OQX089043

[
Handle halogen bulbs with care.
Halogen bulbs contain pressurized
gas that will produce flying pieces
of glass that could cause injuries if
broken.

[ Wear eye protection when changing
a bulb. Allow the bulb to cool down
before handling it.

[ Always handle them carefully, and
avoid scratches and abrasions. If
the bulbs are lit, avoid contact with
liquids.

[ Never touch the glass with bare
hands. Residual oil may cause the
bulb to overheat and burst when lit.

[ A bulb should be operated only when
installed in a headlamp.

[ If a bulb becomes damaged or
cracked, replace it immediately and
carefully dispose of it.

08
8-53
„Headlamp (high/low beam)
OQX089015L
1. Open the hood.
2. Disconnect the negative battery cable.
3. Remove the headlamp bulb cover by turning it counterclockwise.
4. Disconnect the headlamp bulb socket-connector.
5. Remove the bulb from the headlamp assembly.
6. Install a new headlamp bulb and snap the headlamp bulb retaining wire into
position by aligning the wire with the
groove on the bulb.
7. Connect the headlamp bulb socket- connector.
8. Install the headlamp bulb cover by turning it clockwise.
Information
The headlamp aiming should be adjusted
after an accident or after the headlamp
assembly is reinstalled at an authorized
HYUNDAI dealer.
Headlamp (LED type)
Your vehicle is equipped with LED lamps.
LED lamps do no
t have replaceable
bulbs. If the LED lamp does not
operate, have the vehicle checked by an
authorized HYUNDAI dealer.
OQX089016L
Cornering lamp
1. Open the hood.
2.

Disconnect the negative battery
cable.
3. Remove the socket from the assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on the
assembly.
4. Remove the bulb from the socket by pressing it in and rotating it
counterclockwise until the tabs on the
bulb align with the slots in the socket.
Pull the bulb out of the socket.
5. Insert a new bulb by inserting it into the socket and rotating it until it locks
into place.
6. Install the socket in the assembly by aligning the tabs on the socket with
the slots in the assembly.
7. Push the socket into the assembly and turn the socket clockwise.

Maintenance8-54
OQX089017L
Turn signal lamp/side marker
1. Open the hood.
2.
Disconnect the negative battery
cable.
3. Remove the socket (1) from the assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on the
assembly.
4. Remove the bulb from the socket by pressing it in and rotating it
counterclockwise until the tabs on the
bulb align with the slots in the socket.
Pull the bulb out of the socket.
5. Install a new bulb by inserting it into the socket and rotating it until it locks
into place.
6. Install the socket in the assembly by aligning the tabs on the socket with
the slots in the assembly.
7. Push the socket into the assembly and turn the socket clockwise.
Parking lamp and daytime running light
Your vehicle is equipped with LED lamps.
LED lamps do no
t have replaceable
bulbs. If the LED lamp does not
operate, have the vehicle checked by an
authorized HYUNDAI dealer.
Side Repeater Lamp
Replacement (if equipped)
„Type A
OHCR076032
„Type B
OQXI049074
[Type A]
1. Remove the lamp assembly from the v
ehicle by prying the lens and pulling
the assembly out.
2. Disconnect the bulb electrical connector.
3. Separate the socket and the lens parts by turning the socket counterclockwise
until the tabs on the socket align with
the slots on the lens part.
4. Remove the bulb by pulling it straight out.
5. Insert a new bulb in the socket.
6. Reassemble the socket and the lens part.
7. Connect the bulb electrical connector.
8. Reinstall the lamp assembly to the body of the vehicle.
[Type B]
If the LED lamp does not operate, have
the v
ehicle checked by an authorized
HYUNDAI dealer.

08
8-55
Rear Combination Light Bulb
Replacement
„Type A (Standard)
OQX089019N
„Type B (LED)
OQX089056N
(1) Tail lamp
(2) Stop/Tail lamp
(3) Turn signal lamp
(4) Back-up lamp
(5) Side marker
OQXI079037
Stop/tail Lamp And Turn Signal
Lamp Replacement
1. Open the liftgate.
2. Open the lamp assembly retaining screw covers.
3. Loosen the lamp assembly retaining screws with a cross-tip screwdriver.
OQXI079038
4. Remove the rear combination lamp assembly from the body of the
vehicle.

Maintenance8-56
Turn signal lampTurn signal lamp
Stop/tail lampStop/tail lamp
„Type A (Standard)
OQXI079039
Turn signal lampTurn signal lamp

„Type B (LED)
OQXI079040
5. Remove the socket from the
assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on the
assembly.
6. Remove the bulb from the socket by pressing it in and rotating it
counterclockwise until the tabs on the
bulb align with the slots in the socket.
Pull the bulb out of the socket.
7. Insert a new bulb by inserting it into the socket and rotating it until it locks
into place.
8. Install the socket into the assembly by aligning the tabs on the socket with
the slots in the assembly. Push the
socket into the assembly and turn the
socket clockwise.
9. Reinstall the lamp assembly to the body of the vehicle.
Tail / Stop Lamp (Type B)
Your vehicle is equipped with LED lamps.
LED lamps do not have replaceable
bulbs. If the LED lamp does not
operate, have the vehicle checked by an
authorized HYUNDAi dealer.
Side Marker
Your vehicle is equipped with LED lamps.
LED lamps do not have replaceable
bulbs. If the LED lamp does not
operate, have the vehicle checked by an
authorized HYUNDAI dealer.
Back up
OQX089037
1. Disconnect the negative battery cable.
2. Loosen the retaining clips under the bumper and screws on the wheel
house trim.
3. Pry trim under the bumper toward the vehicle.
4. Remove the socket from the assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on the
assembly.
5. Remove the bulb by pulling it straight out.
6. Insert a new bulb in the socket.
7. Reinstall the light assembly to the body of the vehicle.

08
8-57
High Mounted Stop Lamp
Replacement
OQX059132
1. Open the liftgate.
2. Remove the lamp cover from the lamp assembly with a cross-tip screwdriver.
3. Remove the socket from the assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on the
assembly.
4. Remove the bulb by pulling it straight out.
5. Insert a new bulb in the socket.
6. Reinstall the light assembly to the body of the vehicle.
License Plate Light Bulb
Replacement
OQX089034L
1. Remove the cover by pressing it as direction of the arrows.
2. Remove the bulb by pulling it straight out.
3. Install a new bulb.
4. Reinstall in the reverse order.

Maintenance8-58
Interior Light Bulb Replacement
Map Lamp, Room Lamp, Vanity
Mirror Lamp, Luggage Compartment
Lamp And Glove Box Lamp
„Map lamp (Type A)
OQXI079045
„Map lamp (Type B)
OQX089044
„Room lamp
OQXI079043
„Vanity mirror lamp
OOS077046
„Luggage compartment lamp
OQX089022L
1. Using a flat-blade screwdriver, gently pry the lens from the interior lamp
housing.
2. Remove the bulb by pulling it straight out.
WARNING
Prior to working on the Interior Lights,
ensure that the “OFF” button is
depressed to avoid burning your fingers
or receiving an electric shock.
3. Install a new bulb in the socket.
4. Align the lens tabs with the interior lamp housing notches and snap the
lens into place.
NOTICE
Use care not to dirty or damage lens,
lens tab, and plastic housings.

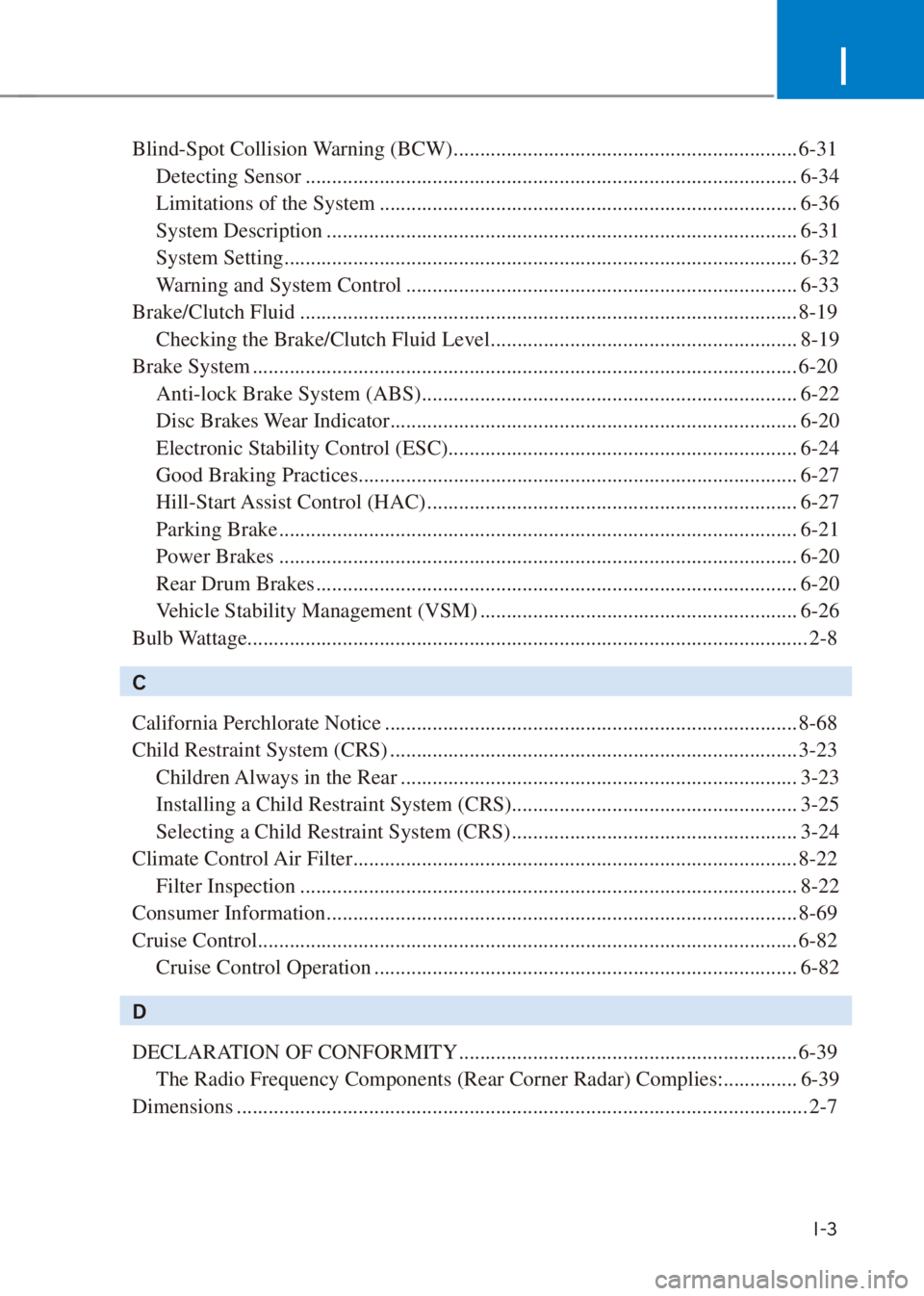

I
