2023 HYUNDAI TUCSON HYBRID reset

04

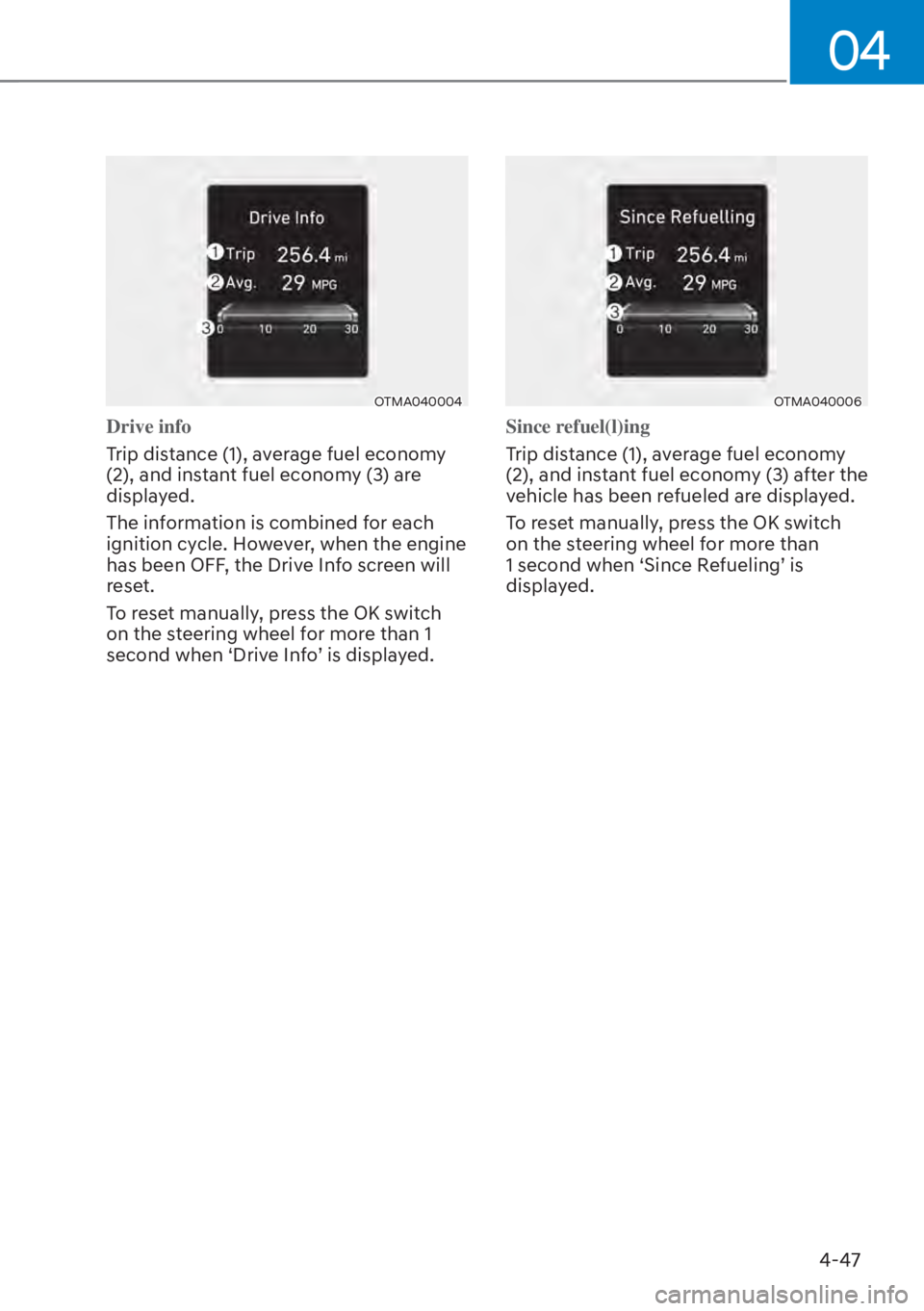

4-47
OTMA040004
Drive info
Trip distance (1), average fuel economy
(2), and ins
tant fuel economy (3) are
displayed.
The information is combined for each
ignition cycle. However, when the engine
has been OFF, the Drive Info screen will
reset.
To reset manually, press the OK switch
on the steering wheel for more than 1
second when ‘Drive Info’ is displayed.
OTMA040006
Since refuel(l)ing
Trip distance (1), average fuel economy
(2), and ins
tant fuel economy (3) after the
vehicle has been refueled are displayed.
To reset manually, press the OK switch
on the steering wheel for more than
1 second when ‘Since Refueling’ is
displayed.

Instrument Cluster4-48
OTMA040009
Accumulated info
Accumulated trip distance (1), average
fuel econom
y (2), and instant fuel
economy (3) are displayed.
The information is accumulated starting
from the last reset.
To reset manually, press the OK switch
on the steering wheel for more than
1 second when ‘Accumulated Info’ is
displayed.
ONX4EHQ010006
Energy flow
The hybrid system informs the drivers its
ener
gy flow in various operating modes.
While driving, the current energy flow is
specified in 11 modes.
For more details, refer to the "Hybrid
system'' in chapter 1.
OIK047151N
Digital speedometer
Digital speedometer display shows the
speed o
f the vehicle.

04
4-49
Trip Computer (10.25-inch) -
Hybrid Vehicle
The trip computer is a microcomputer-
controlled driver information system that
displays information related to driving.
Information
Some driving information stored in the
trip computer (for example, Average
Vehicle Speed) resets if the battery
connector is disconnected.
Trip modes

[Trip distance

[ Average Fuel Economy

[ Instant Fuel Economy
Accumulated Info

[Trip distance

[ Average Fuel Economy

[ Instant Fuel Economy
Since refuelling
Energy flow
Digital speedometer

[Trip distance

[ Average Fuel Economy

[ Instant Fuel Economy
Drive Info
OCN7050079
To change the trip mode, toggle the
", " switch on the steering wheel

[ Manual reset
To clear the average fuel economy
manually, press the OK switch on the
steering wheel for more than 1 second
when the Average Fuel Economy is
displayed.

[ Automatic reset
To automatically reset the average
fuel economy, select between ‘After
Ignition’ or ‘After Refueling’ from
the Settings menu in the instrument
cluster.

- After Ignition: When the engine has
been OFF for 3 minutes or longer
the average fuel economy will reset
automatically.
- After Refueling: The average fuel economy will reset automatically
after adding 1.6 gallons (6 liters) of
fuel or more and after driving speed
exceeds 1 mph (1 km/h).

à For 10.25-inch instrument cluster, you
can check the fuel economy in the
center bottom of the cluster.

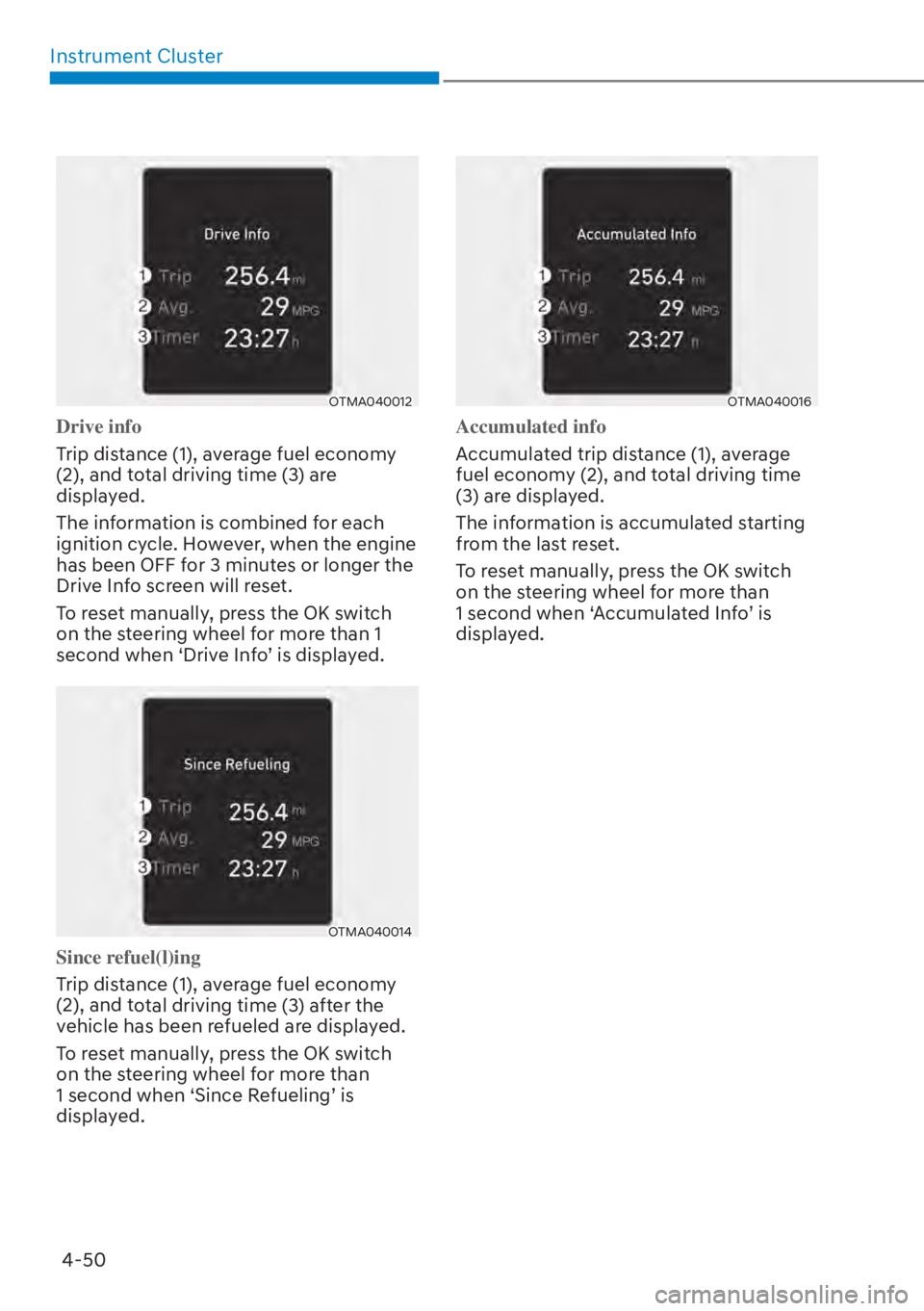

Instrument Cluster4-50
OTMA040012
Drive info
Trip distance (1), average fuel economy
(2), and t
otal driving time (3) are
displayed.
The information is combined for each
ignition cycle. However, when the engine
has been OFF for 3 minutes or longer the
Drive Info screen will reset.
To reset manually, press the OK switch
on the steering wheel for more than 1
second when ‘Drive Info’ is displayed.
OTMA040014
Since refuel(l)ing
Trip distance (1), average fuel economy
(2), and t
otal driving time (3) after the
vehicle has been refueled are displayed.
To reset manually, press the OK switch
on the steering wheel for more than
1 second when ‘Since Refueling’ is
displayed.
OTMA040016
Accumulated info
Accumulated trip distance (1), average
fuel econom
y (2), and total driving time
(3) are displayed.
The information is accumulated starting
from the last reset.
To reset manually, press the OK switch
on the steering wheel for more than
1 second when ‘Accumulated Info’ is
displayed.

Instrument Cluster4-52
Trip Computer (4.2-inch) - Plug-
in Hybrid Vehicle
The trip computer is a microcomputer-
controlled driver information system that
displays information related to driving.
Information
Some driving information stored in the
trip computer (for example Average
Vehicle Speed) resets if the battery is
disconnected.
Trip modes

[ Trip distance

[ Average Fuel Economy

[ Instant Fuel Economy
Accumulated Info

[Trip distance

[ Average Fuel Economy

[ Instant Fuel Economy
Since refuelling
Energy flow
Digital speedometer

[Trip distance

[ Average Fuel Economy

[ Instant Fuel Economy
Drive Info
Electric/Gasoline
Range
OCN7050079
To change the trip mode, toggle the
", " switch on the steering wheel

[ Manual reset
To clear the average fuel economy
manually, press the OK switch on the
steering wheel for more than 1 second
when the Average Fuel Economy is
displayed.

[ Automatic reset
To automatically reset the average
fuel economy, select between ‘After
Ignition’ or ‘After Refueling’ from
the Settings menu in the instrument
cluster.

- After Ignition: When the engine has
been OFF for 3 minutes or longer
the average fuel economy will reset
automatically.
- After Refueling: The average fuel economy will reset automatically
after adding 6 liters (1.6 gallons) of
fuel or more and after driving speed
exceeds 1 mph (1 km/h).

04
4-53
OAEPH049534R
Range
The range is the estimated distance the
v
ehicle can be driven with the remaining
fuel in the fuel tank (Gasoline/Petrol) and
high-voltage (hybrid) battery (Electric).
If the estimated distance is below 1 mile
(1 km), the trip computer will display
“---” as the range.
Information

[ If the vehicle is not on level ground or
the battery power has been interrupted,
the range function may not operate
correctly.

[ The range may differ from the actual
driving distance as it is an estimate of
the available driving distance.

[ The trip computer may not register
additional fuel if less than 2 gallon (6
liters) of fuel are added to the vehicle.

[ The range may vary significantly based
on driving conditions, driving habits,
and condition of the vehicle.
OTMA040004
Drive info
Trip distance (1), average fuel economy
(2), and ins

tant fuel economy (3) are
displayed.
The information is combined for each
ignition cycle. However, when the engine
has been OFF for 3 minutes or longer the
Drive Info screen will reset.
To reset manually, press the OK switch
on the steering wheel for more than 1
second when ‘Drive Info’ is displayed.
OTMA040006
Since refuel(l)ing
Trip distance (1), average fuel economy
(2), and ins
tant fuel economy (3) after the
vehicle has been refueled are displayed.
To reset manually, press the OK switch
on the steering wheel for more than
1 second when ‘Since Refueling’ is
displayed.

Instrument Cluster4-54
OTMA040009
Accumulated info
Accumulated trip distance (1), average
fuel econom
y (2), and instant fuel
economy (3) are displayed.
The information is accumulated starting
from the last reset.
To reset manually, press the OK switch
on the steering wheel for more than
1 second when ‘Accumulated Info’ is
displayed.
ONX4EHQ010006
Energy flow
The hybrid system informs the drivers its
ener
gy flow in various operating modes.
While driving, the current energy flow is
specified in 11 modes.
For more details, refer to the "Hybrid
system'' in chapter 1.
OIK047151N
Digital speedometer
Digital speedometer display shows the
speed o
f the vehicle.

04
4-55
Trip Computer (10.25-inch) -
Plug-in Hybrid Vehicle
The trip computer is a microcomputer-
controlled driver information system that
displays information related to driving.
Information
Some driving information stored in the
trip computer (for example Average
Vehicle Speed) resets if the battery is
disconnected.
Trip modes

[Trip distance

[ Average Fuel Economy

[ Instant Fuel Economy
Accumulated Info

[Trip distance

[ Average Fuel Economy

[ Instant Fuel Economy
Since refuelling
Energy flow
Digital speedometer

[Trip distance

[ Average Fuel Economy

[ Instant Fuel Economy
Drive Info
Electric/Gasoline
Range
OCN7050079
To change the trip mode, toggle the
", " switch on the steering wheel

[ Manual reset
To clear the average fuel economy
manually, press the OK switch on the
steering wheel for more than 1 second
when the Average Fuel Economy is
displayed.

[ Automatic reset
To automatically reset the average
fuel economy, select between ‘After
Ignition’ or ‘After Refueling’ from
the Settings menu in the instrument
cluster.

- After Ignition: When the engine has
been OFF for 3 minutes or longer
the average fuel economy will reset
automatically.
- After Refueling: The average fuel economy will reset automatically
after adding 6 liters (1.6 gallons) of
fuel or more and after driving speed
exceeds 1 km/h (1 mph).

à For 10.25-inch instrument cluster, you
can check the fuel economy in the
center bottom of the cluster.
