2023 HYUNDAI TUCSON HYBRID reset

05
5-57
Power Windows
The ignition switch must be in the ON
position to be able to raise or lower
the windows. Each door has a Power
Window switch to control that door’s
window. The driver has a Power Window
Lock switch which can block the
operation of rear passenger windows.
The power windows will operate for
about 3 minutes after the ignition is
turned OFF or if the ignition is placed
in the ACC position, as long as the front
doors remain closed.
If the front doors are opened, battery
power is turned OFF and the Power
Windows will not operate.
Window opening and closing
OCN7050082OCN7050082
To open:
Press the window switch down to the
first detent position (5). Release the
switch when you want the window to
stop.
To close:
Pull the window switch up to the first
detent position (5). Release the window
switch when you want the window to
stop.
Auto down window
Pressing the power window switch
momentarily to the second detent
position (6) completely lowers the
window even when the switch is
released.
To stop the window at the desired
position while the window is in
operation, pull up or press down and
release the switch.
Auto up/down window (if equipped)
Pressing or pulling up the power window
switch momentarily to the second
detent position (6) completely lowers or
lifts the window even when the switch
is released. To stop the window at the
desired position while the window is in
operation, pull up or press down and
release the switch.
Resetting the power windows
If the power windows do not operate
normally, the automatic power window
system must be reset as follows:
1. Press the ignition switch to the ON position.
2. Close the window and continue pulling up on the power window
switch for at least one second.
If the power windows do not operate
properly after resetting, have the system
be inspected by an authorized HYUNDAI
dealer.
WARNING
The automatic reverse feature doesn’t
activate while resetting the power
window system. Make sure body parts
or other objects are safely out of the
way before closing the windows toavoid
injuries or vehicle damage.

Convenience Features5-64
Resetting the Sunroof
ONX4E050143ONX4E050143
In some circumstances resetting the
sunroof operation may need to be
performed. Some instances where
resetting the sunroof may be required
include:
• When battery terminal (For plug-in hybrid vehicle) or battery connector
(For hybrid vehicle) is either
disconnected or discharged
• When the sunroof fuse is replaced
• If the sunroof one-touch AUTO OPEN/ CLOSE operation is not functioning
properly Sunroof resetting procedure:
1. It is recommended to perform the
reset procedure with the vehicle
engine running. Start the vehicle in P
(Park).
2. Make sure the power sunshade and sunroof glass are in the fully closed
position. If the power sunshade
and sunroof glass are open, push
the switch forward until the power
sunshade and sunroof glass are fully
closed.
3. Release the switch when the power sunshade and sunroof glass are fully
closed.
4. Push the switch forward until the power sunshade and sunroof glass
move slightly. Then release the switch.
5. Once again push and hold the sunroof switch forward until the power
sunshade and sunroof glass slide open
and close. Do not release the switch
until the operation is completed.
If you release the switch during
operation, start the procedure again
from step 2.
Information
If the sunroof is not reset when the vehicle
battery terminal (For plug-in hybrid
vehicle) or battery connector (For hybrid
vehicle) is disconnected or discharged, or
the sunroof fuse is blown, the sunroof may
not operate normally.

Convenience Features5-74
Resetting the power liftgate
In some circumstances resetting the
power liftgate operation may need to
be performed. Some instances where
resetting the power liftgate may be
required include:
• When the 12-volt battery is recharged
• When the 12-volt battery is reinstalled after removal or replacement (for
Plug-in Hybrid vehicle)
• When the related fuse is reinstalled after removal or replacement
ONX4E050145ONX4E050145
1. With the engine off or running, put the gear in P (Park).
2. Press the power liftgate open/close inner button (B) and outer button (A)
simultaneously until a chime sounds.
3. Slowly close the liftgate manually.
4. Press the power liftgate open/close outer button. The power liftgate will
open with a chime sound.
Wait until the liftgate fully opens to
complete resetting. If the liftgate
stops before it is fully open, resetting
cannot be completed.
Information
If the power liftgate does not operate
properly after the above procedure, have
the system inspected by an authorized
HYUNDAI dealer.
Emergency liftgate safety release
ONX4E050059RONX4E050059R
To unlock and open the liftgate manually
from inside the luggage compartment,
perform the following procedure:
1. Insert a long, flat object, such as a key into the opening at the bottom of the
liftgate.
2. Slide the latch in the direction of the arrow to unlock the liftgate.
3. Push the liftgate to open.
WARNING
• For emergencies, be fully aware
of the location of the emergency
liftgate safety release latch in the
vehicle and how to open the liftgate
if you are accidentally locked in the
luggage compartment.
• No one, including animals, should
be allowed to occupy the luggage
compartment of the vehicle at any
time. The luggage compartment is a
very dangerous location in the event
of an accident.
• Use the release latch for
emergencies only. Use extreme
caution, especially while the vehicle
is in motion.

05
5-105
Adjusting the driver and passenger side
temperature individually
• Press the SYNC button (indicator light OFF) again t
o adjust the driver
and passenger side temperature
individually.
Temperature conversion
If the battery terminal (For plug-in
h
ybrid vehicle) or battery connector (For
hybrid vehicle) has been discharged or
disconnected, the temperature mode
display will reset to Fahrenheit.
To change the temperature unit from °C
to °F or °F to °C :

- Instrument cluster or infotainment
system screen
Go to Setup
Ÿ Unit
Ÿ Temperature unit.
The temperature unit on both the cluster
LCD display and the climate control
screen will change.
Air intake control
This is used to select the outside (fresh)
air position or recirculated air position.
To change the air intake control position,
push the control button.
Recirculated air position
With the recirculated air
position selected, air from the
passenger compartment will
be drawn through the heating
system and heated or cooled
according to the function
selected.
Outside (fresh) air position
With the outside (fresh) air
position selected, air enters
the vehicle from outside
and is heated or cooled
according to the function
selected.

Convenience Features5-114
To defrost outside windshield
ONX4H050101ONX4H050101
„„ Type A Type A„„ Type B Type B
1. Set fan speed to the highest position.
2. Set temperature to the extreme hot (HI) position.
3. Press the defroster button (
).
4. The air-conditioning will turn on according to the detected
ambient temperature and outside
(fresh) air position will be selected
automatically.
If the
position is selected, lower fan
speed is controlled to higher fan speed.
Auto Defogging System
on Models with Automatic
Temperature Control
Auto defogging reduces the possibility of
fogging up the inside of the windshield
by automatically sensing the moisture on
inside the windshield.
The auto defogging system operates
when the heater or air conditioning is on.
Information
The auto defogging system may not
operate normally, when the outside
temperature is below 14°F (-10°C).
To cancel or set the Auto Defogging
System, keep the front defroster button
pressed for 3 seconds. The “ADS OFF”
symbol will be shown in the climate
display to inform you that the system
is deactivated. To re-activate the auto
defogging system, follow the procedure
mentioned above and the “ADS OFF”
symbol will disappear.
If the battery has been disconnected
or discharged, it resets to the auto
defogging status.
Information
For efficiency, do not select recirculated
air position while the Auto defogging
system is operating.
NOTICE
Do not remove the sensor cover located
on the top of the windshield glass.
Damage to system parts could occur
and may not be covered by your vehicle
warranty.

05
5-133
SEEK/PRESET ( / ) (2)
If the SEEK/PRESET switch is pressed up
or down and held for 0.8 second or more,
it will function in the following modes:
• RADIO mode
It will function as the AUTO SEEK
select butt

on. It will SEEK until you
release the button.
• MEDIA mode
It will function as the FF/RW button.
If the SEEK/PRESET s
witch is pressed up
or down, it will function in the following
modes:
• RADIO mode
It will function as the PRESET STATION
UP/DOWN butt

on.
• MEDIA mode
It will function as the TRACK UP/
DOWN butt

on.
MODE (3)
Press the MODE button to toggle
through Radio or Media modes.
MUTE () (4)
• Press the MUTE button to mute the sound.
• Press the MUTE button again to activate the sound.
Information
See additional information in supplied
Infotainment Manual.
Infotainment System
For detailed information, refer to the
separately supplied infotainment system
manual.
Voice Recognition
OCN7050081OCN7050081
For detailed information, refer to the
separately supplied infotainment
system manual.

Driving Your Vehicle6-8
NOTICE
To prevent damage to the vehicle:
Do not press the Engine Start/Stop
button for more than 10 seconds except
when the stop lamp fuse is blown.
When the stop lamp fuse is blown,
you cannot normally start the hybrid
system. Replace the fuse with a new
one. If you are not able to replace
the fuse, you can start the vehicle by
pressing and holding the Engine Start/
Stop button for 10 seconds with the
Engine Start/Stop button in the ACC
position.
For your safety always depress the
brake pedal before starting the vehicle.
Emergency starting
ONX4060002
If the smart key battery is weak or the
smart key does not work correctly, you
can start the vehicle by pressing the
Engine Start/Stop button with the smart
key in the direction of the picture above.
Turning off the engine
1. Stop the vehicle and depress the brake pedal fully.
2. Make sure the shift button is in P(Park).
3. Press the Engine Start/Stop button to the OFF position and apply the
parking brake.
Auto shut-off system (if equipped)
To prevent accidents caused by carbon
dioxide poisoning, the engine is turned
off automatically 60 minutes later when
the following conditions are satisfied.
The timer appears on the instrument
cluster 30 minutes before it turns off
automatically.
Operating conditions

[The driver does not fasten a seat belt

[ No one in the passenger's seat

[ Stop the vehicle and the speed is
under 1.86mph and the gear shift is
in P

[ While the brake or accelerator is not
working

[ When Infotainment system update is
not performing
Cluster timer reset conditions

[ Release the accelerator or brake after
completing operation

[ Press the OK button on the steering
wheel while the timer appears on the
instrument cluster
Off conditions

[ The driver fastened the seat belt

[ A passenger is in the pasenger's seat

[ Driving over 1.86mph

[ Shifting the gear in R, N or D
CAUTION
Please do not leave a passenger or a pet
in the vehicle since the air conditioning
system stops when the engine is off.

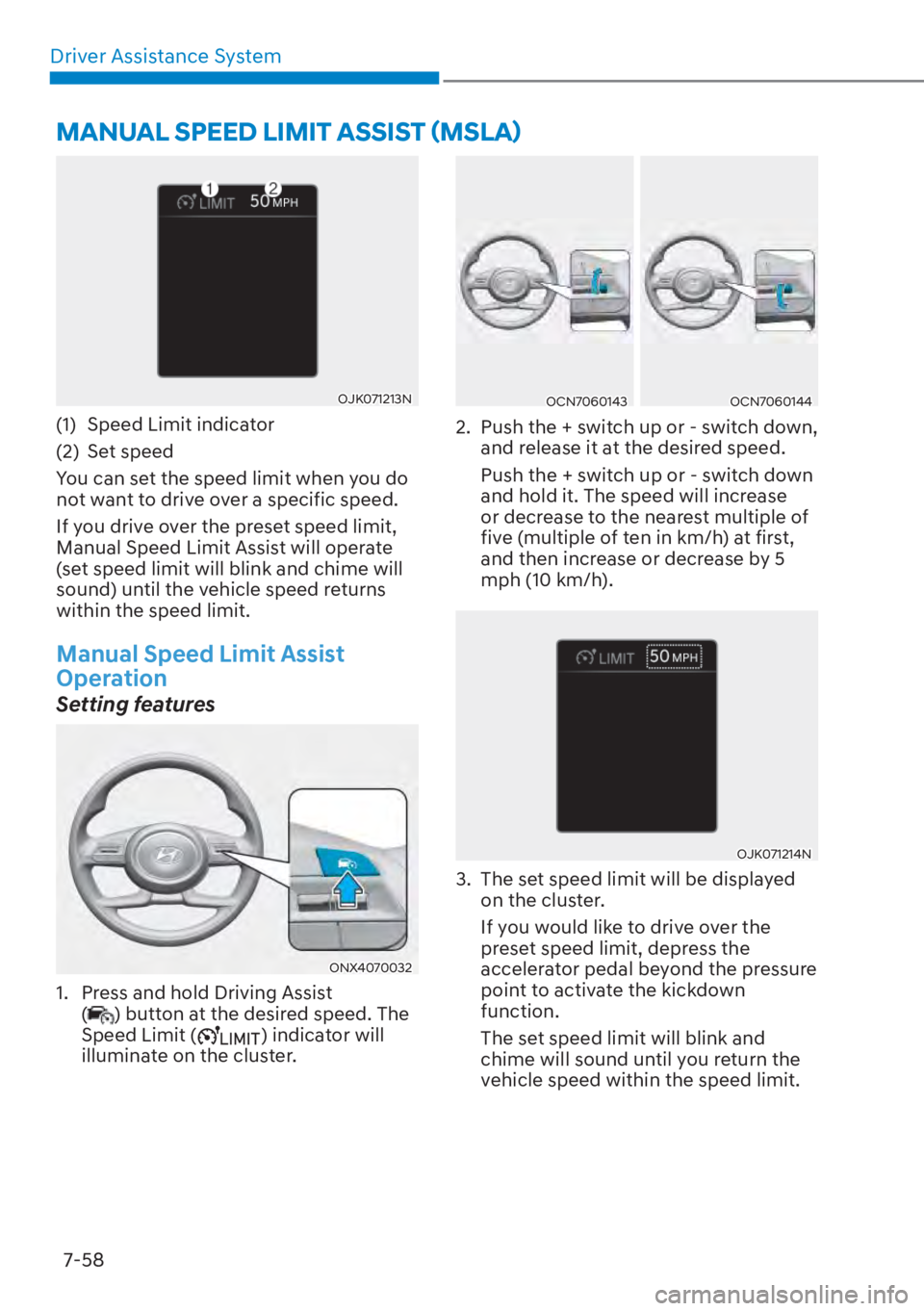

Driver Assistance System7-58
OJK071213NOJK071213N
(1) Speed Limit indicator
(2) Set speed
You can set the speed limit when you do
not want to drive over a specific speed.
If you drive over the preset speed limit,
Manual Speed Limit Assist will operate
(set speed limit will blink and chime will
sound) until the vehicle speed returns
within the speed limit.
Manual Speed Limit Assist
Operation
Setting features
ONX4070032ONX4070032
1. Press and hold Driving Assist () button at the desired speed. The
Speed Limit () indicator will
illuminate on the cluster.
OCN7060143OCN7060143OCN7060144OCN7060144
2. Push the + switch up or - switch down, and release it at the desired speed.
Push the + switch up or - switch down
and hold it. The speed will increase
or decrease to the nearest multiple of
five (multiple of ten in km/h) at first,
and then increase or decrease by 5
mph (10 km/h).
OJK071214NOJK071214N
3. The set speed limit will be displayed on the cluster.
If you would like to drive over the
preset speed limit, depress the
accelerator pedal beyond the pressure
point to activate the kickdown
function.
The set speed limit will blink and
chime will sound until you return the
vehicle speed within the speed limit.
MANUAL SPEED LIMIT ASSIST (MSLA)
