2023 HYUNDAI TUCSON HYBRID remote control

2-6
Vehicle Information, Consumer Information and Reporting Safety Defects
1. Lighting control lever ........................... 5-84
2. Wiper and washer control lever........... 5-95
3. Paddle shifter .........................................6-18
4. Audio remote control buttons ............ 5-132
5. Bluetooth® hands-free phone
button .................................................. 5-133 6. LCD display control .............................. 4-23
7. Lane Driving Assist button .................... 7-33
8. Driving Assist button ........................... 7-58
9. Vehicle Distance button ....................... 7-79
,167580(173$1(/29(59,(:

2-12
Vehicle Information, Consumer Information and Reporting Safety Defects
1. Lighting control lever ........................... 5-84
2. Wiper and washer control lever........... 5-95
3. Paddle shifter .........................................6-18
4. Audio remote control buttons ............ 5-132
5. Bluetooth® hands-free phone
button .................................................. 5-133 6. LCD display control .............................. 4-23
7. Lane Driving Assist button .................... 7-33
8. Driving Assist button ........................... 7-58
9. Vehicle Distance button ....................... 7-79
,167580(173$1(/29(59,(:

5
Climate Control Additional Features .............................................................5-116A/C Automatic Drying ........................................................................\
....................... 5-116
Auto Defogging System on Models with Automatic Temperature Control ........... 5-116
Auto Dehumidify ........................................................................\
............................... 5-117
Recirculating Air when Washer Fluid is Used .......................................................... 5-118
Sunroof Inside Air Recirculation ........................................................................\
....... 5-118
Automatic Controls for the Driver Based on Climate Control System Settings .... 5-118
Storage Compartment ........................................................................\
............5-119Center Console Storage ........................................................................\
.................... 5-119
Glove Box ........................................................................\
........................................... 5-119
Luggage Tray ........................................................................\
..................................... 5-119
Interior Features ........................................................................\
..................... 5-120Cup Holder ........................................................................\
........................................ 5-120
Sunvisor ..................................................................\
................................................... 5-121
Power Outlet ........................................................................\
...................................... 5-121
USB Charger ........................................................................\
......................................5-122
Wireless Smart Phone Charging System .................................................................5-123
Clock ..................................................................\
....................................................... 5-126
Coat Hook ........................................................................\
......................................... 5-126
Floor Mat Anchor(s) ........................................................................\
........................... 5-127
Luggage Net Holder ........................................................................\
.......................... 5-127
Cargo Security Screen ........................................................................\
..................... 5-128
Exterior Features ........................................................................\
....................5-130Roof Side Rails ........................................................................\
.................................. 5-130
Infotainment System ........................................................................\
..............5-131USB Port ........................................................................\
............................................. 5-131
Antenna ...................................................................\
...................................................5 -132
Steering Wheel Remote Controls ........................................................................\
.....5-132
Infotainment System ........................................................................\
........................ 5-133
Voice Recognition ........................................................................\
............................ 5-133
Bluetooth® Wireless Technology ........................................................................\
..... 5-134
5. Convenience Features

05
5-17
Information
After reconnecting the vehicle battery
power supply or charging the battery, it
may take time to operate due to remote
renewal of security information. In this
case, when you lock or unlock the doors
using your smartphone Digital Key, it
may take a little longer for the vehicle to
authenticate. Hold your smartphone near
the NFC door handle sensor for a few
seconds or until you hear the door locks
actuate.
Note that if your vehicle is parked in an
area where cell coverage is weak, the
smartphone Digital Key can still be used on
for a limited number of times to unlock and
start your vehicle.
After starting your vehicle, it is
recommended to leave your smartphone
on the wireless charging pad until cell
phone service is stronger and digital key
authentication can occur.
Once authentication is complete, the
wireless charger will turn on (wireless
charging LED will illuminate).
CAUTION
The engine can be turned on if the
registered smartphone or card key is
placed on the interior authentication
pad (wireless charger). Do not leave
children unattended in the vehicle
when using the smartphone Digital Key.
Serious injury or death can occur.
Do not leave anyone in the vehicle
without knowledge of the Digital Key
system when using the smartphone
Digital Key. Always have the registered
digital key (smartphone) or card key
with you to prevent vehicle theft when
leaving the vehicle.
For more information, refer to the
Engine Start/Stop button in chapter 6.
Remote Features from Your Smartphone
with the Digital Key

App
To use the remote features from your
smartphone with the Digital K
ey app,
make sure Bluetooth is enabled.
Connecting Your Vehicle with Digital Key
1. Open the Hyundai Digital Key app on your smartphone and select your
vehicle within the app.
2. Approach your vehicle with your smartphone in hand. Be sure that
your phone is unlocked and the
app is running. If your vehicle does
not automatically connect, you can
press the connect button on the app.
Remote features on the Digital Key
app will be available as soon as your
vehicle is connected.
Remote Features Using Digital Key
You can perform several vehicle
functions using the Digital Key app,
including door lock/unlock, panic ON/
OFF, remote engine start/stop and
opening the liftgate. The icon for each
function is shown in the Digital Key
app, and will be highlighted when the
operation is performed. Haptic feedback
from your phone will occur when the
icon is selected.
Note that you cannot lock your vehicle
using the Hyundai digital key app if any
of the following occurs:
• The POWER button is in ACC or ON position.
• Any doors are open.
When the smartphone and the vehicle
are connected by the Bluetooth function
but the remote control command
cannot be received over 5 minutes, the
remote control connection is cancelled
automatically.

Convenience Features5-18
CAUTION
• If metallic window tint was applied
to your vehicle, it may cause
bad Bluetooth connection or
performance degradation of the
digital key.
• If multiple users operate the remote
control function simultaneously, the
connection between the digital key
and the vehicle might result in failed
commands. Please connect and
operate the remote control function
only the necessary user.
• When using the remote control
operation, the driver (the remote
control user) should leave the vehicle
after confirming the door lock (the
chime sounds once and the hazard
warning lights blink).
• The remote functions of the Digital
Key app enables the vehicle to be
controlled from a set distance. If
the digital key or the vehicle goes
beyond the operable distance, the
remote control function might be
disconnected or cancelled.
• If the digital key (smartphone) is
connected with the vehicle for the
remote control, the driver with the
key goes far away from the vehicle,
the function might not work.
• If the remote control operation
is executed where the mobile
connection is weak, Bluetooth
connection is poor due to several
Bluetooth devices or there is an
object such as metal or concrete, it
might be delayed or the operable
distance might decrease. You should
not cover the smartphone with your
hand or place other devices which
can cause frequency interference. It
may result in poor performance.
• If the remote control function is not
available, please use NFC function to
lock or unlock the doors. Remote Start with Digital Key
• Using the Hyundai Digital Key app
on your phone, press the Door Lock
button and then press the Remote
Start button (buttons must be pressed
within about 4 seconds). If all the
doors of your vehicle are closed
(including the hood and the liftgate),
the engine will be automatically
started.
Note that when the remote start
feature is activated, the hazard
warning lights will blink two times
and a chime will sound before engine
startup. Also note the following:
• The climate control system will come on using the same settings from when
you last used the vehicle
• To turn off the engine, press the Remote Engine Stop button within the
Hyundai Digital Key app.
• The engine will remain running for approximately 10 minutes, and then
engine will automatically shut OFF.
• To keep the engine running, access the vehicle and place the smartphone
on the wireless charging pad
(authentication pad) while the engine
is still in remote engine-ON mode.
For more information, refer to the Engine
Start/Stop button in chapter 6.

Convenience Features5-20
CAUTION
• Do not leave the registered digital
key (smartphone) and card key in
your vehicle. Please carry around
your keys all the times.
• If you happen to lose your digital
key (smartphone) or card key
registered as a main user’s key, you
should immediately delete the key
on the vehicle’s key menu. For more
information, refer to the Digital Key
Deletion in this chapter.
• If you registered your digital key
(smartphone) or card key in the
vehicle, a message appears on the
instrument cluster and let you know
the key is registered.
(Message: Digital key(s) active.)
• If you buy a used vehicle, you should
confirm the message and delete the
registered smartphone key and card
key. In this case, you should carry
your smart key.
• If you keep place the NFC card
of the digital key on the interior
authentication pad (wireless
charger) while driving, it may cause a
malfunction of the NFC card.
• You should remove your NFC card
of the digital key on the interior
authentication pad after turning on
the engine.
• Hyundai digital key app may not
work properly when the NFC or
Bluetooth communication between
smartphone and car is not good. •
If the remote control operation
is executed where the mobile
connection is weak, Bluetooth
connection is poor due to lots of
Bluetooth devices or there is an
object such as metal or concrete, it
might be delayed or the operable
distance might decrease. Especially,
you should not cover the smartphone
with your hand or place other
devices which can cause frequency
interference. It may result in poor
performance.
• If the remote control function is not
activated, please use NFC function to
lock or unlock the doors
• You should be careful not to
press the remote control button
on the digital key (smartphone)
accidentally.
• If the digital key (smartphone) is
discharged or defective or you
cannot use the digital key since the
vehicle battery is discharged, use the
inside door lock button to lock all of
the doors.

Convenience Features5-54
Side View Mirrors
ONX4050009ONX4050009
Your vehicle is equipped with both left-
hand and right-hand side view mirrors.
The mirrors can be adjusted remotely
with the mirror adjustment control
switch. The side view mirrors can be
folded manually to help prevent damage
when going through an automatic car
wash or when passing through a narrow
street.
The right side view mirror is convex.
Objects seen in the mirror are closer than
they appear.
Use the inside rear view mirror or look
back directly to determine the actual
distance of other vehicles prior to
changing lanes.
Make sure to adjust the side view mirrors
to your desired position before you begin
driving.
WARNING
Do not adjust or fold the side view
mirrors while driving. This may cause
loss of vehicle control resulting in an
accident.
NOTICE
• Do not scrape ice off the mirror face;
this may damage the surface of the
glass.
• If the mirror is jammed with ice, do
not adjust the mirror by force. Use
an approved de-icer (not radiator
antifreeze) spray, or a sponge or soft
cloth with very warm water, or move
the vehicle to a warm place and
allow the ice to melt.
• Do not clean the mirror with harsh
abrasives, fuel or other petroleum
based cleaning products.

05
5-59

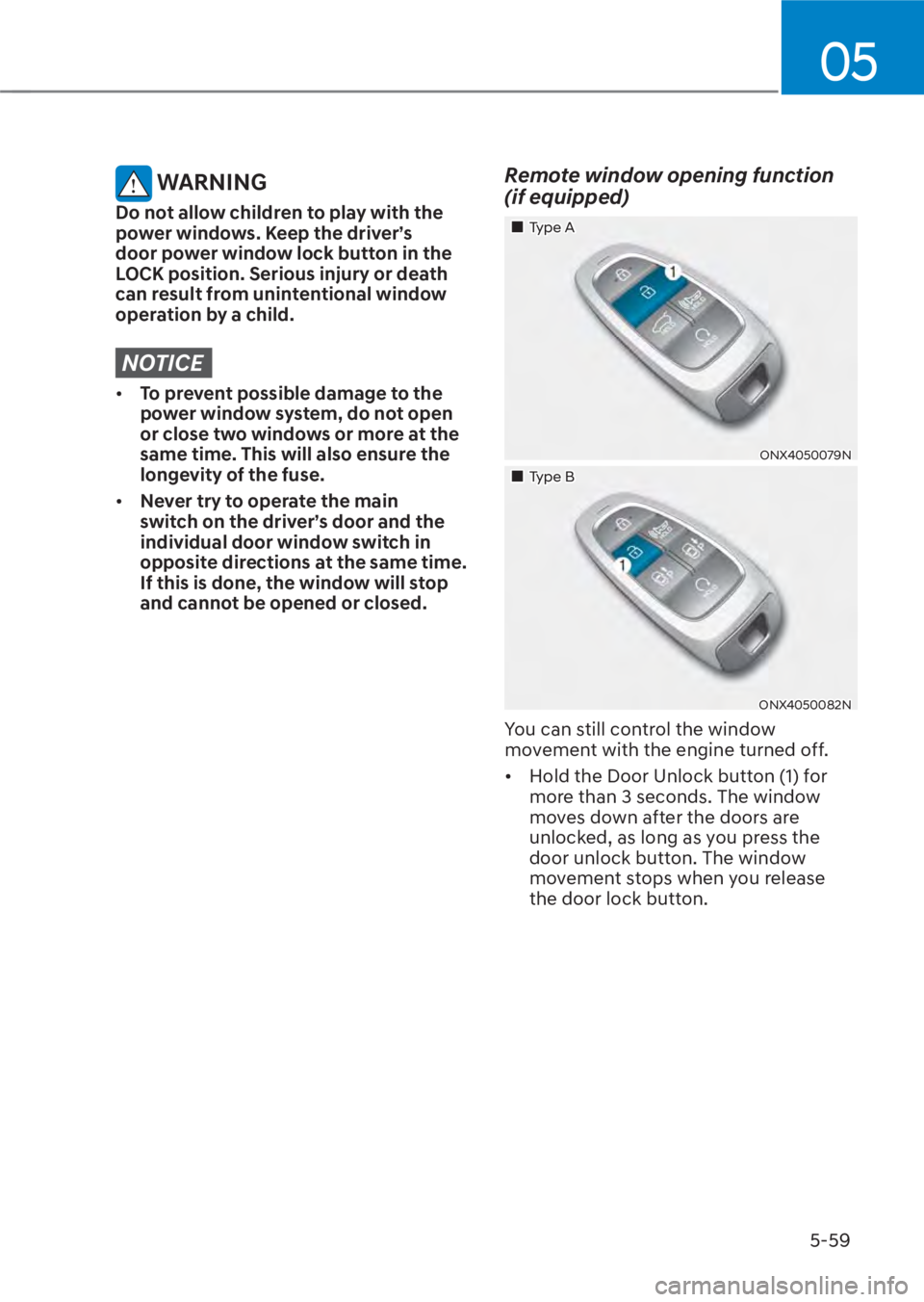

WARNING
Do not allow children to play with the
power windows. Keep the driver’s
door power window lock button in the
LOCK position. Serious injury or death
can result from unintentional window
operation by a child.
NOTICE
• To prevent possible damage to the
power window system, do not open
or close two windows or more at the
same time. This will also ensure the
longevity of the fuse.
• Never try to operate the main
switch on the driver’s door and the
individual door window switch in
opposite directions at the same time.
If this is done, the window will stop
and cannot be opened or closed.
Remote window opening function
(if equipped)
„„Type AType A
ONX4050079NONX4050079N
„„Type BType B
ONX4050082NONX4050082N
You can still control the window
movement with the engine turned off.
• Hold the Door Unlock button (1) for
more than 3 seconds. The window
moves down after the doors are
unlocked, as long as you press the
door unlock button. The window
movement stops when you release
the door lock button.
