Convenience Features5-116
CLIMATE CONTROL ADDITIONAL FEATURES
ãIF EQUIPPED
ä
A/C Automatic Drying (if
equipped)
A/C Automatic Drying feature dries
the moisture in the air conditioner and
reduces air conditioner odor. The blower
motor automatically operates after 30
minutes the vehicle is turned off.
Turning A/C Automatic Drying On or
off
The A/C Automatic Drying feature can
be turned on and off by selecting ‘Setup

Ÿ Vehicle Settings
Ÿ Climate
Ÿ Climate
Features
Ÿ A/C Automatic Drying’ from
the infotainment system. See additional
information in supplied Infotainment
Manual.
If the operating condition is satisfied
after setting the feature, the operating
condition is displayed on the
infotainment system screen and the
blower motor automatically operates.
When the A/C Automatic Drying feature
is activated, the air conditioner sets the
fan speed to the third level, selects Fresh
mode, and directs the air flow to the
floor.
Operating conditions
The A/C Automatic Drying feature
operates under the following conditions:
The vehicle is turned off after operating
the air conditioner for a certain period
The 12-volt battery level is sufficient The
outside temperature is above a certain
level
Non-operating conditions
The A/C Automatic Drying feature stops
operating under the following conditions:
- The A/C Automatic Drying feature has operated for 3 minutes
- The Start/Stop button is pressed, or the vehicle is on

- The climate control system is
operated remotely
Information
• The A/C Automatic Drying feature
reduces air conditioner odors but may
not remove all odors.
• The A/C Automatic Drying feature does
not operate if the remaining battery
level is insufficient to prevent battery
discharge.
Auto Defogging System
on Models with Automatic
Temperature Control
ONX4050046ONX4050046
Auto defogging helps reduce the
possibility of fogging up the inside of the
windshield by automatically sensing the
moisture on inside the windshield.
The auto defogging system operates
when the heater or air conditioning is on.
Information
The auto defogging system may not
operate normally, when the outside
temperature is below 14 °F (-10 °C).

Convenience Features5-132

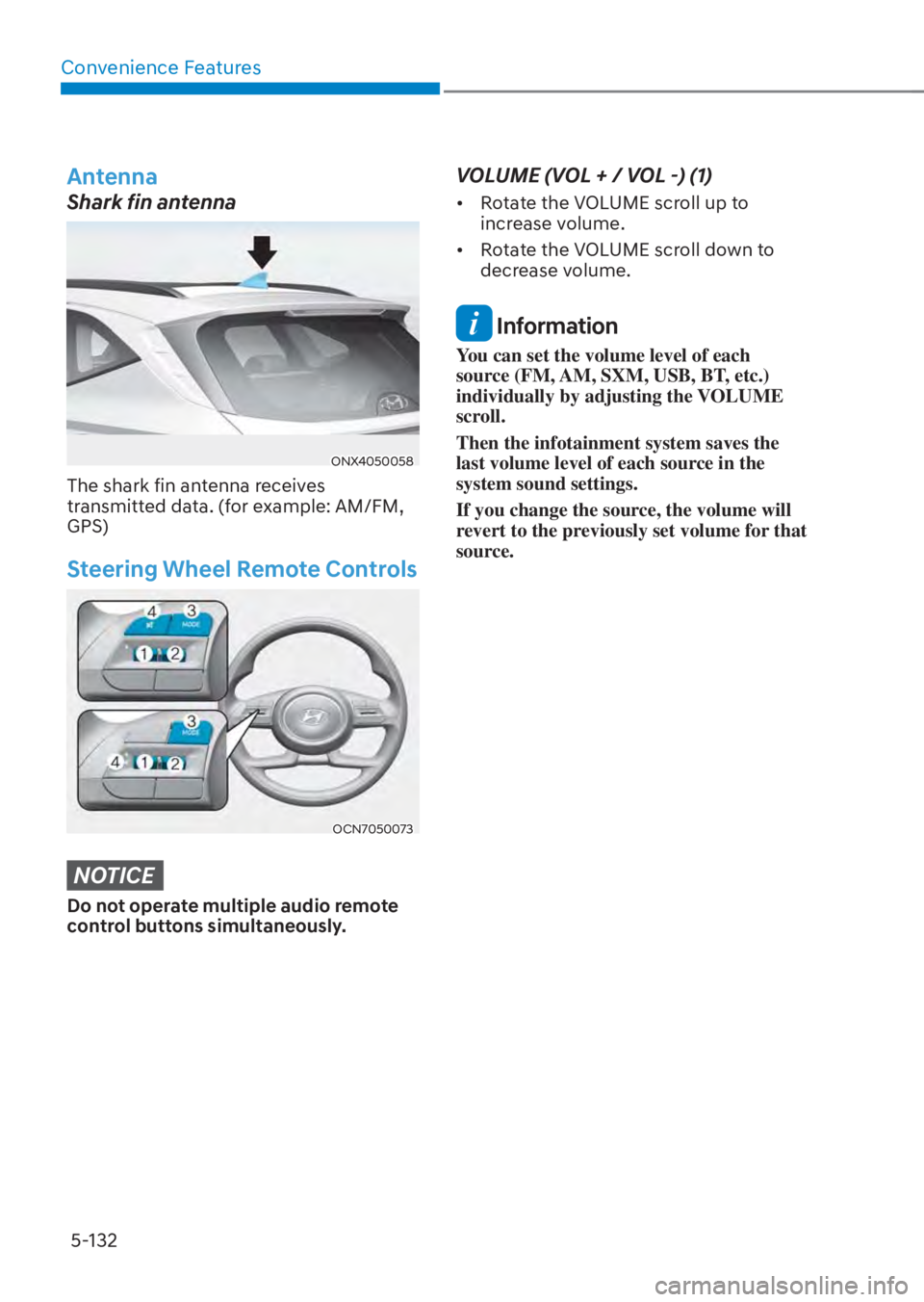

Antenna
Shark fin antenna
ONX4050058ONX4050058
The shark fin antenna receives
transmitted data. (for example: AM/FM,
GPS)
Steering Wheel Remote Controls
OCN7050073OCN7050073
NOTICE
Do not operate multiple audio remote
control buttons simultaneously.
VOLUME (VOL + / VOL -) (1)
• Rotate the VOLUME scroll up to increase volume.
• Rotate the VOLUME scroll down to decrease volume.
Information
You can set the volume level of each
source (FM, AM, SXM, USB, BT, etc.)
individually by adjusting the VOLUME
scroll.
Then the infotainment system saves the
last volume level of each source in the
system sound settings.
If you change the source, the volume will
revert to the previously set volume for that
source.

6
6. Driving Your Vehicle
Before Driving ........................................................................\
........................... 6-4Before Entering the Vehicle ........................................................................\
................ 6-4
Before Starting ........................................................................\
.................................... 6-4
Ignition Switch ........................................................................\
.......................... 6-5Engine Start/Stop Button ........................................................................\
....................6-5
Remote Start ........................................................................\
........................................ 6-9
Automatic Transmission ........................................................................\
..........6-10Automatic Transmission Operation ........................................................................\
... 6-10
Parking .................................................................\
.......................................................6-13
LCD Display Message ........................................................................\
......................... 6-14
Paddle Shifter ........................................................................\
..................................... 6-15
Good Driving Practices ........................................................................\
...................... 6-15
Coasting Guide ........................................................................\
......................... 6-17
Braking System ........................................................................\
........................6-18
Power Brakes ........................................................................\
...................................... 6-18
Disc Brakes Wear Indicator......................................................................\
.................. 6-19
Electronic Parking Brake (EPB) ........................................................................\
.......... 6-19
Auto Hold ........................................................................\
............................................ 6-23
Anti-lock Brake System (ABS) ........................................................................\
............ 6-27
Electronic Stability Control (ESC) ........................................................................\
.....6-28
Vehicle Stability Management (VSM) ....................................................................... 6-31
Hill-Start Assist Control (HAC) ........................................................................\
........... 6-32
Trailer Stability Assist (TSA) .....................................................................\
..................6-33
Downhill Brake Control (DBC) ........................................................................\
...........6-33
Good Braking Practices ................................................................\
............................ 6-36
All Wheel Drive (AWD) ........................................................................\
............ 6-37All Wheel Drive (AWD) Operation ........................................................................\
..... 6-38
Emergency Precautions ........................................................................\
.................... 6-42
Reducing the Risk of a Rollover .....................................................................\
.......... 6-44
Electronic Control Suspension ....................................................................... 6-45System Malfunction ........................................................................\
.......................... 6-45

7
Driving SafetyForward Collision–Avoidance Assist (FCA) (Front view camera only) .................... 7-2
Forward Collision–Avoidance Assist (FCA) (Sensor fusion) ................................... 7-15
Lane Keeping Assist (LKA) ........................................................................\
............... 7-32
Blind-Spot Collision-Avoidance Assist (BCA) ......................................................... 7-38
Safe Exit Warning (SEW) ........................................................................\
.................. 7-52
Manual Speed Limit Assist (MSLA) ........................................................................\
. 7-58
Intelligent Speed Limit Assist (ISLA) ........................................................................\
7-61
Driver Attention Warning (DAW) ........................................................................\
.....7-66
Blind-Spot View Monitor (BVM) ........................................................................\
.......7-72
Driving ConvenienceCruise Control (CC) ........................................................................\
...........................7-74
Smart Cruise Control (SCC)...................................................................\
.................. 7-78
Navigation-based Smart Cruise Control (NSCC) ................................................... 7-95
Lane Following Assist (LFA) ........................................................................\
............7-102
Highway Driving Assist (HDA) ........................................................................\
....... 7-106
Parking SafetyRear View Monitor (RVM) ........................................................................\
................7-113
Surround View Monitor (SVM) ........................................................................\
....... 7-116
Rear Cross-Traffic Collision-Avoidance Assist (RCCA) ......................................... 7-122
Reverse Parking Distance Warning (PDW) ............................................................7-134
Forward/Reverse Parking Distance Warning (PDW) ............................................7-138
Reverse Parking Collision-Avoidance Assist (PCA) ...............................................7-143
Parking ConvenienceRemote Smart Parking Assist (RSPA) .....................................................................\
7-151
Declaration of Conformity ........................................................................\
....................7-164
7. Driver Assistance System
Due to the infotainment software update, the description of each function of the driver assistance
system may differ from the owner's manual. In this case, for detailed information on updates, scan
the QR code in the separately supplied simple manual.

07
7-83
Smart Cruise Control Operation
Operating conditions
Smart Cruise Control will operate when
the following conditions are satisfied.
Basic function
• The gear is in D (Drive)
•
The driver’s door is closed
• EPB (Electronic Parking Brake) is not applied
• Your vehicle speed is within the operating speed range
- 5~110 mph (10~180 km/h): when there is no vehicle in front
- 0~110 mph (0~180 km/h): when there is a vehicle in front
• ESC (Electronic Stability Control) or ABS (Anti-Lock Braking System) is on
• ESC (Electronic Stability Control) or ABS (Anti-Lock Braking System) is not
controlling the vehicle
• Engine RPM is not in the red zone
• Forward Collision-Avoidance Assist brake control is not operating
• Remote Smart Parking Assist brake control is not operating (if equipped)
Information
When stopped behind another vehicle, the
driver can turn on Smart Cruise Control
while the brake pedal is depressed.
Overtake Assist Control
Overtake Assist Control will operate
when the turn signal indica

tor is turned
on to the left (left-hand drive) or turned
on to the right (right-hand drive) while
Smart Cruise Control is operating, and
the following conditions are satisfied:
• Your vehicle speed is above 40 mph (60 km/h)
• The hazard warning flasher is off
• A vehicle is detected in front of your vehicle
• Deceleration is not needed to maintain distance with the vehicle in
front
WARNING
• When the turn signal indicator is
turned on to the left while there is
a vehicle ahead, the vehicle may
accelerate temporarily. Pay attention
to the road conditions at all times.
• Regardless of your country’s driving
direction, Overtake Assist Control
will operate when the conditions are
satisfied. When using the function
in countries with different driving
direction, always check the road
conditions at all times.

07
7-129
Rear Cross-Traffic Collision-
Avoidance Assist disabled
OTM070124NOTM070124N
When the rear bumper around the rear-
side radar or sensor is covered with
foreign material, such as snow or rain,
or installing a trailer or carrier, it can
reduce the detecting performance and
temporarily limit or disable Rear Cross-
Traffic Collision-Avoidance Assist.
If this occurs, the ‘Rear Cross-Traffic
Safety system disabled. Radar blocked’
warning message will appear on the
cluster.
Rear Cross-Traffic Collision-Avoidance
Assist will operate normally when
such foreign material or trailer, etc. is
removed.
If Rear Cross-Traffic Collision-Avoidance
Assist does not operate normally after it
is removed, have the vehicle inspected
by an authorized HYUNDAI dealer.
WARNING
• Even though the warning message
does not appear on the cluster, Rear
Cross-Traffic Collision-Avoidance
Assist may not operate properly.
• Rear Cross-Traffic Collision-
Avoidance Assist may not operate
properly in an area (for example:
open terrain), where any substance
are not detected after turning ON the
engine.
CAUTION
Turn off Rear Cross-Traffic Collision-
Avoidance Assist to install a trailer,
carrier, etc., or remove the trailer,
carrier, etc. to use Rear Cross-Traffic
Collision-Avoidance Assist.
Limitations of Rear Cross-Traffic
Collision-Avoidance Assist
Rear Cross-Traffic Collision-Avoidance
Assist may not operate normally, or it
may operate unexpectedly under the
following circumstances:
• Departing from where trees or grass
are overgrown
• Departing from where roads are wet
• Speed of the approaching vehicle is fast or slow
Braking control may not work, driver’s
attention is required in the following
circumstances:
• The vehicle severely vibrates while driving over a bumpy road, uneven
road or concrete patch
• Driving on a slippery surface due to snow, water puddle, ice, etc.
• The tire pressure is low or a tire is damaged
• The brake is modified
• Remote Smart Parking Assist is operating (if equipped)

07
7-151
Remote Smart Parking Assist uses
vehicle sensors to help the driver park
and exit parking spaces remotely from
outside the vehicle by controlling the
steering wheel, vehicle speed and
gearshifts.
Function DescriptionRemote
Oper
ation Remotely moving forward/
backward
OJX1079037OJX1079037
• Remote Operation function helps the driver move the vehicle forward or
backward from outside the vehicle
using the smart key.
• When Remote Smart Parking Assist operates, Surround View Monitor and
Parking Distance Warning will also
operate. For more details, refer to
“Surround View Monitor (SVM) and
“Parking Distance Warning (PDW)”
sections in this chapter.
Detecting sensor
ONX4070068ONX4070068
ONX4070069ONX4070069[1] : Front ultrasonic sensors,
[2] : Front side ultrasonic sensors,
[3] : Rear side ultrasonic sensors,
[4] : Rear ultrasonic sensors
Refer to the picture above for the
detailed location of the detecting
sensors.
REMOTE SMART PARKING ASSIST (RSPA) (IF EQUIPPED)

Driver Assistance System7-154

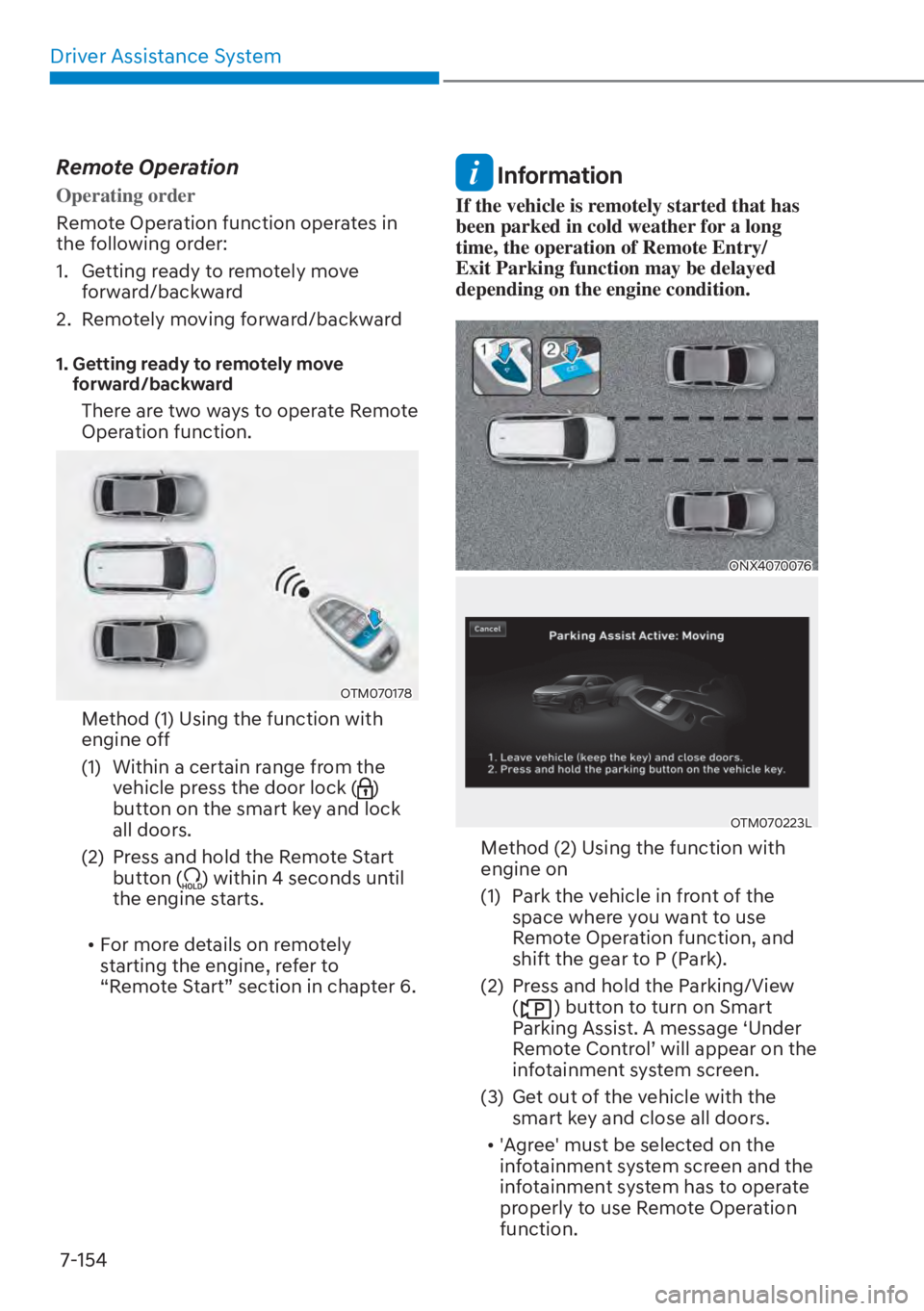

Remote Operation
Operating order
Remote Operation function operates in
the f
ollowing order:
1. Getting ready to remotely move forward/backward
2. Remotely moving forward/backward
1. Getting ready to remotely move forward/backward
There are two ways to operate Remote
Operation function.
OTM070178OTM070178
Method (1) Using the function with
engine off
(1) Within a certain range from the vehicle press the door lock (
)
button on the smart key and lock
all doors.
(2) Press and hold the Remote Start button (
) within 4 seconds until
the engine starts.
• For more details on remotely starting the engine, refer to
“Remote Start” section in chapter 6.
Information
If the vehicle is remotely started that has
been parked in cold weather for a long
time, the operation of Remote Entry/
Exit Parking function may be delayed
depending on the engine condition.
ONX4070076ONX4070076
OTM070223LOTM070223L
Method (2) Using the function with
engine on
(1) Park the vehicle in front of the space where you want to use
Remote Operation function, and
shift the gear to P (Park).
(2) Press and hold the Parking/View (
) button to turn on Smart
Parking Assist. A message ‘Under
Remote Control’ will appear on the
infotainment system screen.
(3) Get out of the vehicle with the smart key and close all doors.
• 'Agree' must be selected on the infotainment system screen and the
infotainment system has to operate
properly to use Remote Operation
function.
