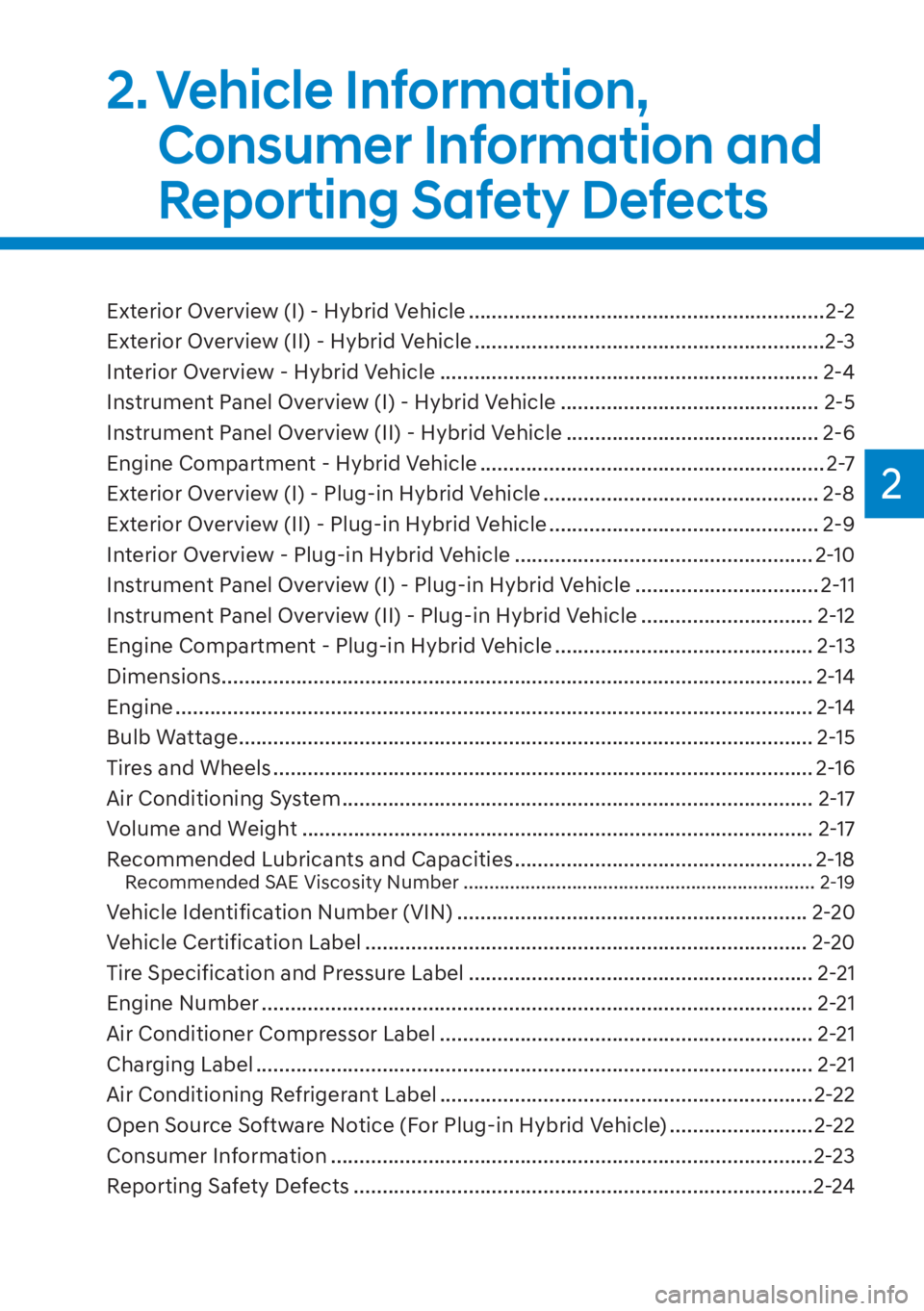

2. Vehicle Information, Consumer Information and
Reporting Safety Defects
Exterior Overview (I) - Hybrid Vehicle ..............................................................2-2
Exterior Overview (II) - Hybrid Vehicle .............................................................2-3
Interior Overview - Hybrid Vehicle .................................................................. 2-4
Instrument Panel Overview (I) - Hybrid Vehicle ............................................. 2-5
Instrument Panel Overview (II) - Hybrid Vehicle ............................................ 2-6
Engine Compartment - Hybrid Vehicle ............................................................ 2-7
Exterior Overview (I) - Plug-in Hybrid Vehicle ................................................ 2-8
Exterior Overview (II) - Plug-in Hybrid Vehicle ............................................... 2-9
Interior Overview - Plug-in Hybrid Vehicle .................................................... 2-10
Instrument Panel Overview (I) - Plug-in Hybrid Vehicle ................................ 2-11
Instrument Panel Overview (II) - Plug-in Hybrid Vehicle .............................. 2-12
Engine Compartment - Plug-in Hybrid Vehicle ............................................. 2-13
Dimensions .............................................................\
.......................................... 2-14
Engine ..................................................................\
............................................. 2-14
Bulb Wattage ........................................................................\
............................ 2-15
Tires and Wheels ........................................................................\
...................... 2-16
Air Conditioning System ........................................................................\
.......... 2-17
Volume and Weight ........................................................................\
................. 2-17
Recommended Lubricants and Capacities .................................................... 2-18
Recommended SAE Viscosity Number .................................................................... 2-19
Vehicle Identification Number (VIN) ............................................................. 2-20
Vehicle Certification Label ........................................................................\
..... 2-20
Tire Specification and Pressure Label ............................................................ 2-21
Engine Number ........................................................................\
........................ 2-21
Air Conditioner Compressor Label ................................................................. 2-21
Charging Label ........................................................................\
......................... 2-21
Air Conditioning Refrigerant Label .................................................................2-22
Open Source Software Notice (For Plug-in Hybrid Vehicle) .........................2-22
Consumer Information ........................................................................\
............2-23
Reporting Safety Defects ........................................................................\
........2-24

2-8
Vehicle Information, Consumer Information and Reporting Safety Defects

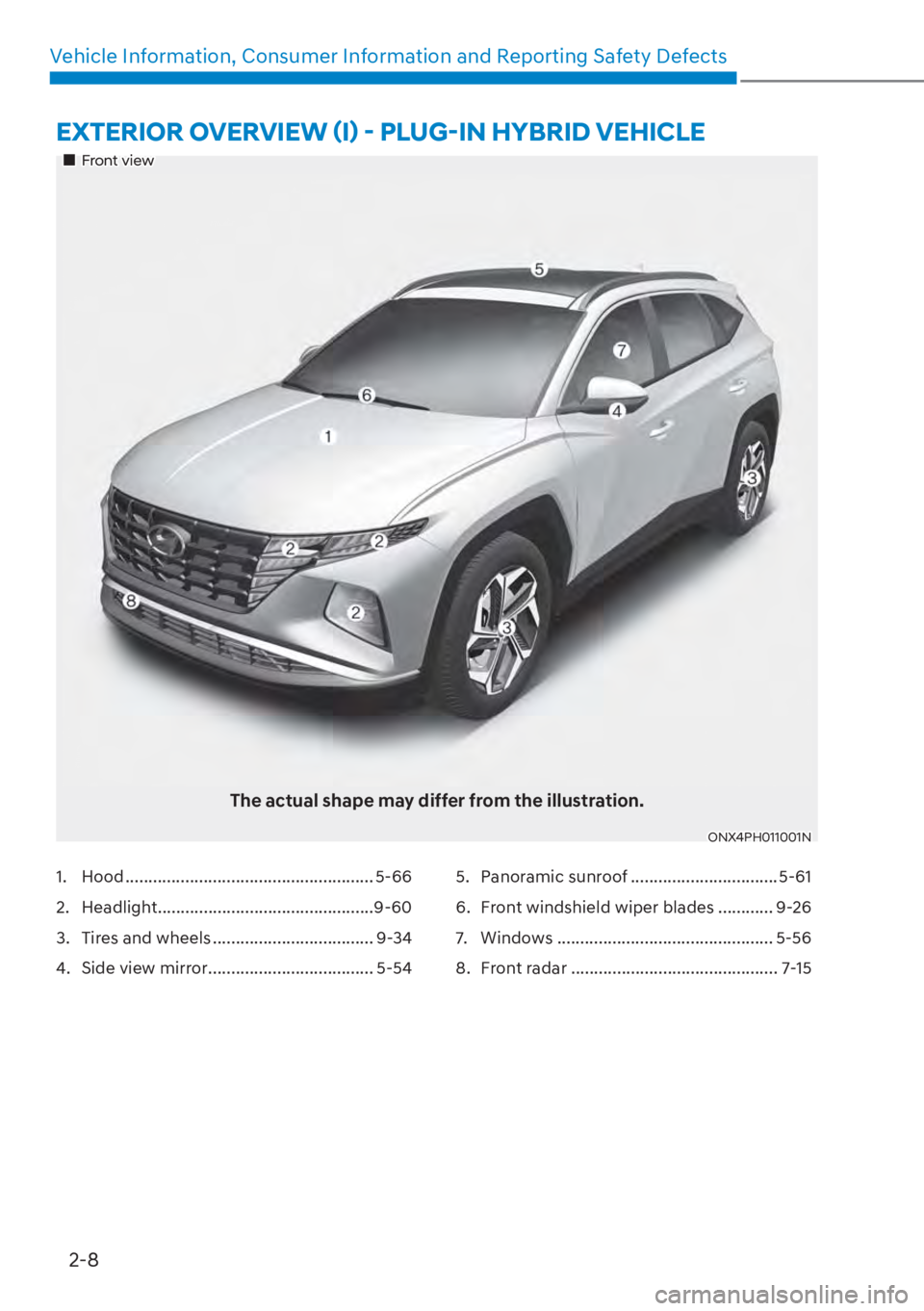

1. Hood ...................................................... 5-66
2. Headlight ...............................................9-60
3. Tires and wheels ................................... 9-34
4. Side view mirror .................................... 5-54
5. Panoramic sunroof ................................ 5-61
6. Front windshield wiper blades ............ 9-26
7. Windows ............................................... 5-56
8. Front radar ............................................. 7-15
„Front view
The actual shape may differ from the illustration.
ONX4PH011001N
(;7(5,2529(59,(:

Vehicle Information, Consumer Information and Reporting Safety Defects2-16
Item Tire size Wheel
size Inflation pressure
psi (kPa) Wheel lug nut
torque
Kgf·m (N·m)
Normal load Maximum load
Front Rear Front Rear
Full size tir
e 235/65 R17 7.0J X 17
35 (240) 35 (240) 11~13
(107~127)
235/55 R19 7.5J X 19
NOTICE

[ It is permissible to add 3 psi (20 kPa) to the standard tire pressure specification if
colder temperatures are expected soon. Tires typically lose 1 psi (7 kPa) for every
12°F(7°C) temperature drop. If extreme temperature variations are expected,
recheck your tire pressure as necessary to keep them properly inflated.

[ An air pressure generally decreases, as you drive up to a high-altitude area above
sea level. Thus, if you plan to drive a high-altitude area, check the tire pressures
in advance. If necessary, inflate them to a proper level (Air inflation per altitude:
+2.4 psi/1 mile (+10 kPa/1 km)).

[ Must do not exceed maximum inflation pressure shown on equipped tire
sidewall.
CAUTION
When replacing tires, ALWAYS use the same size, type, brand, construction and
tread pattern supplied with the vehicle. If not, it can damage the related parts or
make it work irregularly.
7,5(6$1':+((/6

02
2-21
7,5(63(&,),&$7,21$1'
35(6685(/$%(/
ONX4E010022

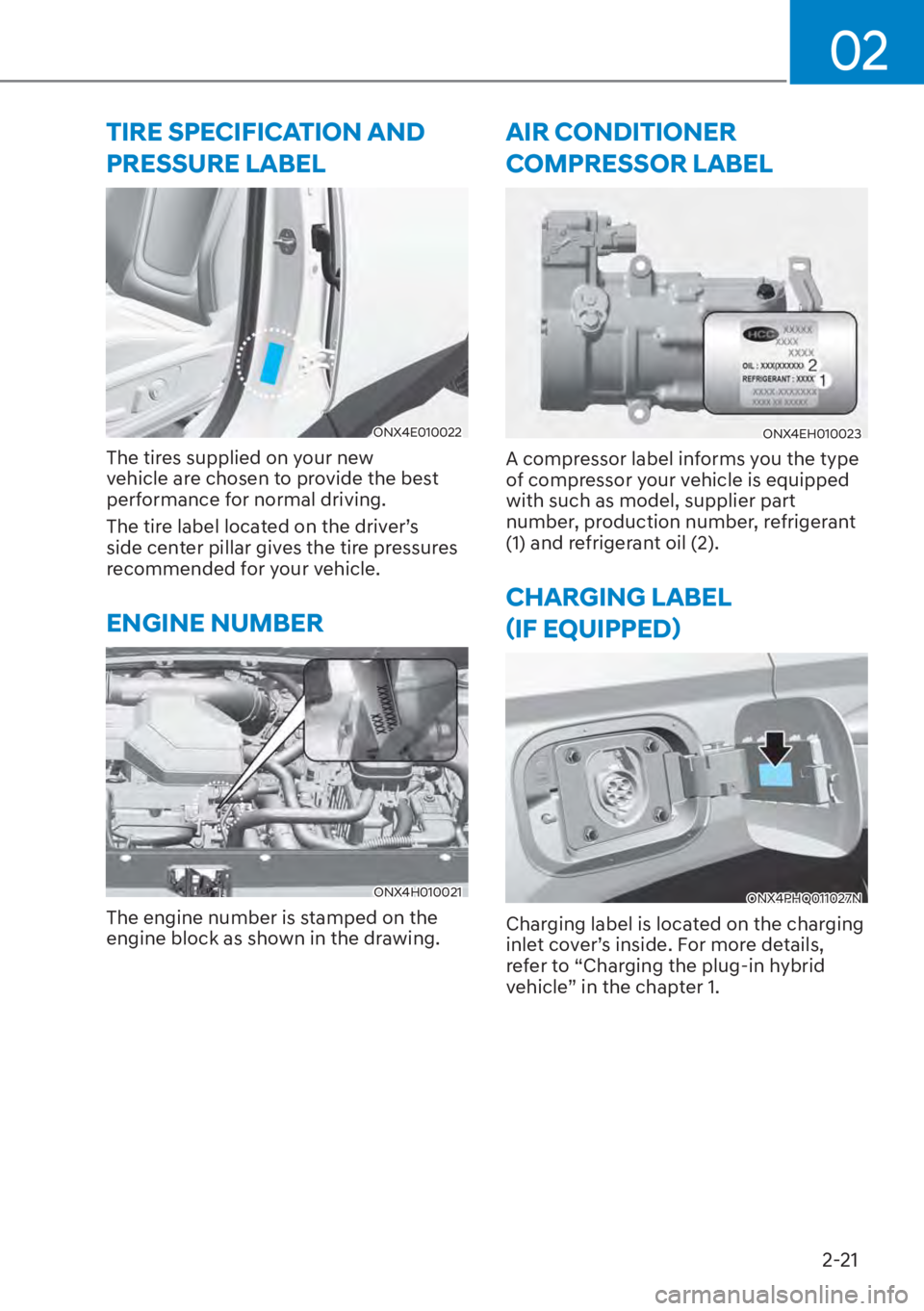

The tires supplied on your new
vehicle are chosen to provide the best
performance for normal driving.
The tire label located on the driver’s
side center pillar gives the tire pressures
recommended for your vehicle.
(1*,1(180%(5
ONX4H010021
The engine number is stamped on the
engine block as shown in the drawing.
$,5&21',7,21(5
&2035(6625/$%(/
ONX4EH010023
A compressor label informs you the type
of compressor your vehicle is equipped
with such as model, supplier part
number, production number, refrigerant
(1) and refrigerant oil (2).
&+$5*,1*/$%(/

ã,)(48,33('
ä
ONX4PHQ011027N
Charging label is located on the charging
inlet cover’s inside. For more details,
refer to “Charging the plug-in hybrid
vehicle” in the chapter 1.

04
4-17

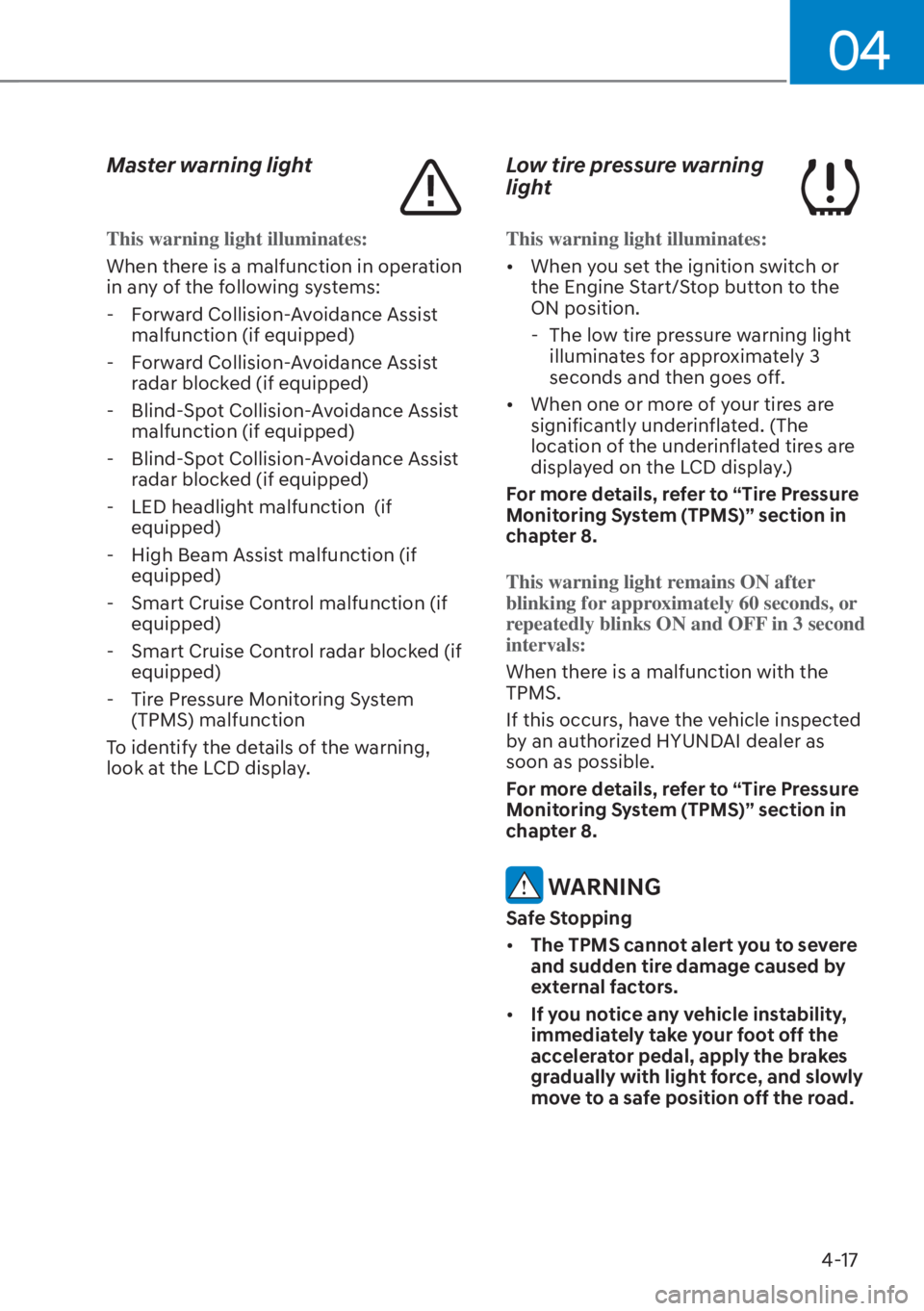

Master warning light
This warning light illuminates:
When there is a malfunction in operation
in an
y of the following systems:
- Forward Collision-Avoidance Assist malfunction (if equipped)
- Forward Collision-Avoidance Assist radar blocked (if equipped)
- Blind-Spot Collision-Avoidance Assist malfunction (if equipped)
- Blind-Spot Collision-Avoidance Assist radar blocked (if equipped)
- LED headlight malfunction (if equipped)
- High Beam Assist malfunction (if equipped)
- Smart Cruise Control malfunction (if equipped)
- Smart Cruise Control radar blocked (if equipped)
- Tire Pressure Monitoring System (TPMS) malfunction
To identify the details of the warning,
look at the LCD display.
Low tire pressure warning
light
This warning light illuminates:

[ When y
ou set the ignition switch or
the Engine Start/Stop button to the
ON position.
- The low tire pressure warning light illuminates for approximately 3
seconds and then goes off.

[ When one or more of your tires are
significantly underinflated. (The
location of the underinflated tires are
displayed on the LCD display.)
For more details, refer to “Tire Pressure
Monitoring System (TPMS)” section in
chapter 8.
This warning light remains ON after
blinking for
approximately 60 seconds, or
repeatedly blinks ON and OFF in 3 second
intervals:
When there is a malfunction with the
TPMS.
If this occur

s, have the vehicle inspected
by an authorized HYUNDAI dealer as
soon as possible.
For more details, refer to “Tire Pressure
Monitoring System (TPMS)” section in
chapter 8.
WARNING
Safe Stopping

[ The TPMS cannot alert you to severe
and sudden tire damage caused by
external factors.

[ If you notice any vehicle instability,
immediately take your foot off the
accelerator pedal, apply the brakes
gradually with light force, and slowly
move to a safe position off the road.

Driving Your Vehicle6-4

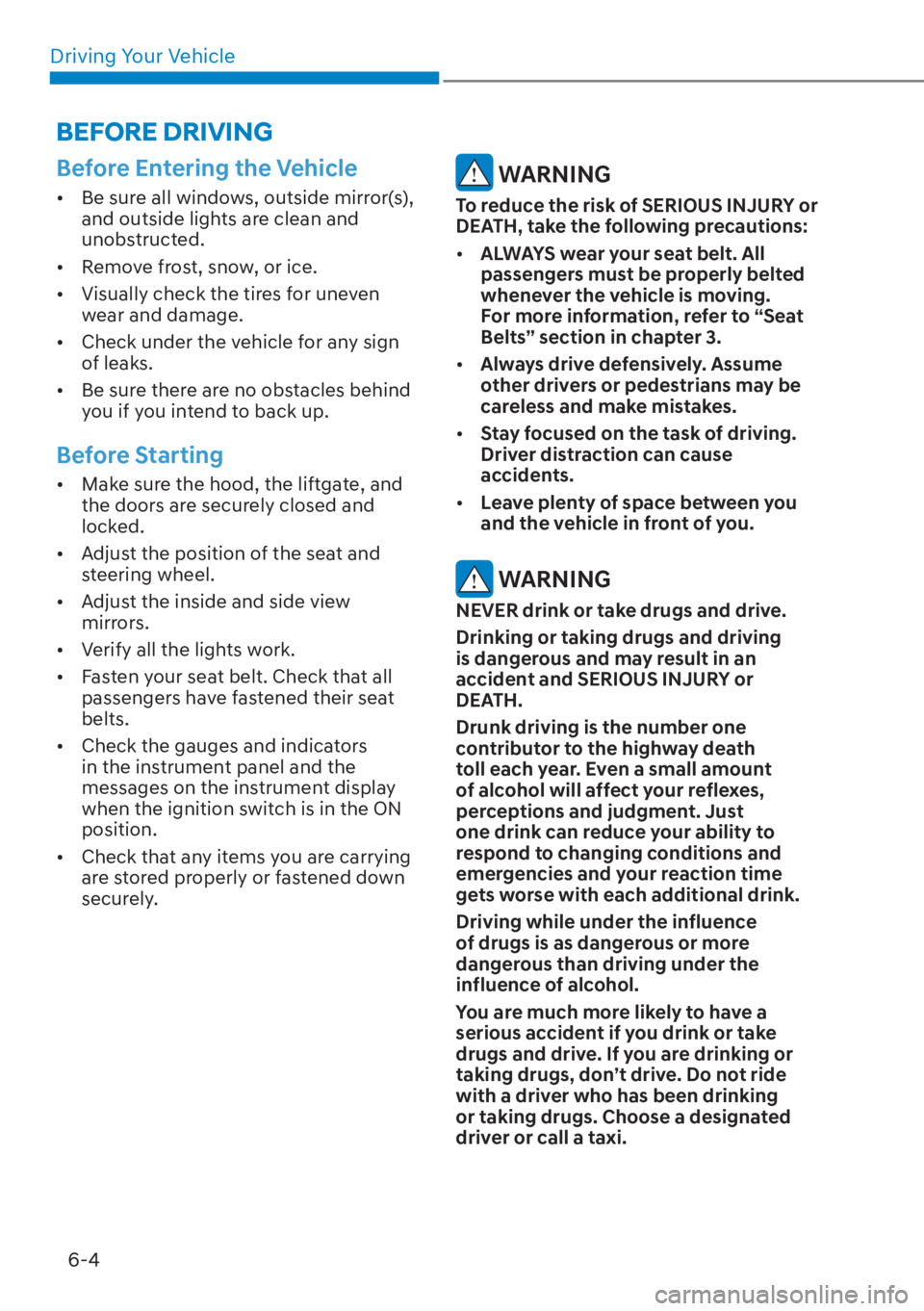

Before Entering the Vehicle

[ Be sure all windows, outside mirror(s),
and outside lights are clean and
unobstructed.

[ Remove frost, snow, or ice.

[ Visually check the tires for uneven
wear and damage.

[ Check under the vehicle for any sign
of leaks.

[ Be sure there are no obstacles behind
you if you intend to back up.
Before Starting

[Make sure the hood, the liftgate, and
the doors are securely closed and
locked.

[ Adjust the position of the seat and
steering wheel.

[ Adjust the inside and side view
mirrors.

[ Verify all the lights work.

[ Fasten your seat belt. Check that all
passengers have fastened their seat
belts.

[ Check the gauges and indicators
in the instrument panel and the
messages on the instrument display
when the ignition switch is in the ON
position.

[ Check that any items you are carrying
are stored properly or fastened down
securely.
WARNING
To reduce the risk of SERIOUS INJURY or
DEATH, take the following precautions:

[ALWAYS wear your seat belt. All
passengers must be properly belted
whenever the vehicle is moving.
For more information, refer to “Seat
Belts” section in chapter 3.

[ Always drive defensively. Assume
other drivers or pedestrians may be
careless and make mistakes.

[ Stay focused on the task of driving.
Driver distraction can cause
accidents.

[ Leave plenty of space between you
and the vehicle in front of you.
WARNING
NEVER drink or take drugs and drive.
Drinking or taking drugs and driving
is dangerous and may result in an
accident and SERIOUS INJURY or
DEATH.
Drunk driving is the number one
contributor to the highway death
toll each year. Even a small amount
of alcohol will affect your reflexes,
perceptions and judgment. Just
one drink can reduce your ability to
respond to changing conditions and
emergencies and your reaction time
gets worse with each additional drink.
Driving while under the influence
of drugs is as dangerous or more
dangerous than driving under the
influence of alcohol.
You are much more likely to have a
serious accident if you drink or take
drugs and drive. If you are drinking or
taking drugs, don’t drive. Do not ride
with a driver who has been drinking
or taking drugs. Choose a designated
driver or call a taxi.
BEFORE DRIVING

Driving Your Vehicle6-30
Indicator lights

v ESC indicator light (blinks)

v ESC OFF indicator light (comes on)
When the Engine Start/Stop button
is placed to the ON position, the ESC
indicator light illuminates, then goes off
if the ESC system is operating normally.
The ESC indicator light blinks whenever
the ESC is operating.
If the ESC indicator light stays on, your
vehicle may have a malfunction with
the ESC system. When this warning light
illuminates, have the vehicle checked by
an authorized HYUNDAI dealer as soon
as possible.
The ESC OFF indicator light comes on
when ESC is turned off.
WARNING
When ESC is blinking, this indicates ESC
is active:
Drive slowly and NEVER attempt to
accelerate. NEVER turn ESC off while
ESC indicator light is blinking or you
may lose control of the vehicle resulting
in an accident.
NOTICE
Driving with wheels and tires with
different sizes may cause the ESC
system to malfunction. Before replacing
tires, make sure all four tires and wheels
are the same size. Never drive the
vehicle with different sized wheels and
tires installed.
ESC OFF usage
When Driving
The ESC OFF mode should only be used
brie

fly to help free the vehicle if stuck in
snow or mud, by temporarily stopping
operation of ESC, to maintain wheel
torque.
To turn ESC off while driving, press the
ESC OFF button while driving on a flat
road surface.
NOTICE
To prevent damage to the transmission:

[ Do not allow wheel(s) of one axle to
spin excessively while the ESC, ABS,
and parking brake warning lights
are displayed. The repairs would not
be covered by the vehicle warranty.
Reduce engine power and do not
spin the wheel(s) excessively while
these lights are displayed.

[ When operating the vehicle on
a dynamometer, make sure the
ESC is turned off (ESC OFF light
illuminated).
Information
Turning the ESC off does not affect ABS
or standard brake system operation.

06
6-31
Vehicle Stability Management
(VSM)
Vehicle Stability Management is a
function of the Electronic Stability
Control (ESC) system. It helps the vehicle
stay stable when accelerating or braking
suddenly on wet, slippery and rough
roads where traction over the four tires
can suddenly become uneven.
WARNING
Take the following precautions when
using Vehicle Stability Management :

[ALWAYS check the speed and the
distance to the vehicle ahead. VSM
is not a substitute for safe driving
practices.

[ Never drive too fast for the road
conditions. VSM system will not
prevent accidents. Excessive speed
in bad weather, on slippery and
uneven roads can result in severe
accidents.
VSM operation
VSM ON condition
VSM operates when:
Electr

onic Stability Control (ESC) is on.
When operating
When you apply your brakes under
conditions which ma
y activate ESC, you
may hear sounds from the brakes, or feel
a corresponding sensation in the brake
pedal. This is normal and it means your
VSM is active.
Information
The VSM does not operate when:

[ Driving on a banked road such as
gradient or incline.

[ Driving in reverse.

[ The ESC OFF indicator light is on.

[ The MDPS (Motor Driven Power
Steering) warning light (
) is on or
blinks.
