5
5-27

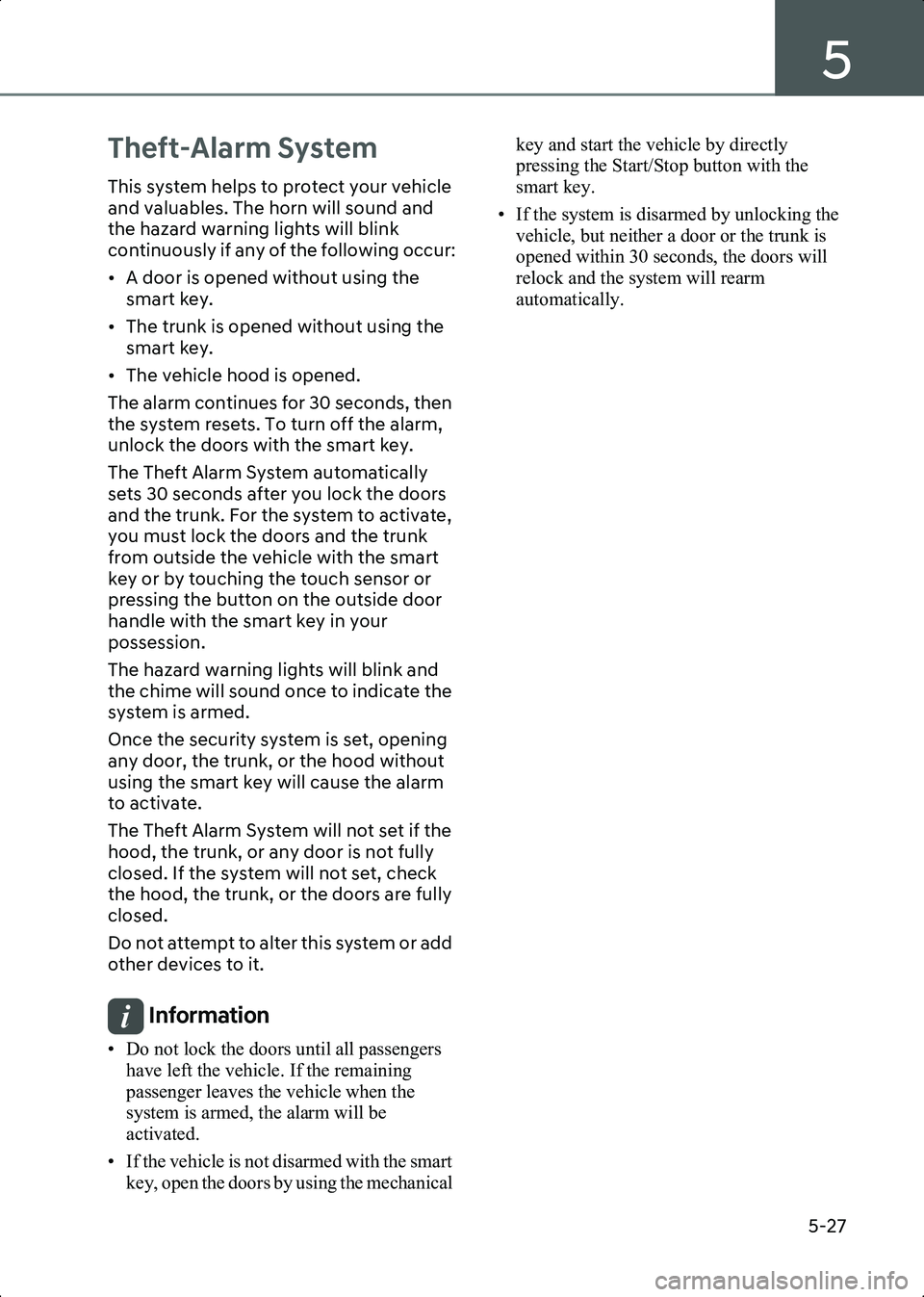

Theft-Alarm System
This system helps to protect your vehicle
and valuables. The horn will sound and
the hazard warning lights will blink
continuously if any of the following occur:
• A door is opened without using the smart key.
• The trunk is opened without using the smart key.
• The vehicle hood is opened.
The alarm continues for 30 seconds, then
the system resets. To turn off the alarm,
unlock the doors with the smart key.
The Theft Alarm System automatically
sets 30 seconds after you lock the doors
and the trunk. For the system to activate,
you must lock the doors and the trunk
from outside the vehicle with the smart
key or by touching the touch sensor or
pressing the button on the outside door
handle with the smart key in your
possession.
The hazard warning lights will blink and
the chime will sound once to indicate the
system is armed.
Once the security system is set, opening
any door, the trunk, or the hood without
using the smart key will cause the alarm
to activate.
The Theft Alarm System will not set if the
hood, the trunk, or any door is not fully
closed. If the system will not set, check
the hood, the trunk, or the doors are fully
closed.
Do not attempt to alter this system or add
other devices to it.
Information • Do not lock the doors until all passengers have left the vehicle. If the remaining
passenger leaves the vehicle when the
system is armed, the alarm will be
activated.
• If the vehicle is not disarmed with the smart key, open the doors by using the mechanical key and start the vehicle by directly
pressing the Start/Stop button with the
smart key.
• If the system is disarmed by unlocking the vehicle, but neither a door or the trunk is
opened within 30 seconds, the doors will
relock and the system will rearm
automatically.
Hyundai_CE_en_US.book Page 27
Page 209 of 582
5
5-31
Storing Memory Positions
1. Shift to P (Park) while the Start/Stop button is in the ON position.
2. Adjust the driver’s seat position, side view mirror position, and head-up
display height to the desired position.
3. Hold the button (1 or 2). The system will beep once and notify you ‘Driver 1 (or 2)
settings saved’ will appear on the
infotainment system.
Recalling Memory Positions
1. Shift to P (Park) while the Start/Stop button is in the ON position.
2. Press the desired memory button (1 or 2). The system will beep once, and then
the driver’s seat position, side view
mirror position, and head-up display
height will automatically adjust to the
stored positions.
3. ‘Driver 1 (or 2) settings applied’ will appear on the infotainment system.
Information • In order to adjust the memory button (2) while adjusting the memory button (1),
press the memory button (1) to pause the
adjustment of (1), then press memory
button (2).
• If you adjust the seat, side view mirror, head-up display while recalling the stored
positions, the manually adjusted settings
will be applied.
Resetting the System
Take the following procedures to reset
integrated memory system, when it does
not operate properly.
Resetting integrated memory
system
1. Stop the vehicle and open the driver’s door with the Start/Stop button in the ON position and the vehicle shifted to P
(Park).
2. Adjust the driver’s seat and seatback to the foremost position.
3. Press the memory button 1 (or 2) and push forward the driver’s seat
movement switch over 2 seconds
simultaneously.
While resetting integrated memory
system
1. Resetting starts with a notification sound.
2. The driver’s seat and seatback is adjusted to the rearward position with
the notification sound.
3. The driver’s seat and seatback is re-adjusted to the default position
(central position) with the notification
sound.
However, in the following cases, the
resetting procedure and the notification
sound may stop.
• The memory button is pressed.
• The seat control switch is operated.
• The gear is shifted out of P (Park).
• The driving speed exceeds 2 mph (3 km/h).
• The driver’s door is closed.
NOTICE [ : K L O H L Q W H J U D W H G P H P R U \ V \ V W H P L V E H L Q J U H V H W L I W K H U H V H W W L Q J D Q G
Q R W L I L F D W L R Q V R X Q G V W R S V L Q F R P S O H W H O \
U H V W D U W W K H U H V H W W L Q J S U R F H G X U H D J D L Q
[ 0 D N H V X U H W K D W W K H U H L V Q R R E M H F W V D U R X Q G W K H G U L Y H UT V V H D W L Q D G Y D Q F H R I
U H V H W W L Q J W K H L Q W H J U D W H G P H P R U \
V \ V W H P
[ $ I W H U U H V H W W L Q J W K H L Q W H J U D W H G P H P R U \ V \ V W H P W K H D G M X V W P H Q W I R U W K H G U L Y H U
V H D W P X V W E H V W R U H G D J D L Q W R U H F D O O W K H
P H P R U \ S R V L W L R Q
Hyundai_CE_en_US.book Page 31
Page 210 of 582
Convenience Features
5-32
Seat Easy Access
Seat easy access will move the driver’s
seat automatically as follows:
• Exiting the vehicle:The driver’s seat will move as follows
when the Start/Stop button is in the
OFF position with the gear in P (Park)
and the driver’s door open.
- Driver seat: Moves rearward depending on the distance selected
from the Settings menu in the
infotainment system.
However, the driver’s seat may not
move rearward if there is not enough
space between the driver’s seat and the
rear seats.
• Entering the vehicle: The driver’s seat will move as follows
when the Start/Stop button is pressed
to the ACC, ON or START position or
while carrying the smart key, the
driver’s door is closed with the
Start/Stop button in the OFF position.
- Driver seat: Moves back to its original position.
• You can set the 'Seat Easy Access' function from the Settings menu in the
infotainment system. Select:
- Driver seat
Setup > Vehicle > Seat > Seating
Easy Access > Driver Seat Easy
Access > Extended/Normal/Off
Information The infotainment system may change after
software updates. For more information, refer
to the user's manual provided in the
infotainment system and the quick reference
guide.
Steering Wheel
Motor Driven Power Steering
(MDPS)
The system assists you with steering the
vehicle. If the vehicle is turned off or if the
power steering system becomes
inoperative, you may still steer the
vehicle, but it will require increased
steering effort.
If you notice any change in the effort
required to steer during normal vehicle
operation, have the system inspected by
an authorized HYUNDAI dealer.
CAUTION If Motor Driven Power Steering does not
operate normally, the warning light and
the message 'Check motor driven power
steering' will illuminate on the instrument
cluster. You may steer the vehicle, but it
will require increased steering efforts.
Take the vehicle to an authorized
HYUNDAI dealer and have the system
inspected as soon as possible.
Information During normal vehicle operation:
• The steering effort may be high immediately after pressing the Start/Stop
button to the ON position.
This happens as the system performs the
MDPS system diagnostics. When the
diagnostics are completed, the steering
wheel effort will return to its normal
condition.
• When the 12 V battery voltage is low, you might have to put more steering effort.
However, it is a temporary condition so that
it will return to normal condition after
charging the battery.
Hyundai_CE_en_US.book Page 32
Page 211 of 582
5
5-33
• A click noise may be heard from the MDPS relay after the Start/Stop button is in the ON
or OFF position.
• Motor noise may be heard when the vehicle is at a stop or at a low driving speed.
• When you operate the steering wheel in low temperatures, abnormal noise may occur. If
the temperature rises, the noise will
disappear. This is a normal condition.
• When an error is detected from MDPS, the steering effort assist function will not be
activated in order to prevent fatal accidents.
Instrument cluster warning lights may be on
or the steering effort may be high. If these
symptoms occur, drive the vehicle to a safe
area as soon as it is safe to do so. Have the
system inspected by an authorized
HYUNDAI dealer as soon as possible.
Tilt/Telescopic Steering
When adjusting the steering wheel to a
comfortable position, adjust the steering
wheel so that it points toward your chest,
not toward your face. Make sure you can
see the instrument cluster warning lights
and gauges. After adjusting, push the
steering wheel both up and down to be
certain it is locked in position.
Always adjust the position of the steering
wheel before driving.
WARNING NEVER adjust the steering wheel while
driving. This may cause loss of vehicle
control resulting in an accident.
NOTICE : K L O H D G M X V W L Q J W K H V W H H U L Q J Z K H H O
K H L J K W S O H D V H G R Q R W S X V K R U S X O O L W K D U G
V L Q F H W K H I L [ W X U H F D Q E H G D P D J H G
Manual adjustment
B5006301
To adjust the steering wheel angle and
height:
1. Pull down the lock-release lever (1).
2. Adjust the steering wheel to the desired angle (2) and distance forward/back
(3).
3. Pull up the lock-release lever to lock the steering wheel in place.
Information Sometimes the lock-release lever may not
engage completely. Pull down on the
lock-release lever, readjust the steering wheel
again, and then pull back up on the
lock-release lever to lock the steering wheel in
place.
Horn
B5006501
To sound the horn, press the area
indicated by the horn symbol on your
2
13
2
Hyundai_CE_en_US.book Page 33
Page 212 of 582
Convenience Features
5-34
steering wheel (see illustration). The horn
will operate only when this area is
pressed.
NOTICE ' R Q R W V W U L N H W K H K R U Q V H Y H U H O \ R U K L W L W
Z L W K \ R X U I L V W ' R Q R W S U H V V R Q W K H K R U Q
Z L W K D V K D U S S R L Q W H G R E M H F W
if equipped
Heated Steering Wheel
Infotainment system
ONE1031085L
While the vehicle is running, touch
Heating/Ventilation icon in the
infotainment system.
Climate control panel
B5006402
Press in the front climate control
panel.
ONE1051216L
While the vehicle is running, touch the
heated steering wheel icon to warm the
steering wheel.
• To warm the steering wheel, touch the heated steering wheel icon in the
Heating/Ventilation seats.
• Auto. Controls That Use Climate Control Settings (for driver’s seat)
The heated steering wheel
automatically controls the steering
wheel temperature depending on the
ambient temperature when the vehicle
is running.
To use this function, it must be enabled
from the Settings menu in the
infotainment system.
Select Setup > Vehicle > Seat >
Warmer/Ventilation Features > Link to
Climate Settings for Auto-Adjustment
> Steering Wheel Warmer .
Information The infotainment system may change after
software updates. For more information,
refer to the user's manual provided in the
infotainment system and the quick
reference guide.
• The heated steering wheel defaults to the OFF position whenever the
Start/Stop button is pressed to the ON
position. However, if the Auto. Controls
That Use Climate Control Settings
function is ON, the heated steering
Hyundai_CE_en_US.book Page 34
Page 215 of 582
5
5-37

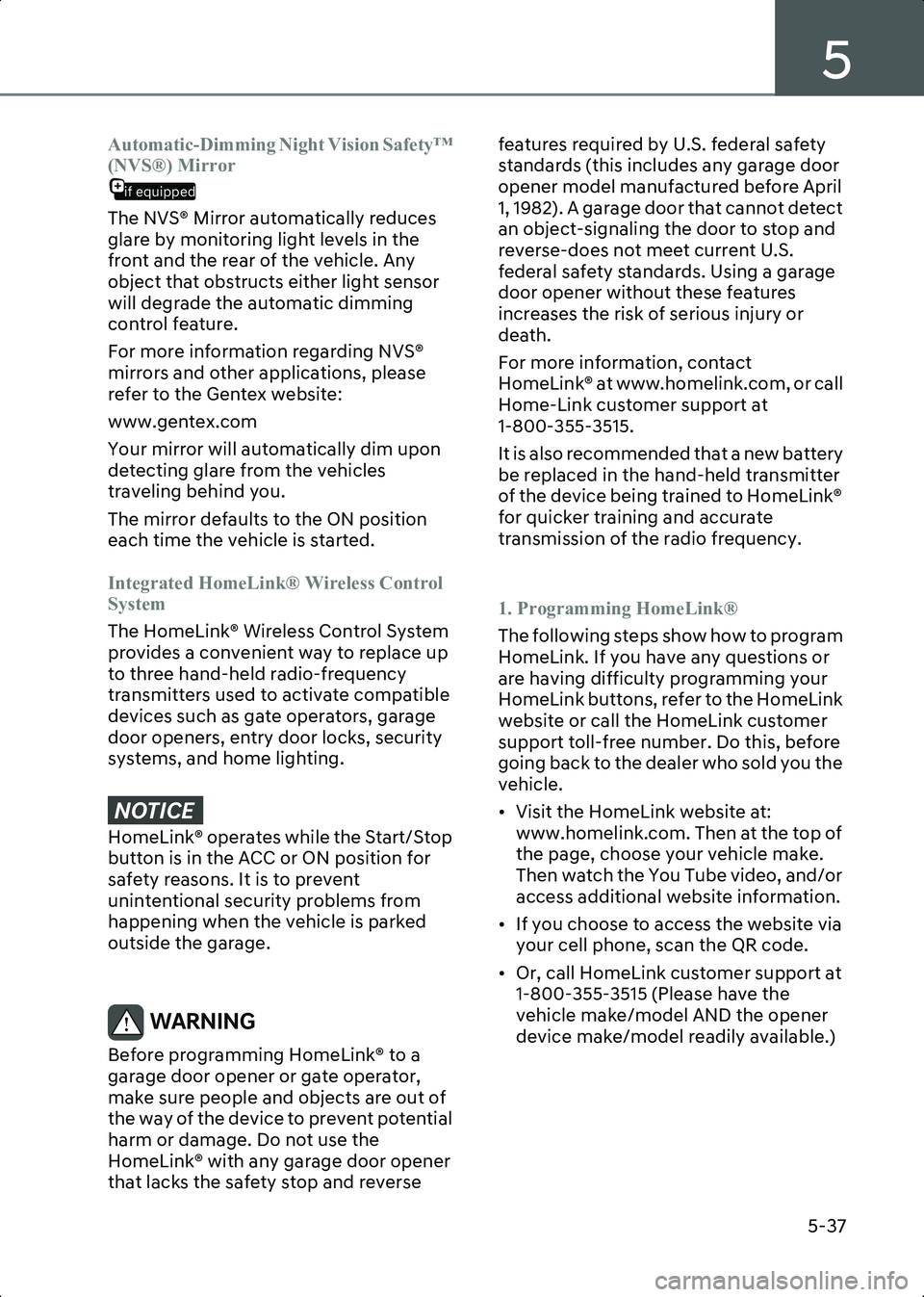

Automatic-Dimming Night Vision Safety™
if equipped
(NVS®) Mirror
The NVS® Mirror automatically reduces
glare by monitoring light levels in the
front and the rear of the vehicle. Any
object that obstructs either light sensor
will degrade the automatic dimming
control feature.
For more information regarding NVS®
mirrors and other applications, please
refer to the Gentex website:
www.gentex.com
Your mirror will automatically dim upon
detecting glare from the vehicles
traveling behind you.
The mirror defaults to the ON position
each time the vehicle is started.
Integrated HomeLink® Wireless Control
System
The HomeLink® Wireless Control System
provides a convenient way to replace up
to three hand-held radio-frequency
transmitters used to activate compatible
devices such as gate operators, garage
door openers, entry door locks, security
systems, and home lighting.
NOTICE + R P H / L Q N p R S H U D W H V Z K L O H W K H 6 W D U W 6 W R S
E X W W R Q L V L Q W K H $ & & R U 2 1 S R V L W L R Q I R U
V D I H W \ U H D V R Q V , W L V W R S U H Y H Q W
X Q L Q W H Q W L R Q D O V H F X U L W \ S U R E O H P V I U R P
K D S S H Q L Q J Z K H Q W K H Y H K L F O H L V S D U N H G
R X W V L G H W K H J D U D J H
WARNING Before programming HomeLink® to a
garage door opener or gate operator,
make sure people and objects are out of
the way of the device to prevent potential
harm or damage. Do not use the
HomeLink® with any garage door opener
that lacks the safety stop and reverse features required by U.S. federal safety
standards (this includes any garage door
opener model manufactured before April
1, 1982). A garage door that cannot detect
an object-signaling the door to stop and
reverse-does not meet current U.S.
federal safety standards. Using a garage
door opener without these features
increases the risk of serious injury or
death.
For more information, contact
HomeLink® at www.homelink.com, or call
Home-Link customer support at
1-800-355-3515.
It is also recommended that a new battery
be replaced in the hand-held transmitter
of the device being trained to HomeLink®
for quicker training and accurate
transmission of the radio frequency.
1. Programming HomeLink®
The following steps show how to program
HomeLink. If you have any questions or
are having difficulty programming your
HomeLink buttons, refer to the HomeLink
website or call the HomeLink customer
support toll-free number. Do this, before
going back to the dealer who sold you the
vehicle.
• Visit the HomeLink website at:
www.homelink.com. Then at the top of
the page, choose your vehicle make.
Then watch the You Tube video, and/or
access additional website information.
• If you choose to access the website via your cell phone, scan the QR code.
• Or, call HomeLink customer support at 1-800-355-3515 (Please have the
vehicle make/model AND the opener
device make/model readily available.)
Hyundai_CE_en_US.book Page 37
Page 216 of 582
Convenience Features
5-38
1) Programming Preparation
ONE1051262N
1. When programming a garage door opener, it is advised to park the vehicle
outside of the garage.
2. It is recommended that a new battery be placed in the hand-held transmitter
of the device being programmed to
HomeLink for quicker training and
accurate transmission of the
radio-frequency signal.
3. Press the Start/Stop button to the ACC (Accessory) position for programming
of HomeLink.
2) Programming a New HomeLink®
ONE1051263N
1. Press and release the HomeLink button (1), (2) or (3), you would like to program.
The HomeLink indicator light (7) will
flash orange slowly (if not, perform the
steps of “Erasing HomeLink Buttons”
section, and start over).
ONE1051264N
2. Position the garage door opener remote 1-3 in. (2-8 cm) away from the
HomeLink buttons.
3. While the HomeLink indicator light (7) is flashing orange, press and hold the
hand-held remote button. Continue
pressing the hand-held remote button
until the HomeLink indicator light (7)
light changes from orange to green.
You may now release the hand-held
remote button.
4. Wait until your garage door comes to a complete stop, regardless of position,
before proceeding to the next steps.
5. Press and release the HomeLink button you are programming and observe the
indicator light.
• If the indicator light remains solid green, your device should operate
when the HomeLink button is
pressed. At this point, if your device
operates, programming is complete.
• If the indicator light rapidly flashes green, firmly press, hold for two
seconds and release the HomeLink
button up to three times in a row
slowly to complete the programming
process. Do not press the HomeLink
button rapidly. At this point if your
device operates, programming is
complete. If the device does not
operate, continue with step 6.
6. At the garage door opener motor, (security gate motor, etc.) locate the
'Learn', 'Smart', 'Set' or 'Program'
button. This can usually be found where
Hyundai_CE_en_US.book Page 38
Page 217 of 582
5
5-39

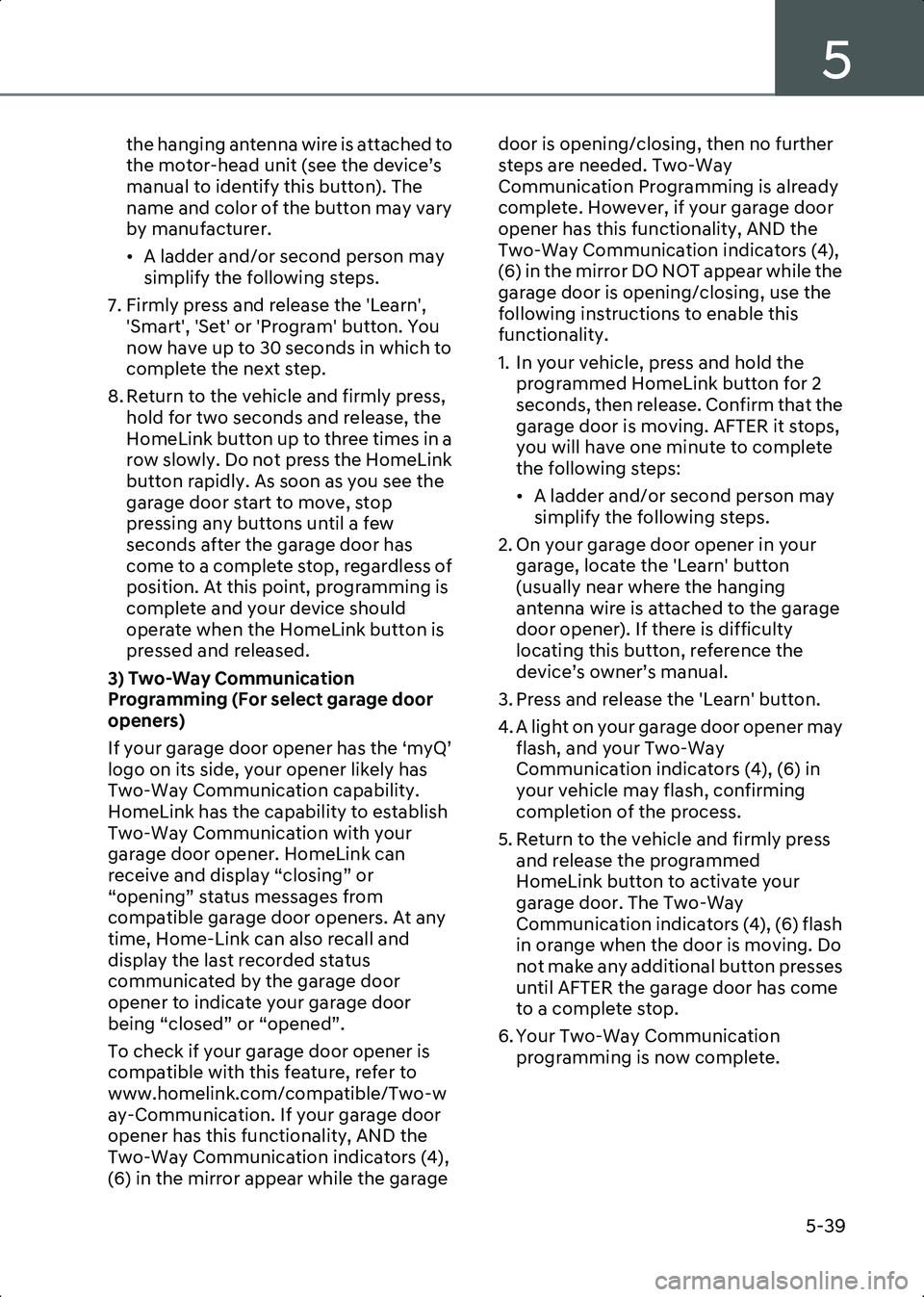

the hanging antenna wire is attached to
the motor-head unit (see the device’s
manual to identify this button). The
name and color of the button may vary
by manufacturer.
• A ladder and/or second person may simplify the following steps.
7. Firmly press and release the 'Learn', 'Smart', 'Set' or 'Program' button. You
now have up to 30 seconds in which to
complete the next step.
8. Return to the vehicle and firmly press, hold for two seconds and release, the
HomeLink button up to three times in a
row slowly. Do not press the HomeLink
button rapidly. As soon as you see the
garage door start to move, stop
pressing any buttons until a few
seconds after the garage door has
come to a complete stop, regardless of
position. At this point, programming is
complete and your device should
operate when the HomeLink button is
pressed and released.
3) Two-Way Communication
Programming (For select garage door
openers)
If your garage door opener has the ‘myQ’
logo on its side, your opener likely has
Two-Way Communication capability.
HomeLink has the capability to establish
Two-Way Communication with your
garage door opener. HomeLink can
receive and display “closing” or
“opening” status messages from
compatible garage door openers. At any
time, Home-Link can also recall and
display the last recorded status
communicated by the garage door
opener to indicate your garage door
being “closed” or “opened”.
To check if your garage door opener is
compatible with this feature, refer to
www.homelink.com/compatible/Two-w
ay-Communication. If your garage door
opener has this functionality, AND the
Two-Way Communication indicators (4),
(6) in the mirror appear while the garage door is opening/closing, then no further
steps are needed. Two-Way
Communication Programming is already
complete. However, if your garage door
opener has this functionality, AND the
Two-Way Communication indicators (4),
(6) in the mirror DO NOT appear while the
garage door is opening/closing, use the
following instructions to enable this
functionality.
1. In your vehicle, press and hold the
programmed HomeLink button for 2
seconds, then release. Confirm that the
garage door is moving. AFTER it stops,
you will have one minute to complete
the following steps:
• A ladder and/or second person may simplify the following steps.
2. On your garage door opener in your garage, locate the 'Learn' button
(usually near where the hanging
antenna wire is attached to the garage
door opener). If there is difficulty
locating this button, reference the
device’s owner’s manual.
3. Press and release the 'Learn' button.
4. A light on your garage door opener may flash, and your Two-Way
Communication indicators (4), (6) in
your vehicle may flash, confirming
completion of the process.
5. Return to the vehicle and firmly press and release the programmed
HomeLink button to activate your
garage door. The Two-Way
Communication indicators (4), (6) flash
in orange when the door is moving. Do
not make any additional button presses
until AFTER the garage door has come
to a complete stop.
6. Your Two-Way Communication programming is now complete.
Hyundai_CE_en_US.book Page 39
