Convenience Features
5-74
if equipped

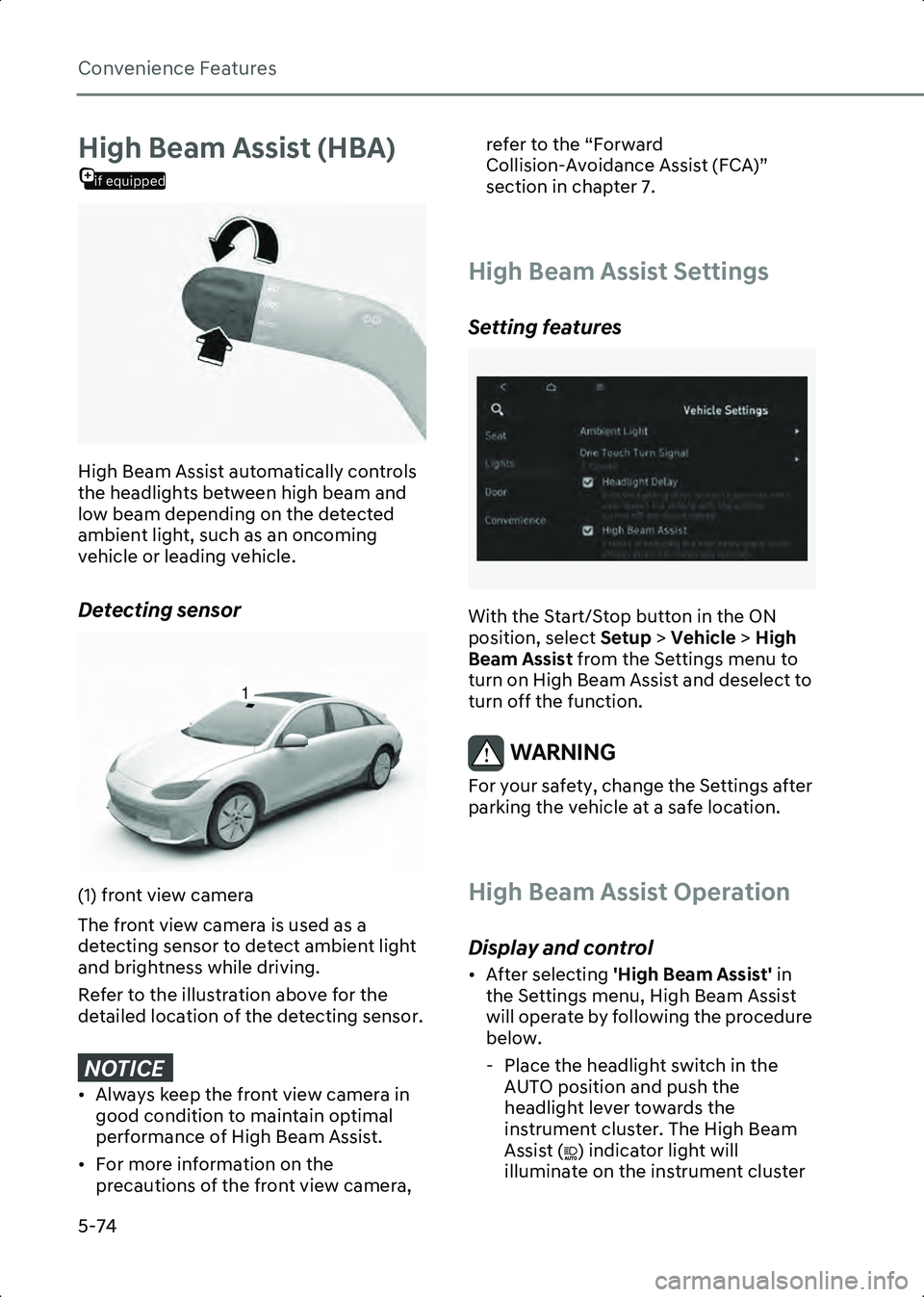

High Beam Assist (HBA)
B5016701
High Beam Assist automatically controls
the headlights between high beam and
low beam depending on the detected
ambient light, such as an oncoming
vehicle or leading vehicle.
Detecting sensor
B5016702(1) front view camera
The front view camera is used as a
detecting sensor to detect ambient light
and brightness while driving.
Refer to the illustration above for the
detailed location of the detecting sensor.
NOTICE [ $ O Z D \ V N H H S W K H I U R Q W Y L H Z F D P H U D L Q J R R G F R Q G L W L R Q W R P D L Q W D L Q R S W L P D O
S H U I R U P D Q F H R I + L J K % H D P $ V V L V W
[ ) R U P R U H L Q I R U P D W L R Q R Q W K H S U H F D X W L R Q V R I W K H I U R Q W Y L H Z F D P H U D U H I H U W R W K H U ) R U Z D U G
& R O O L V L R Q $ Y R L G D Q F H $ V V L V W ) & $ \fV
V H F W L R Q L Q F K D S W H U
High Beam Assist Settings
Setting features
ONE1051248L
With the Start/Stop button in the ON
position, select Setup > Vehicle > High
Beam Assist from the Settings menu to
turn on High Beam Assist and deselect to
turn off the function.
WARNING For your safety, change the Settings after
parking the vehicle at a safe location.
High Beam Assist Operation
Display and control
• After selecting 'High Beam Assist' in
the Settings menu, High Beam Assist
will operate by following the procedure
below.
- Place the headlight switch in the AUTO position and push the
headlight lever towards the
instrument cluster. The High Beam
Assist ( ) indicator light will
illuminate on the instrument cluster
1
Hyundai_CE_en_US.book Page 74
Page 255 of 582
5
5-77

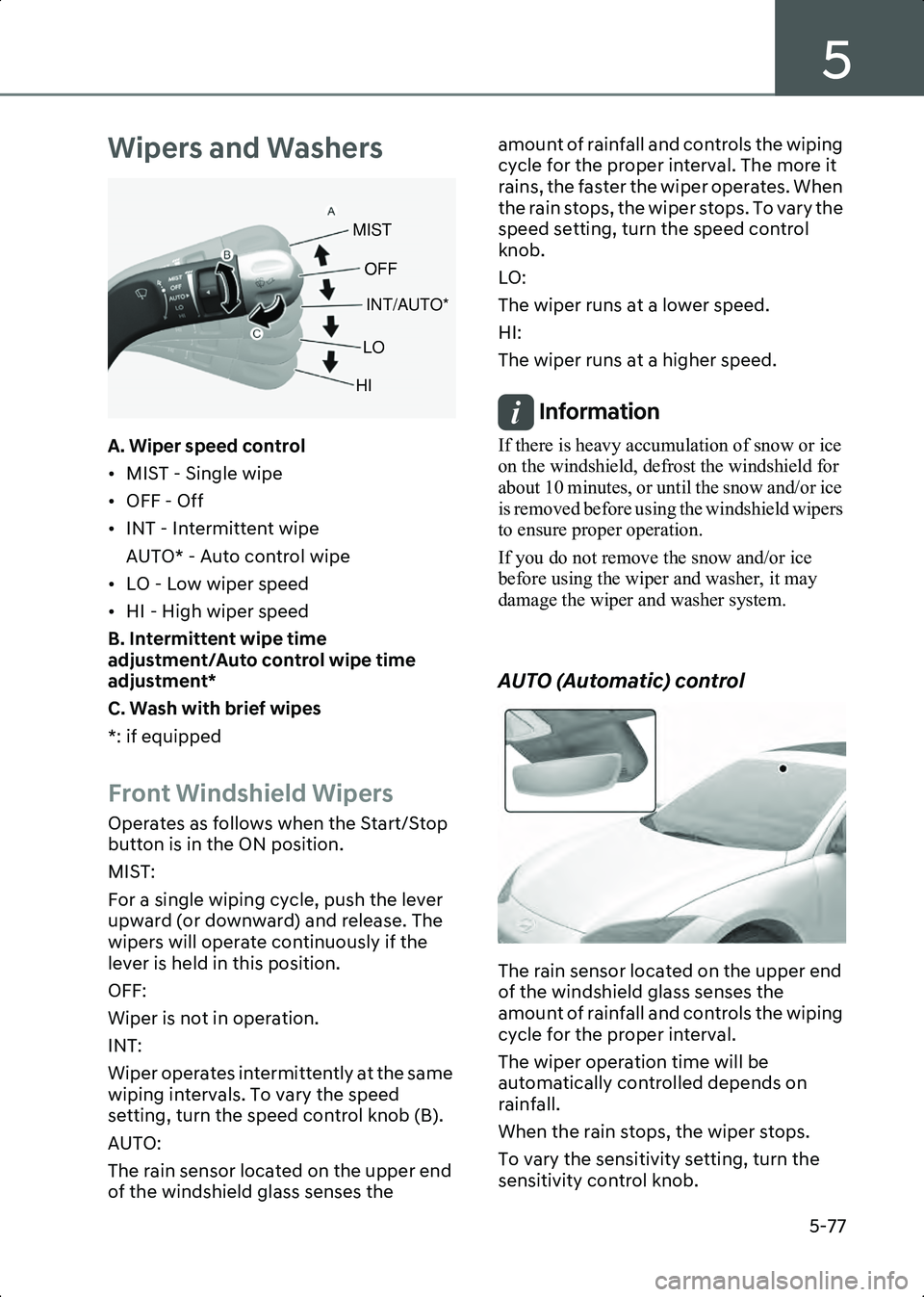

Wipers and Washers
B5019601
A. Wiper speed control
• MIST - Single wipe
• OFF - Off
• INT - Intermittent wipeAUTO* - Auto control wipe
• LO - Low wiper speed
• HI - High wiper speed
B. Intermittent wipe time
adjustment/Auto control wipe time
adjustment*
C. Wash with brief wipes
*: if equipped
Front Windshield Wipers
Operates as follows when the Start/Stop
button is in the ON position.
MIST:
For a single wiping cycle, push the lever
upward (or downward) and release. The
wipers will operate continuously if the
lever is held in this position.
OFF:
Wiper is not in operation.
INT:
Wiper operates intermittently at the same
wiping intervals. To vary the speed
setting, turn the speed control knob (B).
AUTO:
The rain sensor located on the upper end
of the windshield glass senses the amount of rainfall and controls the wiping
cycle for the proper interval. The more it
rains, the faster the wiper operates. When
the rain stops, the wiper stops. To vary the
speed setting, turn the speed control
knob.
LO:
The wiper runs at a lower speed.
HI:
The wiper runs at a higher speed.
Information If there is heavy accumulation of snow or ice
on the windshield, defrost the windshield for
about 10 minutes, or until the snow and/or ice
is removed before using the windshield wipers
to ensure proper operation.
If you do not remove the snow and/or ice
before using the wiper and washer, it may
damage the wiper and washer system.
AUTO (Automatic) control
B5019603
The rain sensor located on the upper end
of the windshield glass senses the
amount of rainfall and controls the wiping
cycle for the proper interval.
The wiper operation time will be
automatically controlled depends on
rainfall.
When the rain stops, the wiper stops.
To vary the sensitivity setting, turn the
sensitivity control knob.
MIST
OFFOFF
INT/AUTO*INT/AUTO*
LO
HI
Hyundai_CE_en_US.book Page 77
Page 256 of 582
Convenience Features
5-78

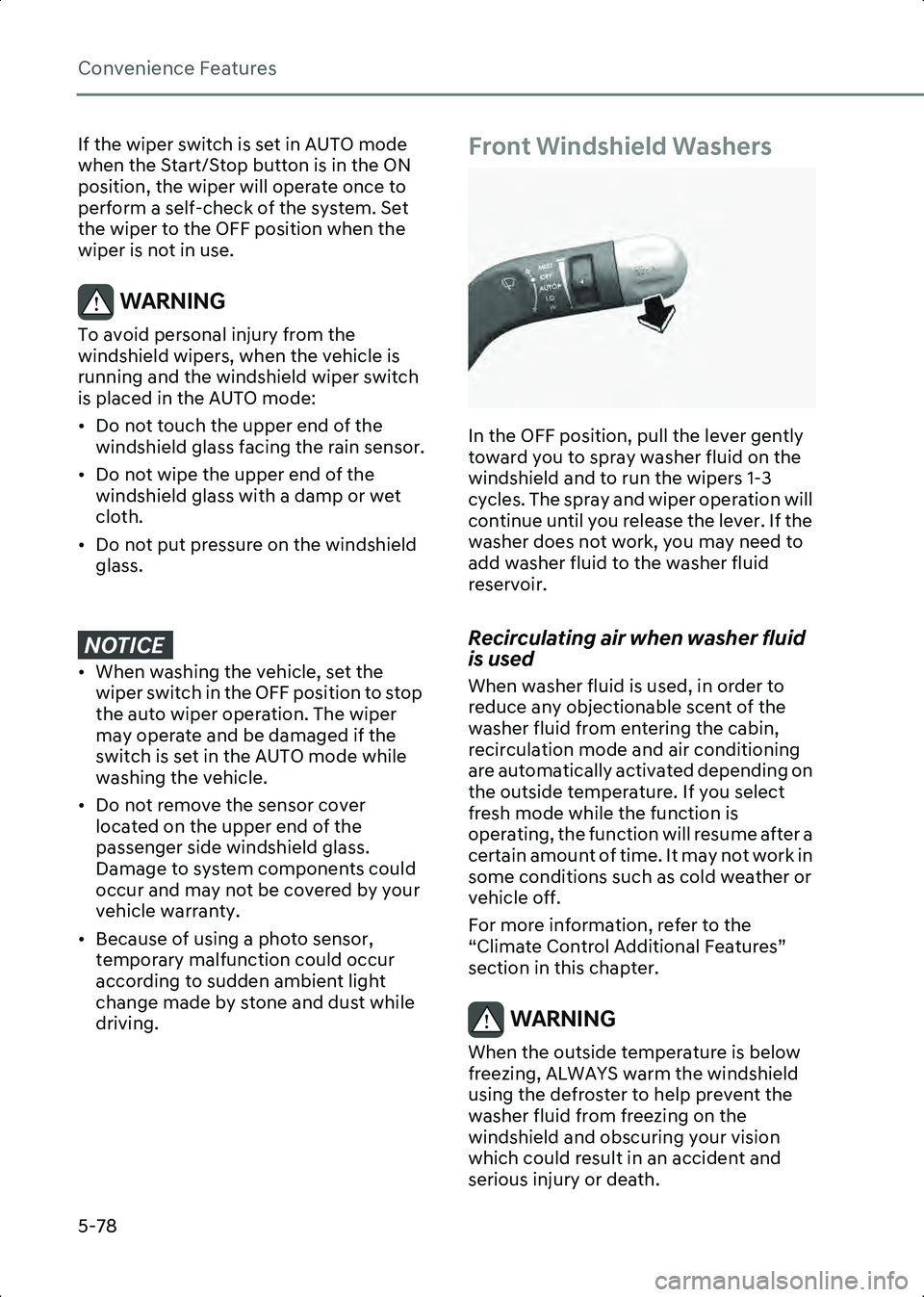

If the wiper switch is set in AUTO mode
when the Start/Stop button is in the ON
position, the wiper will operate once to
perform a self-check of the system. Set
the wiper to the OFF position when the
wiper is not in use.
WARNING To avoid personal injury from the
windshield wipers, when the vehicle is
running and the windshield wiper switch
is placed in the AUTO mode:
• Do not touch the upper end of the windshield glass facing the rain sensor.
• Do not wipe the upper end of the windshield glass with a damp or wet
cloth.
• Do not put pressure on the windshield glass.
NOTICE [ : K H Q Z D V K L Q J W K H Y H K L F O H V H W W K H Z L S H U V Z L W F K L Q W K H 2 ) ) S R V L W L R Q W R V W R S
W K H D X W R Z L S H U R S H U D W L R Q 7 K H Z L S H U
P D \ R S H U D W H D Q G E H G D P D J H G L I W K H
V Z L W F K L V V H W L Q W K H $ 8 7 2 P R G H Z K L O H
Z D V K L Q J W K H Y H K L F O H
[ ' R Q R W U H P R Y H W K H V H Q V R U F R Y H U O R F D W H G R Q W K H X S S H U H Q G R I W K H
S D V V H Q J H U V L G H Z L Q G V K L H O G J O D V V
' D P D J H W R V \ V W H P F R P S R Q H Q W V F R X O G
R F F X U D Q G P D \ Q R W E H F R Y H U H G E \ \ R X U
Y H K L F O H Z D U U D Q W \
[ % H F D X V H R I X V L Q J D S K R W R V H Q V R U W H P S R U D U \ P D O I X Q F W L R Q F R X O G R F F X U
D F F R U G L Q J W R V X G G H Q D P E L H Q W O L J K W
F K D Q J H P D G H E \ V W R Q H D Q G G X V W Z K L O H
G U L Y L Q J
Front Windshield Washers
B5019701
In the OFF position, pull the lever gently
toward you to spray washer fluid on the
windshield and to run the wipers 1-3
cycles. The spray and wiper operation will
continue until you release the lever. If the
washer does not work, you may need to
add washer fluid to the washer fluid
reservoir.
Recirculating air when washer fluid
is used
When washer fluid is used, in order to
reduce any objectionable scent of the
washer fluid from entering the cabin,
recirculation mode and air conditioning
are automatically activated depending on
the outside temperature. If you select
fresh mode while the function is
operating, the function will resume after a
certain amount of time. It may not work in
some conditions such as cold weather or
vehicle off.
For more information, refer to the
“Climate Control Additional Features”
section in this chapter.
WARNING When the outside temperature is below
freezing, ALWAYS warm the windshield
using the defroster to help prevent the
washer fluid from freezing on the
windshield and obscuring your vision
which could result in an accident and
serious injury or death.
Hyundai_CE_en_US.book Page 78
Page 273 of 582
5
5-95

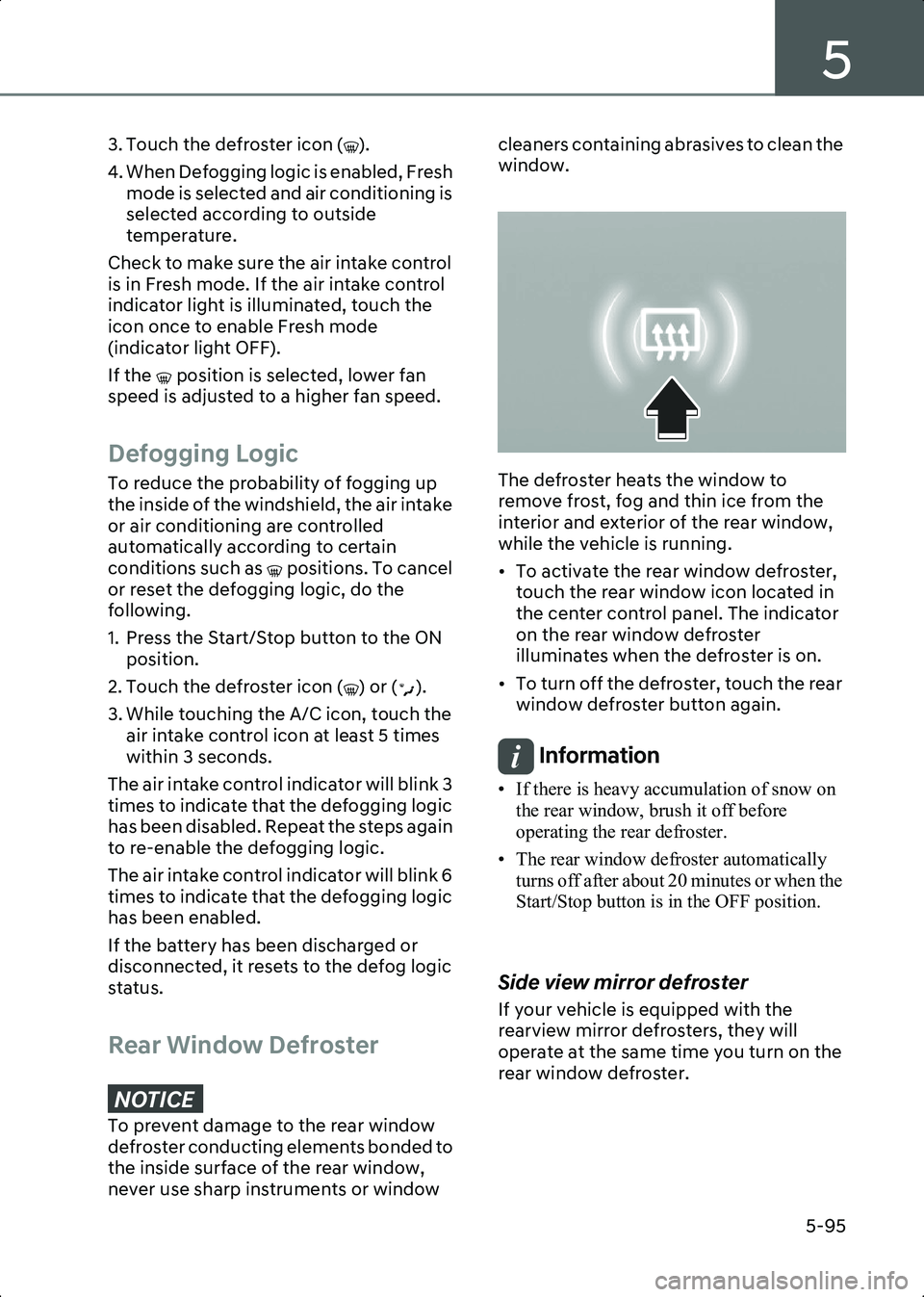

3. Touch the defroster icon ( ).
4. When Defogging logic is enabled, Fresh mode is selected and air conditioning is
selected according to outside
temperature.
Check to make sure the air intake control
is in Fresh mode. If the air intake control
indicator light is illuminated, touch the
icon once to enable Fresh mode
(indicator light OFF).
If the position is selected, lower fan
speed is adjusted to a higher fan speed.
Defogging Logic
To reduce the probability of fogging up
the inside of the windshield, the air intake
or air conditioning are controlled
automatically according to certain
conditions such as positions. To cancel
or reset the defogging logic, do the
following.
1. Press the Start/Stop button to the ON position.
2. Touch the defroster icon ( ) or ( ).
3. While touching the A/C icon, touch the air intake control icon at least 5 times
within 3 seconds.
The air intake control indicator will blink 3
times to indicate that the defogging logic
has been disabled. Repeat the steps again
to re-enable the defogging logic.
The air intake control indicator will blink 6
times to indicate that the defogging logic
has been enabled.
If the battery has been discharged or
disconnected, it resets to the defog logic
status.
Rear Window Defroster
NOTICE To prevent damage to the rear window
defroster conducting elements bonded to
the inside surface of the rear window,
never use sharp instruments or window cleaners containing abrasives to clean the
window.
B5020801
The defroster heats the window to
remove frost, fog and thin ice from the
interior and exterior of the rear window,
while the vehicle is running.
• To activate the rear window defroster,
touch the rear window icon located in
the center control panel. The indicator
on the rear window defroster
illuminates when the defroster is on.
• To turn off the defroster, touch the rear window defroster button again.
Information • If there is heavy accumulation of snow on the rear window, brush it off before
operating the rear defroster.
• The rear window defroster automatically turns off after about 20 minutes or when the
Start/Stop button is in the OFF position.
Side view mirror defroster
If your vehicle is equipped with the
rearview mirror defrosters, they will
operate at the same time you turn on the
rear window defroster.
Hyundai_CE_en_US.book Page 95
Page 274 of 582
Convenience Features
5-96
Climate Control
Additional Features
if equipped
A/C Automatic Drying
A/C Automatic Drying feature dries the
moisture in the air conditioner and
reduces air conditioner odor. The blower
motor automatically operates after 30
minutes the vehicle is turned off.
Turning A/C Automatic Drying On or
off
The A/C Automatic Drying feature can be
turned on and off by selecting Setup >
Vehicle Settings > Climate > Climate
Features > A/C Automatic Drying from
the infotainment system.
Information The infotainment system may change after
software updates. For more information, refer
to the user's manual provided in the
infotainment system and the quick reference
guide.
If the operating condition is satisfied after
setting the feature, the operating
condition is displayed on the
infotainment system and the blower
motor automatically operates.
When the A/C Automatic Drying feature is
activated, the air conditioner sets the fan
speed to the third level, selects Fresh
mode, and directs the air flow to the floor.
Operating conditions
The A/C Automatic Drying feature
operates under the following conditions:
• The vehicle is turned off after operating the air conditioner for a certain period
• The 12 V battery level is sufficient • The outside temperature is above a
certain level
Non-operating conditions
The A/C Automatic Drying feature stops
operating under the following conditions:
• The A/C Automatic Drying feature has operated for 3 minutes
• The Start/Stop button is pressed, or the vehicle is on
• The climate control system is operated remotely
Information • The A/C Automatic Drying feature reduces air conditioner odors but may not remove
all odors.
• The A/C Automatic Drying feature does not operate if the remaining battery level is
insufficient to prevent battery discharge.
Auto Defogging System
B5021201
Auto defogging helps reduce the
possibility of fogging up the inside of the
windshield by automatically sensing the
moisture on inside the windshield.
Information The auto defogging system may not operate
normally, when the outside temperature is
below 14 °F (-10 °C).
Hyundai_CE_en_US.book Page 96
Page 275 of 582
5
5-97

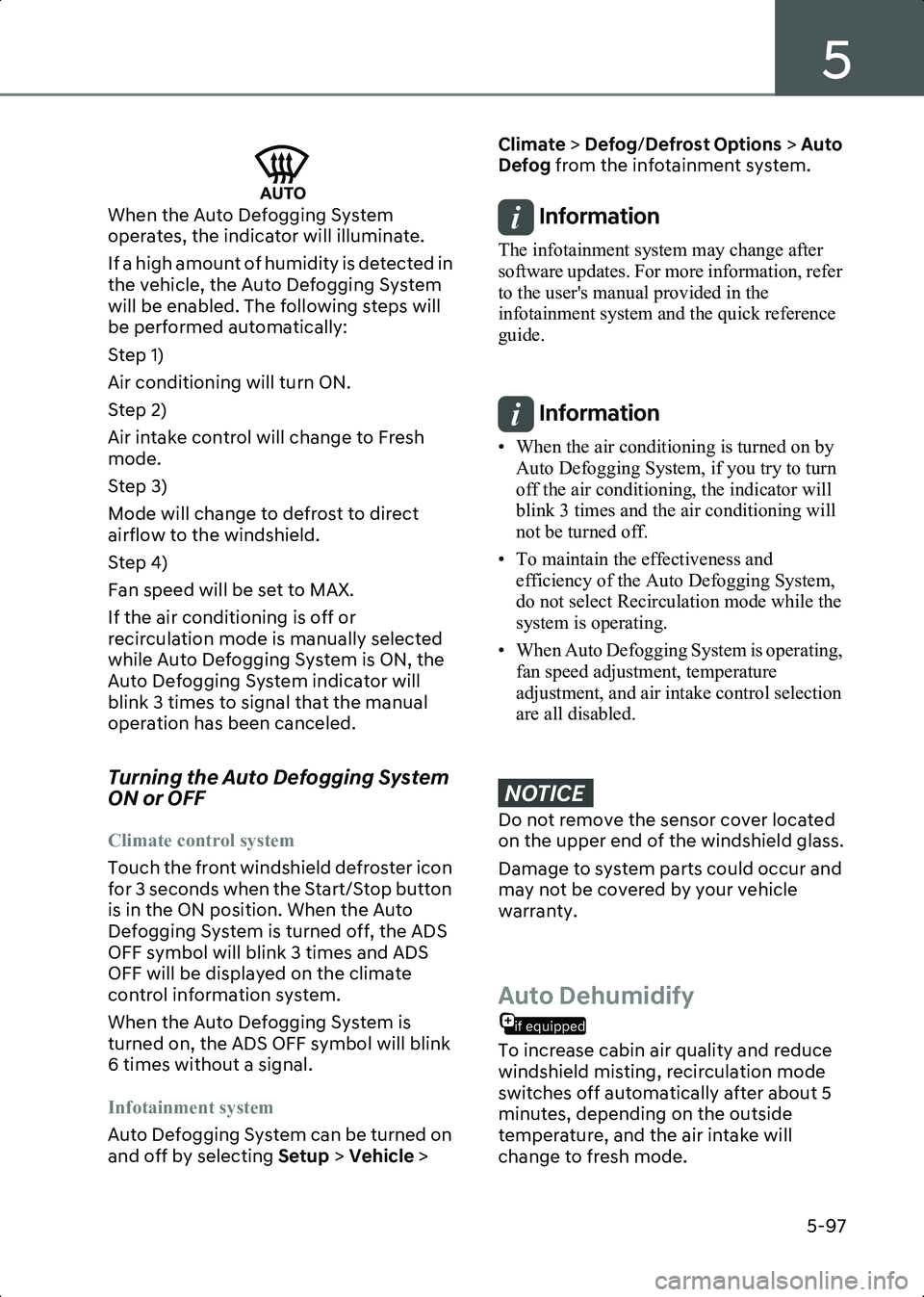

When the Auto Defogging System
operates, the indicator will illuminate.
If a high amount of humidity is detected in
the vehicle, the Auto Defogging System
will be enabled. The following steps will
be performed automatically:
Step 1)
Air conditioning will turn ON.
Step 2)
Air intake control will change to Fresh
mode.
Step 3)
Mode will change to defrost to direct
airflow to the windshield.
Step 4)
Fan speed will be set to MAX.
If the air conditioning is off or
recirculation mode is manually selected
while Auto Defogging System is ON, the
Auto Defogging System indicator will
blink 3 times to signal that the manual
operation has been canceled.
Turning the Auto Defogging System
ON or OFF
Climate control system
Touch the front windshield defroster icon
for 3 seconds when the Start/Stop button
is in the ON position. When the Auto
Defogging System is turned off, the ADS
OFF symbol will blink 3 times and ADS
OFF will be displayed on the climate
control information system.
When the Auto Defogging System is
turned on, the ADS OFF symbol will blink
6 times without a signal.
Infotainment system
Auto Defogging System can be turned on
and off by selecting Setup > Vehicle > Climate
> Defog /Defrost Options > Auto
Defog from the infotainment system.
Information The infotainment system may change after
software updates. For more information, refer
to the user's manual provided in the
infotainment system and the quick reference
guide.
Information • When the air conditioning is turned on by
Auto Defogging System, if you try to turn
off the air conditioning, the indicator will
blink 3 times and the air conditioning will
not be turned off.
• To maintain the effectiveness and efficiency of the Auto Defogging System,
do not select Recirculation mode while the
system is operating.
• When Auto Defogging System is operating, fan speed adjustment, temperature
adjustment, and air intake control selection
are all disabled.
NOTICE ' R Q R W U H P R Y H W K H V H Q V R U F R Y H U O R F D W H G
R Q W K H X S S H U H Q G R I W K H Z L Q G V K L H O G J O D V V
' D P D J H W R V \ V W H P S D U W V F R X O G R F F X U D Q G
P D \ Q R W E H F R Y H U H G E \ \ R X U Y H K L F O H
Z D U U D Q W \
if equipped
Auto Dehumidify
To increase cabin air quality and reduce
windshield misting, recirculation mode
switches off automatically after about 5
minutes, depending on the outside
temperature, and the air intake will
change to fresh mode.
Hyundai_CE_en_US.book Page 97
Page 277 of 582
5
5-99
one-touch automatic window function
for all seats. To use this feature, it must
be enabled from the Settings menu in
the infotainment system. Select Setup
> Vehicle > Climate > Recirculate air >
Others .
Information The infotainment system may change after
software updates. For more information, refer
to the user's manual provided in the
infotainment system and the quick reference
guide.
Automatic Controls Linked to
Climate Control Settings (for
driver’s seat)
The temperature of the driver’s seat
warmer, air ventilated seat and heated
steering wheel is automatically controlled
depending on the inside and outside
temperature of the vehicle when the
vehicle is running.
To use these features, it must be enabled
from the Settings menu in the
infotainment system.
Select Setup > Vehicle > Seat >
Warmer/Ventilation Features > Link to
Climate Settings for Auto-Adjustment >
Driver Seat Warmer/Ventilation .
For more information on Auto Comfort
Control, refer to the "Seat Warmers" and
"Air Ventilation Seats" section in chapter 3
and "Heated Steering Wheel" section in this chapter.
Smart Ventilation
The smart ventilation system maintains
pleasant/fresh air condition inside the
passenger compartment by
automatically detecting/controlling the
temperature and humidity, when you
drive the vehicle with the climate control
system in the OFF position. When the smart ventilation system starts to
operate, the message
'SMART
VENTILATION ON' appears for 5 seconds.
• The smart ventilation system stops operating, when the BLOWER DOWN
OFF button of the climate control
system is selected.
• The smart ventilation system stops operating, when any button of the
climate control system is selected for
operation.
• The smart ventilation system may not operate, when the vehicle is driven at
low speed.
Hyundai_CE_en_US.book Page 99
Page 281 of 582
5
5-103

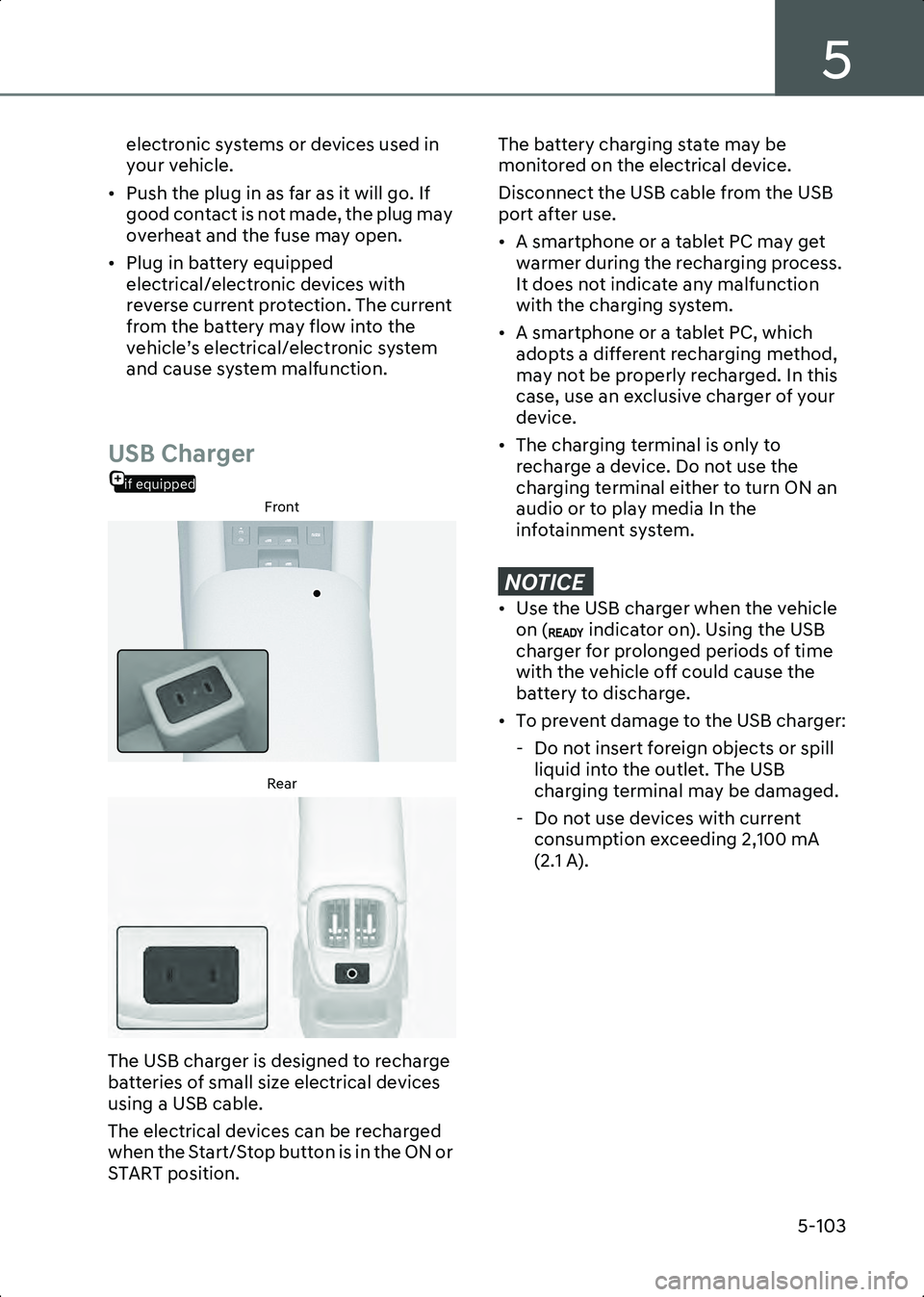

electronic systems or devices used in
your vehicle.
• Push the plug in as far as it will go. If good contact is not made, the plug may
overheat and the fuse may open.
• Plug in battery equipped electrical/electronic devices with
reverse current protection. The current
from the battery may flow into the
vehicle’s electrical/electronic system
and cause system malfunction.
if equipped
USB Charger
Front
B5023701Rear
B5023702
The USB charger is designed to recharge
batteries of small size electrical devices
using a USB cable.
The electrical devices can be recharged
when the Start/Stop button is in the ON or
START position. The battery charging state may be
monitored on the electrical device.
Disconnect the USB cable from the USB
port after use.
• A smartphone or a tablet PC may get
warmer during the recharging process.
It does not indicate any malfunction
with the charging system.
• A smartphone or a tablet PC, which adopts a different recharging method,
may not be properly recharged. In this
case, use an exclusive charger of your
device.
• The charging terminal is only to recharge a device. Do not use the
charging terminal either to turn ON an
audio or to play media In the
infotainment system.
NOTICE [ 8 V H W K H 8 6 % F K D U J H U Z K H Q W K H Y H K L F O H R Q L Q G L F D W R U R Q \f 8 V L Q J W K H 8 6 %
F K D U J H U I R U S U R O R Q J H G S H U L R G V R I W L P H
Z L W K W K H Y H K L F O H R I I F R X O G F D X V H W K H
E D W W H U \ W R G L V F K D U J H
[ 7 R S U H Y H Q W G D P D J H W R W K H 8 6 % F K D U J H U ' R Q R W L Q V H U W I R U H L J Q R E M H F W V R U V S L O O O L T X L G L Q W R W K H R X W O H W 7 K H 8 6 %
F K D U J L Q J W H U P L Q D O P D \ E H G D P D J H G
' R Q R W X V H G H Y L F H V Z L W K F X U U H Q W F R Q V X P S W L R Q H [ F H H G L Q J P $
$ \f
Hyundai_CE_en_US.book Page 103
