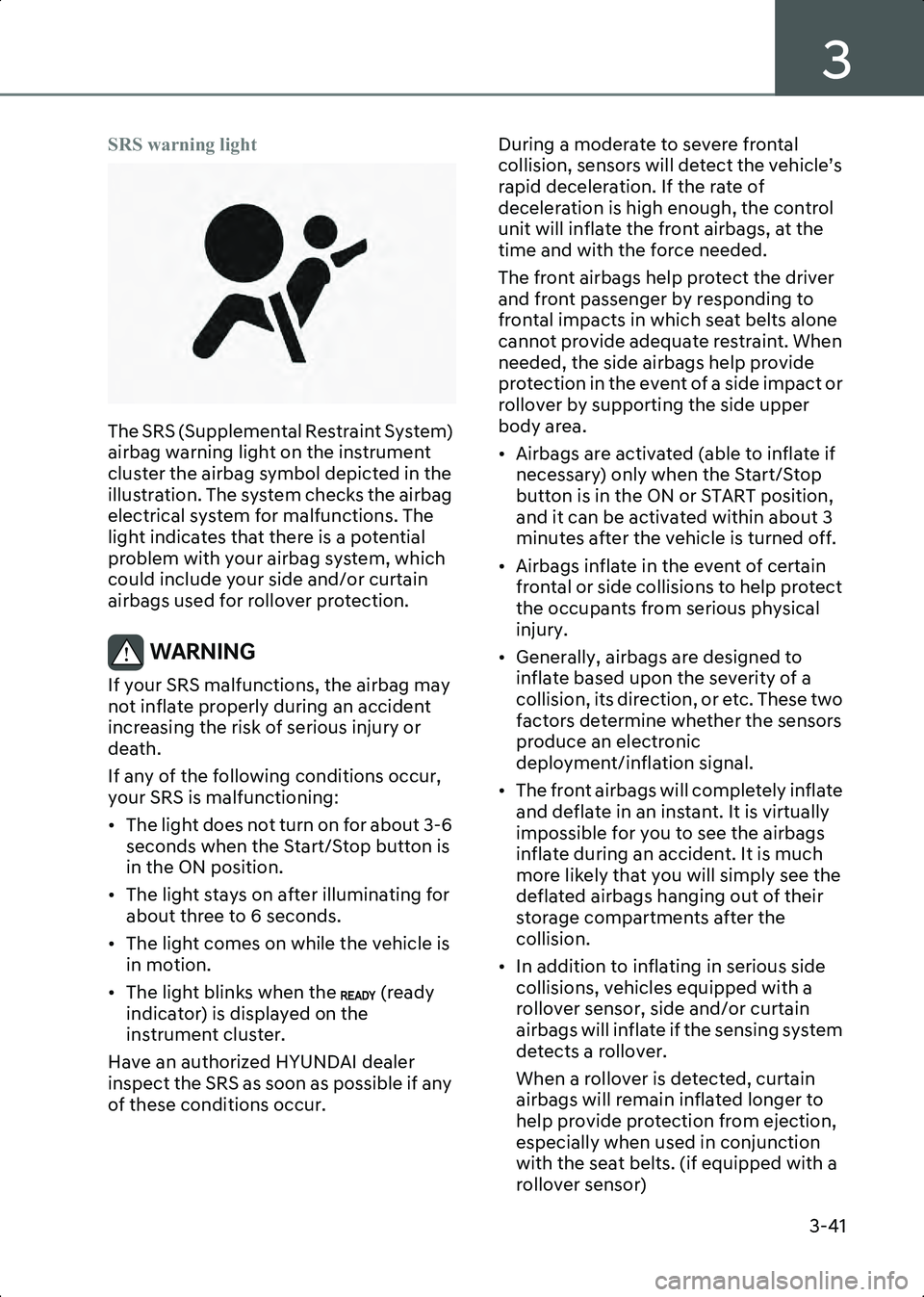

3
3-41
SRS warning light
B3002501
The SRS (Supplemental Restraint System)
airbag warning light on the instrument
cluster the airbag symbol depicted in the
illustration. The system checks the airbag
electrical system for malfunctions. The
light indicates that there is a potential
problem with your airbag system, which
could include your side and/or curtain
airbags used for rollover protection.
WARNING If your SRS malfunctions, the airbag may
not inflate properly during an accident
increasing the risk of serious injury or
death.
If any of the following conditions occur,
your SRS is malfunctioning:
• The light does not turn on for about 3-6 seconds when the Start/Stop button is
in the ON position.
• The light stays on after illuminating for about three to 6 seconds.
• The light comes on while the vehicle is in motion.
• The light blinks when the (ready indicator) is displayed on the
instrument cluster.
Have an authorized HYUNDAI dealer
inspect the SRS as soon as possible if any
of these conditions occur.
During a moderate to severe frontal
collision, sensors will detect the vehicle’s
rapid deceleration. If the rate of
deceleration is high enough, the control
unit will inflate the front airbags, at the
time and with the force needed.
The front airbags help protect the driver
and front passenger by responding to
frontal impacts in which seat belts alone
cannot provide adequate restraint. When
needed, the side airbags help provide
protection in the event of a side impact or
rollover by supporting the side upper
body area.
• Airbags are activated (able to inflate if
necessary) only when the Start/Stop
button is in the ON or START position,
and it can be activated within about 3
minutes after the vehicle is turned off.
• Airbags inflate in the event of certain frontal or side collisions to help protect
the occupants from serious physical
injury.
• Generally, airbags are designed to inflate based upon the severity of a
collision, its direction, or etc. These two
factors determine whether the sensors
produce an electronic
deployment/inflation signal.
• The front airbags will completely inflate and deflate in an instant. It is virtually
impossible for you to see the airbags
inflate during an accident. It is much
more likely that you will simply see the
deflated airbags hanging out of their
storage compartments after the
collision.
• In addition to inflating in serious side collisions, vehicles equipped with a
rollover sensor, side and/or curtain
airbags will inflate if the sensing system
detects a rollover.
When a rollover is detected, curtain
airbags will remain inflated longer to
help provide protection from ejection,
especially when used in conjunction
with the seat belts. (if equipped with a
rollover sensor)
Hyundai_CE_en_US.book Page 41
Page 143 of 582

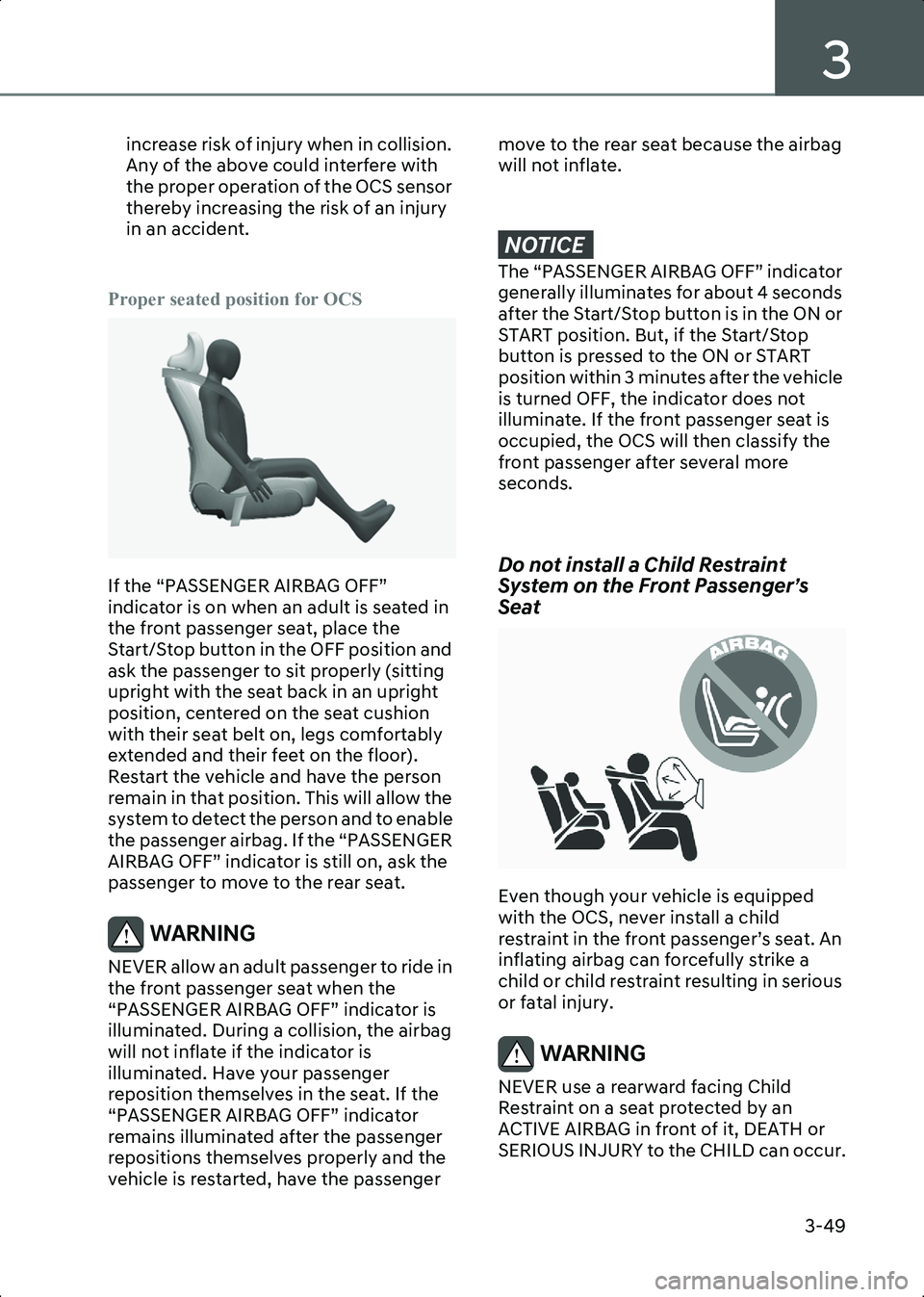

3
3-49
increase risk of injury when in collision.
Any of the above could interfere with
the proper operation of the OCS sensor
thereby increasing the risk of an injury
in an accident.
Proper seated position for OCS
B3003103
If the “PASSENGER AIRBAG OFF”
indicator is on when an adult is seated in
the front passenger seat, place the
Start/Stop button in the OFF position and
ask the passenger to sit properly (sitting
upright with the seat back in an upright
position, centered on the seat cushion
with their seat belt on, legs comfortably
extended and their feet on the floor).
Restart the vehicle and have the person
remain in that position. This will allow the
system to detect the person and to enable
the passenger airbag. If the “PASSENGER
AIRBAG OFF” indicator is still on, ask the
passenger to move to the rear seat.
WARNING NEVER allow an adult passenger to ride in
the front passenger seat when the
“PASSENGER AIRBAG OFF” indicator is
illuminated. During a collision, the airbag
will not inflate if the indicator is
illuminated. Have your passenger
reposition themselves in the seat. If the
“PASSENGER AIRBAG OFF” indicator
remains illuminated after the passenger
repositions themselves properly and the
vehicle is restarted, have the passenger move to the rear seat because the airbag
will not inflate.
NOTICE 7 K H U 3 $ 6 6 ( 1 * ( 5 $ , 5 % $ * 2 ) )V L Q G L F D W R U
J H Q H U D O O \ L O O X P L Q D W H V I R U D E R X W V H F R Q G V
D I W H U W K H 6 W D U W 6 W R S E X W W R Q L V L Q W K H 2 1 R U
6 7 $ 5 7 S R V L W L R Q % X W L I W K H 6 W D U W 6 W R S
E X W W R Q L V S U H V V H G W R W K H 2 1 R U 6 7 $ 5 7
S R V L W L R Q Z L W K L Q P L Q X W H V D I W H U W K H Y H K L F O H
L V W X U Q H G 2 ) ) W K H L Q G L F D W R U G R H V Q R W
L O O X P L Q D W H , I W K H I U R Q W S D V V H Q J H U V H D W L V
R F F X S L H G W K H 2 & 6 Z L O O W K H Q F O D V V L I \ W K H
I U R Q W S D V V H Q J H U D I W H U V H Y H U D O P R U H
V H F R Q G V
Do not install a Child Restraint
System on the Front Passenger’s
Seat
B3002401
Even though your vehicle is equipped
with the OCS, never install a child
restraint in the front passenger’s seat. An
inflating airbag can forcefully strike a
child or child restraint resulting in serious
or fatal injury.
WARNING NEVER use a rearward facing Child
Restraint on a seat protected by an
ACTIVE AIRBAG in front of it, DEATH or
SERIOUS INJURY to the CHILD can occur.
Hyundai_CE_en_US.book Page 49
Page 144 of 582
Seats & Safety System
3-50
Why didn’t My Airbag Go Off in
a Collision?
There are certain types of accidents in
which the airbag would not be expected
to provide additional protection. These
include rear impacts, second or third
collisions in multiple impact accidents, as
well as low speed impacts. Damage to the
vehicle indicates collision energy
absorption, and is not an indicator of
whether or not an airbag should have
inflated.
Airbag collision sensors
WARNING To reduce the risk of an airbag deploying
unexpectedly and causing serious injury
or death:
• Do not hit or allow any objects to impact the locations where airbags or
sensors are installed.
• Do not perform maintenance on or around the airbag sensors. If the
location or angle of the sensors is
altered, the airbags may deploy when
they should not or may not deploy
when they should.
• Installing bumper guards with non-genuine Hyundai parts may
adversely affect the collision and airbag
deployment performance.
To ensure correct function of the airbag
system, have the bumper replaced with
genuine Hyundai part specified for your
vehicle.
• Press the Start/Stop button to the OFF or ACC position and wait for 3 minutes
when the vehicle is being towed to
prevent inadvertent airbag
deployment.
• Have all airbag repairs conducted by an authorized HYUNDAI dealer.
Hyundai_CE_en_US.book Page 50
Page 148 of 582
Seats & Safety System
3-54
B3003409
Front airbags may not inflate in rollover
accidents because front airbag
deployment would not provide additional
occupant protection.
The side and curtain airbags may inflate in
a rollover situation, when it is detected by
the rollover sensor.
B3003410
Airbags may not inflate if the vehicle
collides with objects such as utility poles
or trees, where the point of impact is
concentrated and the collision energy is
absorbed by the vehicle structure.
SRS Care
The SRS is virtually maintenance-free and
there are no parts you can safely service
by yourself. If the SRS airbag warning
light does not illuminate when the
Start/Stop button is in the ON position, or
continuously remains on, have the
system be immediately inspected by an
authorized HYUNDAI dealer.Any work on the SRS system, such as
removing, installing, repairing, or any
work on the steering wheel, the front
passenger’s panel, front seats and roof
rails be performed by an authorized
HYUNDAI dealer. Improper handling of
the SRS system may result in serious
personal injury.
WARNING To reduce the risk of serious injury or
death take the following precautions:
• Do not attempt to modify or disconnect
the SRS components or wiring,
including the addition of any kind of
badges to the pad covers or
modifications to the body structure.
• Do not place objects over or near the airbag modules on the steering wheel,
instrument panel, and the front
passenger’s panel above the glove box.
• Clean the airbag pad covers with a soft cloth moistened with plain water.
Solvents or cleaners could adversely
affect the airbag covers and proper
deployment of the system.
• Have the inflated airbags replaced by an authorized HYUNDAI dealer.
• If components of the airbag system must be discarded, or if the vehicle
must be scrapped, certain safety
precautions must be observed. Consult
an authorized HYUNDAI dealer for the
necessary information. Failure to follow
these precautions could increase the
risk of personal injury.
Hyundai_CE_en_US.book Page 54
Page 149 of 582

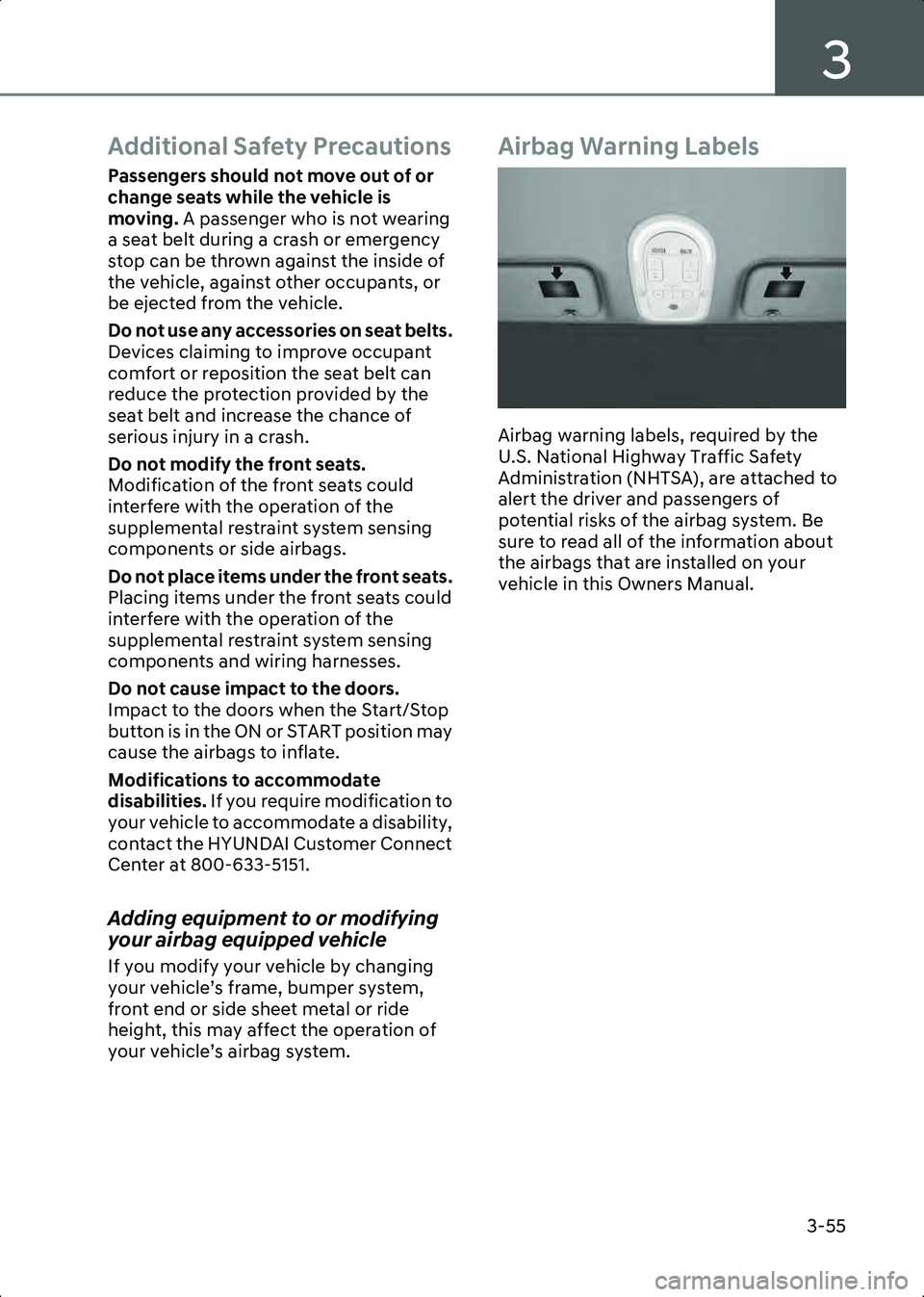

3
3-55
Additional Safety Precautions
Passengers should not move out of or
change seats while the vehicle is
moving. A passenger who is not wearing
a seat belt during a crash or emergency
stop can be thrown against the inside of
the vehicle, against other occupants, or
be ejected from the vehicle.
Do not use any accessories on seat belts.
Devices claiming to improve occupant
comfort or reposition the seat belt can
reduce the protection provided by the
seat belt and increase the chance of
serious injury in a crash.
Do not modify the front seats.
Modification of the front seats could
interfere with the operation of the
supplemental restraint system sensing
components or side airbags.
Do not place items under the front seats.
Placing items under the front seats could
interfere with the operation of the
supplemental restraint system sensing
components and wiring harnesses.
Do not cause impact to the doors.
Impact to the doors when the Start/Stop
button is in the ON or START position may
cause the airbags to inflate.
Modifications to accommodate
disabilities. If you require modification to
your vehicle to accommodate a disability,
contact the HYUNDAI Customer Connect
Center at 800-633-5151.
Adding equipment to or modifying
your airbag equipped vehicle
If you modify your vehicle by changing
your vehicle’s frame, bumper system,
front end or side sheet metal or ride
height, this may affect the operation of
your vehicle’s airbag system.
Airbag Warning Labels
B3003601
Airbag warning labels, required by the
U.S. National Highway Traffic Safety
Administration (NHTSA), are attached to
alert the driver and passengers of
potential risks of the airbag system. Be
sure to read all of the information about
the airbags that are installed on your
vehicle in this Owners Manual.
Hyundai_CE_en_US.book Page 55
Page 156 of 582
Instrument Cluster
4-6
the Smart Regenerative System’s
operation status is displayed.
For more information, refer to the
"Regenerative Braking System (Paddle
Shifter)" section in chapter 6.
Warning and Indicator Lights
Information Make sure that all warning lights are OFF
after starting the vehicle. If any light is still
ON, this indicates a situation that needs
attention.
Ready Indicator Light
WL_ReadyLamp
This indicator illuminates:
When the vehicle is ready to be driven.
• ON: Normal driving is possible.
• OFF: Normal driving is not possible, or a problem has occurred.
• Blinking: Emergency driving.
When the indicator goes off or blinks,
there is a problem with the system. In this
case, have your vehicle inspected by an
authorized HYUNDAI dealer.
Service Warning Light
WL_ServiceWarningLamp
This warning light illuminates:
• When the Start/Stop button is in the ON position. The Service warning light
illuminates for 3 seconds and then goes
off.
• When there is a problem with related parts of the electric vehicle control
system, such as sensors, etc.
When the warning light illuminates while
driving, or does not go off after starting
the vehicle, have your vehicle inspected
by an authorized HYUNDAI dealer.
Power Down Indicator Light
WL_PowerDownLamp
This indicator light illuminates:
When the power is limited for the safety
of the high-powered parts of an electric
vehicle. The power is limited for the
following reasons:
• The high voltage battery level is too low or voltage is decreasing
• The temperature of the high voltage battery is too high or too low
• The temperature of the motor is high
Hyundai_CE_en_US.book Page 6
Page 157 of 582
4
4-7
NOTICE [ ' R Q R W D F F H O H U D W H R U V W D U W W K H Y H K L F O H V X G G H Q O \ Z K H Q W K H S R Z H U G R Z Q
L Q G L F D W R U O L J K W L V L O O X P L Q D W H G
[ : K H Q W K H S R Z H U L V O L P L W H G I R U W K H V D I H W \ R I K L J K S R Z H U H G S D U W V R I D Q H O H F W U L F
Y H K L F O H W K H S R Z H U G R Z Q L Q G L F D W R U O L J K W
L O O X P L Q D W H V < R X U Y H K L F O H P D \ Q R W E H
G U L Y H Q R U P D \ U R O O E D F N R Q D V O R S H Z L W K
W K H L Q G L F D W R U O L J K W L O O X P L Q D W H G G X H W R
W K H O L P L W D W L R Q R I Y H K L F O H S R Z H U
Information Unless both the Service Warning Light and
Power Down Indicator Light illuminate at the
same time, it is not a failure.
Charging Connector Indicator Light
WL_ChargingConnectLamp
This warning light indicates the
connection status of the charging
connector. When the charging connector
is connected to the vehicle, the green
light illuminates for about 1 minute.
High Voltage Battery Level Warning
Light
WL_BatteryLovelLowWarningLamp
This warning light illuminates:
When the high voltage battery level is
low.
Charge the high voltage battery as soon
as possible.
Seat Belt Warning Light
WL_SeatBeltWarningLamp
This warning light informs the driver that
the seat belt is not fastened.
For more information, refer to the “Seat
Belts” section in chapter 3.
Airbag Warning Light
WL_AirbagWarningLamp
This warning light illuminates:
• When the Start/Stop button is in the ON position. The Airbag warning light
illuminates for 3-6 seconds and then
goes off.
Hyundai_CE_en_US.book Page 7
Page 158 of 582
Instrument Cluster
4-8
• When there is a malfunction with the SRS.
If the Airbag warning light remains
illuminated while driving, have the
vehicle inspected by an authorized
HYUNDAI dealer.
Regenerative Brake Warning Light
WL_RegenerativeBreakWarningLamp
This warning light illuminates:
When the regenerative brake does not
operate and the brake does not perform
well. This causes the Brake Warning light
(red) and Regenerative Parking Brake
Warning Light (yellow) to illuminate
simultaneously.
In this case, drive safely and have your
vehicle inspected by an authorized
HYUNDAI dealer.
The operation of the brake pedal may be
more difficult than normal and the
braking distance can increase.
Parking Brake and Brake Fluid
Warning Light
WL_BreakWarningLamp
This warning light illuminates:
When the Start/Stop button is in the ON
position. The Parking Brake warning light
illuminates for about 3 seconds and then goes off once the parking brake is
released.
• Whenever the parking brake is applied.
• Whenever the brake fluid level in the
reservoir is low.
- If the warning light illuminates with the parking brake released, it
indicates the brake fluid level in the
reservoir is low.
• When the regenerative brake does not operate.
If the brake fluid level in the reservoir is
low:
1. Drive carefully to the nearest safe location and stop your vehicle.
2. With the motor stopped, check the brake fluid level immediately and add
fluid as required (For more information,
refer to the “Brake Fluid” section in
chapter 9). After adding brake fluid,
check all brake components for fluid
leaks. If a brake fluid leak is found, or if
the warning light remains on, or if the
brakes do not operate properly, do not
drive the vehicle. Have the vehicle
inspected by an authorized HYUNDAI
dealer.
Dual-diagonal braking system
Your vehicle is equipped with the
dual-diagonal braking system. This
means you still have braking on two
wheels even if one of the dual systems
fails.
With only one of the dual systems
working, more than normal pedal travel
and greater pedal force are required to
stop the vehicle.
Also, the vehicle does not stop in a short
distance if only a portion of the braking
system is working.
Hyundai_CE_en_US.book Page 8
