2023 HYUNDAI IONIQ 6 light

Emergency Situations
8-2
Hazard Warning Flasher
B8000201
The hazard warning flasher warns other
drivers to exercise extreme caution when
approaching, overtaking, or passing your
vehicle. It should be used whenever
making emergency repairs or when
stopped near the edge of a roadway.
To turn on or off the hazard warning
flasher, press the hazard warning flasher
button with the Start/Stop button in any
position. The hazard warning flasher
button is located in the center fascia
panel. All turn signal lights flash
simultaneously.
• The hazard warning flasher operates whether your vehicle is running or not.
• The turn signals do not work when the hazard flasher is on.
In Case of an Emergency
While Driving
If the Vehicle Stalls While
Driving
• Reduce the vehicle speed gradually, keeping a straight line. Move cautiously
off the road to a safe place.
• Turn on your hazard warning flasher.
• Try to start the vehicle again. If your vehicle does not start, contact an
authorized HYUNDAI dealer or seek
other qualified assistance.
If the Vehicle Stalls at A
Crossroad or Crossing
If the vehicle stalls at a crossroad or
intersection, if safe to do so, shift the gear
to N (Neutral) and then push the vehicle
to a safe location.
If You Have a Flat Tire While
Driving
If a tire goes flat while you are driving:
• Take your foot off the accelerator pedal and let the vehicle slow down while
driving straight ahead. Do not apply the
brakes immediately or attempt to pull
off the road because this may cause
loss of vehicle control resulting in a
collision. When the vehicle has slowed
to such a speed that it is safe to do so,
brake carefully and pull off the road.
Drive off the road as far as possible and
park on a firm, level ground. If you are
on a divided highway, do not park in the
median area between the two traffic
lanes.
• When the vehicle is stopped, press the hazard warning flasher button, shift the
gear to P (Park), apply the parking
brake, and press the Start/Stop button
to the OFF position.
Hyundai_CE_en_US.book Page 2

8
8-3

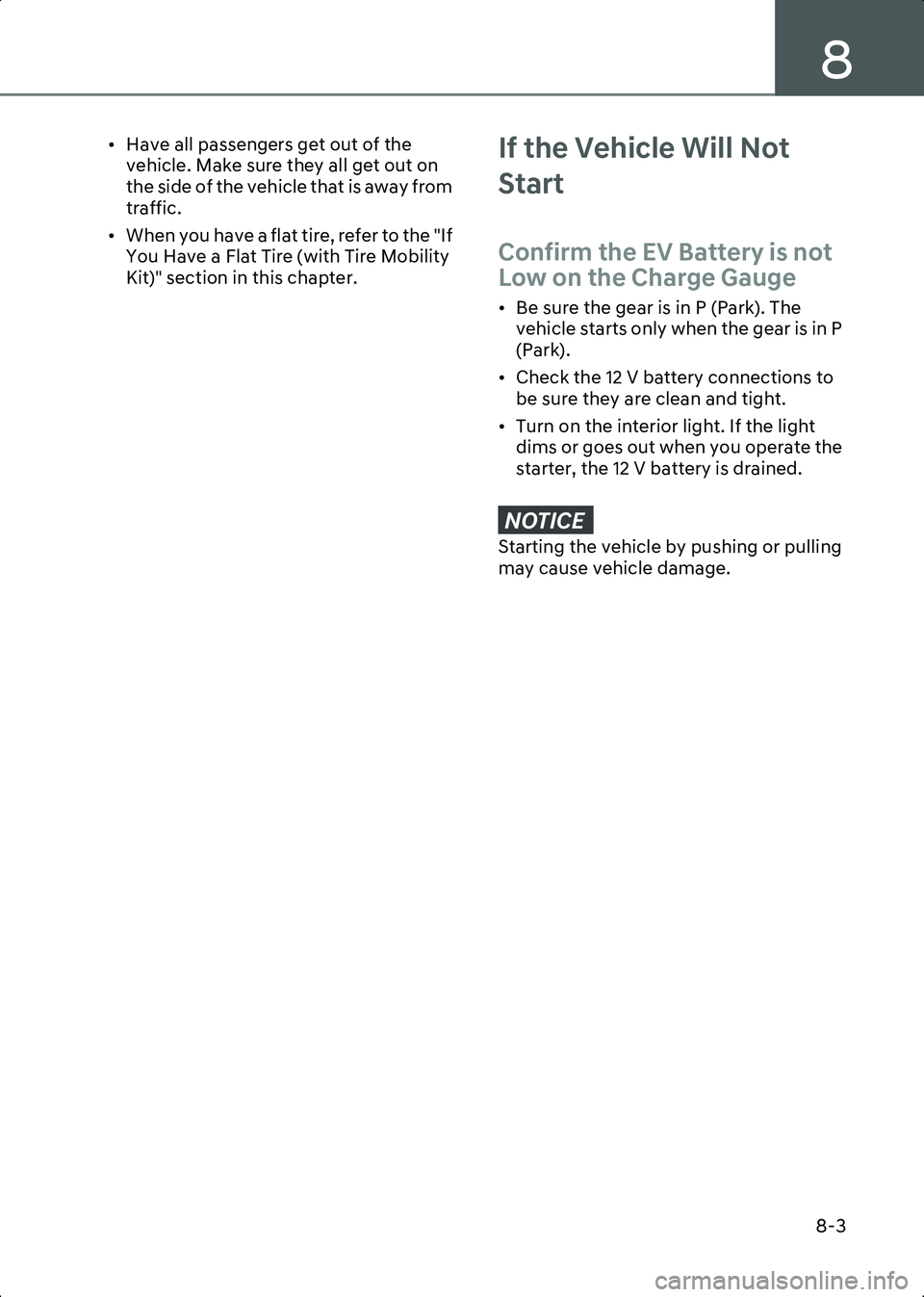

• Have all passengers get out of the vehicle. Make sure they all get out on
the side of the vehicle that is away from
traffic.
• When you have a flat tire, refer to the "If You Have a Flat Tire (with Tire Mobility
Kit)" section in this chapter.If the Vehicle Will Not
Start
Confirm the EV Battery is not
Low on the Charge Gauge
• Be sure the gear is in P (Park). The vehicle starts only when the gear is in P
(Park).
• Check the 12 V battery connections to be sure they are clean and tight.
• Turn on the interior light. If the light dims or goes out when you operate the
starter, the 12 V battery is drained.
NOTICE6WDUWLQJWKHYHKLFOHE\SXVKLQJRUSXOOLQJ
PD\FDXVHYHKLFOHGDPDJH

Hyundai_CE_en_US.book Page 3

8
8-5
• The electrical ignition system works with high voltage.
NEVER touch these components with
the vehicle running or when the
Start/Stop button is in the ON position.
• The electrical ignition system works with high voltage. NEVER touch these
components Start/Stop button in the
ON or START position.
• Do not allow the (+) and (-) jumper cables to touch. It may cause sparks.
• The battery may rupture or explode when you jump start with a low or
frozen battery.
• Do not directly connect the (-) to the jump cable. Connect the (-) to the one
of the metallic parts located far from
the jump cable in the vehicle. The direct
(-) connection to the jump cable may
cause an explosion.

Jump starting procedure
Information When you jump start your vehicle, use the
jumper terminal in the motor compartment.

1. Position the vehicles close enough that the jumper cables will reach. Do not
allow the vehicle body parts to contact.
2. Avoid fans or any moving parts in the motor compartment at all times, even
when the vehicles are turned off.
3. Turn off all electrical devices such as radios, lights, air conditioning, etc. Put
the vehicles in P (Park) and apply the
parking brake. Turn both vehicles OFF.
4. Open the hood.
5. Remove the battery cover located inside of the front trunk.
6. Remove the motor compartment fuse box cover.
CAUTION Before jump starting, make sure to
correctly identify the positive (+) and
negative (-) terminals to avoid reverse
polarity connections.

B8001501
7. Connect the jumper cables in the exact sequence shown in the illustration. First
connect one jumper cable to the red,
positive (+) jumper terminal of your
vehicle (1).
8. Connect the other end of the jumper cable to the red, positive (+)
battery/jumper terminal of the
assisting vehicle (2).
9. Connect the second jumper cable to the black, negative (-) battery/jumper
terminal of the assisting vehicle (3).
10.Connect the other end of the second jumper cable to the black, negative (-)
chassis ground of your vehicle (4).
Do not allow the jumper cables to
contact anything except the correct
battery or jumper terminals or the
correct ground. Do not lean over the
battery when making connections.
WARNING Do not connect the jumper cable to the
negative (-) jumper terminal of the
discharged battery. A spark could
cause the battery to explode and lead
to a personal injury or vehicle damage.

1
4
2
3














Hyundai_CE_en_US.book Page 5

8
8-9
Low Tire Pressure Warning
Light
Low Tire Pressure Position
and Tire Pressure Telltale
B8002102
When the tire pressure monitoring
system warning indicators are illuminated
and a warning message displayed on the
cluster display, one or more of your tires is
significantly under-inflated. The Low Tire
Pressure Position Telltale will indicate
which tire is significantly underinflated by
illuminating the corresponding parking
light.
If either telltale illuminates, immediately
reduce your speed, avoid hard cornering
and anticipate increased stopping
distances. You should stop and check
your tires as soon as possible. Inflate the
tires to the proper pressure as indicated
on the vehicle’s placard or tire inflation
pressure label located on the driver’s side
center pillar outer panel.
If you cannot reach a service station or if
the tire cannot hold the newly added air,
replace the low pressure tire with the
spare tire.The Low Tire Pressure Telltale will remain
on and the TPMS Malfunction Indicator
may blink for one minute and then remain
illuminated (when the vehicle is driven
about 10 minutes at speed above 15.5
mph (25 km/h)) until you have the low
pressure tire repaired and replaced on the
vehicle.
CAUTION In winter or cold weather, the Low Tire
Pressure Telltale may be illuminated if the
tire pressure was adjusted to the
recommended tire inflation pressure in
warm weather. It does not mean your
TPMS is malfunctioning because the
decreased temperature leads to a
proportional lowering of tire pressure.
When you drive your vehicle from a warm
area to a cold area or from a cold area to a
warm area, or the outside temperature is
greatly higher or lower, you should check
the tire inflation pressure and adjust the
tires to the recommended tire inflation
pressure.

WARNING Low pressure damage
Significantly low tire pressure makes the
vehicle unstable and can contribute to
loss of vehicle control and increased
braking distances.
Continued driving on low pressure tires
can cause the tires to overheat and fail.

-PX
UJSF
QSFTTVSF
-PX
-PX
-PX
-PX
Hyundai_CE_en_US.book Page 9

8
8-11
Always use a good quality tire pressure
gauge to measure. Please note that a tire
that is hot (from being driven) will have a
higher pressure measurement than a tire
that is cold.
A cold tire means the vehicle has been
sitting for 3 hours and driven for less than
1 mi. (1.6 km) in that 3 hour period.
Allow the tire to cool before measuring
the inflation pressure. Always be sure the
tire is cold before inflating to the
recommended pressure.
WARNING • The TPMS cannot alert you to severe and sudden tire damage caused by
external factors such as nails or road
debris.
• If you feel any vehicle instability, immediately take your foot off the
accelerator pedal, apply the brakes
gradually with light force, and slowly
move to a safe position off the road.

WARNING Tampering with, modifying, or disabling
the Tire Pressure Monitoring System
(TPMS) components may interfere with
the system’s ability to warn the driver of
low tire pressure conditions and/or TPMS
malfunctions and may void the warranty.

WARNING This device complies with Part 15 of the
FCC rules.
Operation is subject to the following three
conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including
interference that may cause undesired
operation of the device.
3. Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s
authority to operate the device.

Hyundai_CE_en_US.book Page 11

9
For Best Battery Service ............................................................................................ 9-18
Battery Capacity Label ............................................................................................... 9-19
Battery Recharging .................................................................................................... 9-19
Reset Items ................................................................................................................ 9-20
Tires and Wheels ........................................................................................................... 9-20 Tire Care ...................................................................................................................... 9-21
Recommended Cold Tire Inflation Pressures........................................................... 9-21
Check Tire Inflation Pressure.....................................................................................9-22
Tire Rotation ...............................................................................................................9-22
Wheel Alignment and Tire Balance .......................................................................... 9-23
Tire Replacement ...................................................................................................... 9-23
Wheel Replacement .................................................................................................. 9-24
Tire Traction ............................................................................................................... 9-24
Tire Maintenance....................................................................................................... 9-24
Tire Sidewall Labeling ............................................................................................... 9-24
Tire Terminology and Definitions .............................................................................. 9-27
All Season Tires .......................................................................................................... 9-30
Summer Tires ............................................................................................................. 9-30
Snow Tires .................................................................................................................. 9-30
Radial-Ply Tires .......................................................................................................... 9-30
Low Aspect Ratio Tires ............................................................................................... 9-31
Fuses .............................................................................................................................. 9-32
Blade type...................................................................................................................... 9-32
Cartridge type ............................................................................................................... 9-32
Multi type....................................................................................................................... 9-32 Instrument Panel Fuse Replacement....................................................................... 9-33
Motor compartment.................................................................................................. 9-33
Motor Compartment Panel Fuse Replacement ...................................................... 9-33
Fuse/Relay Panel Description .................................................................................. 9-35
Light Bulbs ..................................................................................................................... 9-43 Headlight, Parking Light, Turn Signal Light, Daytime Running Light (DRL)
Replacement.............................................................................................................. 9-44
Side Repeater Light Replacement ........................................................................... 9-44Rear Combination Light Replacement .................................................................... 9-44
High Mounted Stop Light Replacement .................................................................. 9-45
License Plate Light Replacement ............................................................................. 9-45
Front Trunk Light Replacement ............................................................................... 9-45
Hyundai_CE_en_US.book Page 2

9
9. Maintenance
Interior Light Replacement ...................................................................................... 9-46
Appearance Care ........................................................................................................... 9-47 Exterior Care............................................................................................................... 9-47
Interior Care ............................................................................................................... 9-51
California Perchlorate Notice ....................................................................................... 9-53
Hyundai_CE_en_US.book Page 3

Maintenance
9-6
Owner Maintenance
WARNING Performing maintenance work on a
vehicle can be dangerous. If you lack
sufficient knowledge and experience or
the proper tools and equipment to do the
work, we recommend that it is done by an
authorized HYUNDAI dealer. ALWAYS
follow these precautions for performing
maintenance work:
• Park your vehicle on level ground. Shift the vehicle to P (Park), apply the
parking brake, and press the Start/Stop
button to the OFF position.
• Block the tires (front and back) to prevent the vehicle from moving.
Remove loose clothing or jewelry that
can become entangled in moving parts.
• Keep flames, sparks, or smoking materials away from the battery and
motor related parts.

WARNING Make sure to turn the Start/Stop button to
the OFF position to shut down the vehicle
before performing maintenance work on
the vehicle.

The following lists are vehicle checks and
inspections that should be performed by
the owner or an authorized HYUNDAI
dealer at the frequencies indicated to
help ensure safe, dependable operation
of your vehicle.
Any adverse conditions should be
brought to the attention of your dealer as
soon as possible.
These Owner Maintenance vehicle
checks are generally not covered by
warranties and you may be charged for
labor, parts and lubricants used. The electric control system in the vehicle
may cause malfunction or other negative
impact on the artificial heart and the
artificial internal organs. Be sure to
inquire the impact of the electric control
system on the artificial organs from the
medical product corporation.
Owner Maintenance Schedule
When you stop for charging:
• Check the coolant level in the coolant
reservoir.
• Check the windshield washer fluid level.
• Check for low or under-inflated tires.
WARNING Be careful when checking your coolant
level if the motor compartment is hot.
This may result in coolant being blown
out of the opening and cause serious
burns and other injuries.

While operating your vehicle:
• Check for vibrations in the steering wheel. Notice if there is any increased
steering effort or looseness in the
steering wheel, or change in its
straight-ahead position.
• Notice if your vehicle constantly turns slightly or “pulls” to one side when
traveling on smooth, level road.
• When stopping, listen and check for unusual sounds, pulling to one side,
increased brake pedal travel or
“hard-to-push” brake pedal.
• If any slipping or changes in the operation of your gear shift occurs,
check the shift gear fluid level.
• Check the shift gear P (Park) function.
• Check the parking brake.
Hyundai_CE_en_US.book Page 6
