2023 HYUNDAI IONIQ 6 buttons

Driver Assistance System

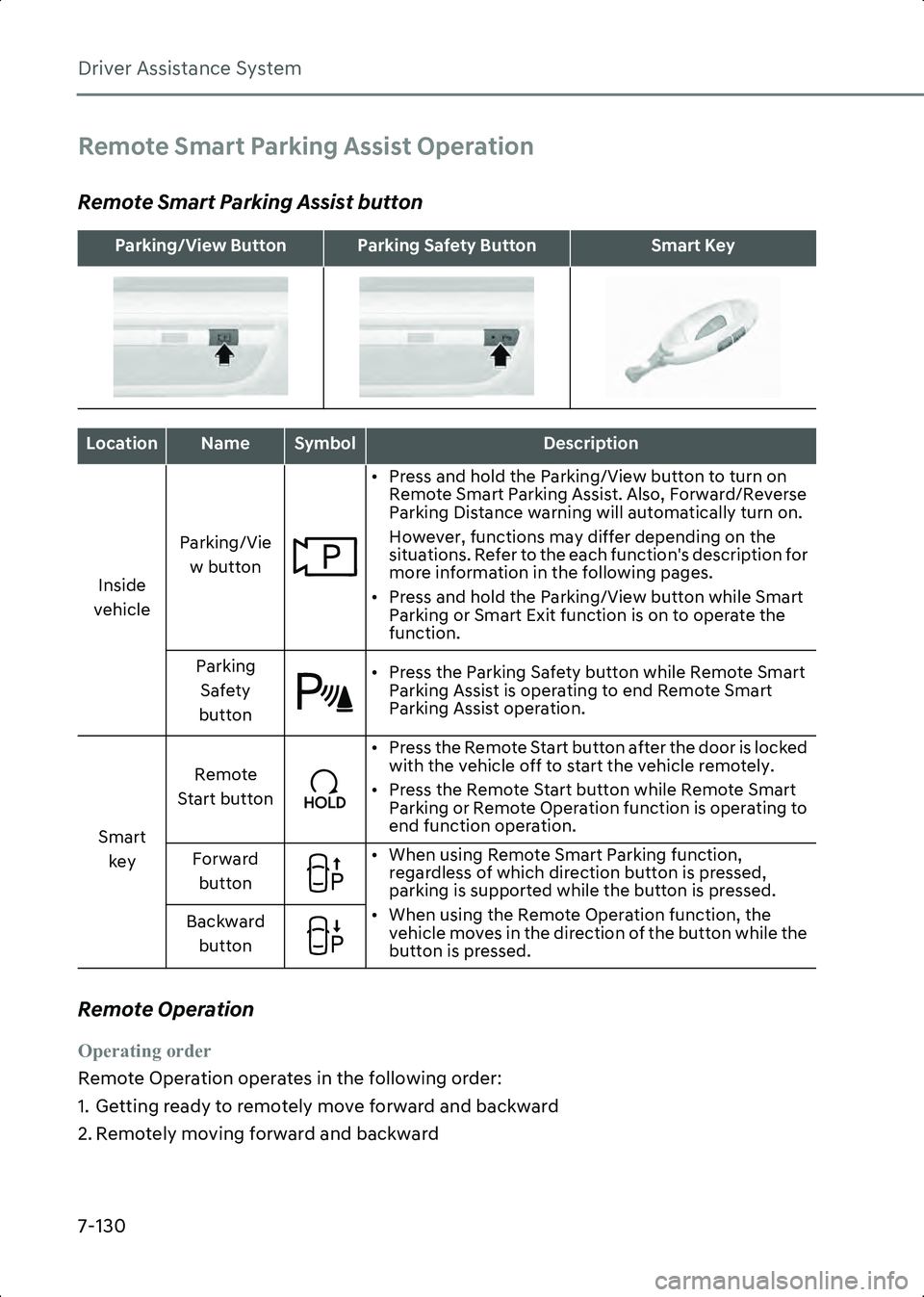

7-130
Remote Smart Parking Assist Operation
Remote Smart Parking Assist button
Remote Operation
Operating order
Remote Operation operates in the following order:
1. Getting ready to remotely move forward and backward
2. Remotely moving forward and backward
Parking/View ButtonParking Safety ButtonSmart Key
LocationNameSymbolDescription
Inside
vehicle Parking/Vie
w button • Press and hold the Parking/View button to turn on
Remote Smart Parking Assist. Also, Forward/Reverse
Parking Distance warning will automatically turn on.
However, functions may differ depending on the
situations. Refer to the each function's description for
more information in the following pages.
• Press and hold the Parking/View button while Smart Parking or Smart Exit function is on to operate the
function.
Parking Safety
button • Press the Parking Safety button while Remote Smart
Parking Assist is operating to end Remote Smart
Parking Assist operation.
Smart key Remote
Start button • Press the Remote Start button after the door is locked
with the vehicle off to start the vehicle remotely.
• Press the Remote Start button while Remote Smart Parking or Remote Operation function is operating to
end function operation.
Forward button • When using Remote Smart Parking function,
regardless of which direction button is pressed,
parking is supported while the button is pressed.
• When using the Remote Operation function, the vehicle moves in the direction of the button while the
button is pressed.
Backward
button
Hyundai_CE_en_US.book Page 130

7

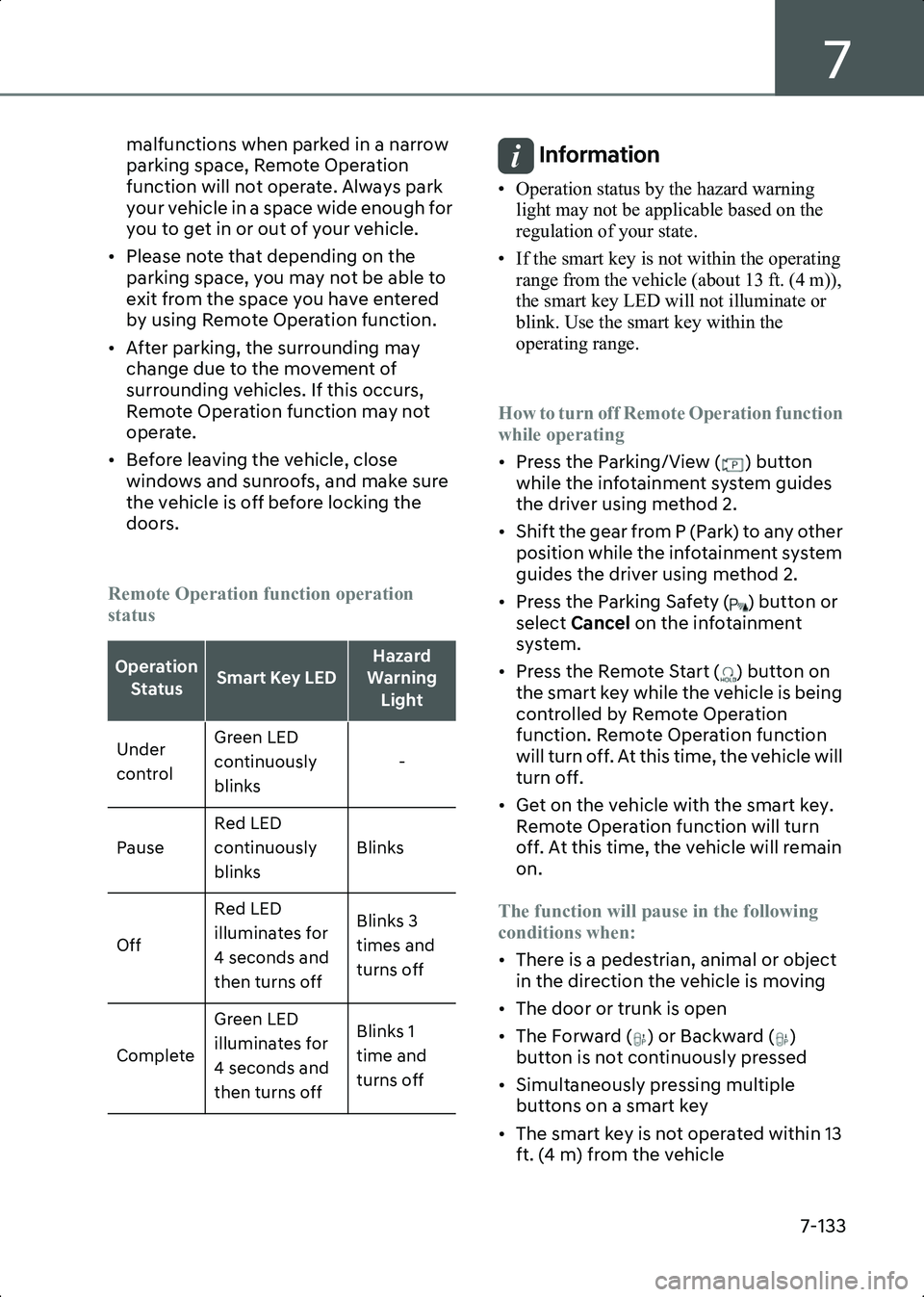

7-133
malfunctions when parked in a narrow
parking space, Remote Operation
function will not operate. Always park
your vehicle in a space wide enough for
you to get in or out of your vehicle.
• Please note that depending on the parking space, you may not be able to
exit from the space you have entered
by using Remote Operation function.
• After parking, the surrounding may change due to the movement of
surrounding vehicles. If this occurs,
Remote Operation function may not
operate.
• Before leaving the vehicle, close windows and sunroofs, and make sure
the vehicle is off before locking the
doors.

Remote Operation function operation
statusInformation • Operation status by the hazard warning light may not be applicable based on the
regulation of your state.
• If the smart key is not within the operating range from the vehicle (about 13 ft. (4 m)),
the smart key LED will not illuminate or
blink. Use the smart key within the
operating range.

How to turn off Remote Operation function
while operating
• Press the Parking/View ( ) button while the infotainment system guides
the driver using method 2.
• Shift the gear from P (Park) to any other position while the infotainment system
guides the driver using method 2.
• Press the Parking Safety ( ) button or select Cancel on the infotainment
system.
• Press the Remote Start ( ) button on the smart key while the vehicle is being
controlled by Remote Operation
function. Remote Operation function
will turn off. At this time, the vehicle will
turn off.
• Get on the vehicle with the smart key. Remote Operation function will turn
off. At this time, the vehicle will remain
on.
The function will pause in the following
conditions when:
• There is a pedestrian, animal or object in the direction the vehicle is moving
• The door or trunk is open
• The Forward ( ) or Backward ( ) button is not continuously pressed
• Simultaneously pressing multiple buttons on a smart key
• The smart key is not operated within 13 ft. (4 m) from the vehicle
Operation
StatusSmart Key LED
Hazard
Warning Light
Under
control Green LED
continuously
blinks
-
Pause Red LED
continuously
blinks Blinks
Off Red LED
illuminates for
4 seconds and
then turns off Blinks 3
times and
turns off
Complete Green LED
illuminates for
4 seconds and
then turns off Blinks 1
time and
turns off
Hyundai_CE_en_US.book Page 133

Driver Assistance System
7-140
How to turn off Parking function
while operating
• Press the Parking/View ( ) button in the following stage:
- Searching for parking space
- Select parking type
• Shift the gear to R (Reverse) in the following stage:
- Searching for parking space
- Select parking type
- Select operating mode
• Press the Parking Safety ( ) button or select Cancel on the infotainment
system to turn off Parking function.
• While Smart Parking function is operating:
- If the vehicle is stopped by depressing the brake pedal, and the
gear is shifted, Parking function will
turn off. At this time, EPB (Electronic
Parking Brake) will not be engaged.
• While Remote Smart Parking function is operating:
- Press the Remote Start ( ) button on the smart key. Parking function will
turn off.
Information Get on the vehicle with the smart key. Parking
function will turn off. At this time, the vehicle
will remain on.

The function will pause in the
following conditions when:
• Smart Parking
- There is a pedestrian, animal or object in the direction the vehicle is
moving
- The door or trunk is open
- The driver’s seat belt is not fastened
- Blind-Spot Collision-Avoidance Assist or Rear-Cross Traffic Collision-Avoidance Assist operates
while the vehicle is being controlled
in the reverse direction
- The Parking/View ( ) button is not continuously pressed
- The vehicle is stopped by depressing the brake pedal
• Remote Smart Parking - There is a pedestrian, animal or object in the direction the vehicle is
moving
- The door or trunk is open
- The Forward ( ) or Backward ( ) button is not continuously pressed
- Simultaneously pressing multiple buttons on a smart key
- The smart key is not operated within 13 ft. (4 m) from the vehicle
- Button of another smart key is pressed in addition to the operating
smart key
- Blind-Spot Collision-Avoidance Assist, Rear-Cross Traffic
Collision-Avoidance Assist, or
Parking Collision-Avoidance Assist
operates
When Parking function is paused, the
vehicle will automatically stop. If the
condition that made the function to
pause disappears, the function may
operate again.
The function will cancel in the
following conditions when:
• Smart Parking - The steering wheel is steered
- The gear is shifted while the vehicle is moving
- Operating EPB while the vehicle is moving
- The hood is open
- The driver opens the door with the seatbelt unfastened
- Rapid acceleration occurs
Hyundai_CE_en_US.book Page 140
