5
5-61

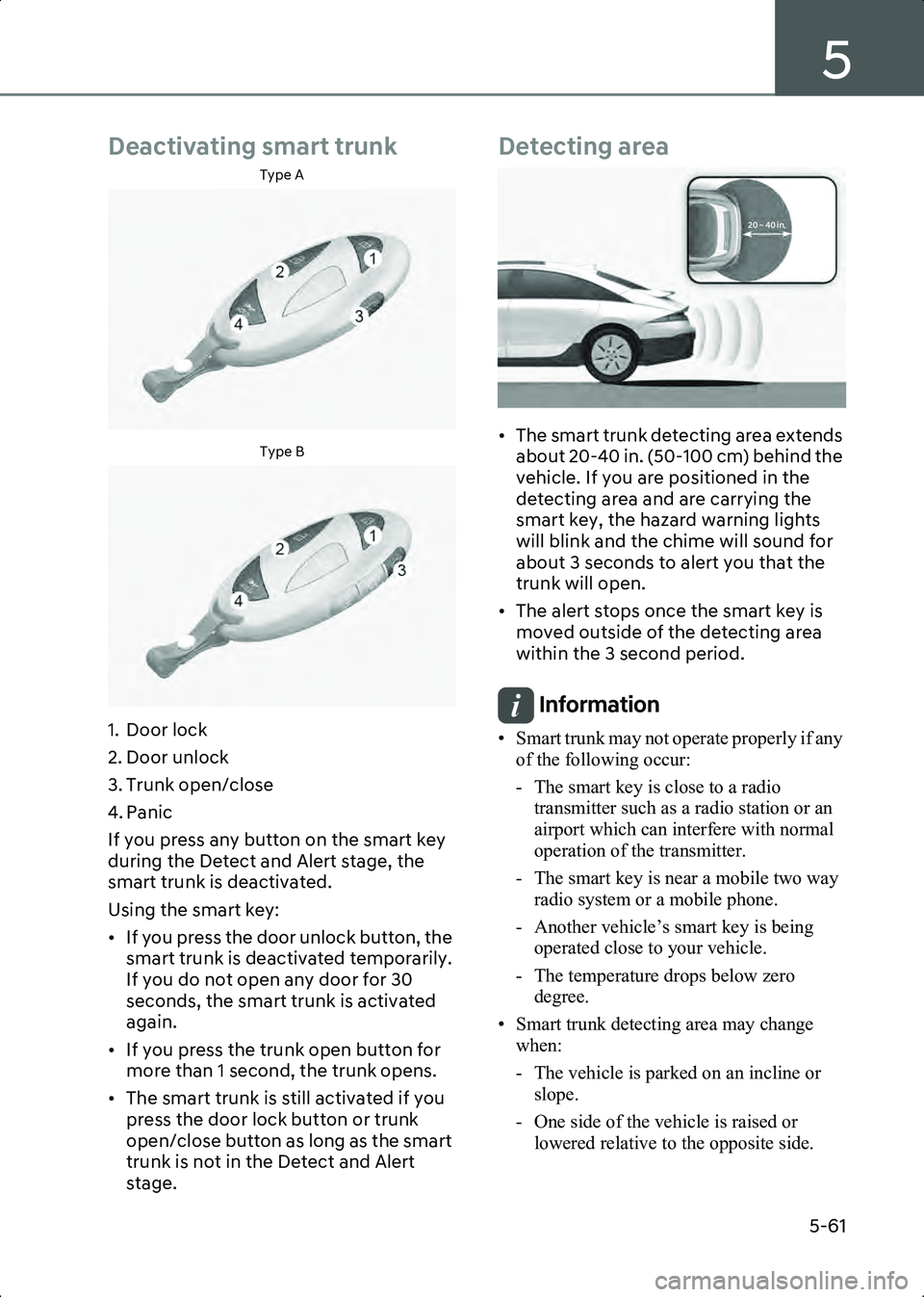

Deactivating smart trunk
Type A
B5012801Type B
B5012802
1. Door lock
2. Door unlock
3. Trunk open/close
4. Panic
If you press any button on the smart key
during the Detect and Alert stage, the
smart trunk is deactivated.
Using the smart key:
• If you press the door unlock button, the smart trunk is deactivated temporarily.
If you do not open any door for 30
seconds, the smart trunk is activated
again.
• If you press the trunk open button for more than 1 second, the trunk opens.
• The smart trunk is still activated if you press the door lock button or trunk
open/close button as long as the smart
trunk is not in the Detect and Alert
stage.
Detecting area
B5012901
• The smart trunk detecting area extends about 20-40 in. (50-100 cm) behind the
vehicle. If you are positioned in the
detecting area and are carrying the
smart key, the hazard warning lights
will blink and the chime will sound for
about 3 seconds to alert you that the
trunk will open.
• The alert stops once the smart key is moved outside of the detecting area
within the 3 second period.
Information • Smart trunk may not operate properly if any of the following occur:
- The smart key is close to a radio transmitter such as a radio station or an
airport which can interfere with normal
operation of the transmitter.
- The smart key is near a mobile two way radio system or a mobile phone.
- Another vehicle’s smart key is being operated close to your vehicle.
- The temperature drops below zero degree.
• Smart trunk detecting area may change when:
- The vehicle is parked on an incline or slope.
- One side of the vehicle is raised or lowered relative to the opposite side.
_ J O
Hyundai_CE_en_US.book Page 61
Page 242 of 582
Convenience Features
5-64
- An object is located above the head-up display cover
- The vehicle is driven on a wet road
- Any improper lighting accessory is installed inside the vehicle, or there is
incoming light from outside of the
vehicle
- The driver wears glasses
- The driver wears contact lenses
When it is difficult to read the head-up
display information, adjust the image
position or brightness level from the
Settings menu in the infotainment
system.
• Since the information displayed on the head-up display partially overlaps with
the road ahead, you may feel fatigue
and discomfort while driving. If you feel
tired or uncomfortable, adjust the
image, and if the symptoms persist,
turn off the head-up display before
driving.
• For your safety, make sure to stop the vehicle before adjusting the settings.
• Do not tint the front windshield glass or add other types of metallic coating.
Otherwise, the head-up display image
may be invisible.
• Do not place any accessories on the dashboard or attach any objects on the
windshield glass.
• When replacing the front windshield glass, replace it with a windshield glass
designed for head-up display
operation. Otherwise, duplicated
images may be displayed on the
windshield glass.
WARNING • The warning information of Blind-Spot Safety on the Head-Up Display are
supplemental. Do not solely depend on
them to change lanes. Always take a
look around before changing lanes.
The driving route guidance display in
the augmented reality mode is an auxiliary function. Be sure to check the
navigation screen together.
• ALWAYS pay attention on the road while driving when the Head-up display
is on.
Information Head-up display includes GPL, LGPL, MPL
and other open source license software. All
license notices including related source code
are provided at
http://www.mobis.co.kr/opensource/list.do.
If the driver requests on-board software open
source code via
[email protected] within 3
years after buying this product, a CD-ROM or
other storage device will be sent with the
minimum cost covering storage device cost
and delivery cost.
Hyundai_CE_en_US.book Page 64
Page 243 of 582
5
5-65

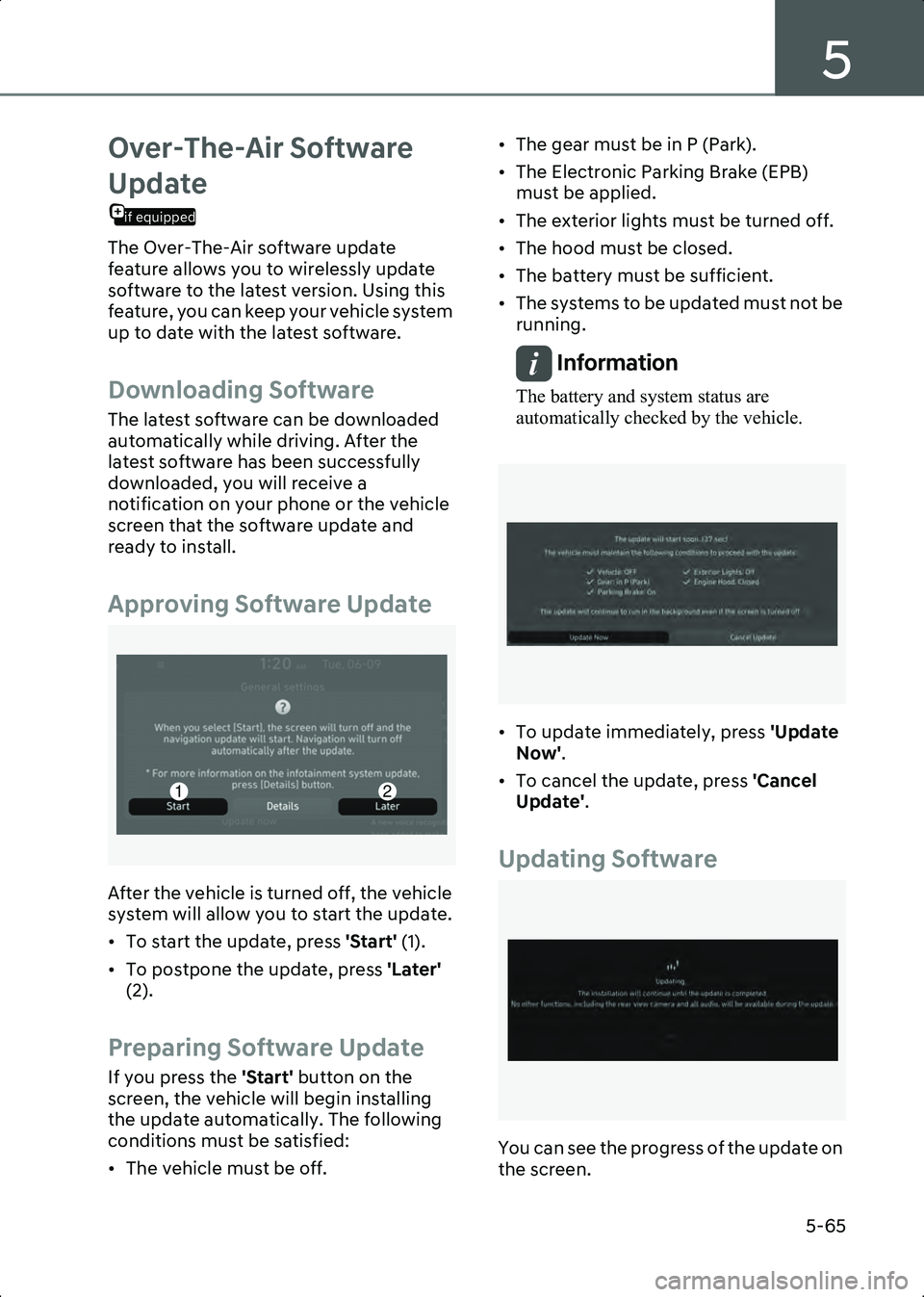

Over-The-Air Software
if equipped
Update
The Over-The-Air software update
feature allows you to wirelessly update
software to the latest version. Using this
feature, you can keep your vehicle system
up to date with the latest software.
Downloading Software
The latest software can be downloaded
automatically while driving. After the
latest software has been successfully
downloaded, you will receive a
notification on your phone or the vehicle
screen that the software update and
ready to install.
Approving Software Update
B5015301
After the vehicle is turned off, the vehicle
system will allow you to start the update.
• To start the update, press 'Start' (1).
• To postpone the update, press 'Later'
(2).
Preparing Software Update
If you press the 'Start' button on the
screen, the vehicle will begin installing
the update automatically. The following
conditions must be satisfied:
• The vehicle must be off. • The gear must be in P (Park).
• The Electronic Parking Brake (EPB)
must be applied.
• The exterior lights must be turned off.
• The hood must be closed.
• The battery must be sufficient.
• The systems to be updated must not be running.
Information The battery and system status are
automatically checked by the vehicle.
B5015302
• To update immediately, press 'Update
Now' .
• To cancel the update, press 'Cancel
Update' .
Updating Software
B5015401
You can see the progress of the update on
the screen.
12
Hyundai_CE_en_US.book Page 65
Page 245 of 582
5
5-67
Lighting
Exterior Lights
Lighting control
To operate the lights, turn the knob at the
end of the control lever to one of the
following positions:
B5015601
1. OFF
2. AUTO headlight
3. Parking light
4. Headlight
Daytime Running Light (DRL)
The Daytime Running Lights (DRL) can
make it easier for others to see the front
of your vehicle during the day, especially
after dawn and before sunset.
The DRL system will turn the dedicated
light OFF when :
• The headlights are ON.
• The parking brake is applied.
• The vehicle is turned off.
B5015602
AUTO headlight
The parking light and headlight will be
turned ON or OFF automatically
depending on the amount of daylight as
measured by the ambient light sensor (1)
at the upper end of the windshield glass.
Even with the AUTO headlight feature in
operation, it is recommended to manually
turn ON the headlights when driving at
night or in a fog, driving in the rain, or
when you enter dark areas, such as
tunnels and parking facilities.
NOTICE [ ' R Q R W F R Y H U R U V S L O O D Q \ W K L Q J R Q W K H V H Q V R U \f O R F D W H G D W W K H X S S H U H Q G R I
W K H Z L Q G V K L H O G J O D V V
[ ' R Q R W F O H D Q W K H V H Q V R U X V L Q J D Z L Q G R Z F O H D Q H U W K H F O H D Q V H U P D \ O H D Y H D O L J K W
I L O P Z K L F K F R X O G L Q W H U I H U H Z L W K V H Q V R U
R S H U D W L R Q
[ , I \ R X U Y H K L F O H Z L Q G R Z L V W L Q W H G R U R W K H U W \ S H V R I P H W D O O L F F R D W L Q J D U H R Q W K H
I U R Q W Z L Q G V K L H O G W K H $ 8 7 2 K H D G O L J K W
V \ V W H P P D \ Q R W Z R U N S U R S H U O \
AUTO
1
Hyundai_CE_en_US.book Page 67
Page 246 of 582
Convenience Features
5-68
B5015603
Parking light ( )
The parking light, license plate light and
instrument panel lamp are turned ON.
B5015604
Headlight ( )
The headlight, parking light, license plate
light and instrument panel lamp are
turned ON.
Information The Start/Stop button must be in the ON
position to turn on the headlight.
High beam operation
B5015702
To turn on the high beam headlight, push
the lever away from you. The lever will
return to its original position.
The high beam indicator will light when
the headlight high beams are switched
on.
To turn off the high beam headlight, pull
the lever towards you. The low beams will
turn on.
B5015701
To flash the high beam headlight, pull the
lever towards you, then release the lever.
The high beams will remain ON as long as
you hold the lever towards you.
Hyundai_CE_en_US.book Page 68
Page 247 of 582
5
5-69
Turn signals and lane change signals
B5015801
To signal a turn, push down on the lever
for a left turn or up for a right turn in
position (A).
If an indicator stays on and does not flash
or if it flashes abnormally, one of the turn
signal bulbs may be burned out and will
require replacement.
One touch turn signal
To use One Touch Turn Signal push the
turn signal lever up or down to position
(B) and then release it.
The lane change signals will blink 3, 5 or 7
times.
You can enable the One Touch Turn
Signal function or choose the number of
blinking by selecting Setup > Vehicle >
Lights > One Touch Turn Signal (or
One-touch indicator ) > 3 flashes /5
flashes /7 flashes /Off in the infotainment
system.
Information The infotainment system may change after
software updates. For more information, refer
to the user's manual provided in the
infotainment system and the quick reference
guide.
Battery saver function
To prevent the battery from being
discharging, the system automatically
turns off the parking lights when the
driver turns the vehicle off and opens the
driver’s door.
To keep the lights on when the vehicle is
turned off:
1. Open the driver’s door.
2. Turn the parking lights OFF and ON again using the headlight switch.
Headlight delay function
If the Start/Stop button is in the ACC
position or the OFF position with the
headlights ON, the headlights (and/or
Parking lights) remain on for about 5
minutes. However, if the driver’s door is
opened and closed, the headlights are
turned off after 15 seconds. Also, with the
vehicle off if the driver’s door is opened
and closed, the headlights (and/or
Parking lights) are turned off after 15
seconds.
The headlights (and/or Parking lights) can
be turned off by pressing the lock button
on the smart key twice or turning the
headlight switch to the OFF or AUTO
position.
You can enable the headlight delay
function by selecting Setup > Vehicle >
Lights > Headlight Delay (or Headlight
time-out) in the infotainment system.
Information The infotainment system may change after
software updates. For more information, refer
to the user's manual provided in the
infotainment system and the quick reference
guide.
Hyundai_CE_en_US.book Page 69
Page 248 of 582
Convenience Features
5-70
NOTICE , I W K H G U L Y H U H [ L W V W K H Y H K L F O H W K U R X J K
D Q R W K H U G R R U E H V L G H V W K H G U L Y H U G R R U W K H
E D W W H U \ V D Y H U I X Q F W L R Q G R H V Q R W R S H U D W H
D Q G W K H K H D G O L J K W G H O D \ I X Q F W L R Q G R H V Q R W
W X U Q 2 ) ) D X W R P D W L F D O O \ 7 K L V P D \ F D X V H
W K H E D W W H U \ W R G L V F K D U J H 7 R D Y R L G E D W W H U \
G L V F K D U J H W X U Q 2 ) ) W K H K H D G O L J K W V
P D Q X D O O \ I U R P W K H K H D G O L J K W V Z L W F K
E H I R U H H [ L W L Q J W K H Y H K L F O H
if equipped
Welcome system
B5016301
Welcome system helps keep the driver
visible by turning on vehicle lights when
the driver approaches the vehicle.
Door handle light
When all the doors (and trunk) are closed
and locked, the door handle light will turn
on for about 15 seconds if any of the
below is performed.
When the door unlock button is pressed
on the smart key.
When you put your hand in the outside
door handle with the smart key in
possession. If Setup > Vehicle > Lights >
Welcome Mirror/ Light > Enable on
Driver Approach is selected from the
Settings menu in the infotainment
system, the lights will turn on when the
vehicle is approached with the smart key
in possession.
Information The infotainment system may change after
software updates. For more information, refer
to the user's manual provided in the
infotainment system and the quick reference
guide.
Headlight and parking light
When the light switch is ON, and all the
doors (and trunk) are closed and locked,
the headlight and parking light will turn
on for about 15 seconds if the door unlock
button is pressed on the smart key. Note
that if the light switch is in the AUTO
position, the headlight and parking light
will turn on only when it is dark outside.
Select Setup > Vehicle > Lights >
Headlight Delay (or Headlight time-out)
from the Settings menu to turn on this
function.
Interior light
When the interior light switch is in the
position and all doors (and trunk) are
closed and locked, the room lamp will
come on for 30 seconds if any of the
below is performed.
• When the door unlock button is pressed on the smart key.
• When you put your hand in the outside door handle while carrying the Smart
key.
At this time, if you press the door lock
button on the smart key the lights will turn
off immediately.
Hyundai_CE_en_US.book Page 70
Page 249 of 582
5
5-71
Interior Lights
WARNING Do not use the interior lights when driving
in the dark. The interior lights may
obscure your view and cause an accident.
NOTICE ' R Q R W X V H W K H L Q W H U L R U O L J K W V I R U H [ W H Q G H G
S H U L R G V Z K H Q W K H Y H K L F O H L V W X U Q H G R I I R U
W K H E D W W H U \ Z L O O G L V F K D U J H
Interior Light AUTO cut
The interior lights will automatically go off
about 20 minutes after the vehicle is
turned off and the doors are closed. If a
door is opened, the light will go off 25
minutes after the vehicle is turned off. If
the doors are locked by the smart key and
the vehicle enters the armed stage of the
theft alarm system, the lights will go off
five seconds later.
Front lamps
B5017701
Front map lamp ( ):
Touch either icons to turn the map lamp
on or off. This light produces a spot beam
for convenient use as a map lamp at night or as a personal light for the driver and the
front passenger.
Door lamp ( ):
The front or rear room lamps come on
when the front or rear doors are opened.
When doors are unlocked by the smart
key, the front and rear lights come on for
about 30 seconds as long as any door is
not opened. The front and rear room
lamps go out gradually after about 30
seconds when the door is closed.
However, if the Start/Stop button is in the
ON position or all doors are locked, the
front and rear lights will turn off. If a door
is opened with the Start/Stop button in
the ACC position or the OFF position, the
front and rear lights will stay on for about
10 minutes.
Room lamp ( ):
Press the button to turn ON the room
lamp for the front/rear seats.
if equipped
Mood lamp ( ):
Press the button to turn On the mood
lamp. Press again to turn the lamp off.
Rear lamps
Room lamp
B5017801
Press the button to turn the lamp on or
off.
Hyundai_CE_en_US.book Page 71
