Convenience Features
5-88
SYNC
B5020008
Adjusting the temperature and air flow
direction equally
Press 'SYNC' (indicator light ON), the
passenger’s temperature and air flow
direction will be adjusted same as the
driver’s control.
Adjusting the temperature and air flow
direction individually
Press 'SYNC' (indicator light OFF), all
seats temperature and air flow direction
will be adjusted individually.
Air intake control
B5020009
Air intake control is used to select either
Fresh mode (outside air) or Recirculation
mode (cabin air). Recirculation mode
B5020010
When Recirculation mode is selected, air
from the passenger compartment will be
recirculated through the system and
heated or cooled according to the
function selected.
Fresh mode
B5020011
When Fresh mode is selected, air enters
the vehicle from outside and is heated or
cooled according to the function selected.
Information Operating the system primarily in Fresh mode
is recommended. Use Recirculation mode
temporarily only when needed. Prolonged
operation of the heater in Recirculation mode
and without the air conditioning ON can cause
fogging of the windshield. In addition,
prolonged use of the air conditioning ON in
Recirculation mode may result in excessively
dry, dehumidified air in the cabin and may
promote formation of musty vent odor due to
stagnant air.
Hyundai_CE_en_US.book Page 88
Page 268 of 582
Convenience Features
5-90
Driver only
B5020014
If you touch the 'DRIVER ONLY' icon
( ) and the indicator light illuminates
in the infotainment climate control
screen, cold air mostly blows in the
driver’s seat. However, some of the cold
air may come out of other seating
position ducts to keep indoor air pleasant.
If you use the icon with no passenger in
the front passenger seat, energy
consumption will be reduced.
'DRIVER ONLY' icon will be turned off
under the following conditions:
1. Defrost on
2. DRIVER ONLY button re-touch
Air conditioning
B5020015
Touch the 'CLIMATE' icon in the climate
control screen. The climate information
screen will appear on the infotainment
system. Touch the A/C icon in the
infotainment system to turn the air conditioning on (indicator light ON) and
off.
HEAT icon
B5020016
Touch
'CLIMATE' icon in the climate
control screen. The climate information
screen will appear on the infotainment
system. Touch the HEAT icon in the
infotainment system to turn the heater on
(indicator light will illuminate).
Touch the button again to turn the heater
off.
The air conditioner and heater uses
energy from the battery. If you use the
heater or air conditioner for too long,
distance to empty can be reduced due to
too much power consumption.
Turn off the heater and air conditioner if
you do not need them.
OFF mode
B5020017
Touch the 'OFF' icon to turn the climate
control system off.
Hyundai_CE_en_US.book Page 90
Page 269 of 582
5
5-91
System Operation
Cooling/Ventilation
1. Select the Face Level ( ) mode in the infotainment system.
2. Set the air intake control to fresh or recirculation mode.
3. Set the temperature to the desired position.
4. Set the fan speed to the desired speed.
Heating
1. Select the Floor Level ( ) mode in the infotainment system.
2. Set the air intake control to fresh or recirculation mode.
3. Set the temperature to the desired position.
4. Set the fan speed to the desired speed.
5. If desired, turn the air conditioning ON with the temperature set high in order
to dehumidify the air before it enters
into the cabin.
If the windshield fogs up, select the Front
Defrost ( ) mode.
Operation Tips
• To keep dust or unpleasant fumes from entering the vehicle through the
ventilation system, temporarily set the
air intake control to the recirculation
mode. Return the control to the
Recirculation mode to the Fresh mode
when the unpleasant air outside has
diminished. This will help keep the
driver alert and comfortable.
• To help prevent the inside of the windshield from fogging, set the air
intake control to fresh mode and the
fan speed to the desired position, turn
on the air conditioning system, and
adjust the temperature control to the
desired temperature.
Air conditioning
Your HYUNDAI Vehicle air conditioning
system is filled with R-1234yf refrigerant.
1. Touch the 'CLIMATE' icon to display
climate information the infotainment
system.
2. Select 'A/C' icon (indicator light ON) in
the climate information screen to
activate the air-condition.
3. Set the temperature low.
4. Set the direction of air flow by touching the mode selection icon.
5. Touch the 'HEAT' icon (indicator light
OFF) to turn on the air-condition.
When maximum cooling is desired, set
the temperature to the lowest position,
then set the fan speed control to the
highest setting.
Air conditioning system operation tips
• If the vehicle has been parked in direct sunlight during hot weather, open the
windows for a short time to let the hot
air inside the vehicle escape.
• After sufficient cooling has been achieved, switch back from
recirculation mode to fresh mode.
• To help reduce moisture inside of the windows on rainy or humid days,
decrease the humidity inside the
vehicle by operating the air
conditioning system with the windows
and vision roof closed.
• Use the air conditioning system every month only for a few minutes to ensure
maximum system performance.
• If you operate air conditioner excessively, the difference between the
temperature of the outside air and that
of the windshield could cause the outer
surface of the windshield to fog up,
causing loss of visibility. In this case, set
the mode selection to the position
and fan speed control to the lowest
speed.
Hyundai_CE_en_US.book Page 91
Page 272 of 582
Convenience Features
5-94
Windshield Defrosting
and Defogging
WARNING Windshield heating
Do not use the position during cooling
operation in extremely humid weather.
The difference between the temperature
of the outside air and that of the
windshield could cause the outer surface
of the windshield to fog up, causing loss
of visibility could cause an accident
resulting in serious injury or death. In this
case, set the mode selection to the
position and fan speed control to a lower
speed.
• For maximum defrost performance, set the temperature control to the highest
temperature setting and the fan speed
control to the highest setting.
• If warm air to the floor is desired while defrosting or defogging, set the mode
to the floor-defrost position.
• Before driving, clear all snow and ice from the windshield, rear window, side
view mirrors, and all side windows.
• Clear all snow and ice from the hood and air inlet in the cowl grill to improve
heater and defroster efficiency and to
reduce the probability of fogging up the
inside of the windshield.
To Defog Inside Windshield
B5020401
1. Select the desired fan speed.
2. Select the desired temperature.
3. Touch the defroster icon ( ).
4. When the defogging logic is enabled, Fresh mode is selected and air
conditioning is selected according to
outside temperature.
Check to make sure the air intake control
is in Fresh mode. If the air intake control
indicator light is illuminated, touch the
icon once to enable Fresh mode
(indicator light OFF).
If the position is selected, the fan speed
is automatically increased.
To Defrost Outside
Windshield
B5020501
1. Set the fan speed to the highest position.
2. Set the temperature to the extreme hot position.
Hyundai_CE_en_US.book Page 94
Page 273 of 582
5
5-95
3. Touch the defroster icon ( ).
4. When Defogging logic is enabled, Fresh mode is selected and air conditioning is
selected according to outside
temperature.
Check to make sure the air intake control
is in Fresh mode. If the air intake control
indicator light is illuminated, touch the
icon once to enable Fresh mode
(indicator light OFF).
If the position is selected, lower fan
speed is adjusted to a higher fan speed.
Defogging Logic
To reduce the probability of fogging up
the inside of the windshield, the air intake
or air conditioning are controlled
automatically according to certain
conditions such as positions. To cancel
or reset the defogging logic, do the
following.
1. Press the Start/Stop button to the ON position.
2. Touch the defroster icon ( ) or ( ).
3. While touching the A/C icon, touch the air intake control icon at least 5 times
within 3 seconds.
The air intake control indicator will blink 3
times to indicate that the defogging logic
has been disabled. Repeat the steps again
to re-enable the defogging logic.
The air intake control indicator will blink 6
times to indicate that the defogging logic
has been enabled.
If the battery has been discharged or
disconnected, it resets to the defog logic
status.
Rear Window Defroster
NOTICE To prevent damage to the rear window
defroster conducting elements bonded to
the inside surface of the rear window,
never use sharp instruments or window cleaners containing abrasives to clean the
window.
B5020801
The defroster heats the window to
remove frost, fog and thin ice from the
interior and exterior of the rear window,
while the vehicle is running.
• To activate the rear window defroster,
touch the rear window icon located in
the center control panel. The indicator
on the rear window defroster
illuminates when the defroster is on.
• To turn off the defroster, touch the rear window defroster button again.
Information • If there is heavy accumulation of snow on the rear window, brush it off before
operating the rear defroster.
• The rear window defroster automatically turns off after about 20 minutes or when the
Start/Stop button is in the OFF position.
Side view mirror defroster
If your vehicle is equipped with the
rearview mirror defrosters, they will
operate at the same time you turn on the
rear window defroster.
Hyundai_CE_en_US.book Page 95
Page 278 of 582
Convenience Features
5-100

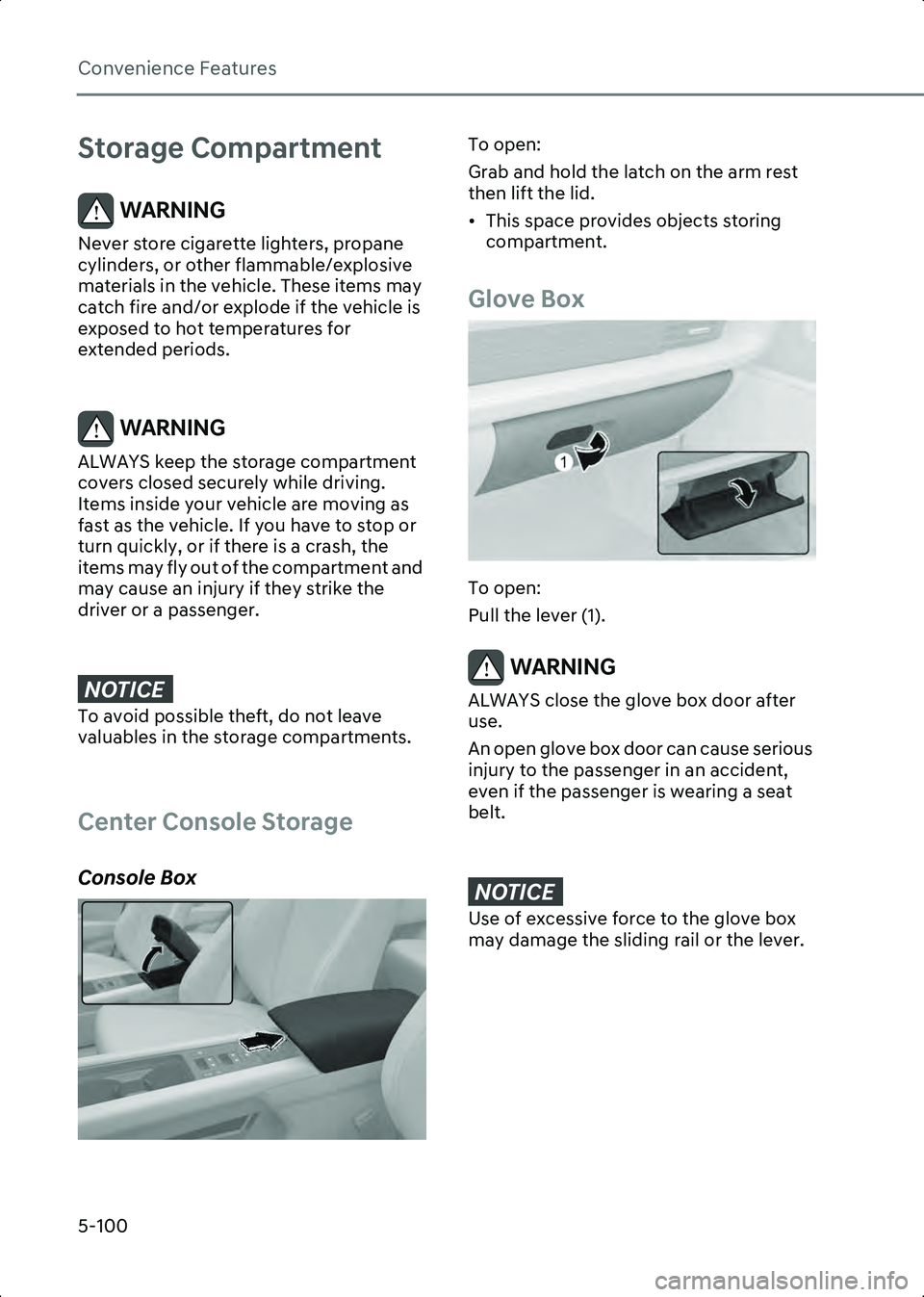

Storage Compartment
WARNING Never store cigarette lighters, propane
cylinders, or other flammable/explosive
materials in the vehicle. These items may
catch fire and/or explode if the vehicle is
exposed to hot temperatures for
extended periods.
WARNING ALWAYS keep the storage compartment
covers closed securely while driving.
Items inside your vehicle are moving as
fast as the vehicle. If you have to stop or
turn quickly, or if there is a crash, the
items may fly out of the compartment and
may cause an injury if they strike the
driver or a passenger.
NOTICE 7 R D Y R L G S R V V L E O H W K H I W G R Q R W O H D Y H
Y D O X D E O H V L Q W K H V W R U D J H F R P S D U W P H Q W V
Center Console Storage
Console Box
B5022101
To open:
Grab and hold the latch on the arm rest
then lift the lid.
• This space provides objects storing compartment.
Glove Box
B5022201
To open:
Pull the lever (1).
WARNING ALWAYS close the glove box door after
use.
An open glove box door can cause serious
injury to the passenger in an accident,
even if the passenger is wearing a seat
belt.
NOTICE 8 V H R I H [ F H V V L Y H I R U F H W R W K H J O R Y H E R [
P D \ G D P D J H W K H V O L G L Q J U D L O R U W K H O H Y H U
Hyundai_CE_en_US.book Page 100
Page 279 of 582
5
5-101
Interior Features
Cup Holder
Front
B5023101Rear
B5023102
Cups or small beverages cups may be
placed in the cup holders.
WARNING • Avoid abrupt starting and braking when the cup holder is in use to prevent
spilling your drink. If hot liquid spills,
you could be burned. Such a burn to the
driver could cause loss of vehicle
control resulting in an accident.
• Do not place uncovered or unsecured cups, bottles, cans, etc., in the cup
holder containing hot liquid while the
vehicle is in motion. Injuries may result
in the event of a sudden stop or
collision. • Only use soft cups in the cup holders.
Hard objects can injure you in an
accident.
WARNING Keep cans or bottles out of direct sun light
and do not put them in a hot vehicle. It
may explode.
NOTICE [ . H H S \ R X U G U L Q N V V H D O H G Z K L O H G U L Y L Q J W R S U H Y H Q W V S L O O L Q J \ R X U G U L Q N , I O L T X L G
V S L O O V L W P D \ J H W L Q W R W K H Y H K L F O HT V
H O H F W U L F D O H O H F W U R Q L F V \ V W H P D Q G
G D P D J H H O H F W U L F D O H O H F W U R Q L F S D U W V
[ : K H Q F O H D Q L Q J V S L O O H G O L T X L G V G R Q R W X V H K R W D L U W R E O R Z R X W R U G U \ W K H F X S
K R O G H U 7 K L V P D \ G D P D J H W K H L Q W H U L R U
Sunvisor
B5023401
To use the sunvisor, pull it downward.
To use the sunvisor to block the sun from
the side window, pull it downward,
release it from the bracket (1) and swing it
to the side (2) towards the window.
To use the vanity mirror, pull down the
sunvisor and slide the mirror cover (3).
Adjust the sunvisor forward or backward
(4) as needed (if equipped). Use the ticket
holder (5) to hold tickets.
Hyundai_CE_en_US.book Page 101
Page 282 of 582
![HYUNDAI IONIQ 6 2023 Owners Manual Convenience Features
5-104
Wireless Smartphone
if equipped
Charging System
B5023901[A] Indicator light
[B] Charging pad
On certain models, the vehicle comes
equipped with a wireless smartphone
char](/manual-img/35/58885/w960_58885-281.png "HYUNDAI IONIQ 6 2023 Owners Manual Convenience Features
5-104
Wireless Smartphone
if equipped
Charging System
B5023901[A] Indicator light
[B] Charging pad
On certain models, the vehicle comes
equipped with a wireless smartphone
char")
Convenience Features
5-104
Wireless Smartphone
if equipped
Charging System
B5023901[A] Indicator light
[B] Charging pad
On certain models, the vehicle comes
equipped with a wireless smartphone
charger.
The system is available when all doors are
closed, and when the Start/Stop button is
in the ON or START position.
Charging smartphone
The wireless smartphone charging
system charges only the Qi-enabled
smartphones ( ). Read the label on the
smartphone accessory cover or visit your
smartphone manufacturer’s website to
check whether your smartphone supports
the Qi technology.
The wireless charging process starts
when you put a Qi-enabled smartphone
on the wireless charging unit.
1. Remove other items, including the smart key, from the wireless charging
unit. If not, the wireless charging
process may be interrupted. Place the
smartphone on the center of the
charging pad.
2. The indicator light is orange when the smartphone is charging. The indicator
light will turn green when phone
charging is complete.
3. You can turn ON or OFF the wireless charging function from the Settings menu in the infotainment system.
Select
Setup > Vehicle > Convenience
> Wireless Charging System for Mobile
Devices
Information The infotainment system may change after
software updates. For more information, refer
to the user's manual provided in the
infotainment system and the quick reference
guide.
If your smartphone is not charging:
• Slightly change the position of the smartphone on the charging pad.
• Make sure the indicator light is orange.
The indicator light will blink orange for 10
seconds if there is a malfunction in the
wireless charging system.
In this case, temporarily stop the charging
process, and re-attempt to charge your
smartphone again.
The system warns you with a message on
the cluster display if the smartphone is
still on the wireless charging unit after the
vehicle is turned OFF and the front door is
opened.
For some manufacturer’s smartphones,
the system may not warn you even
though the smartphone is left on the
wireless charging unit. This is due to the
particular characteristic of the
smartphone and not a malfunction of the
wireless charging.
NOTICE [ 6 P D U W S K R Q H V W K D W G R Q R W K D Y H Z L U H O H V V F K D U J L Q J V W D Q G D U G \f F H U W L I L F D W L R Q
V X F K D V L 3 K R Q H V P D \ Q R W F K D U J H
Q R U P D O O \
[ : K H Q S O D F L Q J \ R X U V P D U W S K R Q H R Q W K H F K D U J L Q J S D G S R V L W L R Q W K H S K R Q H L Q W K H
P L G G O H R I W K H P D W I R U R S W L P D O F K D U J L Q J
S H U I R U P D Q F H , I \ R X U V P D U W S K R Q H L V R I I
W R W K H V L G H W K H F K D U J L Q J U D W H P D \ E H
O H V V D Q G L Q V R P H F D V H V W K H V P D U W S K R Q H
B
A
Hyundai_CE_en_US.book Page 104
