5
5-107
hold the floor mat in place. To avoid any
interference with pedal operation,
HYUNDAI Vehicle recommends that the
HYUNDAI floor mat designed for use in
your vehicle be installed.
Infotainment System
NOTICE • If you install an aftermarket HID head light, your vehicle’s audio and
electronic devices may not function
properly.
• Prevent chemicals such as perfume, cosmetic oil, sun cream, hand cleaner,
and air freshener from contacting the
interior parts because they may cause
damage or discoloration.
USB Port
B5025901
You can use an USB cable to connect
audio devices to the vehicle USB port.
Information When using a portable audio device connected
to the power outlet, noise may occur during
playback. If this happens, use the portable
audio device’s power source.
Hyundai_CE_en_US.book Page 107
Page 291 of 582
6
6-3
Before Driving
Before Entering the Vehicle
• Make sure all windows, outer side mirror(s), and outside lights are clean
and unobstructed.
• Remove frost, snow, or ice from both the front and rear windshield as well as
the front side windows.
• Visually check the tires for uneven wear and damage.
• Check under the vehicle for any sign of leaks.
• Make sure there are no obstacles behind you if you intend to back up.
Before Starting
• Make sure the hood, the trunk, and the doors are securely closed and locked.
• Adjust the position of the seat and steering wheel.
• Adjust the inside rearview mirror and outer side view mirrors.
• Verify all the lights work.
• Fasten your seat belt. Check that all passengers have fastened their seat
belts.
• Check the gauges and indicators in the instrument panel and the messages on
the cluster display when the vehicle is
in the ON position.
• Check that any items you are carrying are stored properly or fastened down
securely.
WARNING To reduce the risk of SERIOUS INJURY or
DEATH, take the following precautions:
• ALWAYS wear your seat belt. All passengers must be properly belted
whenever the vehicle is moving. For
more information, refer to the “Seat
Belts” section in chapter 3. • Always drive defensively. Assume other
drivers or pedestrians may be careless
and make mistakes.
• Stay focused on the task of driving. Driver distraction can cause accidents.
• Leave plenty of space between you and the vehicle in front of you.
WARNING NEVER drink or take drugs and drive.
Drinking or taking drugs and driving is
dangerous and may result in an accident
and SERIOUS INJURY or DEATH.
Drunk driving is the number one
contributor to the highway death toll each
year. Even a small amount of alcohol will
affect your reflexes, perceptions and
judgment. Just one drink can reduce your
ability to respond to changing conditions
and emergencies. Your reaction time gets
worse with each additional drink.
Driving while under the influence of drugs
is as dangerous or more dangerous than
driving under the influence of alcohol.
You are much more likely to have a
serious accident if you drink or take drugs
and drive. If you are drinking or taking
drugs, don’t drive. Do not ride with a
driver who has been drinking or taking
drugs. Choose a designated driver or call
a taxi.
Hyundai_CE_en_US.book Page 3
Page 293 of 582
6
6-5
Start/Stop Button Positions
Information To prevent vehicle battery discharge, the Start/Stop button changes to the OFF position when the
Start/Stop button is in the ACC or ON position with the gear in P (Park) for a certain period of
time. When the function operates, the tail lights will turn off. To use the tail lights again, turn the
headlight switch located on the steering column to the OFF and ON position again.
Button
PositionActionNotes
OFF To turn off the vehicle, press the
Start/Stop button with the vehicle
shifted to P (Park). If the Start/Stop
button is pressed with the vehicle
shifted to D (Drive), R (Reverse) or N
(Neutral), the gear automatically
shifts to P (Park). If the steering wheel is not locked
properly when you open the driver’s
door, the warning chime sounds.
ACC Press the Start/Stop button when the
button is in the OFF position without
depressing the brake pedal. Some of
the electrical accessories are usable.
The steering wheel unlocks.
If you leave the Start/Stop button in
the ACC position for more than one
hour, the battery power turns off
automatically to prevent the battery
from discharging. If the steering
wheel does not unlock properly, the
Start/Stop button does not work.
Press the Start/Stop button while
turning the steering wheel right and
left to release.
ON Press the Start/Stop button while it is
in the ACC position without
depressing the brake pedal. The
warning lights can be inspected
before the vehicle is started. Do not leave the Start/Stop button in
the ON position when the vehicle is
not running to prevent the battery
from discharging.
START To start the vehicle, depress the brake
pedal and press the Start/Stop button
with the gear shifted to the P (Park)
position. If you press the Start/Stop button
without changes as follows:
OFF >
ACC > ON > OFF or ACC
Hyundai_CE_en_US.book Page 5
Page 301 of 582
6

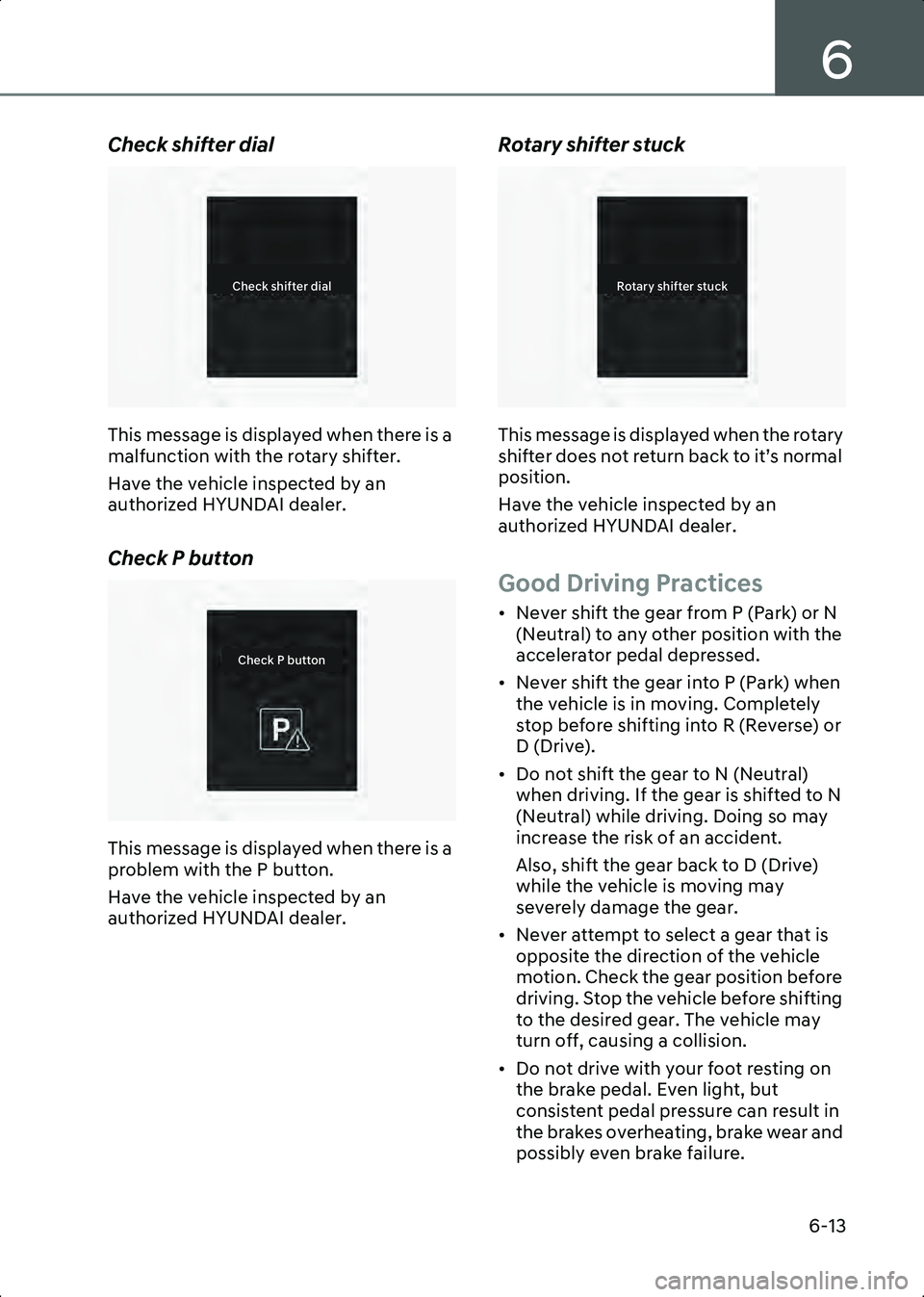

6-13
Check shifter dial
B6013804
This message is displayed when there is a
malfunction with the rotary shifter.
Have the vehicle inspected by an
authorized HYUNDAI dealer.
Check P button
B6013805
This message is displayed when there is a
problem with the P button.
Have the vehicle inspected by an
authorized HYUNDAI dealer.
Rotary shifter stuck
B6013806
This message is displayed when the rotary
shifter does not return back to it’s normal
position.
Have the vehicle inspected by an
authorized HYUNDAI dealer.
Good Driving Practices
• Never shift the gear from P (Park) or N (Neutral) to any other position with the
accelerator pedal depressed.
• Never shift the gear into P (Park) when the vehicle is in moving. Completely
stop before shifting into R (Reverse) or
D (Drive).
• Do not shift the gear to N (Neutral) when driving. If the gear is shifted to N
(Neutral) while driving. Doing so may
increase the risk of an accident.
Also, shift the gear back to D (Drive)
while the vehicle is moving may
severely damage the gear.
• Never attempt to select a gear that is opposite the direction of the vehicle
motion. Check the gear position before
driving. Stop the vehicle before shifting
to the desired gear. The vehicle may
turn off, causing a collision.
• Do not drive with your foot resting on the brake pedal. Even light, but
consistent pedal pressure can result in
the brakes overheating, brake wear and
possibly even brake failure.
$ I F D L T I J G U F S E J B M
$ I F D L 1 C V U U P O
3 P U B S Z T I J G U F S T U V D L
Hyundai_CE_en_US.book Page 13
Page 306 of 582
Driving Your Vehicle
6-18
B6002301
The smart regeneration system turns on
and the regenerative braking level is
displayed as 'AUTO'.
• Turning off the smart regeneration system: While the smart regeneration
system is on, pull and hold the right
paddle shifter ( ) for over a second.
The instrument cluster displays the
regenerative braking level instead of
‘AUTO’, and the smart regeneration
system turns off.
• Using one pedal driving: While the smart regeneration system is on, pull
and hold the left paddle shifter ( ) for
over 0.5 seconds (For more
information, refer to the "One Pedal
Driving" section in this chapter.)
i-PEDAL is not available while the smart
regeneration system is on. Turn off the
smart regeneration system first before
using i-PEDAL.
Smart Regeneration System
Operating Condition
When the regenerative braking level is
displayed as AUTO and the vehicle speed
is above 6 mph (10 km/h), the system
automatically controls the regenerative
braking level under the following
conditions:
• The road gradient changes
• Distance from the vehicle ahead reduces or increases • Speed of the vehicle ahead reduces or
increases
CAUTION • When the forward safety warning light is ON, the smart regeneration system
does not work properly. Depress the
brake pedal for deceleration.
• The function that adjusts the regenerative braking intensity
depending on the road gradient is only
effective when the regenerative
braking level is 0. Braking intensity
does not significantly change
depending on the road gradient if the
regenerative braking level is 1 or above.
Smart Regeneration Level
Settings
B6002501
The instrument cluster displays ‘AUTO’ (1)
when the smart regeneration system is
on. Depending on the conditions, the
system adjusts the regenerative braking
level (2). The indicator light (3) illuminates
when the vehicle recognizes a vehicle.
Smart regeneration default setting
The default braking level of the smart
regeneration system can be changed. Set
the default braking level to the lowest and
let the system adjust the braking intensity
automatically.
3
21
Hyundai_CE_en_US.book Page 18
Page 311 of 582
6

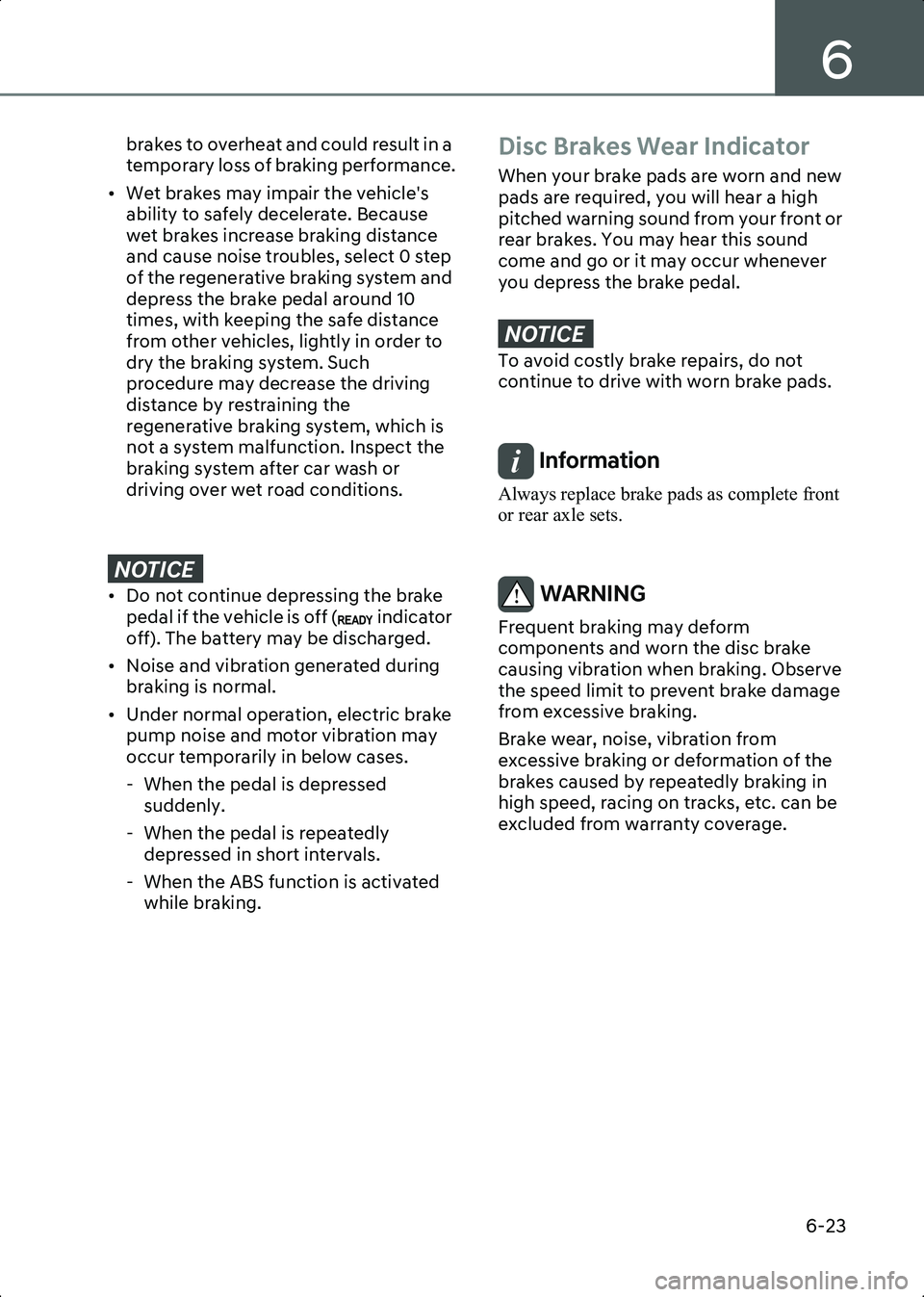

6-23
brakes to overheat and could result in a
temporary loss of braking performance.
• Wet brakes may impair the vehicle's ability to safely decelerate. Because
wet brakes increase braking distance
and cause noise troubles, select 0 step
of the regenerative braking system and
depress the brake pedal around 10
times, with keeping the safe distance
from other vehicles, lightly in order to
dry the braking system. Such
procedure may decrease the driving
distance by restraining the
regenerative braking system, which is
not a system malfunction. Inspect the
braking system after car wash or
driving over wet road conditions.
NOTICE [ ' R Q R W F R Q W L Q X H G H S U H V V L Q J W K H E U D N H S H G D O L I W K H Y H K L F O H L V R I I L Q G L F D W R U
R I I \f 7 K H E D W W H U \ P D \ E H G L V F K D U J H G
[ 1 R L V H D Q G Y L E U D W L R Q J H Q H U D W H G G X U L Q J E U D N L Q J L V Q R U P D O
[ 8 Q G H U Q R U P D O R S H U D W L R Q H O H F W U L F E U D N H S X P S Q R L V H D Q G P R W R U Y L E U D W L R Q P D \
R F F X U W H P S R U D U L O \ L Q E H O R Z F D V H V
: K H Q W K H S H G D O L V G H S U H V V H G V X G G H Q O \
: K H Q W K H S H G D O L V U H S H D W H G O \ G H S U H V V H G L Q V K R U W L Q W H U Y D O V
: K H Q W K H $ % 6 I X Q F W L R Q L V D F W L Y D W H G Z K L O H E U D N L Q J
Disc Brakes Wear Indicator
When your brake pads are worn and new
pads are required, you will hear a high
pitched warning sound from your front or
rear brakes. You may hear this sound
come and go or it may occur whenever
you depress the brake pedal.
NOTICE 7 R D Y R L G F R V W O \ E U D N H U H S D L U V G R Q R W
F R Q W L Q X H W R G U L Y H Z L W K Z R U Q E U D N H S D G V
Information Always replace brake pads as complete front
or rear axle sets.
WARNING Frequent braking may deform
components and worn the disc brake
causing vibration when braking. Observe
the speed limit to prevent brake damage
from excessive braking.
Brake wear, noise, vibration from
excessive braking or deformation of the
brakes caused by repeatedly braking in
high speed, racing on tracks, etc. can be
excluded from warranty coverage.
Hyundai_CE_en_US.book Page 23
Page 312 of 582
Driving Your Vehicle
6-24
Electronic Parking Brake (EPB)
Applying the parking brake
To apply EPB (Electronic Parking Brake):
B6003801
1. Depress and hold the brake pedal.
2. Pull up the EPB switch.
Make sure the Parking Brake warning light
comes on.
EPB (Electronic Parking Brake) may be
automatically applied when:
• Requested by other systems.
• The driver turns the vehicle off while Auto Hold is operating.
Emergency braking
If there is a problem with the brake pedal
while driving, emergency braking is
possible by pulling up and holding the
EPB switch. Braking is possible only while
you are holding the EPB switch. However,
braking distance will be longer than
normal.
WARNING To reduce the risk of SERIOUS INJURY or
DEATH, do not operate the EPB while the
vehicle is moving except in an emergency
situation. It could damage the brake
system and lead to an accident.
Information During emergency braking, the Parking Brake
warning light will illuminate to indicate that
the system is operating.
NOTICE , I \ R X F R Q W L Q X R X V O \ Q R W L F H D Q R L V H R U
E X U Q L Q J V P H O O Z K H Q W K H ( 3 % L V X V H G I R U
H P H U J H Q F \ E U D N L Q J K D Y H W K H V \ V W H P
L Q V S H F W H G E \ D Q D X W K R U L ] H G + < 8 1 ' $ ,
G H D O H U
Releasing the parking brake
To release EPB (Electronic Parking
Brake):
B6003803
1. Press the Start/Stop button to the ON or START position.
2. Press the EPB switch while depressing the brake pedal.
Make sure the Parking Brake warning light
goes off.
Hyundai_CE_en_US.book Page 24
Page 313 of 582
6
6-25
To release EPB (Electronic Parking Brake)
automatically:
• Gear in P (Park)With the vehicle on ( indicator on)
depress the brake pedal and shift out of
P (Park) to R (Reverse) or D (Drive).
• Gear in N (Neutral) With the vehicle on ( indicator on)
depress the brake pedal and shift out of
N (Neutral) to R (Reverse) or D (Drive).
• Satisfy the following conditions 1. Ensure seat belts are fastened and the doors, hood and trunk are closed.
2. With the vehicle on ( indicator on), depress the brake pedal and shift
out of P (Park) to R (Reverse), D
(Drive) or Manual shift mode.
3. Depress the accelerator pedal.
Make sure the Parking Brake warning light
goes off.
Information • You can engage EPB even though the Start/Stop button is in the OFF position
(only if battery power is available), but you
cannot release it.
• Depress the brake pedal and release the parking brake manually with the EPB
switch before you drive downhill or when
backing up.
NOTICE [ , I W K H 3 D U N L Q J % U D N H Z D U Q L Q J O L J K W L V V W L O O R Q H Y H Q W K R X J K W K H ( 3 % K D V E H H Q
U H O H D V H G K D Y H W K H V \ V W H P L Q V S H F W H G E \
D Q D X W K R U L ] H G + < 8 1 ' $ , G H D O H U
[ ' R Q R W G U L Y H \ R X U Y H K L F O H Z L W K ( 3 % D S S O L H G , W P D \ F D X V H H [ F H V V L Y H E U D N H
S D G D Q G E U D N H U R W R U Z H D U
Warning messages
To release EPB, close the doors, hood and
trunk and fasten the seatbelt
B6003804
If the driver's seat belt is unfastened, or
the hood, trunk, doors are open, and you
try to drive with EPB applied, a warning
sounds and a message appears.
WARNING To prevent serious injury or death from
unintended vehicle movement:
• Always come to a complete stop and continue to depress the brake pedal
before parking, shift the gear into P
(Park), pull up the EPB switch, and press
the Start/Stop button to the OFF
position. Take the key with you when
leaving the vehicle.
• Never allow anyone who is unfamiliar with the vehicle to touch the EPB
switch.
• Only release EPB when you are seated inside the vehicle with your foot firmly
on the brake pedal.
NOTICE ' U L Y L Q J Z L W K W K H S D U N L Q J E U D N H R Q P D \
R Y H U K H D W W K H E U D N L Q J V \ V W H P D Q G F D X V H
S U H P D W X U H Z H D U R U G D P D J H W R E U D N H
S D U W V
5 P S F M F B T F & 1 #
G B T U F O T F B U C F M U B O E D M P T F E P P S
I P P E B O E U S V O L
Hyundai_CE_en_US.book Page 25
