2023 HYUNDAI IONIQ 6 light

5
5-7
Electric type (if equipped)
B5002804
When you release the Two Press Unlock
function
To unlock your vehicle using the door
handle touch sensor or the smart key:
1. Have the smart key with you.
2. Touch the touch sensor on the door handle(engraved part) or press the
Door Unlock button (2) on the smart
key. All door handles will pop out and
the doors will be unlocked and the
hazard warning lights will blink and the
chime will sound.
• If you unlock the doors using the passenger side door handle, all the
doors are unlocked. If you unlock the
doors using the driver side door
handle, either the driver’s side door is
unlocked or all the doors are
unlocked depending on the setting
for the Two Press Unlock feature.
Change the Driver Door unlock mode
by referring to “Setting the Two Press
Unlock feature”.
Information • The side view mirror will unfold if ‘Enable
on Door Unlock’ is selected from the
Settings menu in the infotainment system.
Select Setup > Vehicle > Lights >
Welcome Mirror/Light > Enable on Door
Unlock .
• The door handle button or touch sensor only operates when the smart key is within 28-40
in. (0.7-1 m) from the outside door handle. • If you do not open the door after unlocking
within 30 seconds, it returns to the lock
mode.

Setting the Two Press Unlock feature
You can activate or deactivate the Two
Press Unlock feature from the Settings
menu in the infotainment system. Select
Setup > Vehicle > Door > Two Press
Unlock .
Information The infotainment system may change after
software updates. For more information, refer
to the user’s manual provided in the
infotainment system and the quick reference
guide.

Setting the door lock/unlock prevention
feature
The doors may lock or unlock if the touch
sensor of the outside door handle is
recognized while washing your vehicle or
due to heavy rain.
To prevent unintentional door lock or
unlock:
Press the lock button on the smart key
and immediately press the unlock button
along with the lock button for more than
4 seconds. The hazard warning lights
blink four times. At this time, the doors do
not lock or unlock even though the touch
sensor is touched on the outside door
handle. To deactivate the function, press
the door lock or unlock button on the
smart key.
Information During a vehicle wash or rain, in order to
minimize unintentional operation of the touch
sensor, the touch sensor may become
insensitive. This is not a malfunction.

Hyundai_CE_en_US.book Page 7

Convenience Features
5-8
Opening the trunk
To open the trunk:
1. Have the smart key with you.
2. Press the trunk handle switch on the vehicle or press and hold smart key
button(3) on the smart key for more
than one second. The hazard warning
lights blink twice and the trunk is
opened. If you release the button while
the trunk is being closed, it will stop
working and the chime will sound for
about 5 seconds.
Information The trunk open button only operates when the
smart key is within 28 in. (0.7 m) from the
trunk.

Remotely starting vehicle
1. Press the door lock button on the smart key. You must be within about 32 ft. (10
m) from the vehicle.
2. Press and hold the Remote Start button (5) on your smart key. You must press
the button within 4 seconds from when
you have pressed the door lock button.
The hazard warning lights blink and the
vehicle starts ( indicator on).
3. To turn off the vehicle, press the Remote Start button (5) once.
Information • The vehicle must be in P (Park) for the remote start function to start.
• The vehicle turns off ( indicator off) if you get inside the vehicle without a
registered smart key.
• The vehicle turns off if you do not get on the vehicle within 10 minutes after remotely
starting the vehicle.
• The Remote Start button may not operate if the smart key is not within 32 ft. (10 m)
from the vehicle. • The vehicle does not remotely start if the
hood or trunk is open.

Remotely moving vehicle forward or
if equipped
backward
Some models are equipped with the
Remote Smart Parking Assist feature.
With the smart key, the vehicle can be
moved forward or backward remotely to
enter or exit a tight parking space.
For more information, refer to the
“Remote Smart Parking Assist 2 (RSPA 2)”
section in chapter 7.
Using panic alarm
The horn sounds and the hazard warning
lights blink for about 30 seconds if this
button (4) is pressed for more than 1
second. To stop the horn and lights, press
any button on the smart key.
Starting the vehicle
Your vehicle is equipped with a Start/Stop
button instead of a key cylinder. You can
leave your smart key in your pocket or
purse when you start your vehicle.
For more information, refer to the
“Start/Stop Button” section in chapter 6.
Information If the smart key is not moved for some time,
the detection function for smart key operation
will pause. Lift the smart key to activate the
detection again.

NOTICE7RSUHYHQWGDPDJLQJWKHVPDUWNH\

[ .HHSWKHVPDUWNH\LQDFRROGU\SODFH WRDYRLGGDPDJHRUPDOIXQFWLRQ
([SRVXUHWRPRLVWXUHRUKLJK
WHPSHUDWXUHPD\FDXVHWKHLQWHUQDO
Hyundai_CE_en_US.book Page 8

Convenience Features
5-18
Vehicle personalization with digital key
The infotainment system may change after software updates. For more information,
refer to the user's manual provided in the infotainment system and the quick reference
guide.
SystemPersonalization Item
Vehicle settings Light
Blink number of one-touch
signal lights
Cluster Information display on the
cluster, Voice volume, Welcome sound
Seat/Mirror Seat position, Side view
mirror position, Easy Access
Intelligent driving posture assist (Smart IMS)
Door Automatic door lock/unlock,
Two Press Unlock
Head Up Display (HUD) Position adjustment of
image, Information display selection
Infotainment system Navigation
Preferred volume of the
navigation system, Recent destination
User preset My menu list settings, Radio
preset
Phone connectivity Bluetooth preferential
connect CarPlay/Android Auto On/Off
Air conditioning Operating conditionLatest operation setup of the
following functions:
Temperature, AUTO, air flow direction, air volume, air conditioner, air intake control, SYNC, Front
windshield defroster, OFF
Hyundai_CE_en_US.book Page 18

Convenience Features
5-20
• If you lose your smartphone or card key, immediately delete the key on the vehicle’s
key menu. For more information, refer to
the "Deleting Digital Key (Smartphone
Key)" or "Deleting digital key (card
key)"section in this chapter.
• If your registered smartphone key or card key is in the vehicle, the digital key(s)
active message appears on the instrument
cluster.
• If you buy a used vehicle, delete the registered smartphone key and card key.
• If the digital key is not working or the vehicle battery is discharged, use the
outside keyhole to lock all the doors.
Door Locks
Operating Door Unlocks from
Outside the Vehicle (Manual
type)
Smart key
B5002803
B5002802
Push the button on the front outside door
handle (the engraved part) while carrying
the smart key with you, all doors will
unlock.
The hazard warning lights will blink twice
and chime also sounds twice.
Once the doors are unlocked, when press
the front of the door handle (1) then rear
of the door handle will pop out (2).
Pull the outside door handle to open the
door.
1
2
Hyundai_CE_en_US.book Page 20

Convenience Features
5-22

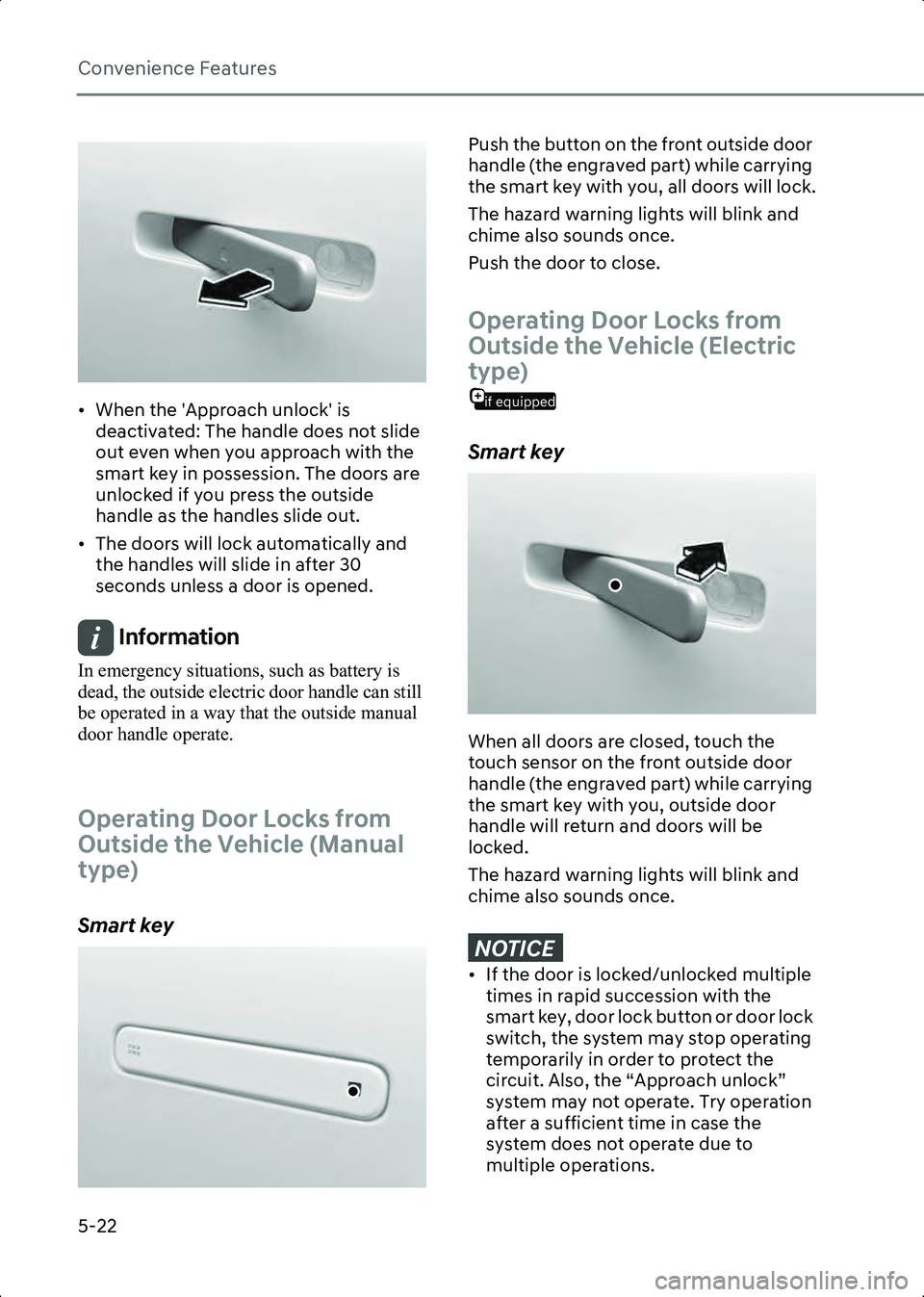

B5002802_2
• When the 'Approach unlock' is deactivated: The handle does not slide
out even when you approach with the
smart key in possession. The doors are
unlocked if you press the outside
handle as the handles slide out.
• The doors will lock automatically and the handles will slide in after 30
seconds unless a door is opened.
Information In emergency situations, such as battery is
dead, the outside electric door handle can still
be operated in a way that the outside manual
door handle operate.

Operating Door Locks from
Outside the Vehicle (Manual
type)
Smart key
B5000204
Push the button on the front outside door
handle (the engraved part) while carrying
the smart key with you, all doors will lock.
The hazard warning lights will blink and
chime also sounds once.
Push the door to close.
Operating Door Locks from
Outside the Vehicle (Electric
if equipped
type)
Smart key
ONE1051013
When all doors are closed, touch the
touch sensor on the front outside door
handle (the engraved part) while carrying
the smart key with you, outside door
handle will return and doors will be
locked.
The hazard warning lights will blink and
chime also sounds once.
NOTICE
[ ,IWKHGRRULVORFNHGXQORFNHGPXOWLSOHWLPHVLQUDSLGVXFFHVVLRQZLWKWKH
VPDUWNH\GRRUORFNEXWWRQRUGRRUORFN
VZLWFKWKHV\VWHPPD\VWRSRSHUDWLQJ
WHPSRUDULO\LQRUGHUWRSURWHFWWKH
FLUFXLW$OVRWKH
U$SSURDFKXQORFN
V
V\VWHPPD\QRWRSHUDWH7U\RSHUDWLRQ
DIWHUDVXIILFLHQWWLPHLQFDVHWKH
V\VWHPGRHVQRWRSHUDWHGXHWR
PXOWLSOHRSHUDWLRQV
Hyundai_CE_en_US.book Page 22

Convenience Features
5-24
Information When the door handle or the keyhole freeze
and do not open, lightly tap or indirectly warm
(for example, hand temperature) the keyhole.
Since the smart key and the mechanical key
are separated, always carry the mechanical
key in case the vehicle battery and the smart
key battery are discharged.

In case of an emergency
B5003103
Doors without an outside key hole can be
locked as follows:
1. Open the door.
2. Insert the key into the emergency door lock hole and turn the key to the lock
position.
3. Close the door securely.
Information If the electrical power to door lock switch is
not operating (for example, discharged
vehicle battery) and the trunk is closed, you
cannot open the trunk until power is restored.

WARNING • Always close and lock the doors while the vehicle is moving. If the doors are
unlocked, the risk of being thrown from
the vehicle in a collision increases. • Do not pull the inner door handle of the
driver’s or passenger’s door while the
vehicle is moving.

WARNING Do not leave the elderly, children, or
animals unattended in your vehicle. An
enclosed vehicle can become extremely
hot and the elderly, unattended children
or animals who cannot escape the vehicle
may be seriously injured or killed.

WARNING Always park your vehicle properly.
Depress the brake pedal, change the gear
to P (Park), apply the parking brake, press
the Start/Stop button to the OFF position,
close all windows, lock all doors, and
always take the keys with you.

WARNING Be careful when opening doors and
watch for vehicles, motorcycles, bicycles,
or pedestrians approaching the vehicle to
prevent serious injury or death.

Information To exit the vehicle if the power door lock does
not function:
• Operate the door unlock feature repeatedly (both electronic and manual) while
simultaneously pulling on the door handle.
• Operate the other door locks and handles.
• Lower the driver’s front window and use the mechanical key to unlock the door from
outside.

Hyundai_CE_en_US.book Page 24

5
5-25
Operating Door Lock/Unlock
from Inside the Vehicle
With the inside door handle
B5003101
Front door
If the inner door handle is pulled when the
door is locked, the door is unlocked and
opened.
Rear door - Two pull operation
If the inner door handle is pulled once
when the door is locked, the door is
unlocked. If the inner door handle is
pulled once more, the door is opened.
With the central door lock switch
B5003102
Driver’s and front passenger’s door
The central door lock switch is located on
the center console. The lock switch is
indicated by a symbol. The unlock
switch is indicated by a symbol.When the lock switch (1) is pressed (door
indicator light ON), all the vehicle doors
will lock.
When the unlock switch (2) is pressed, all
the vehicle doors will unlock.
If any door is opened, the doors will not
lock even though the central door lock
button (1) is pressed.
NOTICE,IWKHVPDUWNH\LVLQWKHYHKLFOHDQGWKH
IURQWGRRULVRSHQHGWKHFHQWUDOGRRUORFN
EXWWRQ\fFDQQRWORFNWKHGRRUV

Automatic Door Lock and
Unlock Features
Your vehicle is equipped with features
that will automatically lock or unlock your
vehicle based on settings you select in the
infotainment system.
Auto Lock Enable on speed
When this feature is set in the
infotainment system, all the doors will be
locked automatically when the vehicle
exceeds 9 mph (15 km/h).
Auto Lock Enable on shift
When this feature is set in the
infotainment system, all the doors will be
locked automatically when the vehicle is
shifted out of P (Park) while the vehicle is
running.
Auto Unlock Enable on shift to P
When this feature is set in the
infotainment system, all the doors will be
unlocked automatically when the vehicle
is shifted back into P (Park) while the
vehicle is running.
1
2
Hyundai_CE_en_US.book Page 25

5
5-27
Theft-Alarm System
This system helps to protect your vehicle
and valuables. The horn will sound and
the hazard warning lights will blink
continuously if any of the following occur:
• A door is opened without using the smart key.
• The trunk is opened without using the smart key.
• The vehicle hood is opened.
The alarm continues for 30 seconds, then
the system resets. To turn off the alarm,
unlock the doors with the smart key.
The Theft Alarm System automatically
sets 30 seconds after you lock the doors
and the trunk. For the system to activate,
you must lock the doors and the trunk
from outside the vehicle with the smart
key or by touching the touch sensor or
pressing the button on the outside door
handle with the smart key in your
possession.
The hazard warning lights will blink and
the chime will sound once to indicate the
system is armed.
Once the security system is set, opening
any door, the trunk, or the hood without
using the smart key will cause the alarm
to activate.
The Theft Alarm System will not set if the
hood, the trunk, or any door is not fully
closed. If the system will not set, check
the hood, the trunk, or the doors are fully
closed.
Do not attempt to alter this system or add
other devices to it.
Information • Do not lock the doors until all passengers have left the vehicle. If the remaining
passenger leaves the vehicle when the
system is armed, the alarm will be
activated.
• If the vehicle is not disarmed with the smart key, open the doors by using the mechanical key and start the vehicle by directly
pressing the Start/Stop button with the
smart key.
• If the system is disarmed by unlocking the vehicle, but neither a door or the trunk is
opened within 30 seconds, the doors will
relock and the system will rearm
automatically.

Hyundai_CE_en_US.book Page 27
