2023 HYUNDAI IONIQ 5 Owners Manual

Foreword / Electric Vehicle System Overview
1-20
ONE1Q011026N

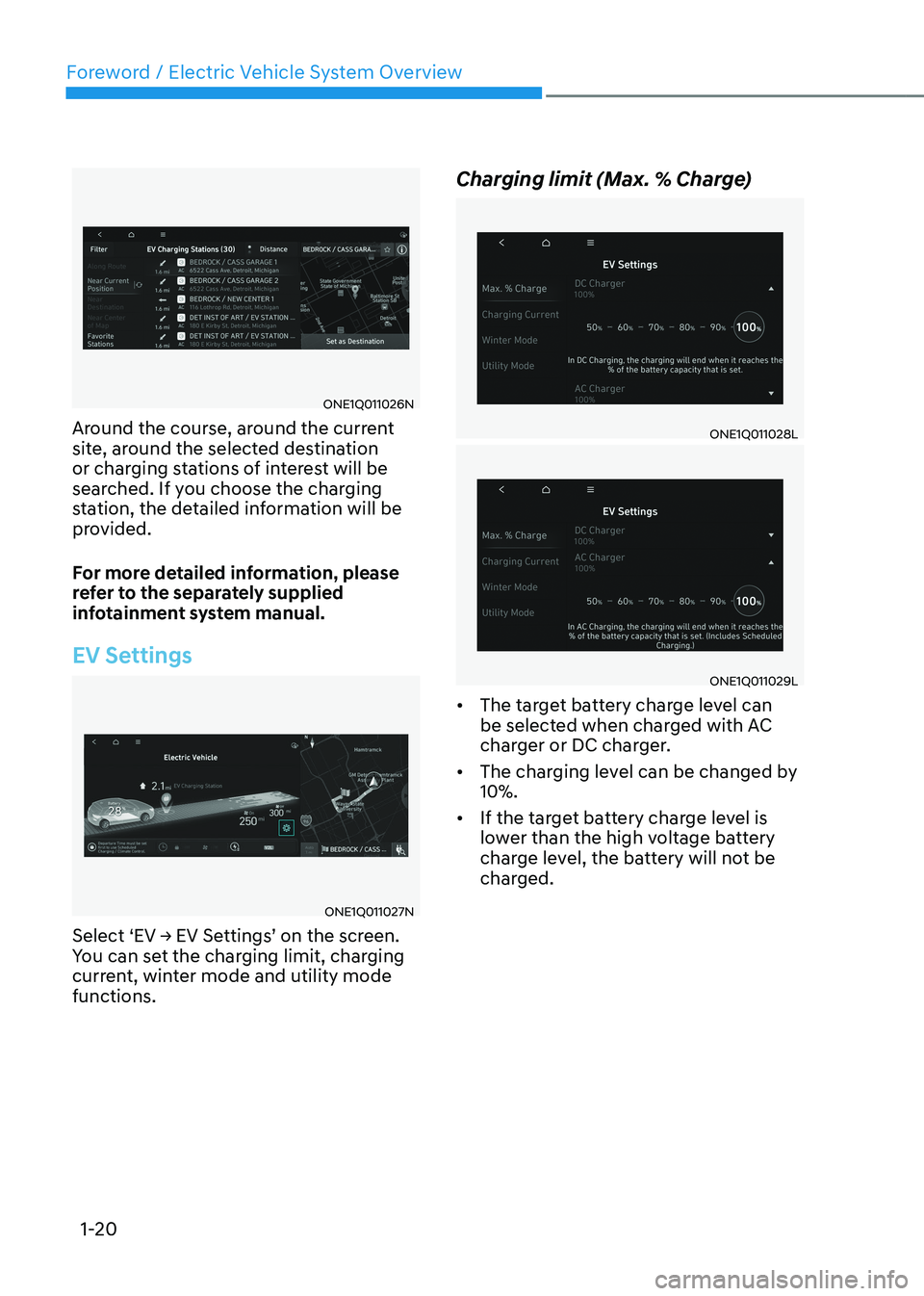

Around the course, around the current
site, around the selected destination
or charging stations of interest will be
searched. If you choose the charging
station, the detailed information will be
provided.
For more detailed information, please
refer to the separately supplied
infotainment system manual.
EV Settings
ONE1Q011027N
Select ‘EV → EV Settings’ on the screen.
You can set the charging limit, charging
current, winter mode and utility mode functions. Charging limit (Max. % Charge)
ONE1Q011028L
ONE1Q011029L
• The target battery charge level can
be selected when charged with AC
charger or DC charger.
• The charging level can be changed by 10%.
• If the target battery charge level is
lower than the high voltage battery
charge level, the battery will not be
charged.

01
1-21
Charging current
ONE1Q011030L
• You can adjust the charging
current for an AC charger. Select an
appropriate charging current.
• If the charging process does not
start or abruptly stops in the middle,
reselect another proper current and
re-try charging the vehicle.
• Charging time varies depending on
which charging current is selected. Winter ModeONE1Q011031L
You can select or deselect the Winter mode.
The Winter mode is efficient during
the winter time when the high voltage
battery temperature is low.
This mode is recommended to improve
driving and DC charging performances
during winter by raising the battery
temperature to an adequate level.
However, the driving distance may be
reduced as the energy is required to
increase battery temperature.
Also, if the battery temperature is low during driving or when scheduled air
conditioner/heater is activated, this
mode is operated to improve driving
performance.
However, the mode is not operated to
ensure driving distance when the battery
level is low.
Information
This mode is available for the vehicles
equipped with the battery heater.

Foreword / Electric Vehicle System Overview
1-22
Utility Mode
The high voltage battery is used instead
of the 12V auxiliary battery for operating
the convenient features of the vehicle.
When driving is not necessary such as
while camping or when stopping the
vehicle for a long time, it is possible to
use the electrical devices (audio, lights,
air conditioner, heater, etc.) for long
hours.
ONE1Q011032L
System Setting and Activation
System setting
The driver can activate the Utility mode
function when the following conditions
are satisfied. •
The vehicle is in the ready (
) mode and the gear is shifted
to P (Park).
• The EPB (Electronic Parking Brake) is
not a malfunction.
• ‘EV settings → Utility mode’ is selected on the infotainment system screen. System Activation
When the system is activated:•
The (
) indicator will turn off, and
the () indicator will illuminate on
the cluster and the EPB is applied.
• All electric devices are usable but the
vehicle cannot be driven.
• The EPB can be cancelled by pressing
the EPB switch.
Gear cannot be shifted out of P (Park).
If a shift attempt is made, a message
“Shifting conditions not met” will be
displayed on the infotainment system
screen.
System Deactivation
The Utility mode can be deactivated by
pressing the START/STOP button to the
OFF position. The function cannot be
deactivated from the EV settings.

01
1-23
CHarge typeS For eleCtriC VeHiCle
Charging Information
• AC Charge: The electric vehicle is charged by plugging into a AC charger installed at
your home or a public charging station. (For further details, refer to the ‘AC Charge’.)
• DC Charge: You can charge at high speeds at public charging stations. Refer to the
respective company’s manual that is provided for each DC charger type.
Battery performance and durability can deteriorate if the DC charger is used
constantly.
Use of DC charge should be minimized in order to help prolong high voltage battery
life.
• Portable Charge: The Electric vehicle can be charged by using household electricity.
The electrical outlet at your home must comply with regulations and can safely
accommodate the Voltage / Current (Amps) / Power (Watts) ratings specified on the
portable charge.
Charging Time Information
Charging type Standard battery type Extended battery type
AC charge Takes approx. 9 hours at room
temperature when charged to 100% Takes approx. 11 hours 5 minutes
at room temperature when
charged to 100%.
DC charge 350 kW
charger
Takes about 18 minutes at
room temperature when
charged from 10% to 80%. Can
be charged to 100%. Takes about 18 minutes at room
temperature when charged from
10% to 80%. Can be charged to 100%.
50 kW
charger Takes about 63 minutes at
room temperature when
charged from 10% to 80%. Can
be charged to 100%. Takes about 69 minutes at room
temperature when charged from
10% to 80%. Can be charged to 100%.
Portable charge Takes approx. 19 hours at room
temperature when charged to 100%. Takes approx. 31 hours at room
temperature when charged to 100%.
Information
Depending on the condition and durability of the high voltage battery, charger
specifications, and ambient temperature, the time required for charging the high voltage
battery may vary.

Foreword / Electric Vehicle System Overview
1-24
Charging Types
Category AC Charge DC Charge Portable Charge Charging Inlet
(Vehicle)
ONE1Q011036ONE1Q011037ONE1Q011036
Charging
Connector
ONE1Q011083OAEEQ016079NONE1Q011083
Charging Outlet
OLFP0Q5007KOAEEQ016023ONX4EPHQ011019L
How to
ChargeUse AC charger
installed at home or
public charging station Use the DC charger at
public charging station
Use household current
• Depending on the condition and durability of the high voltage battery, charger
specifications, and ambient temperature, the time required for charging the high
voltage battery may vary.
• Actual charger image and charging method may vary in accordance with the
charger manufacturer.
Information
Type 3R, when mating with outlets.
Additional Type 3R enclosure should be provided in the end installation.

01
1-25

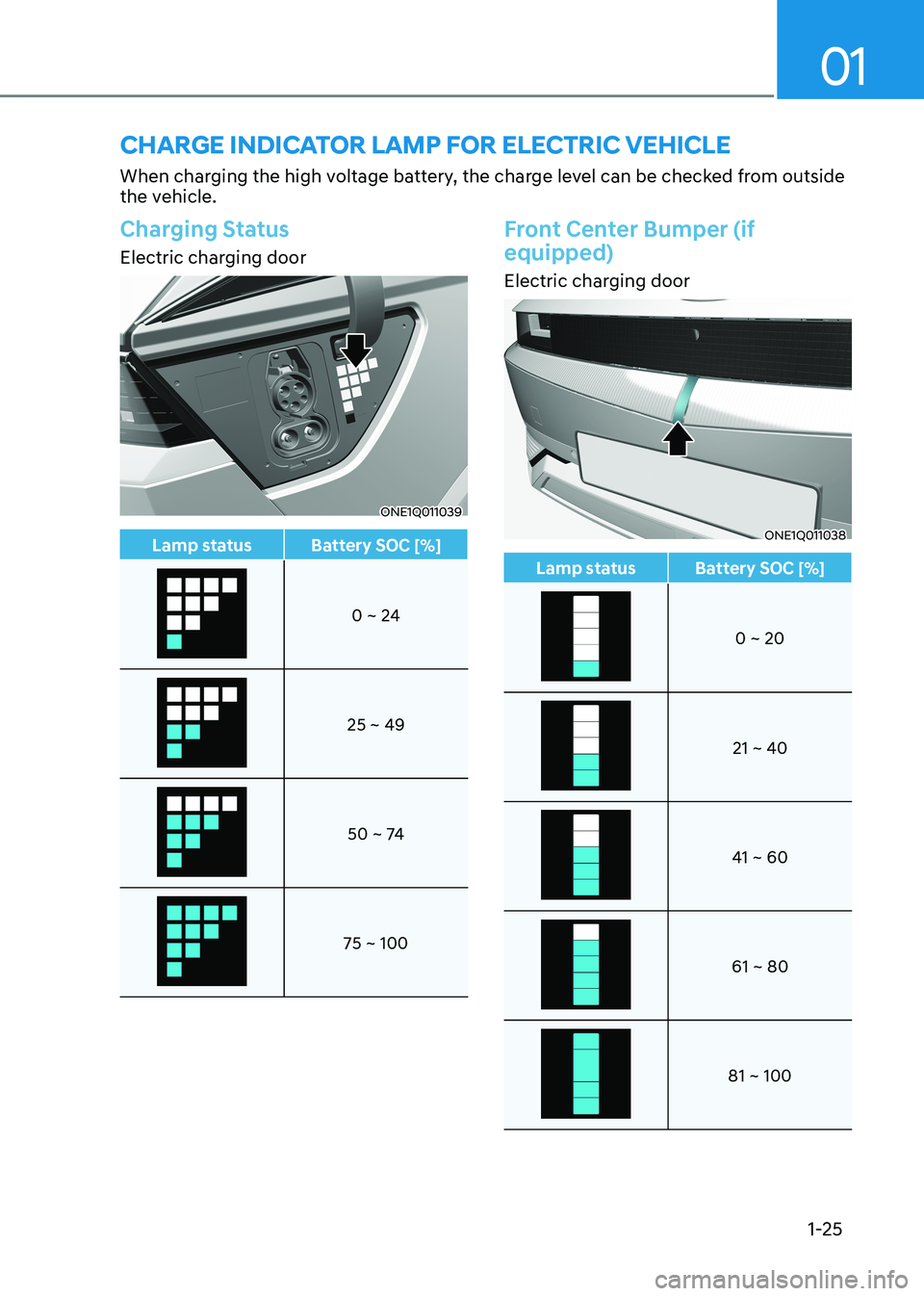

CHarge indiCator lamp For eleCtriC VeHiCle
When charging the high voltage battery, the charge level can be checked from outside
the vehicle.
Charging Status
Electric charging door
ONE1Q011039
Lamp status Battery SOC [%]
0 ~ 24
25 ~ 49
50 ~ 74
75 ~ 100
Front Center Bumper (if equipped)
Electric charging door
ONE1Q011038
Lamp status Battery SOC [%]
0 ~ 20
21 ~ 40
41 ~ 60
61 ~ 80
81 ~ 100

Foreword / Electric Vehicle System Overview
1-26
CHarging ConneCtor loCk
Locking Charging Cable
ONE1Q011092L
You may select when the charging
connector can be locked and unlocked in
the charging inlet.
Select ‘Settings → ECO Vehicle →
Charging Connector Locking Mode’ in
the infotainment. When the Charging Connector Is
Locked
Always
lock Lock
while
charging Do not
lock
Before
charging O X X
While
charging O O X
Finished
charging O X X
• ‘Always lock’ mode :
The connector locks when the
charging connector is plugged into
the charging inlet. The connector is
locked until all doors are unlocked by
the driver. This mode can be used to
prevent charging cable theft.
- If the charging connector is unlocked when all doors are
unlocked, but the charging cable
is not disconnected within 15 sec-
onds, the connector will be auto-
matically locked again.
- If the charging connector is unlocked when all doors are
unlocked, but all doors are locked
again, immediately, the connector
will be automatically locked again.
• ‘Lock while charging’ mode :
The connector locks when charg- ing
starts. The connector unlocks when
charging is complete. This mode can
be used when charging in a public
charging station.
• ‘Do not lock’ mode :
The connector unlocks regardless of
the state of charging.
Press the charging connector release
button, disconnect the connector.
Be careful to theft of the charging cable.

01
1-27
SCHeduled CHarging
Scheduled Charging (if equipped)
• You can set-up a charging
schedule for your vehicle using the
Infotainment system or Blue Link
application.
Refer to the Multimedia manual or
the Blue Link manual for detailed
information about setting scheduled
charging.
• Scheduled charging can only be
done when using a AC charger or
the portable charger (ICCB: In-Cable
Control Box).
ONE1Q011039
• When scheduled charging is set
and the AC charger or the portable
charger (ICCB: In-Cable Control
Box) is connected for charging, the
indicator lamp blinks from the first
level to the last for about 3 minutes
to indicate that scheduled charging
is set. •
When scheduled charging is set,
charging is not initiated immediately
when the AC charger or portable
charger (ICCB: In-Cable Control
Box) is connected. When immediate
charging is required, press the
charging door open button in the
smart key for 2 seconds or deactivate
the scheduled charge setting with
the infotainment system or Blue Link
application.
Refer to “AC Charge (Station) or Trickle
Charge” for details about connecting
the AC charger and the portable charger
(ICCB: In-Cable Control Box).
