Driver Assistance System7-12

[ Changing lanes
OADAS032SD[A] : Your vehicle,
[B] : Lane changing vehicle
When a vehicle moves into your lane
from an adjacent lane, it cannot
be detected by the sensor until it
is in the sensor's detection range.
Forward Collision-Avoidance Assist
may not immediately detect the
vehicle when the vehicle changes
lanes abruptly. In this case, you must
maintain a safe braking distance,
and if necessary, steer the vehicle
and depress the brake pedal to
reduce your driving speed in order to
maintain a safe distance.
OADAS033SD[A] : Your vehicle,
[B] : Lane changing vehicle,
[C] : Same lane vehicle
When a vehicle in front of you
merges out of the lane, Forward
Collision-Avoidance Assist may not
immediately detect the vehicle that
is now in front of you.
In this case, you must maintain a safe
braking distance, and if necessary,
steer the vehicle and depress the
brake pedal to reduce your driving
speed in order to maintain a safe
distance.

07
7-15
CAUTION
Take the following precautions to
maintain optimal performance of the
detecting sensor:

[Never disassemble the detecting
sensor or sensor assembly, or cause
any damage to it.

[ If the detecting sensors have been
replaced or repaired, have the
vehicle by an authorized HYUNDAI
dealer.

[ Never install any accessories or
stickers on the front windshield, or
tint the front windshield.

[ Exercise extreme caution to keep the
front view camera dry.

[ Never place any reflective objects
(for example, white paper, mirror)
over the dashboard.

[ Do not place objects near the
windshield or install structures, etc.
Operation of the air conditioning
unit may result in poor moisture
and defrosting, which may prevent
the driver assistance system from
operating.

[ Do not apply license plate frame or
objects, such as a bumper sticker,
film or a bumper guard, near the
front radar cover.

[ Always keep the front radar and
cover clean and free of dirt and
debris.
Use only a soft cloth to wash the
vehicle. Do not spray pressurized
water directly on the sensor or
sensor cover.
[
If the radar or around the radar has
been damaged or impacted in any
way, Forward Collision-Avoidance
Assist may not properly operate even
though a warning message does
not appear on the cluster. Have the
vehicle inspected by an authorized
HYUNDAI dealer.

[ Use only genuine parts to repair or
replace a damaged front radar cover.
Do not apply paint to the front radar
cover.

07
7-23
Forward Collision-Avoidance Assist
disabled
OCN7070032LOCN7070033L
When the front windshield where the
front view camera is located, front radar
cover or sensor is covered with foreign
material, such as snow or rain, it can
reduce the detecting performance and
temporarily limit or disable Forward
Collision-Avoidance Assist.
If this occurs the ‘Forward Safety system
GLVDEOHG&DPHUDREVFXUHG
TRUWKH
‘Forward Safety system disabled. Radar
EORFNHG
TZDUQLQJPHVVDJHDQGWKH

and warning lights will illuminate on
the cluster.
The function will operate properly when
when such snow, rain or foreign material
is removed.
If the function does not operate properly
after obstruction (snow, rain, or foreign
material) is removed, have the vehicle
inspected by an authorized HYUNDAI
dealer.
WARNING

[ Even though the warning message or
warning light does not appear on the
cluster, Forward Collision-Avoidance
Assist may not properly operate.

[ Forward Collision-Avoidance Assist
may not properly operate in an area
(for example, open terrain), where
any objects are not detected after
turning ON the engine.
Limitations of Forward Collision-
Avoidance Assist
Forward Collision-Avoidance Assist may
not operate properly, or the function
may operate unexpectedly under the
following circumstances:

[The detecting sensor or the
surroundings are contaminated or
damaged

[ The temperature around the frontview
camera is high or low due to
surrounding environment

[ The camera lens is contaminated due
to tinted, filmed or coated windshield,
damaged glass, or sticky foreign
material (sticker, bug, etc.) on the
glass

[ Moisture is not removed or frozen on
the windshield

[ Washer fluid is continuously sprayed,
or the wiper is on

[ Driving in heavy rain or snow, or thick
fog

[ The field of view of the front view
camera is obstructed by sun glare

[ Street light or light from an oncoming
traffic is reflected on the wet road
surface, such as a puddle on the road

[ An object is placed on the dashboard

Driver Assistance System7-26
WARNING

[ Driving on a curved road
OADAS014SD
OADAS016SDOADAS018SD
Forward Collision-Avoidance Assist
may not detect other vehicles,
pedestrians or cyclists in front of
you when driving on curved roads
adversely affecting the performance
of the sensors. This may result in
no warning or braking assist when
necessary.
When driving on a curved road,
you must maintain a safe braking
distance, and if necessary, steer the
vehicle and depress the brake pedal
to reduce your driving speed in order
to maintain a safe distance.
OADAS015SD
OADAS017SDOADAS019SD
Forward Collision-Avoidance Assist
may detect a vehicle, pedestrian or
cyclist in the next lane or outside the
lane when driving on a curved road.
If this occurs, the system may
unnecessarily warn the driver and
control the brake. Always check the
traffic conditions around the vehicle.

07
7-27

[Driving on an inclined road
OADAS012SD
OADAS010SDOADAS011SD
Forward Collision-Avoidance Assist
may not detect other vehicles,
pedestrians or cyclists in front of
you while driving uphill or downhill
adversely affecting the performance
of the sensors.
This may result in unnecessary
warning or braking assist, or no
warning or braking assist when
necessary.
Also, vehicle speed may rapidly
decrease when a vehicle, pedestrian
or cyclist ahead is suddenly
detected.
Always have your eyes on the road
while driving uphill or downhill and
if necessary, steer your vehicle and
depress the brake pedal to reduce
your driving speed in order to
maintain a safe distance.
[
Changing lanes
OADAS030SD[A] : Your vehicle,
[B] : Lane changing vehicle
When a vehicle moves into your lane
from an adjacent lane, it cannot
be detected by the sensor until it
is in the sensor's detection range.
Forward Collision-Avoidance Assist
may not immediately detect the
vehicle when the vehicle changes
lanes abruptly. In this case, you must
maintain a safe braking distance,
and if necessary, steer your vehicle
and depress the brake pedal to
reduce your driving speed in order to
maintain a safe distance.

Driver Assistance System7-30

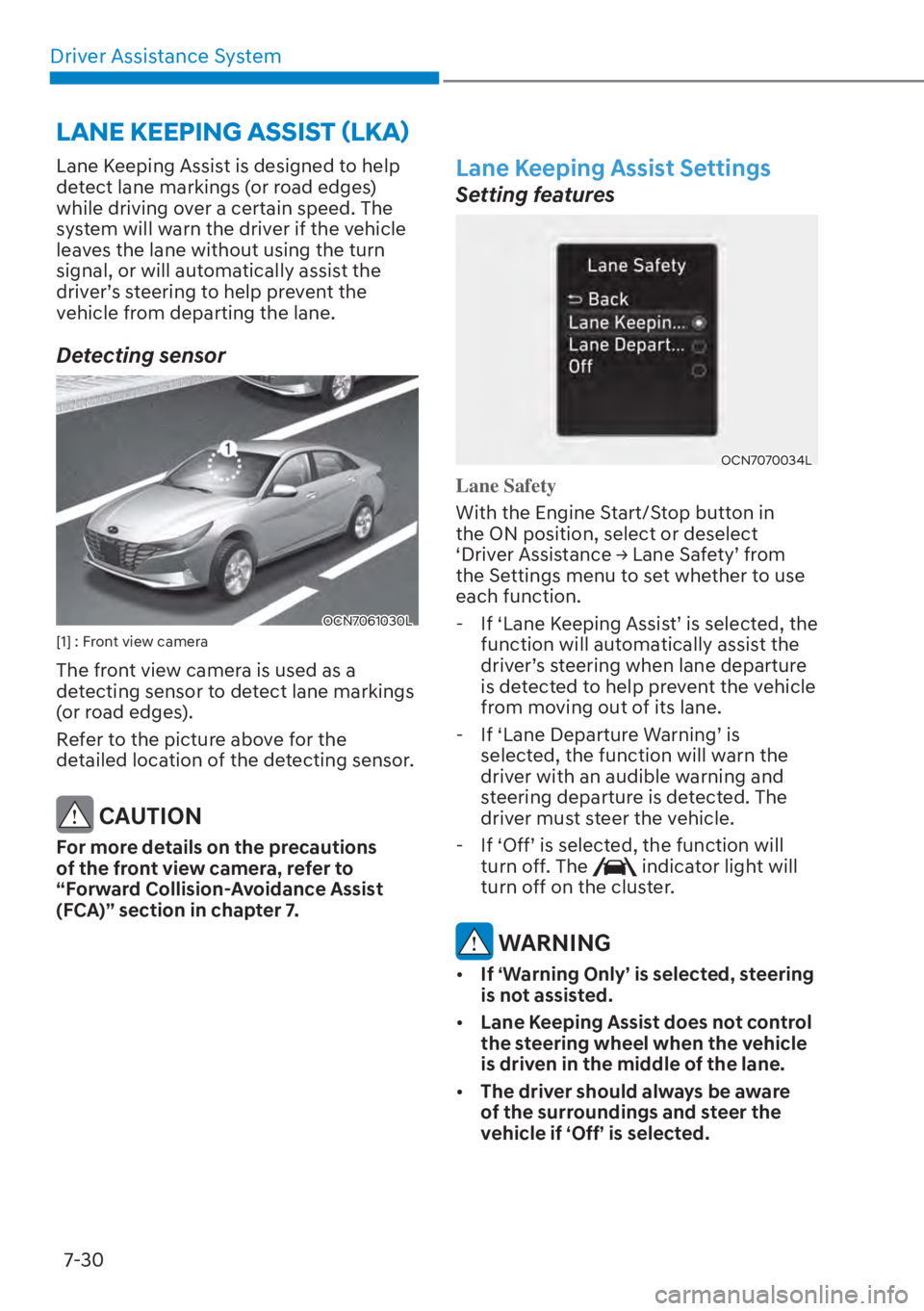

Lane Keeping Assist is designed to help
detect lane markings (or road edges)
while driving over a certain speed. The
system will warn the driver if the vehicle
leaves the lane without using the turn
signal, or will automatically assist the
GULYHU
TVVWHHULQJWRKHOSSUHYHQWWKH
vehicle from departing the lane.
Detecting sensor
OCN7061030L[1] : Front view camera
The front view camera is used as a
detecting sensor to detect lane markings
(or road edges).
Refer to the picture above for the
detailed location of the detecting sensor.
CAUTION
For more details on the precautions
of the front view camera, refer to
“Forward Collision-Avoidance Assist
(FCA)” section in chapter 7.
Lane Keeping Assist Settings
Setting features
OCN7070034L
Lane Safety
With the Engine Start/Stop button in
the ON position, select or deselect

S'ULY
HU$VVLVWDQFH

07
7-37
OCN7H070042N
When you are driving forward out of
a parking space, if the system detects
that there is a collision risk with an
approaching vehicle in the blind spot,
the function can help avoid a collision by
applying the brake.
Information
In the following text, Blind-Spot Collision-
Avoidance Assist will be referred as Blind-
Spot Safety system.
Detecting sensor
OCN7061030L
OCN7H071016C[1] : Front view camera,
[2] : Rear corner radar
Refer to the picture above for the
detailed location of the detecting
sensors.
CAUTION
Take the following precautions to
maintain optimal performance of the
detecting sensor:

[Never disassemble the rear corner
radar or radar assembly, or cause any
damage to it.

[ If the rear corner radar or near the
radar has been damaged or impacted
in any way, even though the warning
message does not appear on the
cluster, Blind-Spot Safety system
may not operate properly. Have the
vehicle inspected by an authorized
HYUNDAI dealer.

07
7-45
Blind-Spot Collision-Avoidance
Assist Malfunction and
Limitations
Blind-Spot Collision-
AvoidanceAssist malfunction
OTM070099N
When Blind-Spot Safety system is not
working properly, the ‘Check Blind-
6SRW6DIHW\V\VWHP
TZDUQLQJPHVVDJH
will appear on the cluster for several
seconds, and the master (
) warning
light will illuminate on the cluster. If this
occurs, have the vehicle inspected by an
authorized HYUNDAI dealer.
OTM070100N
When the side view mirror warning
light is not working properly, the ‘Check
VLGHYLHZPLUURUZDUQLQJOLJKW
TZDUQLQJ
message will appear on the cluster
for several seconds, and the master
(
) warning light will illuminate on the
cluster. If this occurs, have the vehicle
inspected by an authorized HYUNDAI
dealer.
Blind-Spot Collision-
AvoidanceAssist disabled
OTM070098N
When the rear bumper around the rear
corner radar or sensor is covered with
foreign material, such as snow or rain,
or installing a trailer or carrier, it can
reduce the detecting performance and
temporarily limit or disable Blind-Spot
Safety system.
If this occurs, the ‘Blind-Spot Safety
V\VWHPGLVDEOHG5DGDUEORFNHG
TZDUQLQJ
message will appear on the cluster.
The function will operate properly
when such foreign material or trailer,
etc., is removed, and then the engine is
restarted.
If the function does not operate properly
after it is removed, have the vehicle
inspected by an authorized HYUNDAI
dealer.
WARNING

[ Even though the warning message
does not appear on the cluster, Blind-
Spot Safety system may not properly
operate.

[ Blind-Spot Safety system may not
properly operate in an area (for
example, open terrain) where any
objects are not detected right after
the engine is turned on, or when
the detecting sensor is blocked
with foreign material right after the
engine is turned on.
