2023 HYUNDAI ELANTRA HYBRID light

Introduction........................................................................\
............................. 1-2
Hyundai Motor America ........................................................................\
......... 1-2
Guide to Hyundai Genuine Parts ...................................................................\
1-3
How to Use This Manual ........................................................................\
.........1-4
Safety Messages ........................................................................\
.....................1-4
Fuel Requirements ........................................................................\
..................1-5
Vehicle Modifications ........................................................................\
............. 1-7
Vehicle Break-In Process ........................................................................\
........ 1-7
Vehicle Data Collection and Event Data Recorders .................................... 1-8
HEV (Hybrid Electric Vehicle) System .......................................................... 1-9
Driving the Hybrid Vehicle ........................................................................\
... 1-10
Starting the Vehicle ........................................................................\
......................... 1-10
Special Features ........................................................................\
.............................. 1-10
Hybrid System Gauge ........................................................................\
......................1-12
Warning and Indicator Lights ........................................................................\
..........1-13
LCD Display Messages ........................................................................\
.................... 1-14
Energy Flow ........................................................................\
...................................... 1-17
Safety Precautions for Hybrid System .........................................................1-20Hybrid Vehicle Components ........................................................................\
..........1-20
Service Interlock Connector ........................................................................\
........... 1-22
Hybrid Battery Cooling Duct ........................................................................\
.......... 1-22
If an Accident Occurs ........................................................................\
...................... 1-23
When the Hybrid Vehicle Shuts Off ....................................................................... 1-24
1. Foreword / Hybrid System Overview
1

Foreword / Hybrid System Overview1-10
Starting the Vehicle
Vehicles with smart key system
1. Carry the smart key or leave it inside the vehicle.
2. Make sure the parking brake is firmly applied.
3. Make sure the shift lever is in P (Park). With the shift lever in N (Neutral), you
cannot start the vehicle.
4. Depress the brake pedal.
5. Press the Engine Start/Stop button. If the hybrid system starts, the “
”
indicator will come on.
Whether the engine is cold or warm, it
should be started without depressing
the accelerator.
After following the start procedures, “
” indicator on the instrument cluster
will turn on. For more details, please
check chapter 6.
ECONOMICAL and SAFE OPERATION
of Hybrid system

[ Drive smoothly. Accelerate at a
moderate rate and maintain a steady
cruising speed. Do not make “jack-
rabbit” starts. Do not race between
stoplights.

[ Avoid heavy traffic whenever possible.
Always maintain a safe distance
from other vehicles so you can
avoid unnecessary braking. This also
reduces brake wear.

[ The regenerative brake generates
energy when the vehicle decelerates.

[ When the hybrid battery power is
low, the hybrid system automatically
recharges the hybrid battery.

[ When the engine is running with the
shift lever in N (Neutral), the hybrid
system cannot generate electricity.
The hybrid battery cannot recharge
with the shift lever in N (Neutral).
Information
In the hybrid system, the engine
automatically runs and stops. When
the hybrid system operates, the “
”
indicator is illuminated.
In the following situation, the engine may
operate automatically.
- When the engine is ready to run
- When the hybrid battery is being
charged
- Depending on the temperature
condition of the hybrid battery
Special Features
Hybrid vehicles sound different than
gasoline engine vehicles. When the
hybrid system operates, you may hear
a sound from the hybrid battery system
behind the rear seat. If you apply the
accelerator pedal rapidly, you may hear
an unconventional sound. When you
apply the brake pedal, you may hear
a sound from the regenerative brake
system. When the hybrid system is
turned off or on, you may hear a sound
in the engine compartment. If you
depress the brake pedal repeatedly
when the hybrid system is turned on,
you may hear a sound in the engine
compartment. None of these sounds
indicate a problem. These are normal
characteristics of hybrid vehicles.
If any of following occur, it’s a normal
condition if you hear a motor sound in
the engine compartment:
- After turning off the hybrid system, the brake pedal is released.
- When the hybrid system is turned off, the brake pedal is applied.
- When the driver door is opened.
DRIVING THE HYBRID VEHICLE

01
1-13
Warning and Indicator Lights
Ready indicator
This indicator illuminates:
When the vehicle is ready to be driven. -
ON : Normal driving is possible.
- OFF : Normal driving is not possible, or a problem has occurred.
- Blinking : Emergency driving.
When the ready indicator goes OFF
or blinks, there is a problem with the
system. If this occurs, we recommend
that you have your vehicle inspected by
an authorized HYUNDAI dealer.
EV mode indicator
This indicator illuminates:
When the vehicle is driven by the electric
mo
tor.
Service warning light
This warning light illuminates:

[When y
ou set the ignition switch or
the Engine Start/Stop button to the
ON position.

- The service warning light illuminates
for approximately 3 seconds and
then turns off when all checks have
been performed.

[ When there is a problem with the
hybrid vehicle control system or
hardware.
When the warning light illuminates
while driving, or does not go OFF after
starting the vehicle, we recommend that
you have the vehicle inspected by an
authorized HYUNDAI dealer.
Regenerative brake warning
light
(yellow)
This warning light illuminates:
When the regenerative brake does not
oper
ate and the brake does not perform
well. This causes the Brake Warning
light (red) and Regenerative Brake
Warning Light (yellow) to illuminate
simultaneously.
If this occurs, drive safely and have
your vehicle inspected by an authorized
HYUNDAI dealer. The operation of the
brake pedal may be more difficult than
normal and the braking distance may
increase.

2-2
Vehicle Information
EXTERIOR OVERVIEW
„Front view
The actual shape may differ from the illustration.OCN7H010004
1. Hood ..................................................... 5-62
2. Headlight ............................................... 9-54
3. Tires and wheels ........................... 2-9/9-30
4. Side view mirror .................................... 5-52
5. Sunroof ................................................. 5-58
6. Front windshield wiper blades ............ 9-29
7. Windows ............................................... 5-54
8. Front radar ............................................. 7-14

2-4
Vehicle Information
The actual shape may differ from the illustration.OCN7H010003N
1. Inside door handle ................................ 5-33
2. Seat position memory system ............. 5-38
3. Side view mirror control switch ........... 5-53
4. Central door lock switch ...................... 5-33
5. Power window switches ...................... 5-54
6. Power window lock button ...................5-57
7. Steering wheel tilt/telescopic lever .... 5-42
8. Steering wheel ....................................... 5-41
9. Instrument panel illumination control
switch ...................................................... 4-5 10. 12V battery reset button ......................... 8-4
11. Lane Safety button ................................ 7-31
12. ESC OFF button .................................... 6-33
13. Fuel filler door release lever ................. 6-33
14. Trunk release lever ................................ 5-64
15. Hood release lever ................................ 5-62
16. Light control/ Turn signals .................... 5-72
17. Seat adjusting switch ............................. 3-3
18. Wiper/Washer switch ........................... 5-83
INTERIOR OVERVIEW

Vehicle Information2-8

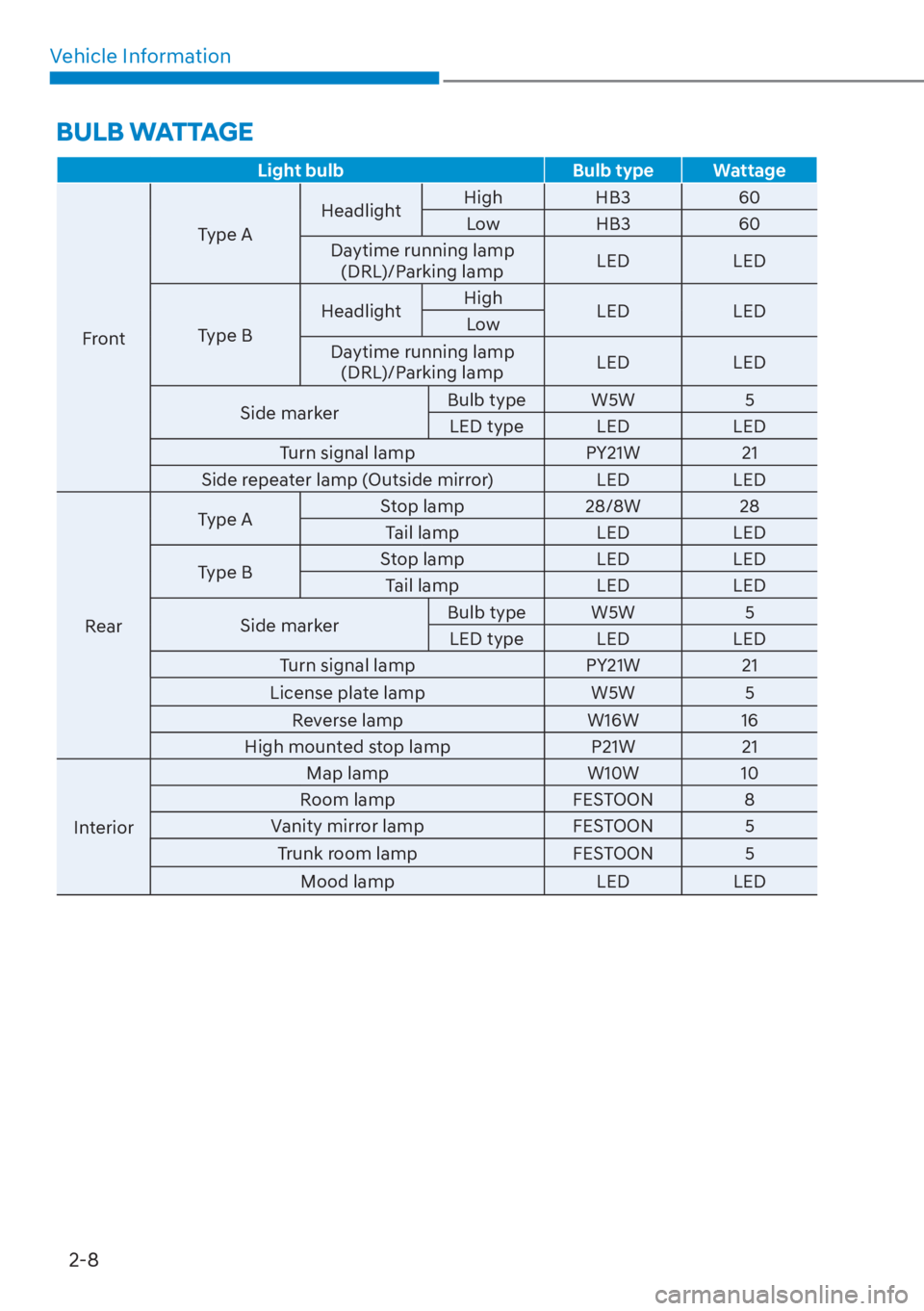

BULB WATTAGE
Light bulb Bulb type Wattage
Front T
ype A
Headlight
High HB3 60
Low HB3 60
Daytime running lamp (DRL)/Parking lamp LED LED
Type B Headlight
High
LED LED
Low
Daytime running lamp (DRL)/Parking lamp LED LED
Side marker Bulb type W5W 5
LED type LED LED
Turn signal lamp PY21W 21
Side repeater lamp (Outside mirror) LED LED
Rear Type A
Stop lamp 28/8W 28
Tail lamp LED LED
Type B Stop lamp
LEDLED
Tail lamp LEDLED
Side marker Bulb type W5W
5
LED type LED LED
Turn signal lamp PY21W21
License plate lamp W5W5
Reverse lamp W16W16
High mounted stop lamp P21W21
Interior Map lamp
W10W10
Room lamp FESTOON 8
Vanity mirror lamp FESTOON 5
Trunk room lamp FESTOON 5
Mood lamp LEDLED

3. Seats & Safety System
3
Important Safety Precautions ....................................................................... 3-2Always Wear Your Seat Belt ........................................................................\
............. 3-2
Restrain All Children ........................................................................\
......................... 3-2
Air Bag Hazards ........................................................................\
................................ 3-2
Driver Distraction ........................................................................\
............................. 3-2
Control Your Speed ........................................................................\
.......................... 3-2
Keep Your Vehicle in Safe Condition ....................................................................... 3-2
Seats .....................................................................\
.......................................... 3-3Safety Precautions ........................................................................\
........................... 3-4
Front Seats ........................................................................\
........................................ 3-5
Rear Seats ........................................................................\
........................................3-10
Head Restraints ........................................................................\
................................3-11
Seat Warmers ........................................................................\
.................................. 3-15
Air Ventilation Seat ........................................................................\
.......................... 3-17
Seat Belts ........................................................................\
...............................3-18Seat Belt Safety Precautions ........................................................................\
..........3-18
Seat Belt Warning Light ........................................................................\
..................3-19
Seat Belt Restraint System .....................................................................\
................3-19
Additional Seat Belt Safety Precautions ............................................................... 3-24
Care of Seat Belts ........................................................................\
........................... 3-26
Child Restraint System (CRS) ...................................................................... 3-27Children Always in the Rear ........................................................................\
............3-27
Selecting a Child Restraint System (CRS) ............................................................. 3-28
Installing a Child Restraint System (CRS) ............................................................. 3-29
Air Bag - Advanced Supplemental Restraint System ................................ 3-36Where Are the Air Bags? ........................................................................\
................ 3-38
How Does the Air Bag System Operate? ................................................................3-41
What to Expect After an Air Bag Inflates .............................................................. 3-44
Occupant Classification System (OCS) ................................................................. 3-45
Why Didn’t My Air Bag Go Off in a Collision? ........................................................ 3-51
SRS Care ........................................................................\
......................................... 3-55
Additional Safety Precautions ........................................................................\
....... 3-56
Air Bag Warning Labels ........................................................................\
.................. 3-56
This chapter provides you with important information about how to protect yourself and your
passengers. It explains how to properly use your seats and seat belts, and how your air bags work.
Additionally, this chapter explains how to properly restrain infants and children in your vehicle.

03
3-5
Front Seats
WARNING
Take the following precautions when
adjusting your seat:

[NEVER attempt to adjust the seat
while the vehicle is moving. The seat
could respond with unexpected
movement and may cause loss
of vehicle control resulting in an
accident.

[ Do not place anything under the
front seats. Loose objects in the
driver’s foot area could interfere
with the operation of the foot pedals,
causing an accident.

[ Do not allow anything to interfere
with the normal position and proper
locking of the seatback.

[ Do not place a cigarette lighter on
the floor or seat. When you operate
the seat, gas may exit out of the
lighter causing a fire.

[ Use extreme caution when picking
up small objects trapped under the
seats or between the seat and the
center console. Your hands might be
cut or injured by the sharp edges of
the seat mechanism.

[ If there are occupants in the rear
seats, be careful while adjusting the
front seat position.

[ Make sure that the seat is locked in
place after the adjustment. If not,
the seat might move unexpectedly
resulting in an accident.
CAUTION
To prevent injury:

[Do not adjust your seat while
wearing your seat belt. Moving the
seat cushion forward may cause
strong pressure on your abdomen.

[ Do not allow your hands or fingers to
get caught in the seat mechanisms
while the seat is moving.
Manual adjustment (if equipped)
The front seat can be adjusted by using
the levers located on the outside of
the seat cushion. Before driving, adjust
the seat to the proper position so that
you can easily control the steering
wheel, foot pedals and controls on the
instrument panel.
OCN7030002
Forward and rearward adjustment
To move the seat forward or rearward:
1.

Pull up the seat slide adjustment lever
and hold it.
2. Slide the seat to the position you desire.
3. Release the lever and make sure the seat is locked in place. Move forward
and rearward without using the lever.
If the seat moves, it is not locked
properly.
