2023 HYUNDAI ELANTRA HYBRID warning lights

Introduction........................................................................\
............................. 1-2
Hyundai Motor America ........................................................................\
......... 1-2
Guide to Hyundai Genuine Parts ...................................................................\
1-3
How to Use This Manual ........................................................................\
.........1-4
Safety Messages ........................................................................\
.....................1-4
Fuel Requirements ........................................................................\
..................1-5
Vehicle Modifications ........................................................................\
............. 1-7
Vehicle Break-In Process ........................................................................\
........ 1-7
Vehicle Data Collection and Event Data Recorders .................................... 1-8
HEV (Hybrid Electric Vehicle) System .......................................................... 1-9
Driving the Hybrid Vehicle ........................................................................\
... 1-10
Starting the Vehicle ........................................................................\
......................... 1-10
Special Features ........................................................................\
.............................. 1-10
Hybrid System Gauge ........................................................................\
......................1-12
Warning and Indicator Lights ........................................................................\
..........1-13
LCD Display Messages ........................................................................\
.................... 1-14
Energy Flow ........................................................................\
...................................... 1-17
Safety Precautions for Hybrid System .........................................................1-20Hybrid Vehicle Components ........................................................................\
..........1-20
Service Interlock Connector ........................................................................\
........... 1-22
Hybrid Battery Cooling Duct ........................................................................\
.......... 1-22
If an Accident Occurs ........................................................................\
...................... 1-23
When the Hybrid Vehicle Shuts Off ....................................................................... 1-24
1. Foreword / Hybrid System Overview
1

01
1-13
Warning and Indicator Lights
Ready indicator
This indicator illuminates:
When the vehicle is ready to be driven. -
ON : Normal driving is possible.
- OFF : Normal driving is not possible, or a problem has occurred.
- Blinking : Emergency driving.
When the ready indicator goes OFF
or blinks, there is a problem with the
system. If this occurs, we recommend
that you have your vehicle inspected by
an authorized HYUNDAI dealer.
EV mode indicator
This indicator illuminates:
When the vehicle is driven by the electric
mo
tor.
Service warning light
This warning light illuminates:

[When y
ou set the ignition switch or
the Engine Start/Stop button to the
ON position.

- The service warning light illuminates
for approximately 3 seconds and
then turns off when all checks have
been performed.

[ When there is a problem with the
hybrid vehicle control system or
hardware.
When the warning light illuminates
while driving, or does not go OFF after
starting the vehicle, we recommend that
you have the vehicle inspected by an
authorized HYUNDAI dealer.
Regenerative brake warning
light
(yellow)
This warning light illuminates:
When the regenerative brake does not
oper
ate and the brake does not perform
well. This causes the Brake Warning
light (red) and Regenerative Brake
Warning Light (yellow) to illuminate
simultaneously.
If this occurs, drive safely and have
your vehicle inspected by an authorized
HYUNDAI dealer. The operation of the
brake pedal may be more difficult than
normal and the braking distance may
increase.

4
Instrument Cluster ........................................................................\
................. 4-4Instrument Cluster Control ........................................................................\
.............. 4-5Adjusting instrument cluster illumination ............................................................ 4-5
Gauges and Meters ........................................................................\
.......................... 4-5 Speedometer .....................................................................\
.................................... 4-5
Power gauge ..............................................................\
........................................... 4-6
Hybrid battery SOC (State of Charge) gauge ...................................................... 4-6
Fuel gauge ........................................................................\
...................................... 4-7
Outside temperature gauge ........................................................................\
.......... 4-8
Odometer .....................................................................\
.......................................... 4-8
Range ..................................................................\
.................................................... 4-9
Transmission Shift Indicator ........................................................................\
............ 4-9 Dual clutch transmission shift indicator .............................................................. 4-9
Warning and Indicator Lights ........................................................................\
........ 4-10 Ready indicator ........................................................................\
............................ 4-10
EV mode indicator ........................................................................\
....................... 4-10
Service warning light ........................................................................\
................... 4-10
Air Bag Warning Light ........................................................................\
.................. 4-10
Seat Belt Warning Light ........................................................................\
................ 4-11
Parking Brake & Brake Fluid Warning Light ......................................................... 4-11
Regenerative brake warning light ........................................................................\
4-11

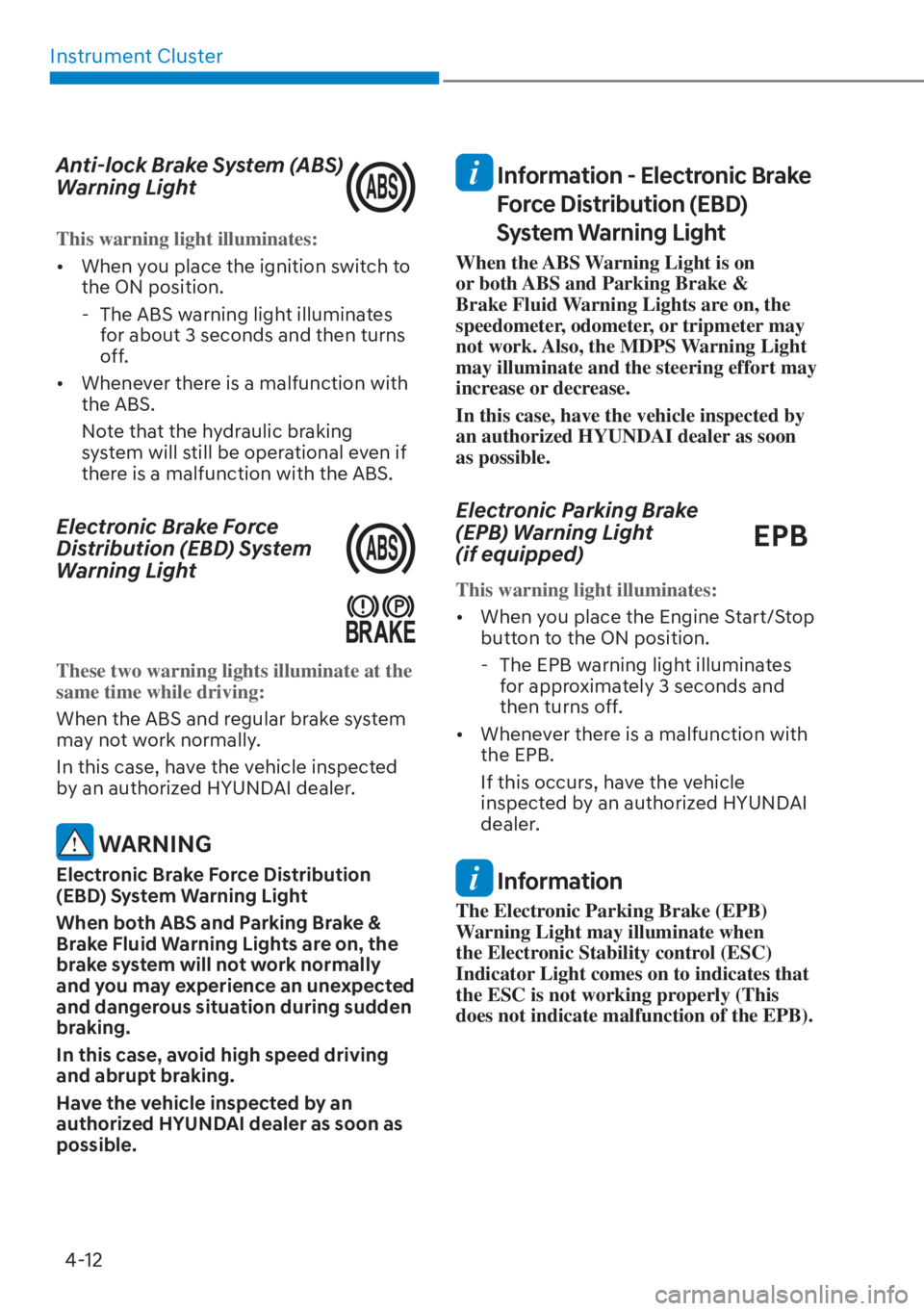

Anti-lock Brake System (ABS) Warning Light ...................................................... 4-12
Electronic Brake Force Distribution (EBD) System Warning Light .................... 4-12
Electronic Parking Brake (EPB) Warning Light .................................................... 4-12
AUTO HOLD Indicator Light ........................................................................\
......... 4-13
Motor Driven Power Steering (MDPS) Warning Light ........................................ 4-13
Malfunction Indicator Lamp (MIL) ....................................................................... 4-13
Charging System Warning Light ........................................................................\
..4-14
Engine Oil Pressure Warning Light ......................................................................4-14
Low Fuel Level Warning Light ........................................................................\
......4-14
Master Warning Light ........................................................................\
................... 4-15
Low Tire Pressure Warning Light ........................................................................\
. 4-15
Electronic Stability Control (ESC) Indicator Light .............................................. 4-15
Electronic Stability Control (ESC) OFF Indicator Light .......................................4-16
AUTO STOP indicator light ........................................................................\
...........4-16
Immobilizer Indicator Light ........................................................................\
..........4-16
Immobilizer Indicator Light (with smart key) ..................................................... 4-17
Turn Signal Indicator Light ........................................................................\
........... 4-17
Exterior Light Warning Light ........................................................................\
........ 4-17
LED headlight warning light ........................................................................\
.........4-18
High Beam Indicator Light ........................................................................\
...........4-18
Light ON Indicator Light ........................................................................\
...............4-18
4. Instrument Cluster

4
High Beam Assist indicator light ........................................................................\
..4-18
Forward Collision-Avoidance Assist Warning Light ............................................4-18
Lane Keep Assist Indicator Light................................................................\
..........4-19
Cruise Indicator Light ........................................................................\
...................4-19
SPORT Mode Indicator Light ........................................................................\
........4-19
SMART Mode Indicator Light ........................................................................\
.......4-19
Icy Road Warning Light ........................................................................\
................4-19
LCD Display Messages ........................................................................\
................... 4-20 Shift to P or N to start engine (for smart key system) ....................................... 4-20
Shift to P (for smart key system and dual clutch transmission)........................ 4-20
Low key battery (for smart key system).............................................................. 4-20
Press brake pedal to start engine (for smart key system and dual clutch
transmission) .....................................................................\
................................... 4-20
Key not in vehicle (for smart key system) ........................................................... 4-20
Key not detected (for smart key system)............................................................ 4-20
Press START button again (for smart key system) ............................................. 4-20
12V battery discharging due to additional electrical devices ........................... 4-21
Press START button with key (for smart key system) ......................................... 4-21
Check BRAKE SWITCH fuse (for smart key system and automatic
transmission/intelligent variable transmission).................................................. 4-21
Door, Hood, Trunk Open Indicator....................................................................... 4-21
Sunroof Open ........................................................................\
................................ 4-21
Low Pressure ........................................................................\
................................ 4-22
Lights Mode........................................................................\
.................................. 4-22
Wiper ..................................................................\
.................................................. 4-22
Heated Steering Wheel turned off ...................................................................... 4-22
Low washer fluid ........................................................................\
.......................... 4-22
Low fuel ........................................................................\
........................................ 4-23
Engine Overheated ........................................................................\
...................... 4-23
Check headlight ........................................................................\
........................... 4-23
Check headlight (Low) ........................................................................\
................. 4-23
Check turn signal ........................................................................\
......................... 4-23
Check brake light ........................................................................\
......................... 4-23
Check daytime running light ........................................................................\
....... 4-24
Check high mounted stop lamp ........................................................................\
. 4-24
Check headlight LED ........................................................................\
................... 4-24
Check Forward Collision-Avoidance Assist system ........................................... 4-24
Check Lane Keeping Assist system .................................................................... 4-24
Check Blind-Spot Collision Warning system...................................................... 4-24
Check Driver Attention Warning system ............................................................ 4-25
Check High Beam Assist system ........................................................................\
. 4-25
Check Smart Cruise Control system ................................................................... 4-25

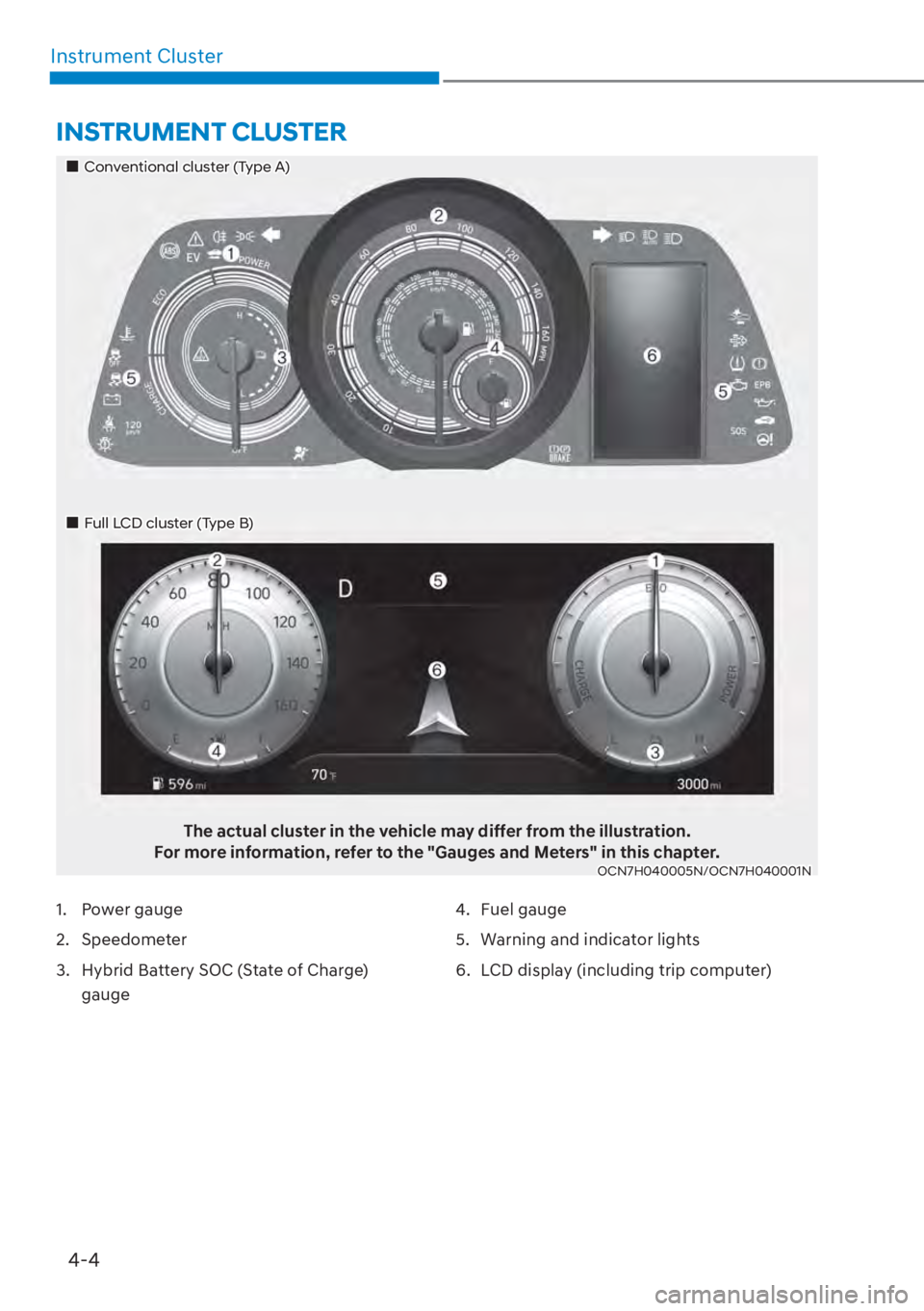

4-4
Instrument Cluster
The actual cluster in the vehicle may differ from the illustration.
For more information, refer to the "Gauges and Meters" in this chapter.
OCN7H040005N/OCN7H040001N
INSTRUMENT CLUSTER
1. Power gauge
2. Speedometer
3. Hybrid Battery SOC (State of Charge)
gauge 4. Fuel gauge
5. Warning and indicator lights
6. LCD display (including trip computer)
„Conventional cluster (Type A)

„Full LCD cluster (Type B)

04
4-5
Instrument Cluster Control
Adjusting instrument cluster
illumination
OCN7040081N
When the vehicle's parking lamps or
headlights are on, press the illumination
control button to adjust the brightness of
the instrument panel illumination.
When pressing the illumination control
button, the interior switch illumination
intensity is also adjustable.

[The brightness of the instrument
panel illumination is displayed.

[ If the brightness reaches the
maximum or minimum level, a chime
will sound.
WARNING
Never adjust the instrument cluster
while driving. Doing so could lead to
driver distraction which may cause an
accident and lead to vehicle damage,
serious injury, or death.
Gauges and Meters
Speedometer
OCN7H040009NOCN7040005N
„Type A „Type B
The speedometer indicates the speed of
the vehicle and is calibrated in miles per
hour (MPH) and/or kilometers per hour
(km/h).

Instrument Cluster4-10
Warning and Indicator Lights
Information
Make sure that all warning lights are OFF
after starting the engine. If any light is still
ON, this indicates a situation that needs
attention.
Ready indicator
This indicator illuminates:
When the vehicle is ready to be driven. -
ON : Normal driving is possible.
- OFF : Normal driving is not possible, or a problem has occurred.
- Blinking : Emergency driving.
When the ready indicator goes OFF
or blinks, there is a problem with the
system. If this occurs, we recommend
that you have the vehicle inspected by an
authorized HYUNDAI dealer.
EV mode indicator
This indicator illuminates:
When the vehicle is driven by the electric
mo
tor.
Service warning light
This warning light illuminates:

[When y
ou set the ignition switch or
the Engine Start/Stop button to the
ON position.

- The service warning light illuminates
for approximately 3 seconds and
then turns off when all checks have
been performed.

[ When there is a problem with the
hybrid vehicle control system or
hardware.
When the warning light illuminates
while driving, or does not go OFF after
starting the vehicle, we recommend that
you have the vehicle inspected by an
authorized HYUNDAI dealer.
Air Bag Warning Light
This warning light illuminates:

[ When y
ou place the ignition switch to
the ON position.
- The air bag warning light illuminates for about 6 seconds and then turns
off when all checks have been
performed

[ The air bag warning light will remain
illuminated if there is a malfunction
with the Safety Restraint System (SRS)
air bag operation.
In this case, have the vehicle
inspected by an authorized HYUNDAI
dealer.

Instrument Cluster4-12
Anti-lock Brake System (ABS)
Warning Light
This warning light illuminates:

[ When y
ou place the ignition switch to
the ON position.
- The ABS warning light illuminates for about 3 seconds and then turns
off.

[ Whenever there is a malfunction with
the ABS.
Note that the hydraulic braking
system will still be operational even if
there is a malfunction with the ABS.
Electronic Brake Force
Distribution (EBD) System
Warning Light
These two warning lights illuminate at the
same time while driving:
When the ABS and regular brake system
ma

y not work normally.
In this case, have the vehicle inspected
by an authorized HYUNDAI dealer.
WARNING
Electronic Brake Force Distribution
(EBD) System Warning Light
When both ABS and Parking Brake &
Brake Fluid Warning Lights are on, the
brake system will not work normally
and you may experience an unexpected
and dangerous situation during sudden
braking.
In this case, avoid high speed driving
and abrupt braking.
Have the vehicle inspected by an
authorized HYUNDAI dealer as soon as
possible.
Information - Electronic Brake Force Distribution (EBD)
System Warning Light
When the ABS Warning Light is on
or both ABS and Parking Brake &
Brake Fluid Warning Lights are on, the
speedometer, odometer, or tripmeter may
not work. Also, the MDPS Warning Light
may illuminate and the steering effort may
increase or decrease.
In this case, have the vehicle inspected by
an authorized HYUNDAI dealer as soon
as possible.
Electronic Parking Brake
(EPB) Warning Light
(if equipped)
EPB
This warning light illuminates:

[ When y
ou place the Engine Start/Stop
button to the ON position.
- The EPB warning light illuminates for approximately 3 seconds and
then turns off.

[ Whenever there is a malfunction with
the EPB.
If this occurs, have the vehicle
inspected by an authorized HYUNDAI
dealer.
Information
The Electronic Parking Brake (EPB)
Warning Light may illuminate when
the Electronic Stability control (ESC)
Indicator Light comes on to indicates that
the ESC is not working properly (This
does not indicate malfunction of the EPB).
