2023 HYUNDAI ELANTRA HYBRID sensor

3-52
Seats & Safety System

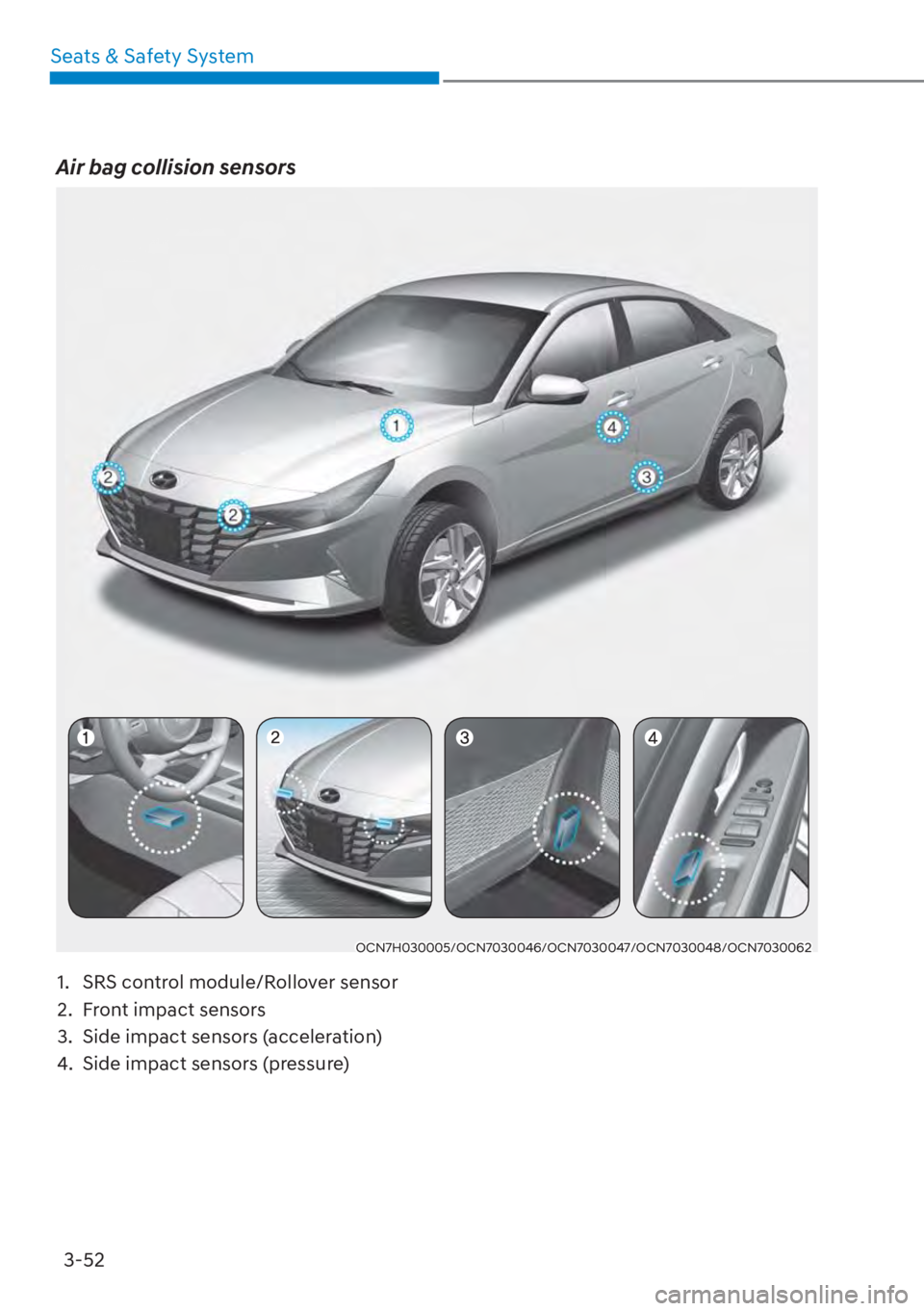

Air bag collision sensors
OCN7H030005/OCN7030046/OCN7030047/OCN7030048/OCN7030062
1. SRS control module/Rollover sensor
2. Front impact sensors
3. Side impact sensors (acceleration)
4. Side impact sensors (pressure)

03
3-53

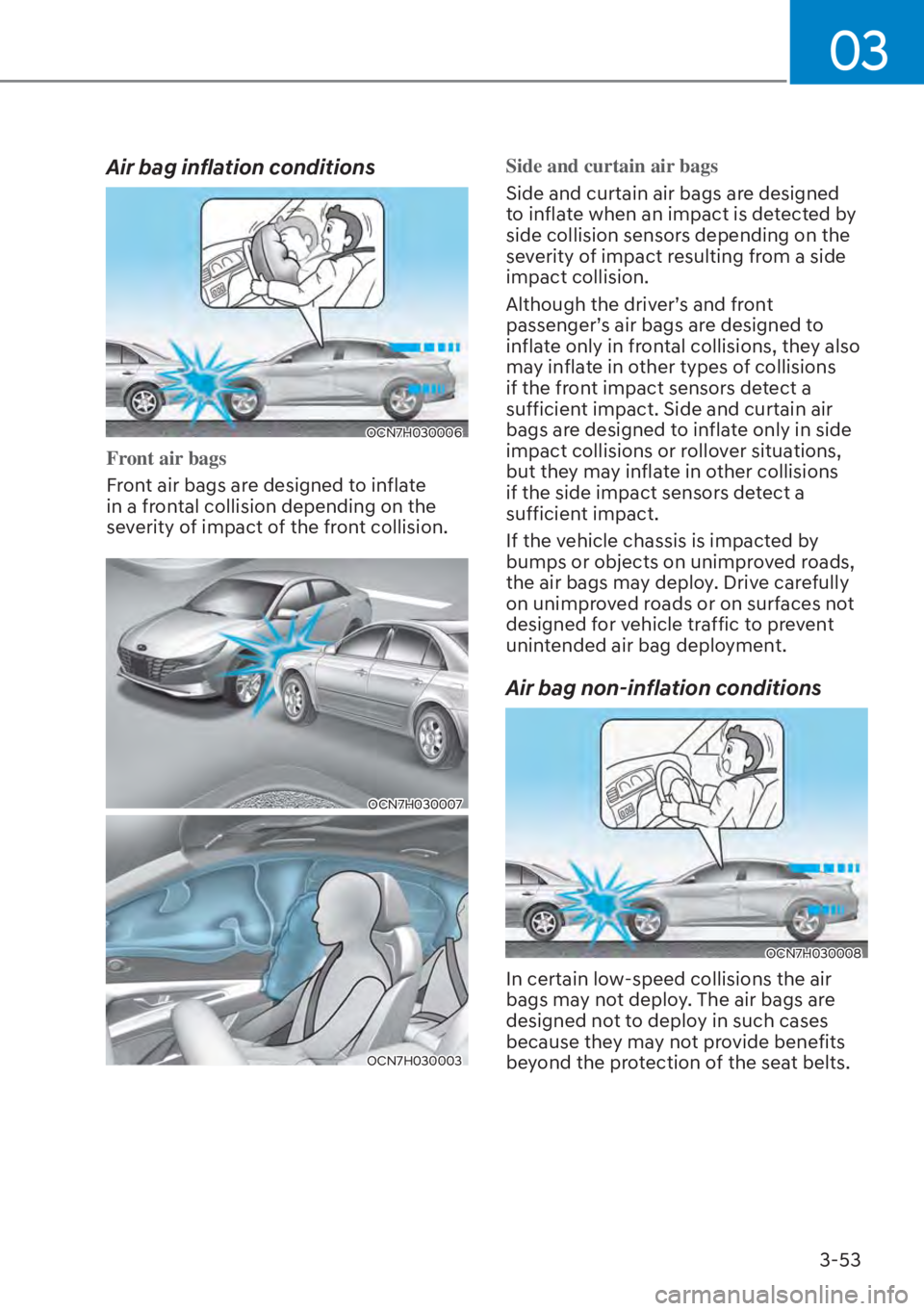

Air bag inflation conditions
OCN7H030006
Front air bags
Front air bags are designed to inflate
in a fr
ontal collision depending on the
severity of impact of the front collision.
OCN7H030007
OCN7H030003
Side and curtain air bags
Side and curtain air bags are designed
t
o inflate when an impact is detected by
side collision sensors depending on the
severity of impact resulting from a side
impact collision.
Although the driver’s and front
passenger’s air bags are designed to
inflate only in frontal collisions, they also
may inflate in other types of collisions
if the front impact sensors detect a
sufficient impact. Side and curtain air
bags are designed to inflate only in side
impact collisions or rollover situations,
but they may inflate in other collisions
if the side impact sensors detect a
sufficient impact.
If the vehicle chassis is impacted by
bumps or objects on unimproved roads,
the air bags may deploy. Drive carefully
on unimproved roads or on surfaces not
designed for vehicle traffic to prevent
unintended air bag deployment.
Air bag non-inflation conditions
OCN7H030008
In certain low-speed collisions the air
bags may not deploy. The air bags are
designed not to deploy in such cases
because they may not provide benefits
beyond the protection of the seat belts.

Seats & Safety System3-54
OCN7H030009
Front air bags are not designed to inflate
in rear collisions, because occupants
are moved backward by the force of the
impact. In this case, inflated air bags
would not provide any additional benefit.
OCN7H030010
Front air bags may not inflate in side
impact collisions, because occupants
move in the direction of the collision,
and thus in side impacts, front air bag
deployment would not provide additional
occupant protection.
However, side and curtain air bags may
inflate depending on the severity of
impact.
OCN7030053
In an angled collision, the force of impact
may direct the occupants in a direction
where the air bags would not be able to
provide any additional benefit, and thus
the sensors may not deploy any air bags.
OCN7H030011
Just before impact, drivers often brake
heavily. Such heavy braking lowers the
front portion of the vehicle causing it
to “ride” under a vehicle with a higher
ground clearance. Air bags may not
inflate in this “underride” situation
because deceleration forces that are
detected by sensors may be significantly
reduced by such “underride” collisions.

04
4-19
Lane Keep Assist Indicator
Light (if equipped)
This indicator light illuminates:

[[Gr
een] When you activate the lane
departure warning system by pressing
the Lane Safety button and all of
the system operating conditions are
satisfied.

[ [White] When function operating
conditions are not satisfied or when
the sensor does not detect the lane
line.

[ [Yellow] When there is a malfunction
with Lane Keeping Assist system.
In this case, have your vehicle inspected
by an authorized HYUNDAI dealer.
For more information, refer to "Lane
Keeping Assist (LKA)" in chapter 6.
Cruise Indicator Light
This indicator light illuminates:

[ When the cruise con
trol system is
enabled.
For more details, refer to “Cruise
Control System” in chapter 6.
SPORT Mode Indicator Light
(if equipped)
This indicator light illuminates:

[ When y
ou select “SPORT” mode as
drive mode.
For more details, refer to “Drive Mode
Integrated Control System” in chapter
6.
SMART Mode Indicator Light
(if equipped)00360030002400350037
This indicator light illuminates:

[ When y
ou select ‘’SMART” mode as
drive mode.
For more details, refer to “Drive Mode
Integrated Control System’’ in chapter
6.
Icy Road Warning Light (if
equipped)
This indicator light illuminates:
This warning light is to warn the driver
the r
oad may be icy.
When the temperature on the outside
temperature gauge is approximately
below 40°F (4°C), the Icy Road Warning
Light and Outside Temperature Gauge
blinks and then illuminates. Also, the
warning chime sounds 1 time.
The Icy Road Warning function can be
activated or deactivated from the User
Settings mode in the cluster LCD display.
Information
If the icy road warning light appears while
driving, you should drive more attentively
and safely, refraining from over-speeding,
rapid acceleration, sudden braking or
sharp turning, etc.

5
Hood ....................................................................\
......................................... 5-62
Trunk ...................................................................\
..........................................5-64
Emergency Trunk Safety Release ........................................................................\
.. 5-65
Smart Trunk Release ................................................................\
.............................5-66
Fuel Filler Door ........................................................................\
.....................5-69
Exterior Lights ........................................................................\
...................... 5-72
Lighting Control......................................................................\
.................................5-72
High Beam Operation ........................................................................\
.....................5-73
Turn Signals and Lane Change Signals ..................................................................5-74
Battery Saver Function ................................................................\
...........................5-75
Headlight Delay Function ........................................................................\
...............5-75
High Beam Assist (HBA) ........................................................................\
..... 5-76Detecting Sensor (Front view camera) ................................................................. 5-76
Function Settings ........................................................................\
........................... 5-76
Function Operation ........................................................................\
......................... 5-77
High Beam Assist Malfunction and Limitations .................................................... 5-77
Interior Lights ........................................................................\
....................... 5-79Interior Lamp AUTO Cut........................................................................\
................. 5-79
Front Lamps ........................................................................\
.................................... 5-79
Mood lamp ........................................................................\
......................................5-80
Room Lamp ........................................................................\
....................................5-80
Luggage Compartment Lamp ........................................................................\
........5-81
Vanity Mirror Lamp ........................................................................\
..........................5-81
Welcome System ........................................................................\
............................ 5-82
Wipers and Washers ........................................................................\
............ 5-83Windshield Wipers ........................................................................\
......................... 5-83
Windshield Washers ........................................................................\
....................... 5-84
Automatic Climate Control System ............................................................ 5-85Automatic Heating and Air Conditioning .............................................................5-86
Manual Heating and Air Conditioning .................................................................. 5-87
System Operation ........................................................................\
........................... 5-93
System Maintenance ........................................................................\
..................... 5-95
Windshield defrosting and defogging ........................................................ 5-97Automatic Climate Control System......................................................................\
. 5-97
Defogging Logic ........................................................................\
............................5-98
Auto Defogging System ........................................................................\
................. 5-99
Defroster .....................................................................\
.......................................... 5-100

Convenience Features5-8
Locking your vehicle
(Touch sensor type) (if equipped)
OCN7050092N
1. Close all doors, engine hood and trunk.
2. Carry the smart key.
3. Either touch the touch sensor on the door handle (the engraved part) or
press the Door Lock button (1) on the
smart key.
4. The hazard warning lights will blink.
5. Make sure the doors are locked by pulling the door outside handle.
Information

[The door handle button will only
operate when the smart key is within
28~40 inches (0.7~1 m) from the outside
door handle.

[ If you locked the door with the touch
sensor on the door handle, the doors
cannot be unlocked with the sensor
within 3 seconds.
Information
Even though you press the outside door
handle button or touch the touch sensor,
the doors will not be locked and the chime
will sound for 3 seconds if any of the
following occurs:

[The Smart Key is in the vehicle

[ The Engine Start/Stop button is in ACC
or ON position.

[ Any door except the trunk is opened.
CAUTION
When you leave your vehicle with
the smart key, make sure to press the
button on the front door handle or
touch the touch sensor on the front
door handle to lock the doors after
closing all of the doors, the hood and
the trunk. If you do not press the button
or touch the touch sensor firmly, the
doors might not be locked so please use
caution.
WARNING
Do not leave the Smart Key in your
vehicle with unsupervised children.
Unattended children could press the
Engine Start/ Stop button and may
operate power windows or other
controls, or even make the vehicle
move, which could result in serious
injury or death.

05
5-9

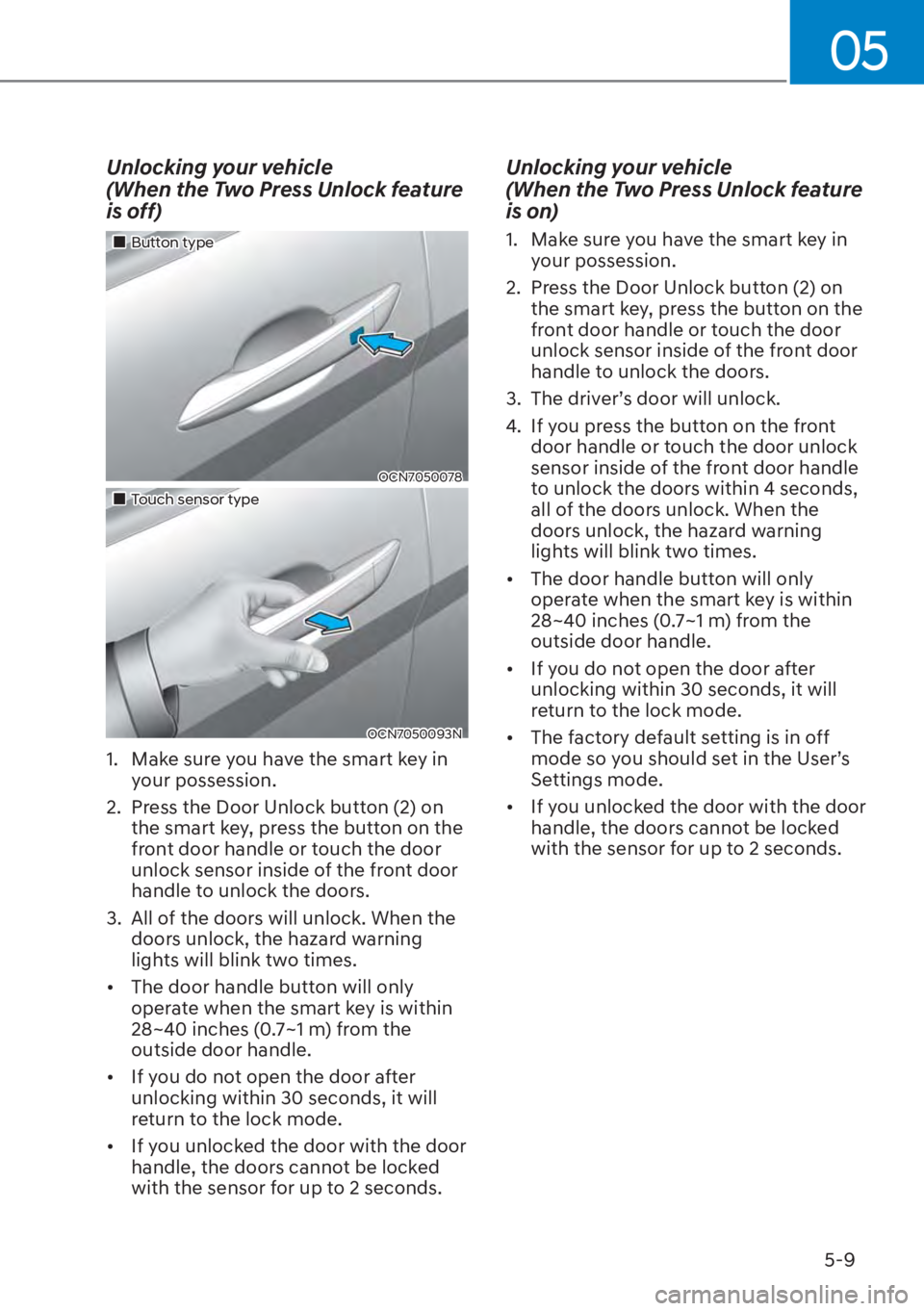

Unlocking your vehicle
(When the Two Press Unlock feature
is off)
„Button type
OCN7050078
„Touch sensor type
OCN7050093N
1. Make sure you have the smart key in your possession.
2. Press the Door Unlock button (2) on the smart key, press the button on the
front door handle or touch the door
unlock sensor inside of the front door
handle to unlock the doors.
3. All of the doors will unlock. When the doors unlock, the hazard warning
lights will blink two times.

[ The door handle button will only
operate when the smart key is within
28~40 inches (0.7~1 m) from the
outside door handle.

[ If you do not open the door after
unlocking within 30 seconds, it will
return to the lock mode.

[ If you unlocked the door with the door
handle, the doors cannot be locked
with the sensor for up to 2 seconds.
Unlocking your vehicle
(When the Two Press Unlock feature
is on)
1. Make sure you have the smart key in
your possession.
2. Press the Door Unlock button (2) on the smart key, press the button on the
front door handle or touch the door
unlock sensor inside of the front door
handle to unlock the doors.
3. The driver’s door will unlock.
4. If you press the button on the front door handle or touch the door unlock
sensor inside of the front door handle
to unlock the doors within 4 seconds,
all of the doors unlock. When the
doors unlock, the hazard warning
lights will blink two times.

[ The door handle button will only
operate when the smart key is within
28~40 inches (0.7~1 m) from the
outside door handle.

[ If you do not open the door after
unlocking within 30 seconds, it will
return to the lock mode.

[ The factory default setting is in off
mode so you should set in the User’s
Settings mode.

[ If you unlocked the door with the door
handle, the doors cannot be locked
with the sensor for up to 2 seconds.

05
5-45
Electrochromic mirror (ECM) with
HomeLink® system (if equipped)
OCN7050084N
Your vehicle may be equipped with
a Gentex Automatic-Dimming Mirror
with an Integrated HomeLink® Wireless
Control System.
During nighttime driving, this feature will
automatically detect and help reduce
rearview mirror glare. The HomeLink®
Universal Transceiver allows you to
activate your garage door(s), electric
gate, home lighting, etc.
(1) HomeLink Channel 1
(2) HomeLink Channel 2
(3) HomeLink Channel 3
(4) Garage Door Opener Status Indicator : Closing or Closed
(5) HomeLink Operation Indicator
(6) Garage Door Opener Status Indicator : Opening or Opened
(7) HomeLink User Interface Indicator Automatic-Dimming Night Vision Safety™
(NVS
®) Mirror (if equipped)
The NVS® Mirror automatically helps
r
educe glare by monitoring light levels in
the front and the rear of the vehicle. Any
object that obstructs either light sensor
will degrade the automatic dimming
control feature.
For more information regarding NVS®
mirrors and other applications, please
refer to the Gentex website:
www.gentex.com
Your mirror will automatically dim
upon detecting glare from the vehicles
traveling behind you.
The mirror defaults to the ON position
each time the vehicle is started.
Integrated HomeLink
® Wireless Control
System
The HomeLink® Wireless Control System
can r
eplace up to three hand-held
radio-frequency (RF) transmitters with
a single built-in device. This innovative
feature will learn the radio frequency
codes of most current transmitters to
operate devices such as gate operators,
garage door openers, entry door locks,
security systems, even home lighting.
Both standard and rolling code-equipped
transmitters can be programed by
following the outlined procedures.
Additional HomeLink® information can
be found at: www.homelink.com, www.
youtube.com/HomeLinkGentex or by
calling 1-800-355-3515.
Retain the original transmitter of the
RF device you are programing for use
in other vehicles as well as for future
HomeLink® programing. It is also
suggested that upon the sale of the
vehicle, the programed HomeLink®
buttons be erased for security purposes.
