2023 CADILLAC CT4 Owners Manual

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-16500442) -
2023 - CRC - 5/4/22
56 Seats and Restraints
To unlatch the belt, push the
button on the buckle. The belt
should return to its stowed
position.
Slide the adjustable stop along
the webbing toward the guide
loop when the seat belt is not
in use to prevent the latch
plate from rattling against the
interior trim.
Always stow the seat belt
slowly. If the seat belt webbing
returns quickly to the stowed
position, the retractor may
lock and cannot be pulled out.
If this happens, pull the seat
belt straight out firmly tounlock the webbing, and then
release it. If the webbing is still
locked in the retractor, see
your dealer.
Before a door is closed, be
sure the seat belt is out of the
way. If a door is slammed
against a seat belt, damage
can occur to both the seat
belt and the vehicle.
Seat Belt Pretensioners
This vehicle has seat belt
pretensioners for the front
outboard occupants. Although
the seat belt pretensioners
cannot be seen, they are part
of the seat belt assembly.
They can help tighten the seat
belts during the early stages
of a moderate to severe
frontal, near frontal, or rear
crash if the threshold
conditions for pretensioner
activation are met. Seat belt
pretensioners can also help
tighten the seat belts in a side
crash or a rollover event.
Pretensioners work only once.
If the pretensioners activate in
a crash, the pretensioners and
probably other parts of the
vehicle's seat belt system will
need to be replaced. See
Replacing Seat Belt System
Parts after a Crash
058.
Do not sit on the outboard
seat belt while entering or
exiting the vehicle or at any
time while sitting in the seat.
Sitting on the seat belt can
damage the webbing and
hardware.
Rear Seat Belt Comfort
Guides
Rear seat belt comfort guides
may provide added seat belt
comfort for older children who
have outgrown booster seats
and for some adults. When
installed on a shoulder belt,
the comfort guide positions
the shoulder belt away from
the neck and head.

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-16500442) -
2023 - CRC - 5/4/22
Seats and Restraints 57
Comfort guides are available
through your dealer for the
rear outboard seating
positions. Instructions are
included with the guides.
Seat Belt Use During
Pregnancy
Seat belts work for everyone,
including pregnant women.
Like all occupants, they are
more likely to be seriously
injured if they do not wear
seat belts.
A pregnant woman should
wear a lap-shoulder belt, and
the lap portion should be worn
as low as possible, below the
rounding, throughout the
pregnancy.
The best way to protect the
fetus is to protect the mother.
When a seat belt is worn
properly, it is more likely that
the fetus will not be hurt in a
crash. For pregnant women, as
for anyone, the key to making
seat belts effective is wearing
them properly.
Seat Belt Extender
If the vehicle's seat belt will
fasten around you, you should
use it.
But if a seat belt is not long
enough, your dealer will order
you an extender. Only a GM
dealer issued extender should
be used. When you go in to
order it, take the heaviest coat
you will wear, so the extender
will be long enough for you. To
help avoid personal injury, donot let someone else use it,
and use it only for the seat it is
made to fit. The extender has
been designed for adults.
Never use it for securing child
restraints. For more
information on the proper use
and fit of seat belt extenders
see the instruction sheet that
comes with the extender.
Safety System Check
Periodically check the seat
belt reminder, seat belts,
buckles, latch plates,
retractors, shoulder belt
height adjusters (if equipped),
and seat belt anchorages to
make sure they are all in
working order. Look for any
other loose or damaged seat
belt system parts that might
keep a seat belt system from
performing properly. See your
dealer to have it repaired.
Torn, frayed, or twisted seat
belts may not protect you in a
crash. Torn or frayed seat
belts can rip apart under
impact forces. If a belt is torn

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-16500442) -
2023 - CRC - 5/4/22

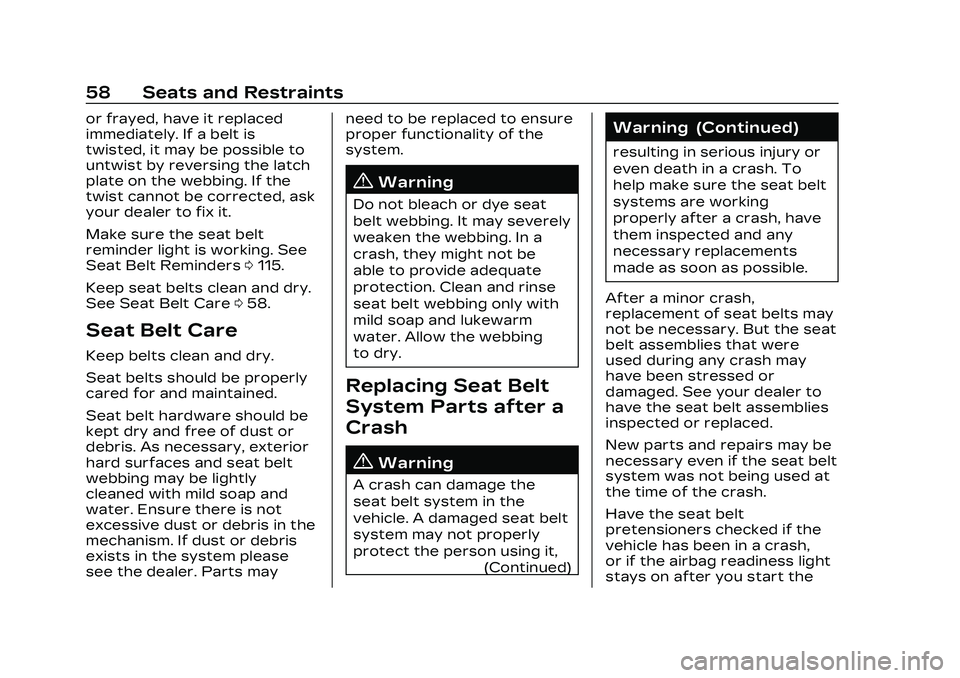

58 Seats and Restraints
or frayed, have it replaced
immediately. If a belt is
twisted, it may be possible to
untwist by reversing the latch
plate on the webbing. If the
twist cannot be corrected, ask
your dealer to fix it.
Make sure the seat belt
reminder light is working. See
Seat Belt Reminders0115.
Keep seat belts clean and dry.
See Seat Belt Care 058.
Seat Belt Care
Keep belts clean and dry.
Seat belts should be properly
cared for and maintained.
Seat belt hardware should be
kept dry and free of dust or
debris. As necessary, exterior
hard surfaces and seat belt
webbing may be lightly
cleaned with mild soap and
water. Ensure there is not
excessive dust or debris in the
mechanism. If dust or debris
exists in the system please
see the dealer. Parts may need to be replaced to ensure
proper functionality of the
system.
{Warning
Do not bleach or dye seat
belt webbing. It may severely
weaken the webbing. In a
crash, they might not be
able to provide adequate
protection. Clean and rinse
seat belt webbing only with
mild soap and lukewarm
water. Allow the webbing
to dry.
Replacing Seat Belt
System Parts after a
Crash
{Warning
A crash can damage the
seat belt system in the
vehicle. A damaged seat belt
system may not properly
protect the person using it,
(Continued)
Warning (Continued)
resulting in serious injury or
even death in a crash. To
help make sure the seat belt
systems are working
properly after a crash, have
them inspected and any
necessary replacements
made as soon as possible.
After a minor crash,
replacement of seat belts may
not be necessary. But the seat
belt assemblies that were
used during any crash may
have been stressed or
damaged. See your dealer to
have the seat belt assemblies
inspected or replaced.
New parts and repairs may be
necessary even if the seat belt
system was not being used at
the time of the crash.
Have the seat belt
pretensioners checked if the
vehicle has been in a crash,
or if the airbag readiness light
stays on after you start the

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-16500442) -
2023 - CRC - 5/4/22
Seats and Restraints 59
vehicle or while you are
driving. See Airbag Readiness
Light0116.
Airbag System
The vehicle has the following
airbags:
.A frontal airbag for the
driver
.A frontal airbag for the front
outboard passenger
.A knee airbag for the driver.
.A knee airbag for the front
outboard passenger.
.A seat-mounted side impact
airbag for the driver
.A seat-mounted side impact
airbag for the front outboard
passenger
.A roof-rail airbag for the
driver and the passenger
seated directly behind the
driver
.A roof-rail airbag for the
front outboard passenger
and the passenger seated
directly behind the front
outboard passenger All vehicle airbags have the
word AIRBAG on the trim or
on a label near the deployment
opening.
For frontal airbags, the word
AIRBAG is on the center of the
steering wheel for the driver
and on the instrument panel
for the front outboard
passenger.
For knee airbags, the word
AIRBAG is on the lower part of
the instrument panel.
For seat-mounted side impact
airbags, the word AIRBAG is
on the side of the seatback or
side of the seat closest to
the door.
For roof-rail airbags, the word
AIRBAG is on the ceiling
or trim.
Airbags are designed to
supplement the protection
provided by seat belts. Even
though today's airbags are
also designed to help reduce
the risk of injury from the
force of an inflating bag, all
airbags must inflate very
quickly to do their job.
Here are the most important
things to know about the
airbag system:
{Warning
You can be severely injured
or killed in a crash if you are
not wearing your seat belt,
even with airbags. Airbags
are designed to work with
seat belts, not replace them.
Also, airbags are not
designed to inflate in every
crash. In some crashes seat
belts are the only restraint.
See When Should an Airbag
Inflate?
062.
Wearing your seat belt
during a crash helps reduce
your chance of hitting things
inside the vehicle or being
ejected from it. Airbags are
“supplemental restraints” to
the seat belts. Everyone in
(Continued)

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-16500442) -
2023 - CRC - 5/4/22
60 Seats and Restraints
Warning (Continued)
the vehicle should wear a
seat belt properly, whether
or not there is an airbag for
that person.
{Warning
Because airbags inflate with
great force and faster than
the blink of an eye, anyone
who is up against, or very
close to, any airbag when it
inflates can be seriously
injured or killed. Do not sit
unnecessarily close to any
airbag, as you would be if
sitting on the edge of the
seat or leaning forward.
Seat belts help keep you in
position before and during a
crash. Always wear a seat
belt, even with airbags. The
driver should sit as far back
as possible while still
maintaining control of the(Continued)
Warning (Continued)
vehicle. The seat belts and
the front outboard
passenger airbags are most
effective when you are
sitting well back and upright
in the seat with both feet on
the floor.
Occupants should not lean
on or sleep against the door
or side windows in seating
positions with seat-mounted
side impact airbags and/or
roof-rail airbags.
{Warning
Children who are up against,
or very close to, any airbag
when it inflates can be
seriously injured or killed.
Always secure children
properly in the vehicle.(Continued)
Warning (Continued)
To read how, see Older
Children072 or
Infants and Young Children
0 74.
There is an airbag readiness
light on the instrument cluster,
which shows the airbag
symbol.
The system checks the airbag
electrical system for
malfunctions. The light tells
you if there is an electrical
problem. See Airbag
Readiness Light 0116.

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-16500442) -
2023 - CRC - 5/4/22
Seats and Restraints 61
Where Are the
Airbags?
The driver frontal airbag is in
the center of the steering
wheel.
The front outboard passenger
frontal airbag is in the
passenger side instrument
panel.
The driver knee airbag is
below the steering column.
The front outboard passenger
knee airbag is below the
glove box.Driver Side Shown,
Passenger Side Similar
The driver and front outboard
passenger seat-mounted side
impact airbags are in the side
of the seatbacks closest to
the door.

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-16500442) -
2023 - CRC - 5/4/22
62 Seats and Restraints
Driver Side Shown,
Passenger Side Similar
The roof-rail airbags for the
driver, front outboard
passenger, and second row
outboard passengers are in
the ceiling above the side
windows.
{Warning
If something is between an
occupant and an airbag, the
airbag might not inflate
properly or it might force
the object into that person (Continued)
Warning (Continued)
causing severe injury or
even death. The path of an
inflating airbag must be kept
clear. Do not put anything
between an occupant and an
airbag, and do not attach or
put anything on the steering
wheel hub or on or near any
other airbag covering.
Do not use seat accessories
that block the inflation path
of a seat-mounted side
impact airbag.
Never secure anything to
the roof of a vehicle with
roof-rail airbags by routing a
rope or tie‐down through
any door or window opening.
If you do, the path of an
inflating roof-rail airbag will
be blocked.
When Should an
Airbag Inflate?
This vehicle is equipped with
airbags. See Airbag System
059. Airbags are designed to
inflate if the impact exceeds
the specific airbag system's
deployment threshold.
Deployment thresholds are
used to predict how severe a
crash is likely to be in time for
the airbags to inflate and help
restrain the occupants. The
vehicle has electronic sensors
that help the airbag system
determine the severity of the
impact. Deployment
thresholds can vary with
specific vehicle design.
Frontal airbags are designed
to inflate in moderate to
severe frontal crashes to help
reduce the potential for
severe injuries, mainly to the
driver's or front outboard
passenger's head and chest.

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-16500442) -
2023 - CRC - 5/4/22
Seats and Restraints 63
Whether the frontal airbags
will or should inflate is not
based primarily on how fast
the vehicle is traveling.
It depends on what is hit, the
direction of the impact, and
how quickly the vehicle
slows down.
Frontal airbags may inflate at
different crash speeds
depending on whether the
vehicle hits an object straight
on or at an angle, and whether
the object is fixed or moving,
rigid or deformable, narrow
or wide.
Frontal airbags are not
intended to inflate during
vehicle rollovers, in rear
impacts, or in many side
impacts.
In addition, the vehicle has
advanced technology frontal
airbags. Advanced technology
frontal airbags adjust the
restraint according to crash
severity.Knee airbags are designed to
inflate in moderate to severe
frontal impacts. Knee airbags
are not designed to inflate
during vehicle rollovers, in rear
impacts, or in many side
impacts.
Seat-mounted side impact
airbags are designed to inflate
in moderate to severe side
crashes depending on the
location of the impact. These
airbags may also inflate in
some moderate to severe
frontal impacts. Seat-mounted
side impact airbags are not
designed to inflate in rollovers
or rear impacts.
A seat-mounted side impact
airbag is designed to inflate on
the side of the vehicle that is
struck.
Roof-rail airbags are designed
to inflate in moderate to
severe side crashes
depending on the location of
the impact. In addition, these
roof-rail airbags may inflate
during a rollover or in a severefrontal impact. Roof-rail
airbags are not designed to
inflate in rear impacts. Both
roof-rail airbags may inflate
when either side of the vehicle
is struck, if the sensing system
predicts that the vehicle is
about to roll over on its side,
or in a severe frontal impact.
In any particular crash, no one
can say whether an airbag
should have inflated simply
because of the vehicle
damage or repair costs.
What Makes an
Airbag Inflate?
In a deployment event, the
sensing system sends an
electrical signal triggering a
release of gas from the
inflator. Gas from the inflator
fills the airbag causing the bag
to break out of the cover. The
inflator, the airbag, and related
hardware are all part of the
airbag module.
For airbag locations, see
Where Are the Airbags?
061.
