Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-16500442) -
2023 - CRC - 5/4/22
66 Seats and Restraints
Passenger Sensing
System
The vehicle has a passenger
sensing system for the front
outboard passenger position.
The passenger airbag status
indicator will light on the
overhead console when the
vehicle is started.
The words ON and OFF, and
the symbols for on and off, will
be visible during the system
check. When the system check
is complete, either the word
ON or OFF, and the symbol for
on or off, will be visible. See
Passenger Airbag Status
Indicator0117.
The passenger sensing
system turns off the front
outboard passenger frontal
airbag and knee airbag under certain conditions. No other
airbag is affected by the
passenger sensing system.
The passenger sensing
system works with sensors
that are part of the front
outboard passenger seat and
seat belt. The sensors are
designed to detect the
presence of a properly seated
occupant and determine if the
front outboard passenger
frontal airbag and knee airbag
should be allowed to inflate
or not.
According to accident
statistics, children are safer
when properly secured in a
rear seat in the correct child
restraint for their weight
and size.
Whenever possible, children
aged 12 and under should be
secured in a rear seating
position.
Never put a rear-facing child
seat in the front. This is
because the risk to the
rear-facing child is so great,
if the airbag inflates.
{Warning
A child in a rear-facing child
restraint can be seriously
injured or killed if the
passenger frontal airbag
inflates. This is because the
back of the rear-facing child
restraint would be very
close to the inflating airbag.
A child in a forward-facing
child restraint can be
seriously injured or killed if
the passenger frontal airbag
inflates and the passenger
seat is in a forward position.
Even if the passenger
sensing system has turned
off the front outboard
passenger airbag(s), no
system is fail-safe. No one
can guarantee that an
(Continued)

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-16500442) -
2023 - CRC - 5/4/22
Seats and Restraints 67
Warning (Continued)
airbag will not deploy under
some unusual circumstance,
even though the airbag(s)
are off.
Never put a rear-facing child
restraint in the front seat,
even if the airbag is off.
If securing a forward-facing
child restraint in the front
outboard passenger seat,
always move the seat as far
back as it will go. It is better
to secure child restraints in
the rear seat. Consider
using another vehicle to
transport the child when a
rear seat is not available.
The passenger sensing
system is designed to turn off
the front outboard passenger
frontal airbag and knee
airbag if:
.The front outboard
passenger seat is
unoccupied.
.The system determines an
infant is present in a child
restraint.
.A front outboard passenger
takes his/her weight off of
the seat for a period of time.
When the passenger sensing
system has turned off the
front outboard passenger
frontal airbag and knee airbag,
the OFF indicator will light and
stay lit as a reminder that the
airbags are off. See Passenger
Airbag Status Indicator 0117.
The passenger sensing
system is designed to turn on
the front outboard passenger
frontal airbag and knee airbag,
anytime the system senses
that a person of adult size is
sitting properly in the front
outboard passenger seat.
When the passenger sensing
system has allowed the
airbags to be enabled, the ON
indicator will light and stay lit
as a reminder that the airbags
are active. For some children, including
children in child restraints, and
for very small adults, the
passenger sensing system
may or may not turn off the
front outboard passenger
frontal airbag and knee airbag,
depending upon the person's
seating posture and body
build. Everyone in the vehicle
who has outgrown child
restraints should wear a seat
belt properly
—whether or not
there is an airbag for that
person.
{Warning
If the airbag readiness light
ever comes on and stays on,
it means that something may
be wrong with the airbag
system. To help avoid injury
to yourself or others, have
the vehicle serviced right
away. See Airbag Readiness
Light 0116 for more
information, including
important safety
information.

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-16500442) -
2023 - CRC - 5/4/22
72 Seats and Restraints
Caution
If an airbag covering is
damaged, opened, or broken,
the airbag may not work
properly. Do not open or
break the airbag coverings.
If there are any opened or
broken airbag coverings,
have the airbag covering
and/or airbag module
replaced. For the location of
the airbags, see Where Are
the Airbags?061. See your
dealer for service.
Replacing Airbag
System Parts after a
Crash
{Warning
A crash can damage the
airbag systems in the
vehicle. A damaged airbag
system may not properly
protect you and your
passenger(s) in a crash,
(Continued)
Warning (Continued)
resulting in serious injury or
even death. To help make
sure the airbag systems are
working properly after a
crash, have them inspected
and any necessary
replacements made as soon
as possible.
If an airbag inflates, you will
need to replace airbag system
parts. See your dealer for
service.
If the airbag readiness light
stays on after the vehicle is
started or comes on when you
are driving, the airbag system
may not work properly. Have
the vehicle serviced right
away. See Airbag Readiness
Light 0116.
Child Restraints
Older Children
Older children who have
outgrown booster seats
should wear the vehicle’s seat
belts. Refer to How to Wear
Seat Belts Properly 051.
The manufacturer instructions
that come with the booster
seat state the weight and
height limitations for that

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-16500442) -
2023 - CRC - 5/4/22
76 Seats and Restraints
Child restraints are devices
used to restrain, seat,
or position children in the
vehicle and are sometimes
called child seats or car seats.
There are three basic types
of child restraints:
.Forward-facing child
restraints
.Rear-facing child restraints
.Belt-positioning booster
seats
The proper child restraint for
your child depends on their
size, weight, and age, and also
on whether the child restraint
is compatible with the vehicle
in which it will be used.
For each type of child
restraint, there are many
different models available.
When purchasing a child
restraint, be sure it is
designed to be used in a
motor vehicle and is designed
by a genuine child restraint
manufacturer. If it is, the child
restraint will have a label saying that it meets federal
motor vehicle safety
standards.
The instruction manual that is
provided with the child
restraint states the weight
and height limitations for that
particular child restraint. In
addition, there are many kinds
of child restraints available for
children with special needs.
{Warning
To reduce the risk of neck
and head injury in a crash,
infants and toddlers should
be secured in a rear-facing
child restraint until age two,
or until they reach the
maximum height and weight
limits of their child restraint.
{Warning
A young child's hip bones
are still so small that the
vehicle seat belt may not
remain low on the hip bones,
as it should. Instead, it may
settle up around the child's
abdomen. In a crash, the belt
would apply force on a body
area that is unprotected by
any bony structure. This
alone could cause serious or
fatal injuries. To reduce the
risk of serious or fatal
injuries during a crash,
young children should
always be secured in an
appropriate child restraint.

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-16500442) -
2023 - CRC - 5/4/22

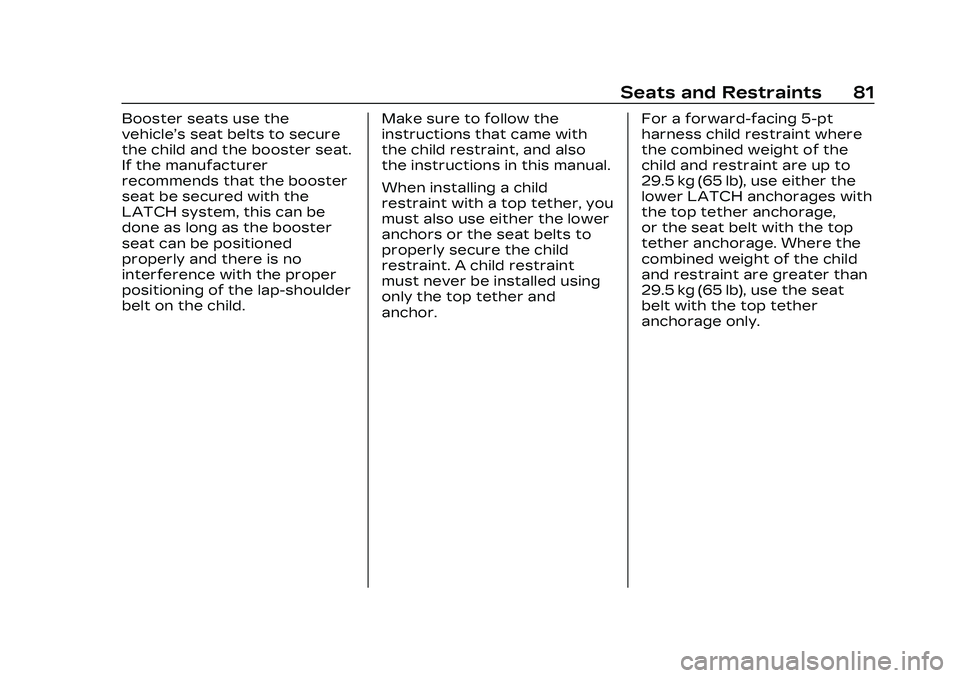

Seats and Restraints 81
Booster seats use the
vehicle’s seat belts to secure
the child and the booster seat.
If the manufacturer
recommends that the booster
seat be secured with the
LATCH system, this can be
done as long as the booster
seat can be positioned
properly and there is no
interference with the proper
positioning of the lap-shoulder
belt on the child.Make sure to follow the
instructions that came with
the child restraint, and also
the instructions in this manual.
When installing a child
restraint with a top tether, you
must also use either the lower
anchors or the seat belts to
properly secure the child
restraint. A child restraint
must never be installed using
only the top tether and
anchor.For a forward-facing 5-pt
harness child restraint where
the combined weight of the
child and restraint are up to
29.5 kg (65 lb), use either the
lower LATCH anchorages with
the top tether anchorage,
or the seat belt with the top
tether anchorage. Where the
combined weight of the child
and restraint are greater than
29.5 kg (65 lb), use the seat
belt with the top tether
anchorage only.

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-16500442) -
2023 - CRC - 5/4/22
82 Seats and Restraints
Recommended Methods for Attaching Child Restraints
Restraint Type Combined Weightof the Child +
Child Restraint Use Only Approved Attachment Methods Shown with an X
LATCH
–Lower
Anchors Only Seat Belt Only LATCH
–Lower
Anchors and Top
Tether Anchor Seat Belt and Top
Tether Anchor
Rear-Facing Child
Restraint Up to 29.5 kg (65 lb)
X X
Rear-Facing Child
Restraint Greater than
29.5 kg (65 lb) X
Forward-Facing
Child Restraint Up to 29.5 kg (65 lb)
X X
Forward-Facing
Child Restraint Greater than
29.5 kg (65 lb) X
See Securing Child Restraints
(With the Seat Belt in the Rear
Seat)
088 or
Securing Child Restraints
(With the Seat Belt in the
Front Seat) 090. Child restraints built after
March 2014 are labeled with
the maximum child weight,
with which the LATCH system
can be used for installing the
child restraint.
The following explains how to
attach a child restraint with
these attachments in the
vehicle. Not all vehicle seating
positions have lower anchors.
In this case, the seat belt must
be used (with top tether
where available) to secure the
child restraint. See Securing
Child Restraints (With the
Seat Belt in the Rear Seat)
0
88 or
Securing Child Restraints
(With the Seat Belt in the
Front Seat) 090.

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-16500442) -
2023 - CRC - 5/10/22
Driving and Operating 255
runs faster than the idle
speed. This keeps the battery
charged to restart the vehicle
and to signal for help with the
headlamps. Do this as little as
possible, to save fuel.
If the Vehicle Is Stuck
Slowly and cautiously spin the
wheels to free the vehicle
when stuck in sand, mud, ice,
or snow.
The Traction Control System
(TCS) can often help to free a
stuck vehicle. See Traction
Control/Electronic Stability
Control0290.
If TCS cannot free the vehicle,
turn TCS off and use the
rocking method. See “Rocking
the Vehicle to Get it Out”
following.
{Warning
If the vehicle's tires spin at
high speed, they can
explode, and you or others
(Continued)
Warning (Continued)
could be injured. The vehicle
can overheat, causing an
engine compartment fire or
other damage. Spin the
wheels as little as possible
and avoid going above
56 km/h (35 mph).
Rocking the Vehicle to Get
it Out
Turn the steering wheel left
and right to clear the area
around the front wheels. Turn
off any traction system. Shift
back and forth between
R (Reverse) and a low forward
gear, spinning the wheels as
little as possible. To prevent
transmission wear, wait until
the wheels stop spinning
before shifting gears. Release
the accelerator pedal while
shifting, and press lightly on
the accelerator pedal when
the transmission is in gear.
Slowly spinning the wheels in
the forward and reverse directions causes a rocking
motion that could free the
vehicle. If that does not get
the vehicle out after a few
tries, it might need to be
towed out. If the vehicle does
need to be towed out, see
Transporting a Disabled
Vehicle (Electronic Shifter)
0
450 or
Transporting a Disabled
Vehicle (Mechanical Shifter)
0 452.Vehicle Load Limits
It is very important to know
how much weight the
vehicle can carry. This
weight is called the vehicle
capacity weight and
includes the weight of all
occupants, cargo, and all
nonfactory-installed
options. Two labels on the
vehicle may show how
much weight it may

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-16500442) -
2023 - CRC - 5/10/22
256 Driving and Operating
properly carry: the Tire and
Loading Information label
and the Certification label.
{Warning
Do not load the vehicle
any heavier than the
Gross Vehicle Weight
Rating (GVWR), or either
the maximum front or
rear Gross Axle Weight
Rating (GAWR). This can
cause systems to break
and change the way the
vehicle handles. This
could cause loss of
control and a crash.
Overloading can also
reduce stopping
performance, damage the
tires, and shorten the life
of the vehicle. Tire and Loading
Information Label
Label Example
A vehicle-specific Tire and
Loading Information label is
attached to the vehicle's
center pillar (B-pillar). The
Tire and Loading
Information label shows the
number of occupant
seating positions (1), and
the maximum vehicle
capacity weight (2) in
kilograms and pounds. The Tire and Loading
Information label also
shows the tire size of the
original equipment tires (3)
and the recommended cold
tire inflation pressures (4).
For more information on
tires and inflation see Tires
0
413 and
Tire Pressure 0422.
There is also important
loading information on the
Certification label. It may
show the Gross Vehicle
Weight Rating (GVWR) and
the Gross Axle Weight
Rating (GAWR) for the
front and rear axle. See
“Certification Label” later in
this section.
“Steps for Determining
Correct Load Limit–
1.Locate the statement
"The combined weight
of occupants and cargo
