2023 CADILLAC CT4 Owners Manual

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-16500442) -
2023 - CRC - 5/4/22
448 Vehicle Care
2.0L L4 Engine Shown, 3.6LV6 Engine and 2.7L L4 Engine Similar
Connection Points and
Sequence
1. Discharged Battery Positive (+) Terminal
2. Good Battery Positive (+) Terminal
3. Good Battery Negative (−) Terminal
4. Discharged Battery Negative Grounding (−)
Terminal
The jump start positive
terminal (+) and negative post
(−) are on the battery of the
vehicle providing the jump
start.
The jump start remote positive
terminal (+) and the remote
negative grounding terminal (−)
for the discharged battery are
on the passenger side of the
vehicle.
The positive jump start
connection for the discharged
battery is under a cover. Lift
the cover to expose the
terminal.
1. Check the other vehicle. It must have a 12-volt
battery with a negative
ground system.
Caution
If the other vehicle does not
have a 12-volt system with a
negative ground, both
vehicles can be damaged.
Only use a vehicle that has a
(Continued)
Caution (Continued)
12-volt system with a
negative ground for jump
starting.
2. Position the two vehicles so that they are not
touching.
3. Set the parking brake firmly and put the shift
lever in P (Park) with an
automatic transmission,
or Neutral with a manual
transmission.
Caution
If any accessories are left on
or plugged in during the
jump starting procedure,
they could be damaged. The
repairs would not be
covered by the vehicle
warranty. Whenever
possible, turn off or unplug
all accessories on either
vehicle when jump starting.

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-16500442) -
2023 - CRC - 5/4/22
Vehicle Care 449
4. Turn the ignition off. Turnoff all lights and
accessories in both
vehicles, except the hazard
warning flashers if needed.
{Warning
An electric fan can start up
even when the engine is not
running and can injure you.
Keep hands, clothing, and
tools away from any
underhood electric fan.
{Warning
Using a match near a
battery can cause battery
gas to explode. People have
been hurt doing this, and
some have been blinded.
Use a flashlight if you need
more light.
Battery fluid contains acid
that can burn you. Do not
get it on you. If you
accidentally get it in your
(Continued)
Warning (Continued)
eyes or on your skin, flush
the place with water and get
medical help immediately.
{Warning
Fans or other moving engine
parts can injure you badly.
Keep your hands away from
moving parts once the
engine is running.
5. Connect one end of the red positive (+) cable to the
remote positive (+)
terminal on the discharged
battery.
6. Connect the other end of the red positive (+) cable to
the positive (+) terminal of
the good battery.
7. Connect one end of the black negative (–) cable to
the negative (–) terminal of
the good battery. Do not let the other end
touch anything until the
next step. The other end of
the negative (–) cable does
not go to the dead battery.
It goes to a heavy,
unpainted metal
engine part.
8. Connect the other end of the black negative (–) cable
to the negative (–)
grounding point for the
discharged battery.
9. Start the engine in the vehicle with the good
battery and run the engine
at idle speed for at least
four minutes.
10. Try to start the vehicle that had the dead battery.
If it will not start after a
few tries, it probably needs
service.
Jumper Cable Removal
Reverse the sequence exactly
when removing the jumper
cables.

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-16500442) -
2023 - CRC - 5/4/22
450 Vehicle Care
After starting the disabled
vehicle and removing the
jumper cables, allow it to idle
for several minutes.
Towing the
Vehicle
Transporting a
Disabled Vehicle
(Electronic Shifter)
Caution
Incorrectly transporting a
disabled vehicle may cause
damage to the vehicle. Use
proper tire straps to secure
the vehicle to the flatbed
tow truck. Do not strap or
hook to any frame,
underbody, or suspension
component not specified
below. Do not move vehicles
with drive axle tires on the
ground. Damage is not
covered by the vehicle
warranty.
Caution
The vehicle may be equipped
with an electric parking
brake and/or an electronic
shifter. In the event of a loss
of 12-volt battery power, the
electric parking brake
cannot be released, and the
vehicle cannot be shifted to
N (Neutral). Tire skates or
dollies must be used under
the non-rolling tires to
prevent damage while
loading/unloading the
vehicle. Dragging the vehicle
will cause damage not
covered by the vehicle
warranty.
Caution
The vehicle may be equipped
with a tow eye. Improper use
of the tow eye may cause
damage to the vehicle and is
not covered by the vehicle
warranty. If equipped, use(Continued)
Caution (Continued)
the tow eye to load the
vehicle onto a flatbed tow
truck from a flat road
surface, or to move the
vehicle a very short distance
at a walking pace. The tow
eye is not designed for
off-road recovery. The
vehicle must be in
N (Neutral) with the electric
parking brake released when
using the tow eye.
Contact a professional towing
service if the disabled vehicle
must be transported. GM
recommends a flatbed tow
truck to transport a disabled
vehicle. Use ramps to help
reduce approach angles,
if necessary.
If equipped, a tow eye may be
located near the spare tire or
emergency jack. Do not use
the tow eye to pull the vehicle
from the snow, mud, sand,
or ditch. Tow eye threads may

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-16500442) -
2023 - CRC - 5/4/22
Vehicle Care 451
have right or left-hand
threads. Use caution when
installing or removing the
tow eye.
The vehicle must be in
N (Neutral) and the electric
parking brake must be
released when loading the
vehicle onto a flatbed tow
truck.
.If the vehicle is equipped
with car wash mode and has
12-volt battery power, refer
to“Car Wash Mode” under
Automatic Transmission
(Mechanical Shifter) 0272 or
Automatic Transmission
(Electronic Shifter) 0275 to
place the vehicle in
N (Neutral).
.If the 12-volt battery is dead
and/or the engine will not
start, the vehicle will not
move. Try to jump start the
vehicle. Refer to Jump
Starting - North America
0 447 and if the jump start is
successful, retry the “Car
Wash Mode” procedure.
.If jump starting is
unsuccessful, the vehicle will
not move. Tire skates or
dollies must be used under
the non-rolling tires to
prevent vehicle damage.
V-Series Blackwing Only
Due to low ramp angles on the
V-Series Blackwing, use care
when loading the vehicle onto
a flatbed carrier. Front spring
spacers were provided for
lifting the front suspension if
more clearance is necessary
when towing.
Front Tow Eye
The vehicle is equipped with a
tow eye. Only use the tow eye
to pull the vehicle onto a
flatbed car carrier from a flat
road surface. Do not use the
tow eye to pull the vehicle
from snow, mud, or sand. The
tow eye is located under the
carpet in the trunk.
Carefully open the cover in the
fascia by using the small notch
that conceals the tow eye
socket.

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-16500442) -
2023 - CRC - 5/4/22

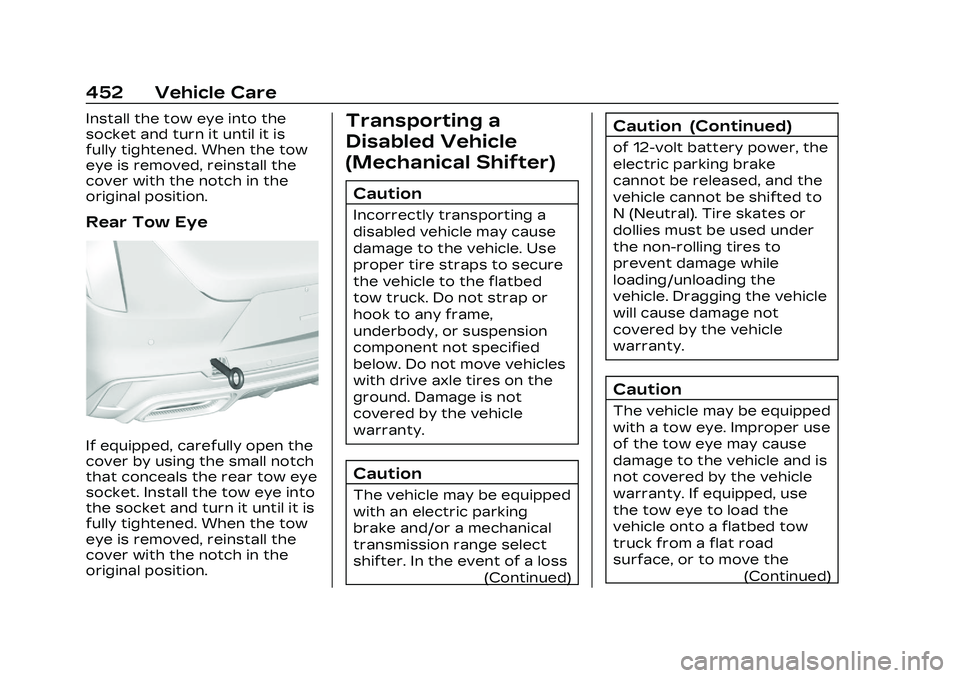

452 Vehicle Care
Install the tow eye into the
socket and turn it until it is
fully tightened. When the tow
eye is removed, reinstall the
cover with the notch in the
original position.
Rear Tow Eye
If equipped, carefully open the
cover by using the small notch
that conceals the rear tow eye
socket. Install the tow eye into
the socket and turn it until it is
fully tightened. When the tow
eye is removed, reinstall the
cover with the notch in the
original position.
Transporting a
Disabled Vehicle
(Mechanical Shifter)
Caution
Incorrectly transporting a
disabled vehicle may cause
damage to the vehicle. Use
proper tire straps to secure
the vehicle to the flatbed
tow truck. Do not strap or
hook to any frame,
underbody, or suspension
component not specified
below. Do not move vehicles
with drive axle tires on the
ground. Damage is not
covered by the vehicle
warranty.
Caution
The vehicle may be equipped
with an electric parking
brake and/or a mechanical
transmission range select
shifter. In the event of a loss(Continued)
Caution (Continued)
of 12-volt battery power, the
electric parking brake
cannot be released, and the
vehicle cannot be shifted to
N (Neutral). Tire skates or
dollies must be used under
the non-rolling tires to
prevent damage while
loading/unloading the
vehicle. Dragging the vehicle
will cause damage not
covered by the vehicle
warranty.
Caution
The vehicle may be equipped
with a tow eye. Improper use
of the tow eye may cause
damage to the vehicle and is
not covered by the vehicle
warranty. If equipped, use
the tow eye to load the
vehicle onto a flatbed tow
truck from a flat road
surface, or to move the(Continued)

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-16500442) -
2023 - CRC - 5/4/22
Vehicle Care 453
Caution (Continued)
vehicle a very short distance
at a walking pace. The tow
eye is not designed for
off-road recovery. The
vehicle must be in
N (Neutral) with the electric
parking brake released when
using the tow eye.
Contact a professional towing
service if the disabled vehicle
must be transported. GM
recommends a flatbed tow
truck to transport a disabled
vehicle. Use ramps to help
reduce approach angles,
if necessary.
If equipped, a tow eye may be
located near the spare tire or
emergency jack. Do not use
the tow eye to pull the vehicle
from the snow, mud, sand,
or ditch. Tow eye threads may
have right or left-hand
threads. Use caution when
installing or removing the
tow eye. The vehicle must be in
N (Neutral) and the electric
parking brake must be
released when loading the
vehicle onto a flatbed tow
truck.
.If the 12-volt battery is dead
and/or electric parking brake
is not released, the vehicle
will not move. Try to jump
start the vehicle with a
known good 12-volt battery,
shift the car into N (Neutral),
and release the electric
parking brake. Refer to Jump
Starting - North America
0
447.
.If unsuccessful, the vehicle
will not move. Tire skates or
dollies must be used under
the non-rolling tires to
prevent vehicle damage.
Front Tow Eye
Caution
Improper use of the tow eye
can damage the vehicle.
If equipped, use the tow eye
to load a disabled vehicle
onto a flatbed tow truck
from a flat road surface,
or to move the vehicle a
short distance. Use caution
and low speeds. The
transmission must be
in (N) Neutral when moving
the vehicle.

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-16500442) -
2023 - CRC - 5/4/22
454 Vehicle Care
The vehicle is equipped with a
tow eye. Only use the tow eye
to pull the vehicle onto a
flatbed car carrier from a flat
road surface. Do not use the
tow eye to pull the vehicle
from snow, mud, or sand. The
tow eye is located under the
carpet in the trunk.
Carefully open the cover in the
fascia by using the small notch
that conceals the tow eye
socket.
Install the tow eye into the
socket and turn it until it is
fully tightened. When the tow
eye is removed, reinstall the
cover with the notch in the
original position.Rear Tow Eye
If equipped, carefully open the
cover by using the small notch
that conceals the rear tow eye
socket. Install the tow eye into
the socket and turn it until it is
fully tightened. When the tow
eye is removed, reinstall the
cover with the notch in the
original position.
Recreational Vehicle
Towing
Caution
Dolly towing or dinghy
towing the vehicle may
cause damage because of
reduced ground clearance.
Always put the vehicle on a
flatbed truck or trailer.
The vehicle was neither
designed nor intended to be
towed with any of its wheels
on the ground. If the vehicle
must be towed, see
Transporting a Disabled
Vehicle (Electronic Shifter)
0 450 or
Transporting a Disabled
Vehicle (Mechanical Shifter)
0 452.

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-16500442) -
2023 - CRC - 5/4/22
Vehicle Care 455
Appearance Care
Exterior Care
Locks
Locks are lubricated at the
factory. Use a de-icing agent
only when necessary, and
have the locks greased after
using. See Recommended
Fluids and Lubricants0474.
Washing the Vehicle
To preserve the vehicle finish,
wash it often and out of direct
sunlight.
Caution
Do not use
petroleum-based, acidic,
or abrasive cleaning agents
as they can damage the
vehicle's paint, metal,
or plastic parts. If damage
occurs, it would not be
covered by the vehicle
warranty. Approved cleaning
products can be obtained
(Continued)
Caution (Continued)
from your dealer. Follow all
manufacturer directions
regarding correct product
usage, necessary safety
precautions, and
appropriate disposal of any
vehicle care product.
Caution
Avoid using high-pressure
washes closer than 30 cm
(12 in) to the surface of the
vehicle. Use of power
washers exceeding
8 274 kPa (1,200 psi) can
result in damage or removal
of paint and decals. Automatic Car Wash
Caution
Automatic car washes can
cause damage to the
vehicle, wheels, ground
effects, and convertible top
(if equipped).
Do not use automatic car
washes due to lack of
clearance for the
undercarriage, wide rear
tires, and wheels.
Caution
To avoid damage to a matte
paint finish, do not use an
automatic car wash
equipped with brushes or
scrubbers. Only use
touchless automatic car
washes.
If using an automatic car wash,
follow the car wash
instructions. The windshield
wiper and rear window wiper,
if equipped, must be off.
