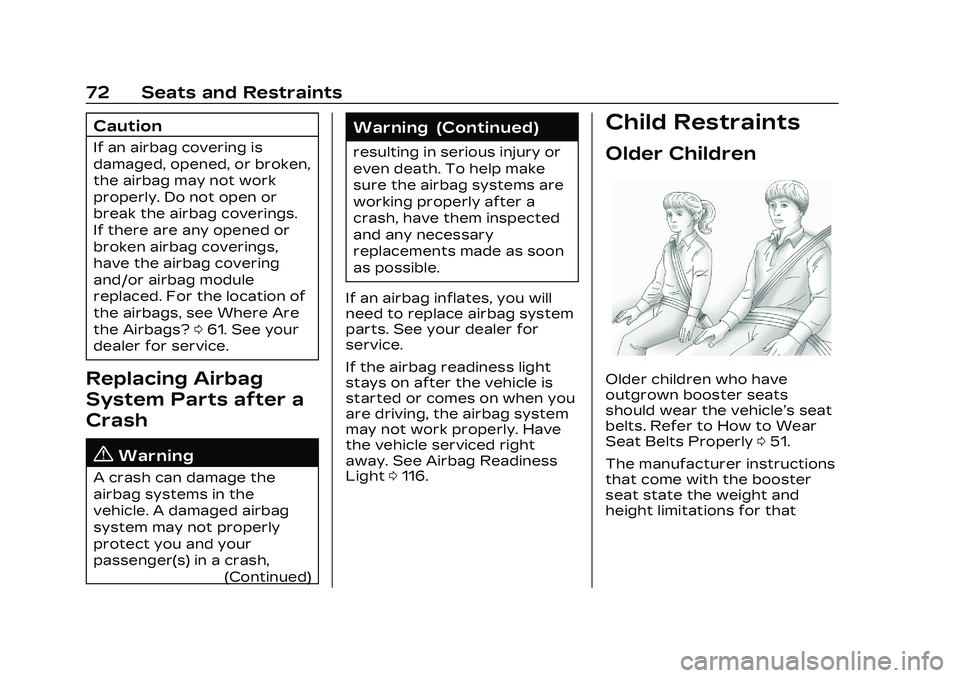

72 Seats and Restraints
Caution
If an airbag covering is
damaged, opened, or broken,
the airbag may not work
properly. Do not open or
break the airbag coverings.
If there are any opened or
broken airbag coverings,
have the airbag covering
and/or airbag module
replaced. For the location of
the airbags, see Where Are
the Airbags?061. See your
dealer for service.
Replacing Airbag
System Parts after a
Crash
{Warning
A crash can damage the
airbag systems in the
vehicle. A damaged airbag
system may not properly
protect you and your
passenger(s) in a crash,
(Continued)
Warning (Continued)
resulting in serious injury or
even death. To help make
sure the airbag systems are
working properly after a
crash, have them inspected
and any necessary
replacements made as soon
as possible.
If an airbag inflates, you will
need to replace airbag system
parts. See your dealer for
service.
If the airbag readiness light
stays on after the vehicle is
started or comes on when you
are driving, the airbag system
may not work properly. Have
the vehicle serviced right
away. See Airbag Readiness
Light 0116.
Child Restraints
Older Children
Older children who have
outgrown booster seats
should wear the vehicle’s seat
belts. Refer to How to Wear
Seat Belts Properly 051.
The manufacturer instructions
that come with the booster
seat state the weight and
height limitations for that

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-16500442) -
2023 - CRC - 5/4/22
Seats and Restraints 73
booster. Use a booster seat
with a lap-shoulder belt until
the child passes the fit test
below:
.Sit all the way back on the
seat. Do the knees bend at
the seat edge? If yes,
continue. If no, return to the
booster seat.
.Buckle the lap-shoulder belt.
Does the shoulder belt rest
on the shoulder? If yes,
continue. If no, try using the
rear seat belt comfort guide,
if available. See“Rear Seat
Belt Comfort Guides” under
Lap-Shoulder Belt 054. If a
comfort guide is not
available, or if the shoulder
belt still does not rest on the
shoulder, then return to the
booster seat.
.Does the lap belt fit low and
snug on the hips, touching
the thighs? If yes, continue.
If no, return to the
booster seat.
.Can proper seat belt fit be
maintained for the length of
the trip? If yes, continue.
If no, return to the
booster seat.
Q: What is the proper way to wear seat belts?
A: An older child should wear a
lap-shoulder belt and get
the additional restraint a
shoulder belt can provide.
The shoulder belt should
not cross the face or neck.
The lap belt should fit
snugly below the hips, just
touching the top of the
thighs. This applies belt
force to the child's pelvic
bones in a crash. It should
never be worn over the
abdomen, which could cause
severe or even fatal internal
injuries in a crash.
Also see “Rear Seat Belt
Comfort Guides” under
Lap-Shoulder Belt 054. According to accident
statistics, children are safer
when properly restrained in a
rear seating position.
In a crash, children who are
not buckled up can strike
other people who are buckled
up, or can be thrown out of
the vehicle. Older children
need to use seat belts
properly.
{Warning
Never allow more than one
child to wear the same seat
belt. The seat belt cannot
properly spread the impact
forces. In a crash, they can
be crushed together and
seriously injured. A seat belt
must be used by only one
person at a time.

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-16500442) -
2023 - CRC - 5/4/22
74 Seats and Restraints
{Warning
Never allow a child to wear
the seat belt shoulder belt
under both arms or behind
their back. A child can be
seriously injured by not
wearing the lap-shoulder
belt properly. In a crash, the
child would not be
restrained by the shoulder
belt. The child could move
too far forward increasing
the chance of head and neck
injury. The child might also
slide under the lap belt. The(Continued)
Warning (Continued)
belt force would then be
applied right on the
abdomen. That could cause
serious or fatal injuries. The
shoulder belt should go over
the shoulder and across the
chest.
Infants and Young
Children
Everyone in a vehicle needs
protection! This includes
infants and all other children.
Neither the distance traveled nor the age and size of the
traveler changes the need, for
everyone, to use safety
restraints. In fact, the law in
every state in the United
States and in every Canadian
province says children up to
some age must be restrained
while in a vehicle.
{Warning
Children can be seriously
injured or killed if the
shoulder belt is worn behind
their back, under their legs,
or wrapped around their
neck. The shoulder belt can
tighten but cannot be
loosened if it is locked. The
shoulder belt locks when it is
pulled all the way out of the
retractor. It unlocks when
the shoulder belt is allowed
to go all the way back into
the retractor, but it cannot
do this if it is wrapped
around the child. Never
leave children unattended in
(Continued)

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-16500442) -
2023 - CRC - 5/4/22
Seats and Restraints 75
Warning (Continued)
a vehicle and never allow
children to improperly wear,
or play with, the seat belts.
Every time infants and young
children ride in vehicles, they
should have the protection
provided by appropriate child
restraints. Neither the
vehicle's seat belt system nor
its airbag system is designed
for them.
Children who are not
restrained properly can strike
other people, or can be
thrown out of the vehicle.
{Warning
Never hold an infant or a
child while riding in a vehicle.
Due to crash forces, an
infant or a child will become
so heavy it is not possible to
hold it during a crash. For
example, in a crash at only
40 km/h (25 mph), a (Continued)
Warning (Continued)
5.5 kg (12 lb) infant will
suddenly become a
110 kg (240 lb) force on a
person's arms. An infant or
child should be secured in an
appropriate child restraint.
{Warning
Children who are up against,
or very close to, any airbag
when it inflates can be
seriously injured or killed.
Never put a rear-facing child(Continued)
Warning (Continued)
restraint in the front
outboard seat. Secure a
rear-facing child restraint in
a rear seat. It is also better
to secure a forward-facing
child restraint in a rear seat.
If you must secure a
forward-facing child
restraint in the front
outboard seat, always move
the front passenger seat as
far back as it will go.

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-16500442) -
2023 - CRC - 5/4/22
76 Seats and Restraints
Child restraints are devices
used to restrain, seat,
or position children in the
vehicle and are sometimes
called child seats or car seats.
There are three basic types
of child restraints:
.Forward-facing child
restraints
.Rear-facing child restraints
.Belt-positioning booster
seats
The proper child restraint for
your child depends on their
size, weight, and age, and also
on whether the child restraint
is compatible with the vehicle
in which it will be used.
For each type of child
restraint, there are many
different models available.
When purchasing a child
restraint, be sure it is
designed to be used in a
motor vehicle and is designed
by a genuine child restraint
manufacturer. If it is, the child
restraint will have a label saying that it meets federal
motor vehicle safety
standards.
The instruction manual that is
provided with the child
restraint states the weight
and height limitations for that
particular child restraint. In
addition, there are many kinds
of child restraints available for
children with special needs.
{Warning
To reduce the risk of neck
and head injury in a crash,
infants and toddlers should
be secured in a rear-facing
child restraint until age two,
or until they reach the
maximum height and weight
limits of their child restraint.
{Warning
A young child's hip bones
are still so small that the
vehicle seat belt may not
remain low on the hip bones,
as it should. Instead, it may
settle up around the child's
abdomen. In a crash, the belt
would apply force on a body
area that is unprotected by
any bony structure. This
alone could cause serious or
fatal injuries. To reduce the
risk of serious or fatal
injuries during a crash,
young children should
always be secured in an
appropriate child restraint.

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-16500442) -
2023 - CRC - 5/4/22
Seats and Restraints 77
Child Restraint
Systems
Rear-Facing Infant Restraint
A rear-facing child restraint
provides restraint with the
seating surface against the
back of the infant.
The harness system holds the
infant in place and, in a crash,
acts to keep the infant
positioned in the restraint.
Forward-Facing Child Restraint
A forward-facing child
restraint provides restraint for
the child's body with the
harness.Booster Seats
A belt-positioning booster
seat is used for children who
have outgrown their
forward-facing child restraint.
Boosters are designed to
improve the fit of the vehicle's
seat belt system until the child
is large enough for the vehicle
seat belts to fit properly
without a booster seat. See
the seat belt fit test in Older
Children 072.

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-16500442) -
2023 - CRC - 5/4/22
78 Seats and Restraints
Securing an Add-On Child
Restraint in the Vehicle
{Warning
A child can be seriously
injured or killed in a crash if
the child restraint is not
properly secured in the
vehicle. Secure the child
restraint properly in the
vehicle using the vehicle
seat belt or LATCH system,
following the instructions
that came with that child
restraint and the
instructions in this manual.
To help reduce the chance of
injury, the child restraint must
be secured in the vehicle. Child
restraints must be secured in
vehicle seats by lap belts or
the lap belt portion of a
lap-shoulder belt, or by the
LATCH system. See Lower
Anchors and Tethers for
Children (LATCH System) 080
for more information. Never
use a seat belt extender when installing a child restraint.
Never use non-regulated
aftermarket anchors or
attachments to secure a child
restraint. Children can be
endangered in a crash if the
child restraint is not properly
secured in the vehicle.
When securing an add-on child
restraint, refer to the
following:
1. Instruction labels provided on the child restraint
2. Instruction manual provided with the child
restraint
3. This vehicle owner's manual
The child restraint instructions
are important, so if they are
not available, obtain a
replacement copy from the
manufacturer. Keep in mind that an
unsecured child restraint can
move around in a collision or
sudden stop and injure people
in the vehicle. Be sure to
properly secure any child
restraint in the vehicle
—even
when no child is in it.
In some areas Certified Child
Passenger Safety Technicians
(CPSTs) are available to
inspect and demonstrate how
to correctly use and install
child restraints. In the U.S.,
refer to the National Highway
Traffic Safety Administration
(NHTSA) website to locate the
nearest child safety seat
inspection station. For CPST
availability in Canada, check
with Transport Canada or the
Provincial Ministry of
Transportation office.

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-16500442) -
2023 - CRC - 5/4/22
Seats and Restraints 79
Securing the Child Within
the Child Restraint
{Warning
A child can be seriously
injured or killed in a crash if
the child is not properly
secured in the child
restraint. Secure the child
properly following the
instructions that came with
that child restraint.
Where to Put the
Restraint
According to accident
statistics, children and infants
are safer when properly
restrained in an appropriate
child restraint secured in a
rear seating position.Whenever possible, children
aged 12 and under should be
secured in a rear seating
position.
Never put a rear-facing child
restraint in the front. This is
because the risk to the
rear-facing child is so great if
the airbag deploys.
{Warning
A child in a rear-facing child
restraint can be seriously
injured or killed if the front
passenger airbag inflates.
This is because the back of
the rear-facing child
restraint would be very
close to the inflating airbag.
A child in a forward-facing
child restraint can be
seriously injured or killed if
the front passenger airbag
inflates and the passenger
seat is in a forward position.
(Continued)
Warning (Continued)
Even if the passenger
sensing system has turned
off the front passenger
frontal airbag, no system is
fail-safe. No one can
guarantee that an airbag will
not deploy under some
unusual circumstance, even
though it is turned off.
Secure rear-facing child
restraints in a rear seat,
even if the airbag is off.
If you secure a
forward-facing child
restraint in the front seat,
always move the front
passenger seat as far back
as it will go. It is better to
secure the child restraint in
a rear seat.
See Passenger Sensing
System066 for additional
information.
