2022 TOYOTA COROLLA CROSS Owners Manual

5058-2. Steps to take in an emergency
8
When trouble arises
■Brake system warning light (warning buzzer)
■Brake system warning light
■High coolant temperature warning light* (warning buzzer)
*: This light illuminates on the multi-information display.
If a war ning light tur ns on or a war ning buzzer
sounds
Calmly perform the following actions if any of the warning
lights comes on or flashes. If a light comes on or flashes, but
then goes off, this does not necessarily indicate a malfunction
in the system. However, if this continues to occur, have the
vehicle inspected by your Toyota dealer.
Actions to the warning lights or warning buzzers
Warning lightDetails/Actions
(U.S.A.)
or
(Red)
(Canada)
Indicates that:
 The brake fluid level is low; or
 The brake system is malfunctioning
 Immediately stop the vehicle in a safe place and con-
tact your Toyota dealer. Continuing to drive the vehi-
cle may be dangerous.
Warning lightDetails/Actions
(Yellow)
Indicates a malfunction in the parking brake system
Have the vehicle inspected by your Toyota dealer
immediately.
Warning lightDetails/Actions
Indicates that the engine coolant temperature is exces-
sively high
Immediately stop the ve hicle in a safe place.
Handling method ( P.536)

5068-2. Steps to take in an emergency
■Charging system warning light (warning buzzer)
■Low engine oil pressure warning light* (warning buzzer)
*: This light illuminates on the multi-information display.
■Malfunction indicator lamp (warning buzzer)
■SRS warning light
Warning lightDetails/Actions
Indicates a malfunction in the vehicle’s charging system
Immediately stop the vehicle in a safe place and con-
tact your Toyota dealer.
Warning lightDetails/Actions
Indicates that the e ngine oil pressure is excessively low
 Immediately stop the vehicle in a safe place and con-
tact your Toyota dealer.
Warning lightDetails/Actions
(U.S.A.)
or
(Canada)
Indicates a malfunction in:
The electronic engine control system;
 The electronic throttle control system; or
 The electronic continuously variable transmission control
system
 Immediately stop the vehicle in a safe place and con-
tact your Toyota dealer.
Warning lightDetails/Actions
Indicates a malfunction in:
The SRS airbag system; or
 The seat belt pretensioner system
 Have the vehicle inspected by your Toyota dealer
immediately.

5078-2. Steps to take in an emergency
8
When trouble arises
■ABS warning light
■Inappropriate pedal operation warning light*(warning buzzer)
*: This light illuminates on the multi-information display.
■Electric power steering system warning light (warning
buzzer)
Warning lightDetails/Actions
(U.S.A.)
or
(Canada)
Indicates a malfunction in:
The ABS; or
 The brake assist system
 Have the vehicle inspected by your Toyota dealer
immediately.
Warning lightDetails/Actions
When a buzzer sounds:
Indicates a malfunction in:
The Brake Override System; or
 The Drive-Start Control
 Have the vehicle inspected by your Toyota dealer
immediately.
 Indicates that the shift position was changed and
Drive-Start Control was operated while depressing the
accelerator pedal.
 Momentarily release th e accelerator pedal.
When a buzzer does not sound:
Indicates that the accelerator and brake pedals are being
depressed simultaneously, and the Brake Override System
is operating.
 Release the accelerator pedal and depress the brake
pedal.
Warning lightDetails/Actions
(Red/yellow)
Indicates a malfunction in th e EPS (Electric Power Steer-
ing) system
 Have the vehicle inspected by your Toyota dealer
immediately.

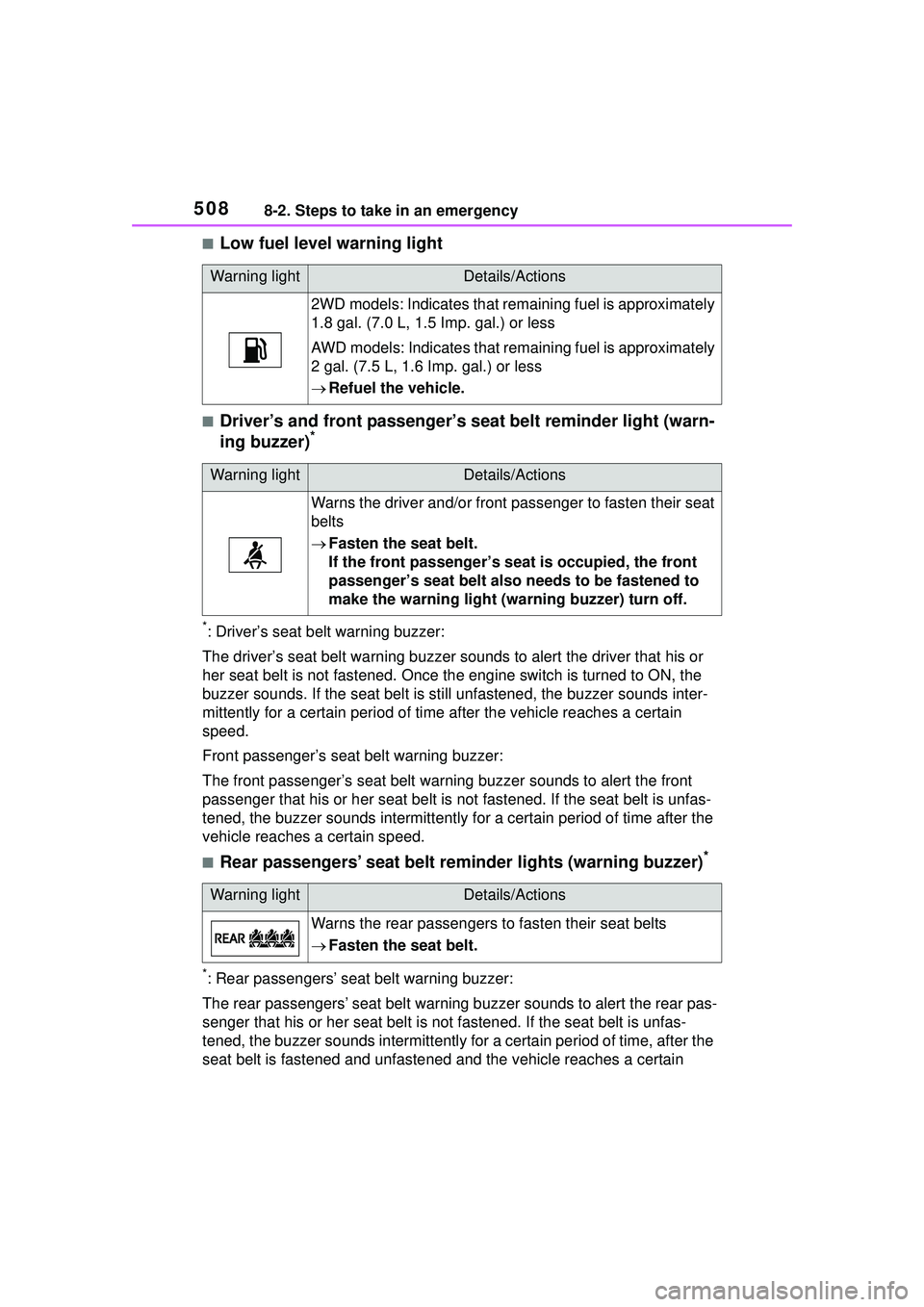

5088-2. Steps to take in an emergency
■Low fuel level warning light
■Driver’s and front passenger’s seat belt reminder light (warn-
ing buzzer)*
*: Driver’s seat belt warning buzzer:
The driver’s seat belt wa rning buzzer sounds to alert the driver that his or
her seat belt is not fastened. Once the engine switch is turned to ON, the
buzzer sounds. If the seat belt is st ill unfastened, the buzzer sounds inter-
mittently for a certain period of time after the vehicle reaches a certain
speed.
Front passenger’s seat belt warning buzzer:
The front passenger’s seat belt warning buzzer sounds to alert the front
passenger that his or her seat belt is not fastened. If the seat belt is unfas-
tened, the buzzer sounds intermittently for a certain period of time after the
vehicle reaches a certain speed.
■Rear passengers’ seat belt reminder lights (warning buzzer)*
*: Rear passengers’ seat belt warning buzzer:
The rear passengers’ seat belt warning buzzer sounds to alert the rear pas-
senger that his or her seat belt is not fastened. If the seat belt is unfas-
tened, the buzzer sounds intermittently for a certain period of time, after the
seat belt is fastened and unfastened and the vehicle reaches a certain
Warning lightDetails/Actions
2WD models: Indicates that remaining fuel is approximately
1.8 gal. (7.0 L, 1.5 Imp. gal.) or less
AWD models: Indicates that remaining fuel is approximately
2 gal. (7.5 L, 1.6 Imp. gal.) or less
 Refuel the vehicle.
Warning lightDetails/Actions
Warns the driver and/or front pa ssenger to fasten their seat
belts
 Fasten the seat belt.
If the front passenger’s seat is occupied, the front
passenger’s seat belt also needs to be fastened to
make the warning light (warning buzzer) turn off.
Warning lightDetails/Actions
Warns the rear passengers to fasten their seat belts
Fasten the seat belt.

5098-2. Steps to take in an emergency
8
When trouble arises
speed.
■Tire pressure warning light (warning buzzer)
■LTA indicator (warning buzzer)
■Stop & Start cancel indicator
Warning lightDetails/Actions
When the light comes on after blinking for approximately 1
minute:
Malfunction in the tire pressure warning system
Have the system checked by your Toyota dealer.
When the light comes on:
Low tire inflation pressure such as
 Natural causes
 Flat tire
 Immediately stop the ve hicle in a safe place.
Handling method ( P.512)
Warning lightDetails/Actions
(Orange)
Indicates a malfunction in the LTA (Lane Tracing Assist)
 Follow the instructions di splayed on the multi-infor-
mation display. ( P.212)
Warning lightDetails/Actions
(flashes)
Indicates a malfunction in the Stop & Start system
(The Stop & Start cancel in dicator will come on when the
system is canceled: P.228)
 Have the vehicle inspected by your Toyota dealer
immediately.

5108-2. Steps to take in an emergency
■BSM OFF indicator
■Intuitive parking assist OFF indicator (warning buzzer)
■RCTA OFF indicator
Warning lightDetails/Actions
(if equipped)
Indicates a malfunction in the BSM (Blind Spot Monitor)
function
 Have the vehicle inspected by your Toyota dealer
immediately.
Indicates that the rear bumper around the radar sensor is
covered with dirt, etc. ( P.234)
 Follow the instructions di splayed on the multi-infor-
mation display. ( P.233)
Warning lightDetails/Actions
(if equipped)
Indicates a malfunction in the intuitive parking assist func-
tion
 Have the vehicle inspected by your Toyota dealer
immediately.
Indicates that the system is te mporarily unavailable, possi-
bly due to a sensor being dirty or covered with ice, etc.
 Follow the instructions di splayed on the multi-infor-
mation display. ( P.253)
Warning lightDetails/Actions
(if equipped)
Indicates a malfunction in the RCTA (Rear Cross Traffic
Alert) function
 Have the vehicle inspected by your Toyota dealer
immediately.
Indicates that the rear bumper around the radar sensor is
covered with dirt, etc. ( P.234)
 Follow the instructions di splayed on the multi-infor-
mation display. ( P.239)

5118-2. Steps to take in an emergency
8
When trouble arises
■PKSB OFF indicator (warning buzzer)
■PCS warning light
■Slip indicator
Warning lightDetails/Actions
(if equipped)
Indicates a malfunction in the PKSB (Parking Support
Brake) system
 Have the vehicle inspected by your Toyota dealer
immediately.
Indicates that the system is te mporarily unavailable, possi-
bly due to a sensor being dirty or covered with ice, etc.
 Follow the instructions di splayed on the multi-infor-
mation display. ( P.263, 515)
Warning lightDetails/Actions
(Flashes or illu-
minates)
When a buzzer sounds simultaneously:
Indicates a malfunction has oc curred in the PCS (Pre-Colli-
sion System).
 Have the vehicle inspected by your Toyota dealer
immediately.
When a buzzer does not sound:
The PCS (Pre-Collision System ) has become temporarily
unavailable, corrective action may be necessary.
 Follow the instructions di splayed on the multi-infor-
mation display. ( P.193, 515)
If the PCS (Pre-Collision System) or VSC (Vehicle Stability
Control) system is disabled , the PCS warning light will illu-
minate.
 P. 2 0 2
Warning lightDetails/Actions
Indicates a malfunction in:
The VSC system;
 The TRAC system; or
 The hill-start assist control system
 Have the vehicle inspected by your Toyota dealer
immediately.

5128-2. Steps to take in an emergency
■Parking brake indicator
■Brake hold operated indicator (warning buzzer)
■Warning buzzer
In some cases, the buzzer may not
be heard due to being in a noisy
location or audio sound.
■Front passenger detection sen-
sor, seat belt reminder and
warning buzzer
●If luggage is placed on the front
passenger seat, the front passen-
ger detection sensor may cause
the warning light to flash and the
warning buzzer to sound even if a
passenger is not sitting in the
seat.
●If a cushion is placed on the seat,
the sensor may not detect a pas-
senger, and the warning light may
not operate properly.
■SRS warning light
This warning light system monitors
the airbag sensor assembly, front
impact sensors, si de impact sensors
(front door), side impact sensors
(front), front pa ssenger occupant
classification sensors, front passen-
ger occupant classification system (ECU and sensors), “AIR BAG ON”
indicator light, “AIR BAG OFF” indi-
cator light, seat belt pretensioners
and force limiters, airbags, intercon-
necting wiring and power sources.
(
 P. 3 2 )
■Electric power steering system
warning light (warning buzzer)
When the battery charge becomes
insufficient or the voltage temporar-
ily drops, the electric power steering
system warning light may come on
and the warning buzzer may sound.
■When the tire pressure warning
light comes on
Inspect the tires to check if a tire is
punctured.
If a tire is punctured: P. 5 1 8
If none of the tires are punctured:
Turn the engine swit ch off then turn
it to ON. Check if the tire pressure
warning light comes on or blinks.
Warning lightDetails/Actions
(Flashes)
(U.S.A.)
or
(Flashes)
(Canada)
It is possible that the parking brake is not fully engaged or
released
 Operate the parking brake switch once again.
This light comes on when the parking brake is not released.
If the light turns off after the parking brake is fully released,
the system is operating normally.
Warning lightDetails/Actions
(Flashes)
Indicates a malfunction in the brake hold system
 Have the vehicle inspected by your Toyota dealer
immediately.
