2022 SUBARU BRZ window

Mirrors
186It is possible to set the defogger system
for the continuous operation mode by
operating the center information display.
For details, refer to "Car settings" P165.NOTEWhile the defogger system is in the
continuous operation mode, if the bat-
tery voltage drops below the permissi-
ble level, continuous operation of the
defogger system is canceled and the
system stops operating.
3-16. MirrorsAlways check that the inside and outside
mirrors are properly adjusted before you
start driving.■
Inside Mirror1) Normal position
2) Anti-glare positionPush the tab on the mirror for normal use.
To reduce glare from the headlights of the
vehicle behind you, pull the tab to the anti-
glare position.
■
Auto-Dimming Mirror/
Compass with HomeLink
®
(Dealer Option)1) Display
2) HomeLink
® buttons
3) Switch
During nighttime driving, the auto-
dimming feature senses distracting glare
from vehicle headlights behind you and
automatically dims to eliminate the glare
and help preserve your vision.
▼
To Operate the Auto-Dimming
Feature
Press the “ ” switch to turn the auto-
dimming feature on/off. The auto-dimming
feature is enabled when the switch’s
green LED indicator is on. The auto-
CAUTION
 To prevent the battery from being
discharged, do not operate the
defogger system continuously
for any longer than necessary.Do not use sharp instruments or
window cleaner containing abra-
sives to clean the inner surface of
the rear window. They may
damage the conductors printed
on the window.
305324
1
2
23
3048671
B5=B8.ERRN 16 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Climate Control Panel
199
Climate Control4
17
2
3
4
6
5
15
13
8
9
10
11
12
14
403484
1) Set temperature indi cator (driver’s side)
2) Temperature control dial (driver’s side)
(Refer to "Temperature Control"
 P202.)
3) Climate control mode indicator
4) Fan speed control dial (Refer to "Fan Speed Control"  P202.)
5) Temperature control dial (front passenger’s side) (Refer to "Tempera-
ture Control"  P202.)
6) Set temperature indicator (front passenger’s side)
7) MAX A/C button (Refer to "MAX A/C mode" P202.)
8) SYNC button (Refer to "SYNC mode" P202.)
9) Air inlet selection button (Refer to "Air Inlet Selection"  P203.)
10) Air conditioner button (Refer to "Air Conditioner Control" P202.)
11) Airflow mode selection button (Refer to "Airflow Mode Selection" P201.)
12) Rear window defogger button and outside mirror defogger button (if
equipped) (Refer to "Defogger"
P185.)
13) ON/OFF button (Refer to "To Turn Off the Climate Control System" P203.)
14) Defroster button (Refer to "Defrosting" P203.)
15) AUTO button (Refer to "Automatic Climate Control Operation" P200.)
B5=B8.ERRN 1 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Automatic Climate Control Operation
2004-3. Automatic ClimateControl OperationWhen this mode is selected, the fan
speed, airflow distribution, air-inlet control,
and air conditioner compressor operation
are automatically controlled. To activate
this mode, perform the following.
1. Press the AUTO button. The FULL
AUTO mode is selected and the “FULL
AUTO” indicator light on the display illumi-
nates.
2. Set the preferred temperature using
the temperature control dial.NOTEOperate the automatic climate
control system when the engine is
running.
 Even when cooling is not necessary,
the air conditioner compressor will
automatically turn on if the tempera-
ture is set much lo wer than the current
outlet air temperature. Even in this
case, the “A/C” indicator light on the
control panel illuminates
 The air conditioner may not operate
in the following cases: - When the cabin temperature is
low
- When the ambient temperature
decreases close to 32°F (0°C) 
The controllable temperature range
may vary depending on the regional
specifications of the vehicle.
 If you operate any of the buttons on
the control panel other than the ON/
OFF button, rear window defogger
button, SYNC button and temperature
control dial(s) during FULL AUTO
mode operation, the “FULL” indicator
light on the control panel will turn off
and the “AUTO” indicator light will
remain illuminated. You can then
manually control the system as desired
using the button you operated. To
change the system back to the FULL
AUTO mode, press the AUTO button.
To turn off the climate control system,
press the ON/OFF button. Then the air
inlet selection will be set to the following.
 When the air inlet selection is set to
auto mode: Outside air circulation
 When the air inlet selection is set to
manual mode: No change
When the ignition switch is changed to the
“OFF” or “ACC” position from “ON”, the air
inlet mode will automatically change to the
outside air mode regardless of whether it
is the auto mode or manual mode.
■
Sensors1) Interior air temperature sensor
2) Solar sensorThe automatic climate control system
employs several sensors. These sensors
are delicate. If they are treated incorrectly
1
2
403485
B5=B8.ERRN 200 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

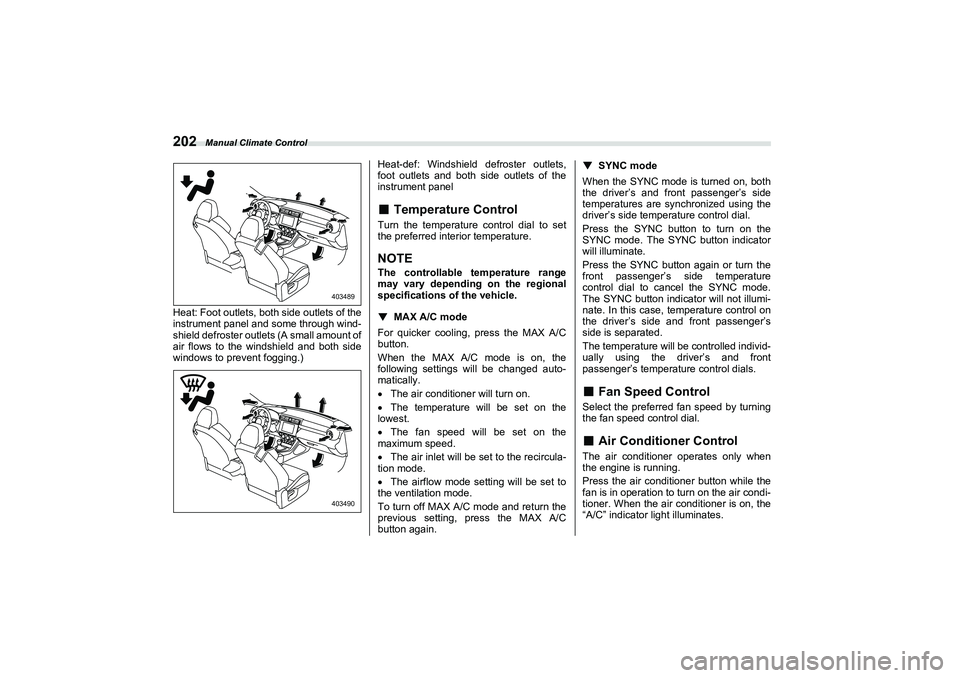

Manual Climate Control
202Heat: Foot outlets, both side outlets of the
instrument panel and some through wind-
shield defroster outlets (A small amount of
air flows to the windshield and both side
windows to prevent fogging.)Heat-def: Windshield defroster outlets,
foot outlets and both side outlets of the
instrument panel
■
Temperature Control
Turn the temperature control dial to set
the preferred interior temperature.NOTEThe controllable temperature range
may vary depending on the regional
specifications of the vehicle.
▼
MAX A/C mode
For quicker cooling, press the MAX A/C
button.
When the MAX A/C mode is on, the
following settings will be changed auto-
matically.
 The air conditioner will turn on.
 The temperature will be set on the
lowest.
 The fan speed will be set on the
maximum speed.
 The air inlet will be set to the recircula-
tion mode.
 The airflow mode setting will be set to
the ventilation mode.
To turn off MAX A/C mode and return the
previous setting, press the MAX A/C
button again. ▼
SYNC mode
When the SYNC mode is turned on, both
the driver’s and front passenger’s side
temperatures are synchronized using the
driver’s side temperature control dial.
Press the SYNC button to turn on the
SYNC mode. The SYNC button indicator
will illuminate.
Press the SYNC button again or turn the
front passenger’s side temperature
control dial to cancel the SYNC mode.
The SYNC button indicator will not illumi-
nate. In this case, temperature control on
the driver’s side and front passenger’s
side is separated.
The temperature will be controlled individ-
ually using the driver’s and front
passenger’s temperature control dials.
■
Fan Speed Control
Select the preferred fan speed by turning
the fan speed control dial.■
Air Conditioner Control
The air conditioner operates only when
the engine is running.
Press the air conditioner button while the
fan is in operation to turn on the air condi-
tioner. When the air conditioner is on, the
“A/C” indicator light illuminates.
403489403490
B5=B8.ERRN 202 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Defrosting
203
Climate Control4
– CONTINUED –
To turn off the air conditioner, press the
button again. The indicator light will turn
off.NOTEFor efficient defogging or dehumidify-
ing in cold weather, turn on the air
conditioner. However, if the ambient
temperature decreases to approxi-
mately 32°F (0°C), the air conditioner
and dehumidification system may not
work properly.■
Air Inlet Selection
Select the air inlet by pressing the air inlet
selection button.
 Recirculation:
When the indicator light on the air inlet
selection button illuminates, interior air is
recirculated inside the vehicle. Press the
air inlet selection button to the ON position
in the following cases.
- When driving on a dusty road
- When you want cooling perfor-
mance to increase (for example, in
particularly hot weather)
 Outside air circulation:
When the indicator light on the air inlet
selection button does not illuminate,
outside air is drawn into the passenger
compartment. Press the air inlet selection button to the OFF position in the following
cases.
- When the road is no longer dusty
- When the interior has cooled to a
comfortable temperature
NOTEWhen outside air circulation is
selected, the system may automati-
cally adjust the air inlet setting
depending on such factors as the tem-
perature setting, the temperature
inside the vehicle, or conditions out-
side the vehicle.■
To Turn Off the Climate
Control System
To turn off the climate control system,
press the ON/OFF button.
4-5. DefrostingSelect the “ ” or “ ” mode to defrost
or dehumidify the windshield and the side
door windows.NOTEWhen the “ ” or “ ” mode is
selected, the air conditioner
compressor operates automatically
regardless of the position of the air
conditioner button to defrost the wind-
shield more quickly. However, the indi-
cator on the air conditioner button may
not illuminate. At th e same time, the air
inlet selection is automatically set to
the outside air circulation mode.
 After defrosting the windshield by
pressing the defroster button “ ”,
pressing the button again returns the
WARNING
Continued operation in the recircu-
lation mode may fog up the win-
dows. Switch to the outside air
circulation mode as soon as the
outside dusty condition clears.
403491
B5=B8.ERRN 203 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Operating Tips for Heater and Air Conditioner
204system to the setting that had been
selected before the defroster was acti-
vated.
4-6. Operating Tips for Heaterand Air Conditioner■
Cleaning Ventilator Grille1) Front ventilator inlet grille
2) CondenserAlways keep the front ventilator inlet grille
free of snow, leaves, or other obstructions
to ensure efficient heating and defrosting.
Since the condenser is located in front of
the radiator, this area should be kept
clean because cooling performance is
impaired by any accumulation of insects and leaves on the condenser.
■
Efficient Cooling after
Parking in Direct Sunlight
After parking in direct sunlight, drive with
the windows open for a few minutes to
allow outside air to circulate into the
heated interior. This results in quicker
cooling by the air conditioner. Keep the
windows closed during the operation of
the air conditioner for maximum cooling
efficiency.■
Lubrication Oil Circulation in
the Refrigerant Circuit
Operate the air conditioner compressor at
a low engine speed (at idle or low driving
speeds) a few minutes each month during
the off-season to circulate its oil.■
Checking Air Conditioning
System before Summer
Seaso n
Check the air conditioner unit for refrig-
erant leaks, hose conditions, and proper
operation each spring. Have the air condi-
tioning system checked by your SUBARU
dealer.
2
1
403492
B5=B8.ERRN 204 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

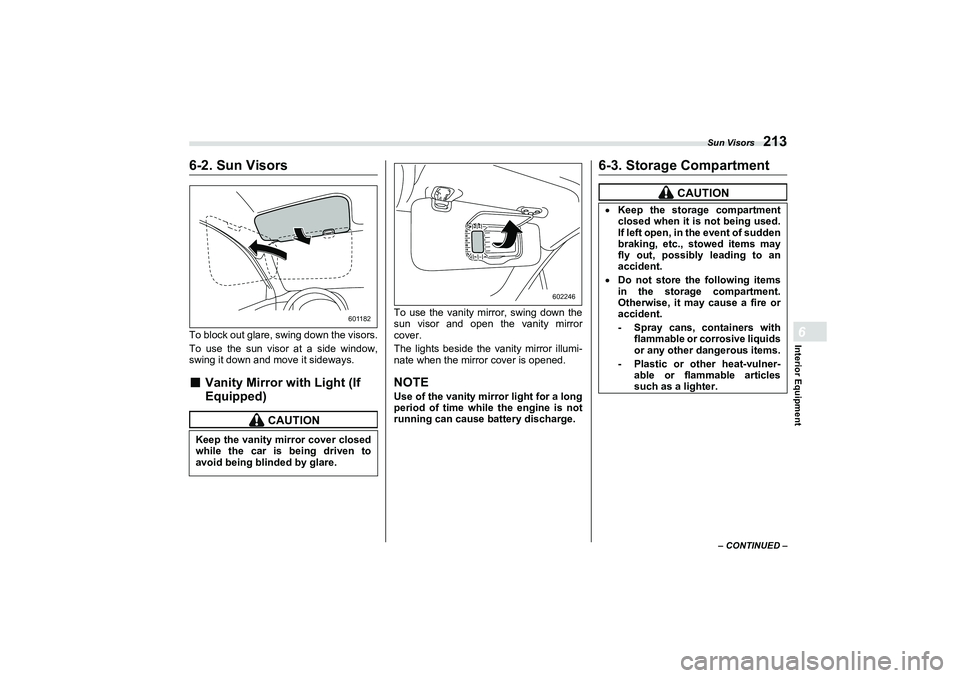

Sun Visors
213
Interior Equipment6
– CONTINUED –
6-2. Sun VisorsTo block out glare, swing down the visors.
To use the sun visor at a side window,
swing it down and move it sideways.■
Vanity Mirror with Light (If
Equipped)
To use the vanity mirror, swing down the
sun visor and open the vanity mirror
cover.
The lights beside the vanity mirror illumi-
nate when the mirror cover is opened.NOTEUse of the vanity mirror light for a long
period of time while the engine is not
running can cause battery discharge.
6-3. Storage Compartment
CAUTION
Keep the vanity mirror cover closed
while the car is being driven to
avoid being blinded by glare.
601182
602246
CAUTION
Keep the storage compartment
closed when it is not being used.
If left open, in the event of sudden
braking, etc., stowed items may
fly out, possibly leading to an
accident.Do not store the following items
in the storage compartment.
Otherwise, it may cause a fire or
accident.
- Spray cans, containers with
flammable or corrosive liquids
or any other dangerous items.- Plastic or other heat-vulner-able or flammable articles
such as a lighter.
B5=B8.ERRN 213 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Fuel
225
Starting and Operating7
– CONTINUED –
Press the unlock side of the power
door locking switch.
3. The fuel filler lid opens automatically.
Open it further by hand.
1) Open
2) Close4. Remove the fuel filler cap by turning it
slowly counterclockwise.
5. Set the fuel filler cap on the cap holder
inside the fuel filler lid.
WARNING
Before opening the fuel filler cap,
first touch the veh icle body or a
metal portion of the fuel pump or
similar object to discharge any
static electricity that may be present
on your body. If your body is carry-
ing an electrostatic charge, there is
a possibility that an electric spark
could ignite the fuel, which could
burn you. To avoid acquiring a new
static electric charge, do not get
back into the vehicle while refueling
is in progress.
WARNING
 Gasoline vapor is highly flam-
mable. Before refueling, always
turn the ignition switch to the
“OFF” position first and then
close all vehicle doors and
windows. Make sure that there
are no lighted cigarettes, open
flames or electrical sparks in the
adjacent area. Only handle fuel
outdoors. Quickly wipe up any
spilled fuel.
1
2
702787
When opening the cap, grasp it
firmly and turn it slowly to the left.
Do not remove the cap quickly.
Fuel may be under pressure and
spray out of the fuel filler neck,
especially in hot weather. If you
hear a hissing sound while you
are removing the cap, wait for the
sound to stop and then slowly
open the cap to prevent fuel from
spraying out and creating a fire
hazard.
702788
B5=B8.ERRN 225 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分
