Warning and Indicator Lights
139
Instruments and Controls3
– CONTINUED –
If this light illuminates while driving,
never brake suddenly. Instead, per-
form the following procedure. Oth-
erwise an accident involving
serious vehicle damage and serious
personal injury could occur.1) Keep driving straight ahead whilegradually reducing speed.2) Slowly pull off the road to a safeplace.If this light still illuminates while
driving after adjusting the tire pres-
sure, a tire may have significant
damage and a fast leak that causes
the tire to lose air rapidly. If you
have a flat tire, replace it with a
spare tire as soon as possible.
When a spare tire is mounted or a
wheel rim is replaced without the
original pressure sensor/transmitter
being transferred, the Low tire pres-
sure warning light will illuminate
steadily after blinking for approxi-
mately one minute. This indicates
the TPMS is unable to monitor all
four road wheels. Contact your
SUBARU dealer as soon as possi-
ble for tire and sensor replacement
and/or system resetting. If the light
illuminates steadily after blinking
for approximately one minute,
promptly contact a SUBARU dealer
to have the system inspected.
CAUTION
The tire pressure monitoring sys-
tem is NOT a substitute for manu-
ally checking tire pressure. The tire
pressure should be checked period-
ically (at least monthly) using a tire
gauge. After any change to tire
pressure(s), the tire pressure moni-
toring system will not re-check tire
inflation pressures until the vehicle
is first driven mo re than 25 mph (40
km/h). After adjusting the tire pres-
sures, increase the vehicle speed to
at least 25 mph (40 km/h) to start the
TPMS re-checking of the tire infla-
tion pressures. If the tire pressures
are now above the severe low pres-
sure threshold, the low tire pres-
sure warning light should turn off a
few minutes later. Therefore, be
sure to install the specified size for
the front and rear tires.
B5=B8.ERRN 13 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

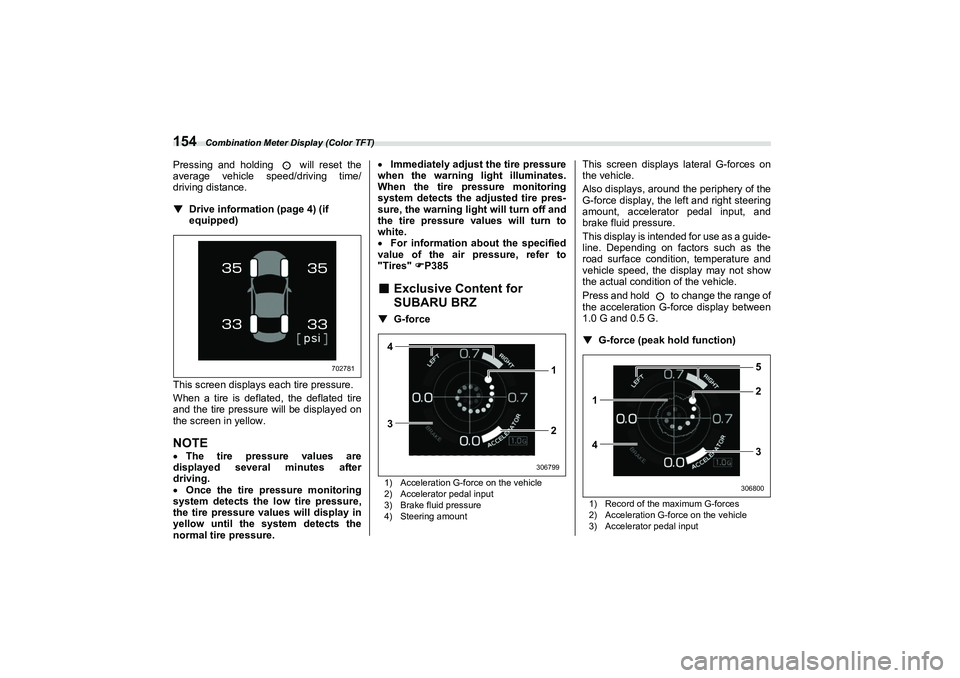

Combination Meter Display (Color TFT)
154Pressing and holding will reset the
average vehicle speed/driving time/
driving distance.
▼Drive information (page 4) (if
equipped)
This screen displays each tire pressure.
When a tire is deflated, the deflated tire
and the tire pressure will be displayed on
the screen in yellow.NOTE The tire pressure values are
displayed several minutes after
driving.
 Once the tire pressure monitoring
system detects the low tire pressure,
the tire pressure values will display in
yellow until the system detects the
normal tire pressure. 
Immediately adjust the tire pressure
when the warning light illuminates.
When the tire pr essure monitoring
system detects the adjusted tire pres-
sure, the warning ligh t will turn off and
the tire pressure values will turn to
white.
 For information about the specified
value of the air pressure, refer to
"Tires" P385
■ Exclusive Content for
SUBARU BRZ▼ G-force1) Acceleration G-force on the vehicle
2) Accelerator pedal input
3) Brake fluid pressure
4) Steering amount
This screen displays lateral G-forces on
the vehicle.
Also displays, around the periphery of the
G-force display, the left and right steering
amount, accelerator pedal input, and
brake fluid pressure.
This display is intended for use as a guide-
line. Depending on factors such as the
road surface conditi on, temperature and
vehicle speed, the display may not show
the actual condition of the vehicle.
Press and hold to change the range of
the acceleration G-force display between
1.0 G and 0.5 G.
▼ G-force (peak ho ld function)1) Record of the maximum G-forces
2) Acceleration G-force on the vehicle
3) Accelerator pedal input
702781
4
3 1
2
306799
1
42 5
3
306800
A4600BEscusenvhch03.fm 154 ページ ２０２１年７月５日　月曜日　午後４時２３分

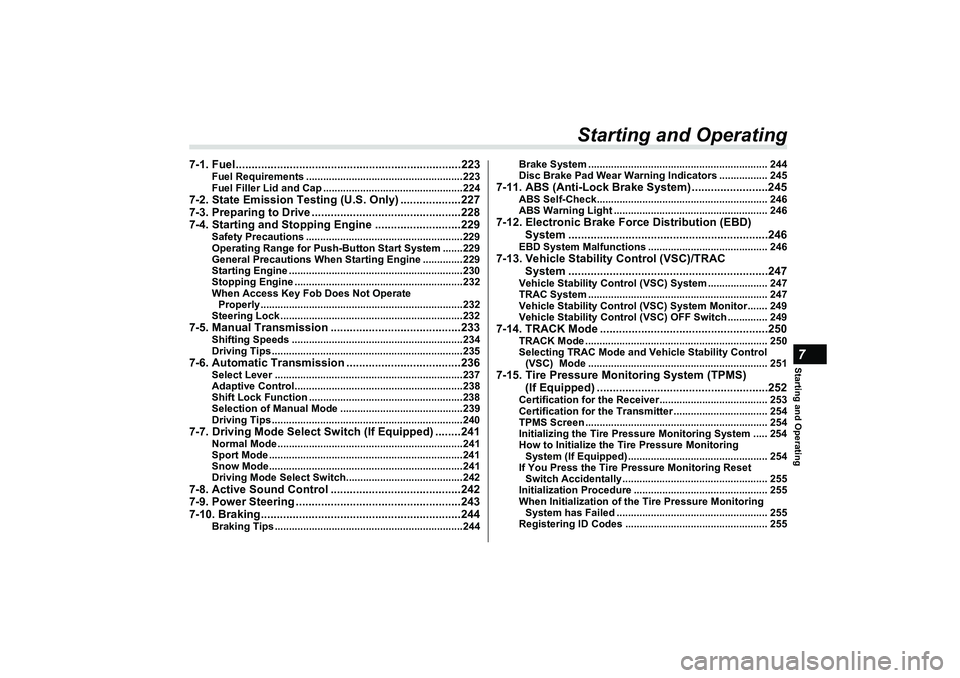

Starting and Operating7
Starting and Operating
7-1. Fuel.......................................................................223
Fuel Requirements .......................................................223
Fuel Filler Lid and Cap .................................................224
7-2. State Emission Testing (U.S. Only) ...................227
7-3. Preparing to Drive ...............................................228
7-4. Starting and Stopping Engine ...........................229
Safety Precautions ............................................ ...........229
Operating Range for Push-Button Start System .......229
General Precautions When St arting Engine ..............229
Starting Engine .............................................................230
Stopping Engine ...........................................................232
When Access Key Fob Does Not Operate Properly.......................................................................232
Steering Lock ................................................................232
7-5. Manual Transmission .........................................233
Shifting Speeds ............................................................234
Driving Tips ...................................................................235
7-6. Automatic Transmission ....................................236
Select Lever ..... .......................................... ...................237
Adaptive Control...........................................................238
Shift Lock Function ......................................................238
Selection of Manual Mode ...........................................239
Driving Tips ...................................................................240
7-7. Driving Mode Select Switch (If Equipped) ........241
Normal Mode .................................................................241
Sport Mode ....................................................................241
Snow Mode....................................................................241
Driving Mode Select Switch.........................................242
7-8. Active Sound Control .........................................242
7-9. Power Steering ....................................................243
7-10. Braking...............................................................244
Braking Tips ..................................................................244 Brake System ............................................................... 244
Disc Brake Pad Wear Warning Indicators ................. 245
7-11. ABS (Anti-Lock Brake System) ........................245
ABS Self-Check............................................................ 246
ABS Warning Light ...................................................... 246
7-12. Electronic Brake Force Distribution (EBD)
System ...............................................................246
EBD System Malfunctions .......................................... 246
7-13. Vehicle Stability Control (VSC)/TRAC System ...............................................................247
Vehicle Stability Control (VSC) System ..................... 247
TRAC System ............................................................... 247
Vehicle Stability Control (VSC) System Monitor....... 249
Vehicle Stability Control (VSC) OFF Switch .............. 249
7-14. TRACK Mode .....................................................250
TRACK Mode ................................................................ 250
Selecting TRAC Mode and Ve hicle Stability Control
(VSC) Mode ............................................................... 251
7-15. Tire Pressure Monitoring System (TPMS)
(If Equipped) ......................................................252
Certification for the Receiver...................................... 253
Certification for the Transmitter ................................. 254
TPMS Screen ................................................................ 254
Initializing the Tire Pressure Monitoring System ..... 254
How to Initialize the Tire Pressure Monitoring System (If Equipped) ................................................. 254
If You Press the Tire Pressure Monitoring Reset Switch Accidentally................................................... 255
Initialization Procedure ............................................... 255
When Initialization of the Tire Pressure Monitoring System has Failed ..................................................... 255
Registering ID Codes .................................................. 255
A4600BEscusenvhch07.fm 221 ページ ２０２１年１１月１０日　水曜日　午後５時４３分

Tire Pressure Monitoring System (TPMS) (If Equipped)
253
Starting and Operating7
– CONTINUED –
■
Certification for the Receiver
FCC ID: HYQ23ABGNOTEThis device complies with part 15 of
the FCC Rules. Operation is subject to
the following two conditions: (1) This
device may not cause harmful interfer-
ence, and (2) this device must accept
any interference received, including
interference that may cause unde-
sired operation.
FCC WARNING
Changes or modifications not
expressly approved by the party
responsible for compliance could void
the user’s authority to operate the
equipment.
 When a spare tire is mounted or a
wheel rim is replaced without the
original pressure sensor/trans-
mitter being transferred, the low
tire pressure warning light will
illuminate stead ily after blinking
for approximately one minute.
This indicates the TPMS is unable
to monitor all four road wheels.
Contact your SUBARU dealer as
soon as possible for tire and
sensor replacement and/or
system resetting.
 When a tire is repaired with liquid
sealant, the tire pressure warning
valve and transmitter may not
operate properly. If a liquid
sealant is used, contact your
nearest SUBARU dealer or other
qualified service shop as soon as
possible. Make sure to replace
the tire pressure warning valve
and transmitter when replacing
the tire. You may reuse the wheel
if there is no damage to it and if
the sealant residue is properly
cleaned off. Do not inject any tire
liquid or aerosol tire sealant into
the tires, as this may cause a
malfunction of the tire pressure
sensors. If the light illuminates
steadily after blinking for approx-
imately one minute, promptly
contact a SUBARU dealer to have
the system inspected.
CAUTION
Do not place metal film or any metal
parts under the driver’s seat. This
may cause poor reception of the
signals from the tire pressure sen-
sors, and the tire pressure monitor-
ing system will not function
properly.
B5=B8.ERRN 253 ページ ２０２１年１１月>2日　

Tire Pressure Monitoring System (TPMS) (If Equipped)
255
Starting and Operating7
4. Press and hold the TPMS set switch
until the low tire pressure warning light
blinks slowly 3 times.■
If You Press the Tire Pres-
sure Monitoring Reset
Switch Accidentally
If initialization is performed, adjust the tire
inflation pressure to the specified level
and initialize the tire pressure monitoring
system again.■
Initialization Procedure
 Make sure to carry out initialization
after adjusting the tire inflation pressure.
Also, make sure the tires are cold before
carrying out initialization or tire inflation
pressure adjustment.
 If you have accidentally turned the igni-
tion switch to the “OFF” position during
initialization, it is not necessary to press
the TPMS set switch again as initialization
will restart automatically when the engine
is restarted.
 If you accidentally press the TPMS set
switch when initializa tion is not necessary,
adjust the tire inflation pressure to the
specified level when the tires are cold, and
conduct initialization again.
■
When Initialization of the Tire
Pressure Monitoring System
has Failed
Initialization can be completed in a few
minutes. However, in the following case,
the settings have not been recorded and
the system will not operate properly. If
repeated attempts to record tire inflation
pressure settings are unsuccessful, have
the vehicle checked at your SUBARU
dealer.
 When operating the TPMS set switch,
low tire pressure warning light does not
blink 3 times.
 After carrying out the initialization
procedure, the low tire pressure warning
light blinks for 1 minute then stays on after
driving for 20 minutes.
■
Registering ID Codes
Every tire pressure warning valve and
transmitter has a unique ID code. In addi-
tion to the set of tire pressure warning
system sensor ID code s initially registered
to the vehicle, a second set of ID codes
can be registered.
A second set of tire pressure warning
system sensor ID codes can be registered
at your SUBARU dealer. When 2 sets of
ID codes have been registered, either ID
code set can be selected.■
Changing the ID code set
1. Park the vehicle in a safe place and
turn the ignition switch to the “ON” posi-
tion.
2. Press the TPMS set switch 3 times
within 3 seconds.
3. The low tire pressure warning light will
illuminate for 3 seconds and then blink 3
times.
4. The low tire pressure warning light will
blink for 1 minute and then illuminate.
5. When the ID code change has
completed, the tire pressure monitoring
light will turn off.
Check that tire pressures are displayed on
the TPMS screen.
WARNING
Do not operate the TPMS set switch
without first adjusting the tire infla-
tion pressure to the specified level.
Otherwise, the low tire pressure
warning light may not come on even
if the tire inflation pressure is low,
or it may come on when the tire
inflation pressure is actually nor-
mal.
B5=B8.ERRN 255 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Flat Tires
315
In Case of Emergency9
– CONTINUED –
■
Tire Pressure Monitoring
System (TPMS) (If Equipped)Low tire pressure warning lightThe tire pressure monitoring system
provides the driver with the warning
message indicated by sending a signal
from a sensor that is installed in each
wheel when tire pressure is severely low.
The tire pressure monitoring system will
activate only when the vehicle is driven.
Also, this system may not react immedi-
ately to a sudden drop in tire pressure (for
example, a blow-out caused by running
over a sharp object).
702780
WARNING
 If the low tire pressure warning
light illuminates while driving,
never brake suddenly. Instead,
perform the following procedure.
Otherwise an accident involving
serious vehicle damage and
serious personal injury could
occur.
(1) Keep driving straight ahead
while gradually reducing
speed.(2) Slowly pull off the road to asafe place.(3) Check the pressure for allfour tires and adjust the pres-
sure to the CO LD tire pres-
sure shown on the vehicle
placard on the center pillar on
the driver’s side.If this light still illuminates while
driving after adjusting the tire
pressure, a tire may have signifi-
cant damage and a fast leak that
causes the tire to lose air rapidly.
If you have a flat tire, replace it
with a spare tire as soon as pos-
sible.
 When a spare tire is mounted or a
wheel rim is replaced without the
original pressure sensor/trans-
mitter being transferred, the low
tire pressure warning light will
illuminate steadily after blinking
for approximately one minute.
This indicates the TPMS is unable
to monitor all four road wheels.
Contact your SUBARU dealer as
soon as possible for tire and
sensor replacement and/or
system resetting.When a tire is repaired with liquid
sealant, the tire pressure warning
valve and transmitter may not
operate properly. If a liquid
sealant is used, contact your
nearest SUBARU dealer or other
qualified service shop as soon as
possible. Make sure to replace
the tire pressure warning valve
and transmitter when replacing
the tire. You may reuse the wheel
if there is no damage to it and if
the sealant residue is properly
cleaned off.
If the light illuminates steadily
after blinking for approximately
one minute, promptly contact a
SUBARU dealer to have the sys-
tem inspected.
B5=B8.ERRN 315 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Tires and Wheels
359
Maintenance and Service11
– CONTINUED –
(5.6°C) between the temperature in the
garage and the temperature outside. By
way of example, the following table shows
the required tire pressures that corre-
spond to various outside temperatures
when the temperature in the garage is
60°F (15.6°C).
Example:
Tire size: 215/40R18 85Y
Standard tire pressures:
Front: 35 psi (240 kPa, 2.4 kgf/cm
2)
Rear: 35 psi (240 kPa, 2.4 kgf/cm2)
Garage temperature: 60°F (15.6°C)
Example:
Tire size: 215/45R17 87W
Standard tire pressures:
Front: 35 psi (240 kPa, 2.4 kgf/cm2)
Rear: 35 psi (240 kPa, 2.4 kgf/cm2)
Garage temperature: 60°F (15.6°C) If the low tire pressure warning light illumi-
nates when you drive the vehicle in cold
outside air after adjusting the tire pres-
sures in a warm garage, re-adjust the tire
pressures using the method described
above. Then, increase the vehicle speed
to at least 25mph (40km/h) and check to
see that the low tire pressure warning light
goes off a few minutes later. If the low tire
pressure warning light does not go off, the
tire pressure monito
ring system may not
be functioning normally. In this event, go
to a SUBARU dealer to have the system
inspected as soon as possible.
While the vehicle is driven, friction
between tires and the road surface
causes the tires to warm up. After illumi-
nation of the low tire pressure warning
light, any increase in the tire pressures
caused by an increase in the outside air
temperature or by an increase in the
temperature in the tires can cause the low
tire pressure warning light to go off. System resetting is
necessary when the
wheels are changed (for example, a
switch to snow tires) and new TPMS
valves are installed on the newly fitted
wheels. Have this work performed by a
SUBARU dealer following wheel replace-
ment.
It may not be possible to install TPMS
valves on certain wheels that are on the
market. Therefore, if you change the
wheels (for example, a switch to snow
tires), use wheels that have the same part
number as the standard-equipment
wheels. Without four operational TPMS
valve/sensors on the wheels, the TPMS
will not fully function and the warning light
in the instrument panel will illuminate
steadily after blinking for approximately
one minute.
When a tire is replaced, adjustments are
necessary to ensure continued normal
operation of the tire pressure monitoring
system. As with wheel replacement,
therefore, you s hould have the work
performed by a SUBARU dealer.
Outside
temperature Adjusted pressure
[psi (kPa, kgf/cm
2)]
Front Rear
30°F ( −1°C) 38 (260, 2.6) 38 (260, 2.6)
10°F ( −12°C) 40 (275,
2.75) 40 (275,
2.75)
− 10°F
( − 23°C) 42 (290, 2.9) 42 (290, 2.9)
Outside
temperature Adjusted pressure
[psi (kPa, kgf/cm
2)]
Front Rear
30°F ( −1°C) 38 (260, 2.6) 38 (260, 2.6)
10°F ( −12°C) 40 (275,
2.75) 40 (275,
2.75)
− 10°F
( − 23°C) 42 (290, 2.9) 42 (290, 2.9)
B5=B8.ERRN 35 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Tires and Wheels
360
■
Tire Inspection
Check on a daily basis that the tires
are free from serious damage, nails,
and stones. At the same time, check
the tires for abnormal wear.
Contact your SUBARU dealer
immediately if you find any problem.NOTEWhen the wheels and tires
strike curbs or are subjected to
harsh treatment as when the
vehicle is driven on a rough surface, they can suffer damage
that cannot be seen with the
naked eye. This type of damage
does not become evident until
time has passed. Try not to drive
over curbs, potholes or on other
rough surfaces. If doing so is
unavoidable, keep the vehicle’s
speed down to a walking pace or
less, and approach the curbs as
squarely as possible. Also, make
sure the tires are not pressed
against the curb when you park
the vehicle.

If you feel unusual vibration
while driving or find it difficult to
steer the vehicle in a straight line,
one of the tires and/or wheels
may be damaged. Drive slowly to
the nearest authorized SUBARU
dealer and have the vehicle
inspected.
 Tires should be replaced if:
– You have tire damage such
as cuts, splits, cracks deep
enough to expose the fabric or
bulges indicating internal
damage
WARNING
If the low tire pressure warning light
does not illuminate briefly after the
ignition switch is turned ON or the
light illuminates steadily after blink-
ing for approximately one minute,
you should have your Tire Pressure
Monitoring System checked at a
SUBARU dealer as so on as possi-
ble.If this light illuminates while driving,
never brake suddenly. Instead, per-
form the following procedure. Oth-
erwise an accident involving
serious vehicle damage and serious
personal injury could occur.1) Keep driving straight ahead while gradually reducing speed.2) Slowly pull off the road to a safeplace.If this light still illuminates while
driving after adjusting the tire pres-
sure, a tire may have significant
damage and a fast leak that causes
the tire to lose ai r rapidly. If you
have a flat tire, replace it with a
spare tire as soon as possible.
When a spare tire is mounted or a
wheel rim is replaced without the
original pressure sensor/transmitter
being transferred, the low tire pres-
sure warning light will illuminate
steadily after blinking for approxi-
mately one minute. This indicates
the TPMS is unable to monitor all
four road wheels. Contact your
SUBARU dealer as soon as possi-
ble for tire and sensor replacement
and/or system resetting. If the light
illuminates steadily after blinking
for approximately one minute,
promptly contact a SUBARU dealer
to have the system inspected.
B5=B8.ERRN 360 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分
