How to Use This Owner’s Manual
4■
Safety Symbol
You will find a circle with a slash through it
in this manual. This symbol means “Do
not”, “Do not do this”, or “Do not let this
happen”, depending upon the context.
■
Abbreviation List
You may find several abbreviations in this
manual. The meanings of the abbrevia-
tions are shown in the following list.
000013
AbbreviationMeaning
ABS Anti-lock brake system
A/C Air conditioner
AKI Anti knock index
ALR Automatic locking retractor
ALR/ELR Automatic locking retractor/
Emergency locking retractor
AT Automatic transmission
BSD Blind Spot Detection
DRL Daytime running light
EBD Electronic brake force distri-
bution
ELR Emergency locking retractor
GAW Gross axle weight
GAWR Gross axle weight rating
GPS Global positioning system
GVW Gross vehicle weight
GVWR Gross vehicl e weight rating
INT Intermittent
LATCHLower anchors and tethers
for children
LCA Lane Change Assist
LED Light emitting diode
LHD Left-hand drive
LSD Limited Slip Differential
MIL Malfunction indicator light
MT Manual transmission
OBD On-board diagnostics
RAB Reverse Automatic Braking
system
RCTA Rear Cross Traffic Alert
RON Research octane number
SRH Steering Responsive Head-
light
SRS Supplemental restraint sys-
tem
TFT Thin Film Transistor
TIN Tire identification number
TPMS Tire pressure monitoring sys-
tem
TRAC Traction Control Abbreviation
Meaning
B5=B8.ERRN 4 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Instruments and Controls
RAB Warning Indicator (If Equipped) ......................... 151
RAB OFF Indicator (If Equipped) ................................ 151
Master Warning Light .................................................. 151
3-7. Combination Meter Display (Color TFT) ...........151
Basic Operation............................................................ 152
Meter Information Screen ........ .................................... 152
Drive Information ......................................................... 153
Exclusive Content for SUBARU BRZ ......................... 154
Navigation System-Linked Disp lay ............................ 156
Audio System-Linked Display..................................... 156
Driving Support System Settings Display ................. 157
Settings Display ........................................................... 157
Warning Message Display ....... .................................... 159
Telltale Screen .............................................................. 159
3-8. Center Information Display (CID).......................160
Features ........................................................................ 160
Touch Screen Operations ........................................... 160
Main Screen .................................................................. 161
3-9. Clock ....................................................................172
Setting the Clock Manually ......................................... 172
Setting the Clock Automatically ................................. 173
3-10. Light Control Switch ........................................ 174
Headlights ..................................................................... 174
High/Low Beam Change (Dimmer) ............................. 176
Headlight Flasher ......................................................... 176
High Beam Assist Function (If Equipped).................. 177
Daytime Running Light System .................................. 180
3-11. Steering Responsive Headlight (SRH)
(If Equipped) ..................................................... 180
3-12. Headlight Beam Leveler .................................. 182
3-13. Turn Signal Le ver ............................................. 182
One-Touch Lane Changer ........................................... 182
3-14. Wiper and Washer ............................................ 183
Windshield Wiper and Washer Switches ................... 184
3-15. Defogger ........................................................... 185
3-16. Mirrors ............................................................... 186
Inside Mirror.................................................................. 186
Auto-Dimming Mirror/Compass with HomeLink
®
(Dealer Option) ........................................................... 186
Outside Mirrors............................................................. 194
3-17. Tilt/Telescopic Steering Wheel ....................... 195
3-18. Horn ................................................................... 195
A4600BEscusenvhch03.fm 124 ページ ２０２１年７月５日　月曜日　午後４時２２分

Center Information Display (CID)
169
Instruments and Controls3
– CONTINUED –
*1: If equipped
*2: For details about EyeSight system, refer to the Owner’s Manual supplement for the EyeSight system. Item
Available settingsPage reference for
the vehicle system
operation Page reference for
the setting proce-
dure
1st menu
2nd menu
Vehicle Control Cruise Control Accel-
eration Characteris-
tics
*1
Lv.1 (Eco)/Lv.2 (Comfort)/Lv.3 (Standard)/Lv.4
(Dynamic)
*2
―
Steering Responsive
Headlights (SRH)
*1
ON/OFF 180170
Driving Assistance
*1
Pre-Collision Braking S etting ON/Setting OFF
*2
―
Lane Departure
Warning ON/OFF
BSD/RCTA ON/OFF 268170
Others Warning Volume
*1
Min/Mid/Max
277 and *2―
Units km, km/h, Liter/Miles, MPH, Gallon 127 and 151170
B5=B8.ERRN 16 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

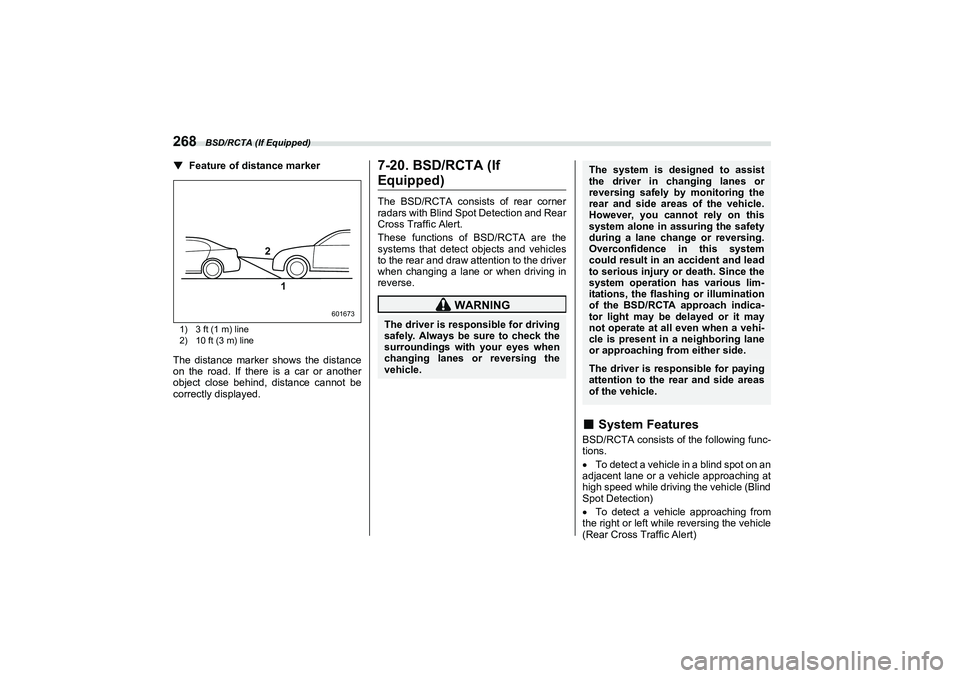

BSD/RCTA (If Equipped)
268▼
Feature of distance marker1) 3 ft (1 m) line
2) 10 ft (3 m) lineThe distance marker shows the distance
on the road. If there is a car or another
object close behind, distance cannot be
correctly displayed.
7-20. BSD/RCTA (IfEquipped)The BSD/RCTA consists of rear corner
radars with Blind Spot Detection and Rear
Cross Traffic Alert.
These functions of BSD/RCTA are the
systems that detect objects and vehicles
to the rear and draw attention to the driver
when changing a lane or when driving in
reverse.
■
System Features
BSD/RCTA consists of the following func-
tions.
To detect a vehicle in a blind spot on an
adjacent lane or a vehicle approaching at
high speed while driving the vehicle (Blind
Spot Detection)
 To detect a vehicle approaching from
the right or left while reversing the vehicle
(Rear Cross Traffic Alert)
601673
2
1
WARNING
The driver is responsible for driving
safely. Always be sure to check the
surroundings with your eyes when
changing lanes or reversing the
vehicle.
The system is designed to assist
the driver in changing lanes or
reversing safely by monitoring the
rear and side areas of the vehicle.
However, you cannot rely on this
system alone in assuring the safety
during a lane change or reversing.
Overconfidence in this system
could result in an accident and lead
to serious injury or death. Since the
system operation has various lim-
itations, the flashing or illumination
of the BSD/RCTA approach indica-
tor light may be delayed or it may
not operate at all even when a vehi-
cle is present in a neighboring lane
or approaching from either side.The driver is responsible for paying
attention to the rear and side areas
of the vehicle.
B5=B8.ERRN 26 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

BSD/RCTA (If Equipped)
269
Starting and Operating7
– CONTINUED –
The system uses radar sensors for the
following features.NOTEThe BSD/RCTA radar sensor has been
certified by the radio wave related laws
of the U.S. and other FCC compliant
countries, Canada and Mexico. When
driving in other countries, certifica-
tion of the country where the vehicle is
driven must be obtained. For certifica-
tion in the U.S. and other FCC compli-
ant countries, Canada and Mexico,
refer to "Certification for the BSD/
RCTA" 
P275.
▼
Blind Spot Detection (BSD)1) Operating range
The system notifies the driver of the pres-
ence of vehicles in its blind spot.
 If the system detects a vehicle in its
blind spot, it warns the driver by illumi-
nating the BSD/RCTA approach indicator
light(s) on the outside mirror(s).
 If the driver operates the turn signal
lever in the direction where the BSD/
RCTA approach indicator light is illumi-
nating, the system warns the driver of
dangers by flashing the BSD/RCTA
approach indicator light.
▽Lane Change Assist (LCA)1) Operating rangeThe system notifies the driver of vehicles
approaching at a high speed in the neigh-
boring lanes. 
If the system detects a vehicle
approaching at a high speed in the neigh-
boring lanes, it warns the driver of
dangers by illuminating the BSD/RCTA
approach indicator light(s) on the outside
mirror(s).
 If the driver operates the turn signal
lever in the direction where the BSD/
RCTA approach indicator light is illumi-
nating, the system warns the driver of
dangers by flashing the BSD/RCTA
approach indicator light.
▼
Rear Cross Traffic Alert (RCTA)1) Operating rangeThe system notifies the driver of another
vehicle approaching from either side when
driving in reverse. This feature helps the
701459
1
701406
1
701460
1
B5=B8.ERRN 26 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

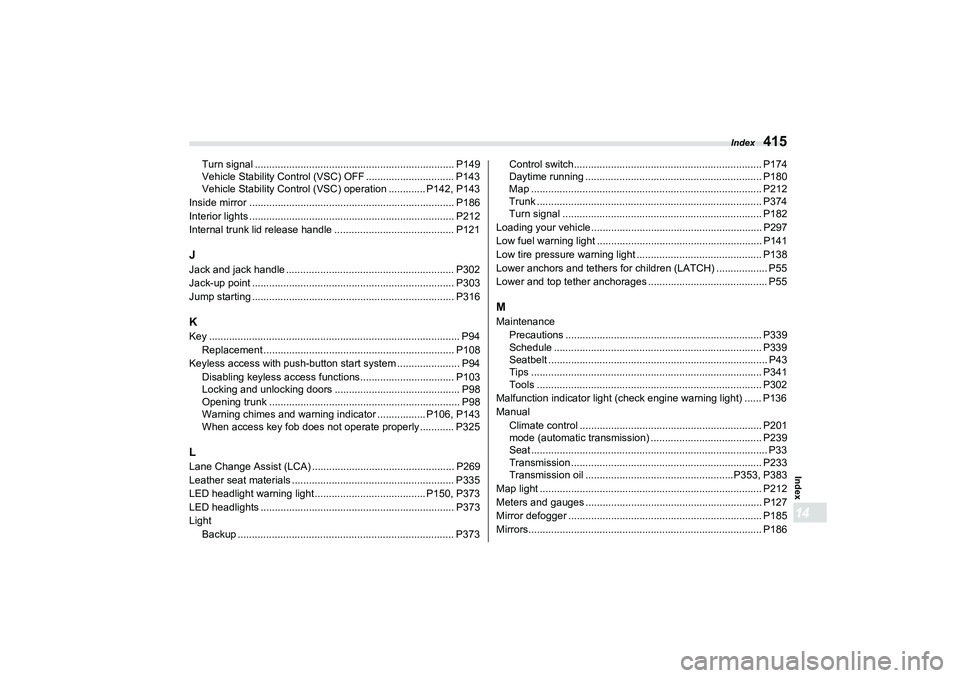

Index
415
Index14
Turn signal ...................................................................... P149
Vehicle Stability Control (VSC) OFF ............................... P143
Vehicle Stability Control (VSC) operation ............. P142, P143
Inside mirror ........................................................................ P186
Interior lights ........................................................................ P212
Internal trunk lid release handle .. ........................................ P121
JJack and jack handle ... ................................................... ..... P302
Jack-up point ....................................................................... P303
Jump starting ....................................................................... P316KKey ........................................................................................ P94
Replacement ................................................................... P108
Keyless access with push-button start system ...................... P94
Disabling keyless access functions................................. P103
Locking and unlocking doors ............................................ P98
Opening trunk ................................................................... P98
Warning chimes and warning i ndicator ................. P106, P143
When access key fob does not operate properly ............ P325LLane Change Assist (LCA) .................................................. P269
Leather seat materials ................ ......................................... P335
LED headlight warning light ........ ............................... P150, P373
LED headlights .................................................................... P373
Light Backup ............................................................................ P373 Control switch.................................................................. P174
Daytime running ...........
................................................... P180
Map ................................................................................. P212
Trunk ............................................................................... P374
Turn signal ................ ....................................... ............... P182
Loading your vehicle ............................................................ P297
Low fuel warning light .......................................................... P141
Low tire pressure warning light ............................................ P138
Lower anchors and tethers for ch ildren (LATCH) .................. P55
Lower and top tether anchorages .......................................... P55
MMaintenance Precautions ..................................................................... P339
Schedule ............. ........................................................ .... P339
Seatbelt ............................................................................. P43
Tips ................................................................................. P341
Tools ............................................................................... P302
Malfunction indicator light (check engine warning light) ...... P136
Manual Climate control ................................................................ P201
mode (automatic transmission) ... .................................... P239
Seat ................................................................................... P33
Transmission ................................................................... P233
Transmission oil ....................................................P353, P383
Map light .............................................................................. P212
Meters and gauges .............................................................. P127
Mirror defogger .................................................................... P185
Mirrors.................................................................................. P186
B5=B8.ERRN 415 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分
