Keys and Doors2
Keys and Doors
2-1. Keyless Access with Push-Button Start System .................................................................94
Safety Precautions ..... .......................................... ..........94
Locking and Unlocking with “Keyless Access” Entry Function ..............................................................97
Unlock Using PIN Code Access ..................................100
Power Saving Function ................................................102
Power Saving Function of Access Key Fob...............103
Disabling Keyless Access Function ...........................103
Selecting Audible Signal Operation (If Equipped).....105
Selecting Hazard Warning Flasher Operation ...........106
Warning Chimes and Warning Indicator ....................106
When Access Key Fob Does Not Operate Properly.......................................................................106
Replacing Battery of Access Key Fob ........................106
Replacing Access Key Fob..........................................106
Certification for Keyless Access with Push-Button Start System ...............................................................106
2-2. Immobilizer ..........................................................108

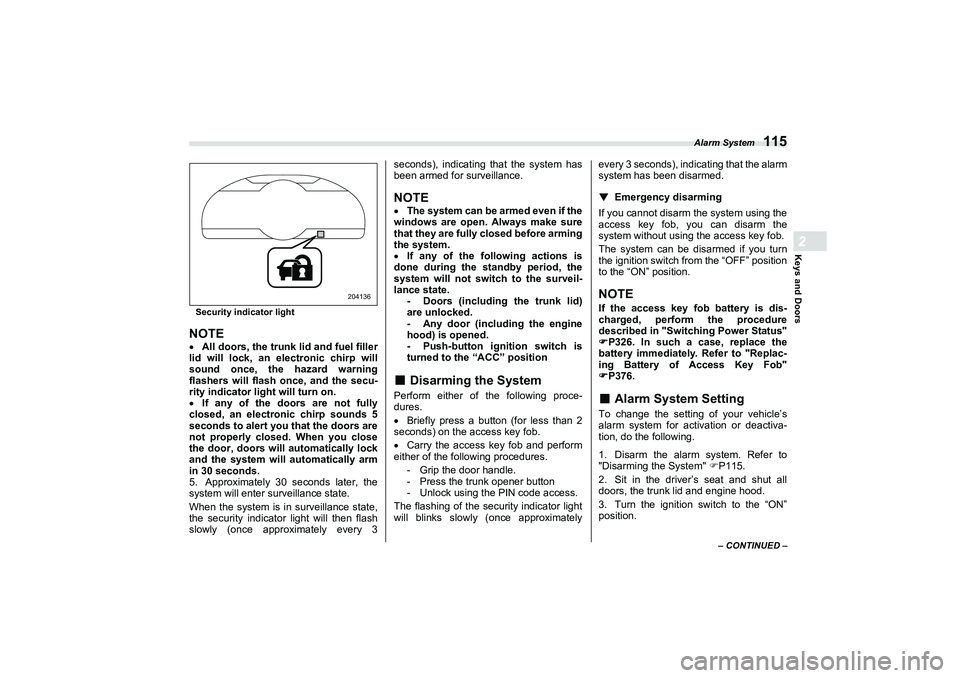

Security Indicator Light ...............................................108
Key Replacement..........................................................108
Certification for Immobilizer System ..........................108
2-3. Remote Keyless Entry System ..........................109
Locking the Doors ........................................................110
Unlocking the Doors ....................................................110
Opening the Trunk Lid .................................................110 Setting Audible Signal Operation (If Equipped)........ 110
Selecting Hazard Warning Flasher Operation........... 110
Vehicle Finder Function .............................................. 110
Sounding a Panic Alarm ............................................. 110
Replacing the Battery .................................................. 111
Replacing Lost Transmitters ...................................... 111
2-4. Door Locks ..........................................................111
Locking and Unlocking from the Outside ................. 111
Locking and Unlocking from the Inside .................... 112
Key Lock-In Prevention Function............................... 113
Battery Drainage Prevention Function ...................... 113
2-5. Alarm System ......................................................114
Alarm System Operation ............................................. 114
Arming the System ...................................................... 114
Disarming the System ................................................. 115
Alarm System Setting.................................................. 115

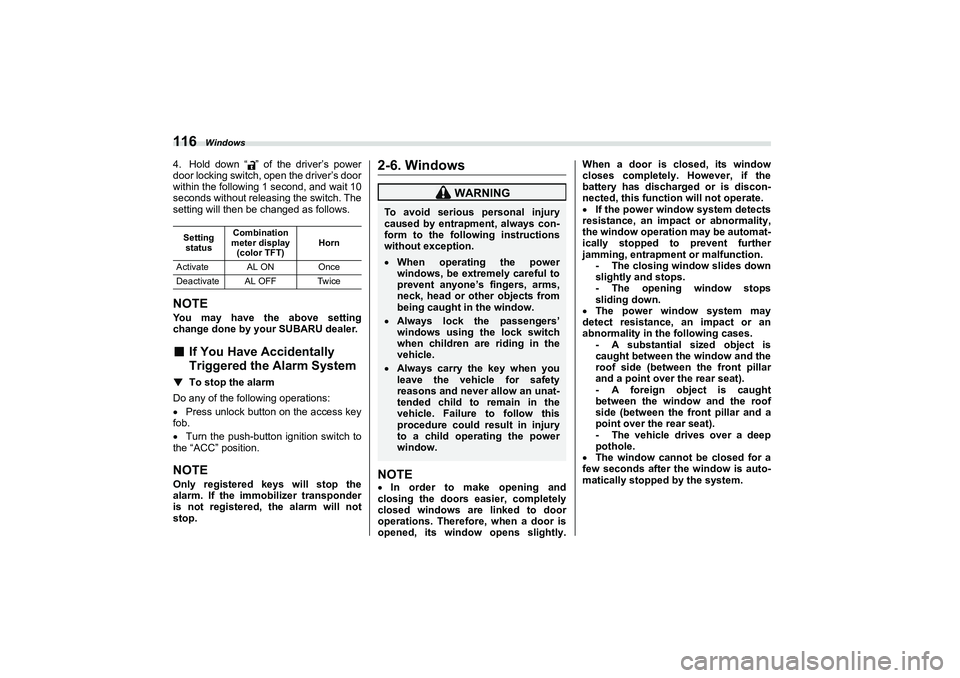

If You Have Accidentally Triggered the Alarm
System........................................................................ 116
2-6. Windows ..............................................................116
Power Window Operation ........................................... 117
Initialization of Power Window ................................... 118
2-7. Trunk Lid ..............................................................119
To Open and Close the Trunk Lid from Outside ....... 120
To Open the Trunk Lid from Inside ............................ 121
Internal Trunk Lid Release Handle ............................. 121
B5=B8.ERRN 3 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Keyless Access with Push-Button Start System
942-1. Keyless Access withPush-Button Start SystemThe following access key fobs are
provided with the vehicle.1) Access key fob
2) Key number plateThe keyless access with push-button start
system allows you to perform the following
functions when you are carrying the
access key fob.
Locking and unlocking of the doors,
fuel filler lid
 Opening the trunk
 Starting and stopping the engine. For
detailed information, refer to "Starting and
Stopping Engine"  P229. 
Arming and disarming the alarm
system. For detailed in formation, refer to
"Alarm System" P114.
NOTE Locking and unlocking by the
remote keyless entry system can also
be controlled with the buttons on the
access key fob. For detailed informa-
tion, refer to "Remote Keyless Entry
System" 
P109.
 Carefully store the key number plate
supplied with the access key fob. It is
necessary for vehicle repair and addi-
tional registration of access key fobs.
For details, refer to "Key Replacement"

P108.
An emergency key is attached to each
access key fob.
1) Release button
2) Emergency keyWhile pressing the release button of the
access key fob, take out the emergency
key.
The emergency key is used for locking
and unlocking the driver’s door.■
Safety Precautions
203629
11 2
WARNING
If you wear an implanted pacemaker
or an implanted defibrillator, stay at
least 8.7 in (22 cm) away from the
transmitting antennas installed on
the vehicle.
1
2
202500
B5=B8.ERRN 4 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Remote Keyless Entry System
109
Keys and Doors2
– CONTINUED –
2-3. Remote Keyless Entry System
Access key fob
1) Lock/arm button
2) Unlock/disarm button
3) Trunk lid opener button
4) PANIC buttonThe remote keyless entry system has the
following functions.
Locking and unlocking the doors and
fuel filler lid
 Opening the trunk lid
 Sounding a panic alarm
 Arming and disarming the alarm
system. For details, refer to "Alarm
System" P114.
The operable distance of the remote
keyless entry system is approximately 30
feet (10 meters). Ho wever, this distance
will vary depending on environmental
conditions. The system’s operable distance will be shorter in areas near a
facility or electronic equipment emitting
strong radio waves such as a power plant,
broadcast station, TV tower, or remote
controller of home electronic appliances.
NOTE
The remote keyless entry system
will not be activa ted when the push-
button ignition switch is in any posi-
tion other than the “OFF” position.
 The hazard warning flashers will
flash once or twice when the access
key fob button is pressed in the
following cases. - When locking the doors
- When unlocking the doors
If desired, you can turn the hazard
warning flashers off by operating the
center information display. For details,
refer to "Car settings" 
P165. The set-
ting can also be changed by a
SUBARU dealer. Consult your
SUBARU dealer for details.
The setting of the Remote Keyless
Entry System operation can be
changed by your SUBARU dealer.
Consult your SUBARU dealer for
details. For details, refer to "Function
Settings and Adjustments Performed
by a Dealer" 
P391.
CAUTION
Do not expose the remote trans-
mitter to severe shocks, such as
those experienced as a result of
dropping or throwing.Do not take the remote trans-
mitter apart except when
replacing the battery.Do not get the remote transmitter
wet. If it gets we t, wipe it dry with
a cloth immediately. When you carry the remote trans-
mitter on an airplane, do not
press the button of the remote
transmitter while in the airplane.
When any button of the remote
transmitter is pressed, radio
waves are sent and may affect the
operation of the airplane. When
you carry the remote transmitter
in a bag on an airplane, take
measures to prevent the buttons
of the remote transmitter from
being pressed.
202502
1
2
3
4
B5=B8.ERRN 10 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Remote Keyless Entry System
110■

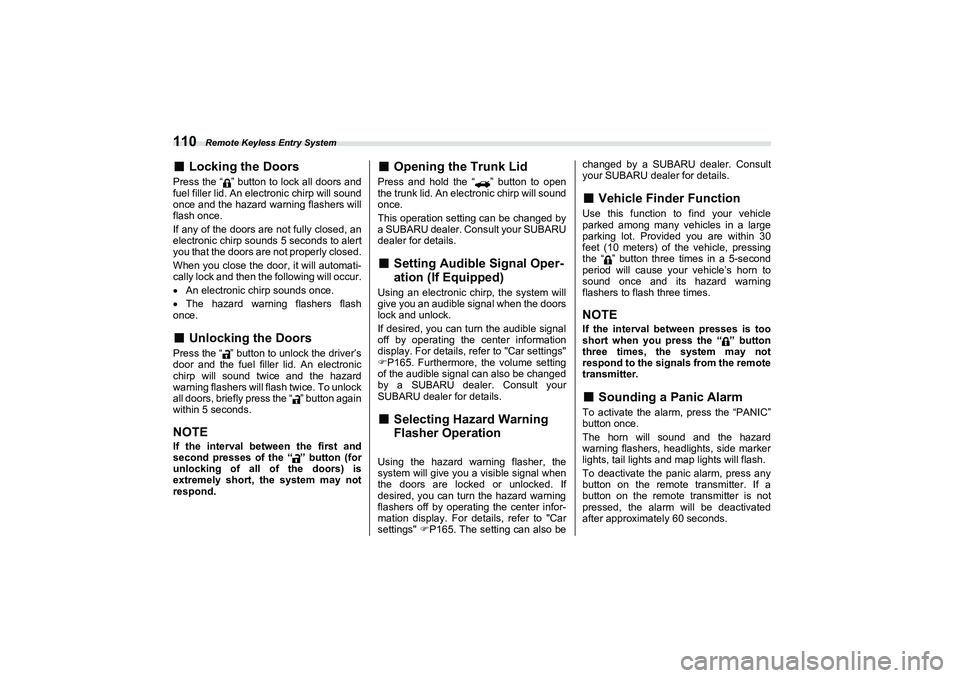

Locking the Doors
Press the “ ” button to lock all doors and
fuel filler lid. An electronic chirp will sound
once and the hazard warning flashers will
flash once.
If any of the doors are not fully closed, an
electronic chirp sounds 5 seconds to alert
you that the doors are not properly closed.
When you close the door, it will automati-
cally lock and then the following will occur.
 An electronic chirp sounds once.
 The hazard warning flashers flash
once.■
Unlocking the Doors
Press the “ ” button to unlock the driver’s
door and the fuel filler lid. An electronic
chirp will sound twice and the hazard
warning flashers will flash twice. To unlock
all doors, briefly press the “ ” button again
within 5 seconds.NOTEIf the interval between the first and
second presses of the “ ” button (for
unlocking of all of the doors) is
extremely short, the system may not
respond.
■
Opening the Trunk Lid
Press and hold the “ ” button to open
the trunk lid. An electronic chirp will sound
once.
This operation setting can be changed by
a SUBARU dealer. Consult your SUBARU
dealer for details.■
Setting Audible Signal Oper -
ation (If Equipped)
Using an electronic chirp, the system will
give you an audible signal when the doors
lock and unlock.
If desired, you can turn the audible signal
off by operating the center information
display. For details, refer to "Car settings"
 P165. Furthermore, the volume setting
of the audible signal can also be changed
by a SUBARU dealer. Consult your
SUBARU dealer for details.■
Selecting Hazard Warning
Fl asher Operation
Using the hazard warning flasher, the
system will give you a visible signal when
the doors are locked or unlocked. If
desired, you can turn the hazard warning
flashers off by operating the center infor-
mation display. For details, refer to "Car
settings" P165. The setting can also be changed by a SUBARU dealer. Consult
your SUBARU dealer for details.
■
Vehicle Finder Function
Use this function to find your vehicle
parked among many vehicles in a large
parking lot. Provided you are within 30
feet (10 meters) of the vehicle, pressing
the “ ” button three times in a 5-second
period will cause your vehicle’s horn to
sound once and its hazard warning
flashers to flash three times.NOTEIf the interval between presses is too
short when you press the “ ” button
three times, the system may not
respond to the signals from the remote
transmitter.■
Sounding a Panic Alarm
To activate the alarm, press the “PANIC”
button once.
The horn will sound and the hazard
warning flashers, headlights, side marker
lights, tail lights and map lights will flash.
To deactivate the panic alarm, press any
button on the remote transmitter. If a
button on the remote transmitter is not
pressed, the alarm will be deactivated
after approximately 60 seconds.
B5=B8.ERRN 110 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Door Locks
111
Keys and Doors2
– CONTINUED –
■

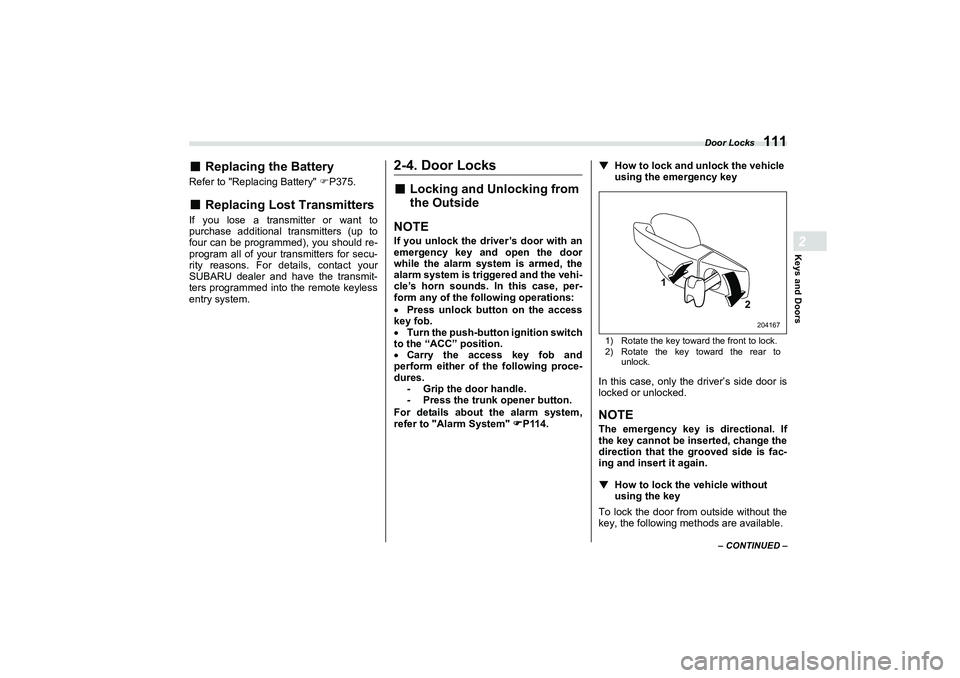

Replacing the Battery
Refer to "Replacing Battery" P375.■
Replacing Lost Transmitters
If you lose a transmitter or want to
purchase additional transmitters (up to
four can be programmed), you should re-
program all of your transmitters for secu-
rity reasons. For details, contact your
SUBARU dealer and have the transmit-
ters programmed into the remote keyless
entry system.
2-4. Door Locks■
Locking and Unlocking from
the Outside
NOTE
If you unlock the driver’s door with an
emergency key and open the door
while the alarm system is armed, the
alarm system is triggered and the vehi-
cle’s horn sounds. In this case, per-
form any of the following operations:
 Press unlock button on the access
key fob.
 Turn the push-button ignition switch
to the “ACC” position.
 Carry the access key fob and
perform either of the following proce-
dures. - Grip the door handle.
- Press the trunk opener button.
For details about the alarm system,
refer to "Alarm System" 
P114.▼
How to lock and unlock the vehicle
using the emergency key1) Rotate the key toward the front to lock.
2) Rotate the key toward the rear to
unlock.In this case, only the driver’s side door is
locked or unlocked.NOTEThe emergency key is directional. If
the key cannot be inserted, change the
direction that the grooved side is fac-
ing and insert it again.
▼
How to lock the vehicle without
using the key
To lock the door from outside without the
key, the following methods are available.
2
1
204167
B5=B8.ERRN 111 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Alarm System
114the battery from going dead. The following
interior lights are affected by this function.NOTEThe default setting for this function
is set as “operational”. The opera-
tional/non-operation al setting of this
function can be changed by a SUBARU
dealer. Contact your SUBARU dealer to
change the setting.
 When leaving the vehicle, please
make sure that all doors are completely
closed.
 The battery drainage prevention
function does not operate when the
ignition switch is in “ACC” or “ON”
position.
 The battery drainage prevention
function for the pu sh-button ignition
switch. For details, refer to "Battery
drainage prevention function" 
P126.
2-5. Alarm SystemThe alarm system helps to protect your
vehicle and valuables from theft. The horn
sounds and the hazard warning flashers
flash if someone attempts to break into
your vehicle.
The system can be armed or disarmed
with the keyless access function or access
key fob.
The system will not be activated when the
push-button ignition switch is in the “ACC”
or “ON” position.
Your vehicle’s alarm system has been set
for deactivation at the time of shipment
from the factory. You can set the system
for activation yourself or have it done by
your SUBARU dealer. Refer to "Alarm
System Setting" P115.■
Alarm System Operation
When the alarm system is armed, it is trig-
gered by the opening any of the doors, the
trunk lid or engine hood.
The alarm system will activate the
following alarms when triggered.
 The vehicle’s horn will sound for 60
seconds.
 The hazard warning flashers, head-
lights, side marker lights, tail lights and
map lights will flash for 60 seconds.
NOTEThe alarm system can be set to trigger
the illumination of the map lights (illu-
minates only when the door interlock
switch is in the “DOOR” position).■
Arming the System
The alarm system becomes armed when
the following operation is performed.
1. Close all windows and turn the ignition
switch to the “OFF” position.
2. Carry the key and get out of the
vehicle.
3. Make sure that the engine hood is
locked.
4. Lock the doors using any of the
following methods.
Locking using the remote keyless
entry system. For details, refer to
"Remote Keyless Entry System"
 P109.
 Locking using the keyless access
function. For details, refer to "Locking
with the door lock sensor"  P99.
 Locking using the power door
locking switch. For details, refer to
"Locking using power door locking
switch" P112.
Item Switch
posi-tion Automatically turn-
ing off
Map lights DOOR Approximately 20
minutes later
Ignition
switch light ―
Approximately 20
minutes later
B5=B8.ERRN 114 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Alarm System
115
Keys and Doors2
– CONTINUED –
Security indicator light
NOTE
All doors, the trunk lid and fuel filler
lid will lock, an electronic chirp will
sound once, the hazard warning
flashers will flash once, and the secu-
rity indicator light will turn on.
 If any of the doors are not fully
closed, an electronic chirp sounds 5
seconds to alert you that the doors are
not properly closed. When you close
the door, doors will automatically lock
and the system will automatically arm
in 30 seconds.
5. Approximately 30 seconds later, the
system will enter surveillance state.
When the system is in surveillance state,
the security indicator light will then flash
slowly (once approximately every 3 seconds), indicating that the system has
been armed for surveillance.
NOTE
The system can be armed even if the
windows are open. Always make sure
that they are fully closed before arming
the system.
 If any of the following actions is
done during the standby period, the
system will not switch to the surveil-
lance state. - Doors (including the trunk lid)
are unlocked.
- Any door (including the engine
hood) is opened.
- Push-button ignition switch is
turned to the “ACC” position■
Disarming the System
Perform either of the following proce-
dures.
Briefly press a button (for less than 2
seconds) on the access key fob.
 Carry the access key fob and perform
either of the following procedures.
- Grip the door handle.
- Press the trunk opener button
- Unlock using the PIN code access.
The flashing of the security indicator light
will blinks slowly (once approximately every 3 seconds), indicating that the alarm
system has been disarmed.
▼
Emergency disarming
If you cannot disarm the system using the
access key fob, you can disarm the
system without using the access key fob.
The system can be disarmed if you turn
the ignition switch from the “OFF” position
to the “ON” position.
NOTEIf the access key fob battery is dis-
charged, perform the procedure
described in "Switching Power Status"
P326. In such a case, replace the
battery immediately. Refer to "Replac-
ing Battery of Access Key Fob"
P376.■
Alarm System Setting
To change the setting of your vehicle’s
alarm system for activation or deactiva-
tion, do the following.
1. Disarm the alarm system. Refer to
"Disarming the System" P115.
2. Sit in the driver’s seat and shut all
doors, the trunk lid and engine hood.
3. Turn the ignition switch to the “ON”
position.
204136
B5=B8.ERRN 115 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Windows
1164. Hold down “ ” of the driver’s power
door locking switch, open the driver’s door
within the following 1 second, and wait 10
seconds without releasing the switch. The
setting will then be changed as follows.NOTEYou may have the above setting
change done by your SUBARU dealer.■
If You Have Accidentally
Triggered the Alarm System
▼
To stop the alarm
Do any of the following operations:
 Press unlock button on the access key
fob.
 Turn the push-button ignition switch to
the “ACC” position.
NOTEOnly registered keys will stop the
alarm. If the immobilizer transponder
is not registered, the alarm will not
stop.
2-6. WindowsNOTE In order to make opening and
closing the doors easier, completely
closed windows are linked to door
operations. Therefore, when a door is
opened, its window opens slightly. When a door is closed, its window
closes completely. However, if the
battery has discharged or is discon-
nected, this function will not operate.

If the power window system detects
resistance, an impact or abnormality,
the window operation may be automat-
ically stopped to prevent further
jamming, entrapment or malfunction.
- The closing window slides down
slightly and stops.
- The opening window stops
sliding down.
 The power window system may
detect resistance, an impact or an
abnormality in the following cases. - A substantial sized object is
caught between the window and the
roof side (between the front pillar
and a point over the rear seat).
- A foreign object is caught
between the window and the roof
side (between the front pillar and a
point over the rear seat).
- The vehicle drives over a deep
pothole.
 The window cannot be closed for a
few seconds after th e window is auto-
matically stopped by the system.
Setting status Combination
meter display (color TFT) Horn
Activate AL ON Once
Deactivate AL OFF Twice
WARNING
To avoid serious personal injury
caused by entrapment, always con-
form to the follo wing instructions
without exception. When operating the power
windows, be extremely careful to
prevent anyone’s fingers, arms,
neck, head or other objects from
being caught in the window.Always lock the passengers’
windows using the lock switch
when children are riding in the
vehicle.Always carry the key when you
leave the vehicle for safety
reasons and never allow an unat-
tended child to remain in the
vehicle. Failure to follow this
procedure could result in injury
to a child operating the power
window.
B5=B8.ERRN 116 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分
