Reverse Automatic Braking (RAB) System (If Equipped)
283
Starting and Operating7
– CONTINUED –
NOTEIt may take time to display the wall and
sound warning beeps after the object
was recognized by the sonar audible

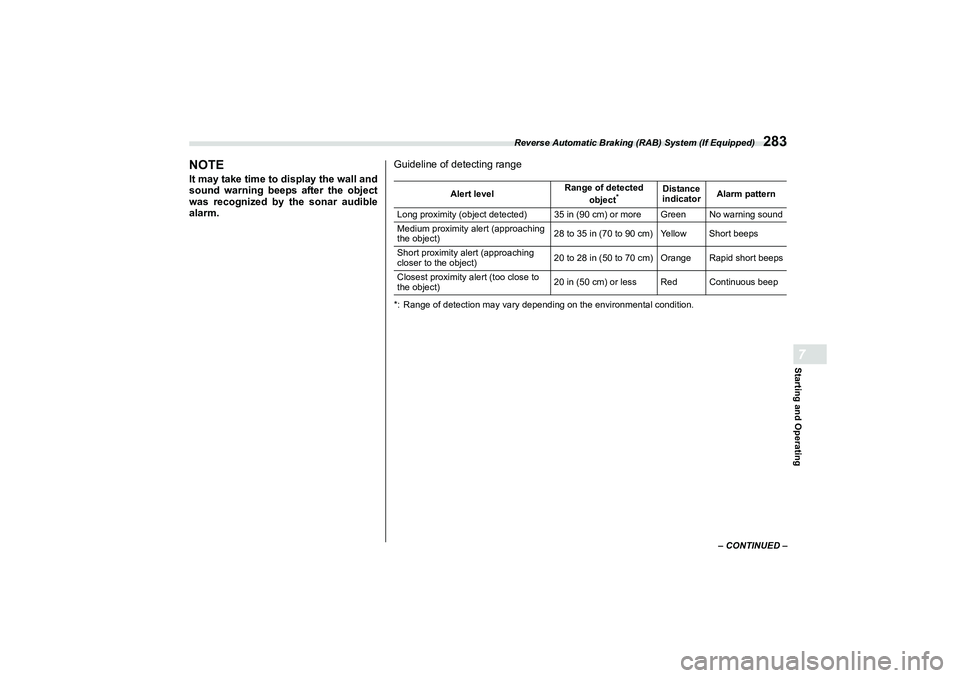

alarm.Guideline of detecting range
*: Range of detection may vary dependi
ng on the environmental condition.
Alert level
Range of detected
object
*
Distance
indicator Alarm pattern
Long proximity (object detected) 35 in (90 cm) or more Green No warning sound
Medium proximity alert (approaching
the object) 28 to 35 in (70 to 90 cm) Yellow Short beeps
Short proximity alert (approaching
closer to the object) 20 to 28 in (50 to 70 cm) Orange Rapid short beeps
Closest proximity alert (too close to
the object) 20 in (50 cm) or less Red Continuous beep
B5=B8.ERRN 23 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Reverse Automatic Braking (RAB) System (If Equipped)
284▼
Obstacle detected and alert levelLong proximity alert (object detected)
1) Green: 35 in (90 cm) or more
Medium proximity alert (approaching the
object)
1) Yellow: 28 to 35 in (70 to 90 cm)Short proximity alert (approaching the
object closer)
1) Orange: 20 to 28 in (50 to 70 cm)
Closest proximity alert (too close to the
object)
1) Red: 20 in (50 cm) or less
When an object is detected in the
reversing direction, the range of detected
object will be shown on the center infor-
mation display.
A warning alarm will sound and,
depending on the speed, either torque
control to generate engine braking or
automatic braking will be applied.■
Automatic Braking Operation
▼
Object close behind warningAutomatic braking warning
1) Warning messageIf the system determine the risk of collision
with the object. Short warning beeps or
continuous warning beeps will sound and
either strong automatic braking or torque
control will be applied to prevent collision.
1
702886
1
702887
1
702888
1
702889
1
702890
B5=B8.ERRN 24 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Reverse Automatic Braking (RAB) System (If Equipped)
285
Starting and Operating7
– CONTINUED –
At this time, a warning message is also
displayed on the combination meter
display (color TFT).Depress brake pedal warning
1) Warning messageMake sure to depress the brake pedal
once the vehicle has been stopped by
automatic braking. Until the brake pedal is
depressed, a message will be displayed
on the center information display and the
continuous beep will remain sounding.
At this time, a warning message is also
displayed on the combination meter
display (color TFT).
NOTEThe sonar audible alarm and auto-
matic braking are different in opera-
tion conditions. Therefore there are
cases in which only one of these func-
tions will activate.
▼
After the vehicle is stopped by the
systemAfter the brake pedal is depressed, the
RAB OFF indicator will illuminate and the
system will temporarily stop operating.
The RAB OFF indicator will turn off when
the select lever is shifted to a position
other than the “R” position.
The system will operate again the next
time the select lever is shifted to the “R”
position.
NOTE
The Reverse Automatic Braking
(RAB) system will be disabled in the
following situations. - When 3 seconds pass after the
vehicle is stopped
- When any door is opened
- When the RAB warning indicator
is illuminated
- When the RAB OFF indicator is
illuminated
 The Reverse Automatic Braking
(RAB) system may stop operating
temporarily in the following cases and
the RAB OFF indicator will illuminate. - Ice, snow or mud is adhered to
the sonar sensors or the rear
bumper near the sonar sensor
- Objects are too close to the rear
bumper when the select lever is set
to the “R” position
- The system detects sounds of a
similar frequency to the RAB sonar
1
702891
WARNING
Depress the brake pedal immedi-
ately after the system stops the
vehicle by automatic braking.
Depending on the conditions of the
road surface and tires, the vehicle
may not remain stopped, possibly
leading to an accident.
702810
B5=B8.ERRN 25 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Reverse Automatic Braking (RAB) System (If Equipped)
286
- When the TRAC mode and
Vehicle Stability Control (VSC)
mode are turned off
- When in TRACK mode and the
Pre-Collision Braking System has
been turned off
■
Canceling the Reverse Auto-
matic Braking (RAB) Sy stem
Operatio n
The Reverse Automatic Braking (RAB)
system can be temporarily canceled by
any of the following operation.
 While the vehicle is stopped by the
operation of automati c braking, the brake
pedal is depressed.
 While the vehicle is stopped by the
operation of automatic braking, the accel-
erator pedal is depressed.
 The accelerator pedal is depressed
continuously (In this case, limited acceler-
ation will be canceled and the vehicle will
continue reversing.)
 The select lever is shifted to a position
other than the “R” position.NOTEThe system will be canceled if the
object is no longer detected.
■
Reverse Automatic Braking
(RAB) System ON/OFF
Setting

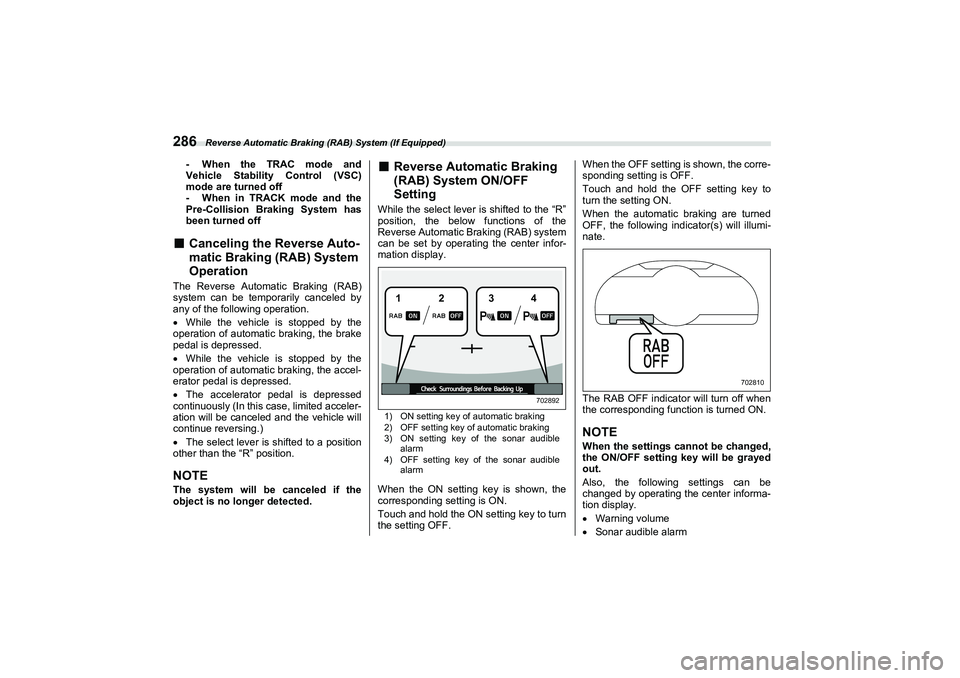

While the select lever is shifted to the “R”
position, the below functions of the
Reverse Automatic Braking (RAB) system
can be set by operating the center infor-
mation display.1) ON setting key of automatic braking
2) OFF setting key of automatic braking
3) ON setting key of the sonar audible alarm
4) OFF setting key of the sonar audible alarmWhen the ON setting key is shown, the
corresponding setting is ON.
Touch and hold the ON setting key to turn
the setting OFF. When the OFF setting is shown, the corre-
sponding setting is OFF.
Touch and hold the OFF setting key to
turn the setting ON.
When the automatic braking are turned
OFF, the following indicator(s) will illumi-
nate.
The RAB OFF indicator will turn off when
the corresponding function is turned ON.
NOTEWhen the settings cannot be changed,
the ON/OFF setting key will be grayed
out.
Also, the following settings can be
changed by operating the center informa-
tion display.

Warning volume
 Sonar audible alarm
12
34
702892
702810
B5=B8.ERRN 26 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Function Settings
391
Specifications12
– CONTINUED –

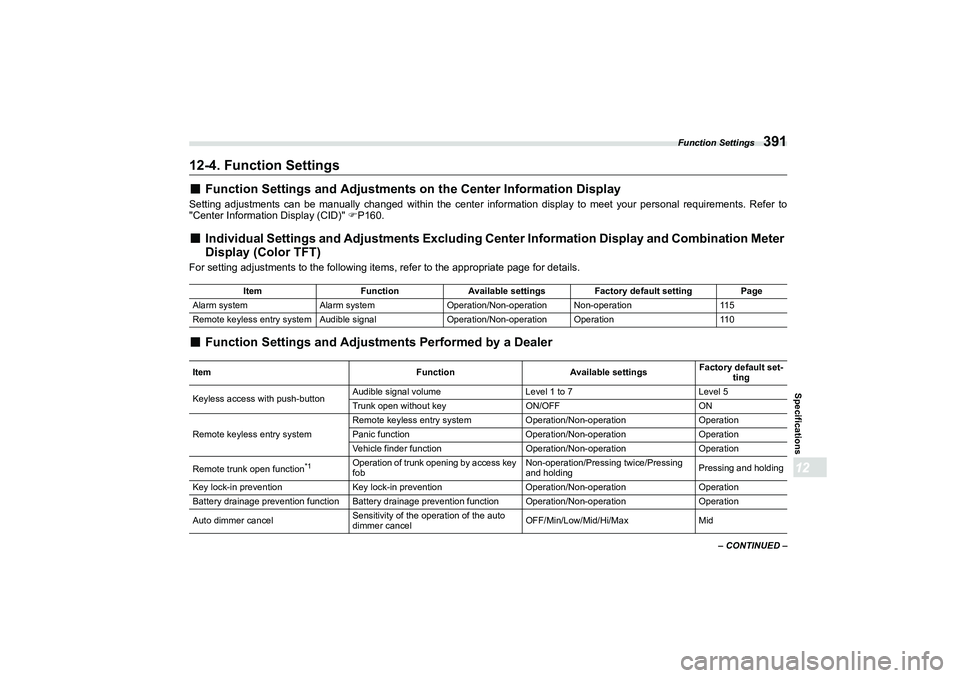

12-4. Function Settings■
Function Settings and Adjustments on the Center Information Display
Setting adjustments can be manually changed within the center information display to meet your personal requirements. Refer to
"Center Information Display (CID)" P160.■
Individual Settings and Adjustments Excluding Center Information Display and Combination Meter
Display (Color TFT)
For setting adjustments to the following items, refer to the appropriate page for details.■
Function Settings and Adjustments Performed by a Dealer
Item FunctionAvailable settings Factory default setting Page
Alarm system Alarm system Operation/Non-operation Non-operation 11 5
Remote keyless entry system Audible signal Operation/Non-operation Operation 11 0
Item FunctionAvailable settingsFactory default set-
ting
Keyless access with push-button Audible signal volume
Level 1 to 7 Level 5
Trunk open without key ON/OFFON
Remote keyless entry system Remote keyless entry system
Operation/Non-operation Operation
Panic function Operation/Non-operation Operation
Vehicle finder function Operation/Non-operationOperation
Remote trunk open function
*1
Operation of trunk opening by access key
fob Non-operation/Pressing twice/Pressing
and holding
Pressing and holding
Key lock-in prevention Key lock-in prevention Operation/Non-operation Operation
Battery drainage prevention function Battery drainage prevention function Operation/Non-operationOperation
Auto dimmer cancel Sensitivity of the operation of the auto
dimmer cancel OFF/Min/Low/Mid/Hi/Max
Mid
