Flat Tires

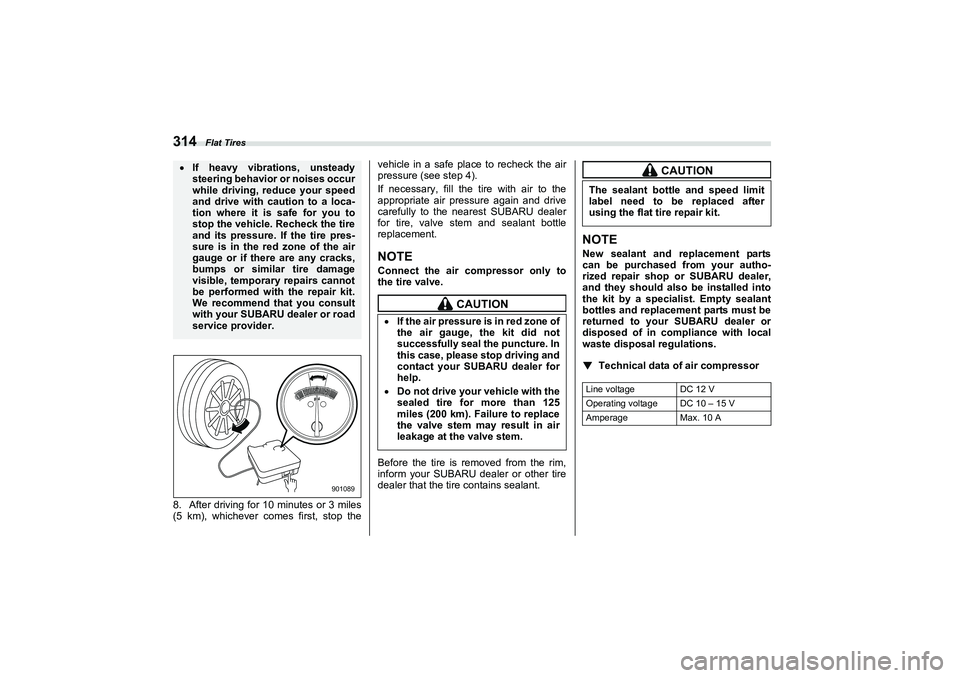

3148. After driving for 10 minutes or 3 miles
(5 km), whichever comes first, stop thevehicle in a safe place to recheck the air
pressure (see step 4).
If necessary, fill the tire with air to the
appropriate air pressure again and drive
carefully to the nearest SUBARU dealer
for tire, valve stem and sealant bottle
replacement.
NOTEConnect the air compressor only to
the tire valve.
Before the tire is removed from the rim,
inform your SUBARU dealer or other tire
dealer that the tire contains sealant.
NOTENew sealant and replacement parts
can be purchased from your autho-
rized repair shop
or SUBARU dealer,
and they should also be installed into
the kit by a specialist. Empty sealant
bottles and replacement parts must be
returned to your SUBARU dealer or
disposed of in compliance with local
waste disposal regulations.
▼
Technical data of air compressor
If heavy vibrations, unsteady
steering behavior or noises occur
while driving, reduce your speed
and drive with caution to a loca-
tion where it is safe for you to
stop the vehicle. Recheck the tire
and its pressure. If the tire pres-
sure is in the red zone of the air
gauge or if there are any cracks,
bumps or similar tire damage
visible, temporary repairs cannot
be performed with the repair kit.
We recommend that you consult
with your SUBARU dealer or road
service provider.
psi4040
20203030
0000
901089
CAUTION
If the air pressure is in red zone of
the air gauge, the kit did not
successfully seal the puncture. In
this case, please stop driving and
contact your SUBARU dealer for
help.Do not drive your vehicle with the
sealed tire for more than 125
miles (200 km). Failure to replace
the valve stem may result in air
leakage at the valve stem.
CAUTION
The sealant bottle and speed limit
label need to be replaced after
using the flat ti re repair kit.Line voltage DC 12 V
Operating voltage DC 10 – 15 V
Amperage Max. 10 A
B 5 = B 8. E R R N 314 ページ ２０２１年７月５日 月曜日 午後>1時>1>1分
Index
413
Index14
Driving distance ................................................................... P153
Driving mode select switch .................................................. P241
Driving range ....................................................................... P153
Driving support system setting display ................................ P157
Driving time ......................................................................... P153EElectrical system ................................................................. P385
Electronic Brake Force Distribution (EBD) system .............. P246
Warning........................................................................... P141
Emergency Locking Retractor (ELR ) ..................................... P40
Engine
Compartment overview ................................................... P345
Coolant............ .......................................... ............ P349, P384
Exhaust gas (carbon monoxide) . .............................. P7, P290
Hood ............................................................................... P343
Hood release knob ........ .......................................... ........ P343
Oil............................ ..................................... ......... P346, P381
Overheating .................................................................... P319
Start & stopping ......... ................................................ ..... P229
Engine oil temperature gauge ............................................. P153
Event data recorder ............................................................... P11
Exclusive content for SUBARU BRZ ................................... P154
Exterior care ........................................................................ P332FFlat tire ................................................................................ P303
Flat tire repair kit .................................................................. P309 Technical data of air compressor .................................... P314 Floor mat.............................................................................. P218
Fluid level
Automatic transmission .............. ..................................... P352
Brake ............................................................................... P353
Clutch .............................................................................. P354
Front
Passenger’s frontal airbag ON and OFF ........................... P71
Seatbelt pretensioners ...................................................... P44
Front seats ............................................................................. P30 Forward and backward adjustment ................................... P33
Head restraint adjustment .......... ....................................... P34
Manual seat............... ........................................................ P33
Reclining ........................................................................... P33
Seat heater.......... ........................................................ ...... P35
Seat height adjustment (driver's seat) ............................... P33
Fuel ...................................................................................... P223 Economy hints.............. .................................... ............... P290
Filler door and cap .......................................................... P224
Filler lid and cap .............................................................. P224
Gauge ............................................................................. P129
Requirements .......................... ..............................P223, P381
Tank capacity .................................................................. P381
Fuel consumption Average fuel consumption............................................... P153
Current fuel consumption ................................................ P153
Fuses ................................................................................... P371
GGasoline............................................................................... P223
