Safety Precautions When Driving
9
Introduction
– CONTINUED –
■
Use of Cell Phones/Texting
and Driving
■Driving Vehicles Equipped
with Audio System ■
Driving with Pets
Unrestrained pets can interfere with your
driving and distract your attention from
driving. In a collision or sudden stop, unre-
strained pets or cages can be thrown
around inside the vehicle and hurt you or
your passengers. Besides, the pets can
be hurt under these situations. It is also for
their own safety that pets should be prop-
erly restrained in your vehicle. Restrain a
pet with a special traveling harness which
can be secured to the rear seat with a
seatbelt or use a pet carrier which can be
secured to the rear seat by routing a
seatbelt through the carrier’s handle.
Never restrain pets or
pet carriers in the
front passenger’s seat. For further infor-
mation, consult your veterinarian, local
animal protection society or pet shop.■
Tire Pressures
Check and, if necessary, adjust the pres-
sure of each tire and the spare (if
equipped) at least once a month and
before any long journey.
Check the tire pressure when the tires are
cold. Use a pressure gauge to adjust the
tire pressures to the values shown on the
tire inflation pressure label. For detailed
information, refer to "Tires and Wheels"
 P358.
■
Attaching Accessories
CAUTION
Do not talk on a cell phone or text
while driving; it may distract your
attention from driving and lead to
an accident. If you use a cell phone
to talk or text, fi rst pull off the road
and park in a safe place. In some
States/Provinces, it may be lawful to
talk on a phone while driving, but
only if the phone is hands-free.
WARNING
Do not allow the monitor to distract
your attention from driving. Also,
do not operate the controls of the
audio system while driving. The
loss of attention to driving could
lead to an accident. If you wish to
operate the controls of the audio
system, first take the vehicle off the
road and stop it in a safe location.
WARNING
Driving at high speeds with
excessively low tire pressures
can cause the tires to deform
severely and to rapidly
become hot. A sharp increase
in temperature could cause
tread separation, and destruc-
tion of the tires. The resulting
loss of vehicle control could
lead to an accident.
WARNING
 Do not attach any accessories,
labels or sticke rs (other than
properly placed inspection
stickers) to the windshield. Such
items may obstruct your view. If it is necessary to attach an
accessory (such as an electronic
toll collection (ETC) device or
security pass) to the windshield,
consult your SUBARU dealer for
details on the proper location.
B5=B8.ERRN  ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Warning and Indicator Lights
138engine at the first safe opportunity and
contact your nearest SUBARU dealer
immediately.■
AT OIL TEMP Warning
Light (AT Models)
If this light illuminates when the engine is
running, it may indicate that the transmis-
sion fluid temperature is too hot.
If the light illuminates while driving, imme-
diately stop the vehicle in a safe place and
let the engine idle until the warning light
turns off.■
Low Tire Pressure
Warning Light (If
Equipped)
When the ignition switch is turned to the
“ON” position, the low tire pressure
warning light will illuminate for approxi-
mately 2 seconds to check that the tire
pressure monitoring system (TPMS) is
functioning properly. If there is no problem
and all tires are properly inflated, the light
will go out.
Each tire, including the spare (if provided),
should be checked monthly when cold
and inflated to the inflation pressure
recommended by the vehicle manufac-
turer on the vehicle placard or tire inflation
pressure label. (If your vehicle has tires of
a different size than the size indicated on the vehicle placard or tire inflation pres-
sure label, you should determine the
proper tire inflation pressure for those
tires.)
As an added safety feature, your vehicle
has been equipped with a tire pressure
monitoring system (TPMS) that illumi-
nates a low tire pressure telltale when one
or more of your tires is significantly under-
inflated. Accordingly, when the low tire
pressure telltale illuminates, you should
stop and check your tires as soon as
possible, and inflate
them to the proper
pressure. Driving on a significantly under-
inflated tire causes the tire to overheat
and can lead to tire failure. Under-inflation
also reduces fuel efficiency and tire tread
life, and may affect the vehicle’s handling
and stopping ability.
Please note that the TP MS is not a substi-
tute for proper tire maintenance, and it is
the driver’s responsibility to maintain
correct tire pressure, even if under-infla-
tion has not reached the level to trigger
illumination of the TPMS low tire pressure
telltale.
Your vehicle has also been equipped with
a TPMS malfunction indicator to indicate
when the system is no t operating properly.
The TPMS malfunction indicator is
combined with the low tire pressure tell-
tale. When the system detects a malfunc-
tion, the telltale will flash for approximately one minute and then remain continuously
illuminated. This sequence will continue
upon subsequent vehicle start-ups as long
as the malfunction exists. When the
malfunction indicator is illuminated, the
system may not be able to detect or signal
low tire pressure as intended. TPMS
malfunctions may occur for a variety of
reasons, including the installation of
replacement or alternate tires or wheels
on the vehicle that prevent the TPMS from
functioning properly. Always check the
TPMS malfunction telltale after replacing
one or more tires or wheels on your
vehicle to ensure that the replacement or
alternate tires and wheels allow the TPMS
to continue to function properly.
Should the warning light illuminate
steadily after blinking for approximately
one minute, have the system inspected by
your nearest SUBARU dealer as soon as
possible.
WARNING
If this light does not illuminate
briefly after the ig
nition switch is
turned ON or the light illuminates
steadily after blinking for approxi-
mately one minute, you should have
your Tire Pressure Monitoring Sys-
tem checked at a SUBARU dealer as
soon as possible.
B5=B8.ERRN 13 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Warning and Indicator Lights
139
Instruments and Controls3
– CONTINUED –
If this light illuminates while driving,
never brake suddenly. Instead, per-
form the following procedure. Oth-
erwise an accident involving
serious vehicle damage and serious
personal injury could occur.1) Keep driving straight ahead whilegradually reducing speed.2) Slowly pull off the road to a safeplace.If this light still illuminates while
driving after adjusting the tire pres-
sure, a tire may have significant
damage and a fast leak that causes
the tire to lose air rapidly. If you
have a flat tire, replace it with a
spare tire as soon as possible.
When a spare tire is mounted or a
wheel rim is replaced without the
original pressure sensor/transmitter
being transferred, the Low tire pres-
sure warning light will illuminate
steadily after blinking for approxi-
mately one minute. This indicates
the TPMS is unable to monitor all
four road wheels. Contact your
SUBARU dealer as soon as possi-
ble for tire and sensor replacement
and/or system resetting. If the light
illuminates steadily after blinking
for approximately one minute,
promptly contact a SUBARU dealer
to have the system inspected.
CAUTION
The tire pressure monitoring sys-
tem is NOT a substitute for manu-
ally checking tire pressure. The tire
pressure should be checked period-
ically (at least monthly) using a tire
gauge. After any change to tire
pressure(s), the tire pressure moni-
toring system will not re-check tire
inflation pressures until the vehicle
is first driven mo re than 25 mph (40
km/h). After adjusting the tire pres-
sures, increase the vehicle speed to
at least 25 mph (40 km/h) to start the
TPMS re-checking of the tire infla-
tion pressures. If the tire pressures
are now above the severe low pres-
sure threshold, the low tire pres-
sure warning light should turn off a
few minutes later. Therefore, be
sure to install the specified size for
the front and rear tires.
B5=B8.ERRN 13 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

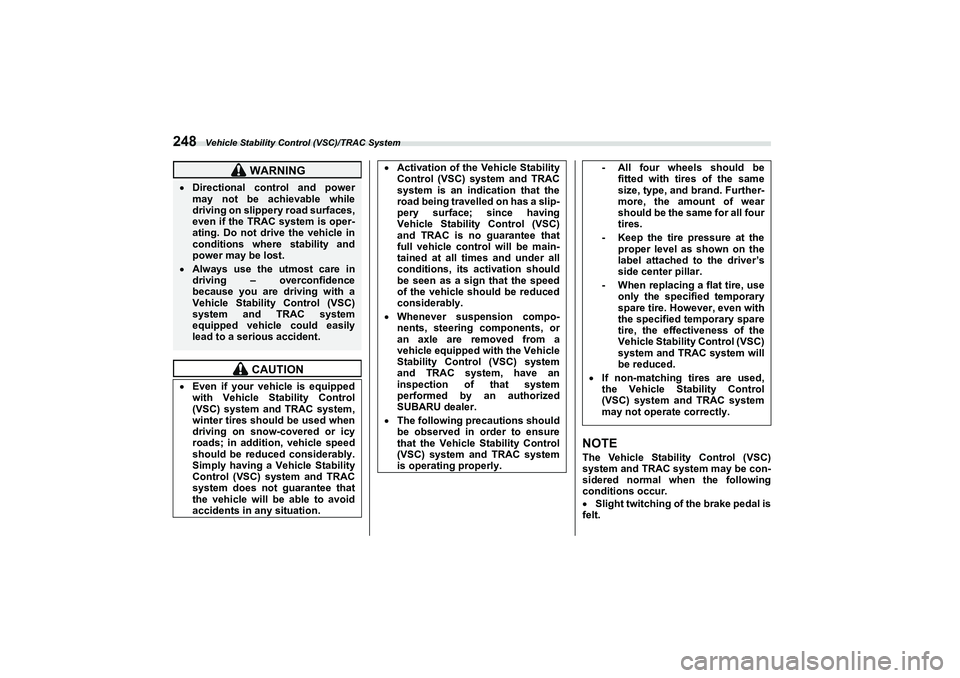

Vehicle Stability Control (VSC)/TRAC System
248
NOTEThe Vehicle Stability Control (VSC)
system and TRAC system may be con-
sidered normal when the following
conditions occur.
Slight twitching of the brake pedal is
felt.
WARNING
 Directional control and power
may not be achievable while
driving on slippery road surfaces,
even if the TRAC system is oper-
ating. Do not drive the vehicle in
conditions where stability and
power may be lost.Always use the utmost care in
driving – overconfidence
because you are driving with a
Vehicle Stability Control (VSC)
system and TRAC system
equipped vehicle could easily
lead to a serious accident.
CAUTION
Even if your vehicle is equipped
with Vehicle Stability Control
(VSC) system and TRAC system,
winter tires should be used when
driving on snow-covered or icy
roads; in addition, vehicle speed
should be reduced considerably.
Simply having a Vehicle Stability
Control (VSC) system and TRAC
system does not guarantee that
the vehicle will be able to avoid
accidents in any situation.
Activation of the Vehicle Stability
Control (VSC) system and TRAC
system is an indication that the
road being travelled on has a slip-
pery surface; since having
Vehicle Stability Control (VSC)
and TRAC is no guarantee that
full vehicle control will be main-
tained at all times and under all
conditions, its activation should
be seen as a sign that the speed
of the vehicle should be reduced
considerably. Whenever suspension compo-
nents, steering components, or
an axle are removed from a
vehicle equipped with the Vehicle
Stability Control (VSC) system
and TRAC system, have an
inspection of that system
performed by an authorized
SUBARU dealer. The following precautions should
be observed in order to ensure
that the Vehicle Stability Control
(VSC) system and TRAC system
is operating properly.
- All four wheels should be
fitted with tires of the same
size, type, and brand. Further-
more, the amount of wear
should be the same for all four
tires.- Keep the tire pressure at theproper level as shown on the
label attached to the driver’s
side center pillar.- When replacing a flat tire, useonly the specified temporary
spare tire. However, even with
the specified temporary spare
tire, the effectiveness of the
Vehicle Stability Control (VSC)
system and TRAC system will
be reduced.
If non-matching tires are used,
the Vehicle Stability Control
(VSC) system and TRAC system
may not operate correctly.
B5=B8.ERRN 24 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Tire Pressure Monitoring System (TPMS) (If Equipped)
2527-15. Tire Pressure Moni-
toring System (TPMS) (IfEquipped)Low tire pressure warning lightThe tire pressure monitoring system
provides the driver with a warning
message by sending a signal from a
sensor that is installed in each wheel
when tire pressure is severely low.
The tire pressure monitoring system will
activate only when the vehicle is driven at
speeds above 25 mph (40 km/h). Also,
this system may not react immediately to
a sudden drop in tire pressure (for
example, a blow-out caused by running
over a sharp object).
702780
WARNING
 If the low tire pressure warning
light illuminates while driving,
never brake suddenly. Instead,
perform the following procedure.
Otherwise an accident involving
serious vehicle damage and
serious personal injury could
occur.
(1) Keep driving straight ahead
while gradually reducing
speed.(2) Slowly pull off the road to a
safe place.(3) Check the pressure for all four tires and adjust the pres-
sure to the CO LD tire pres-
sure shown on the tire
inflation pressure label on the
center pillar on the driver’s
side.
 Even when the vehicle is driven a
very short distance, the tires get
warm and their pressures
increase accordingly. Be sure to
let the tires co ol thoroughly
before adjusting their pressures
to the standard values shown on
the tire inflation pressure label.
Refer to "Tires and Wheels"

P358. The tire pressure moni-
toring system does not function
when the vehicle is stationary.
After adjusting the tire pressures,
increase the vehicle speed to at
least 25 mph (40 km/h) to start the
TPMS rechecking of the tire infla-
tion pressures. If the tire pres-
sures are now above the severe
low pressure threshold, the low
tire pressure warning light should
turn off a few minutes later.If this light still illuminates while
driving after adjusting the tire
pressure, a tire may have signifi-
cant damage and a fast leak that
causes the tire to lose air rapidly.
If you have a flat tire, replace it
with a spare tire as soon as pos-
sible.
B5=B8.ERRN 252 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Tire Pressure Monitoring System (TPMS) (If Equipped)
253
Starting and Operating7
– CONTINUED –
■
Certification for the Receiver
FCC ID: HYQ23ABGNOTEThis device complies with part 15 of
the FCC Rules. Operation is subject to
the following two conditions: (1) This
device may not cause harmful interfer-
ence, and (2) this device must accept
any interference received, including
interference that may cause unde-
sired operation.
FCC WARNING
Changes or modifications not
expressly approved by the party
responsible for compliance could void
the user’s authority to operate the
equipment.
 When a spare tire is mounted or a
wheel rim is replaced without the
original pressure sensor/trans-
mitter being transferred, the low
tire pressure warning light will
illuminate stead ily after blinking
for approximately one minute.
This indicates the TPMS is unable
to monitor all four road wheels.
Contact your SUBARU dealer as
soon as possible for tire and
sensor replacement and/or
system resetting.
 When a tire is repaired with liquid
sealant, the tire pressure warning
valve and transmitter may not
operate properly. If a liquid
sealant is used, contact your
nearest SUBARU dealer or other
qualified service shop as soon as
possible. Make sure to replace
the tire pressure warning valve
and transmitter when replacing
the tire. You may reuse the wheel
if there is no damage to it and if
the sealant residue is properly
cleaned off. Do not inject any tire
liquid or aerosol tire sealant into
the tires, as this may cause a
malfunction of the tire pressure
sensors. If the light illuminates
steadily after blinking for approx-
imately one minute, promptly
contact a SUBARU dealer to have
the system inspected.
CAUTION
Do not place metal film or any metal
parts under the driver’s seat. This
may cause poor reception of the
signals from the tire pressure sen-
sors, and the tire pressure monitor-
ing system will not function
properly.
B5=B8.ERRN 253 ページ ２０２１年１１月>2日　

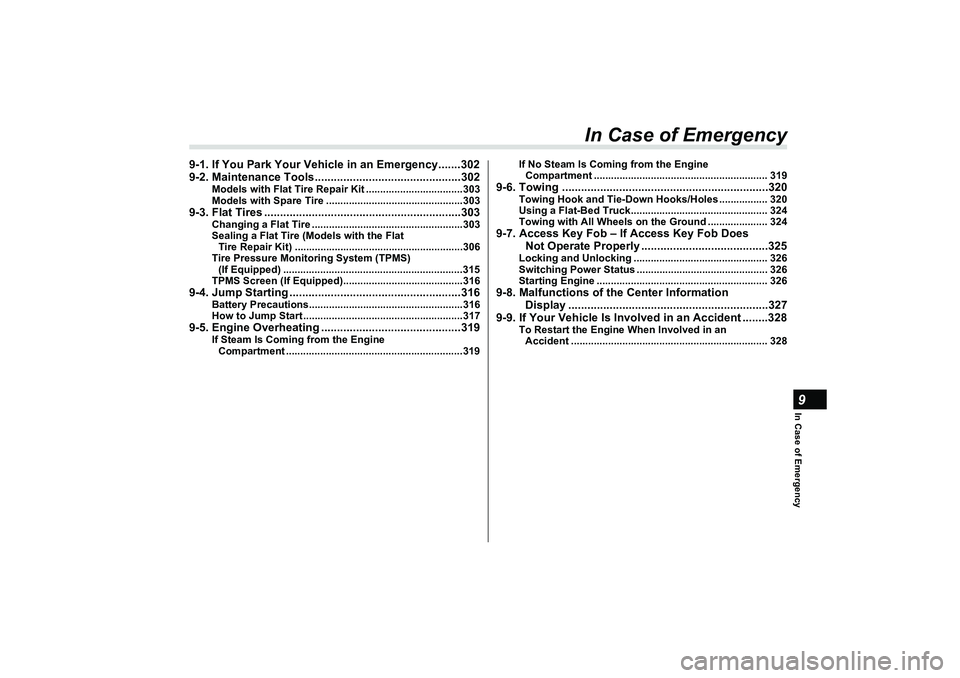

In Case of Emergency9
In Case of Emergency
9-1. If You Park Your Vehicle in an Emergency.......302
9-2. Maintenance Tools..............................................302
Models with Flat Tire Repair Kit ..................................303
Models with Spare Tire ................................................303
9-3. Flat Tires ..............................................................303
Changing a Flat Tire .....................................................303
Sealing a Flat Tire (Models with the Flat Tire Repair Kit) ...........................................................306
Tire Pressure Monitoring System (TPMS) (If Equipped) ...............................................................315
TPMS Screen (If Equipped)..........................................316
9-4. Jump Starting ......................................................316
Battery Precautions......................................................316
How to Jump Start ........................................................317
9-5. Engine Overheating ............................................319
If Steam Is Coming from the Engine Compartment ..............................................................319 If No Steam Is Coming from the Engine
Compartment ............................................................. 319
9-6. Towing .................................................................320
Towing Hook and Tie-Down Hooks/Holes ................. 320
Using a Flat-Bed Truck................................................ 324
Towing with All Wheels on the Ground ..................... 324
9-7. Access Key Fob – If Access Key Fob Does
Not Operate Properly ...... ..................................325
Locking and Unlocking ............................................... 326
Switching Power Status .............................................. 326
Starting Engine ............................................................ 326
9-8. Malfunctions of the Center Information
Display ...............................................................327
9-9. If Your Vehicle Is Invo lved in an Accident ........328
To Restart the Engine When Involved in an
Accident ..................................................................... 328
B5=B8.ERRN 301 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

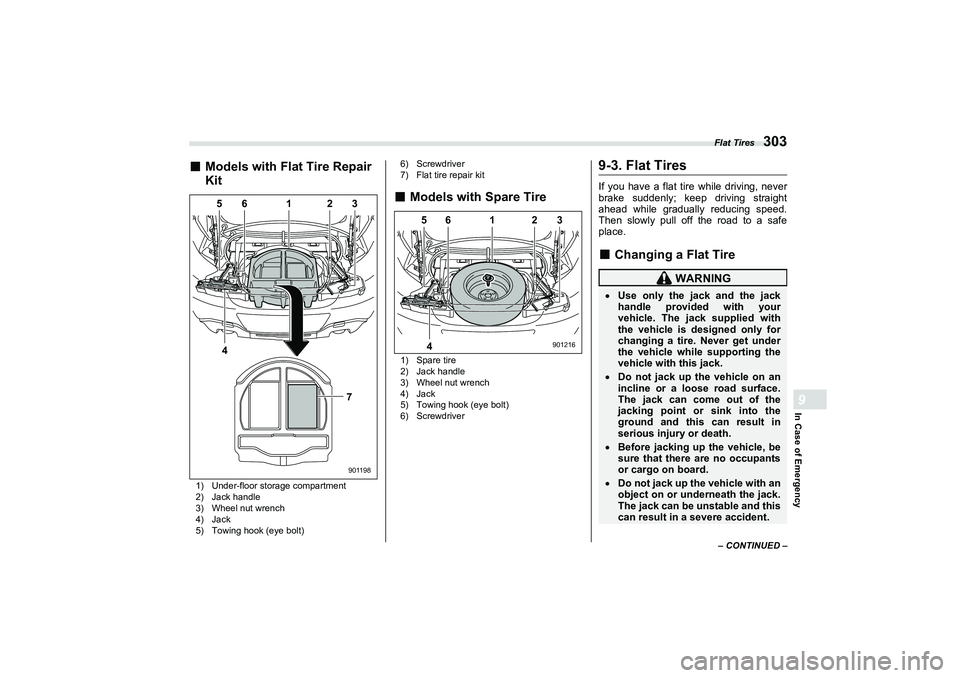

Flat Tires
303
In Case of Emergency9
– CONTINUED –
■
Models with Flat Tire Repair
Kit1) Under-floor storage compartment
2) Jack handle
3) Wheel nut wrench
4) Jack
5) Towing hook (eye bolt)6) Screwdriver
7) Flat tire repair kit
■
Models with Spare Tire1) Spare tire
2) Jack handle
3) Wheel nut wrench
4) Jack
5) Towing hook (eye bolt)
6) Screwdriver
9-3. Flat TiresIf you have a flat tire while driving, never
brake suddenly; keep driving straight
ahead while gradually reducing speed.
Then slowly pull off the road to a safe
place.■
Changing a Flat Tire
1
6
4
7
5
2
3901198
1
6
45
2
3901216
WARNING

Use only the jack and the jack
handle provided with your
vehicle. The jack supplied with
the vehicle is designed only for
changing a tire. Never get under
the vehicle while supporting the
vehicle with this jack.Do not jack up the vehicle on an
incline or a loose road surface.
The jack can come out of the
jacking point or sink into the
ground and this can result in
serious injury or death.Before jacking up the vehicle, be
sure that there are no occupants
or cargo on board.Do not jack up the vehicle with an
object on or underneath the jack.
The jack can be unstable and this
can result in a severe accident.
B5=B8.ERRN 303 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分
