Keyless Access with Push-Button Start System
96
NOTEThe operational/non-operational
setting for the keyless access function
can be changed. For the setting proce-
dure, refer to "Disabling Keyless
Access Function" 
P103.
 For detailed info rmation about the
operation method fo r the push-button
ignition switch while the keyless
access function is switched to the non-
operational mode, refer to "Access Key
Fob – If Access Key Fob Does Not
Operate Properly" P325.
 The keyless access with push-
button start system uses weak radio
waves. The status of the access key
fob and environmental conditions may
interfere with the communication
between the access key fob and the
vehicle under the following conditions,
and it may not be possible to lock or
unlock the doors or start the engine.
CAUTION
 Never leave or store the access
key fob inside the vehicle or
within 6.6 ft (2 m) around the
vehicle (e.g., in the garage). The
access key fob may be locked
inside the vehicle, or the battery
may discharge rapidly. Note that
the push-button ignition switch
may not turn on in some cases
depending on the location of the
access key fob.The access key fob contains elec-
tronic components. Observe the
following precautions to prevent
malfunctions.
- It is recommended to have the
access key fob battery
replaced at an authorized
SUBARU dealer to avoid the
risk of damage.- Do not get the access key fob wet. If the access key fob gets
wet, wipe it off immediately
and let it dry completely.- Do not apply strong impactsto the access key fob.
- Never leave the access key fob in direct sunlight or
anywhere that may become
hot, such as on the dash-
board. It may damage the
battery or cause circuit
malfunctions.- Do not wash the access keyfob in an ultrasonic washer.- Do not leave the access keyfob in humid or dusty loca-
tions. Doing so may cause
malfunctions.- Keep the access key fob awayfrom magnetic sources.- Do not leave the access keyfob near a personal computer
or home electrical appliance.- Do not leave the access keyfob near a battery charger or
any electrical accessories.- Do not apply metallic windowtint or attach metallic objects
to the windows.- Do not fit non genuine acces- sories or parts.
If the access key fob is dropped,
the integrated emergency key
inside may become loose. Be
careful not to lose the emergency
key.
When traveling in an airplane, do
not press the button of the access
key fob. If any button of the
access key fob is pressed, radio
waves are emitted and may affect
the operation of the airplane. In a
bag, take measures to prevent the
buttons from being pressed acci-
dentally.
B5=B8.ERRN 6 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Keyless Access with Push-Button Start System
98▼
Operating ranges1) Antenna
2) Operating range (approximately 16 to32 in (40 to 80 cm))
1) LED indicator
When the access key fob is within either of
the operating ranges of the doors, the
LED indicator on the access key fob
flashes. When the keyless access func-
tions are disabled, the LED indicator does
not flash unless a button on the access
key fob is pressed.NOTE If the access key fob is placed too
close to the vehicle body, the keyless
access functions may not operate
properly. If it does not operate prop-
erly, repeat the operation from farther
away.
 If the access key fob is placed near
the ground or in an elevated location
from the ground, even if it is in the indi-
cated operating range, the keyless
access function may not operate prop-
erly.
 When the access key fob is within
the operating range, it is possible for
anyone, even someone who is not
carrying the access key fob, to operate
the keyless access function. Note that
the keyless access function can be
operated only by the door handle, door
lock sensor or trunk opener button in
the operating range in which the
access key fob is detected.
 It is not possible to lock the doors,
trunk lid and fuel filler lid using the keyless access function when the
access key fob is inside the vehicle.
However, depending on the status of
the access key fob and the environ-
mental conditions, the access key fob
may be locked inside the vehicle.
Before locking the vehicle, make sure
that you have the access key fob.

When the battery of the access key
fob is discharged, or when operating it
in a location with strong radio waves or
noise (e.g., near a radio tower, power
plant, broadcast station or an area
where wireless equipment is used), or
while talking on a cell phone, the oper-
ating ranges may be reduced, or the
keyless access function may not
operate.
In such a case, perform the procedure
described in "Locking and Unlocking"

P326.
 The doors may lock or unlock when
the car is being washed or exposed to
a significant amount of water that
touches the door handle while the key
fob is still in the operating range.
▼How to lock and unlock
It is possible to perform the following oper-
ations when you are carrying the access
key fob.
 Lock and unlock the doors and the fuel
filler lid
2
2
1
2
1
1204127202501
1
B5=B8.ERRN  ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Mirrors
187
Instruments and Controls3
– CONTINUED –
dimming feature will default to on with
each ignition cycle.
▼
To Operate the Compass Feature
1. To turn the compass feature on/off,
press and hold the “ ” switch for more
than 3 seconds or until the display turns
on/off. The compass feature will default to
on with each ignition cycle.
2. If the display reads “C”, slowly drive
the vehicle in circles until compass is cali-
brated.Compass calibration zones3. To adjust for compass zone variance: Find your current location and zone
number on the map.
 Press and hold the “ ” switch for
more than 6 seconds or until a zone
number appears in the display. 
Once the zone number appears in
the display, toggle the “ ” switch
again until your current location zone
number appears. After you stop
pressing the switch, your new zone
number will be saved. Within a few
seconds, the disp lay will show a
compass direction.
4. If the vehicle’s magnetics have
changed or if the compass appears inac-
curate, recalibrate the compass. Press
and hold the “ ” switch for more than 9
seconds or until a “C” appears in the
display. Once a “C” a ppears in the display,
slowly drive the vehicle in circles until
compass is calibrated.
▼
HomeLink
® Wireless Control
System
The HomeLink® Wireless Control System
provides a convenient way to replace up
to three hand-held radio frequency
remotes used to acti vate devices such as
gate operators, garage door openers,
entry door locks, security systems, even
home lighting. The below steps are
generic programming instructions; for
Genie and Sommer garage door openers
please go directly to the HomeLink
®
website. Additional information and
programming videos can be found at www.HomeLink.com and
www.youtube.com/HomeLinkGentex.
304866
15
14
13
12
11
10
9
8
7
6
5
4
3
CAUTION

Before programming HomeLink
®
to a garage door opener or gate
operator, make sure that people
and objects are out of the way of
the device to prevent potential
harm or damage.
When programming a garage
door opener, it is advised to park
outside of the garage.Do not use HomeLink
® with any
garage door opener that lacks
safety stop and reverse features
as required by U.S. federal safety
standards (this includes any
garage door opener model manu-
factured before April 1, 1982). A
garage door that cannot detect an
object signaling the door to stop
and reverse does not meet
current U.S. federal safety stan-
dards.
 It is also recommended that a new
battery be placed in the hand-
held remote (garage door opener
remote) of the device for quicker
and more accurate training.
B5=B8.ERRN 1 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

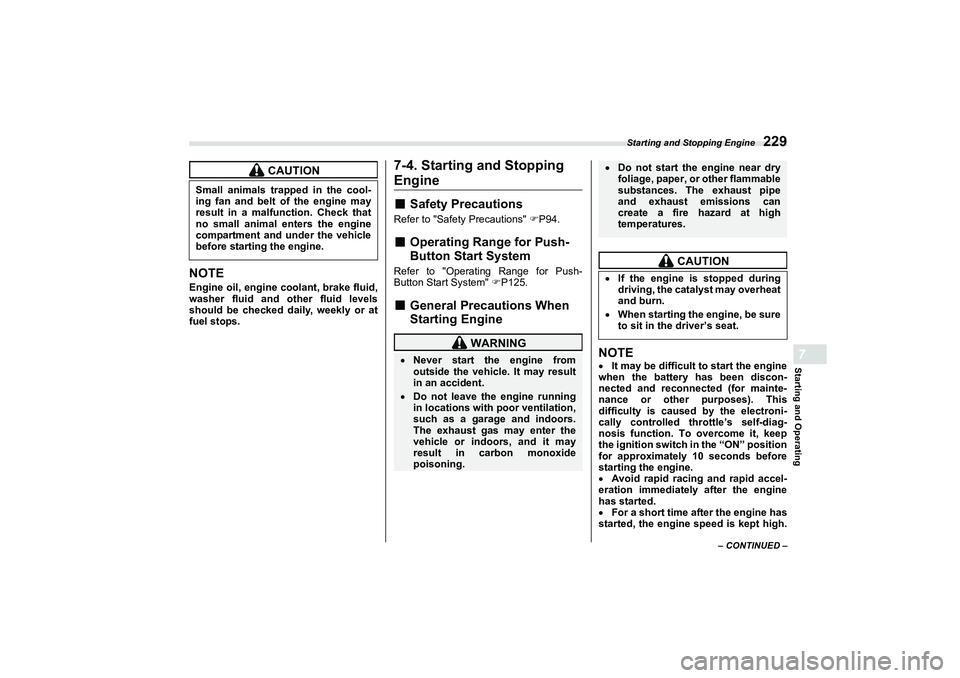

Starting and Stopping Engine
229
Starting and Operating7
– CONTINUED –
NOTEEngine oil, engine coolant, brake fluid,
washer fluid and other fluid levels
should be checked daily, weekly or at
fuel stops.
7-4. Starting and Stopping Engine■
Safety Precautions
Refer to "Safety Precautions" P94.■
Operating Range for Push-
Button Start System
Refer to "Operating Range for Push-
Button Start System" P125.■
General Precautions When
Starting Engine
NOTE
It may be difficult to start the engine
when the battery has been discon-
nected and reconnected (for mainte-
nance or other purposes). This
difficulty is caused by the electroni-
cally controlled throttle’s self-diag-
nosis function. To overcome it, keep
the ignition switch in the “ON” position
for approximately 10 seconds before
starting the engine.
 Avoid rapid racing and rapid accel-
eration immediately after the engine
has started.
 For a short time a fter the engine has
started, the engine speed is kept high.
CAUTION
Small animals trapped in the cool-
ing fan and belt of the engine may
result in a malfunction. Check that
no small animal enters the engine
compartment and under the vehicle
before starting the engine.
WARNING
 Never start the engine from
outside the vehicle. It may result
in an accident.Do not leave the engine running
in locations with poor ventilation,
such as a garage and indoors.
The exhaust gas may enter the
vehicle or indoors, and it may
result in carbon monoxide
poisoning.
Do not start the engine near dry
foliage, paper, or other flammable
substances. The exhaust pipe
and exhaust emissions can
create a fire hazard at high
temperatures.
CAUTION
If the engine is stopped during
driving, the catalyst may overheat
and burn.When starting the engine, be sure
to sit in the driver’s seat.
B5=B8.ERRN 22 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

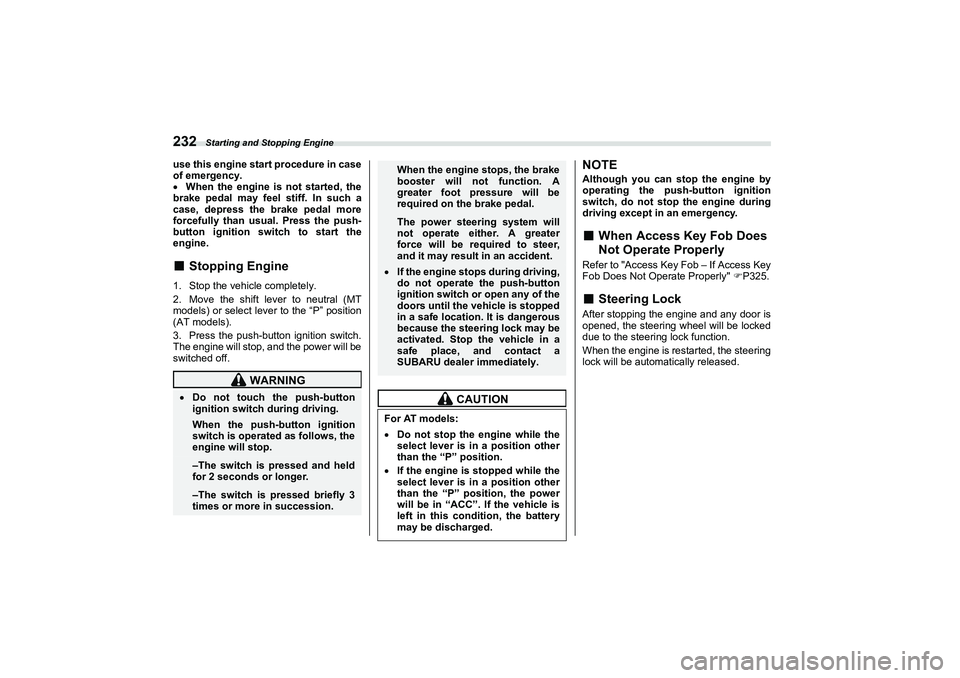

Starting and Stopping Engine
232use this engine start procedure in case
of emergency.
When the engine is not started, the
brake pedal may feel stiff. In such a
case, depress the brake pedal more
forcefully than usual. Press the push-
button ignition switch to start the
engine.■
Stopping Engine
1. Stop the vehicle completely.
2. Move the shift lever to neutral (MT
models) or select leve r to the “P” position
(AT models).
3. Press the push-button ignition switch.
The engine will stop, and the power will be
switched off.
NOTEAlthough you can stop the engine by
operating the push -button ignition
switch, do not stop the engine during
driving except in an emergency.■
When Access Key Fob Does
Not Operate Properly
Refer to "Access Key Fob – If Access Key
Fob Does Not Operate Properly" P325.■
Steering Lock
After stopping the engine and any door is
opened, the steering wheel will be locked
due to the steering lock function.
When the engine is restarted, the steering
lock will be automatically released.
WARNING
 Do not touch the push-button
ignition switch during driving.
When the push-button ignition
switch is operated as follows, the
engine will stop.–The switch is pressed and held
for 2 seconds or longer.–The switch is pressed briefly 3
times or more in succession.
When the engine stops, the brake
booster will not function. A
greater foot pressure will be
required on the brake pedal.The power steering system will
not operate either. A greater
force will be required to steer,
and it may result in an accident.
If the engine stops during driving,
do not operate the push-button
ignition switch or open any of the
doors until the vehicle is stopped
in a safe location. It is dangerous
because the steering lock may be
activated. Stop the vehicle in a
safe place, and contact a
SUBARU dealer immediately.
CAUTION
For AT models:Do not stop the engine while the
select lever is in a position other
than the “P” position.If the engine is stopped while the
select lever is in a position other
than the “P” position, the power
will be in “ACC”. If the vehicle is
left in this cond ition, the battery
may be discharged.
B5=B8.ERRN 232 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分
