2022 SUBARU BRZ spare wheel

Flat Tires
304
NOTEContact a SUBARU dealer when jack-
ing up the vehicle using a garage jack.
1. Park on a hard, level surface, when-
ever possible, then stop the engine.
2. Set the parking brake securely and
shift the shift lever in reverse (MT models)
or the select lever to the “P” (Park) posi-
tion (AT models).
3. Turn on the hazard warning flasher
and unload all occupants and luggage
from the vehicle.
4. Put wheel blocks at the front and rear
of the tire diagonally opposite the flat tire.5. Take out the jack, jack handle and
wheel nut wrench.
The tools and the spare tire are stored
under the floor of the trunk. Refer to
"Maintenance Tools"
P302.
NOTEMake sure that the jack is well lubri-
cated before using it.
6. Models with spare tire: Take out the
under-floor storage compartment and turn
the attaching bolt counterclockwise, then
take the spare tire out.
 Always turn off the engine before
raising the flat tire off the ground
using the jack. Never swing or
push the vehicle supported with
the jack. The jack can come out of
the jacking point due to a jolt and
this can result in serious injury or
death. All passengers must exit the
vehicle before you raise it with
the jack. Raising the vehicle with
someone inside of it could result
in serious injury or death.Do not start the vehicle while it is
supported by the jack. Doing so
could result in serious injury or
death.
CAUTION
Do not hit and bend the disc rotor
backing plate when removing and
installing the tire. A bent backing
plate may scrape against the disc
rotor and cause noise while the
vehicle is in motion.
901050
901295
B5=B8.ERRN 304 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

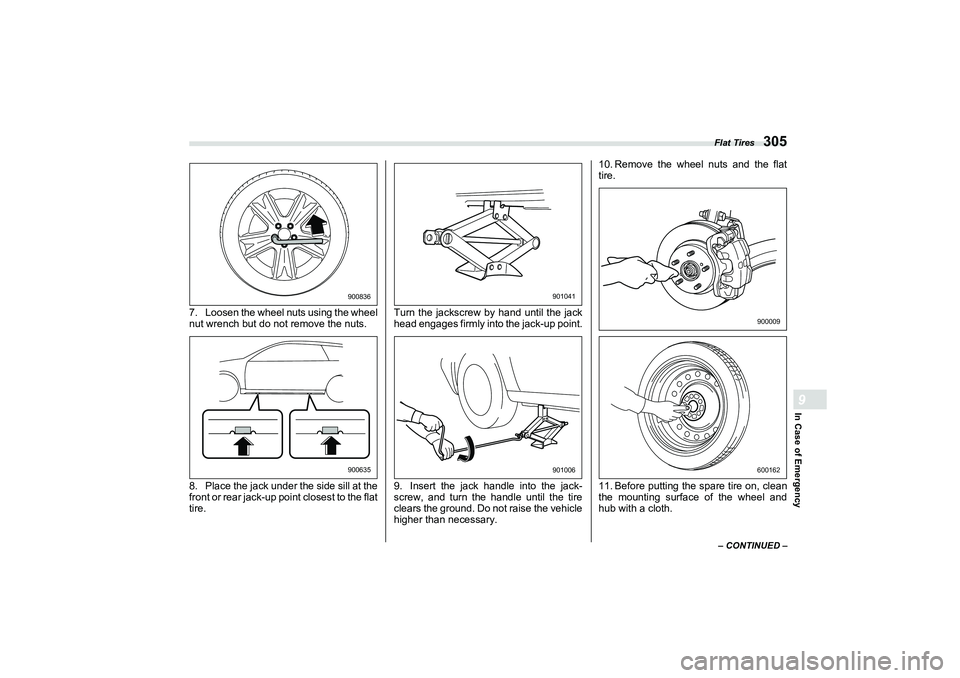

Flat Tires
305
In Case of Emergency9
– CONTINUED –
7. Loosen the wheel nuts using the wheel
nut wrench but do not remove the nuts.
8. Place the jack under the side sill at the
front or rear jack-up point closest to the flat
tire.Turn the jackscrew by hand until the jack
head engages firmly into the jack-up point.
9. Insert the jack handle into the jack-
screw, and turn the handle until the tire
clears the ground. Do not raise the vehicle
higher than necessary.10. Remove the wheel nuts and the flat
tire.
11. Before putting the spare tire on, clean
the mounting surface of the wheel and
hub with a cloth.
900836900635
901041901006
900009600162
B5=B8.ERRN 305 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Flat Tires
30612. Put on the spare tire. Replace the
wheel nuts. Tighten them by hand.
13. Turn the jack handle counterclockwise
to lower the vehicle.14. Use the wheel nut wrench to securely
tighten the wheel nuts to the specified
torque, following the tightening order in
the illustration.
For the wheel nut tightening torque, refer
to "Tires"
P385. Never use your foot on
the wheel nut wrench or a pipe extension
on the wrench because you may exceed
the specified torque. Have the wheel nut
torque checked at the nearest automotive
service facility.
1) Support holder15. Models with spare tire: Store the flat
tire in the spare tire compartment. Install
with the support holder facing upward and
secure the flat tire by firmly tightening the
attaching bolt.
NOTEIf you cannot fix the fl at tire firmly, try
turning the support holder upside
down.
16. Store the jack, jack handle and wheel
nut wrench in their storage locations.■
Sealing a Flat Tire (Models
with the Flat Tire Repair Kit)
CAUTION
If the threaded part was damaged,
you should immediately contact
your SUBARU dealer.
WARNING
Do not use oil or grease on the
wheel studs or nuts when the spare
tire is installed. This could cause
the nuts to become loose and lead
to an accident.
�
14
25
3
600192
1901296
WARNING
Never place a tire or tire changing
tools in the passenger compartment
after changing wheels. In a sudden
stop or collision, loose equipment
could strike occupants and cause
injury. Store the tire and all tools in
the proper place.
WARNING
Read these instructions and
warnings carefully before sealing a
flat tire.
B5=B8.ERRN 306 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Flat Tires
315
In Case of Emergency9
– CONTINUED –
■
Tire Pressure Monitoring
System (TPMS) (If Equipped)Low tire pressure warning lightThe tire pressure monitoring system
provides the driver with the warning
message indicated by sending a signal
from a sensor that is installed in each
wheel when tire pressure is severely low.
The tire pressure monitoring system will
activate only when the vehicle is driven.
Also, this system may not react immedi-
ately to a sudden drop in tire pressure (for
example, a blow-out caused by running
over a sharp object).
702780
WARNING
 If the low tire pressure warning
light illuminates while driving,
never brake suddenly. Instead,
perform the following procedure.
Otherwise an accident involving
serious vehicle damage and
serious personal injury could
occur.
(1) Keep driving straight ahead
while gradually reducing
speed.(2) Slowly pull off the road to asafe place.(3) Check the pressure for allfour tires and adjust the pres-
sure to the CO LD tire pres-
sure shown on the vehicle
placard on the center pillar on
the driver’s side.If this light still illuminates while
driving after adjusting the tire
pressure, a tire may have signifi-
cant damage and a fast leak that
causes the tire to lose air rapidly.
If you have a flat tire, replace it
with a spare tire as soon as pos-
sible.
 When a spare tire is mounted or a
wheel rim is replaced without the
original pressure sensor/trans-
mitter being transferred, the low
tire pressure warning light will
illuminate steadily after blinking
for approximately one minute.
This indicates the TPMS is unable
to monitor all four road wheels.
Contact your SUBARU dealer as
soon as possible for tire and
sensor replacement and/or
system resetting.When a tire is repaired with liquid
sealant, the tire pressure warning
valve and transmitter may not
operate properly. If a liquid
sealant is used, contact your
nearest SUBARU dealer or other
qualified service shop as soon as
possible. Make sure to replace
the tire pressure warning valve
and transmitter when replacing
the tire. You may reuse the wheel
if there is no damage to it and if
the sealant residue is properly
cleaned off.
If the light illuminates steadily
after blinking for approximately
one minute, promptly contact a
SUBARU dealer to have the sys-
tem inspected.
B5=B8.ERRN 315 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Tires and Wheels
360
■
Tire Inspection
Check on a daily basis that the tires
are free from serious damage, nails,
and stones. At the same time, check
the tires for abnormal wear.
Contact your SUBARU dealer
immediately if you find any problem.NOTEWhen the wheels and tires
strike curbs or are subjected to
harsh treatment as when the
vehicle is driven on a rough surface, they can suffer damage
that cannot be seen with the
naked eye. This type of damage
does not become evident until
time has passed. Try not to drive
over curbs, potholes or on other
rough surfaces. If doing so is
unavoidable, keep the vehicle’s
speed down to a walking pace or
less, and approach the curbs as
squarely as possible. Also, make
sure the tires are not pressed
against the curb when you park
the vehicle.

If you feel unusual vibration
while driving or find it difficult to
steer the vehicle in a straight line,
one of the tires and/or wheels
may be damaged. Drive slowly to
the nearest authorized SUBARU
dealer and have the vehicle
inspected.
 Tires should be replaced if:
– You have tire damage such
as cuts, splits, cracks deep
enough to expose the fabric or
bulges indicating internal
damage
WARNING
If the low tire pressure warning light
does not illuminate briefly after the
ignition switch is turned ON or the
light illuminates steadily after blink-
ing for approximately one minute,
you should have your Tire Pressure
Monitoring System checked at a
SUBARU dealer as so on as possi-
ble.If this light illuminates while driving,
never brake suddenly. Instead, per-
form the following procedure. Oth-
erwise an accident involving
serious vehicle damage and serious
personal injury could occur.1) Keep driving straight ahead while gradually reducing speed.2) Slowly pull off the road to a safeplace.If this light still illuminates while
driving after adjusting the tire pres-
sure, a tire may have significant
damage and a fast leak that causes
the tire to lose ai r rapidly. If you
have a flat tire, replace it with a
spare tire as soon as possible.
When a spare tire is mounted or a
wheel rim is replaced without the
original pressure sensor/transmitter
being transferred, the low tire pres-
sure warning light will illuminate
steadily after blinking for approxi-
mately one minute. This indicates
the TPMS is unable to monitor all
four road wheels. Contact your
SUBARU dealer as soon as possi-
ble for tire and sensor replacement
and/or system resetting. If the light
illuminates steadily after blinking
for approximately one minute,
promptly contact a SUBARU dealer
to have the system inspected.
B5=B8.ERRN 360 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Tires and Wheels
361
Maintenance and Service11
– CONTINUED –
– A tire goes flat repeatedly or
cannot be properly repaired
due to the size or location of a
cut or other damage
If you are not su re, consult with
your SUBARU dealer.
 Any tires over 6 years old must
be checked by a qualified techni-
cian even if they have seldom or
never been used or damage is
not obvious.
■
Tire Pressures and Wear
Maintaining the correct tire pres-
sures helps to maximize the tires’
service lives and is essential for
good running performance. Check
and, if necessary, adjust the pres-
sure of each tire and the spare (if
equipped) at least once a month
and before any long journey. Tire inflation pressure label
Check the tire pressures when the
tires are cold. Use a pressure gauge
to adjust the tire pressures to the
values shown on the tire inflation
pressure label. The tire inflation
pressure label is located on the
center pillar on the driver’s side.
Driving even a short distance
warms up the tires and increases
the tire pressures. Also, the tire
pressures are affected by the
outside temperature. It is best to
check tire pressure outdoors before
driving the vehicle.
When a tire becomes warm, the air
inside it expands, causing the tire pressure to increase. Be careful not
to mistakenly release air from a
warm tire to reduce its pressure.
NOTE
The air pressure in a tire
increases by approximately 4.3
psi (30 kPa, 0.3 kgf/cm
2) when the
tire becomes warm.
 The tires are considered cold
when the vehicle has been
parked for at least 3 hours or has
been driven less than 1 mile (1.6
km).
Incorrect tire pressures detract from
controllability and ride comfort, and
they cause the tires to wear abnor-
mally.
 Correctly inflated tires (tread
worn evenly)
B02109
WARNING
Do not let air out of warm tires
to adjust pressure. Doing so
will result in low tire pressure.
B5=B8.ERRN 361 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Specifications
385
Specifications12
– CONTINUED –
■
Electrical System
■Tires
*1: If equipped
*2: This torque is equivalent to applying approximately 88 to 110 lbf (40 to 50 kgf) at the end of the wheel nut wrench. If you have tightened the wheel nuts by yourself, have the tightening torque checked at the nearest automotive service facility as soon as possible. For the wh eel nut tightening
procedure, refer to "Changing a Flat Tire"  P303.■
Brake Pedal
in (mm)
*: Minimum value when pedal is operated with a force of 67.4 lbf (300 N, 30.6 kgf) while the engine is running.
Battery type
U.S. spec and Canada spec models
75D23L
Except U.S. spec and Canada spec models 55D23L
Alternator 12 V-150 A
Spark plugs ZXE27HBR8 (DENSO)
Tire size 215/45R17 87W215/40R18 85Y
Wheel size 17 × 7 1/2J18 × 7 1/2J
Pressure Front
35 psi (240 kPa, 2.4 kgf/cm
2)
Rear
Spare tire
*1
Size ―215/40R18 85Y
Pressure ―
35 psi (240 kPa, 2.4 kgf/cm
2)
Wheel nut tightening torque 88.5 lbf·ft (120 N·m, 12.2 kgf·m)
*2
Pedal clearance2.91 (74)*
Pedal free play 0.02 - 0.05 (0.5 - 1.5)
B5=B8.ERRN 35 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分
