2022 SUBARU BRZ flasher

Instrument Panel
19
Illustrated Index
Instrument Panel
1
2
3
4
5
7
6
12
10
9
8
11
002018
1) Power window switches (page 116)
2) Remote control mirror switch (page194)
3) Illumination brightness control dial (page 130)
4) Trunk lid opener button (page 121)
5) Combination meter (page 127)
6) Tilt/Telescopic steering (page 195)
7) Hazard warning flasher switch (page 127)
8) “TRACK” button (page 250)
9) Driving pattern selector switch (AT models) (page 241)
10) Vehicle Stability Control (VSC) OFF switch (page 249)
11) Seat heater switches (page 35)
12) Hood release knob (page 343)
B5=B8.ERRN 1 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Light Control and Wiper Control Levers/Switches
21
Illustrated Index
Light Control and Wiper Control Levers/Switches
1
2
3
4
65
7
8
9
002020
1) Windshield wiper (page 183)
2) Mist (page 184)
3) Windshield washer (page 185)
4) Wiper intermittent time control switch
(page 184)
5) Wiper control lever (page 184)
6) Light control switch (page 174)
7) Headlight ON/OFF/AUTO (page 174)
8) Headlight flasher High/Low beam change (page 176)
9) Turn signal lever (page 182)
B5=B8.ERRN 21 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Keys and Doors2
Keys and Doors
2-1. Keyless Access with Push-Button Start System .................................................................94
Safety Precautions ..... .......................................... ..........94
Locking and Unlocking with “Keyless Access” Entry Function ..............................................................97
Unlock Using PIN Code Access ..................................100
Power Saving Function ................................................102
Power Saving Function of Access Key Fob...............103
Disabling Keyless Access Function ...........................103
Selecting Audible Signal Operation (If Equipped).....105
Selecting Hazard Warning Flasher Operation ...........106
Warning Chimes and Warning Indicator ....................106
When Access Key Fob Does Not Operate Properly.......................................................................106
Replacing Battery of Access Key Fob ........................106
Replacing Access Key Fob..........................................106
Certification for Keyless Access with Push-Button Start System ...............................................................106
2-2. Immobilizer ..........................................................108
Security Indicator Light ...............................................108
Key Replacement..........................................................108
Certification for Immobilizer System ..........................108
2-3. Remote Keyless Entry System ..........................109
Locking the Doors ........................................................110
Unlocking the Doors ....................................................110
Opening the Trunk Lid .................................................110 Setting Audible Signal Operation (If Equipped)........ 110
Selecting Hazard Warning Flasher Operation........... 110
Vehicle Finder Function .............................................. 110
Sounding a Panic Alarm ............................................. 110
Replacing the Battery .................................................. 111
Replacing Lost Transmitters ...................................... 111
2-4. Door Locks ..........................................................111
Locking and Unlocking from the Outside ................. 111
Locking and Unlocking from the Inside .................... 112
Key Lock-In Prevention Function............................... 113
Battery Drainage Prevention Function ...................... 113
2-5. Alarm System ......................................................114
Alarm System Operation ............................................. 114
Arming the System ...................................................... 114
Disarming the System ................................................. 115
Alarm System Setting.................................................. 115
If You Have Accidentally Triggered the Alarm
System........................................................................ 116
2-6. Windows ..............................................................116
Power Window Operation ........................................... 117
Initialization of Power Window ................................... 118
2-7. Trunk Lid ..............................................................119
To Open and Close the Trunk Lid from Outside ....... 120
To Open the Trunk Lid from Inside ............................ 121
Internal Trunk Lid Release Handle ............................. 121
B5=B8.ERRN 3 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Keyless Access with Push-Button Start System
99
Keys and Doors2
– CONTINUED –
Unlock the trunk lidNOTEIt is not possible to lock the doors
and fuel filler lid using the keyless
access function when the push-button
ignition switch is in the “ACC” or “ON”
position. Refer to "Switching Power
Status" 
P125.
 If the door handle is gripped with a
gloved hand, the door lock may not be
released.
 If the door lock sensor is touched
four times or more repeatedly, the
system will ignore the sensor opera-
tion.
 When performing the locking proce-
dure too quickly, locking may not
complete.
 If any of the doors are not fully
closed, an electronic chirp sounds 5
seconds to alert you that the doors are
not properly closed.
 It is possible to lock a closed door
even if the other door is open. After
performing the locking procedure,
close the opened door to lock it.
 Within 3 seconds after locking the
doors using the keyless access func-
tion, it is not possible to unlock doors
using the keyless access function. 
When locking, be sure to carry the
access key fob to prevent locking the
access key fob in the vehicle.
 The setting of th e hazard warning
flasher operation and the volume of the
audible signal can be changed by your
SUBARU dealer. Contact your
SUBARU dealer for details. The setting
of the hazard warning flasher operation
can be changed by operating the
center information display. For details,
refer to "Car settings" 
P165.
▽ Locking with the door lock
sensor
1) Door lock sensorCarry the access key fob, close all doors
and touch the door lock sensor on the
door handle. All doors including the fuel filler lid will be locked. Also, an electronic
chirp will sound once and the hazard
warning flashers will flash once.
NOTEAfter touching the door lock sensor to
lock all of the doors, if you touch the
door lock sensor twice more to
attempt the lock oper
ation without first
unlocking the doors, nothing will hap-
pen, even if the door lock sensor is
touched. In this case, perform the
unlocking operation once first. You
can then touch the door lock sensor to
lock the doors.
▽Unlocking
Carry the access key fob, and touch the
sensor behind the door handle.
1
204128
204129
B5=B8.ERRN  ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

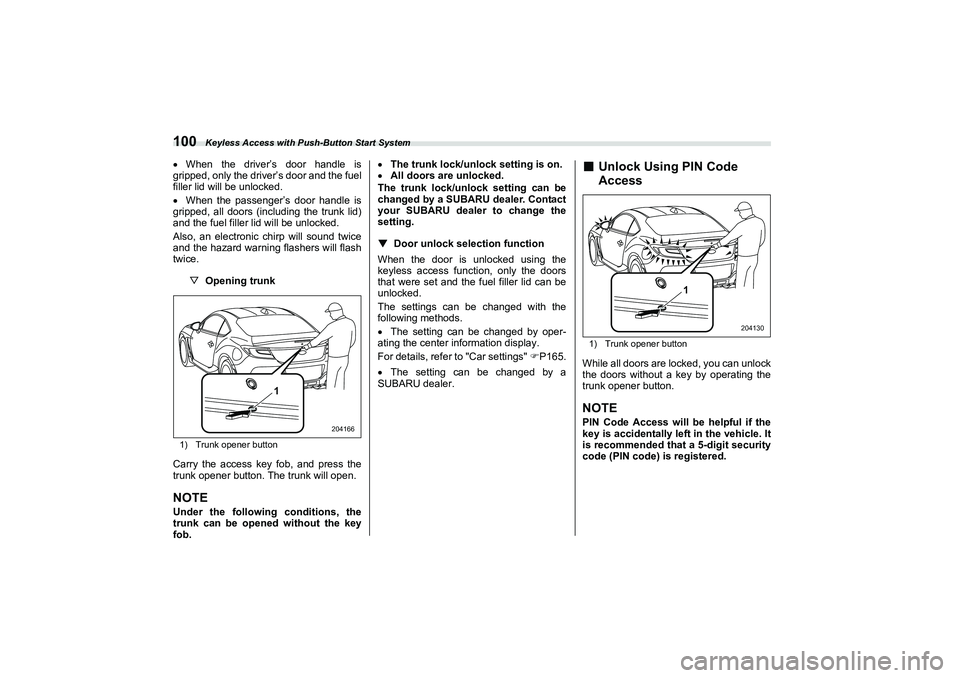

Keyless Access with Push-Button Start System
100When the driver’s door handle is
gripped, only the driver’s door and the fuel
filler lid will be unlocked.
 When the passenger’s door handle is
gripped, all doors (including the trunk lid)
and the fuel filler lid will be unlocked.
Also, an electronic chirp will sound twice
and the hazard warning flashers will flash
twice.
▽ Opening trunk1) Trunk opener buttonCarry the access key fob, and press the
trunk opener button. The trunk will open.NOTEUnder the following conditions, the
trunk can be opened without the key
fob. 
The trunk lock/unlock setting is on.
 All doors are unlocked.
The trunk lock/unlock setting can be
changed by a SUBARU dealer. Contact
your SUBARU dealer to change the
setting.
▼
Do or unlock selection function
When the door is unlocked using the
keyless acces s function, only the doors
that were set and the fuel filler lid can be
unlocked.
The settings can be changed with the
following methods.
 The setting can be changed by oper-
ating the center information display.
For details, refer to "Car settings" P165.
 The setting can be changed by a
SUBARU dealer.
■
Unlock Using PIN Code
Acces s1) Trunk opener buttonWhile all doors are locked, you can unlock
the doors without a key by operating the
trunk opener button.NOTEPIN Code Access will be helpful if the
key is accidentally left in the vehicle. It
is recommended that a 5-digit security
code (PIN code) is registered.
1
204166
1
204130
B5=B8.ERRN 100 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Keyless Access with Push-Button Start System
106center information display. For details,
refer to "Car settings" P165.
Furthermore, the volume setting of the
audible signal can also be changed by a
SUBARU dealer. Consult your SUBARU
dealer for details.■
Selecting Hazard Warning
Flasher Operation
Using the hazard warning flasher, the
system will give you a visible signal when
the doors are locked or unlocked. If
desired, you can turn the hazard warning
flashers off by operating the center infor-
mation display. For details, refer to "Car
settings" P165. The setting can also be
changed by a SUBARU dealer. Consult
your SUBARU dealer for details.■
Warning Chimes and
Warning Indicator
The keyless access with push-button start
system is equipped with a warning chime
and the access key wa rning indicator in
order to minimize improper operations
and help protect your vehicle from theft.
For details, refer to "Warning Chimes and
Warning Indicator of the Keyless Access
with Push-Button Start System"  P143.
■
When Access Key Fob Does
Not Operate Properly
Refer to "Access Key Fob – If Access Key
Fob Does Not Operate Properly" P325.■
Replacing Battery of Access
Key Fob
Refer to "Replacing Battery of Access Key
Fob" P376.■
Replacing Access Key Fob
Access key fobs can be replaced at
SUBARU dealers. For more details,
contact a SUBARU dealer.■
Certification for Keyless
Access with Push-Button
Start System
 U.S.-spec. models
FCC ID: HYQ14AHK
FCC ID: Y8PSU19S-3
FCC ID: Y8PSSPIMB03 This device complies with part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any interfer-
ence received, including interference that
may cause undesired operation.
CAUTION
FCC WARNINGChanges or modifications not
expressly approved by the party
responsible for compliance could
void the user’s authority to operate
the equipment.
B5=B8.ERRN 106 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Remote Keyless Entry System
109
Keys and Doors2
– CONTINUED –
2-3. Remote Keyless Entry System
Access key fob
1) Lock/arm button
2) Unlock/disarm button
3) Trunk lid opener button
4) PANIC buttonThe remote keyless entry system has the
following functions.
Locking and unlocking the doors and
fuel filler lid
 Opening the trunk lid
 Sounding a panic alarm
 Arming and disarming the alarm
system. For details, refer to "Alarm
System" P114.
The operable distance of the remote
keyless entry system is approximately 30
feet (10 meters). Ho wever, this distance
will vary depending on environmental
conditions. The system’s operable distance will be shorter in areas near a
facility or electronic equipment emitting
strong radio waves such as a power plant,
broadcast station, TV tower, or remote
controller of home electronic appliances.
NOTE
The remote keyless entry system
will not be activa ted when the push-
button ignition switch is in any posi-
tion other than the “OFF” position.
 The hazard warning flashers will
flash once or twice when the access
key fob button is pressed in the
following cases. - When locking the doors
- When unlocking the doors
If desired, you can turn the hazard
warning flashers off by operating the
center information display. For details,
refer to "Car settings" 
P165. The set-
ting can also be changed by a
SUBARU dealer. Consult your
SUBARU dealer for details.
The setting of the Remote Keyless
Entry System operation can be
changed by your SUBARU dealer.
Consult your SUBARU dealer for
details. For details, refer to "Function
Settings and Adjustments Performed
by a Dealer" 
P391.
CAUTION
Do not expose the remote trans-
mitter to severe shocks, such as
those experienced as a result of
dropping or throwing.Do not take the remote trans-
mitter apart except when
replacing the battery.Do not get the remote transmitter
wet. If it gets we t, wipe it dry with
a cloth immediately. When you carry the remote trans-
mitter on an airplane, do not
press the button of the remote
transmitter while in the airplane.
When any button of the remote
transmitter is pressed, radio
waves are sent and may affect the
operation of the airplane. When
you carry the remote transmitter
in a bag on an airplane, take
measures to prevent the buttons
of the remote transmitter from
being pressed.
202502
1
2
3
4
B5=B8.ERRN 10 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Remote Keyless Entry System
110■
Locking the Doors
Press the “ ” button to lock all doors and
fuel filler lid. An electronic chirp will sound
once and the hazard warning flashers will
flash once.
If any of the doors are not fully closed, an
electronic chirp sounds 5 seconds to alert
you that the doors are not properly closed.
When you close the door, it will automati-
cally lock and then the following will occur.
 An electronic chirp sounds once.
 The hazard warning flashers flash
once.■
Unlocking the Doors
Press the “ ” button to unlock the driver’s
door and the fuel filler lid. An electronic
chirp will sound twice and the hazard
warning flashers will flash twice. To unlock
all doors, briefly press the “ ” button again
within 5 seconds.NOTEIf the interval between the first and
second presses of the “ ” button (for
unlocking of all of the doors) is
extremely short, the system may not
respond.
■
Opening the Trunk Lid
Press and hold the “ ” button to open
the trunk lid. An electronic chirp will sound
once.
This operation setting can be changed by
a SUBARU dealer. Consult your SUBARU
dealer for details.■
Setting Audible Signal Oper -
ation (If Equipped)
Using an electronic chirp, the system will
give you an audible signal when the doors
lock and unlock.
If desired, you can turn the audible signal
off by operating the center information
display. For details, refer to "Car settings"
 P165. Furthermore, the volume setting
of the audible signal can also be changed
by a SUBARU dealer. Consult your
SUBARU dealer for details.■
Selecting Hazard Warning
Fl asher Operation
Using the hazard warning flasher, the
system will give you a visible signal when
the doors are locked or unlocked. If
desired, you can turn the hazard warning
flashers off by operating the center infor-
mation display. For details, refer to "Car
settings" P165. The setting can also be changed by a SUBARU dealer. Consult
your SUBARU dealer for details.
■
Vehicle Finder Function
Use this function to find your vehicle
parked among many vehicles in a large
parking lot. Provided you are within 30
feet (10 meters) of the vehicle, pressing
the “ ” button three times in a 5-second
period will cause your vehicle’s horn to
sound once and its hazard warning
flashers to flash three times.NOTEIf the interval between presses is too
short when you press the “ ” button
three times, the system may not
respond to the signals from the remote
transmitter.■
Sounding a Panic Alarm
To activate the alarm, press the “PANIC”
button once.
The horn will sound and the hazard
warning flashers, headlights, side marker
lights, tail lights and map lights will flash.
To deactivate the panic alarm, press any
button on the remote transmitter. If a
button on the remote transmitter is not
pressed, the alarm will be deactivated
after approximately 60 seconds.
B5=B8.ERRN 110 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分
